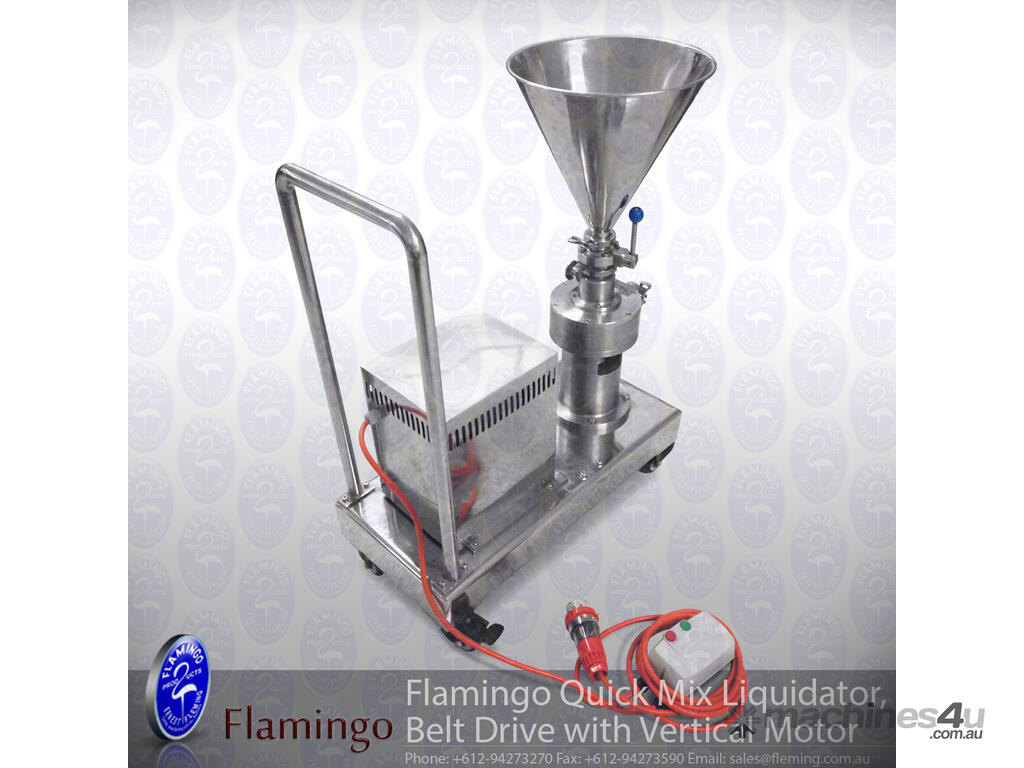

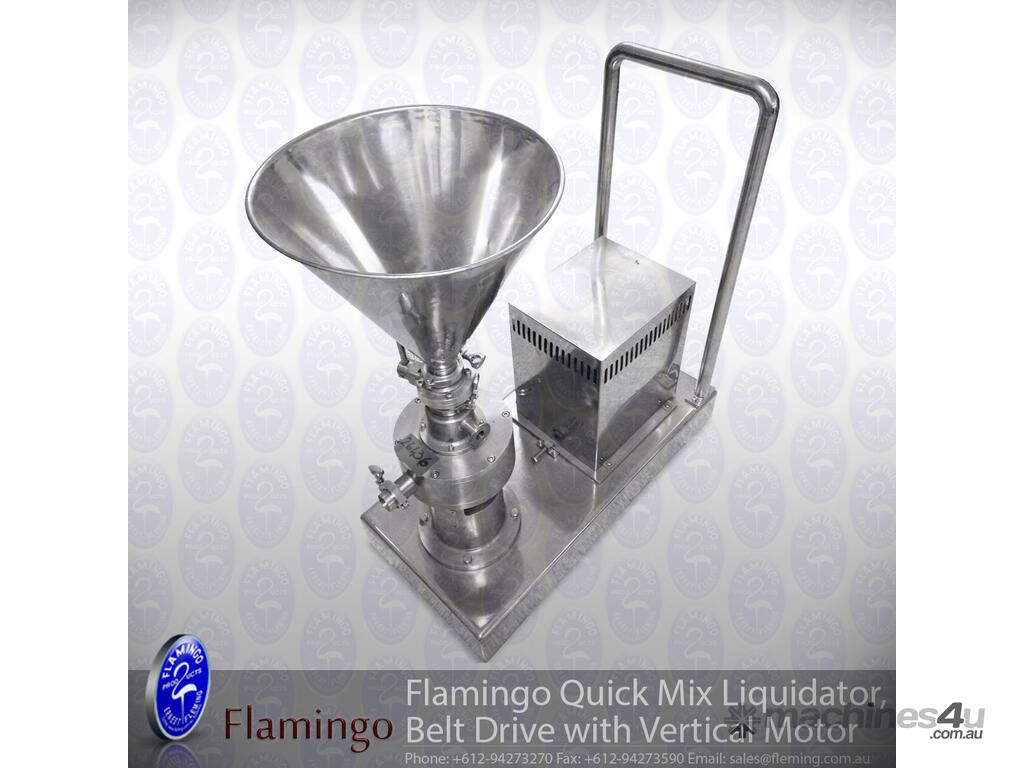

AUSTRALIAN MADE Flamingo Quick Mix Liquidator 7.5kW EF-AU-QML-7500 -SS316 Contact Part

The Flamingo Quick-Mix is very effective where the addition of solids is required. The process involves the simple addition of powders to a continuous liquid stream. The introduction of the powder is into the high shear zone of the Quick-Mix and thus avoids prior contact with the liquid phase which may create "fish eyes" of partially wetted material. The instant dispersion of the solids into the liquid through a screen (changeable) creates a homogeneous product. The product can then be recirculated via a holding tank to ensure that the whole batch is identical. The Quick-Mix can then be used as a pump to transfer the finished product to a holding tank.



FEATURES:

All wetted parts grade 316 stainless steel
Australian design & manufacture
External seal for sanitary operation
Hygienic design
TEFC motors 415 volt 3 phase/Ex'e'
Choice of screens
Hygenic quick opening for easy cleaning, no tools required for dismantling
Three machines in one, powder inductor, emulsifier and centrifugal pump
Low cost, high efficiency



SPECIFICATION:



Model/KW
Inlet
Outlet


NQMV/4.0
38 mm
32 mm


NQMV/5.5
38 mm
32 mm


NQMV/7.5
50 mm
50 mm
