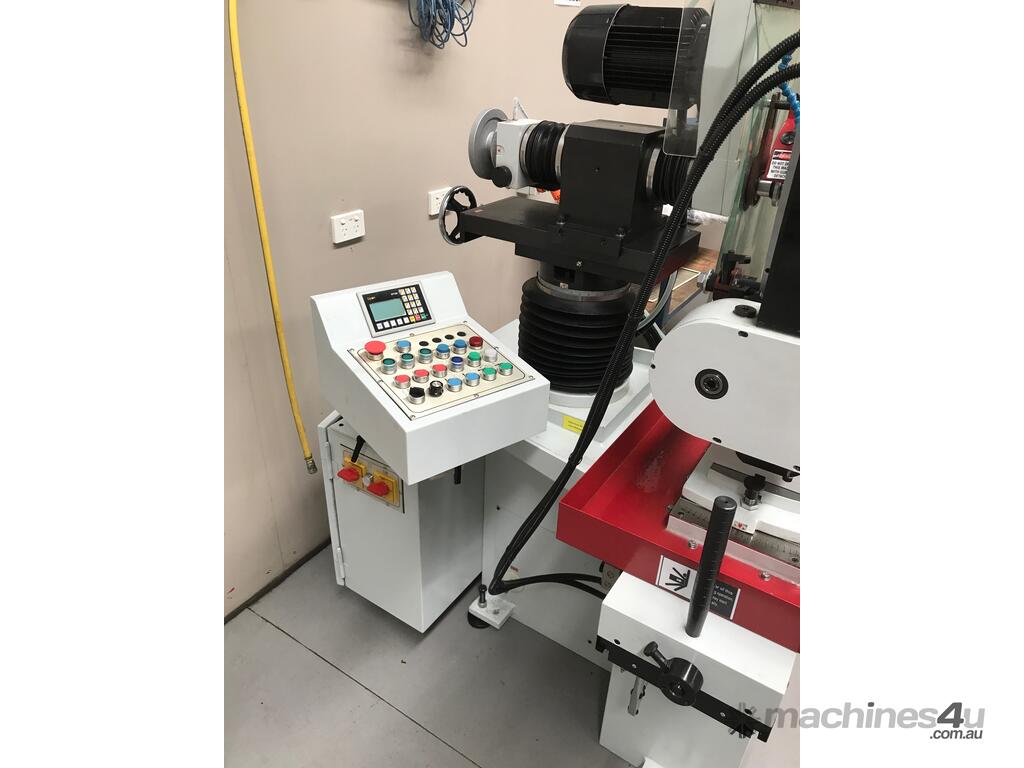

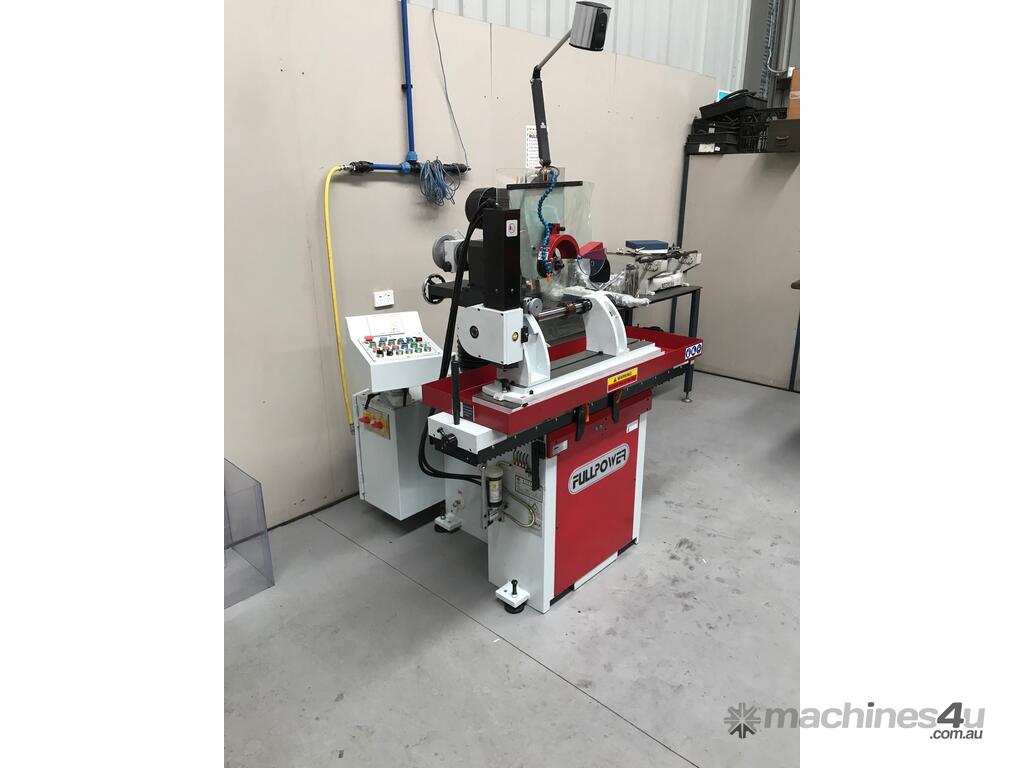

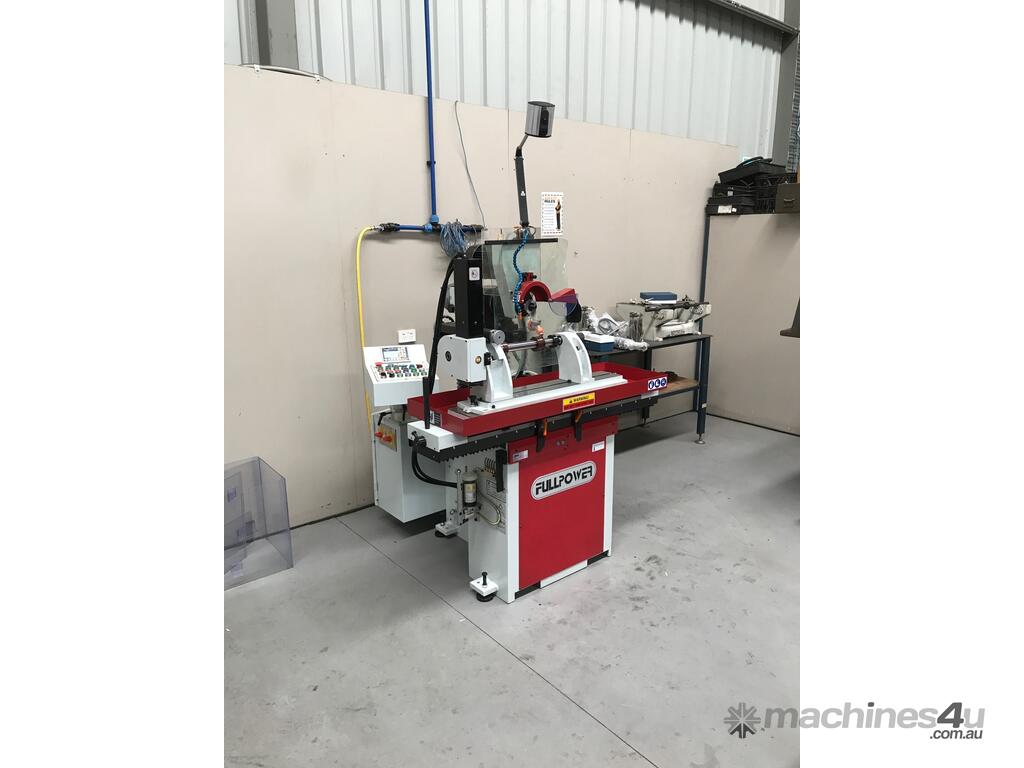

AUTOMATIC TOOL GRINDER (MODEL: ATG-350)

This universal tool grinder suitable for all types of tooling from straight planing heads to finger joint cutters. With automatic traversing, indexing & wheel feed the ATG-350 will complete the grinding operation without the need for any additional input from the operator.

Finger joint cutters 160mm - 250mm Diameter
Bore As per order
Grinding Length 350mm
Wheels Size 175mmD x 22mmB
Wheel Speed 3000 rpm
Wheel Motor 2 HP
Coolant Pump 1/8 HP
Hydraulic Motor 1 HP
Dividing Motor 400 W
Wheel Rise & Fall Motor 1/3 HP
Machine Size 1400mmL x 1120mmW x 1730mmH
Machine Weight 1050Kg

*Disclaimer*
Note: All photos and pricing are indicative only and have been prepared in good faith and with due care. Photos provided may include some optional features. Please contact us for an accurate quotation.
