AVANT ASPHALT GRINDER ATTACHMENT

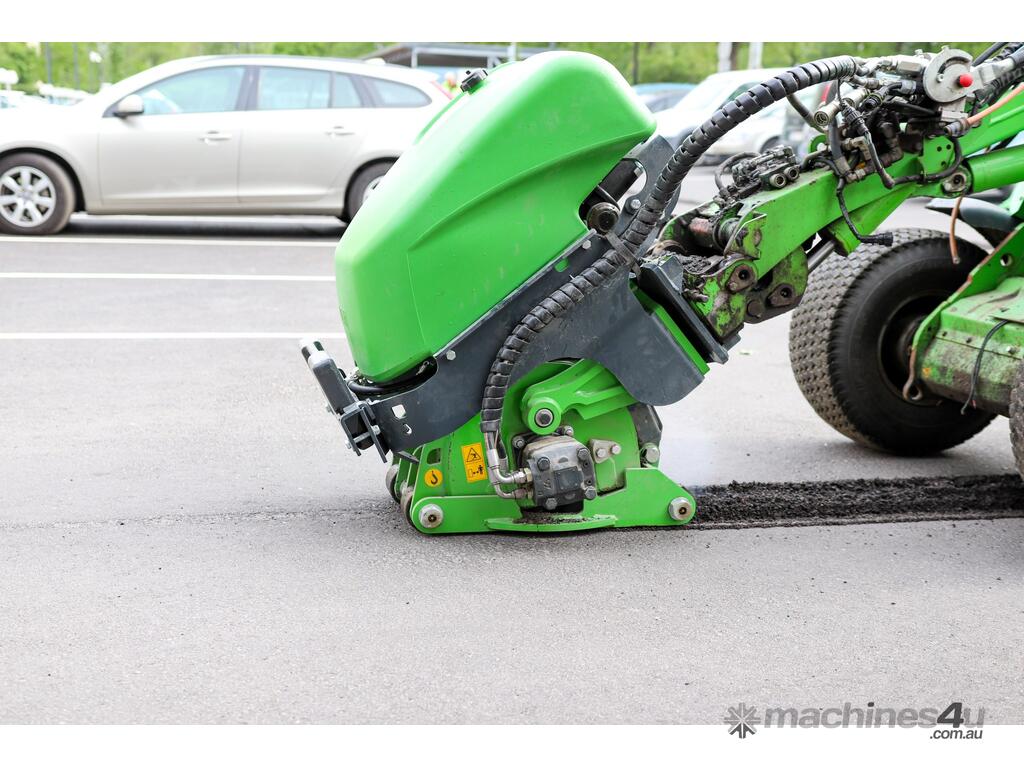

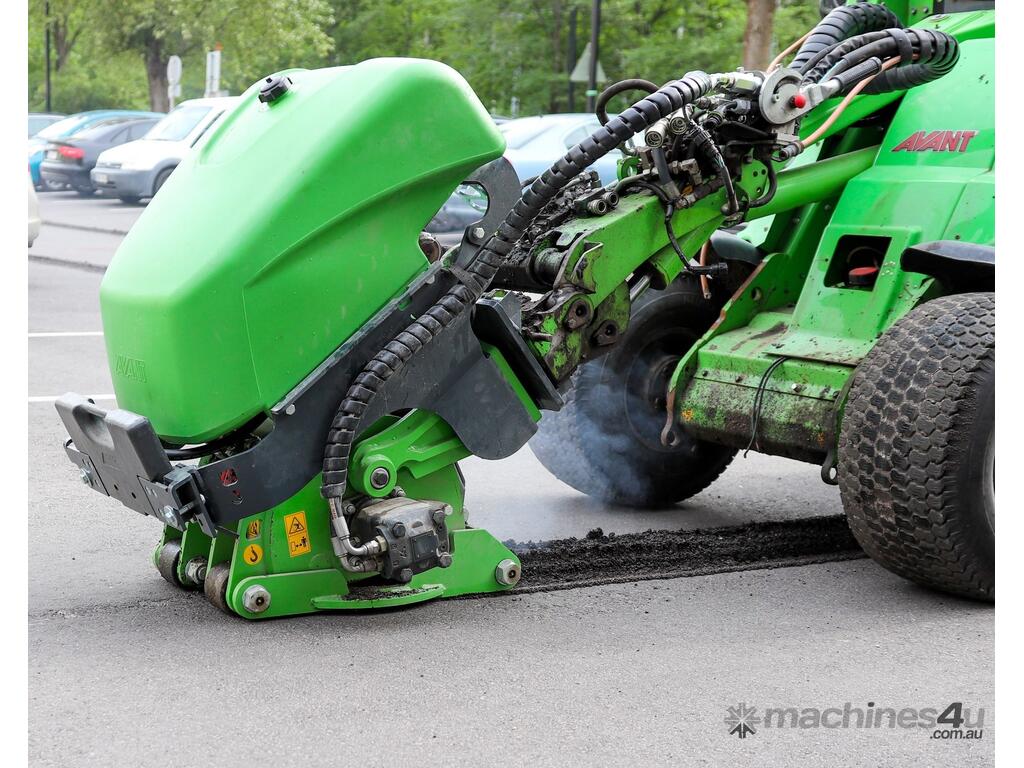

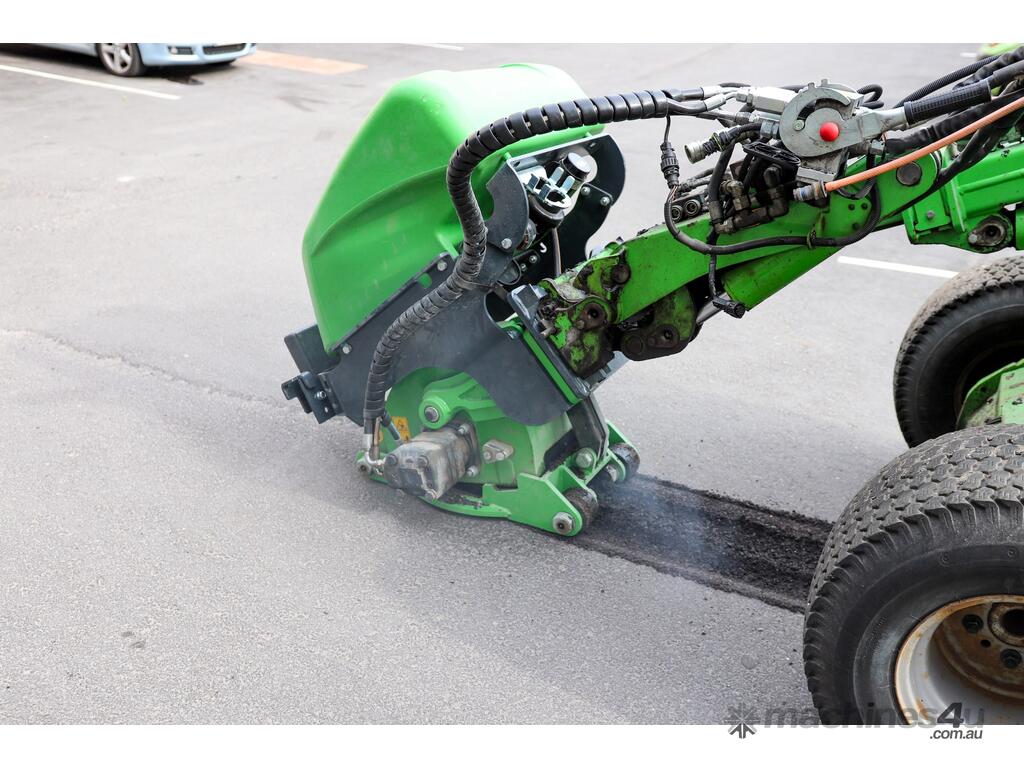

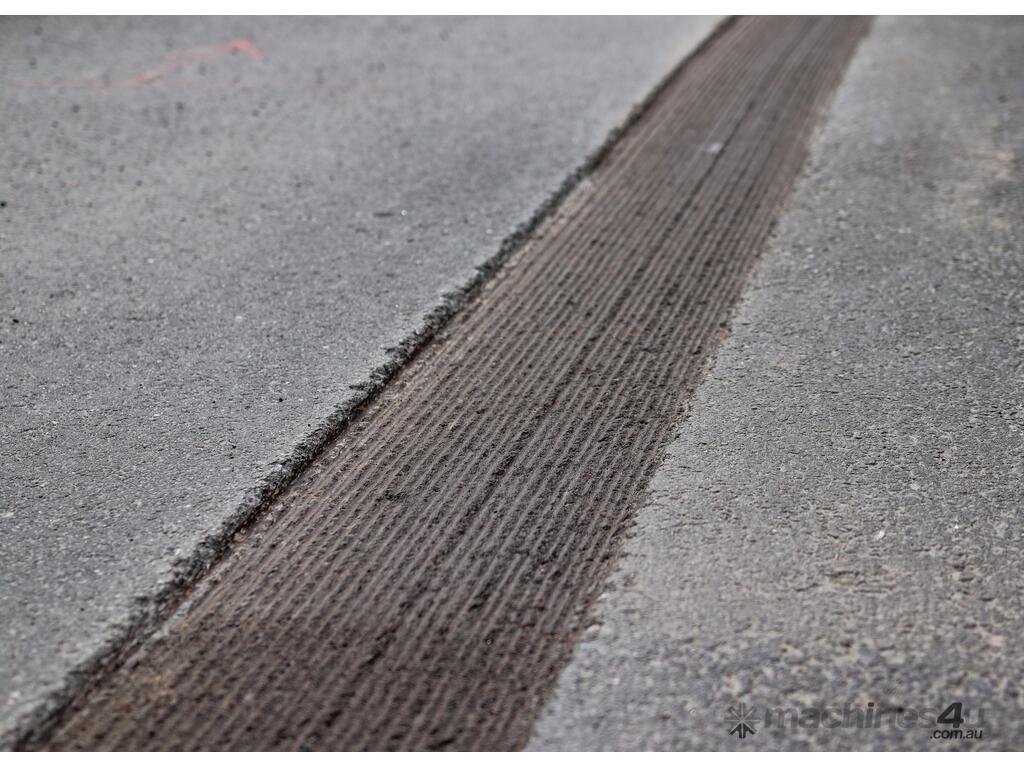

The strong and efficient Avant Asphalt Grinder (also called a cold planer) is an ideal attachment for asphalt road and pavement repairs and utility jobs. It grinds away the asphalt surface up to 80 mm depth, making repair of potholes, utility cuts, small overlays and edge repairs fast and easy.

Different types of teeth are available for grinding of asphalt or concrete. Water spraying system is available as an option. It is mounted on top of the planer and is equipped with 120 l water tank and nozzle bar (same as on Avant collecting broom), membrane pump and strainer filter. Also, 3 pcs Avant 29 kg counterweights can be mounted on the water tank support frame to add weight when grinding hard asphalt etc. material.

If side shift is needed, the hydraulic side shift adapter A37235 is available as an option. It requires the optional second auxiliary hydraulics front outlet on the loader.

- Efficient grinder for asphalt road and pavement repairs and utility jobs
- Different type of teeth available
- Hydraulic side shift adapter and water spraying system for dust binding available as an option

Technical Information
Working Width 300 mm
Total Width 660 mm
Grinding depth 0-80 mm
Length 810 mm
Height 480 mm
Weight 245 kg
No. of cutting teeth 29 pieces
Product no A432621

Optional Water spraying system - Mounts on top of the grinder
