AVANT AUGER ATTACHMENT

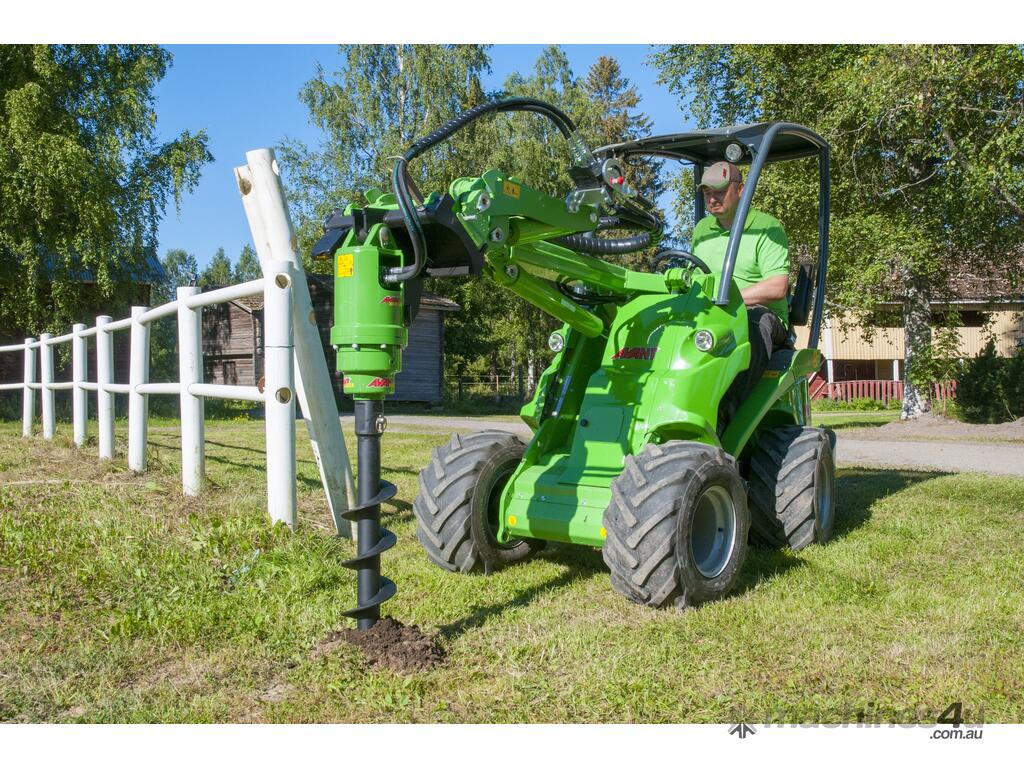

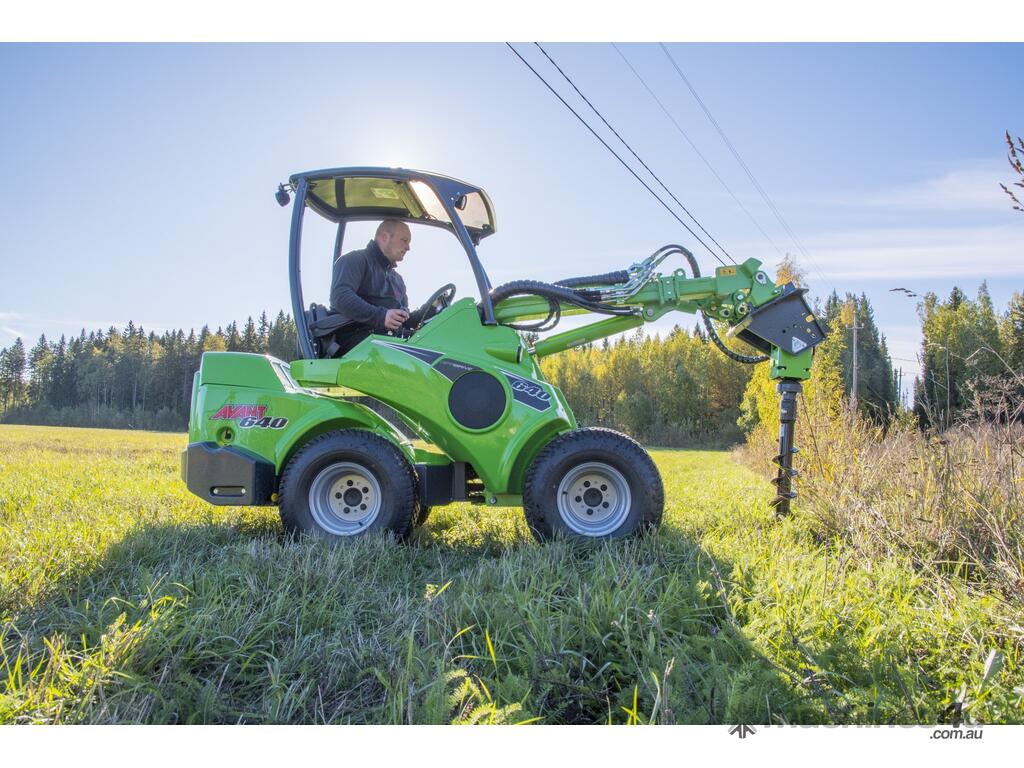

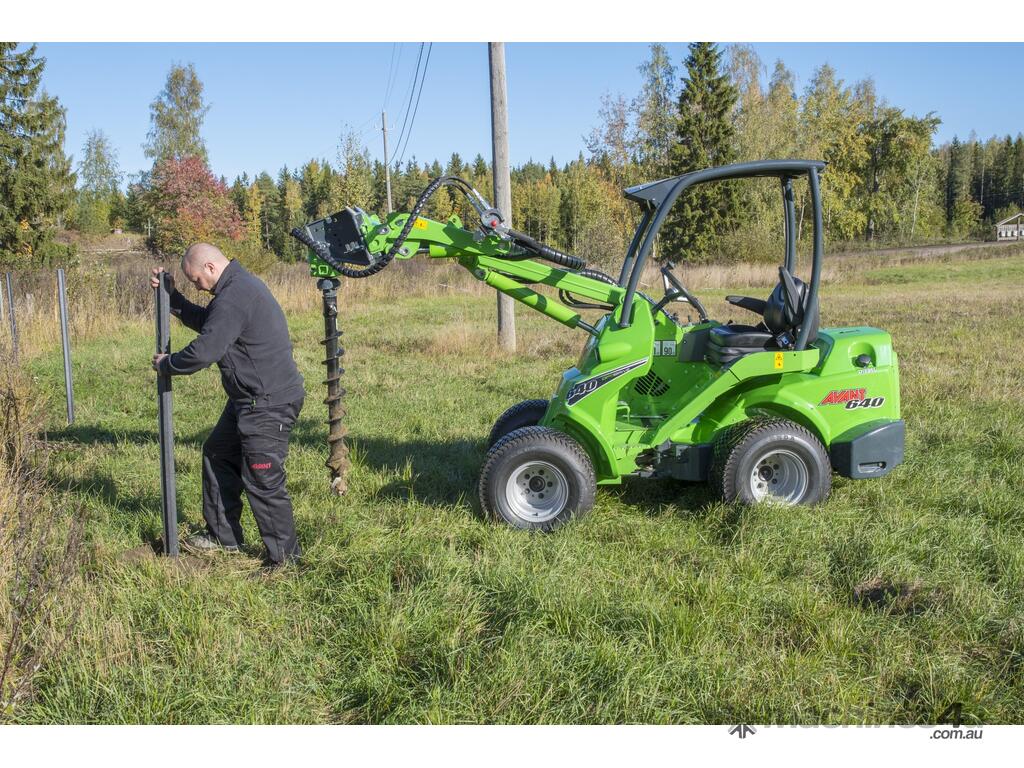

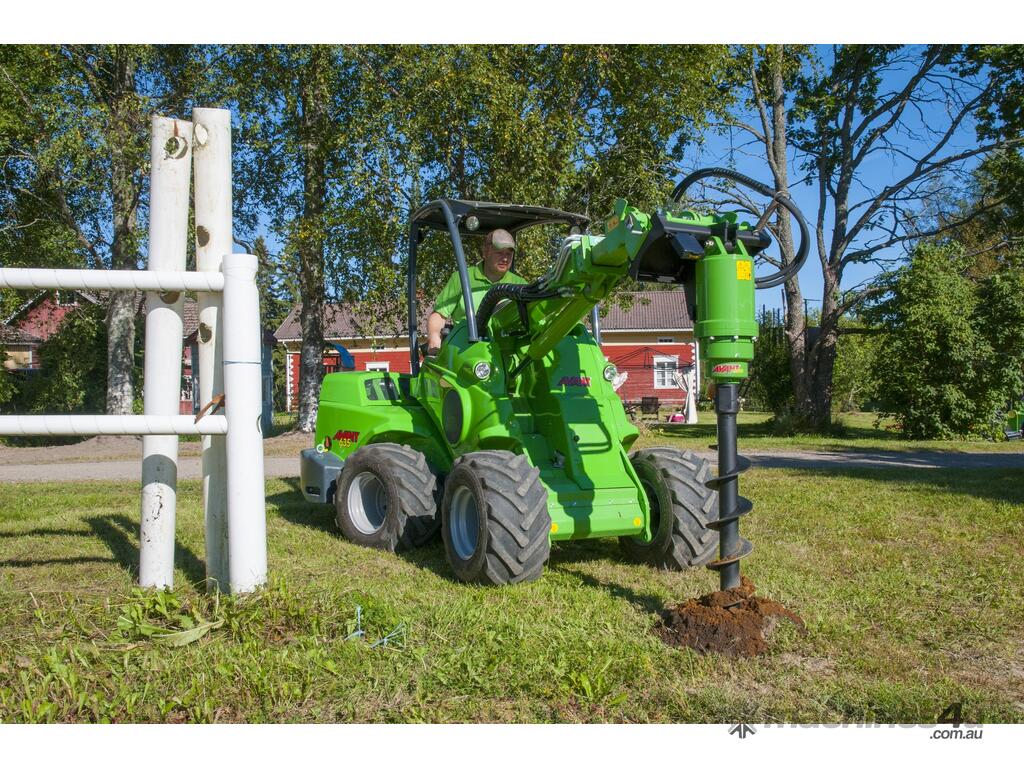

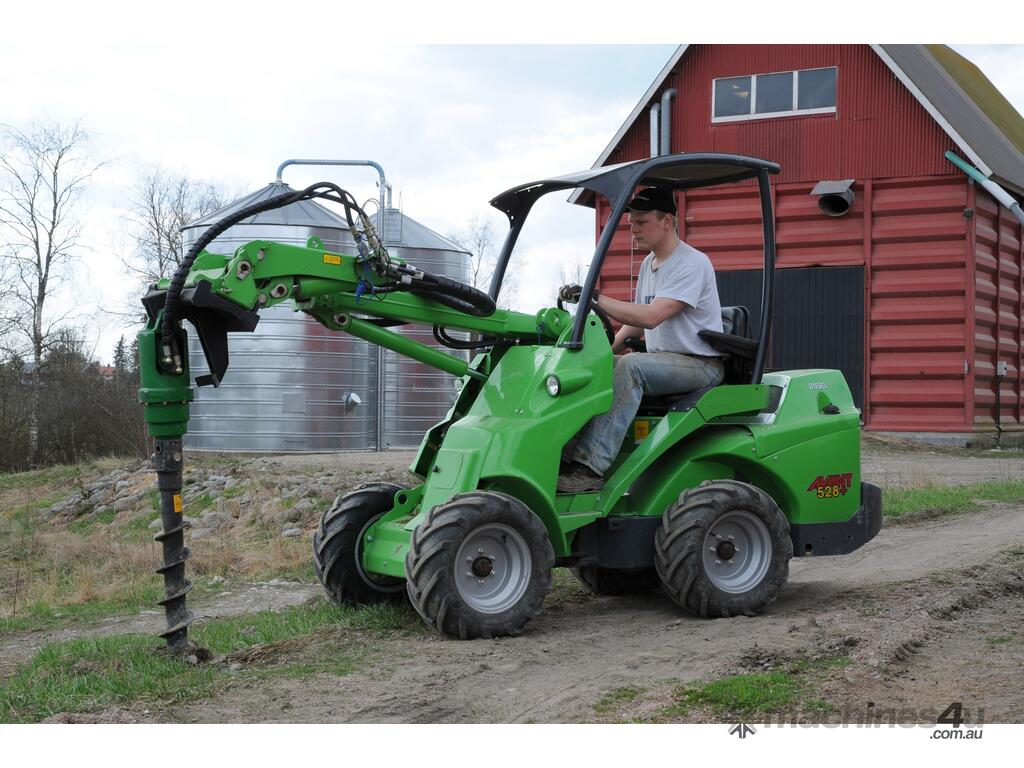

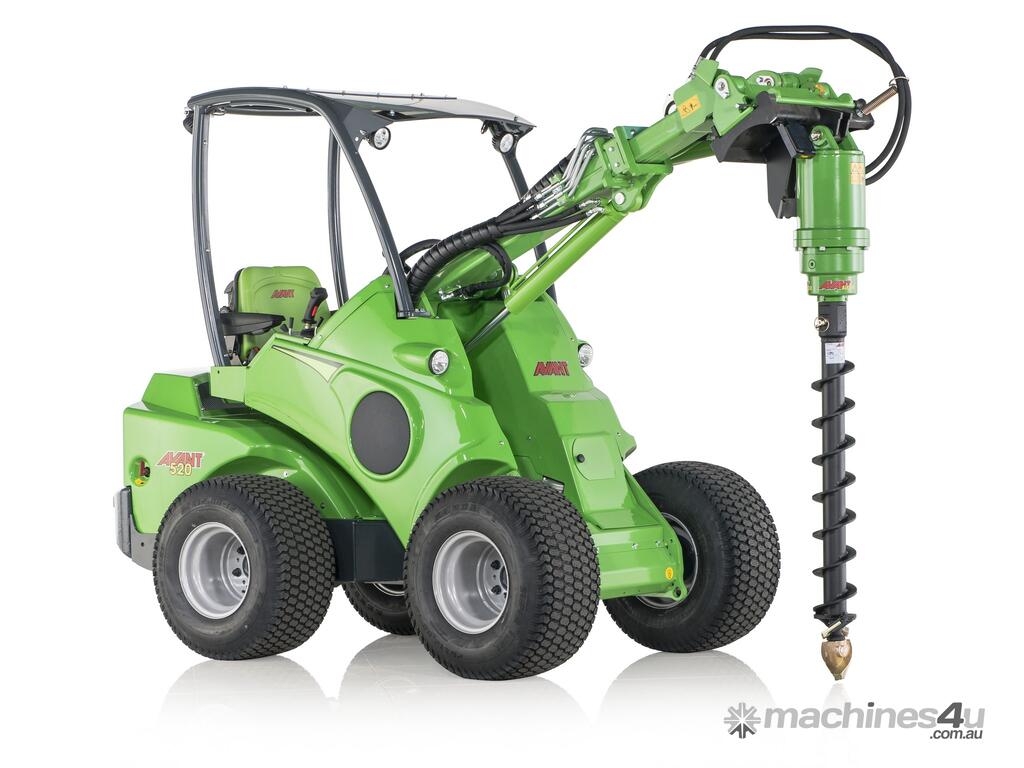

The Avant Auger attachment for mini loaders, is a powerful hydraulic auger with many different drill diameters to suit various tasks, be it post hole boring, tree transplanting etc. Standard drive unit has hydraulic motor and direct drive to the auger. Heavy duty drive unit is equipped with planetary drive to increase torque, needed especially in hard ground conditions or when using large diameter augers.

Replaceable tungsten teeth and center pilot are a standard feature in the auger drills. This enables drilling in hard ground, as well as in sandstone. Combination of an articulated Avant and auger offer excellent visibility and minimum ground damage.


- Wide range of auger drive units with different torques enables efficient use of 75 mm to 900 mm auger drills
- The right drive unit for your work depends on the maximum drill diameter needed. Choose the drive unit from the table below.
- The replaceable tungsten teeth and center pilot on all auger drills ensure long lifespan for professional day to day use
- 2 way swing adapter to HD auger drives, allows the auger and auger drive to swing sideways. A hole can then be drilled straight no matter how the machine is positioned.

TECHNICAL INFORMATION
Model Drills Torque Product no
Direct Drive 75-300 mm 1355 Nm A37190
HD mm 2452 Nm A33552
HD mm 3017 Nm A33551
HD mm 3874 Nm A34032

OPTIONS
Product Product no
Drill 75 mm A34225
Drill 100 mm A33601
Drill 150 mm A33608
Drill 200 mm A33609
Drill 225 mm A33610
Drill 250 mm A33611
Drill 300 mm A33612
Drill 350 mm A33613
Drill 400 mm A33614
Drill 450 mm A33615
Drill 500 mm A33616
Drill 600 mm A33617
Drill 750 mm A33618
Drill 900 mm A33619
Extension 500 mm A33546
Extension 800 mm A32532
Extension 1000 mm A33554
2 way swing adapter to HD auger drives (allows the auger and auger drive to swing sideways as well) A421877
Screw pile adapter A418530
