AXIS SMART CNC ROUTER

Our NEW SMART range of CNC router combine extremely good value with exceptional build quality to give our customers an industrial grade CNC router without the pitfalls of going hobbyist class CNC.

In fact this machine range can also suit the hobbyist wanting the very best performance for very little in comparison to some of the competition.

This industrial grade starter CNC router system can be used in a wide range of applications such as (but not limited to):
SIGN MAKING - ENGINEERING. - FABRICATION. - JOINERY - FABRICATION

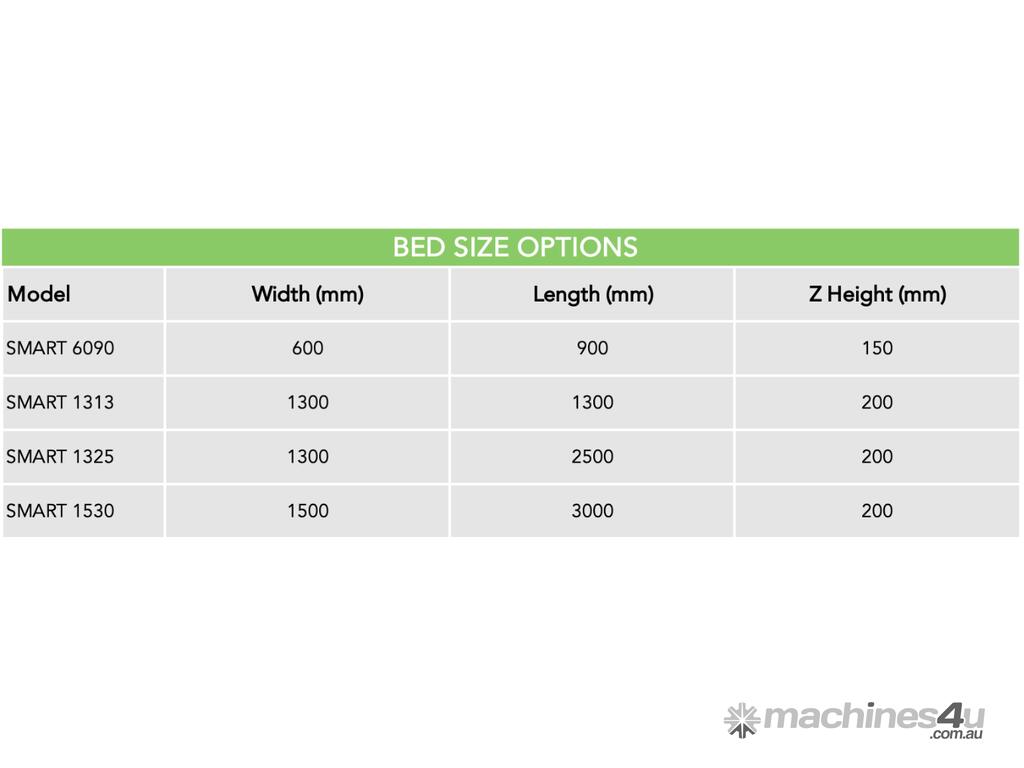

Robust components and a great design, our Smart range come in standard be sizes of:
Coupled with our renowned after sales service and over 20 years of supplying industrial grade machinery, this should be on your list

AXIS CNC Smart Router
X axis 2000mm, Y axis 3000mm, Z axis 200mm,
Lathe Structure Seamless welded steel structure,
X,Y Structure Rack and pinion transmission, Square linear guide rails,
Z Structure Taiwan-made rolling ball-screw, Square linear guide rails
Max. Idling Speed 35m/min,
Spindle 4.5KW,
Spindle Speed 0-18000r/min,
Variable speed Inverter 5.5KW,
Working Voltage AC415V/50-60Hz, 3 phase,
Driver Yako, Working Mode Hybrid servo,
Motor Woking Hybrid servo,
Command G code (HPGL,U00,mmg,plt),
Operating System, DSP NK105,
Diameter of Cutter ?3.175-?12.7,
Cooling Mode Air-cooling,
Dust-collect Function,
Work-Holding By vacuum suction also can by clamp ,
Software Artcam
