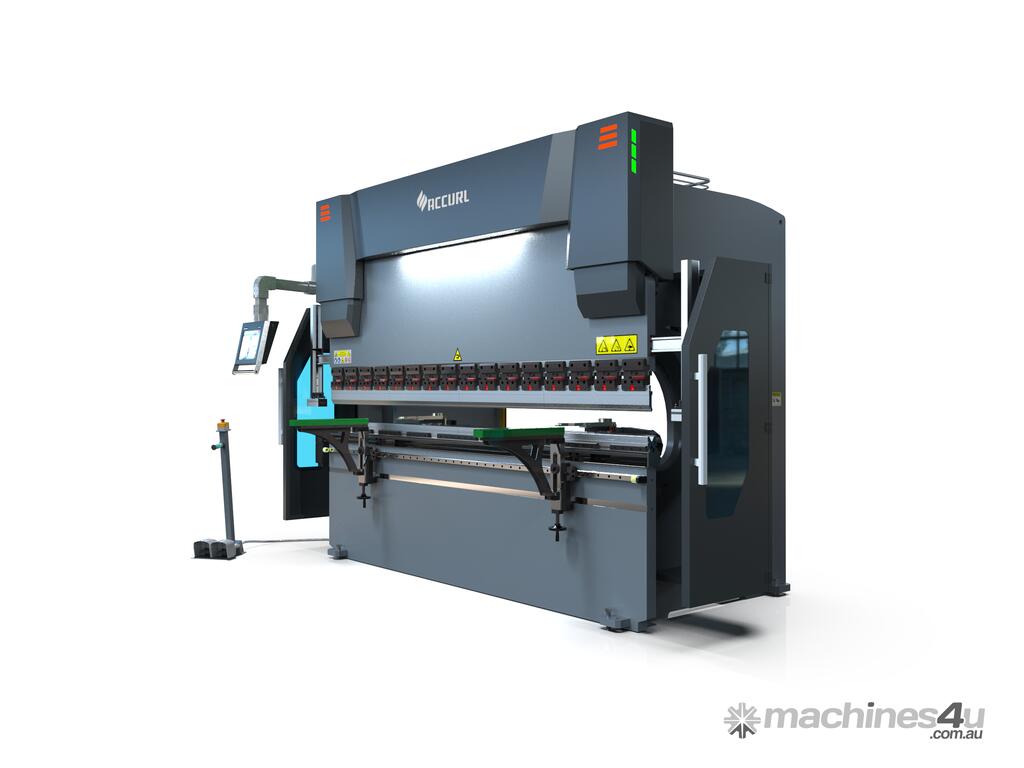

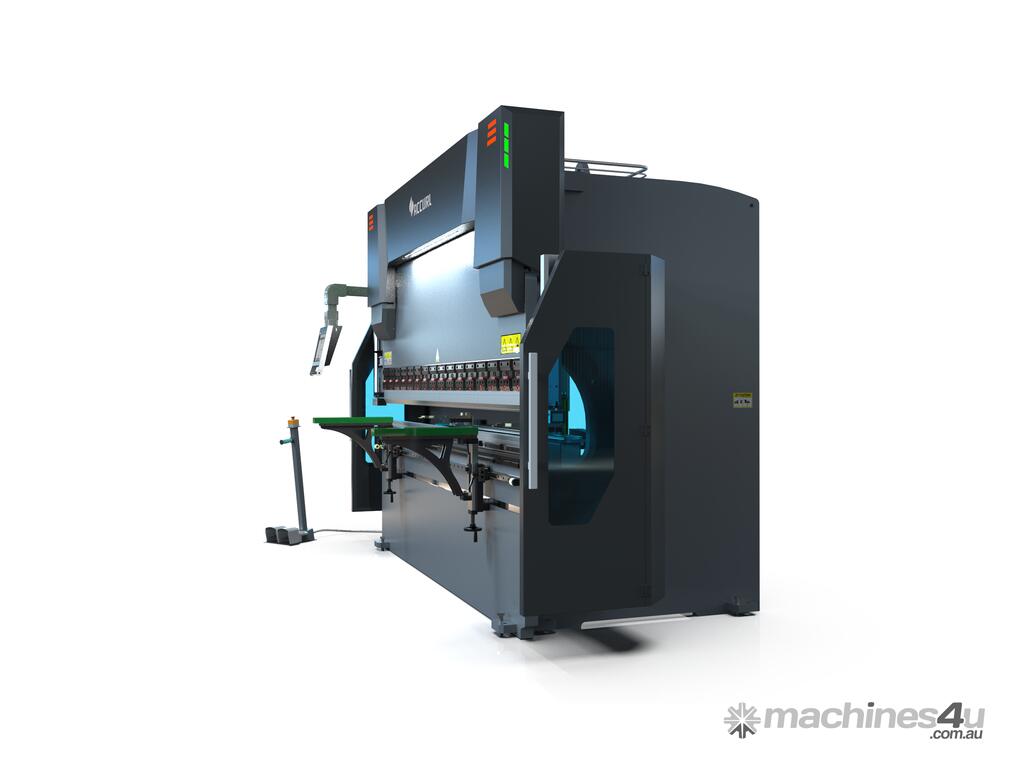

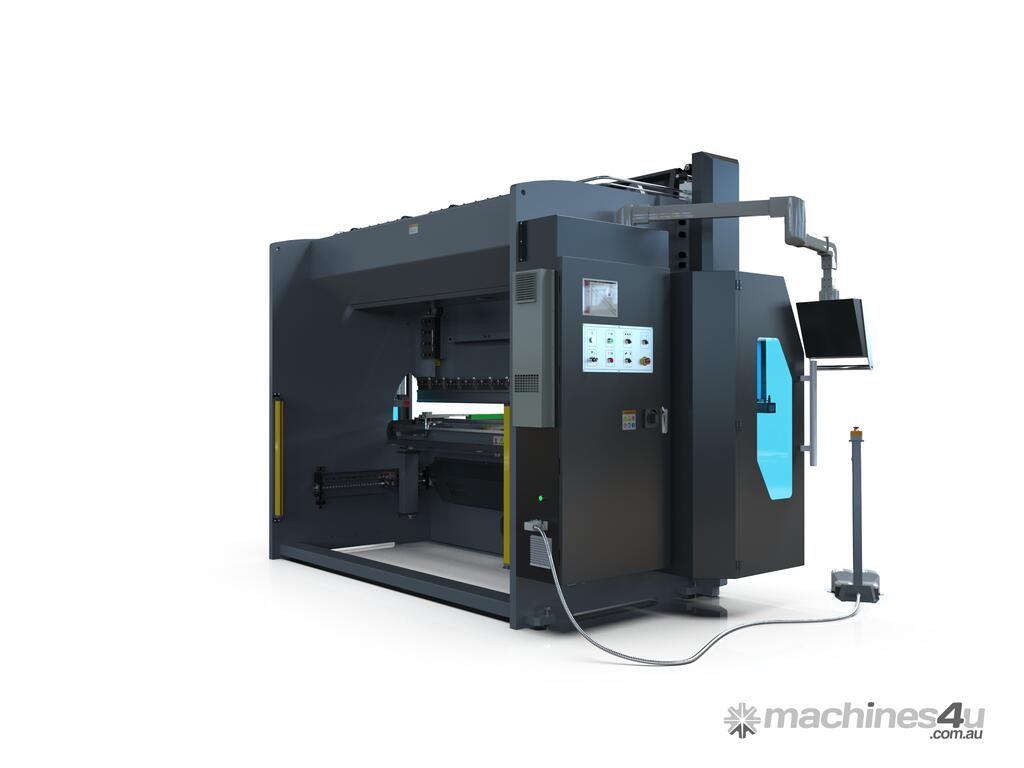

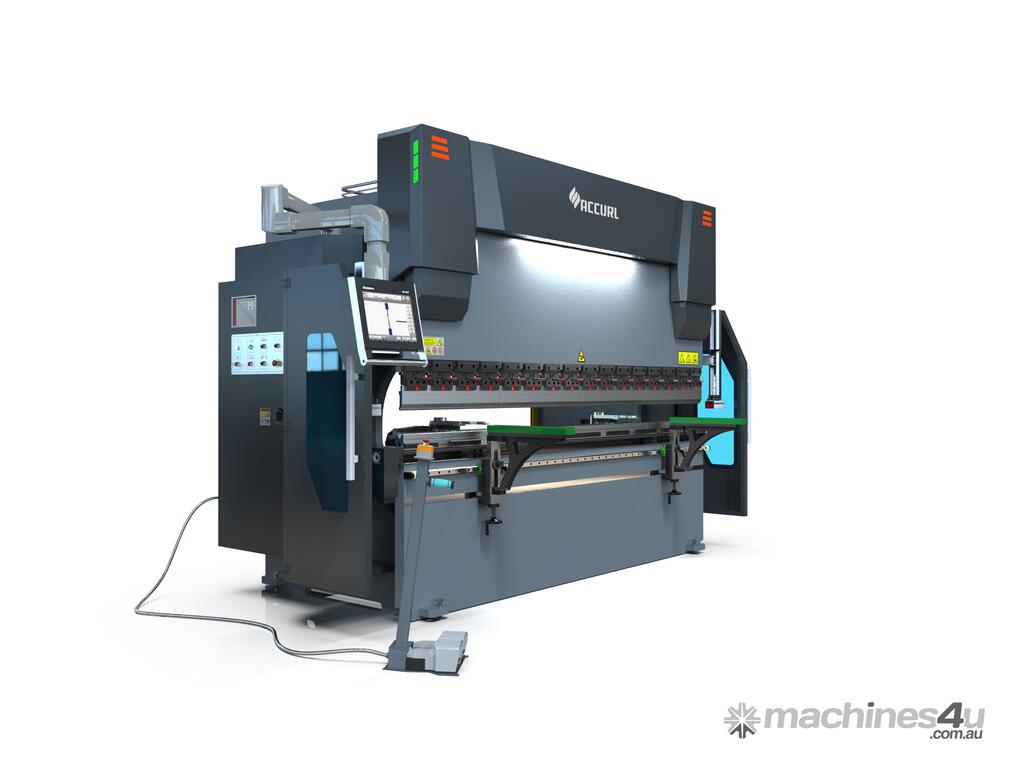

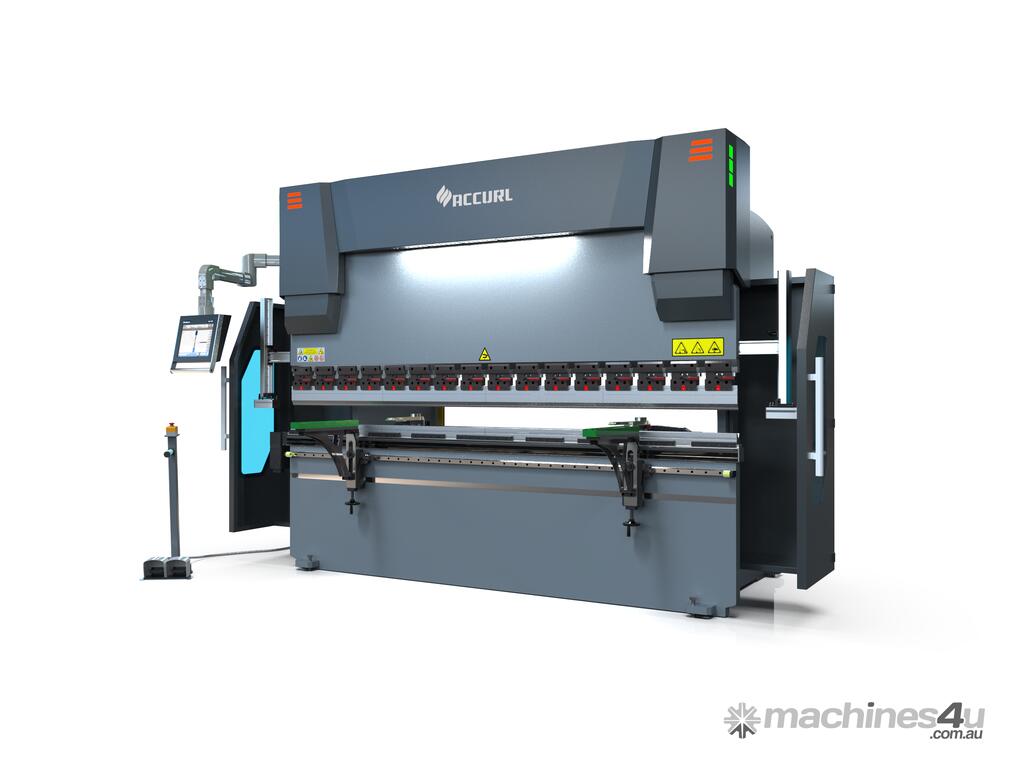

The AccurlCMT Euro Pro series offers excellent value for money, these CNC press brakes have an unrivalled price to performance ratio. The AccurlCMT Euro Pro is a price orientated range that offers fantastic features for those wanting to move away from a simpler torsion bar press brake into a feature packed CNC machine at an affordable price.
With features like a servo energy saving hybrid hydraulic system, a Delem DA-53T touch screen controller with a 2D graphical interface and job drawing function, tri tool bottom die setup and next gen upper tool clamping its not hard to see why this range of press brakes are so popular.
The advantage of the AccurlCMT range of sheet metal working machinery is that a full suite of sheet metal machinery is offered that can grow with your business. You may start with a press brake and guillotine and then get a flat bed laser, tube laser and turret punch down the track, with AccurlCMT you have the option of buying these all from the same supplier making it easier to manage your entire factory of machinery.
Buy from a company who knows CNC press brakes and sheet metal machinery and has been selling them for well over 20 years.

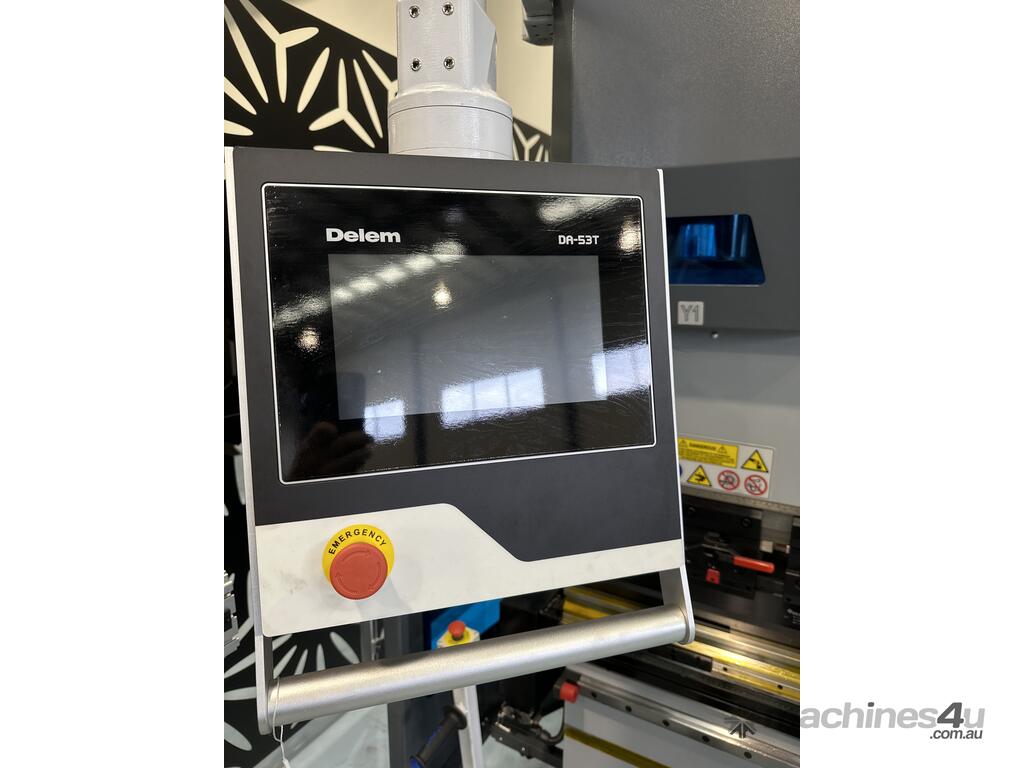

The Delem 2D touch screen graphical controller offers a powerful controller but with a simple and easy to use interface, the ability to see a 2D graphical representation of the job reduces the chance of error and material wastage. With the large touch screen programming is easy to do and the visual representation is easier to follow.
This machine as with all AccurlCMT machines uses quality components and comes with a comprehensive list of standard features
Features -

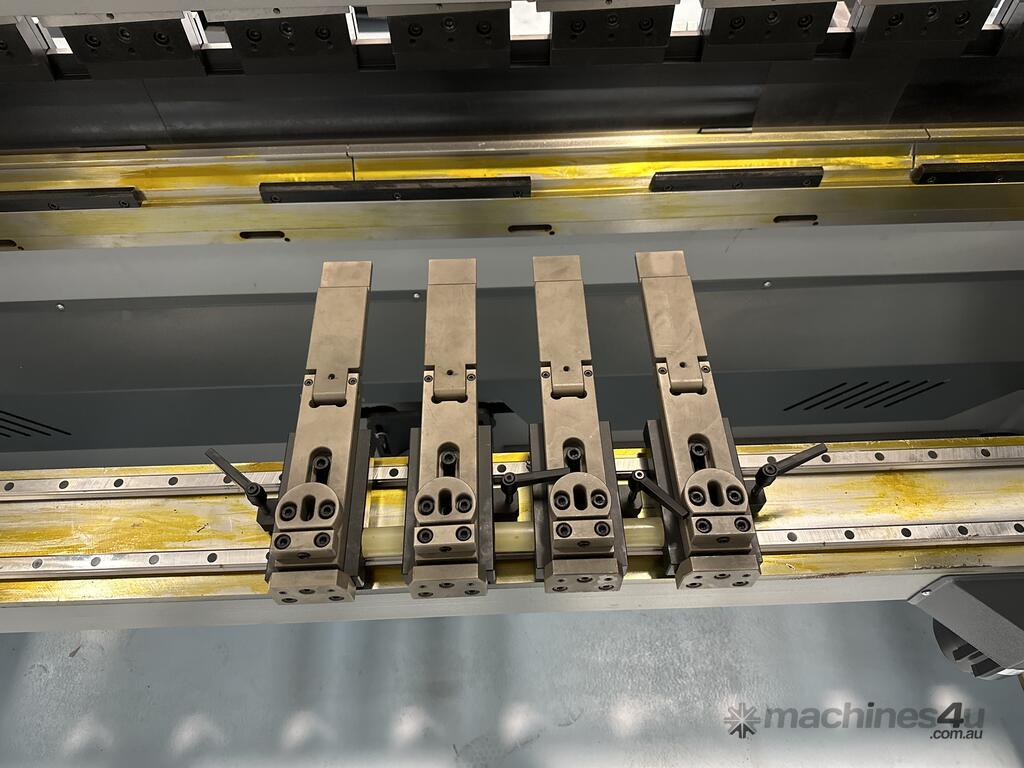

1. Linear guided front supports.

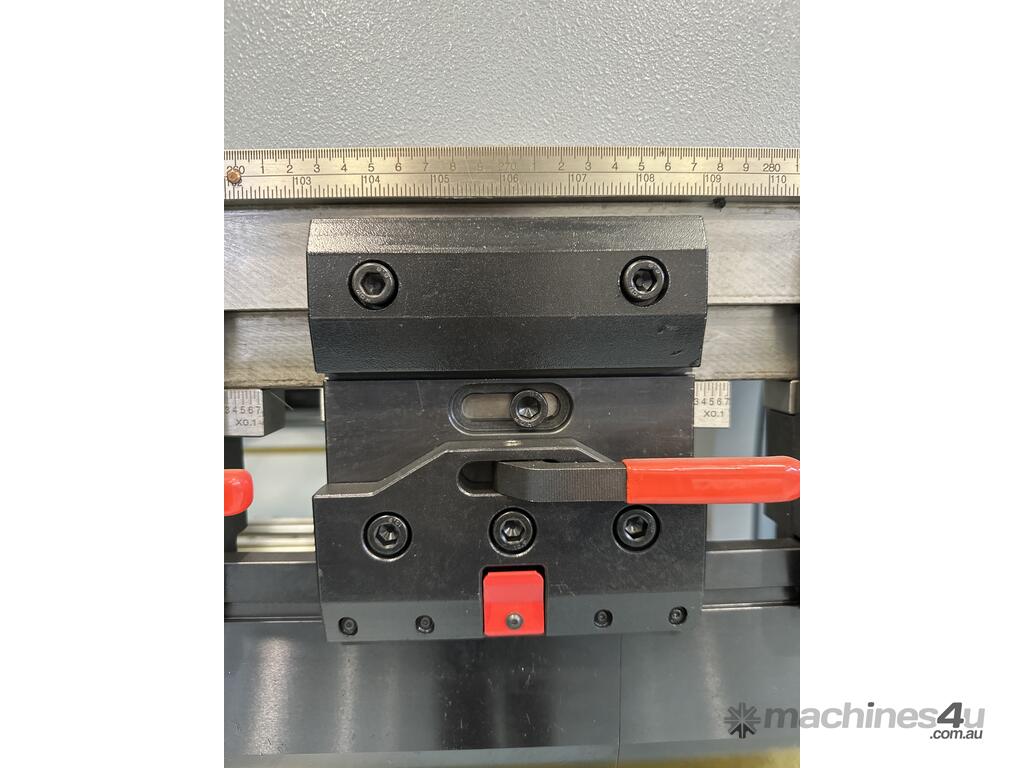

2. Next Gen Quick release tool clamps – front removal so you don’t have to slide out of the side.
3. European type sectioned top punch to length of machine.
4. Additional 835mm top punch segmented to 100mm left ear, 10, 15, 20, 40, 50, 200, 300 & 100mm right ear.
5. European type punch holder.
6. 60mm bottom table width – 60mm 4 sided self centring vee block.

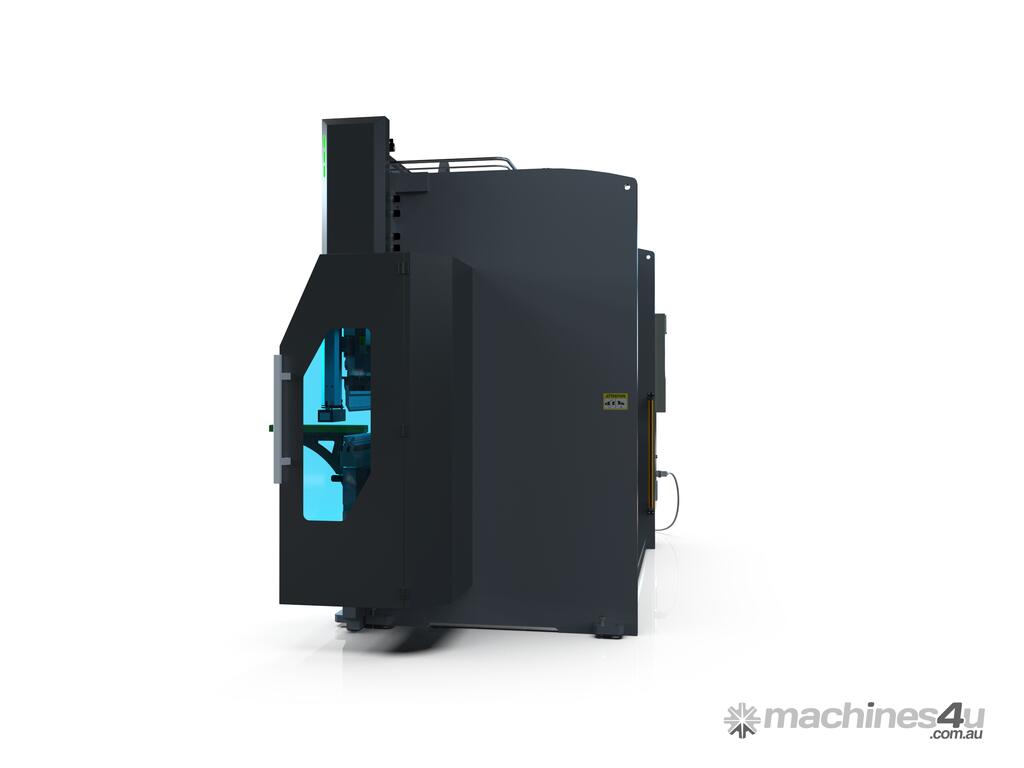

7. Safety side covers with interlock switch.

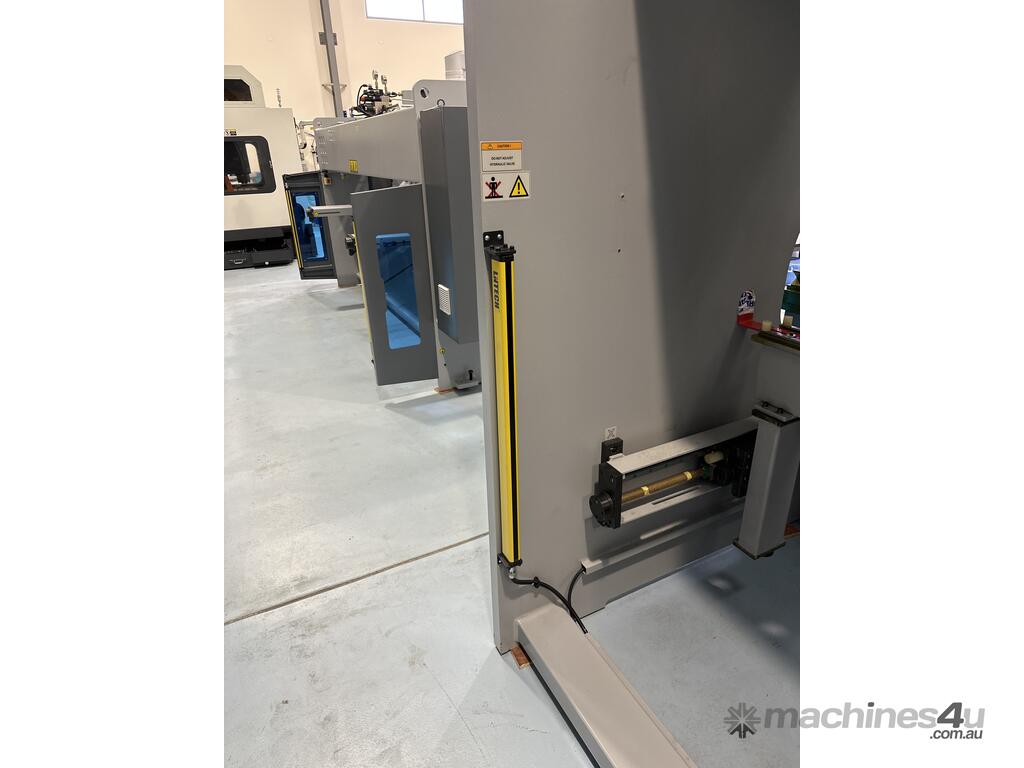

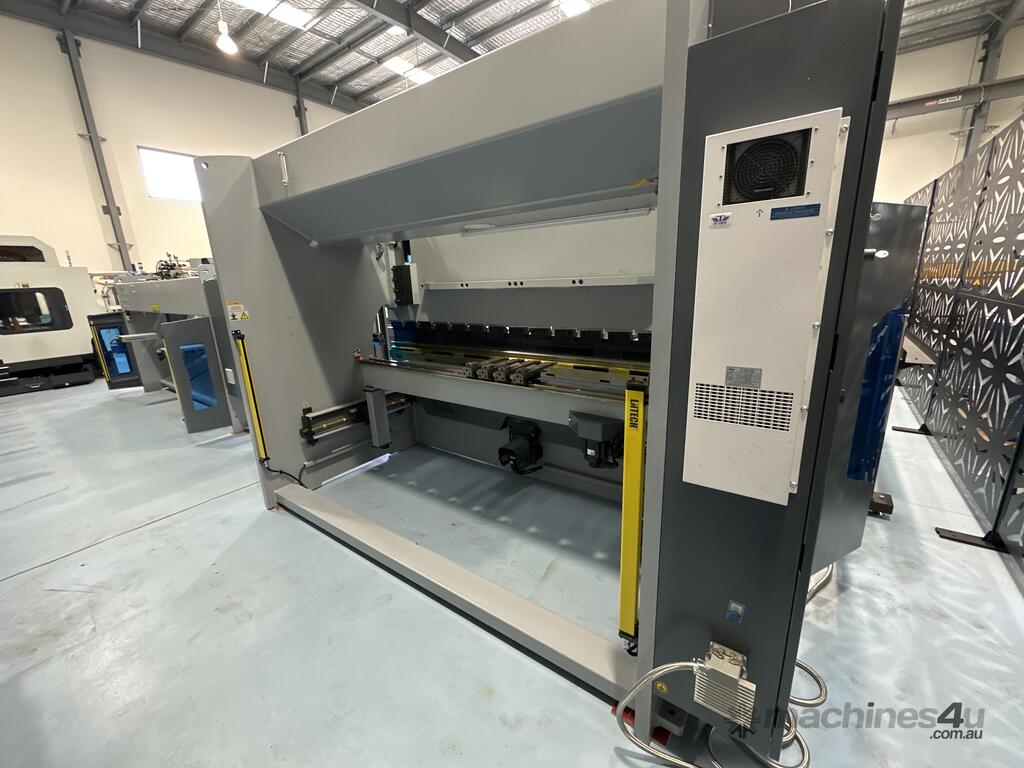

8. Safety back light curtains.

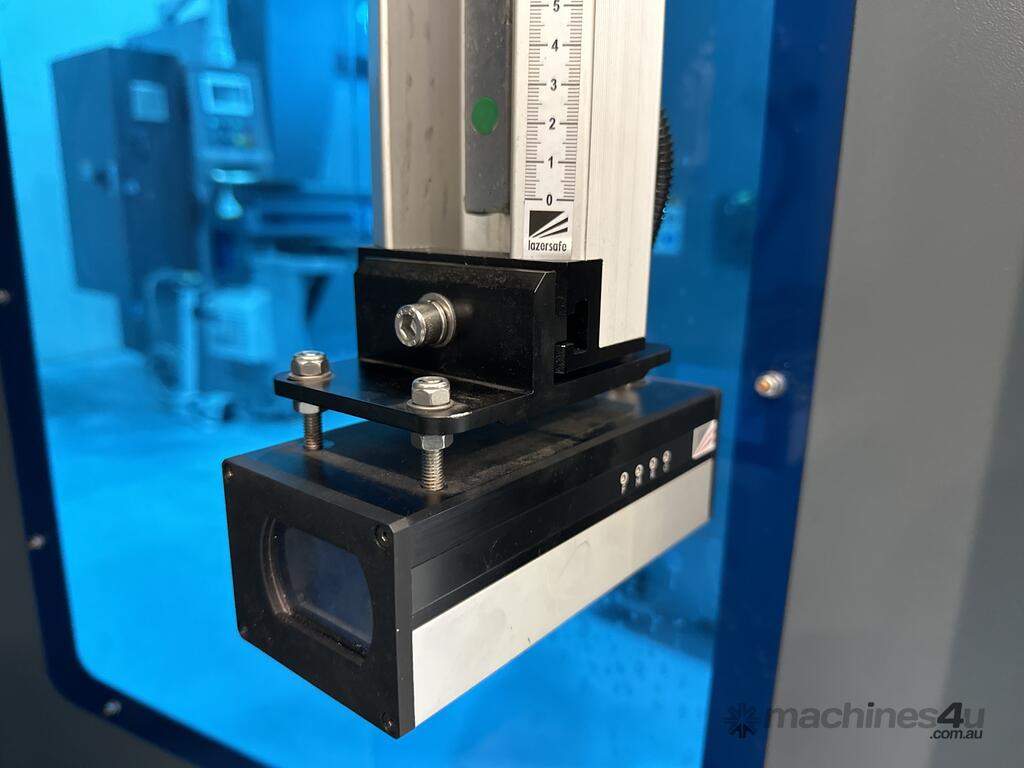

9. CE Safety with Lasersafe guarding.
10. Top quality componentry.
11. Foot pedal with E-stop.
12. Inverter drive for main motor – motor switches off when not in use.
13. CNC controlled mechanical crowning system.
14. Very quite operation due to inverter drive.
15. ECO friendly using only the power required when pressing.
16. Y1/Y2/X & R and crowning all CNC controlled.

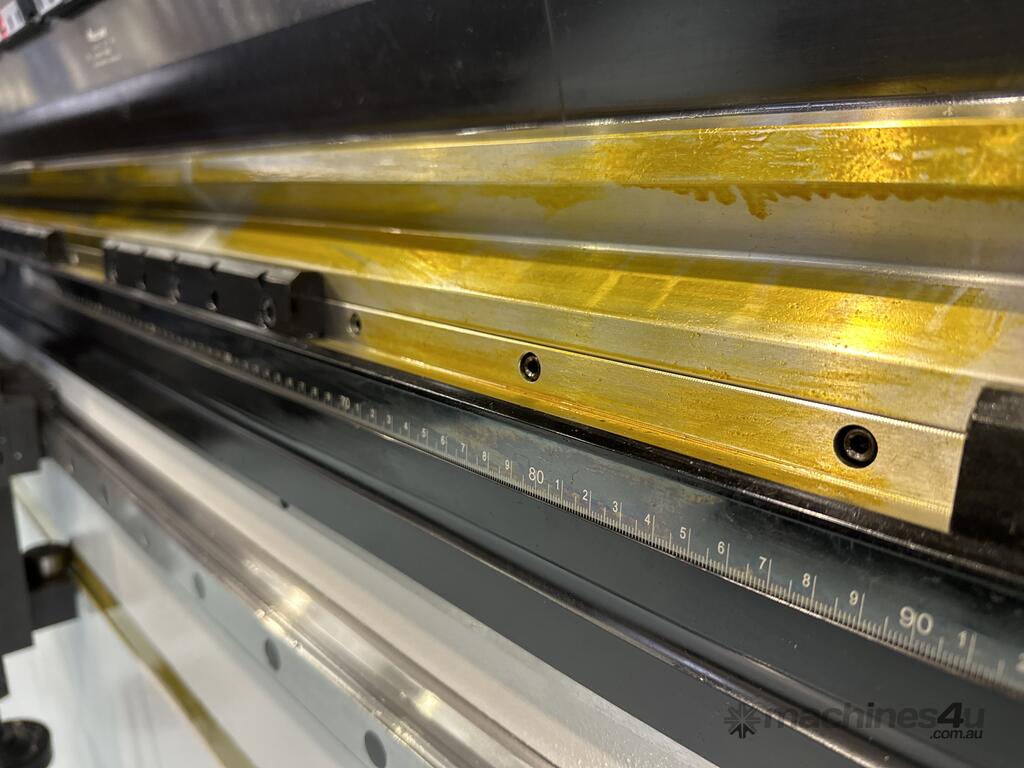

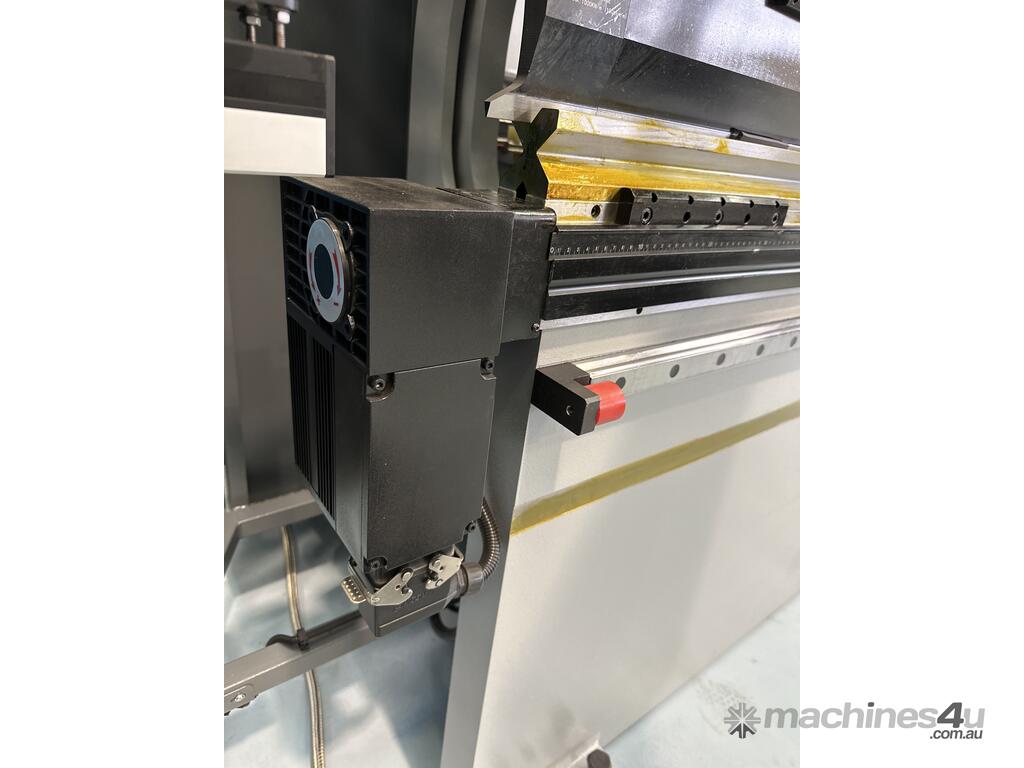

17. Linear guides for back gauge fingers.
18. Inbuilt LED lighting in front cover for extra visibility.
19. Ability to option machine up with multiple back gauge axes.
20. Delem DA-53T controller

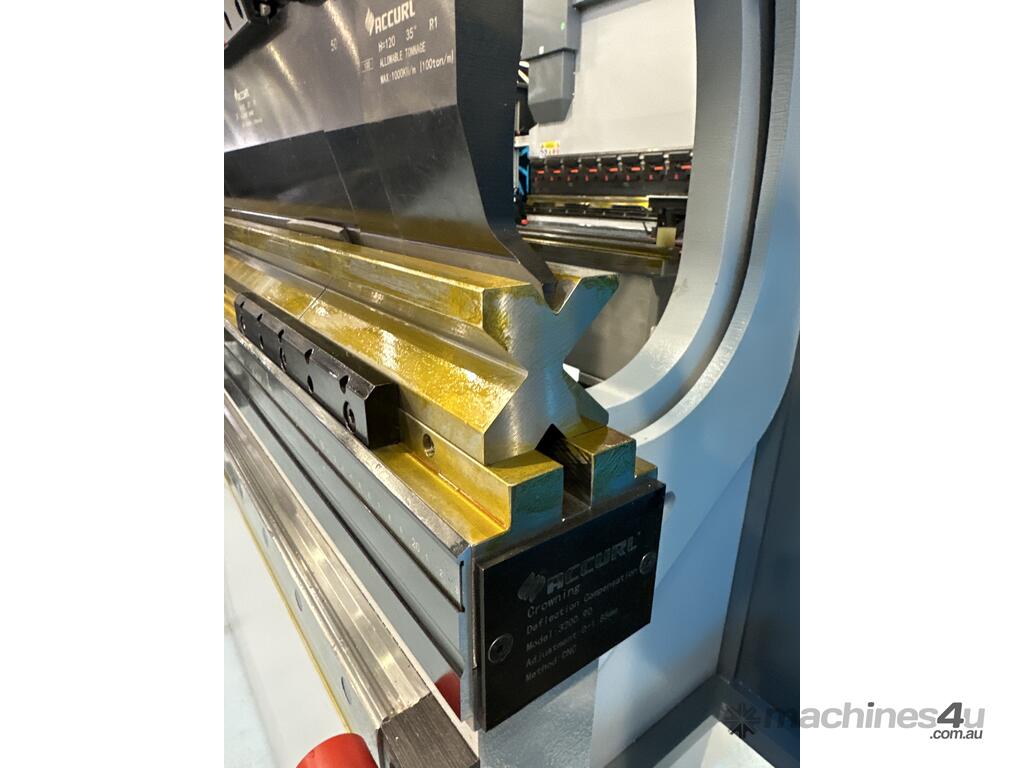

21. Tri tool configuration bottom tool holder
Specs -
Nominal pressure 1350 KN
Distance between uprights 3300 mm
Ram stroke 150 mm
Approach speed 180 mm/s
Return speed 150 mm/s
Working speed 10 mm/s
Length of work table 4000 mm
Throat depth 450 mm
Width of work table 60 mm
Oil tank capacity 160 L
Number of oil tanks 1
Open height 450 mm
Main motor power 7.5 Kw
X Axis
Accuracy +/- 0.05 mm
Stroke 750 mm
Speed 350 mm/s
Power 0.85 Kw
R Axis
Accuracy +/- 0.10 mm
Stroke 250 mm
Speed 170 mm/s
Power 0.85 Kw
