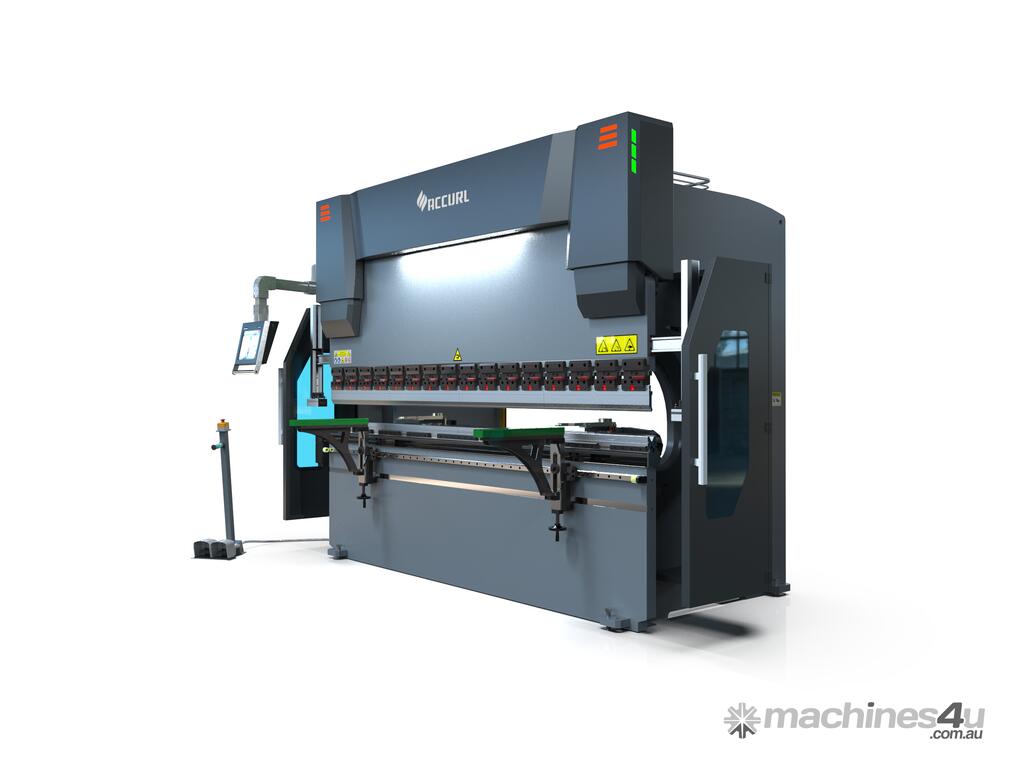

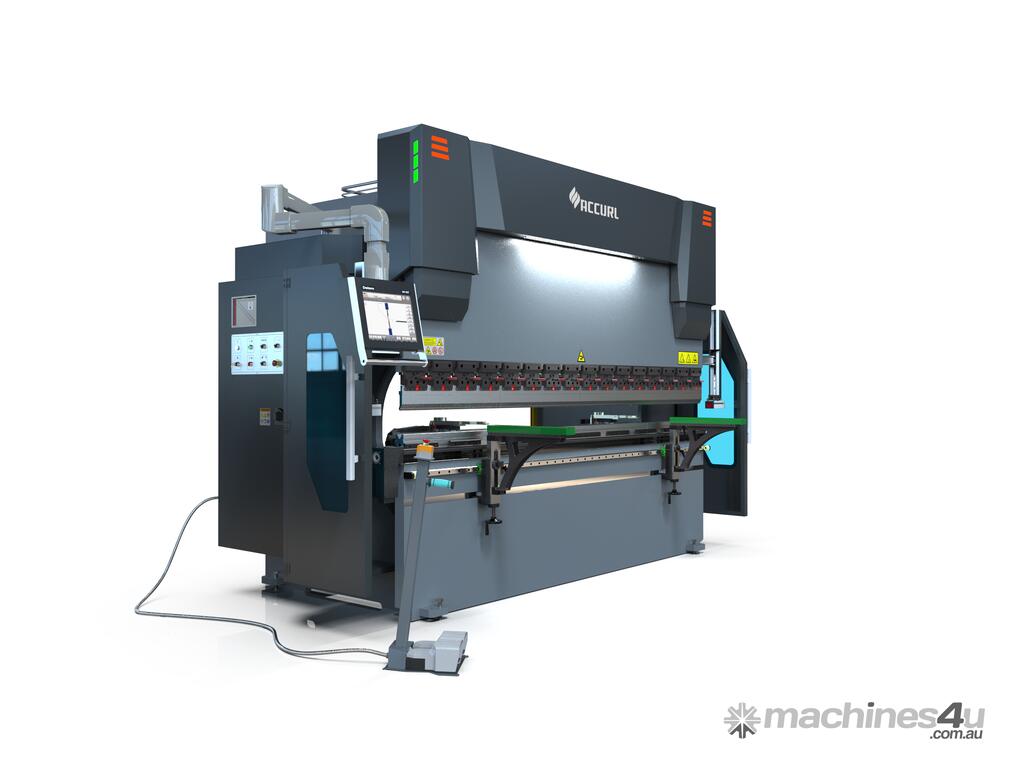

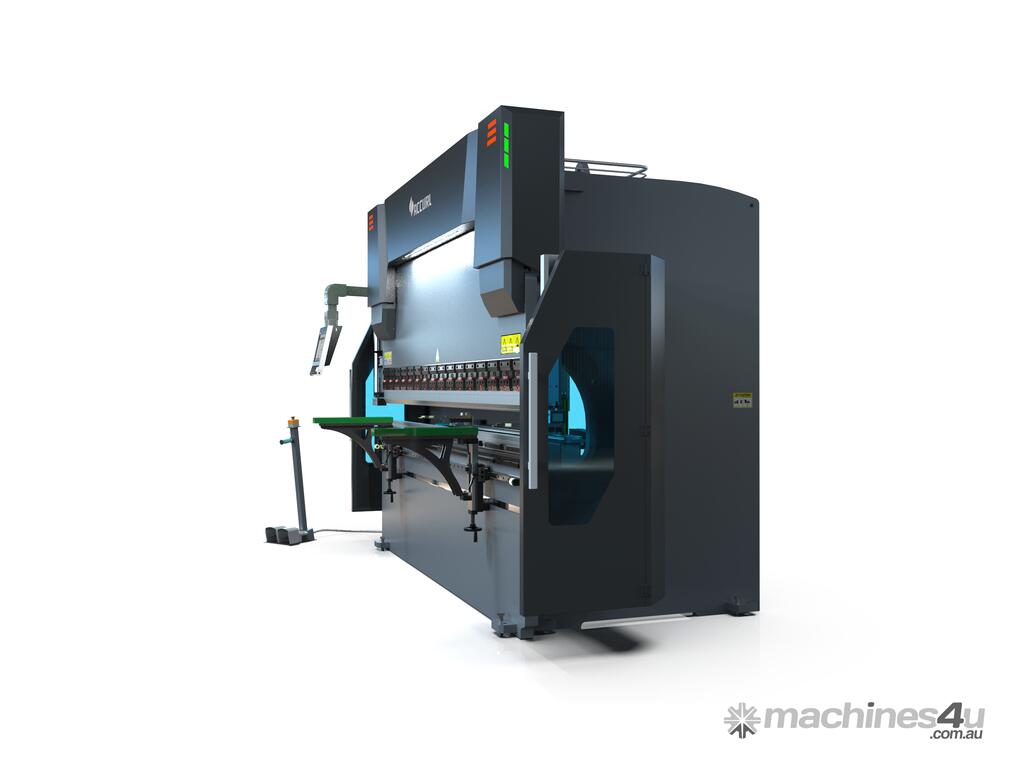

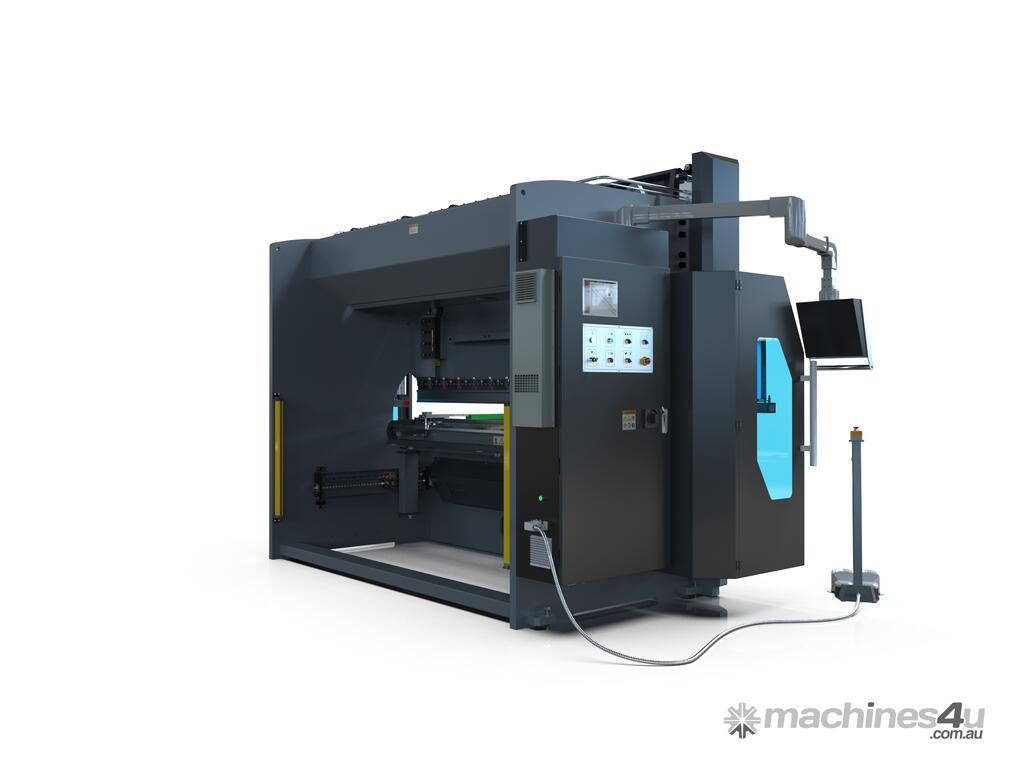

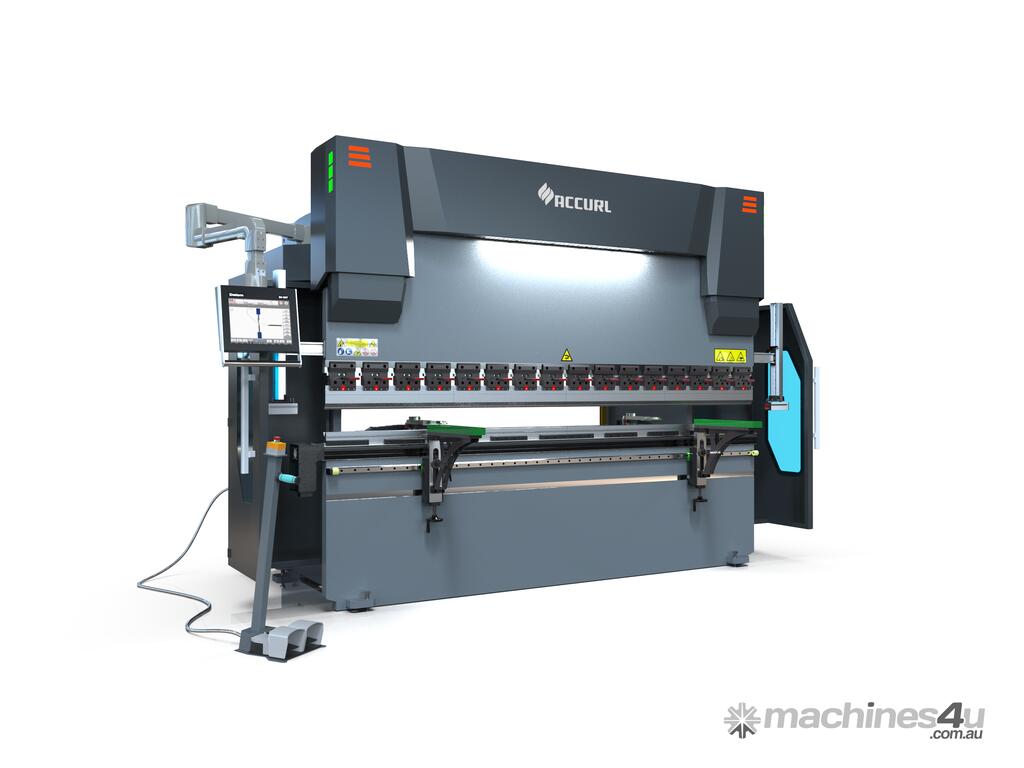

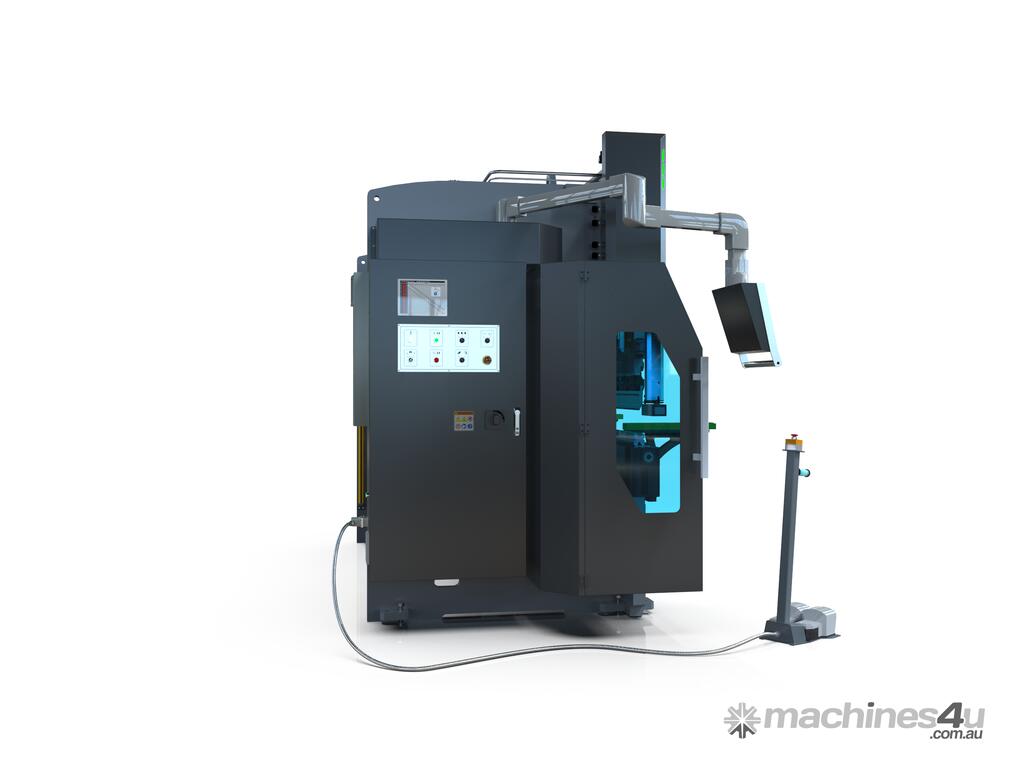

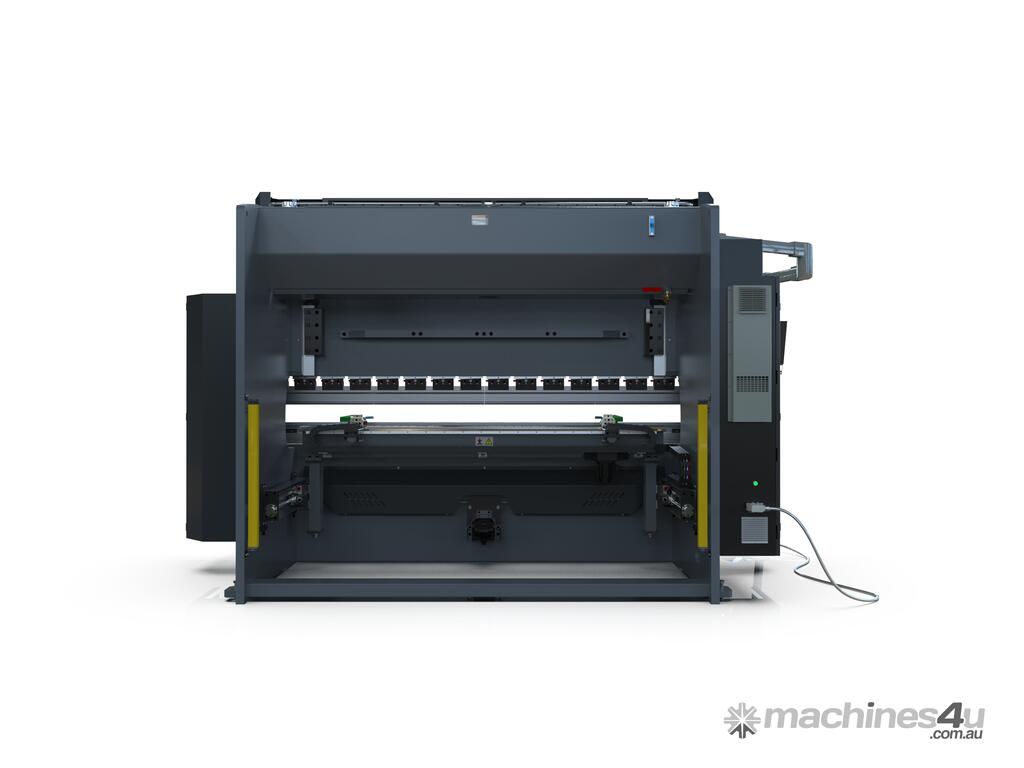

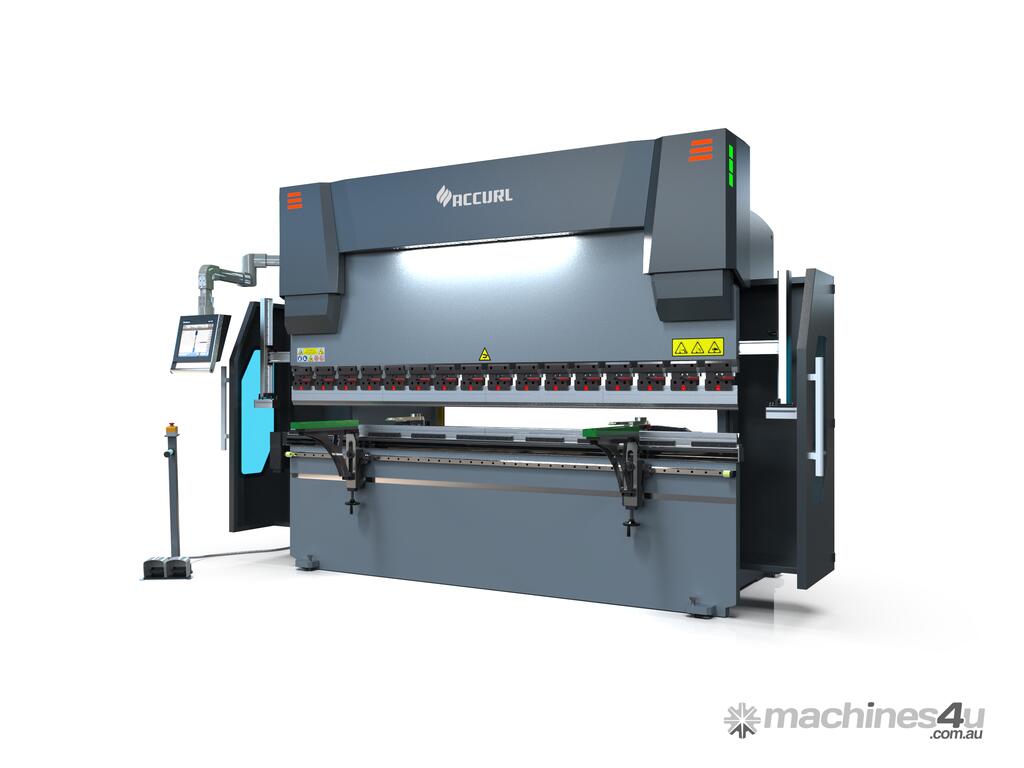

AccurlCMT 220 TON | 3200MM CNC PRESS BRAKE | 5 AXIS | ENERGY SAVING TECH | DELEM 2D CONTROLLER

The AccurlCMT Euro Pro press brake series offers excellent value for money, these CNC press brakes have an unrivalled price to performance ratio and a design that leaves its competitors wanting. The AccurlCMT Euro Pro is a price orientated range that offers fantastic features for those wanting to move away from a simpler torsion bar press brake into a feature packed CNC machine at an affordable price.

With features like a servo energy saving hybrid hydraulic system (a much needed feature with today's high electricity prices), a Delem DA-53S touch screen controller with a 2D graphical interface which has an easy to use interactive job drawing function, tri tool bottom die setup (use T style dies, multi vee dies or the inbuilt machined slot in the table for dies with a tang at the bottom all with the standard bottom table supplied) and Next Gen upper tool clamping its not hard to see why this range of press brakes are so popular and our best sellers.

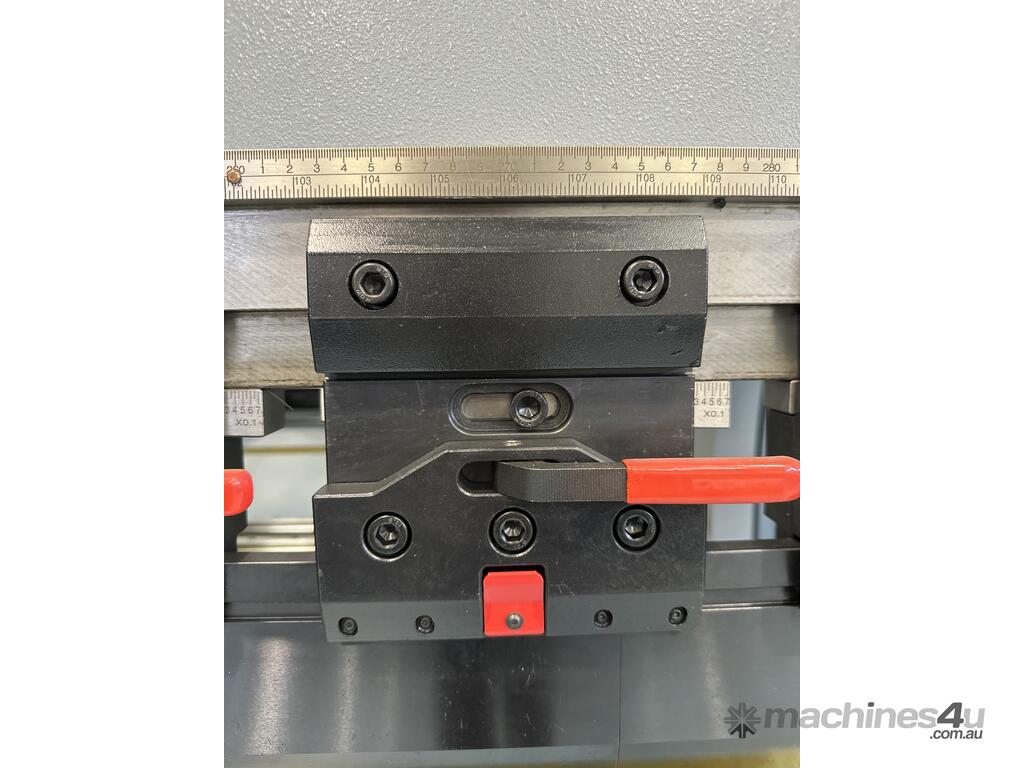

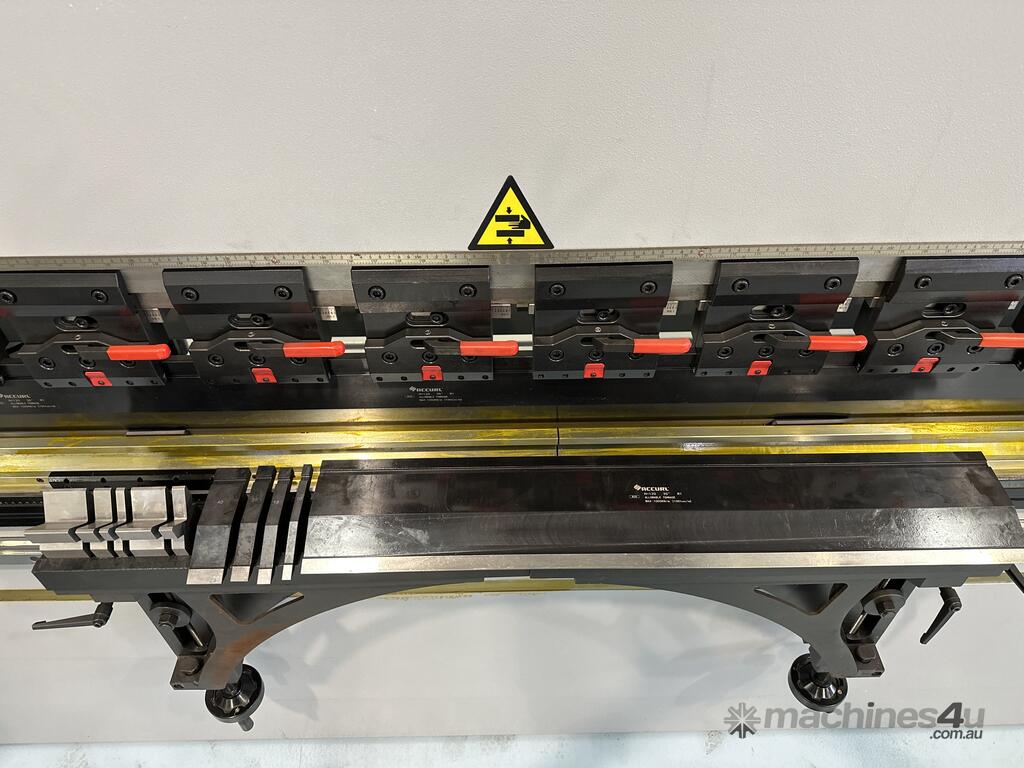

The Next Gen upper tool clamping system offers a quick release system which has a lever that swivels in order to release the upper clamp (this is what machines generally are supplied with and requires the tools to be removed from the side of the machine needing additional space requirements and is time consuming) however what makes our clamping system a cut above the rest is the ability to then push down on a safety button located on the top of the swivel lever which then opens the clamping system further allowing the tool to be removed at the point where the tool is located ….. the benefit is a massive reduction in time taken to change over tooling for different jobs and a reduction in floor space needed saving valuable factory space. In any manufacturing scenario time is money and where you can reduce time consuming tasks that equates to a better bottom line!

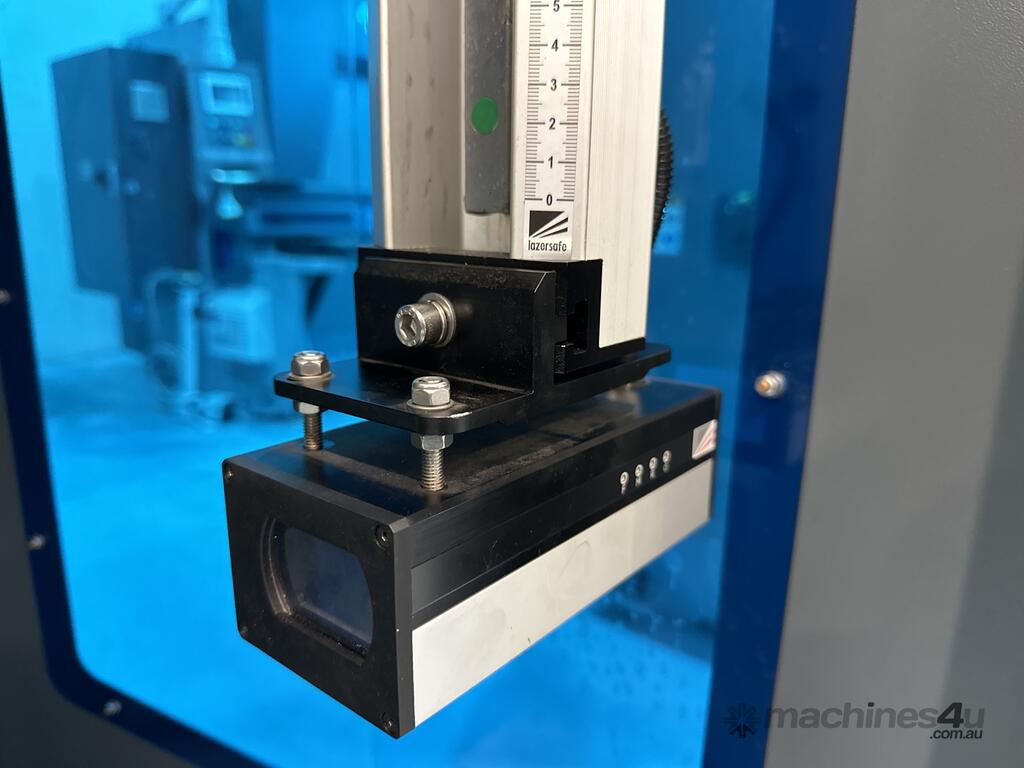

All AccurlCMT machines are fitted with our very own local AUSTRALIAN made guarding system which is manufactured in Perth called Lazersafe. We were one of the very first to start using this system 20+ years ago and can proudly state we still use it now, trying to do our bit to support Aussie manufacturing. Not only is Lazersafe made in our back yard but it is arguably the best press brake guarding system in the world used by a large proportion of press brake builders around the world.

In a nut shell what you get from this system is an Australian compliant press brake that ensures the safety of the operator and also is developed to be as efficient and quick and to not hinder the bending process.

Being that AccurlCMT is a high technology manufacturer and met all Lazsersafe's requirements to supply the CNC integrated systems (this is the Lazersafe product that only certified Lazersafe partners can use that work with the CNC controller and seamlessly works without having any direct input saving time setting up mute points) all of the press brakes supplied are fitted with this system.

What the Lazersafe integrated guarding system does is save time and programming complexity, all you do is program the controller like you normally would and the guarding system automatically knows what it needs to do without any further operator input.

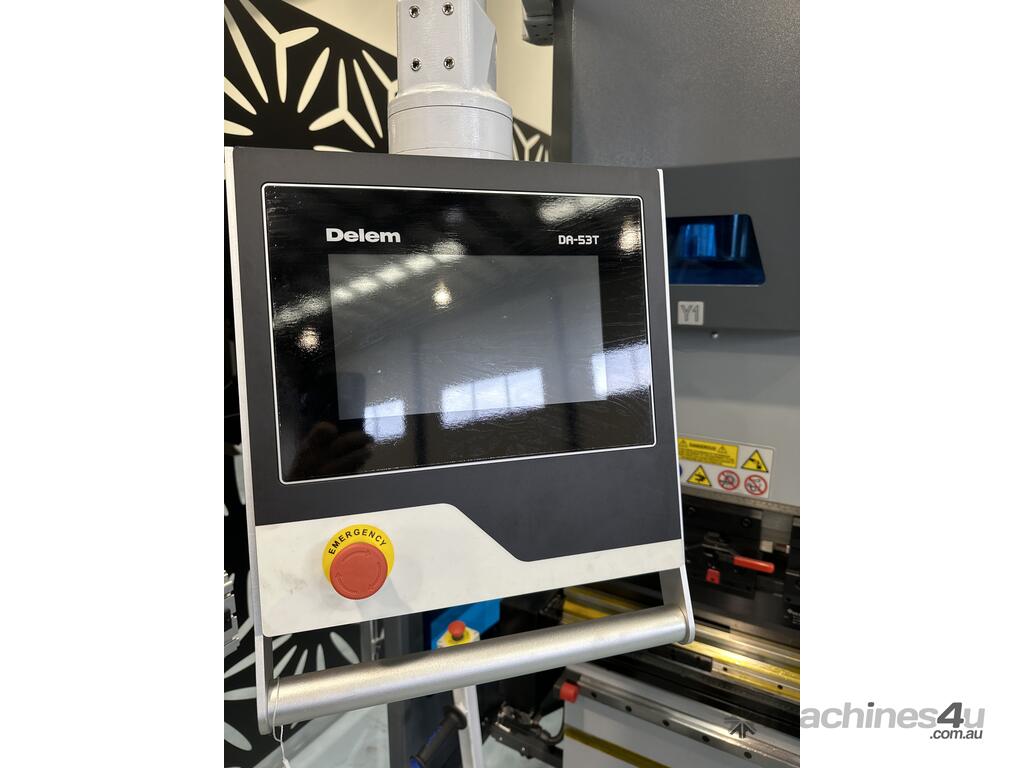

The Delem 2D touch screen graphical controller offers a powerful controller but with a simple and easy to use interface, the ability to see a 2D graphical representation of the job reduces the chance of error and material wastage. With the large touch screen programming is easy to do and the visual representation is easier to follow.

The AcculCMT range of press brakes have painstakingly been optioned up and configured to combine the best of both worlds, a fast, accurate and efficient press brake that is surprisingly well priced for its design and features.

At Complete Machine Tools the benefit of dealing with us and purchasing the AccurlCMT range of sheet metal working machinery is that a full suite of sheet metal machinery is offered that can grow with your business. You may start with a press brake and guillotine and then get a flat bed laser, tube laser and turret punch down the track and then maybe even a panel bender, with AccurlCMT you have the option of buying these all from the same supplier making it easier to manage your entire factory of machinery.

We know that your machines is the heart of your business so we also have our own in house service division giving you piece of mind that your machinery if in the unlikely event does go down will be back up and running in a short amount of time.

With growth comes growing pains and complexity but buying machinery doesn’t need to be difficult because here at Complete Machine Tools we pride ourselves on our sales and after sales support and our ability to grow and support our customers through that journey.

Buy from a company who knows CNC press brakes and sheet metal machinery and has been selling them for well over 25 years.

This machine as with all AccurlCMT machines uses quality components and comes with a comprehensive list of standard features

Features -

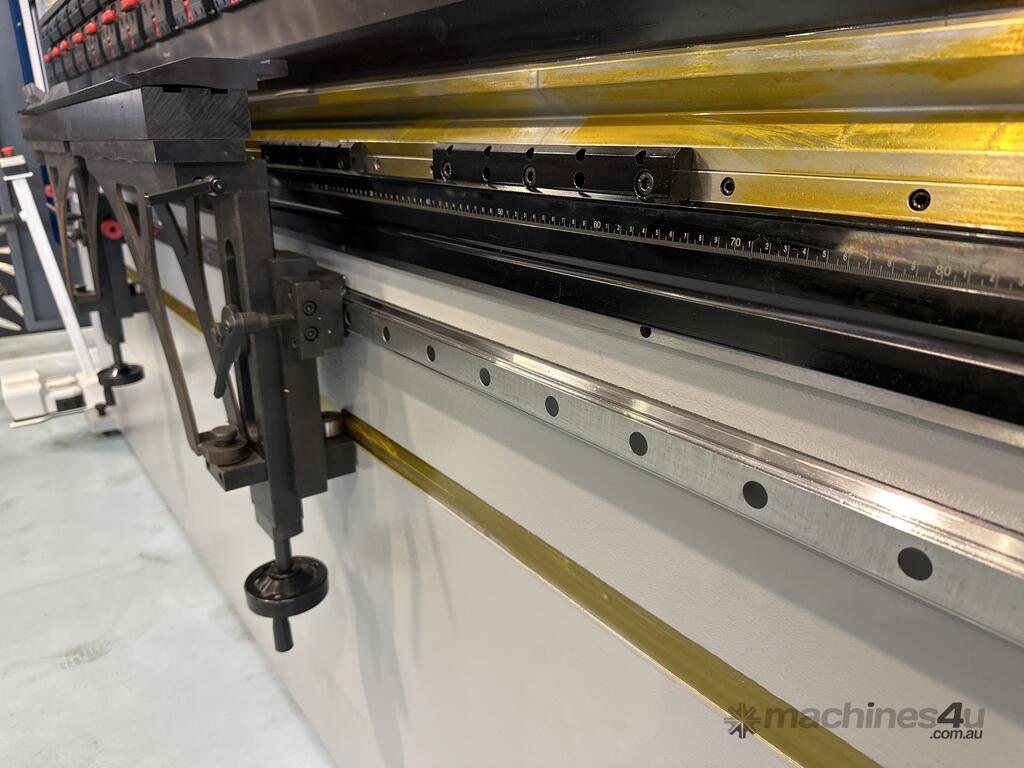

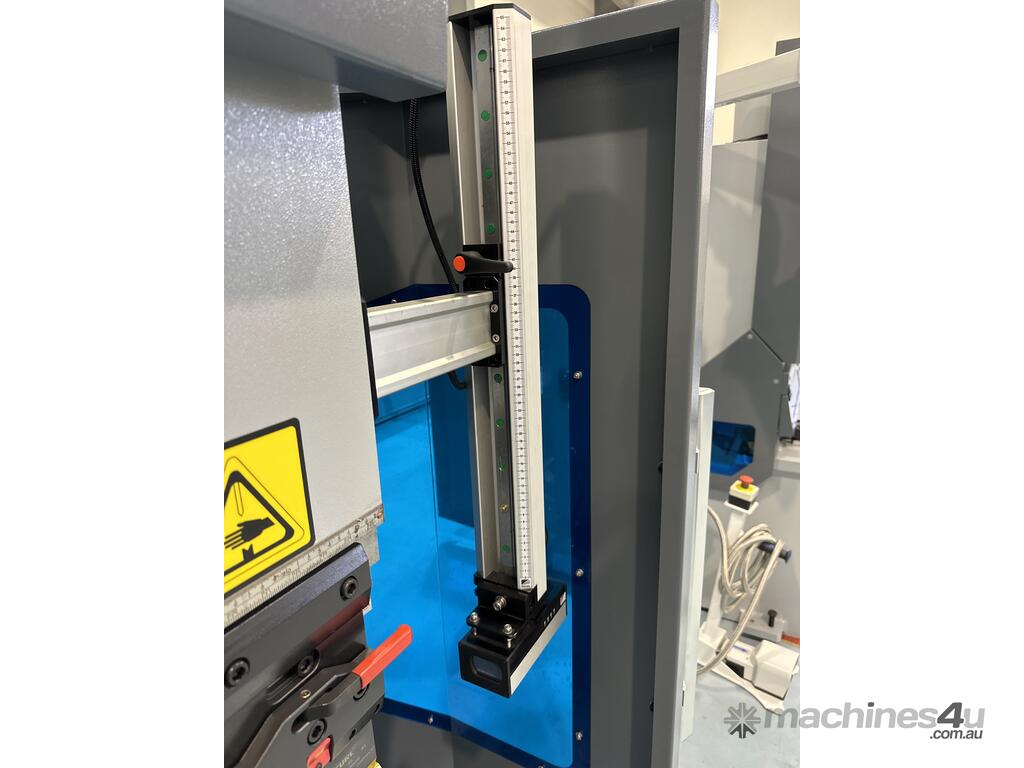

1. Linear guided front supports.
2. Next Gen Quick release tool clamps – front removal so you don’t have to slide out of the side.
3. European type sectioned top punch to length of machine.
4. Additional 835mm top punch segmented to 100mm left ear, 10, 15, 20, 40, 50, 200, 300 & 100mm right ear.
5. European type punch holder.

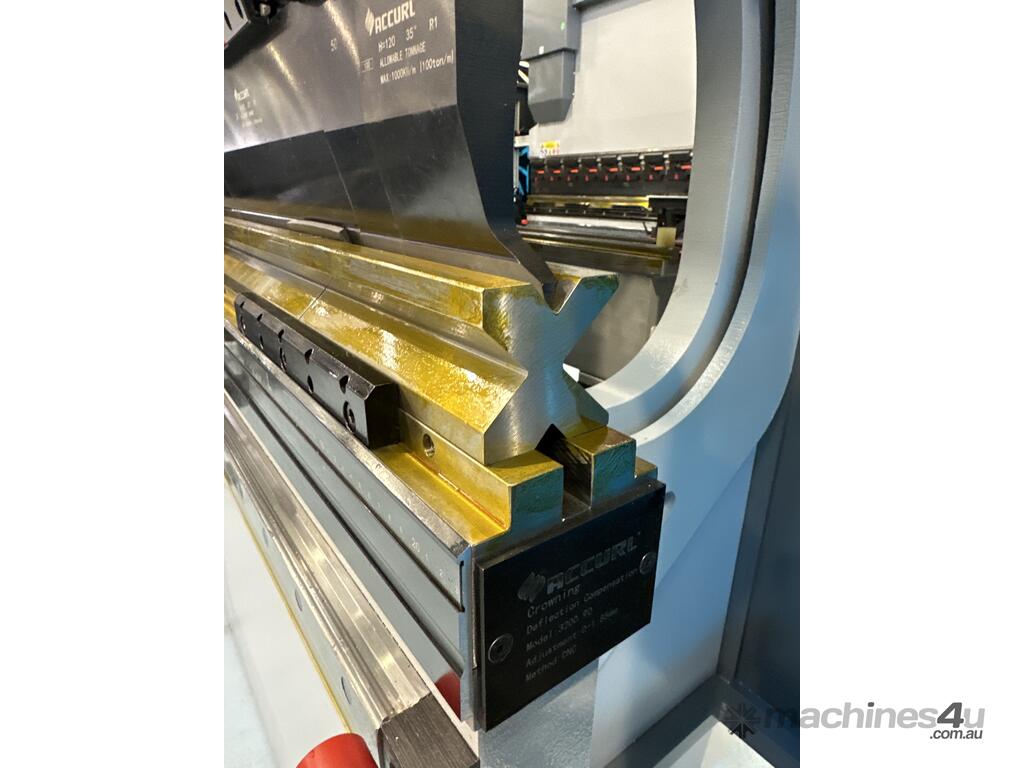

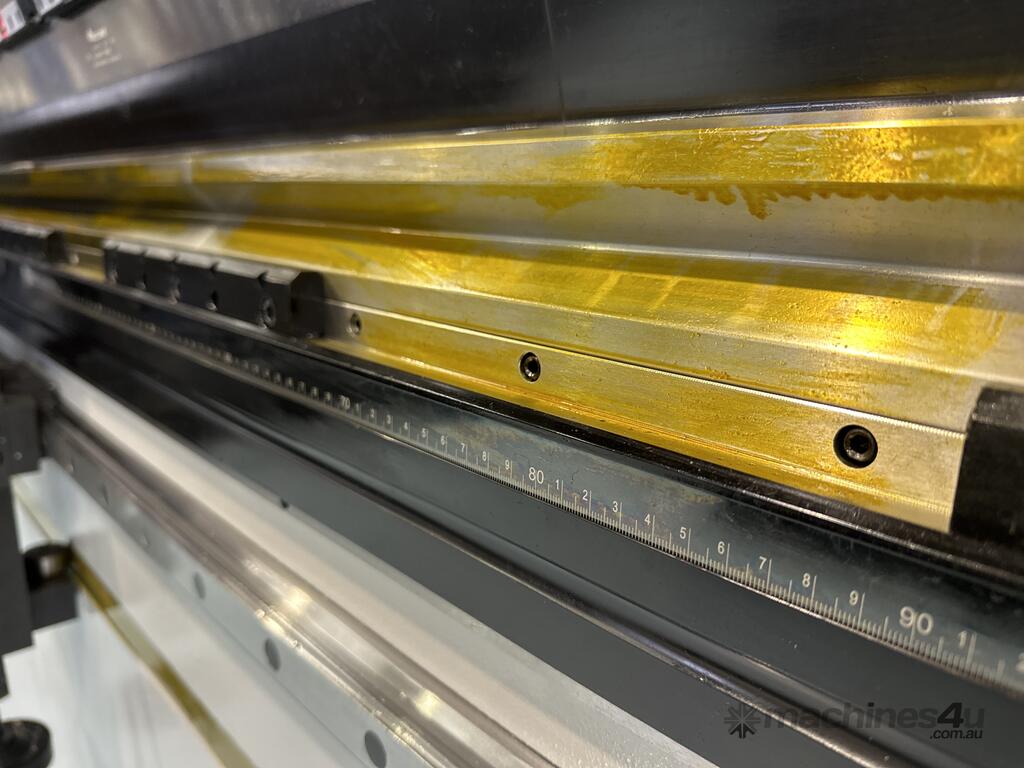

6. 60mm bottom table width – 60mm 4 sided self centring vee block.
7. Safety side covers with interlock switch.

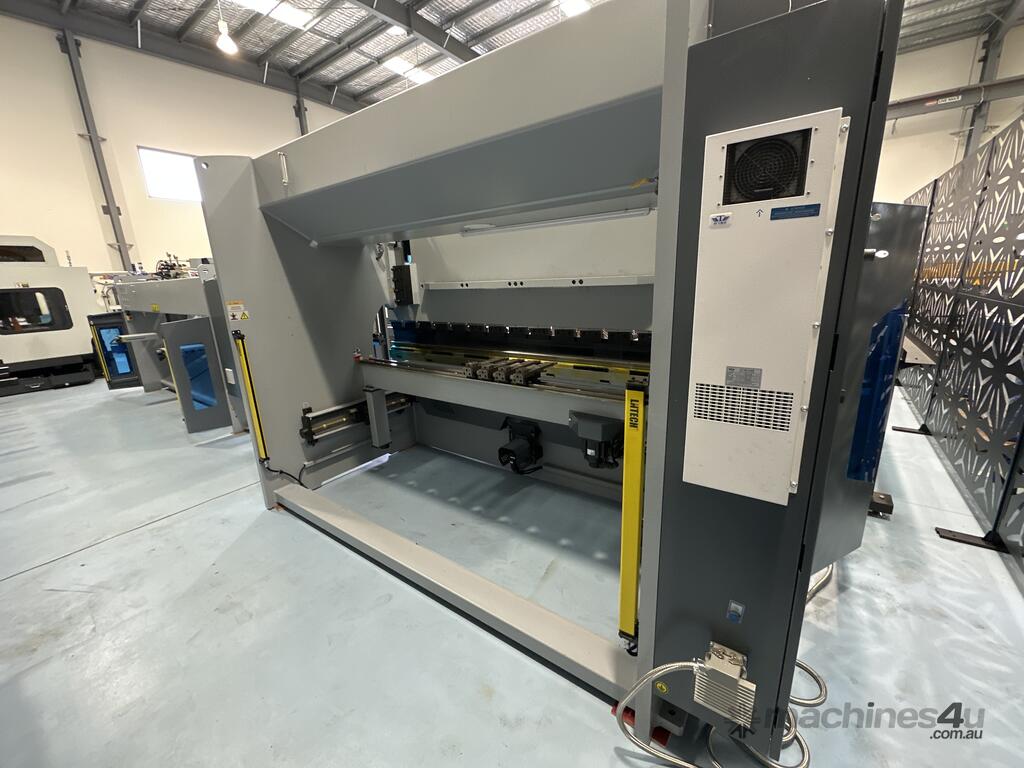

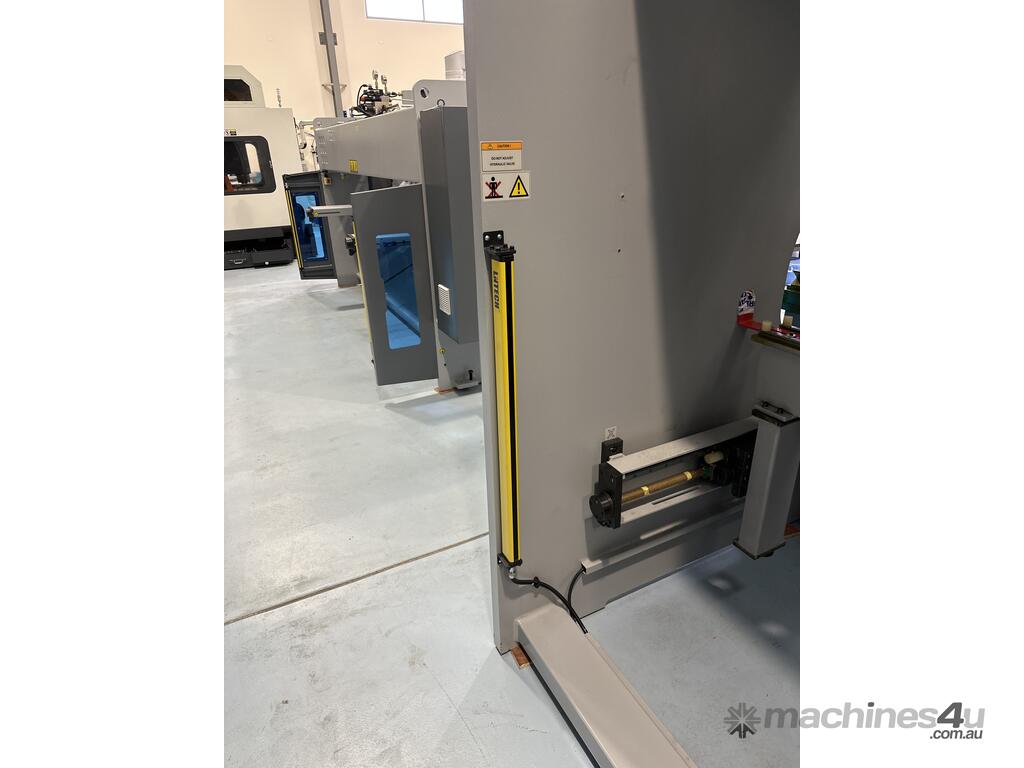

8. Safety back light curtains saving floor space
9. CE Safety with Lasersafe guarding.
10. Top quality componentry.
11. Foot pedal with E-stop.
12. Inverter drive for main motor – motor switches off when not in use (Energy saving)
13. CNC controlled mechanical crowning system.
14. Very quite operation due to inverter drive.
15. ECO friendly using only the power required when pressing.
16. Y1/Y2/X & R and crowning all CNC controlled (5 axis)

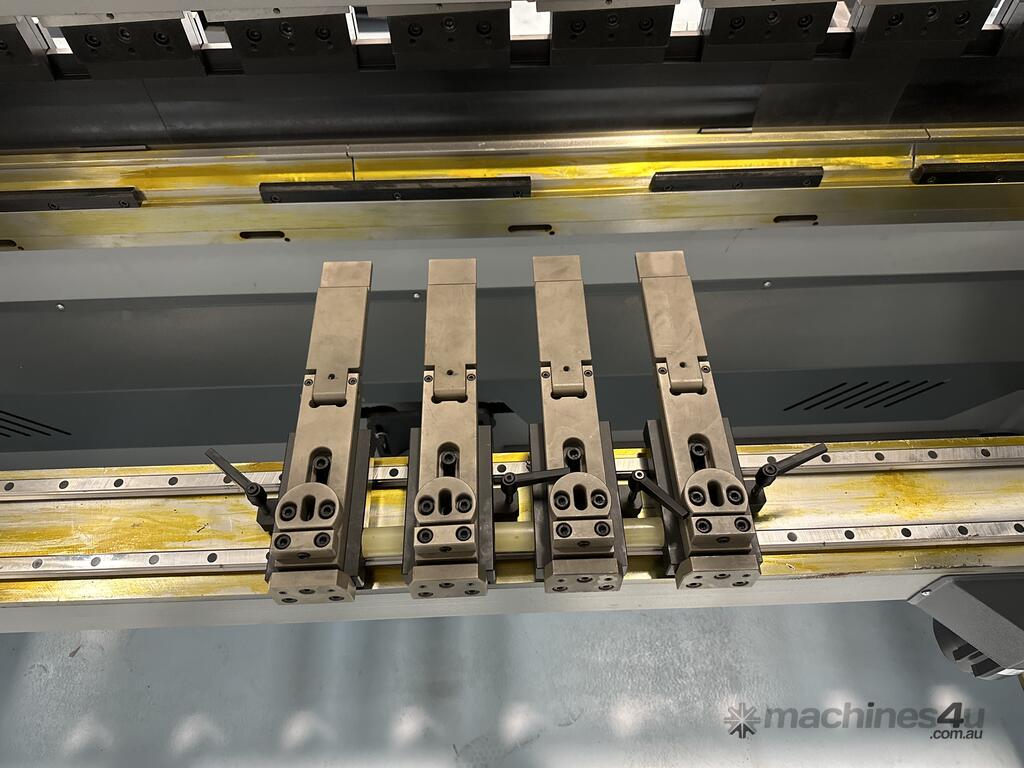

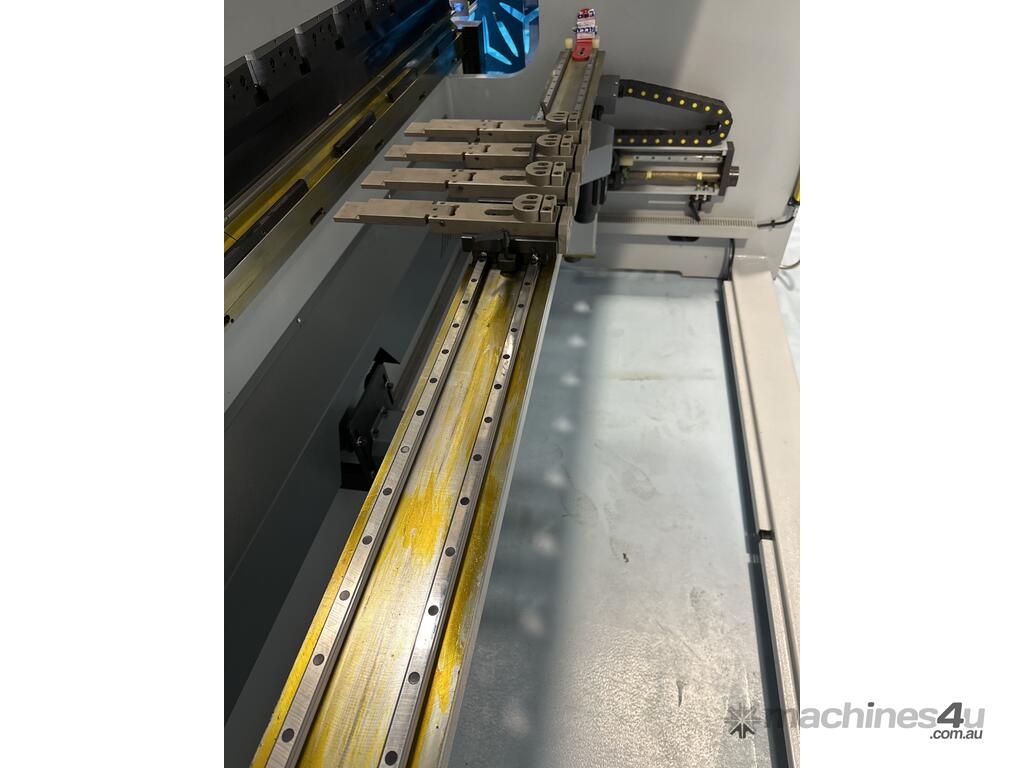

17. Linear guides for back gauge fingers.
18. Inbuilt LED lighting in front cover for extra visibility.
19. Ability to option machine up with multiple back gauge axes.
20. Delem DA-53S controller with 2D graphical interface
21. Tri tool configuration bottom tool holder
22. Inbuilt 3 colour status lights in the front cylinder covers (quick confirmation of machine status, fantastic for management to see the usage of the machine and workers safety knbowing when the machine is in operation or idle)

Specs -

Nominal pressure 2200 KN
Distance between uprights 2600 mm
Ram stroke 200 mm
Length of work table 3200 mm
Throat depth 410 mm
Width of work table 60 mm
Open height 470 mm
