The AccurlCMT Euro Pro series offers excellent value for money, these CNC press brakes have an unrivalled price to performance ratio. The AccurlCMT Euro Pro is a price orientated range that offers fantastic features for those wanting to move away from a simpler torsion bar press brake into a feature packed CNC machine at an affordable price.
With features like a servo energy saving hybrid hydraulic system, an Italian made 15" touch screen controller with a 2D graphical interface and job drawing function, tri tool bottom die setup and next gen upper tool clamping its not hard to see why this range of press brakes are so popular.
The advantage of the AccurlCMT range of sheet metal working machinery is that a full suite of sheet metal machinery is offered that can grow with your business. You may start with a press brake and guillotine and then get a flat bed laser, tube laser and turret punch down the track, with AccurlCMT you have the option of buying these all from the same supplier making it easier to manage your entire factory of machinery.
Buy from a company who knows CNC press brakes and sheet metal machinery and has been selling them for well over 20 years.
The Esa 2D touch screen graphical controller offers a powerful controller but with a simple and easy to use interface, the ability to see a 2D graphical representation of the job reduces the chance of error and material wastage. With the large 15" touch screen programming is easy to do and the visual representation is easier to follow.
This machine as with all AccurlCMT machines uses quality components and comes with a comprehensive list of standard features.
Features -

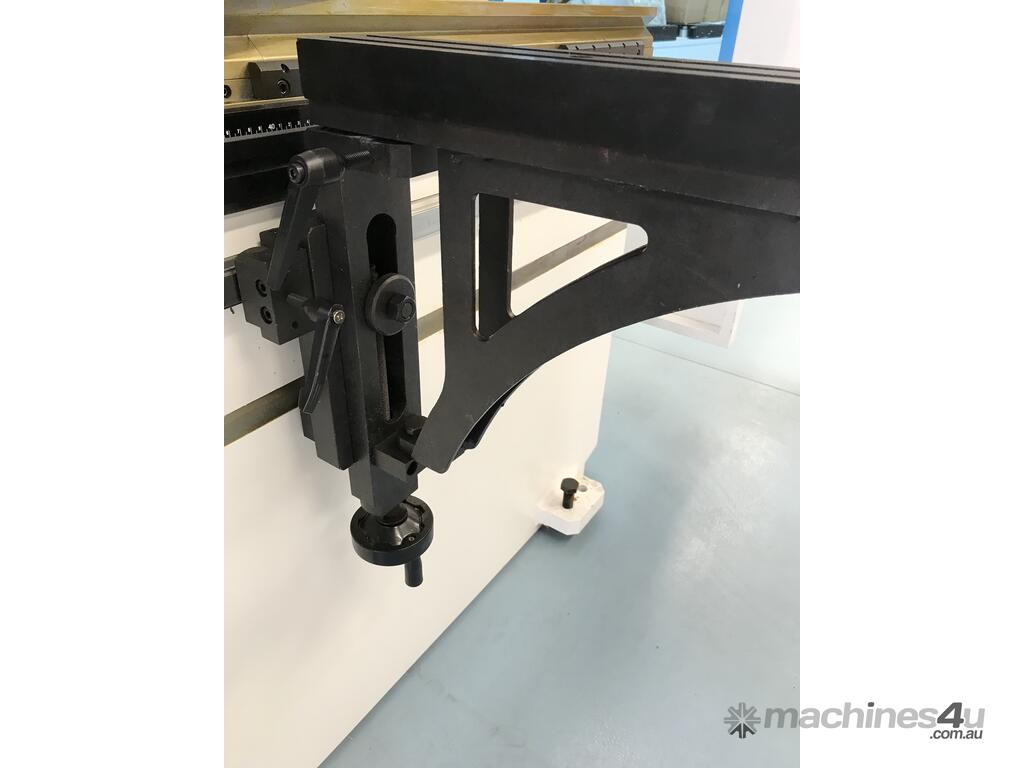

1. Linear guided front supports.

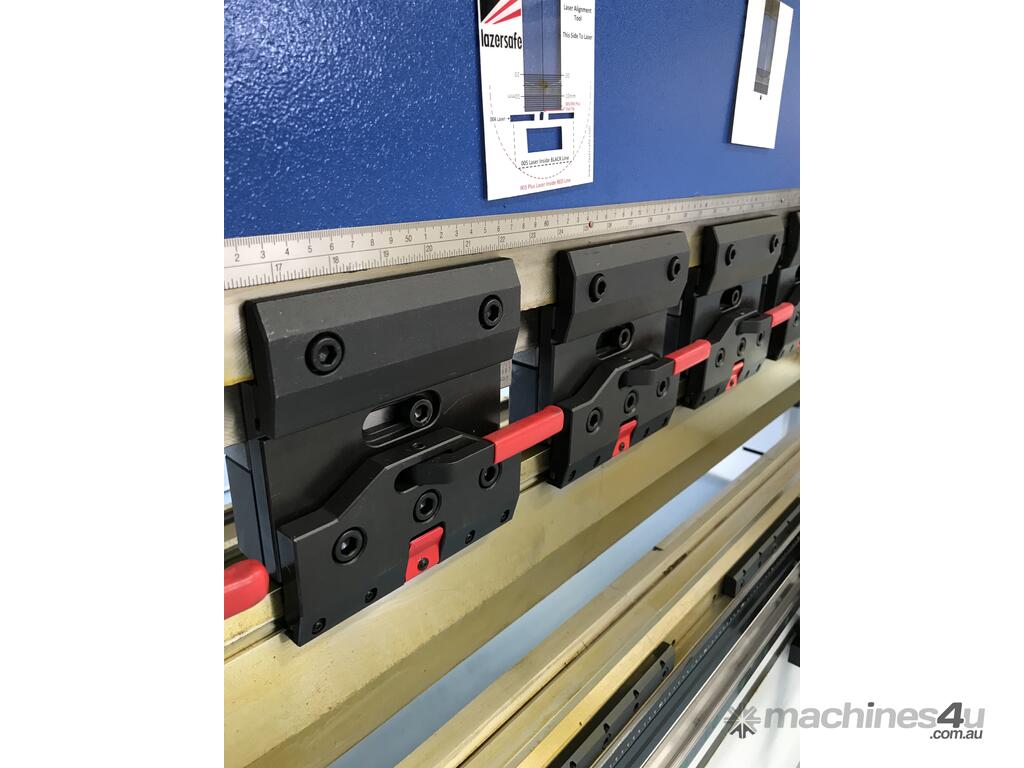

2. Next Gen Quick release tool clamps – front removal so you don’t have to slide out of the side.
3. European type sectioned top punch to length of machine.
4. Additional 835mm top punch segmented to 100mm left ear, 10, 15, 20, 40, 50, 200, 300 & 100mm right ear.
5. European type punch holder.
6. 60mm bottom tri tool table | width – 60mm 4 sided self centering vee block.
7. Safety side covers with interlock switch.
8. Safety back light curtains.

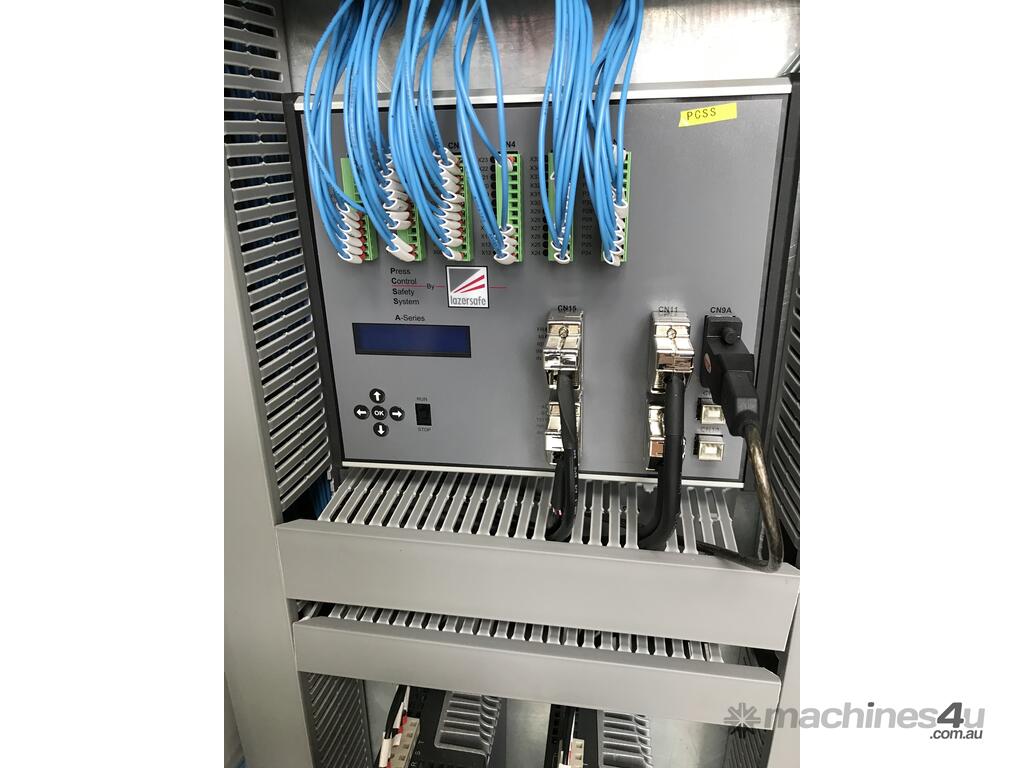

9. CE Safety with Lasersafe guarding.
10. Top quality componentry.
11. Foot pedal with E-stop.

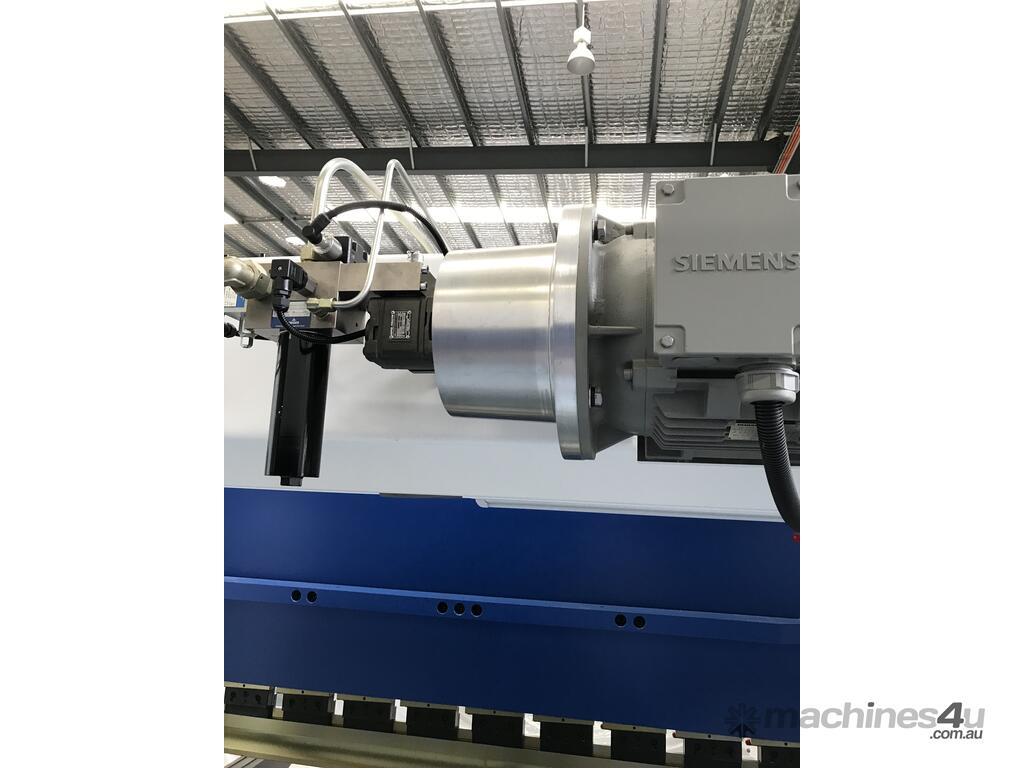

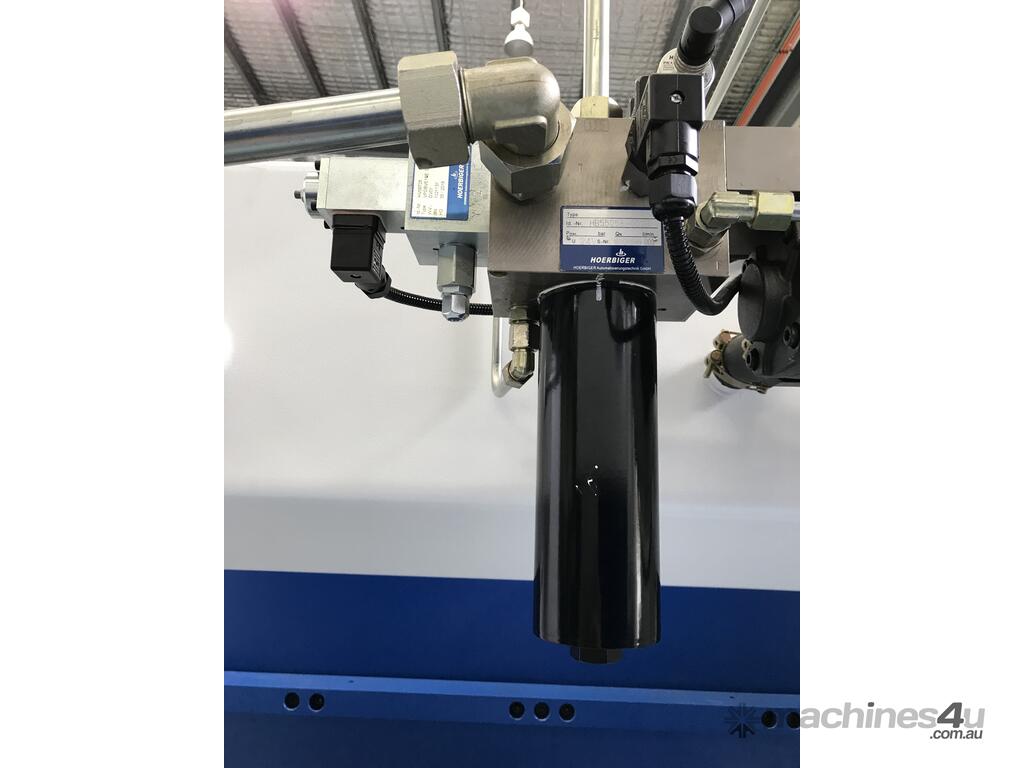

12. Servo hybrid energy saving hydraulic system
13. CNC controlled mechanical crowning system.
14. Very quite machine noise, with the hybrid system the motor only comes on when pressing is being done
15. ECO friendly using only the power required when pressing.
16. Y1/Y2/X & R and crowning all CNC controlled.

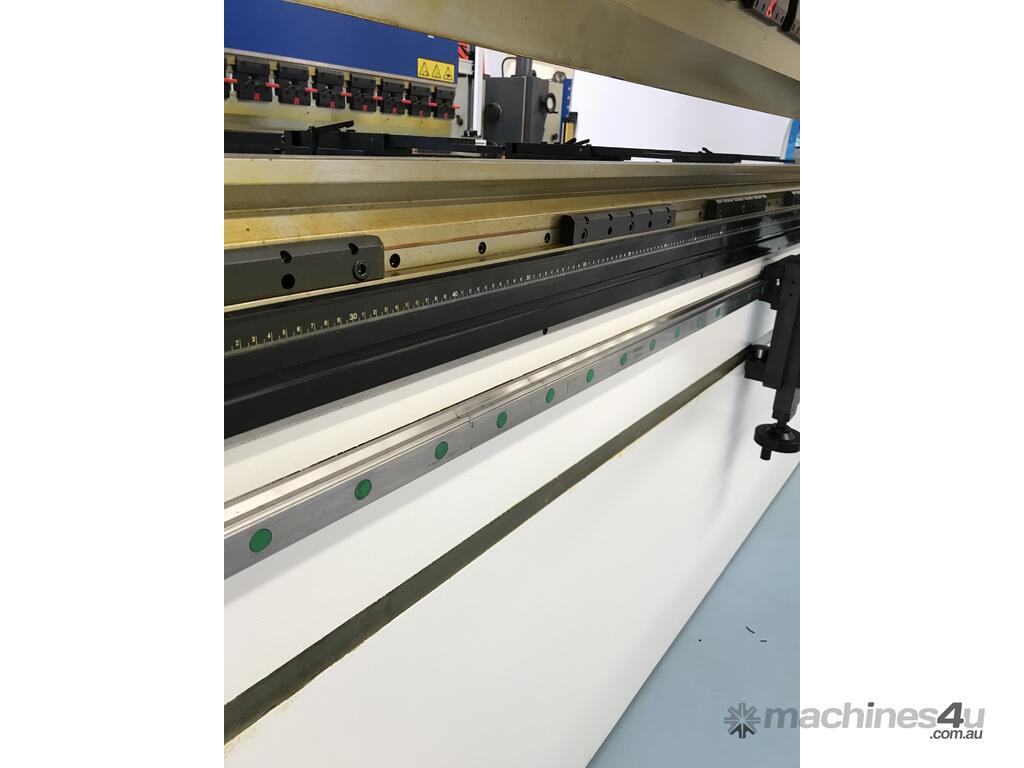

17. Linear guides for back gauge fingers.

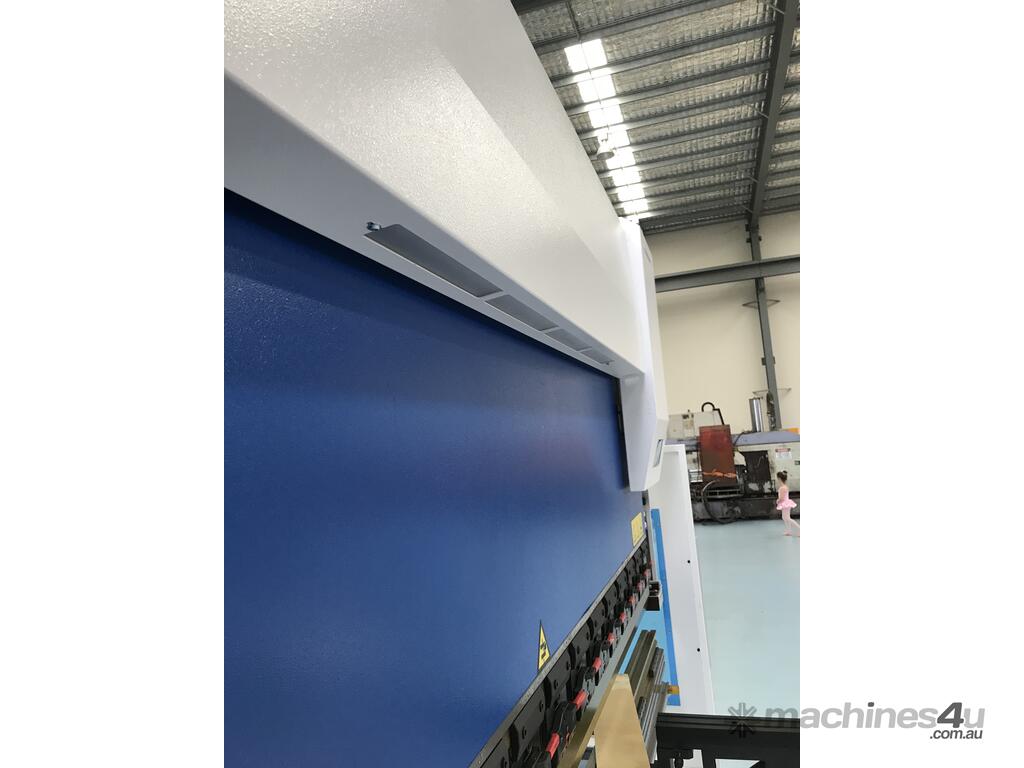

18. Inbuilt LED safety status lighting in front covers, flashes when in error
19. Ability to option machine up with multiple back gauge axes.
20. Italian made ESA S640 controller
Specs -
Nominal pressure 4000 KN
Distance between uprights 5000 mm
Ram stroke 300 mm
Length of work table 6000 mm
Throat depth 500 mm
Width of work table 60 mm
Open height 560 mm
