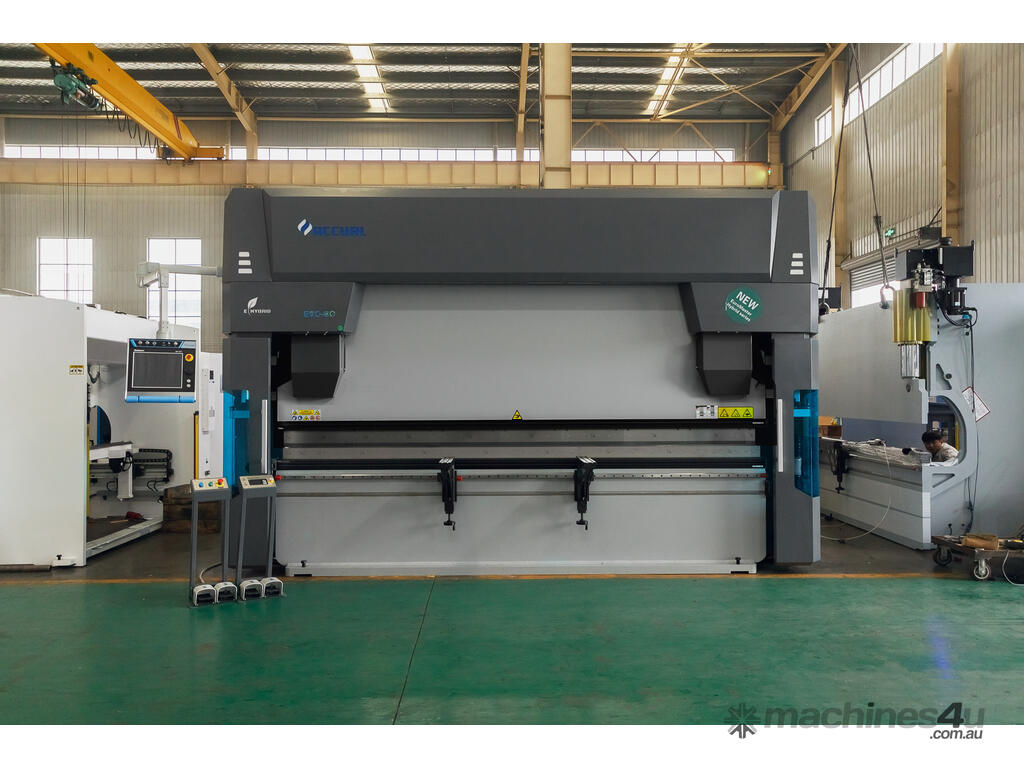

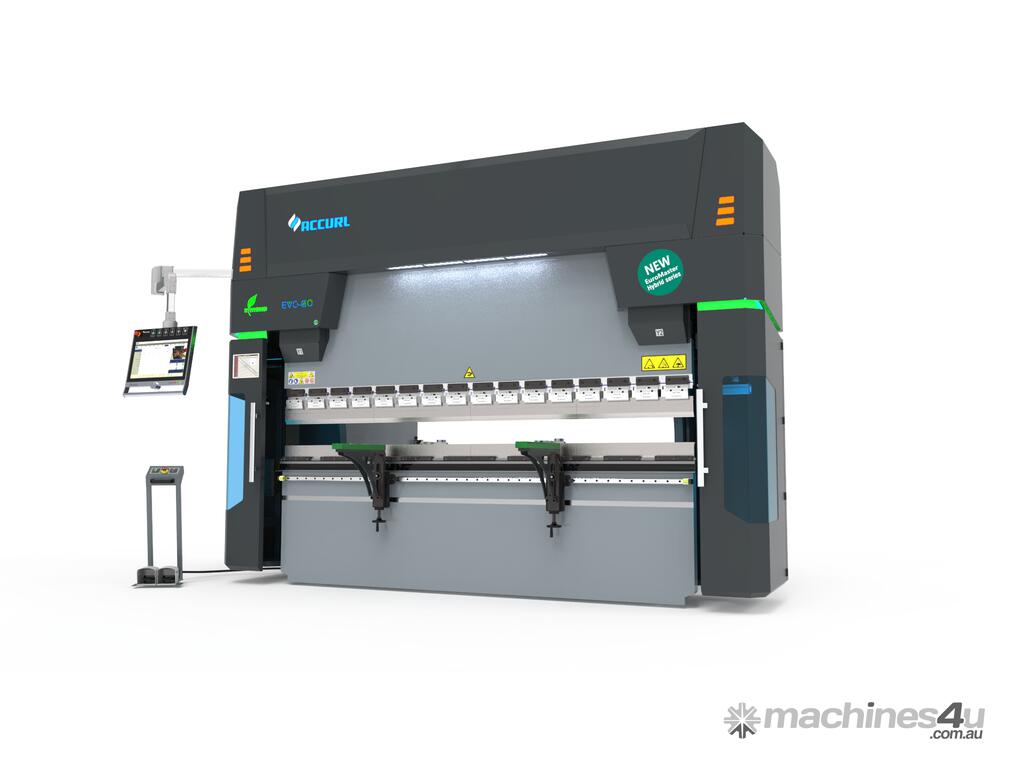

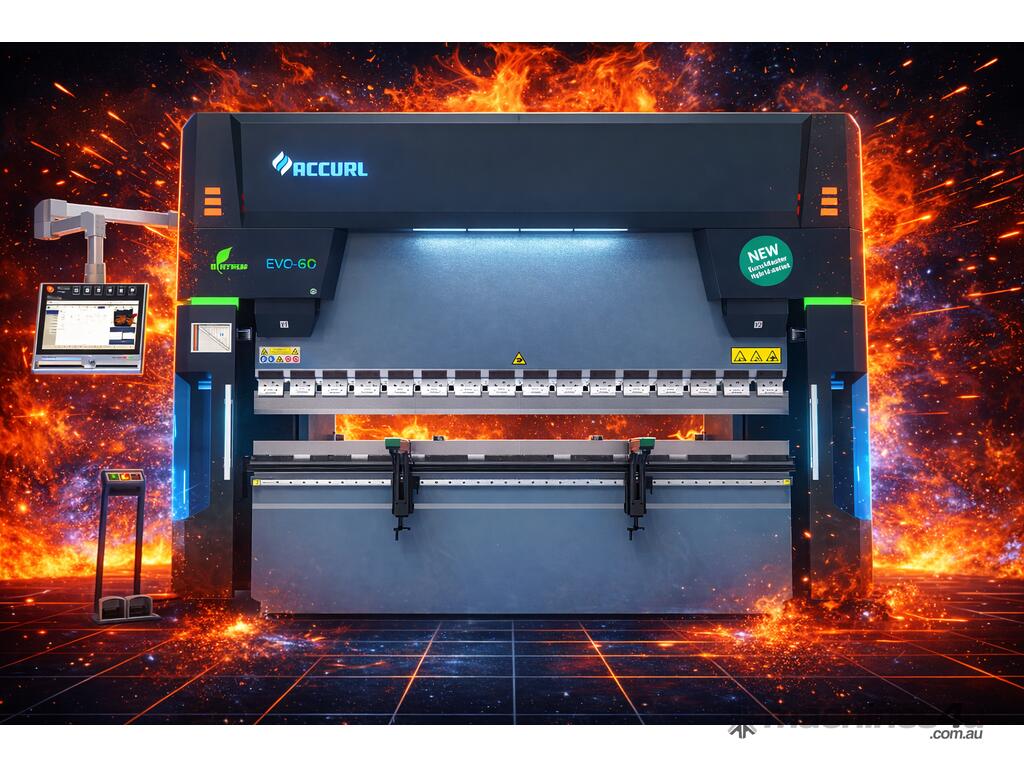

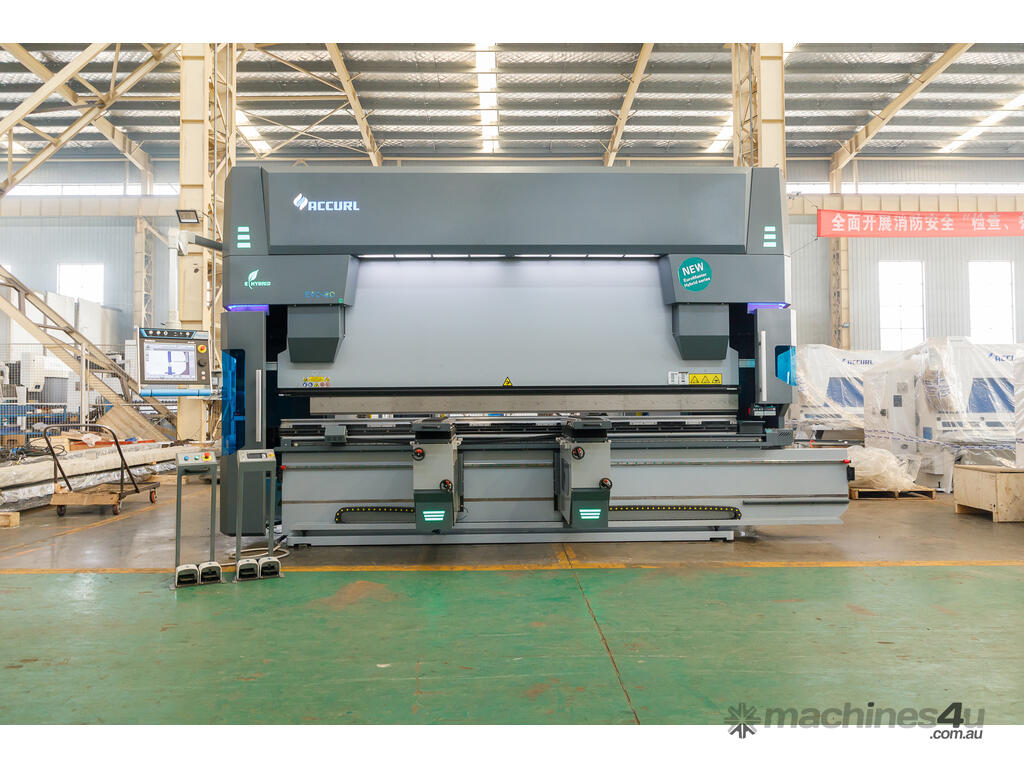

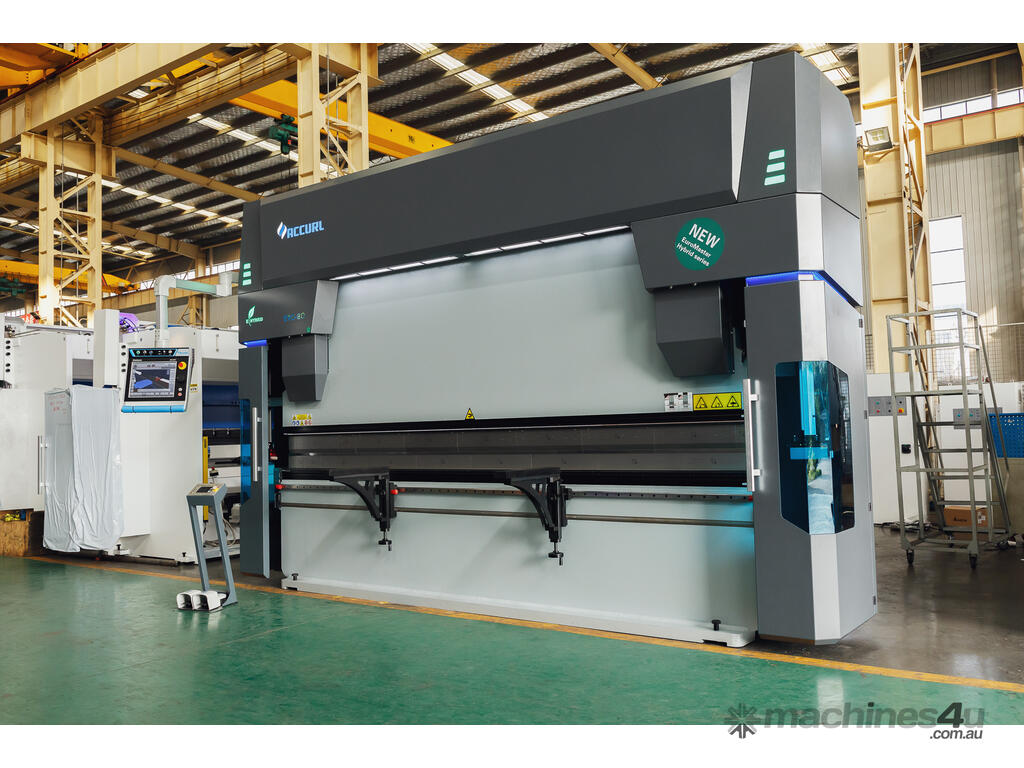

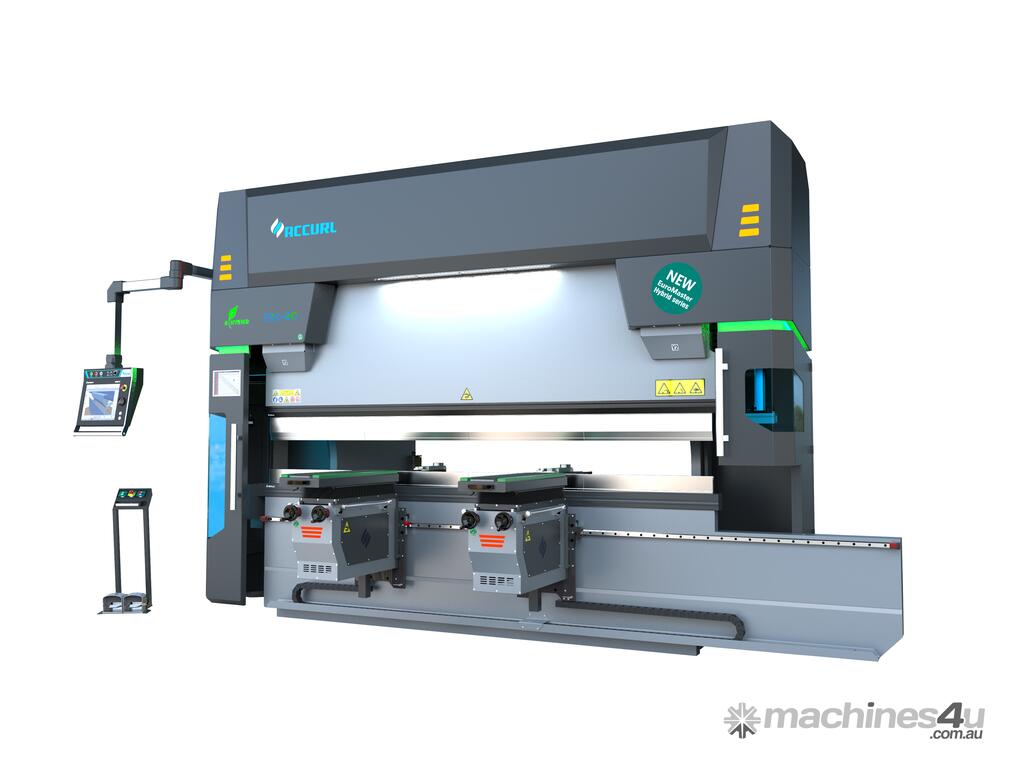

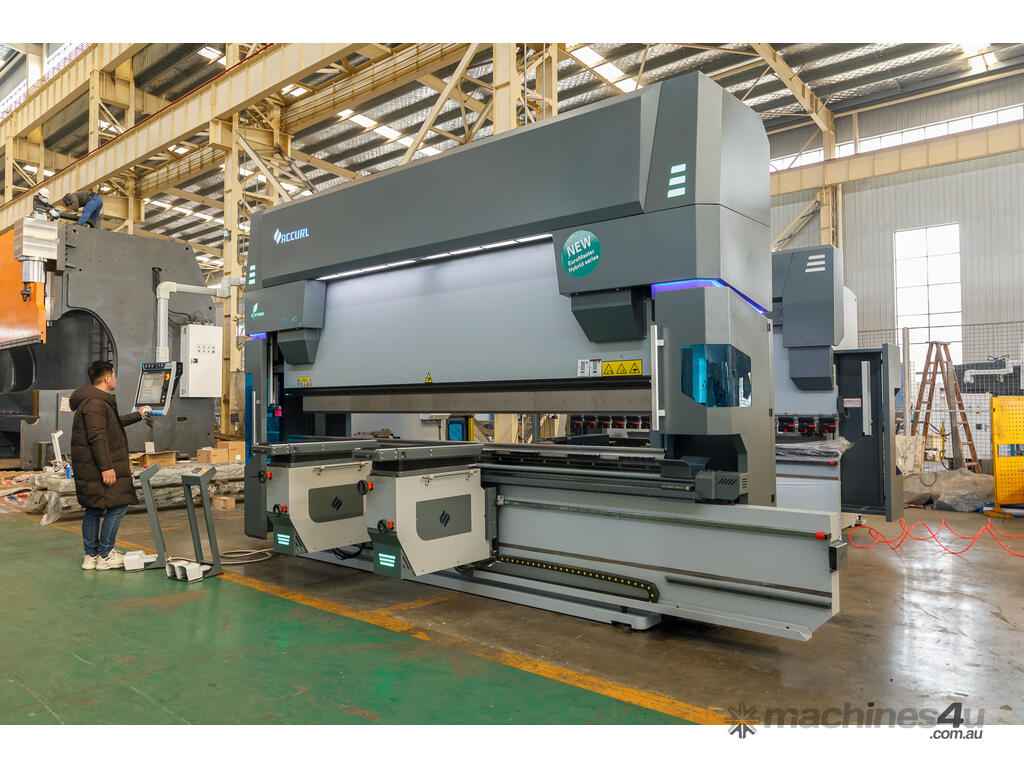

AccurlCMT EURO MASTER 175 TON | 4200MM | 7 AXIS | DELEM DA66T | HYBRID CNC PRESS BRAKE

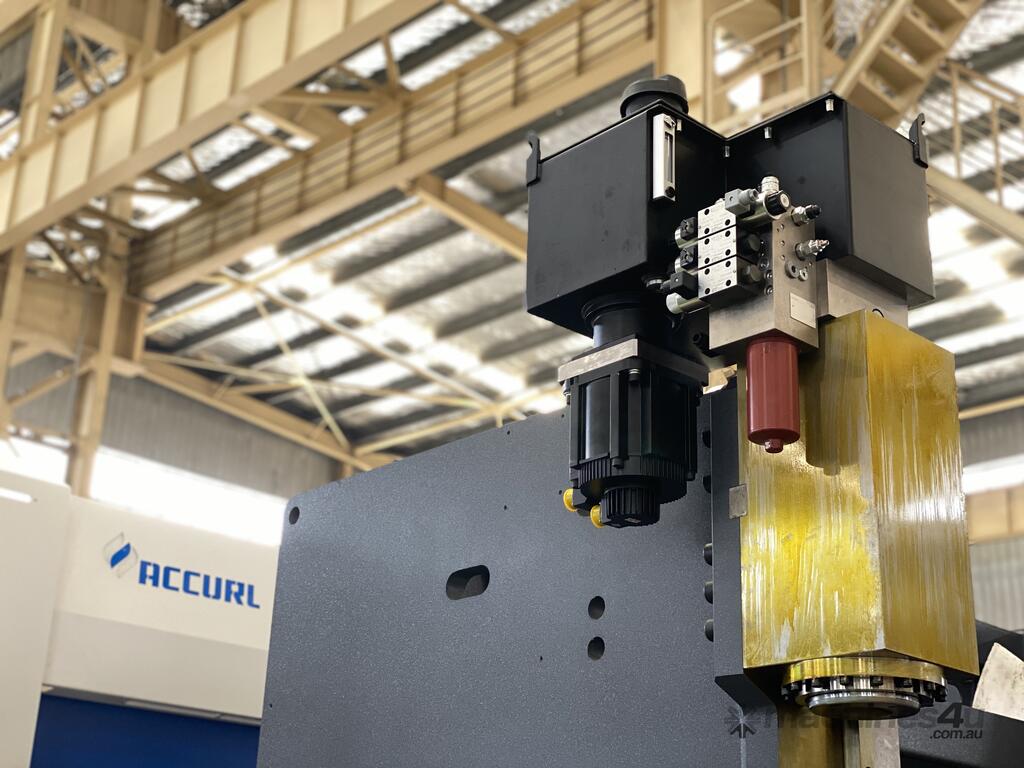

The NEW AccurlCMT Euro Master Hybrid press brake is the latest from the AccurlCMT stable utilising the newest technology available. The hybrid system use a small 20 litre oil tank on each cylinder with a bank of valves and a servo motor to drive the cylinder up and down giving you the power of hydraulics but without the large hydraulic tank and also a very quite and energy efficient press brake.

The Euro Master has extremely quick upper beam approach and return speeds and a redesigned back gauge with speeds to match ensuring cycle times are greatly enhanced. Multiple controller manufacturers can be optioned up on these machines depending on preference.

The 175 ton x 4.2m EuroMaster – Benefits and specs

1. 60 % less energy consumption thanks to new innovative drive system
2. 40 % faster cycle time
3. 90 % less oil consumption for more environment friendly
4. Lowered sound pressure level at 50 dB
5. Increased speed of descent and ascent up to 210mm/sec
6. Increased bending speed 8-15 mm/s.

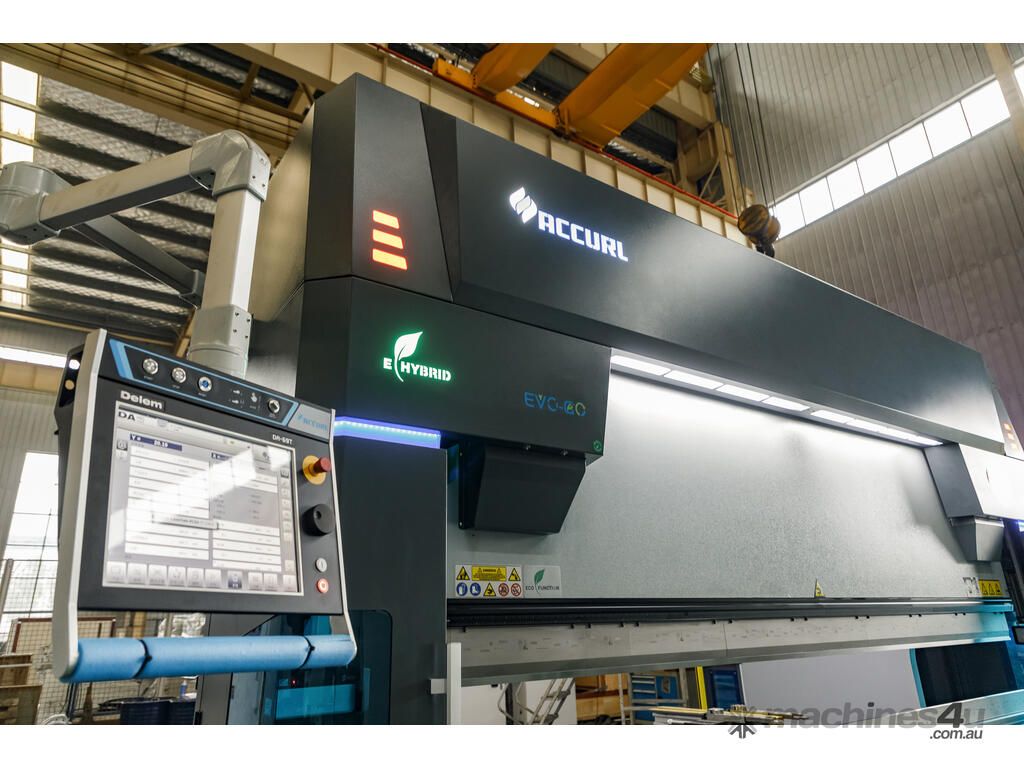

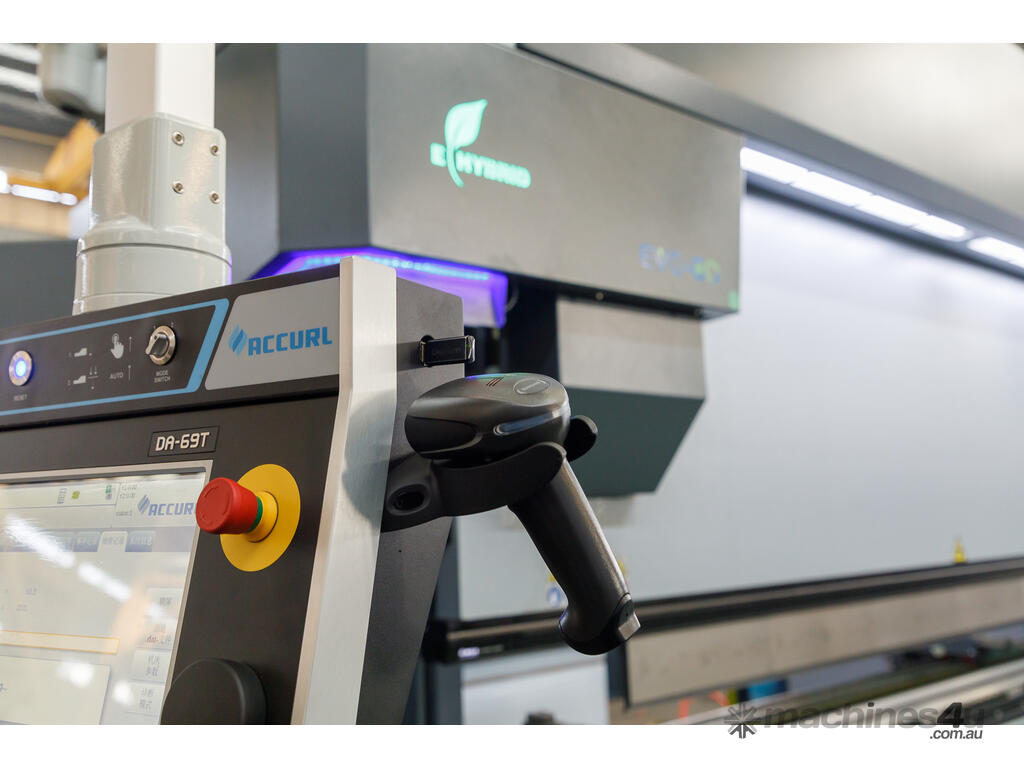

7. New intuitive and user-friendly touch screen control system (Delem DA-66T)

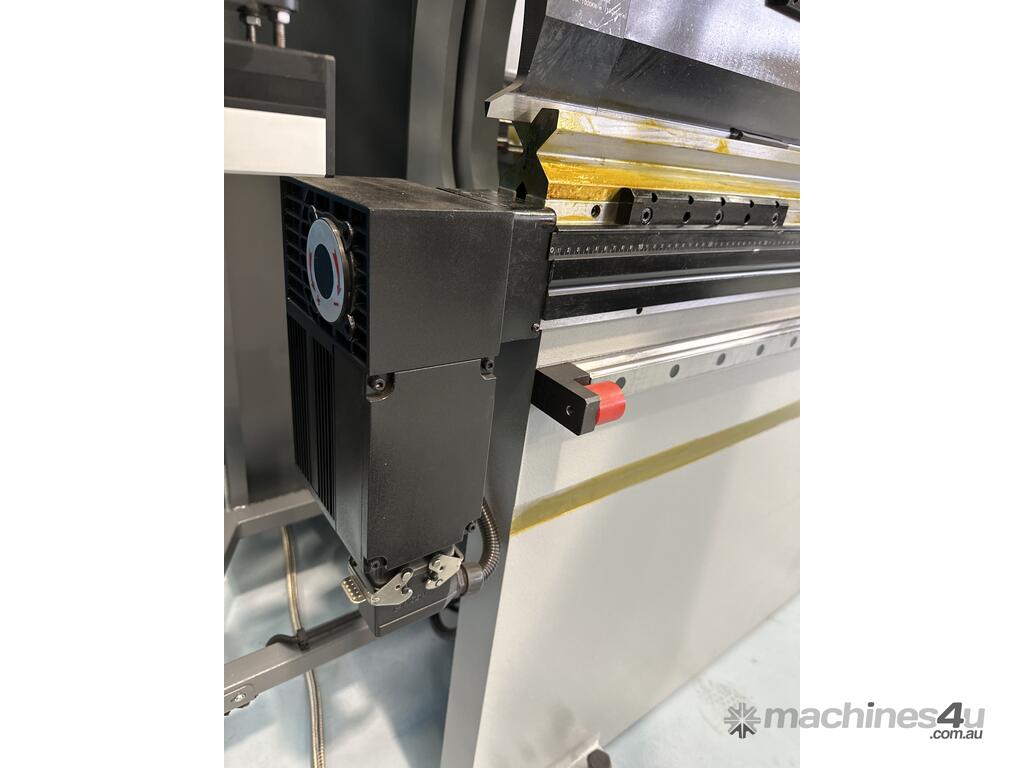

8. Lazersafe optical safety tool guarding arrangement:
9.Tool crash protection
10. CNC crowning system
11. Standard 7 axis (Y1/Y2/X/R/Z1/Z2 & C)
12. Next gen upper tool mechanical quick release clamps
13. 60mm tri tool bottom table
14. Status LED lights inbuilt into the covers
15. Modern streamlined design

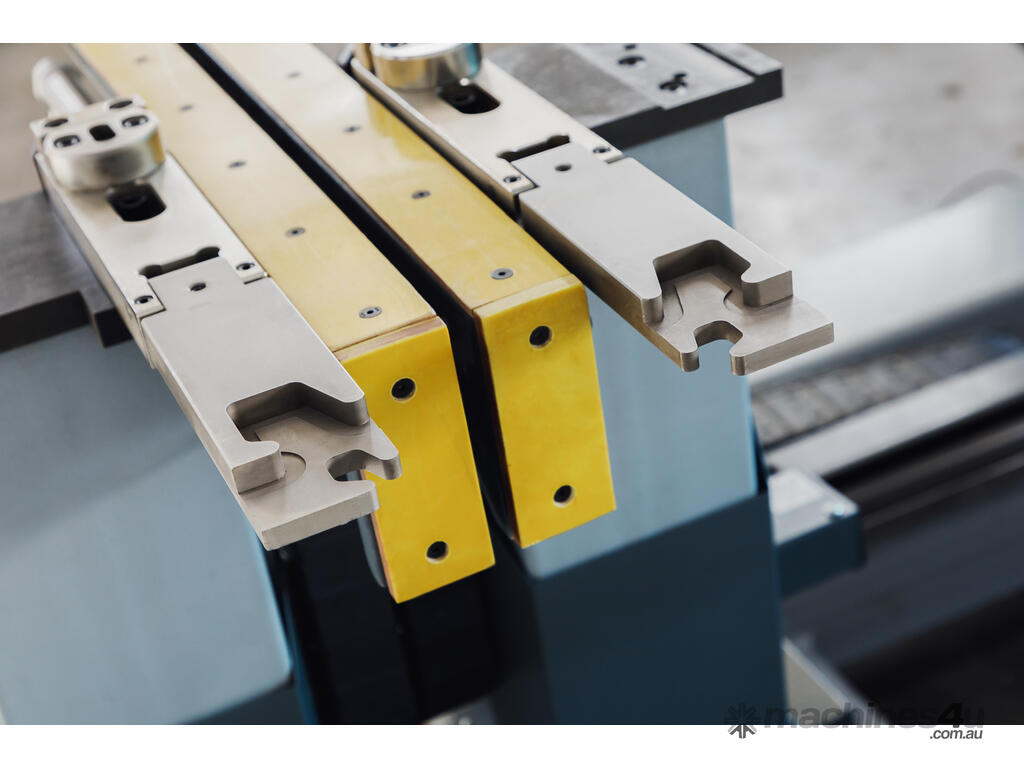

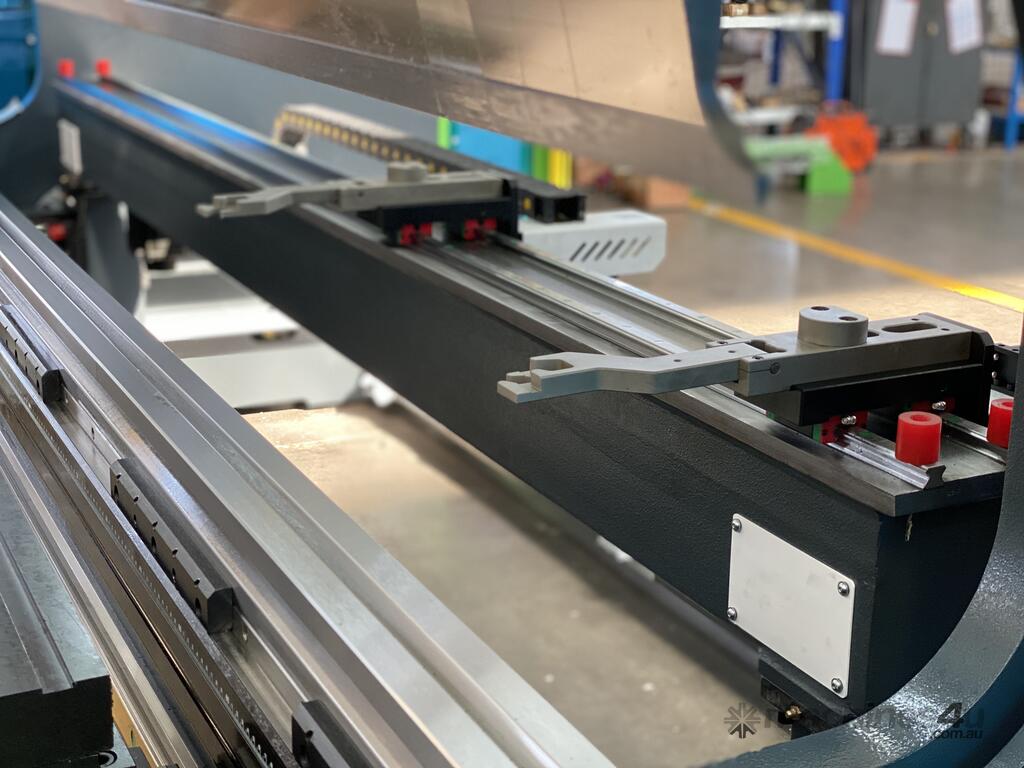

16. Back gauge fingers with multi position design
17. Top quality componentry

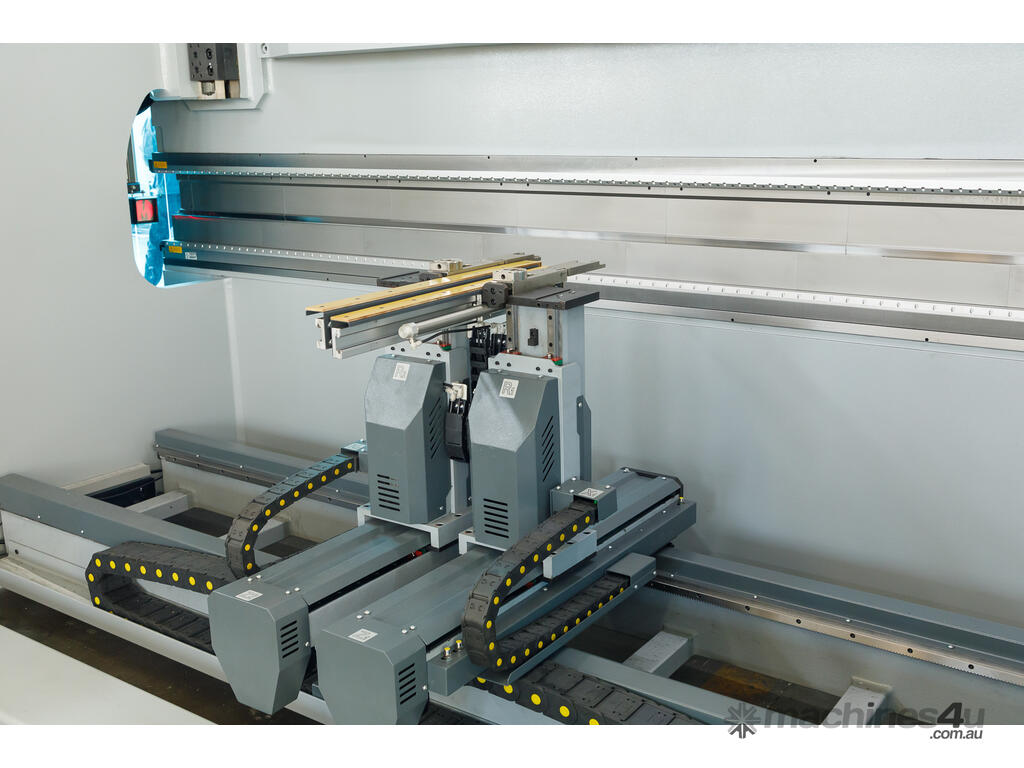

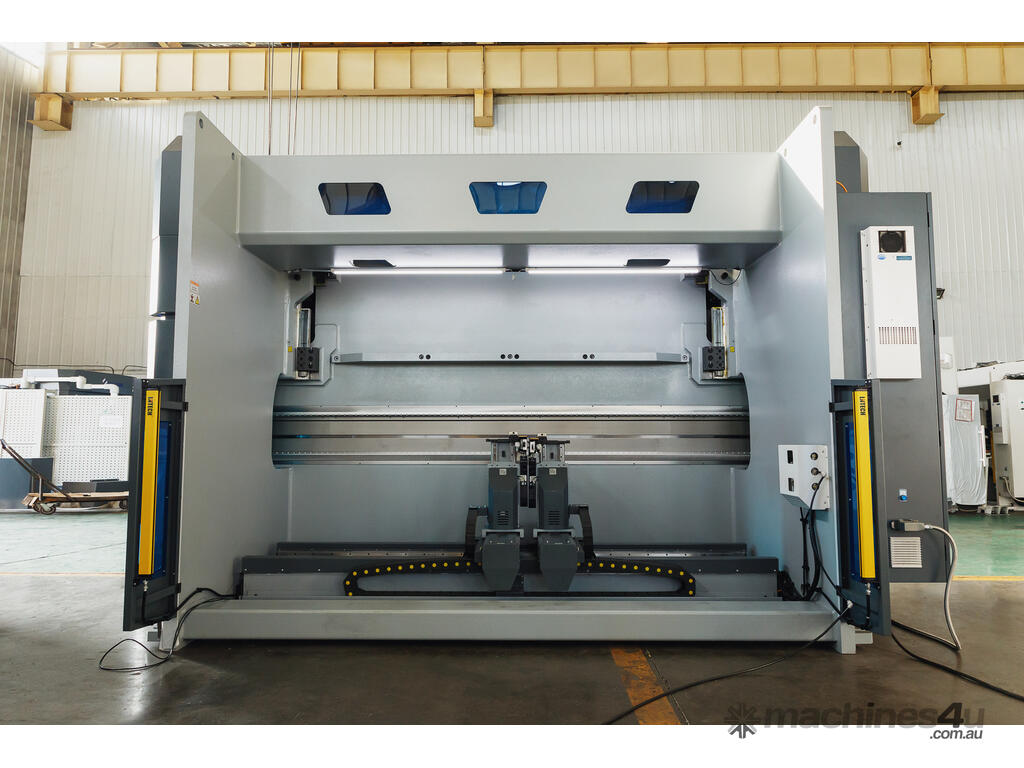

18. Open style design at rear of the machine

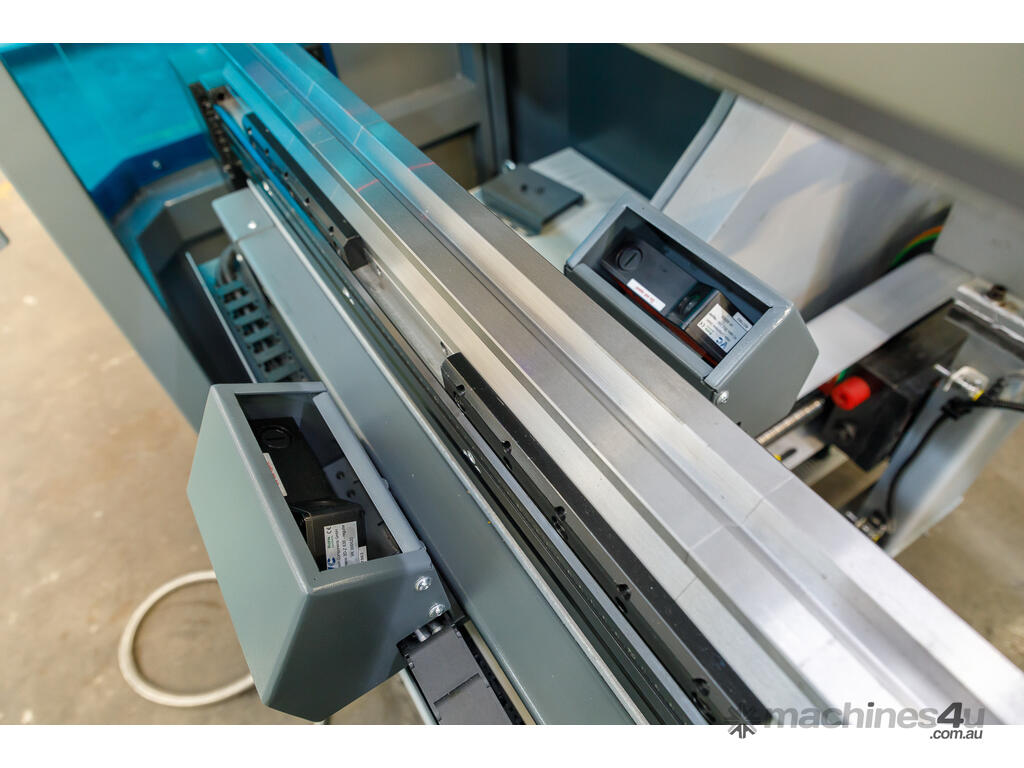

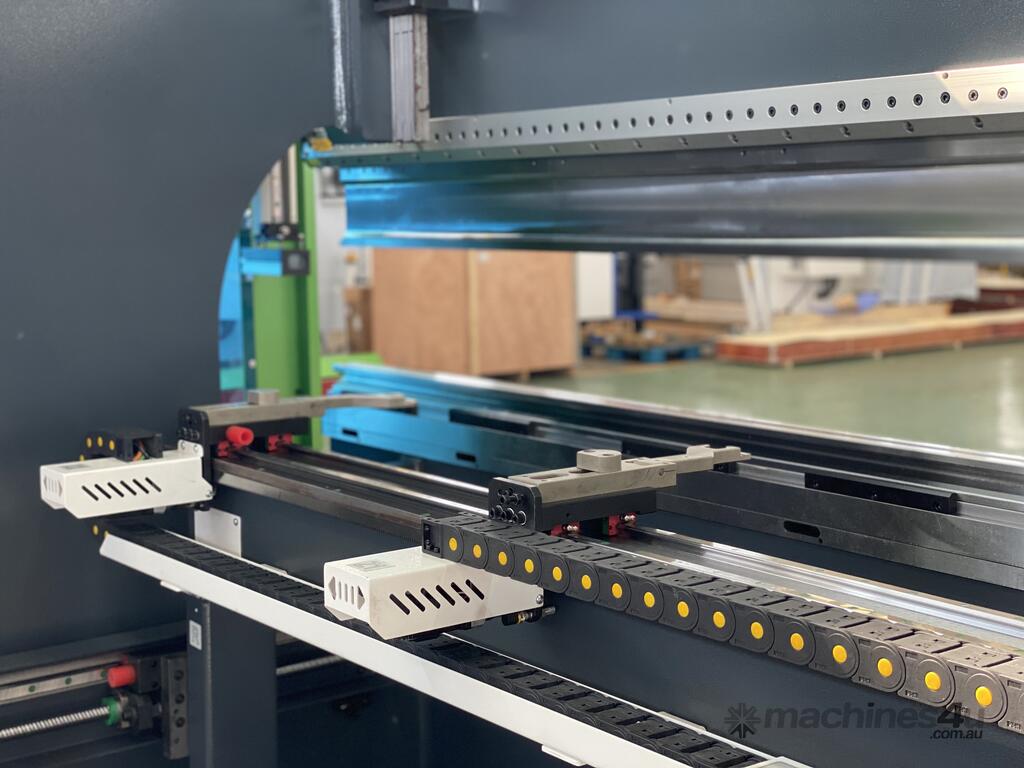

19. Ball screw and linear guided back gauge system

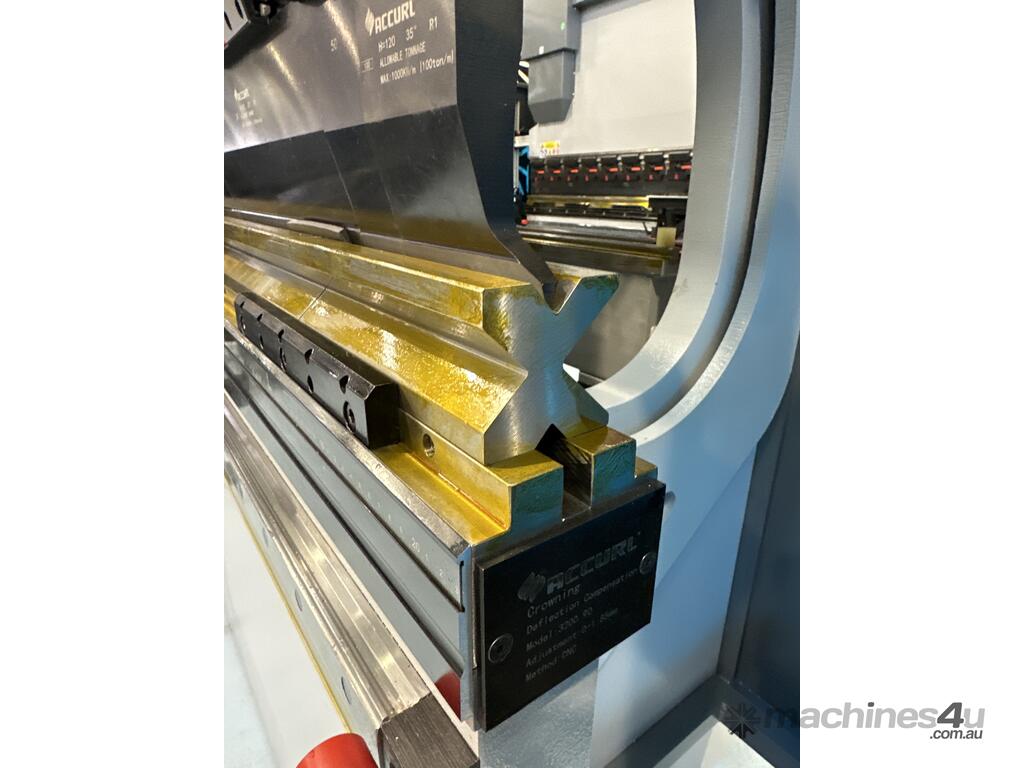

20. 60 x 60mm self centering multi vee bottom tool
21. Full length segmented top tooling
22. Double upper beam slideway design for extra rigidity
23. Copper upper beam slideways with graphite pads for better lubrication and free movement
24. Large opening and cylinder stroke
25. 550mm opening
26. 300mm cylinder stroke
27. 450mm throat
28. 210mm/sec approach and return speeds


Options available -

1. Delem DA-66T (2D programming/3D viewing) or Delem DA-69T (Full 3D programming with 3D offline software)

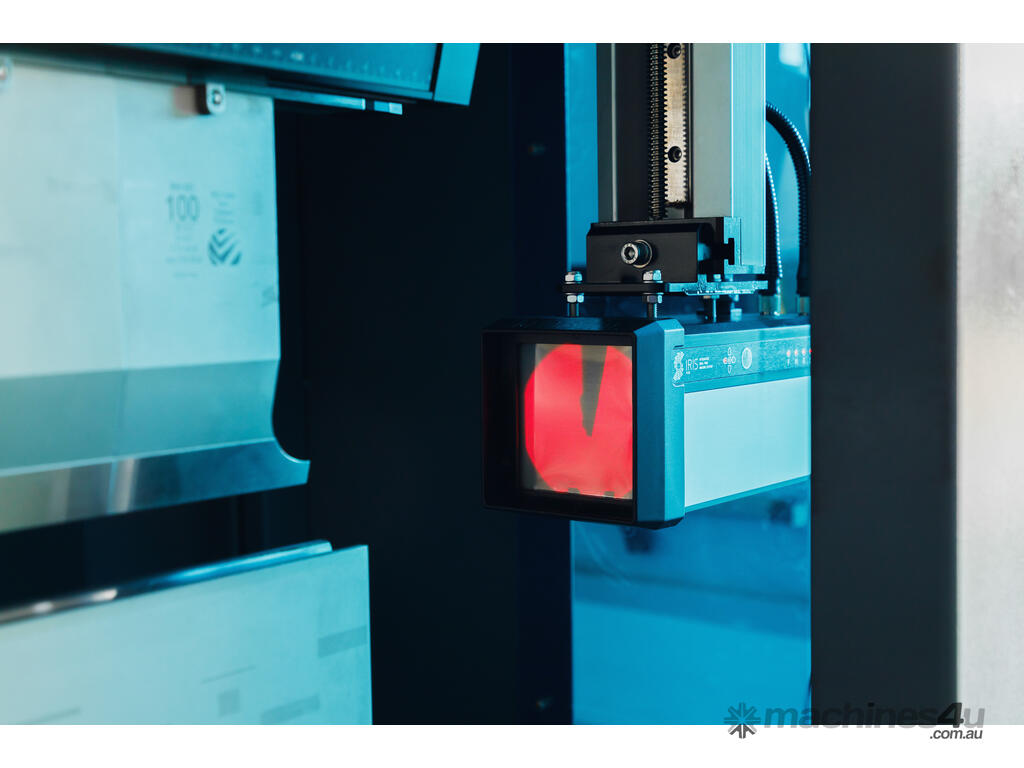

2. Lasersafe IRIS camera tool guarding (stopping distance up to 2mm above the job)
3. Lasersafe IRIS PLUS with angle measurement system which auto checks the angle and makes necessary adjustments
4. Upper tool clamping pneumatic or hydraulic (Wila or Rolleri)
5. Lower die clamping pneumatic or hydraulic (Wila or Rolleri)
6. Additional CNC controlled axis (10+ axis available)
7. Additional beam opening distance
8. Additional cylinder stroke distance
9. Larger throat opening
10. Custom design tooling

NB - Some pics display optional extras
