AccurlCMT SMART GIANT FIBER LASER | 6KW MAX | 25 X 4M |BOCI HEAD | HYPCUT CONTROLLER

Accurl sheet metal machinery offer high level technology machinery within its market segment and is a progressive forward thinking company constantly improving their products and product range. Its because of this Complete Machine Tools has taken on the agency for Accurl machines in Australia. Why limit yourself to a company that only can supply a laser cutting machine, go with a company who can grow with your business and offer a complete solution for all your sheet metal and fabrication machinery needs under the 1 roof.

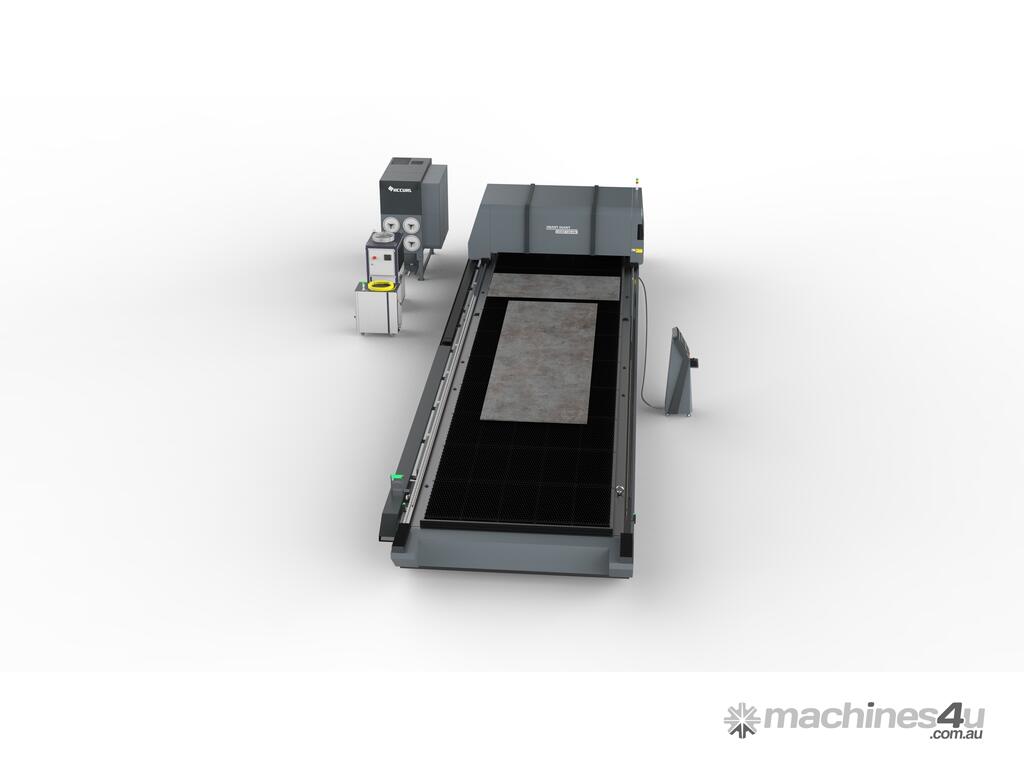

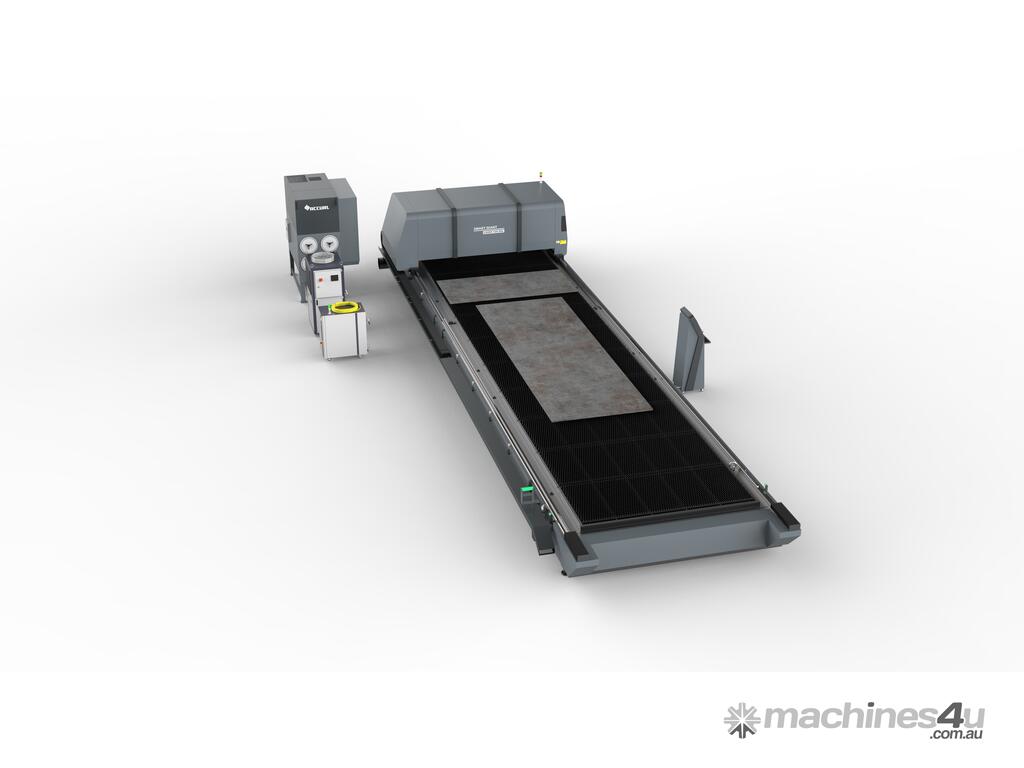

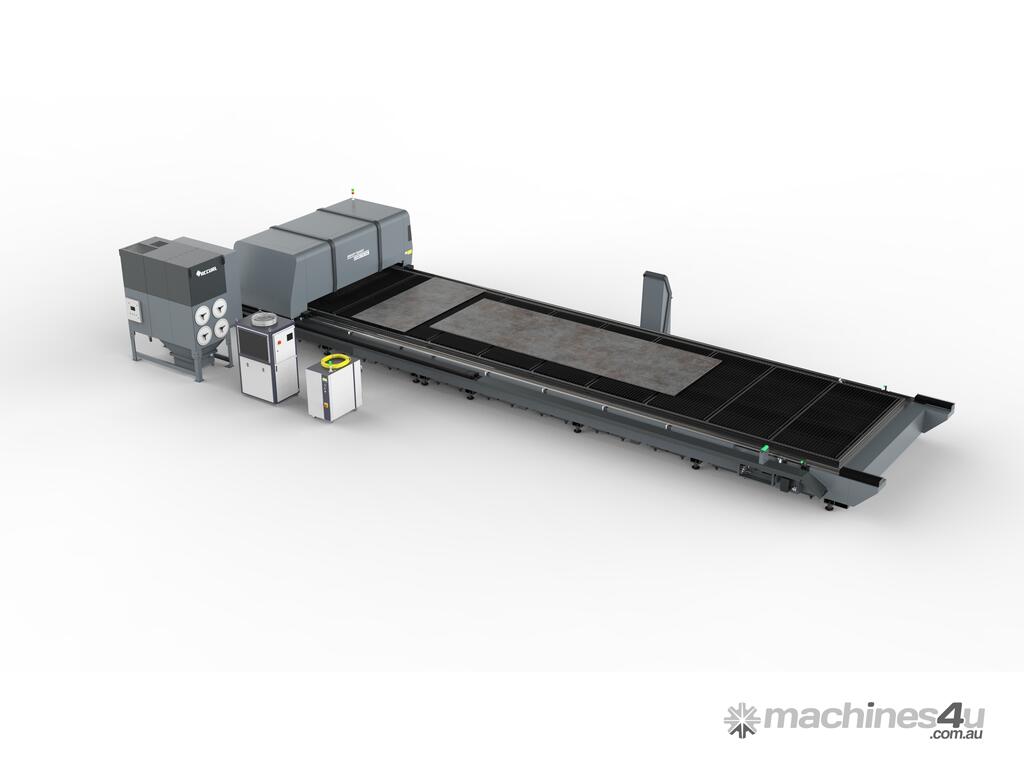

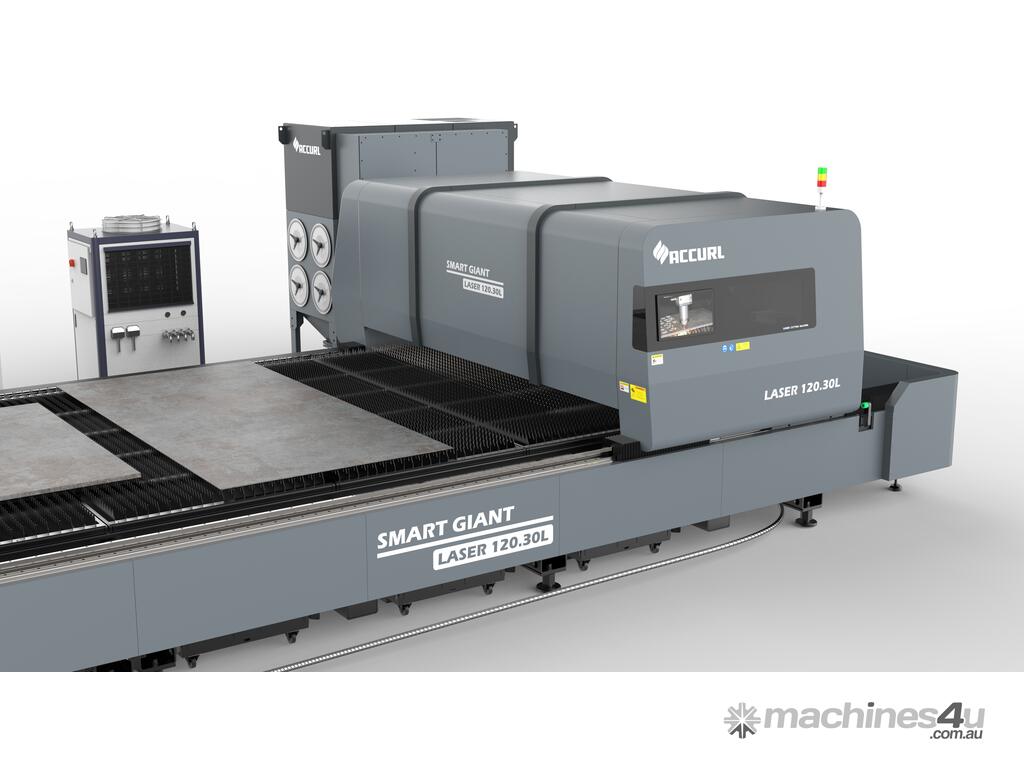

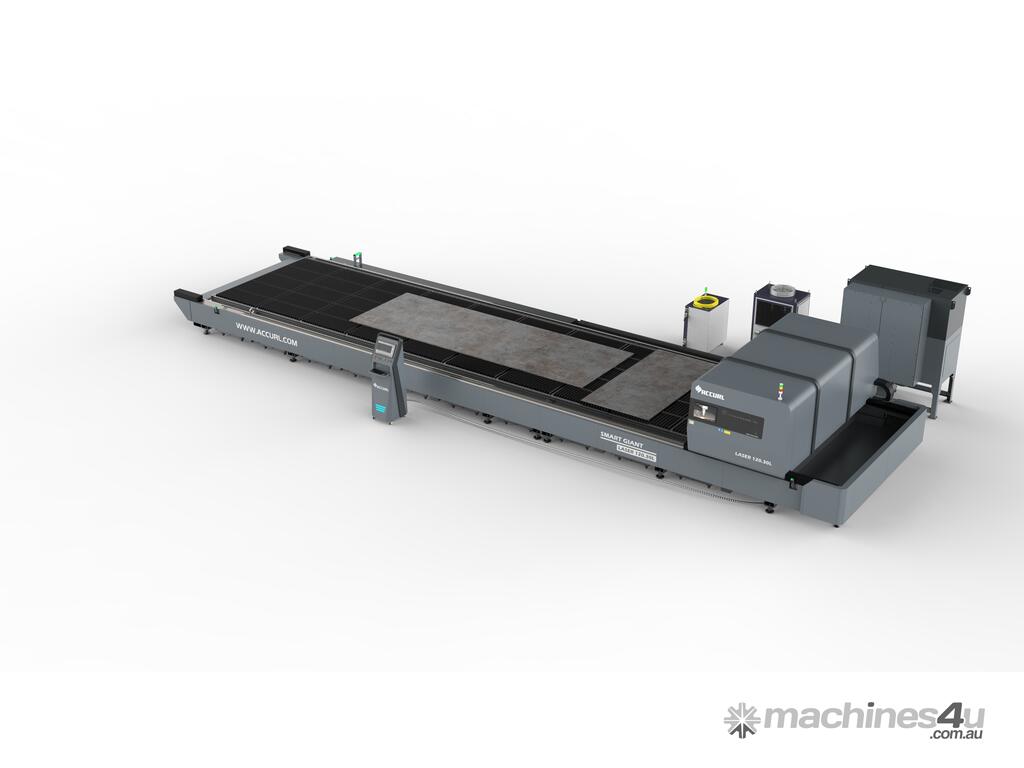

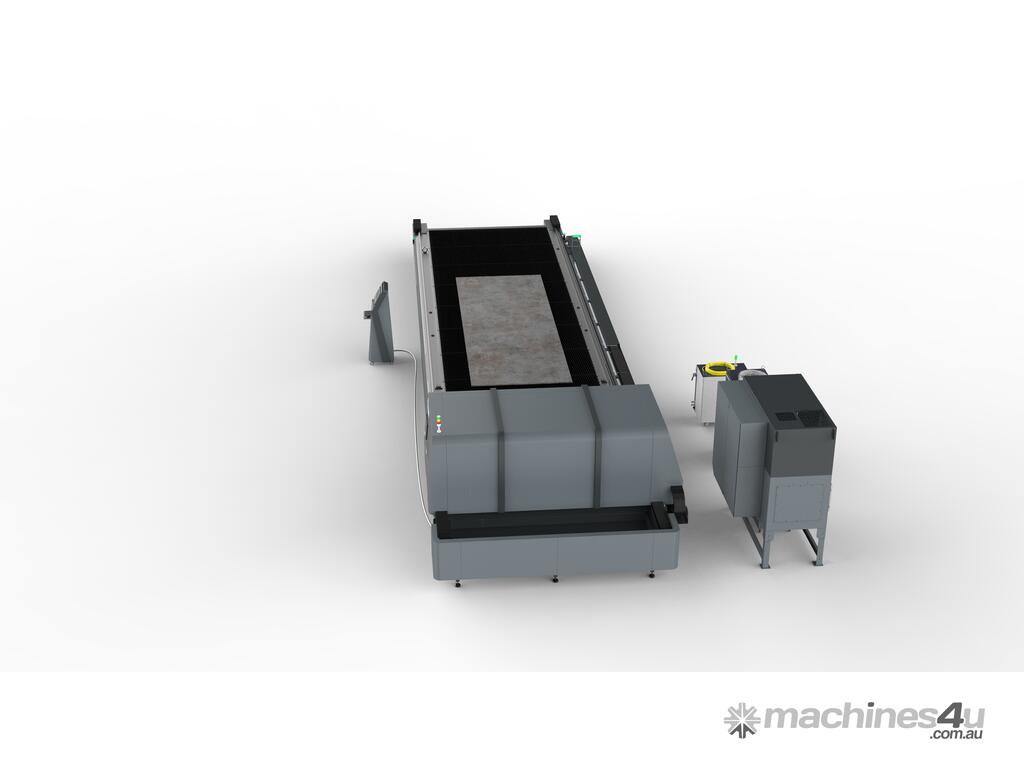

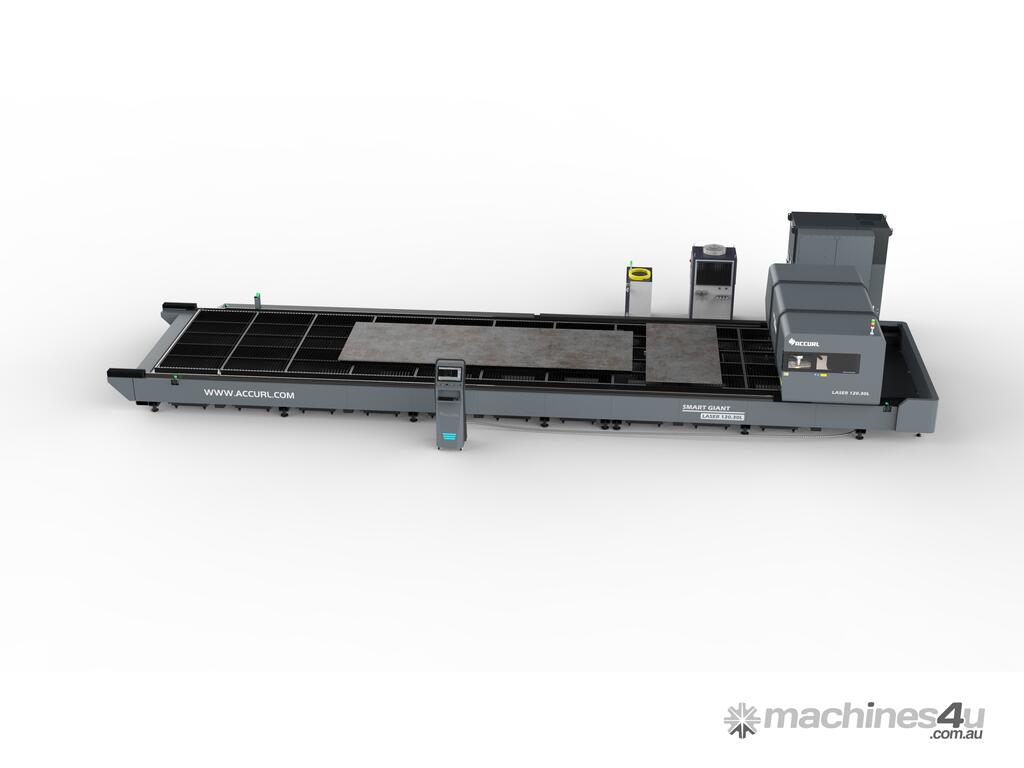

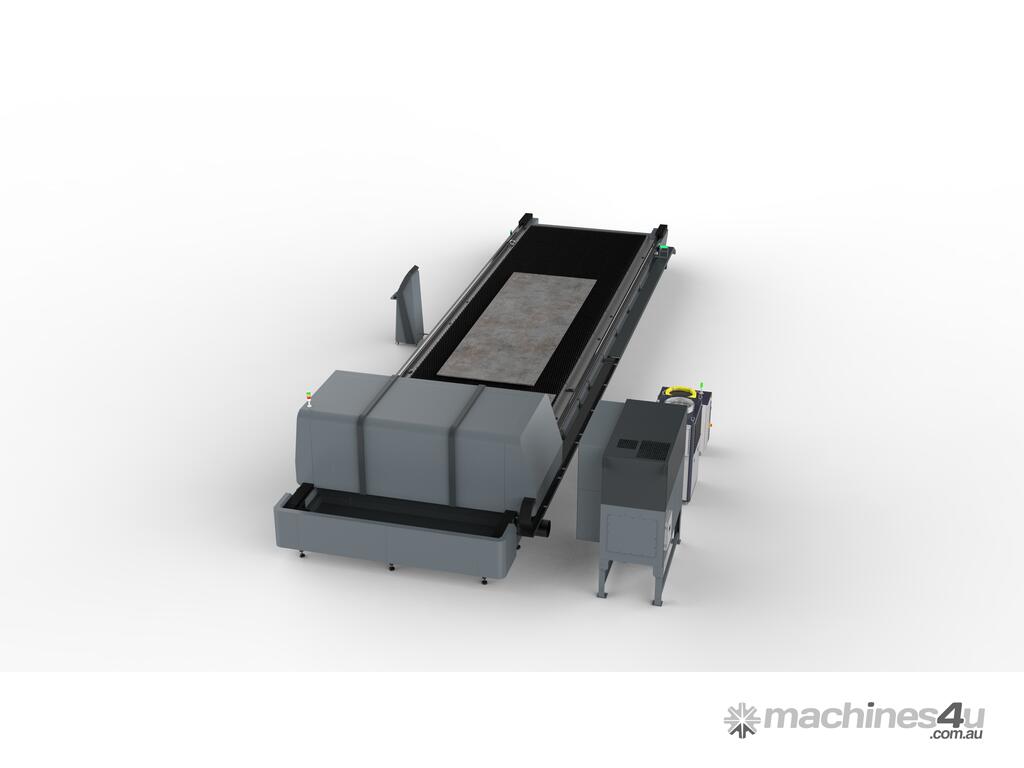

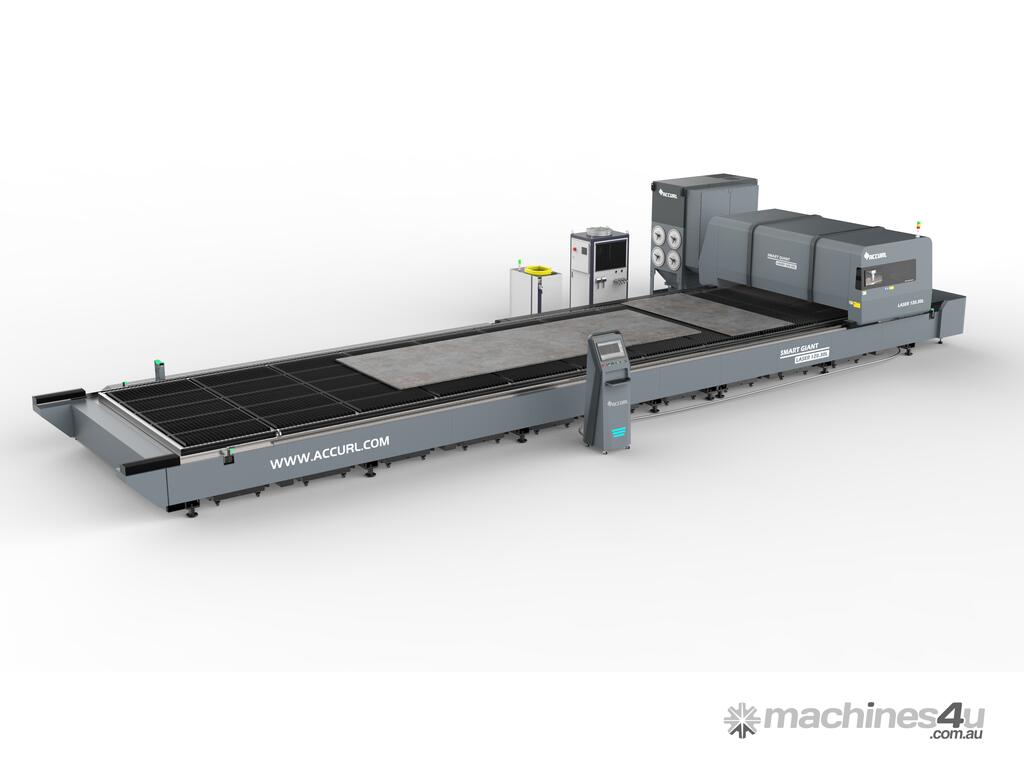

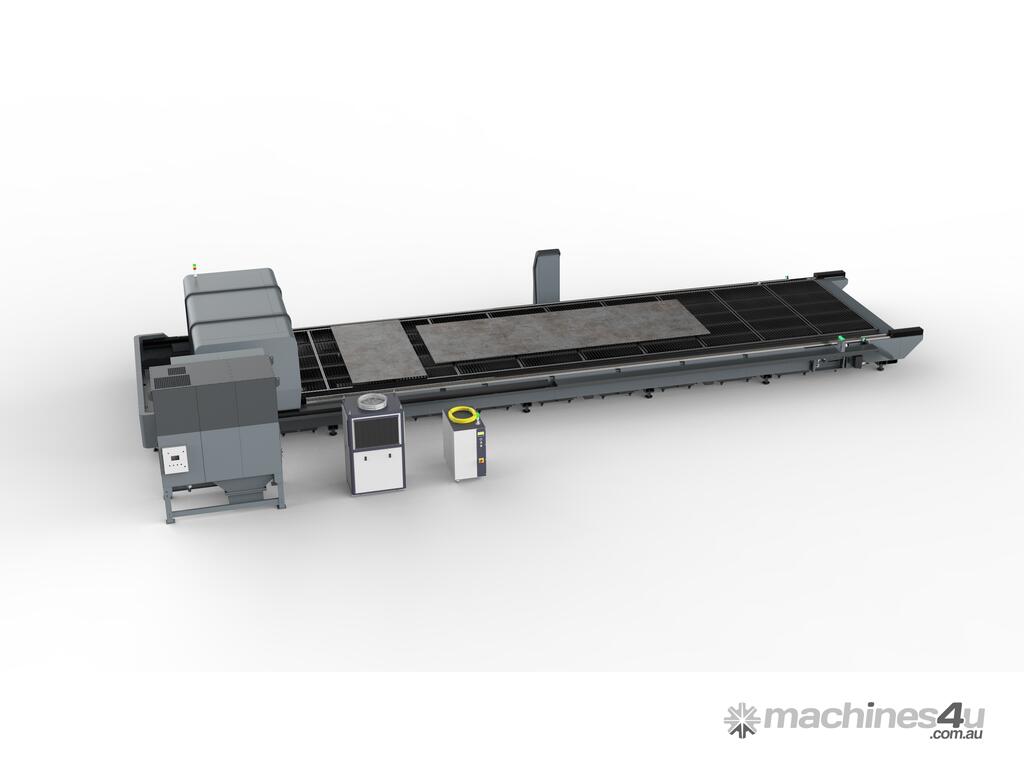

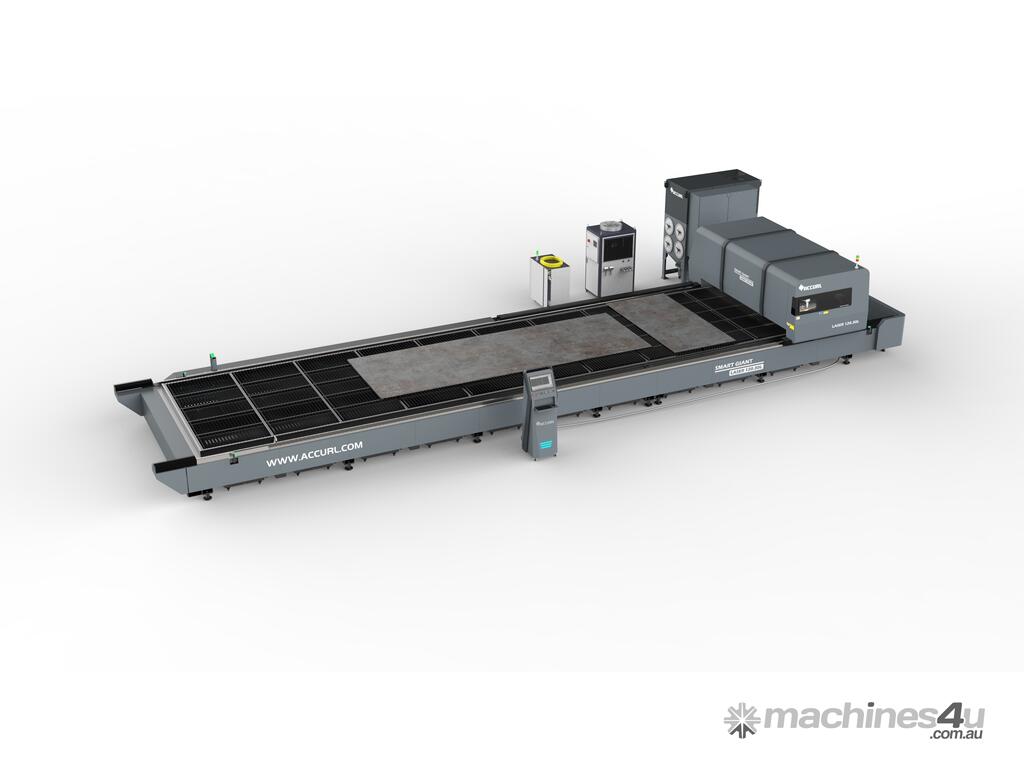

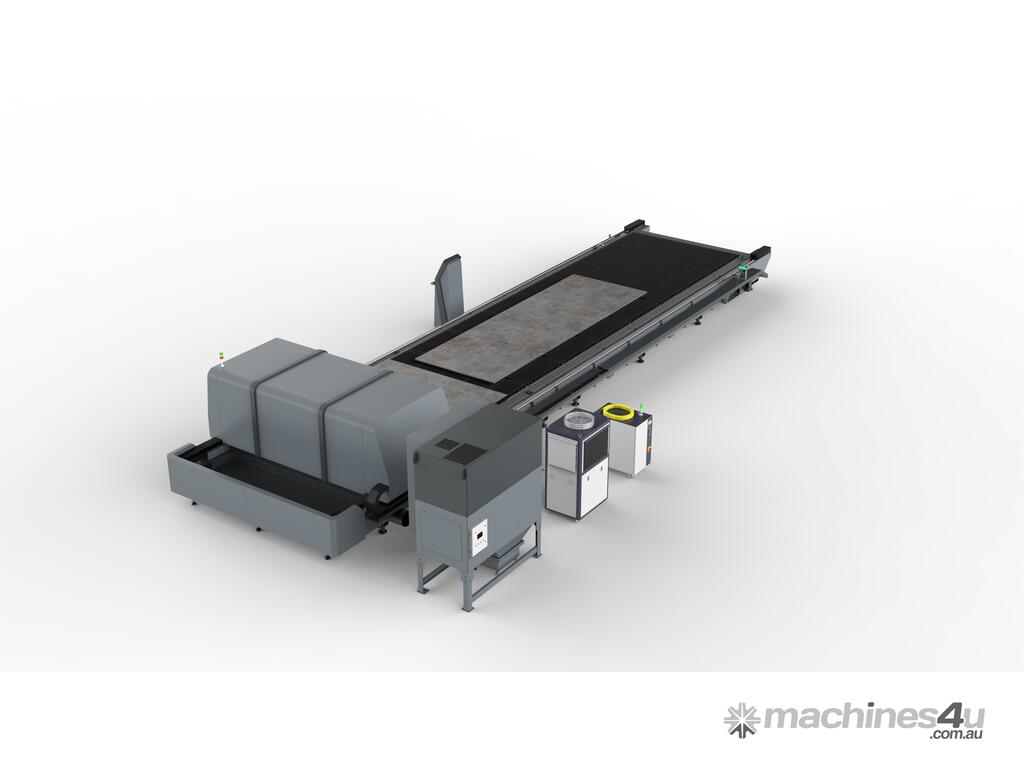

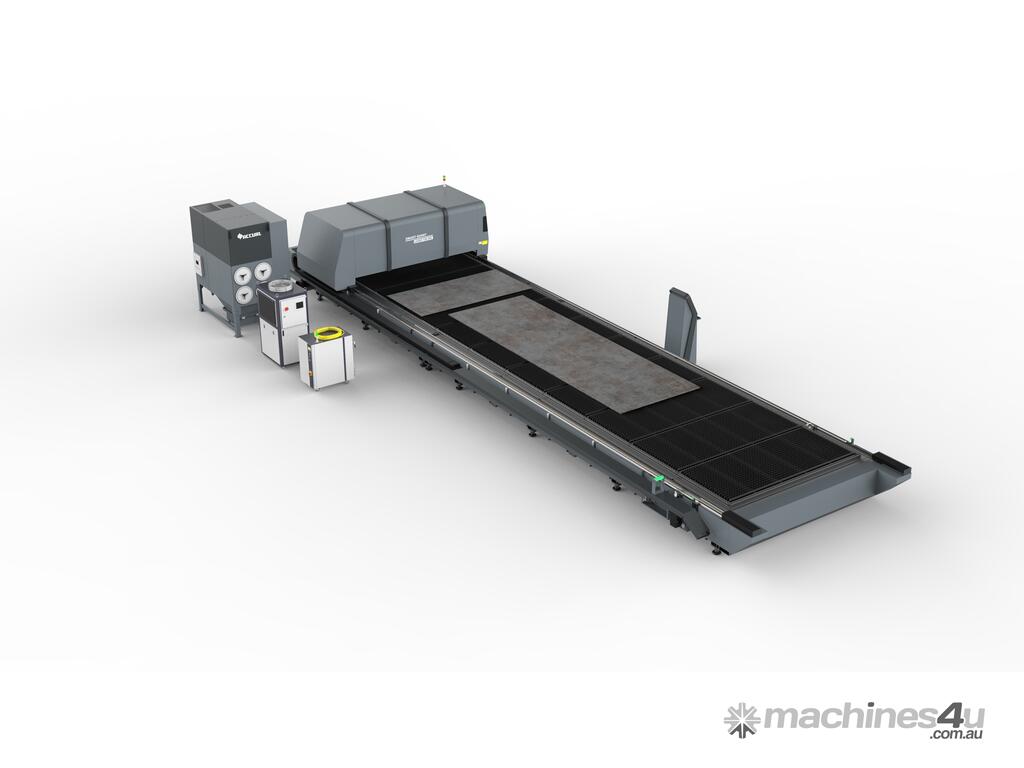

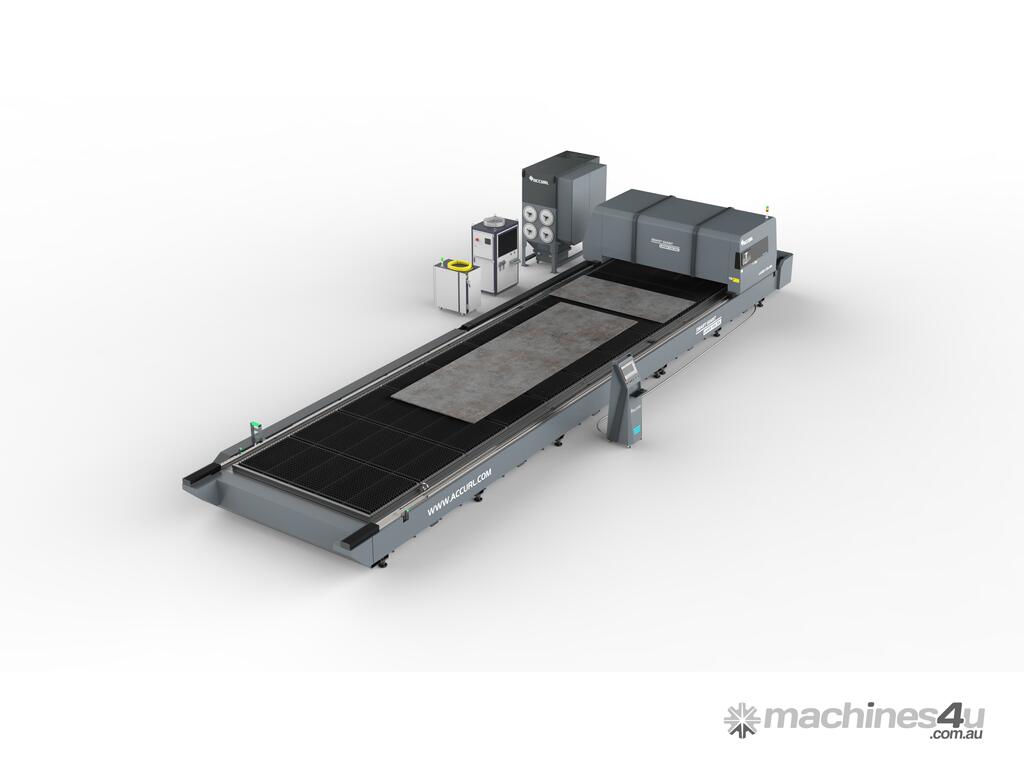

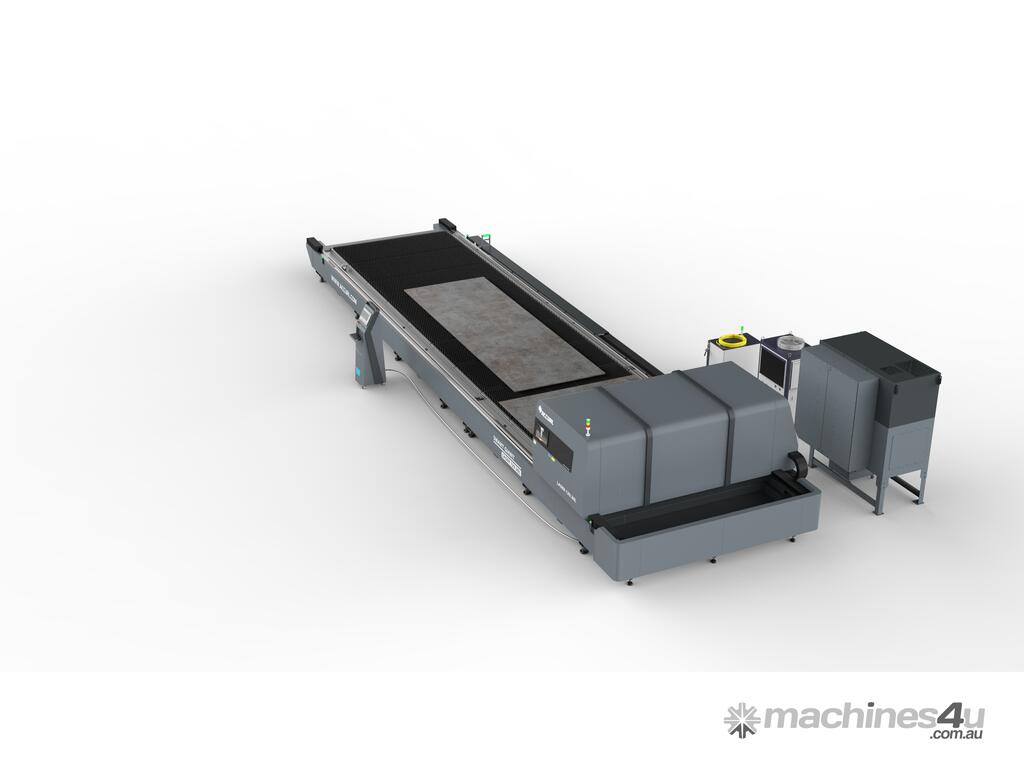

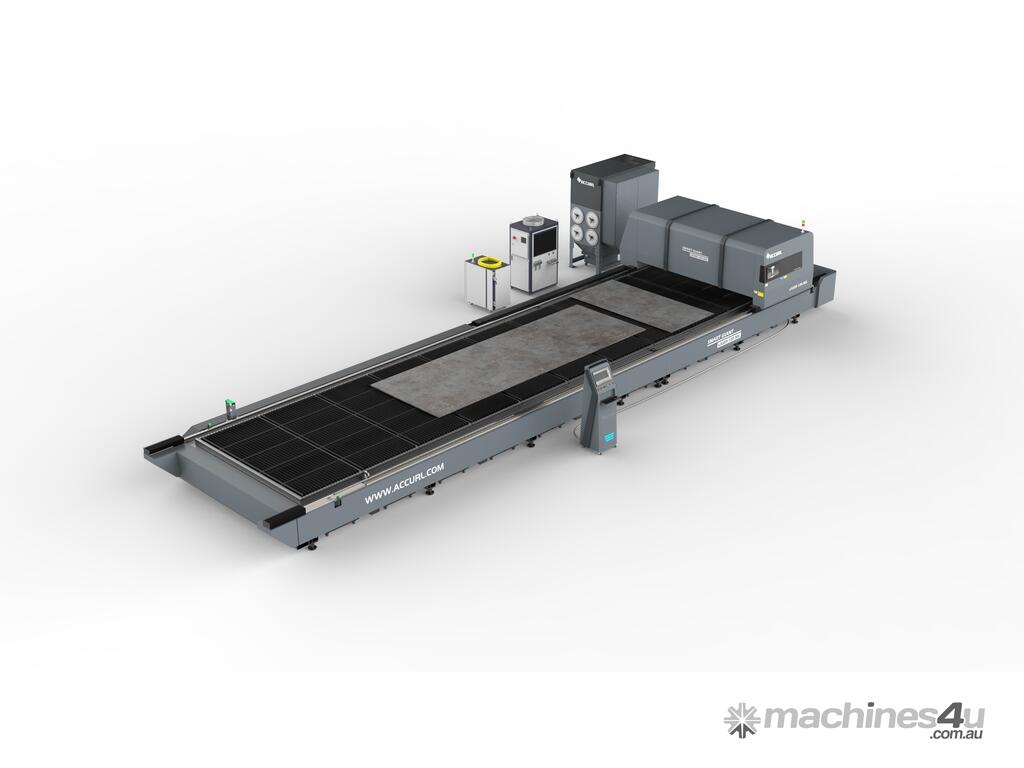

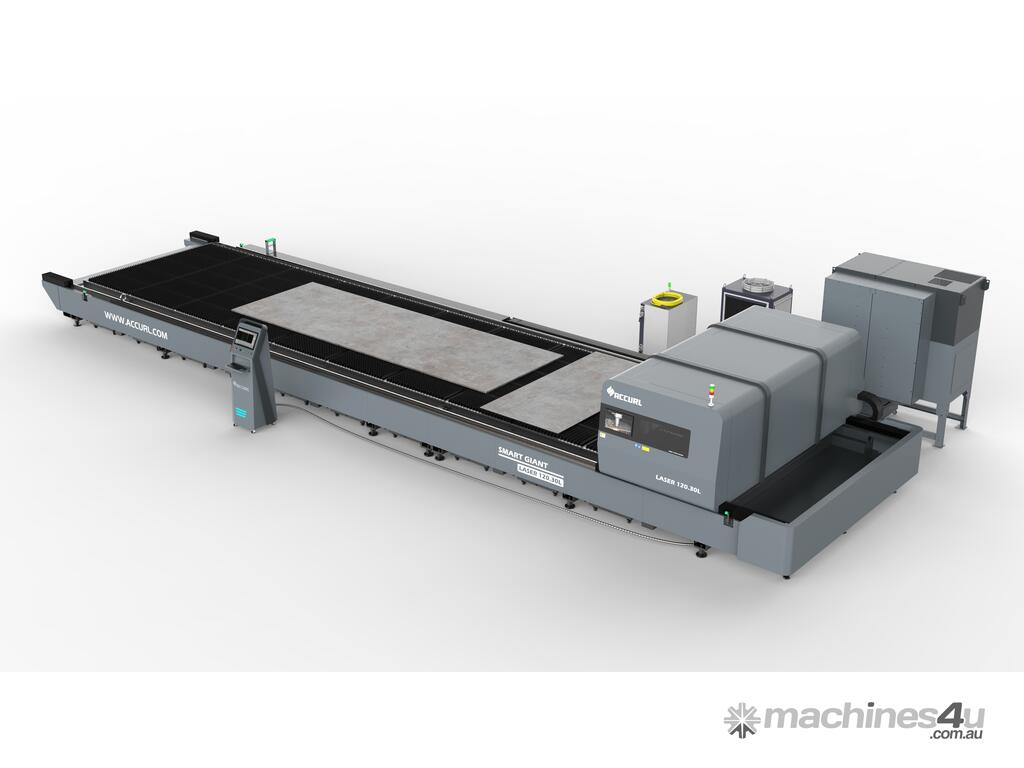

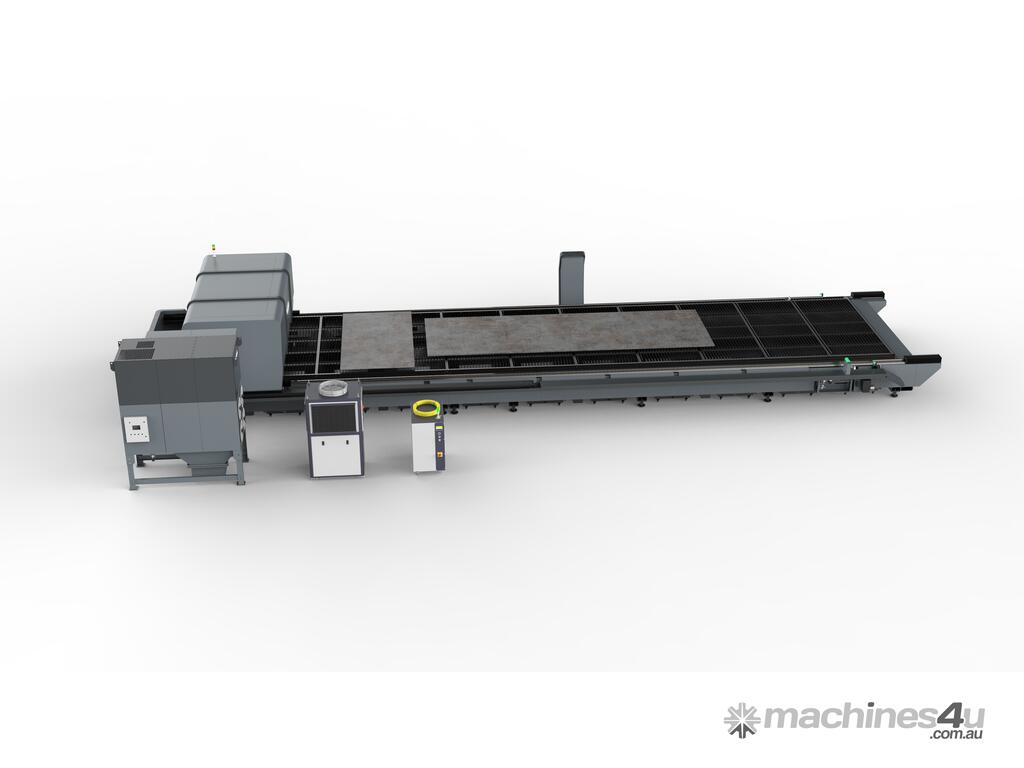

The SMART GIANT series is a very well optioned up machine with a very large format. This machine is ideal for a company wanting a work horse and needs a very large format cutting large and heavy plate. The SMART GIANT Series is fitted as standard with a Boci auto focus cutting head, Hypcut twincat dual screen controller, Max Photonics laser unit and a voltage regulator as standard.

The SMART GIANT has a modular design which is expandable from 10m up to a massive 40m for versatile applications. The large format allows processing of large parts continuously minimising repositioning and time wasting associated with that.

SMART Giant model is capable of accommodating workpieces with widths of up to 4meter and thicknesses of up to 100mm.

Key Features:

Modular design:
Expandable from 10M to 40 meter for versatile applications.

Large-format cutting:
Process large parts continuously, minimizing repositioning.

High dynamics:
Ensures maximum precision and throughput in large-scale cutting.

Easy Access:
Simplified access to cut parts and raw material loading with SMART GIANT.

Safety features:
Three scanners for secure gantry movement and laser safety curtains.

High-tech cutting head:
Designed for high power and 24/7 operation for exceptional cutting performance.

ACCESSIBILITY

SMART GIANT prioritizes operational accessibility by featuring an enclosed gantry for enhanced safety. Operators benefit from dual touch panels for seamless control access, a detachable front panel in the cutting zone for maintenance and parts management, and a side door for swift execution of basic tasks. Additionally, a handheld control unit enables precise axis manipulation for setup and nozzle clean system.



Technical specifications
Performance

Max. X Y speed
100 m/min

Maximum XY acceleration
60 m/s²

Accuracy
±0,05 mm

Repeatability
±0,03 mm

Working capacity
Processable metals

Mild steel, stainless steel, aluminum, copper, brass

Maximum sheet dimensions
12.250 mm x 3.100 mm [Smart Giant-12030]
16.250 mm x 3.100 mm [Smart Giant-16030]
20.500 mm x 3.100 mm [Smart Giant-20030
25.250 mm x 4.100 mm [Smart Giant-25040]


STANDARD FEATURES & COMPONENTS-

-TWINCUT®21" S80 CNC Multi-Touch TwinCAT Control System
-YASKAWA® Highly dynamic EtherCAT servo drive
-BOCI® BLT 4 Series Laser Cutting head (Auto Focus)
-Precision Reducer & RACK System with 3 Arc-min
-ACCURL® Dynamic System 4.0: 2G Acceleration
-ACCURL® Fast piercing 2.0: Ultrafast perforation
-Graphite Frame Anti-burn Technology
- Cypcut offline software
-MAX SINGLE-MODULE CW FIBER LASER
-CE Norms: Protective Measures with Real-time monitoring camera
-Class IV safety system and CE marking
-Full automatic voltage regulator System
-HYPCUT®Embedded PCs: Industrial PCs with integrated I/O level
Industrie 4.0 for sheet metal working with TwinCAT Analytics and TwinCAT IoT
-Aluminium cutting head gantry
-Red laser dot sheet alignment system
-Fly cut | frog jump | pre-pierce functions
-Sheet corner auto detection function
-Auto focus cutting head
-Fully enclosed design around the gantry and cutting head
-Laser grade safety glass
-Internal LED lighting
-External 3 colour status lamp
-Solid heavy duty frame for greater vibration absorption
-Oxygen & Air auto gas selection via a servo valve
-Nitrogen manual selection (Optional auto selection servo valve available)
-Clever door design allowing easy access into the machine for maintenance

CAPACITIES -

- Power source ) 6KW

Options available -

- IPG power source (USA)
- Beckhoff TwinCat touch screen control system (Germany)
- Accurl dust extraction system
- Precitec Thunder cutting head (Germany)
- Precitec ProCutter cutting head (Germany)
- Accurl 3D bevel cutting head (+/- 45 degrees)
- Accurl Auto nozzle centering cutting head
- Accurl auto nozzle centering & changer
- iCut (Metalix) offline software


***** A machine size that is larger than a 1.5m x 3m table requires special equipment (flat rack) when shipped from the supplier and the price varies drastically depending the time of the year and how busy the shipping lines are. The above indication of price DOES NOT include any shipping costs *****
