AerStorm Stand-On Aerator | 23.5 HP | Maximum Productivity & Efficiency

The Next Generation of Productivity
Aeration is essential for healthy turf, and it's also an opportunity to expand your services. The new stand-on AerStorm™ aerator delivers unmatched efficiency, allowing you to get more done than ever before. Built for durability, productivity, and all-day comfort, this next-generation aerator is designed to tackle any challenge with ease.

Quick and Simple Aeration
Easy Depth Adjustment & Engagement
Adjustable Depth: Simple, intuitive depth selection pin with an easy-grip rubber knob allows for 1” to 4” adjustments in 1/2” increments.
Hydraulic Tine Engagement: Foot-activated switch keeps hands on the controls for maximum productivity and safety.

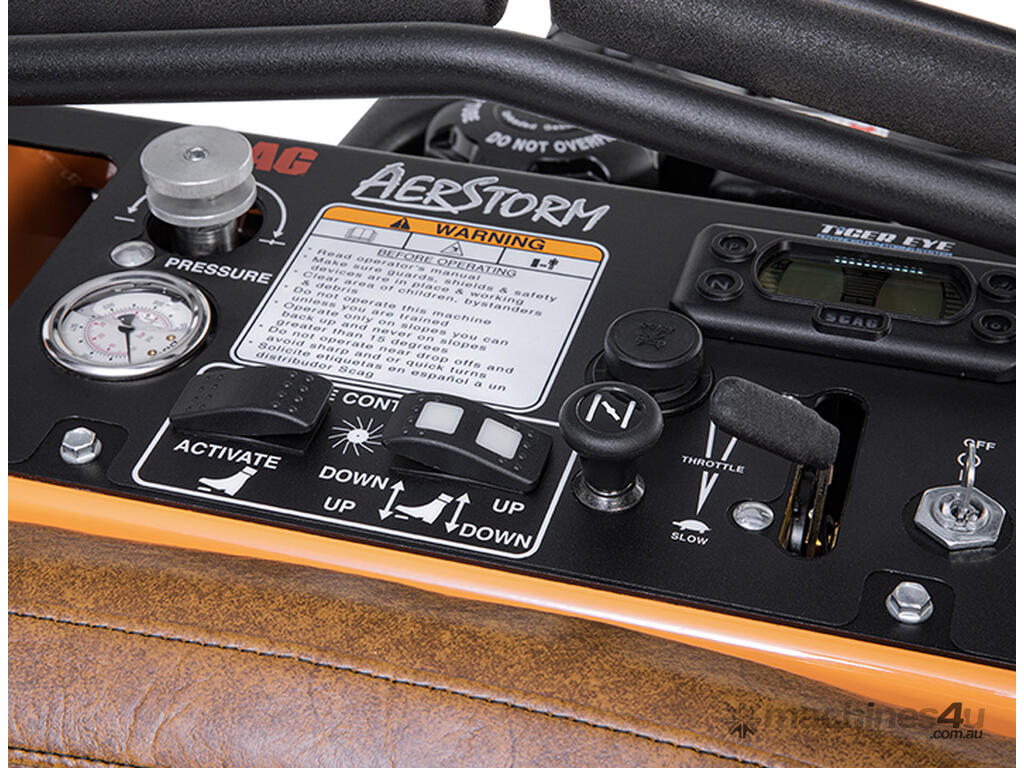

Safety Features: Tine activation switch on the instrument panel prevents accidental engagement or disengagement during operation or transport.

AerStorm™ Accessories
Drop Seeder Kit
Engine Specifications
Type: Heavy-duty industrial/commercial
Brand: Kohler Command Pro
Model: CV732
Horsepower: 23.5 HP 3600 RPM
Torque: 40.3 ft-lbs (peak)
Cylinders: Twin-cylinder, air-cooled, OHV, cast-iron sleeves
Displacement: 747 cc (45.6 cubic inches)
Governor: Mechanical, variable speed (3600 RPM ±100, idle 1800 RPM ±150)
Air Intake: Large-capacity, 2-stage canister air filter
Exhaust: Single canister muffler
Fuel System: Integral fuel pump, inline fuel filter, float feed, two-barrel carburetor, adjustable idle
Lubrication: Full pressure lube with full-flow filter, 2-quart oil capacity
Electrical: 12V maintenance-free battery, solid-state ignition, 15-amp charging system

Engine Deck
Steel Thickness: 1/4”
Fuel Tank Capacity: 5.5 gallons (20.8 L), with a molded-in cup holder
Drive Wheels: 18 x 6.5 – 8, four-ply pneumatic tubeless with radius edge
Caster Wheels: 13 x 6.5 – 6, flat-free (semi-pneumatic)
Brakes: Lever-actuated, linked to both drive wheels
Operator Platform: Heavy-gauge steel with no-slip extruded star pattern
Comfort Pad: Large, heavily-bolstered cushion, tool-free removal for easy hydraulic access

Drive System
Type: Hydro drive with independent control of each drive wheel
Pumps: Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running the engine, one cooling fan
Wheel Motors: Two Parker TG 14.5 cu. inch cast-iron high-torque motors
Cooling System: 3.0-quart capacity cooling reservoir, SAE 20W50 fluid and 10-micron filter
Steering: Twin-lever steering control for precise maneuverability
Axles: Heavy-duty 1.25” straight motor shafts
Safety Features: Footplate-actuated operator presence system (engine kill switch)
Speed Range: Forward: 0 - 7.0 mph | Reverse: 0 - 3.0 mph

Product Specifications
Aeration Type: Plug-style, mid/under-belly mount
Aerating Width: 30”
Aerating Depth: 1” to 4” in 1/2” increments
Tines: 48 self-cleaning, replaceable steel coring tines
Tine Activation & Pressure:
Hydraulic tine engagement via a foot-activated switch
Adjustable hydraulic down-pressure for penetrating even the hardest, driest soils
The AerStorm™ aerator is built to handle any job with power, precision, and comfort. Step up your aeration game and take productivity to the next level!
