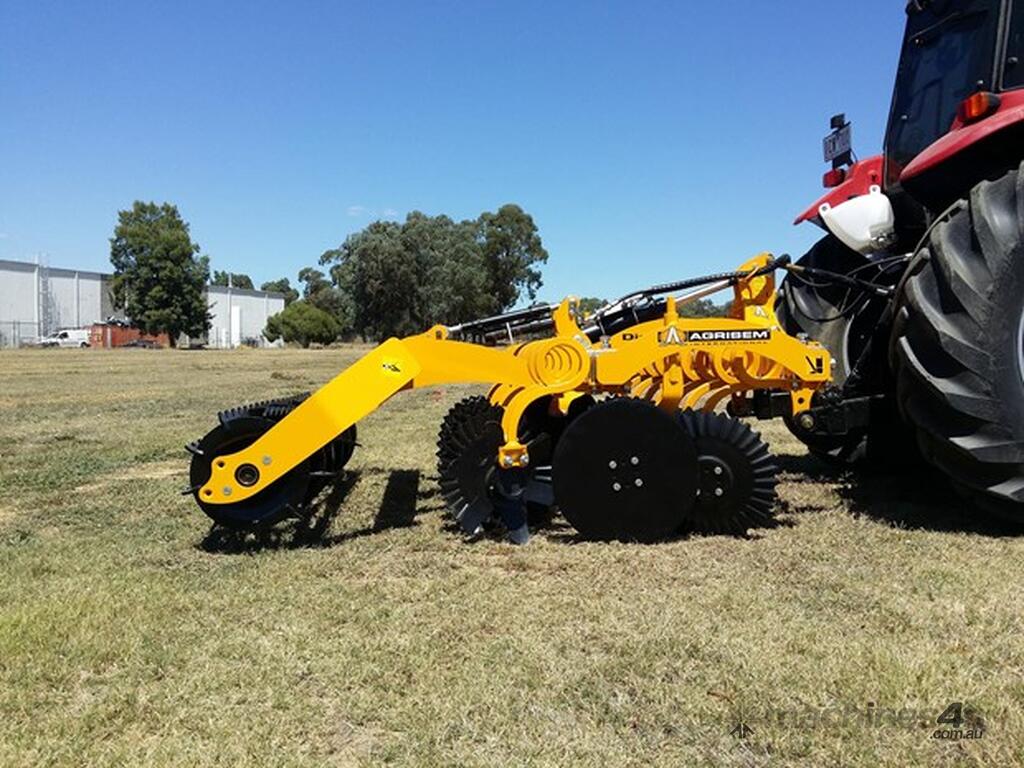

Agrisem DISC-O-VIGNE DOV170V VINEYARD SPEED DISCS (1.5M)

Multi-disc system with coil spring action patented fold-up design for short turning on headlands.

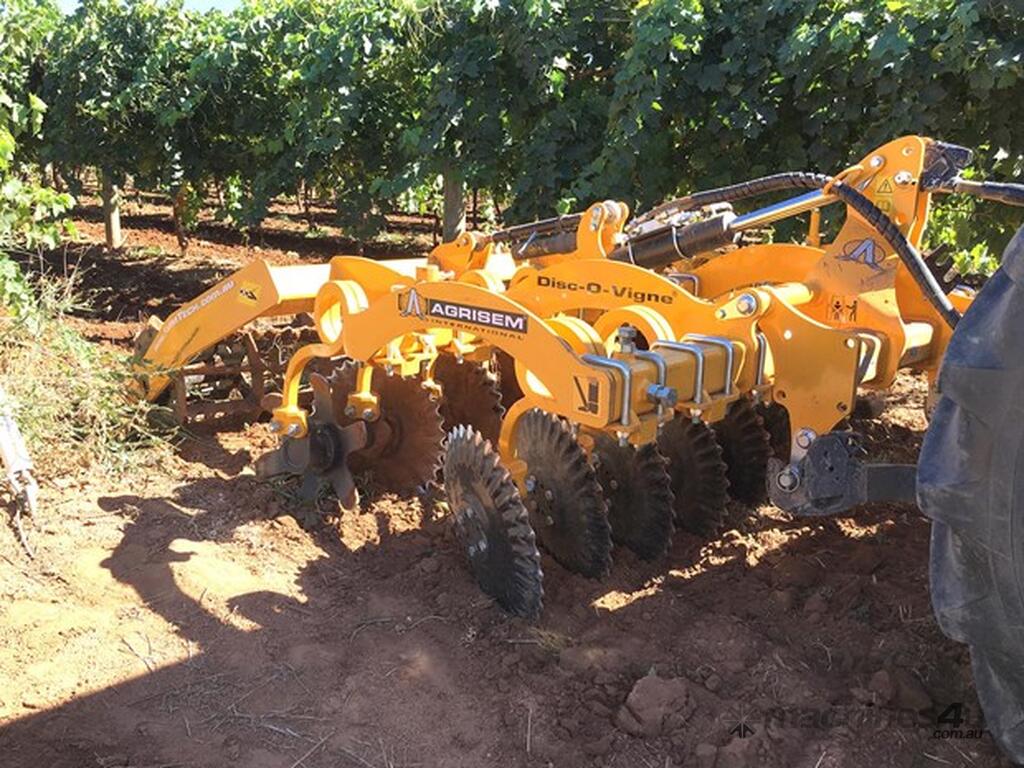

The Disc-O-Vigne is an independent disc stubble-breaker specially designed for vineyard tillage.

Standard features
1- 100×100 mm compact frame
2- 3PL CAT.1 or 2
3- Agrisem maintenance-free 3D security system
4- Good penetration in hard conditions

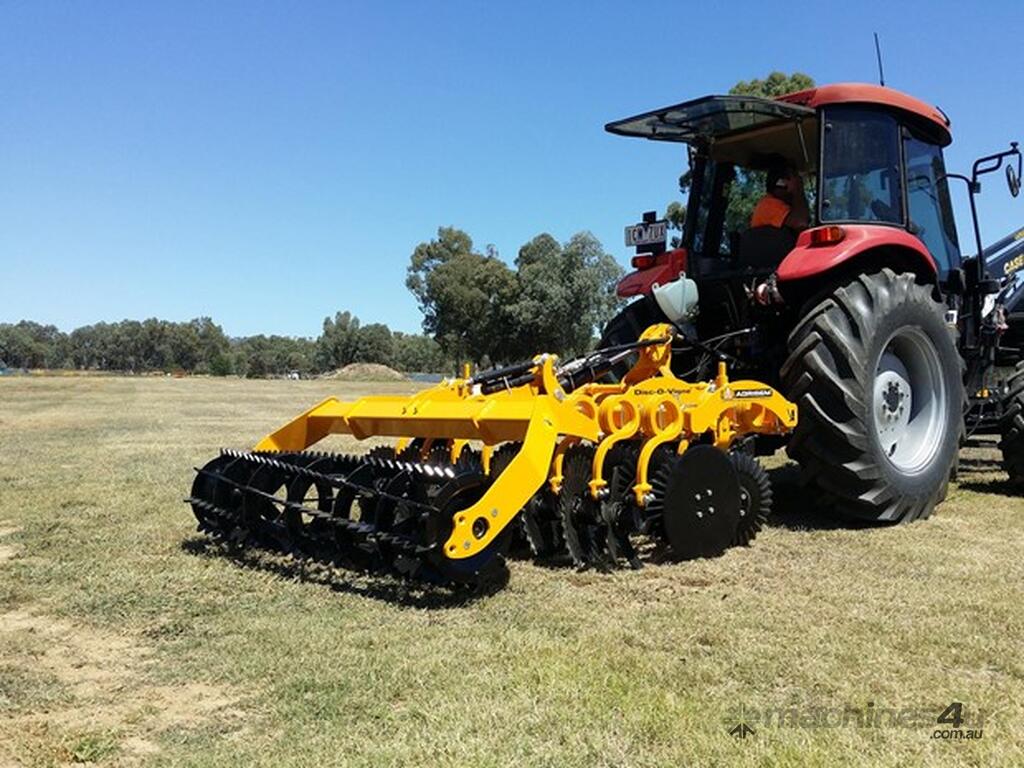

The Disc-O-Vigne is an independent disc stubble-breaker specially designed for vineyard tillage. It is equipped with a 100×100 mm compact frame and with tractor coupling cat.1 or 2.

Disc-O-Vigne is fitted with an Agrisem 3D security system with percussion spring 30x30 mm. This maintenance-free security ensures an exceptional penetration in the soil even in dry conditions and a homogeneous working depth on all the widths.

Mulcher discs assembled on the Disc-O-Vigne are twice more efficient than traditional serrated discs. Indeed, these discs keep an aggressive profile throughout their use and allow a good penetration in hard conditions as well as a better mincing of weeds.

The machine is equipped with high security and maintenance-free hubs.

This model is available from 1,00m to 2,20 m and can be equipped as an option with four more discs to increase the working width of 50 cm. The machine can also be equipped with 1 to 3 front blades to loosen the soil where the tractor wheels (2 lateral blades) and/or straddle tractor (1 central blade) are passed.

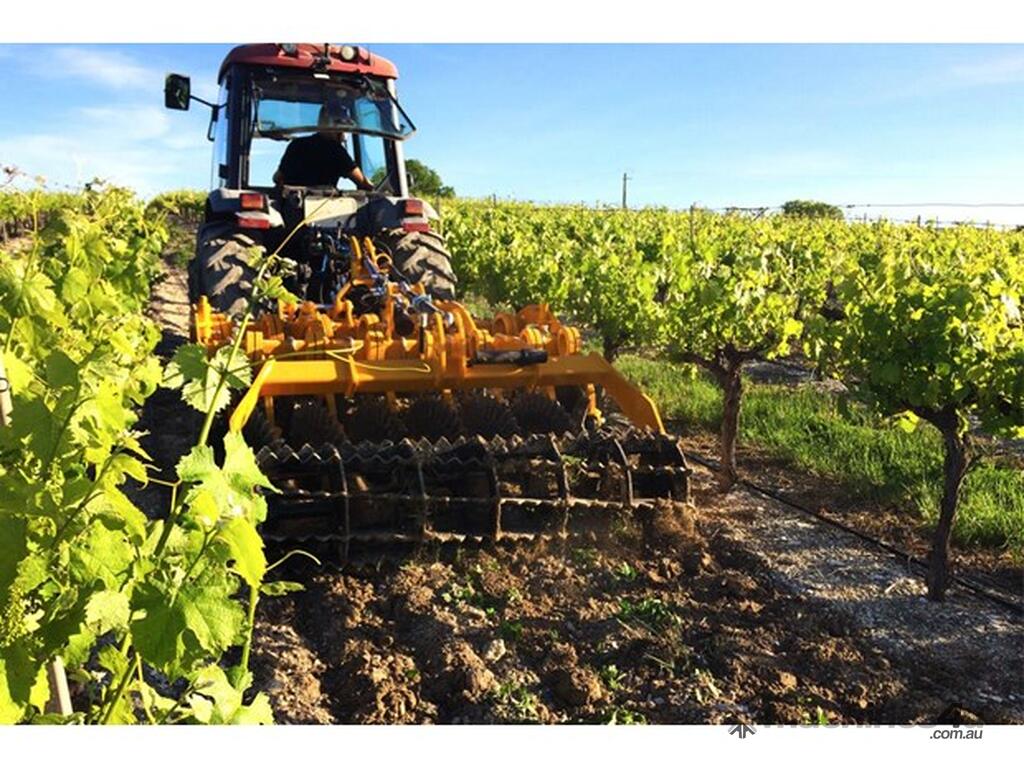

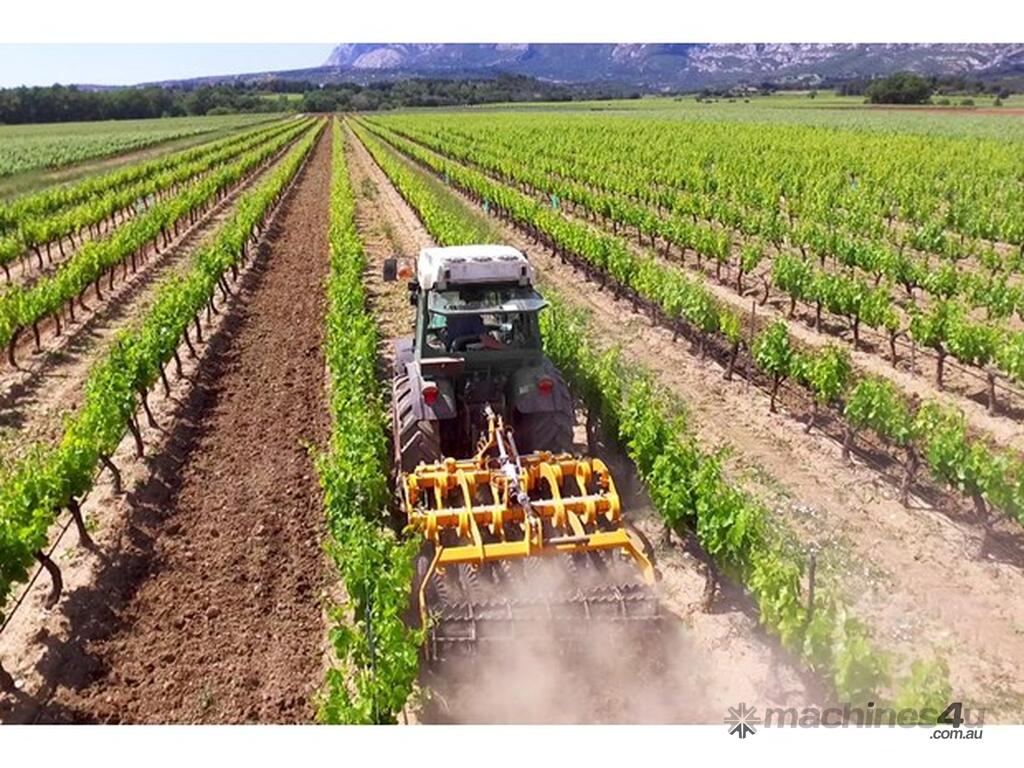

The Disc-O-Vigne is especially suitable for mechanical weeds control on inter-rows with a perfect leveling of the soil surface to allow an easy passage, with a straddle tractor, in the inter-row.

FEATURES
Underframe clearance: 55 cm
3D security system with percussion spring 30x30
High-security SR hubs without lubrification

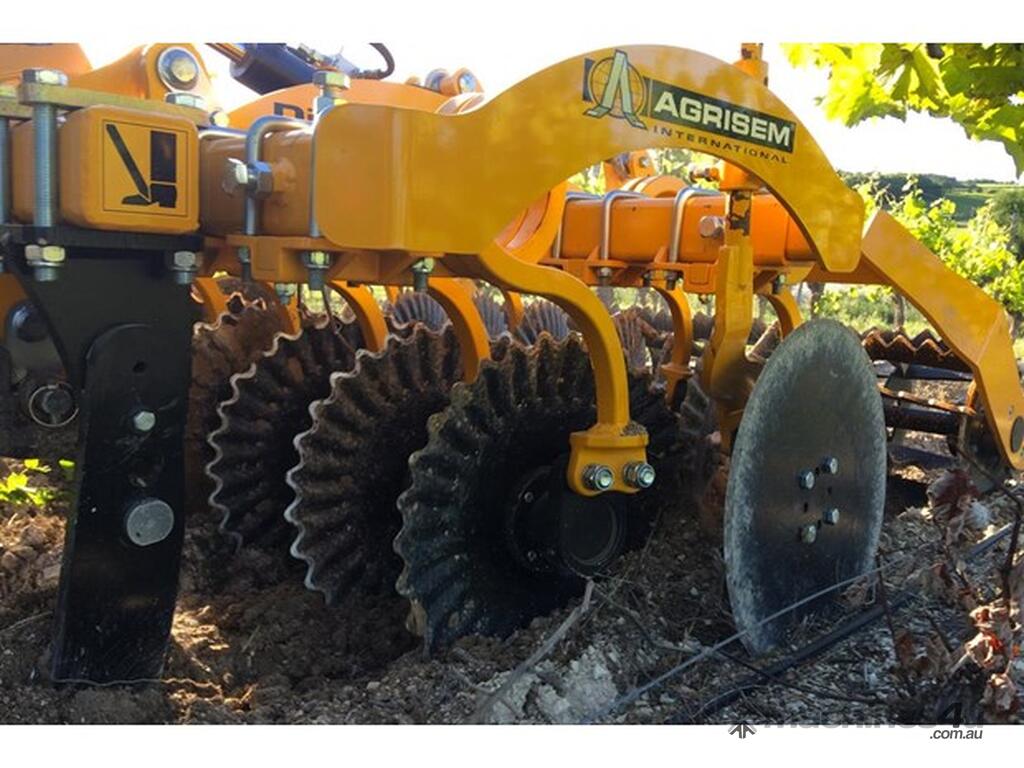

Mulcher discs Ø510 mm
Optimal disc angles with positive pitch to save power
Space between disc 23 mm
Discs disposition in V
Spade or mulcher side disc

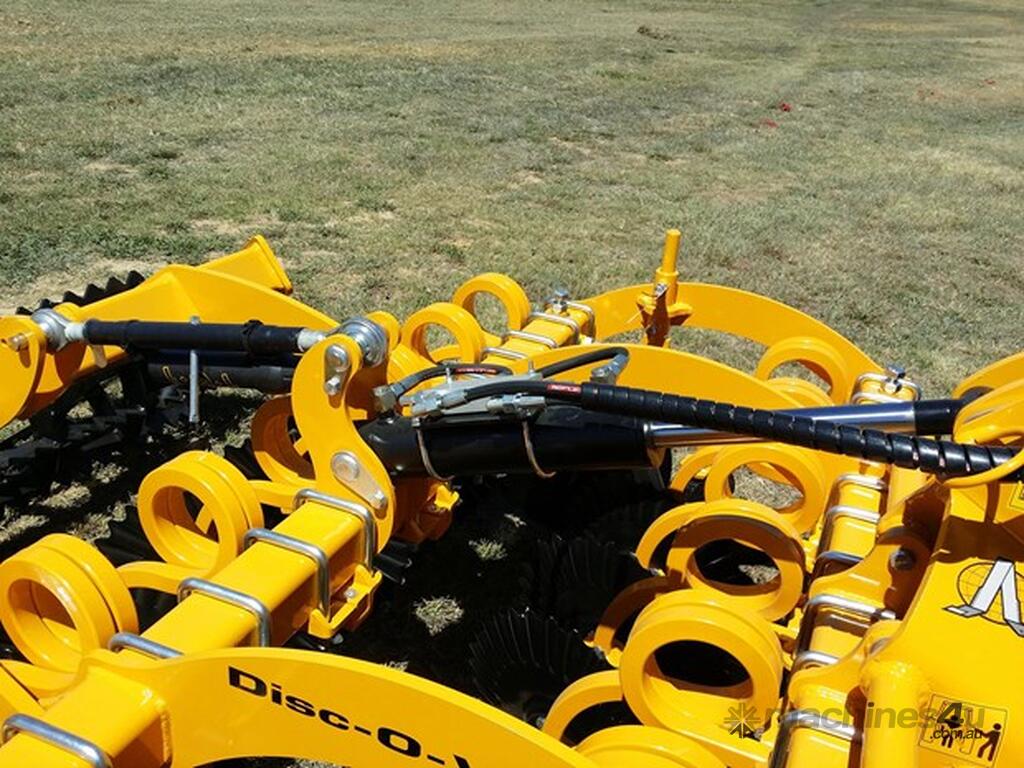

Reinforced frame, 100x100 mm beam
Tractor top link coupling cat. n° 1 or 2
Disc coulter left and right

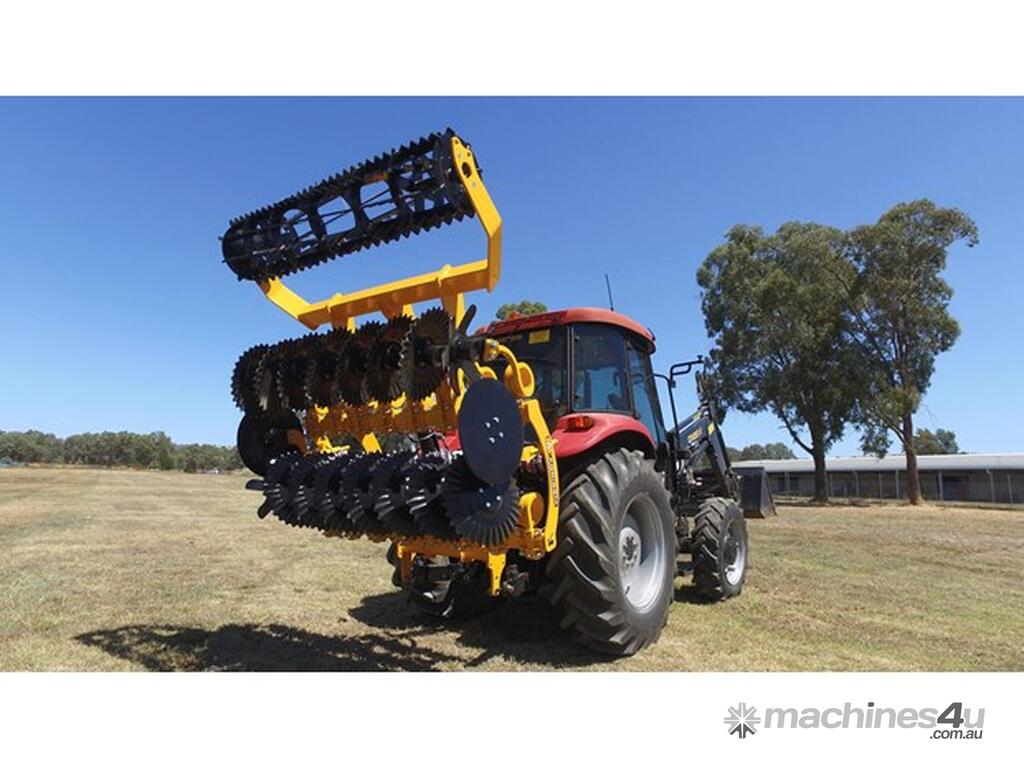

Hydraulic folding of the machine

Specifications - DISC-O-VIGNE V
Working width (m): 1.50
Transport width (m) (without accessories): 1.70
Power req. min-max (hp) with rotating harrow: 50-90
Weight with coupling (kg): 850
Number of discs: 14

Machine/Equipment base price only, additional price for optional extras.
