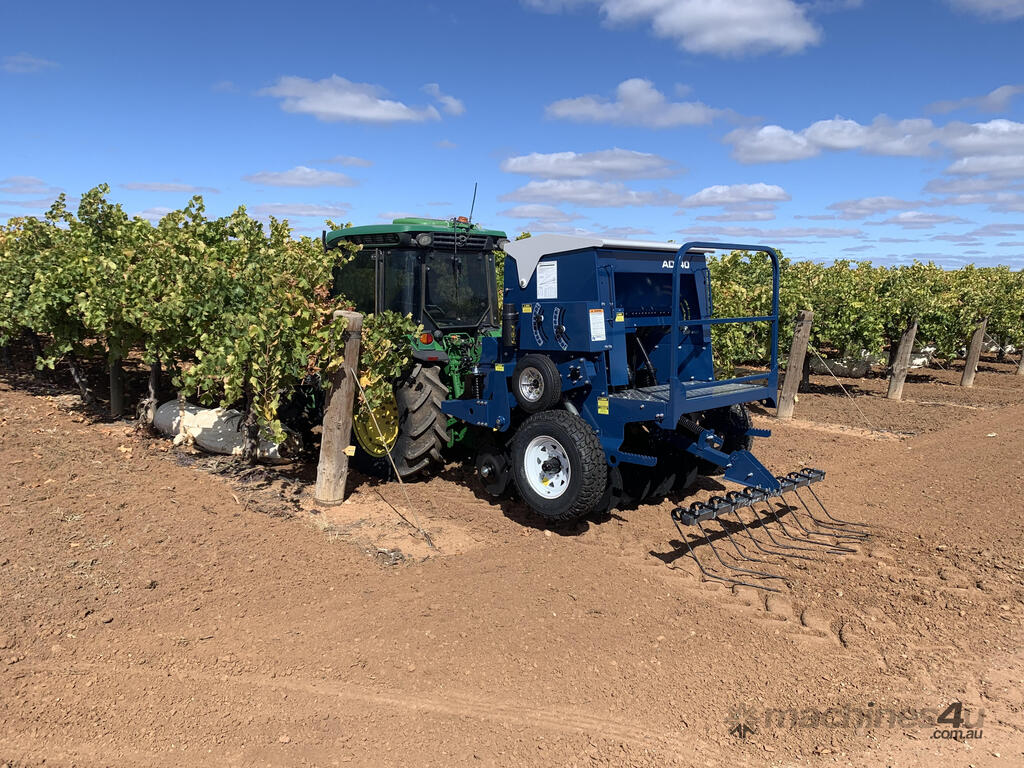

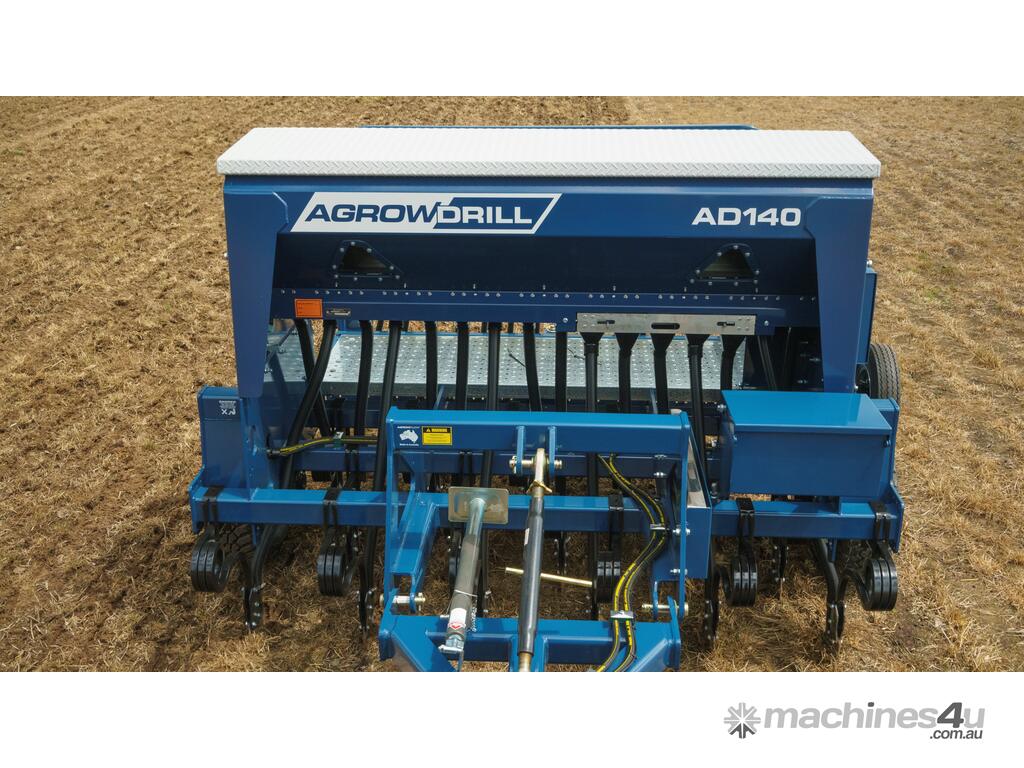

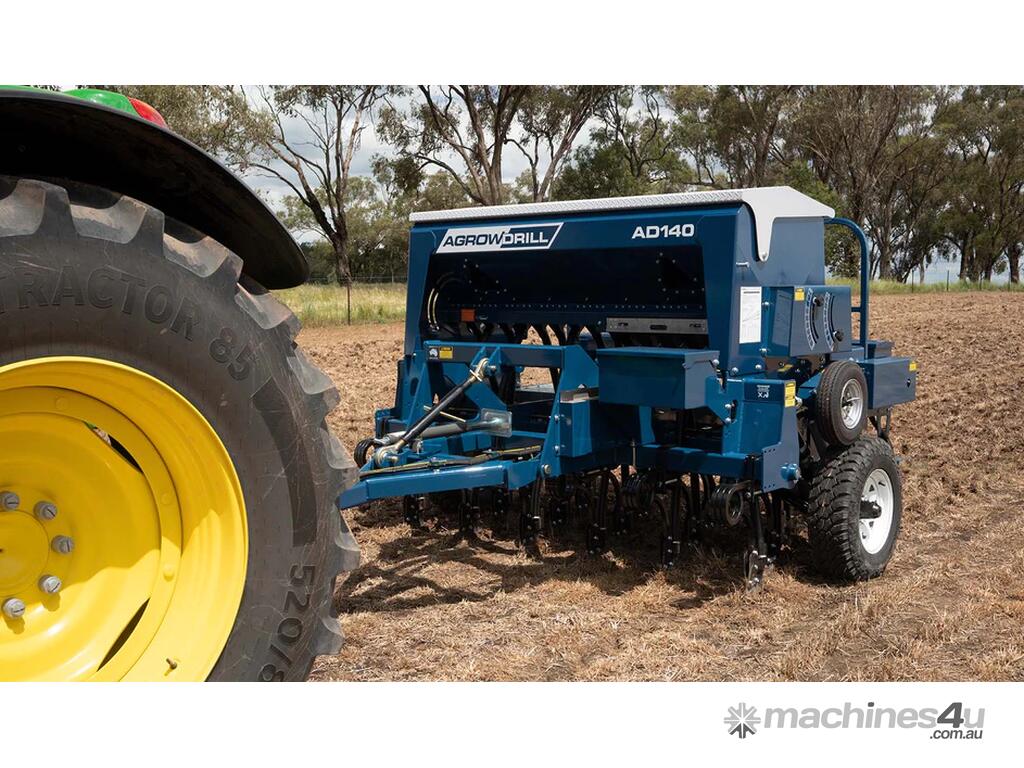

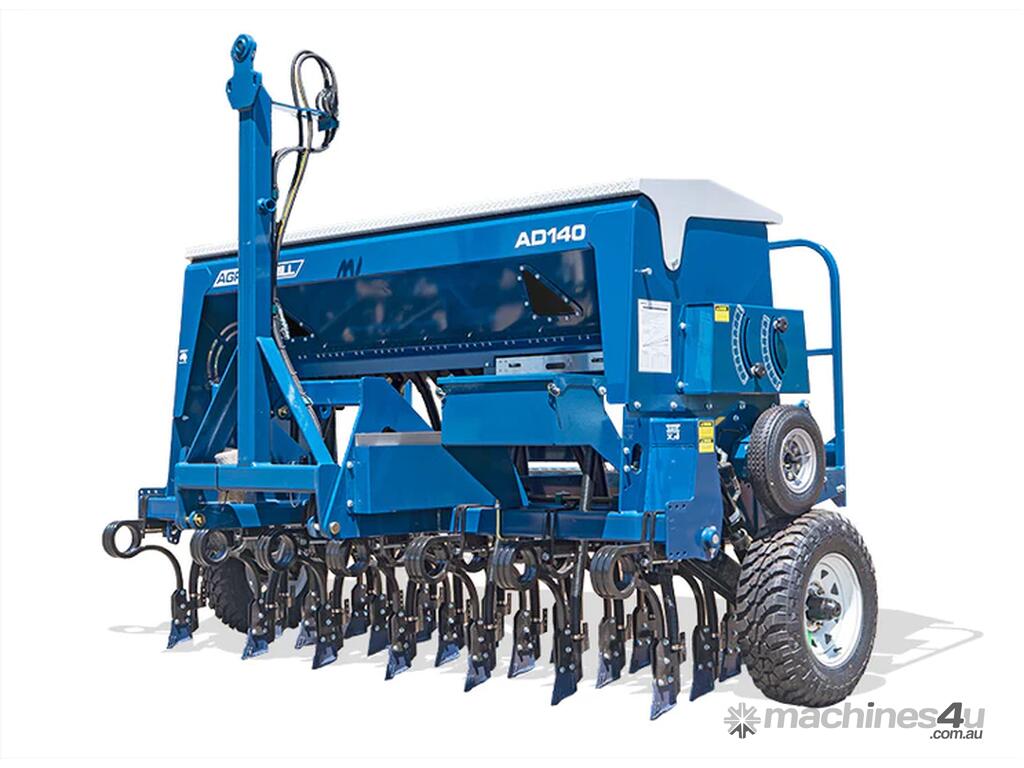

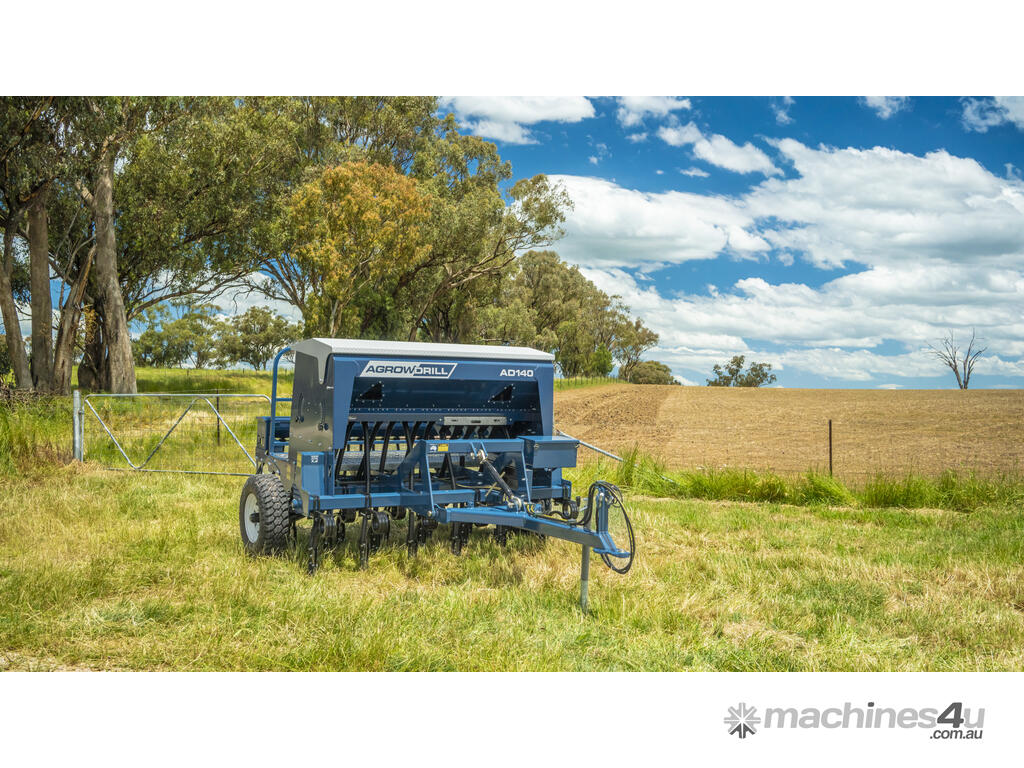

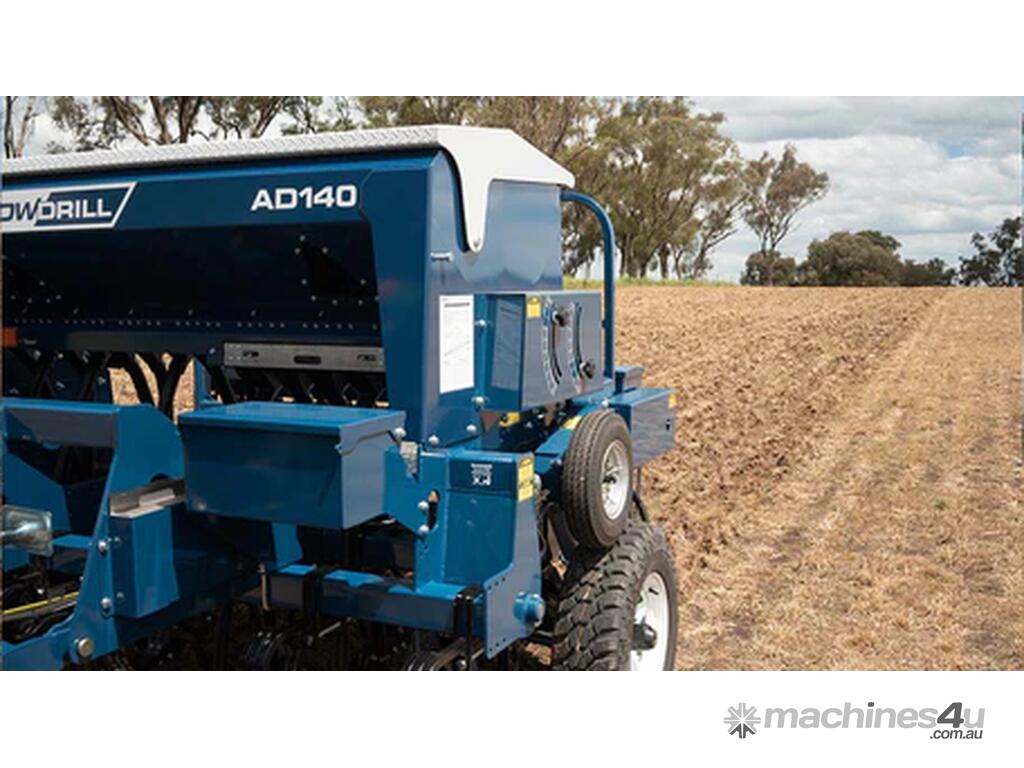

Agrowdrill AD140 | 10 row x 150mm (1.5m) | Coil Tyne | Trailing

AD140 Seed Drill 10 rows x 150mm spacings
This unit is trailing linkage with 425 Coil Tyne undercarriage

SPECIFICATIONS:
Working rows: 10
Row spacings: 150mm
Working width: 1.50m
Transport width: 2.09m
Hopper capacity: 185L front | 185L rear
Undercarriage: 425 Coil Tyne (136kg breakout)
Tyre size: 235/75 R15
Frame: 100x100x6mm RHS
Toolbars: 3 toolbars at 440mm spacings
Underframe clearance: 620mm
Linkage: Trailing
Drawbar power: 40-60hp
Weight: 1.6 tonne

Available optional extras for the AD140 include:
- A rear tow hitch with or without hydraulic lines
- Coulters (tyne models only)
- Presswheels
- Presswheel small seed tubes
- Small Seed Box OR Small Seed Box (Deep)
- Road transport kit
- Harrows
- Bean roller
Note: Some options are mutually exclusive.

Optional trailing soil rollers:
- Agrowplow Flexi-Roller Mk2 or Mk2 HD
- Agrowplow Rubber Tyre Roller

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

AGROWDRILL (by Agrowplow) AD140 Seed Drill

FOR SMALL FARMS AND SERIOUS BUSINESS.
Perfect for smaller mixed or specialised farms, the AD140 is available in either a CAT2 three point linkage (3PL) or a trailing design with hydraulic lift. No need for a large tractor with drawbar requirements from 40 to 100 hp.

TYNE OR DOUBLE DISC UNDERCARRIAGE OPTIONS.
The 425 coil tyne has been a mainstay of our seed drills for years – and with good reason. The robust design and inverted T-shape Baker Boot Point minimise soil disturbance and ensures effective seed placement. Alternatively, the AD140 can support the 401 Double Disc undercarriage, transforming into a versatile disc seeder for improved trash management and zero till operations.

SOWING MADE EASY.
Easily adjusted gates, roller restrictors, and an infinitely variable gearbox make it straightforward to sow a wide variety of cereals, grasses, and even large seeds and beans. The AD140 also features our unique double-fluted roller distribution system for higher sowing rates, reduced bridging, and the ability to handle a large selection of seeds and fertilisers.

SEED AND FERTILISE IN A SINGLE PASS.

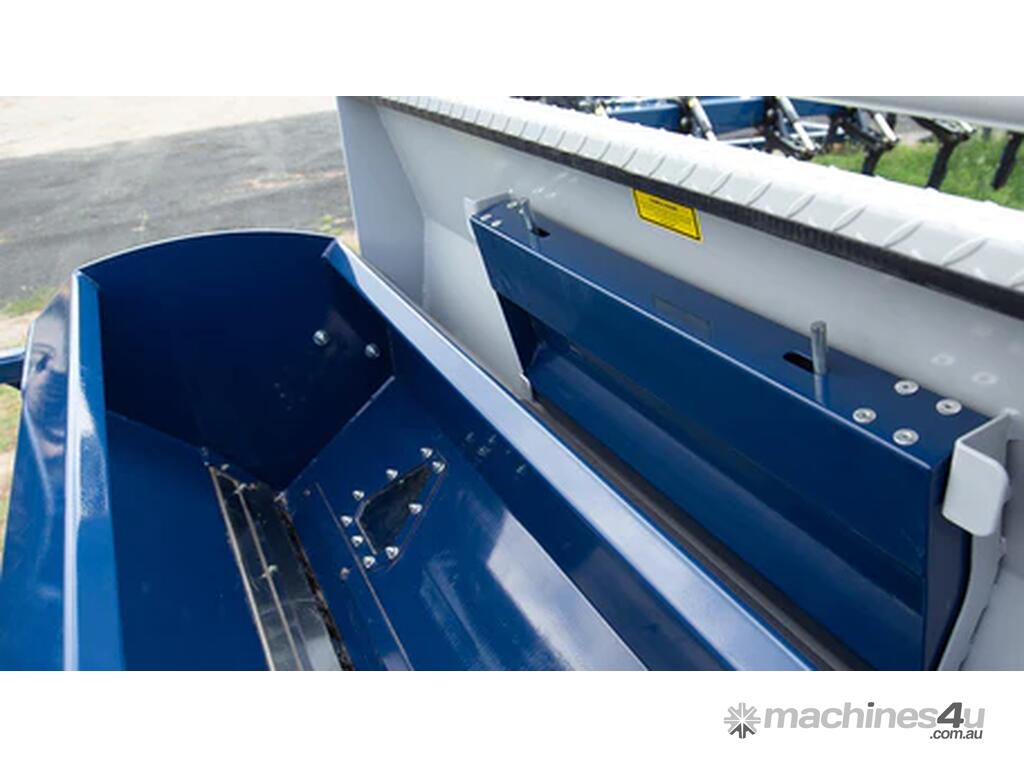

The AD140 features dual hoppers with capacities from 185 to 385 L per hopper. This allows for the segregation of seed and fertiliser, allowing both to be applied in a single pass whilst preventing cross-contamination. A small seed box can be mounted onto the drill for sowing grasses and other small pasture seeds, with capacities of 38 or 60 L per metre.

ACCURATE SEEDING AND METERING.
The infinitely variable gearbox and optional bean roller allows you to sow almost anything at any rate. Easily fine-tune your calibration to allow a high rate of fertiliser and low seed rates to suit your farm. The machine includes a hectare meter as standard for easy monitoring of seed distribution.

EFFICIENT CLEANING.
Save time and minimise corrosion with an Agrowdrill. Simply set the lever to the box cleaning setting to open the gates and allow remnants to fall through. Cleaning is quick and simple and protects the drill from premature wear and corrosion. The weather-proofed, powder-coated lid and box provide a long-lasting, high-quality finish.

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, visit our or give us a call.

DISCLAIMER: Listed prices are MRRP for the base machine configuration without any options or accessories (unless specifically listed) and excludes dealer delivery or other costs. Please request an official quote from your dealer.
Pricing and specifications may change without notice.
