Agrowdrill AD240 | 28 row x 125 mm (3.5m) | Coil Tyne | Large Hoppers

AD240 seed drill 28 row x 125mm (3.5m)
with 425 Coil Tyne undercarriage

SPECIFICATIONS:
Sowing rows: 28
Row spacings: 125 mm
Working width: 3.50 m
Transport width: 3.68 m
Hopper capacity: 710 L front | 710 L rear
Undercarriage: 425 Coil Tyne (136kg breakout)
Tyre size: 11.5/80 - 15.3 implement tyres
Tyres (optional): 400/60 - 15.5 flotation
Frame: 100x100x6 mm RHS
Toolbars: 4 toolbars
Toolbar spacing: 670 mm / 500 mm
Underframe clearance: 620 mm
Linkage: Trailing with hydraulic lift
Drawbar power: 100-130 hp
Weight: 2.283 tonne

Available optional extras for the AD240 include:
- A rear tow hitch with or without hydraulic lines
- Coulters
- Double-chuting
- Presswheels
- Presswheel small seed tubes
- Small Seed Box (Deep)
- Road transport kit
- Harrows
- Bean roller
Note: Some options are mutually exclusive.

Optional trailing soil rollers:
- Agrowplow Flexi-Roller Mk2 or Mk2 HD
- Agrowplow Rubber Tyre Roller
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

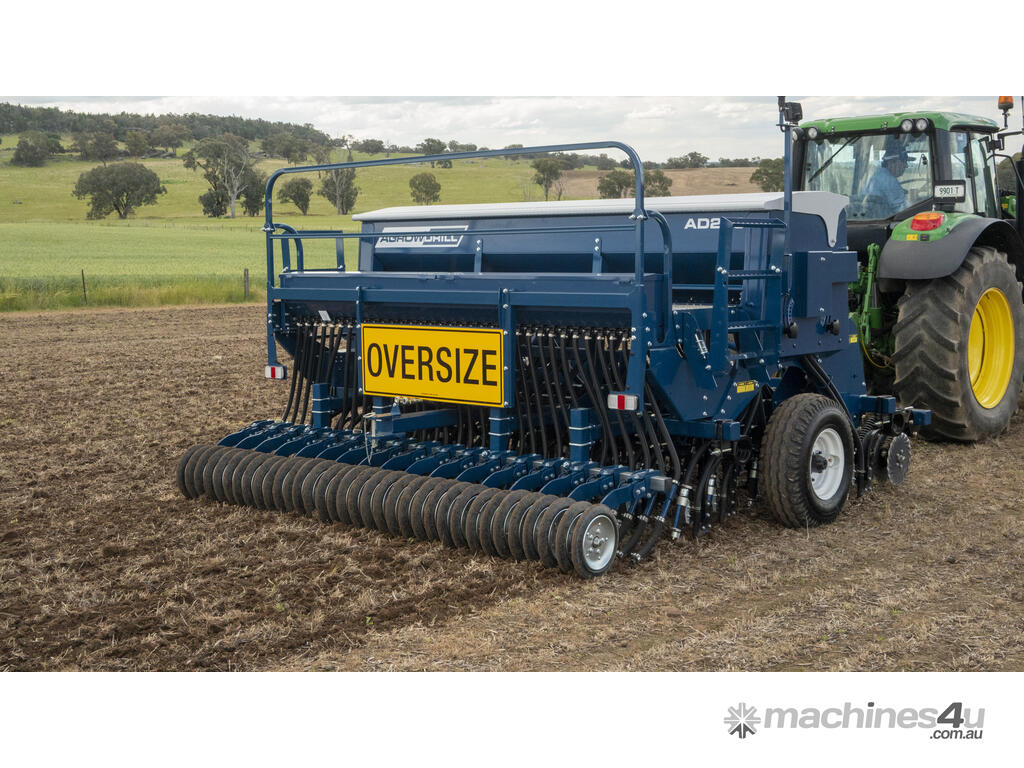

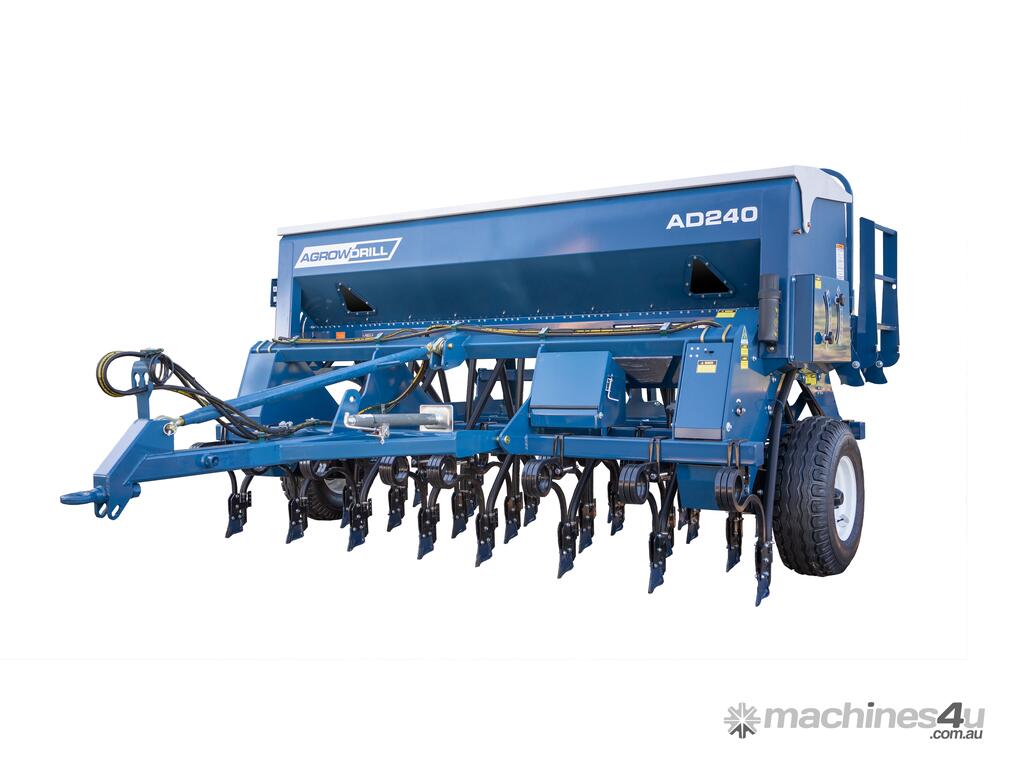

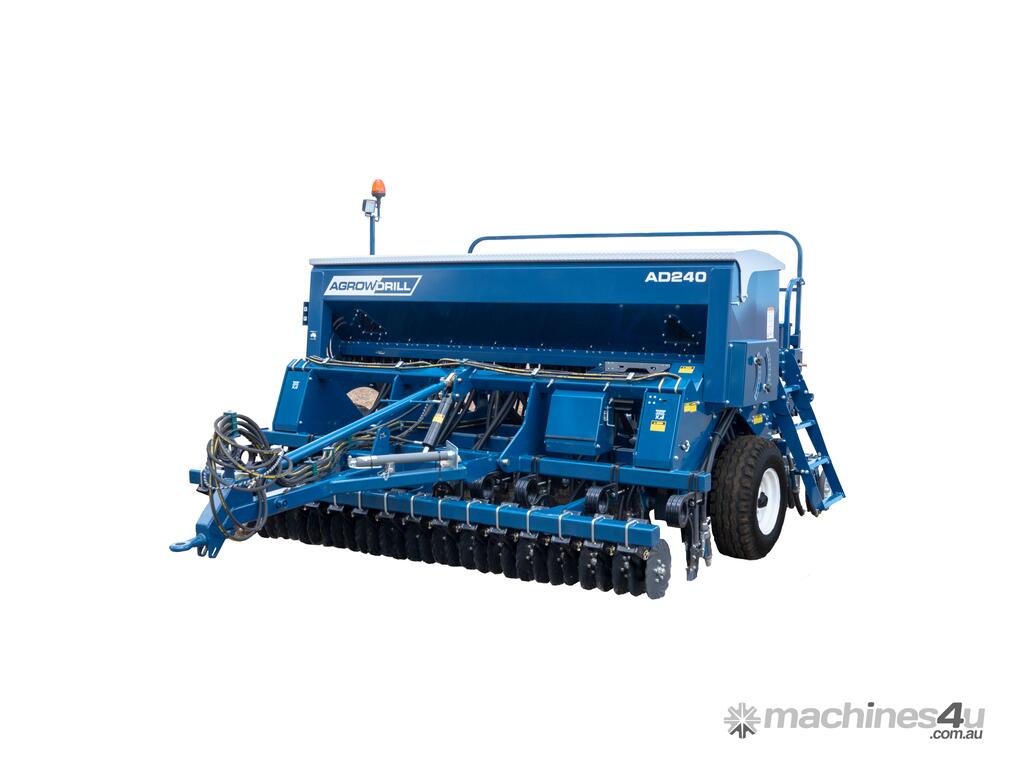

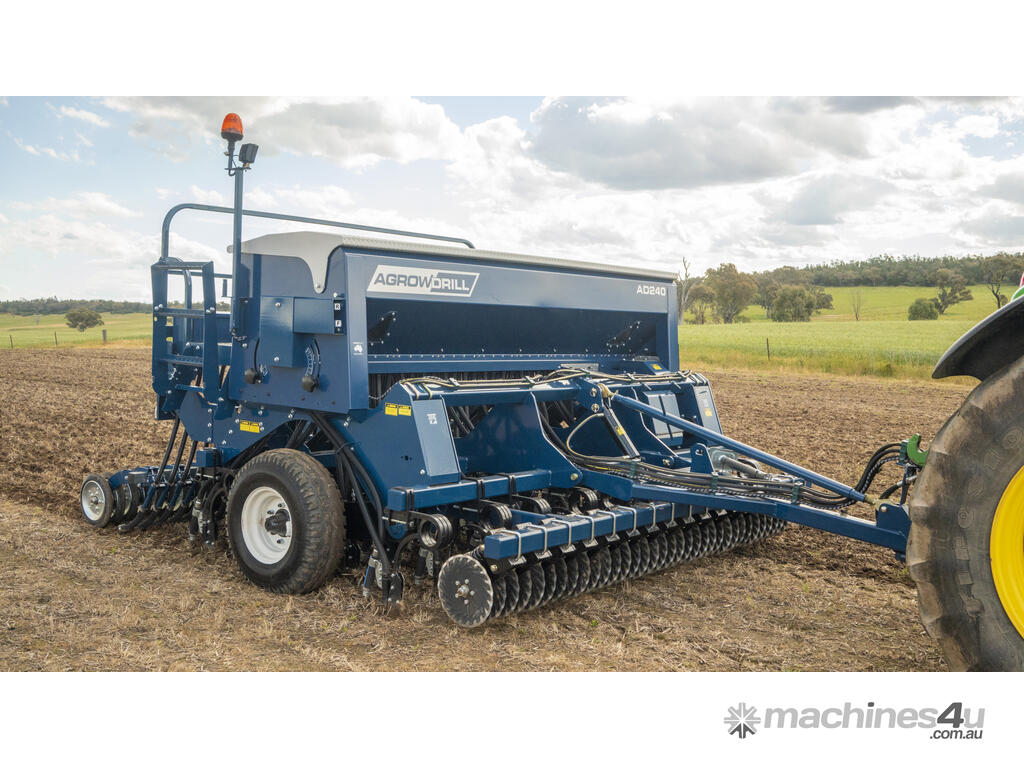

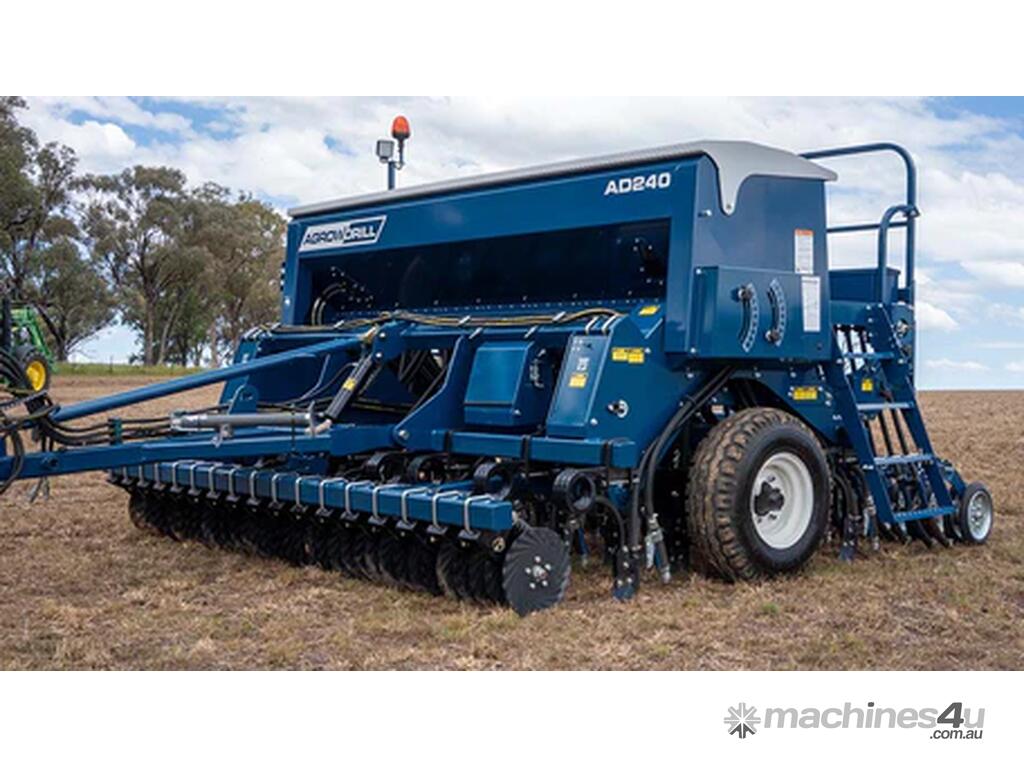

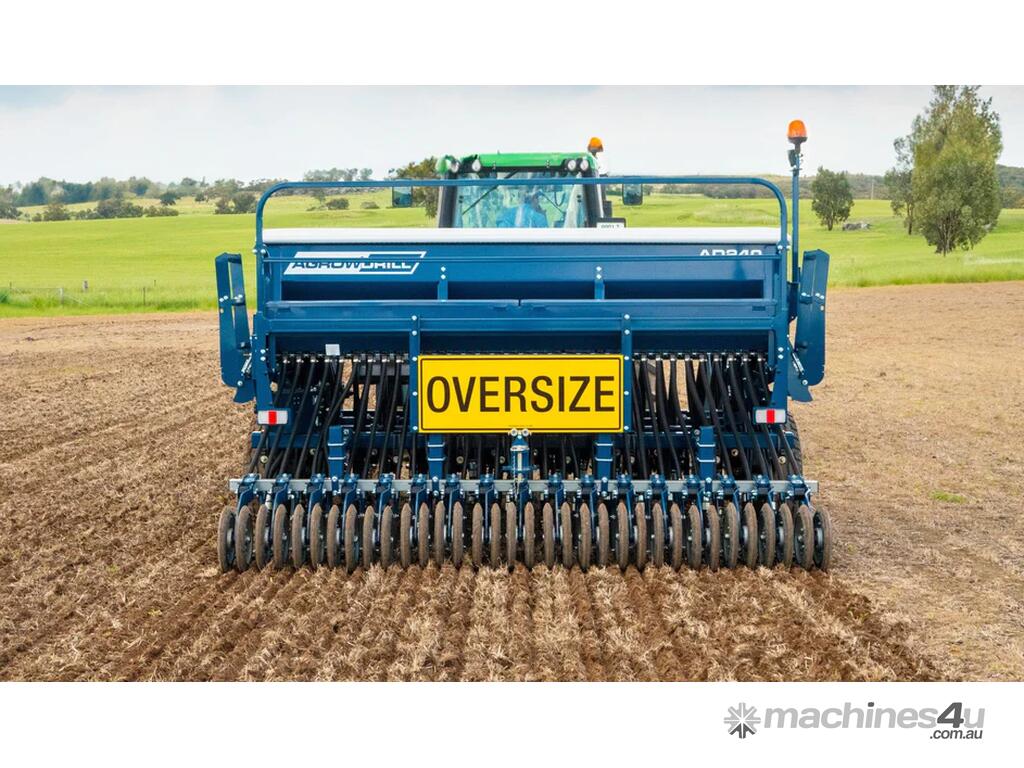

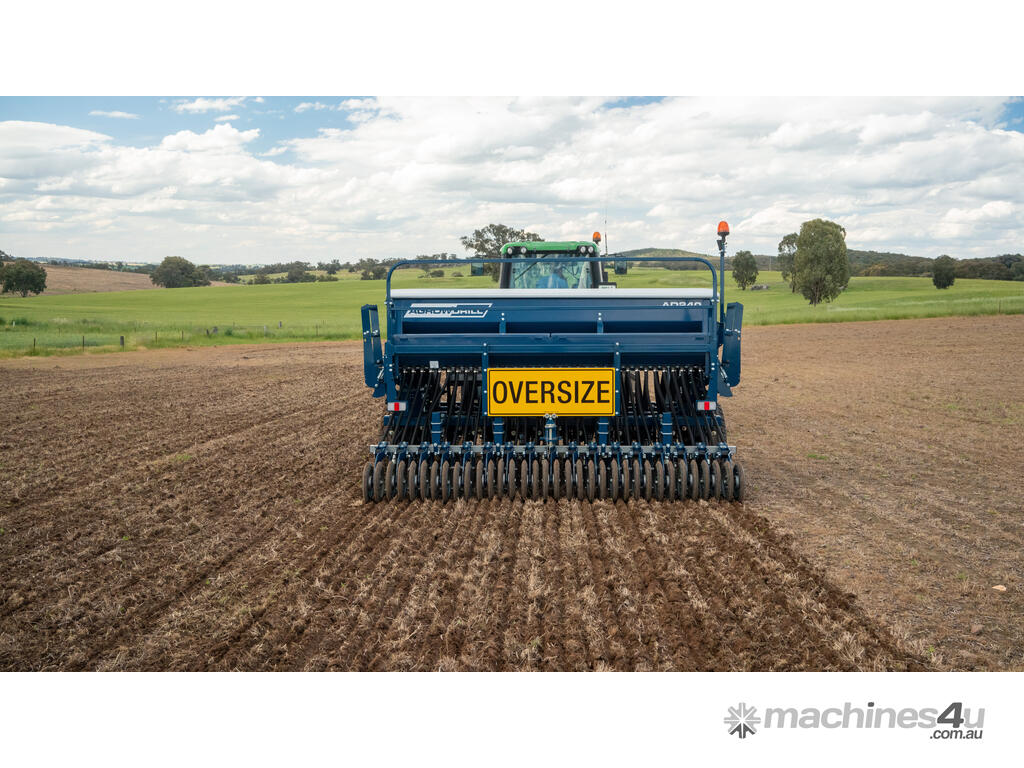

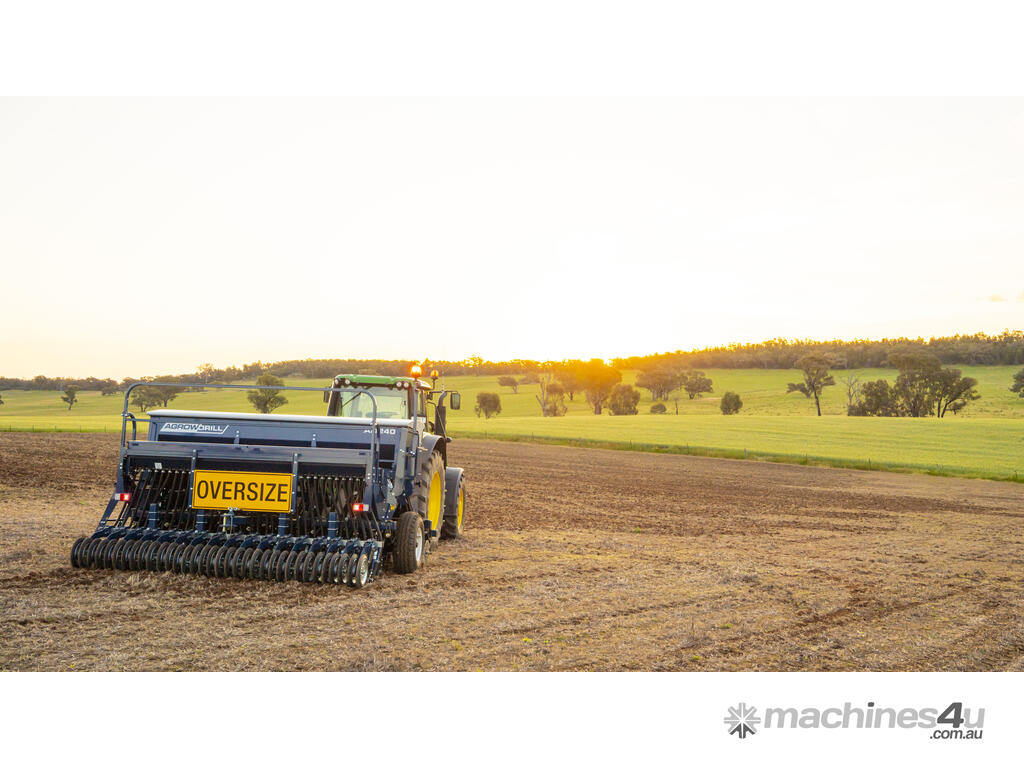

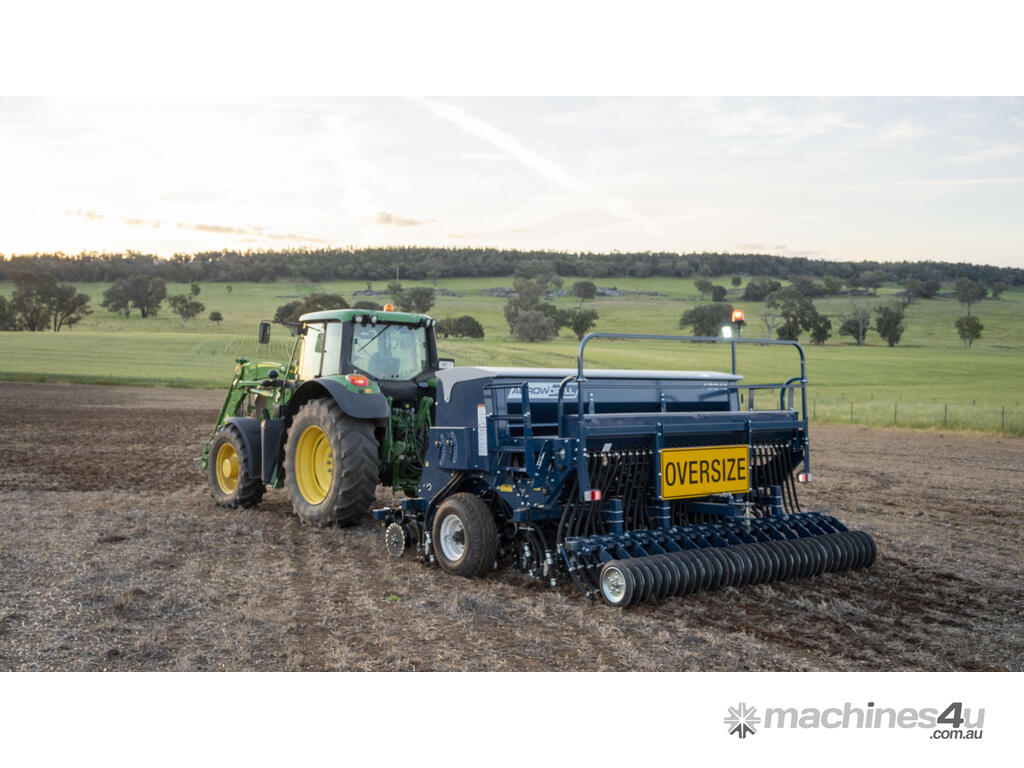

AGROWDRILL (by Agrowplow) AD240 Seed Drill

The ultimate pasture seed drill, featuring our renowned design melding tradition with modern technology and practicality.

The AD240 is the latest evolution of our very popular pasture renovator seed drill - your best choice for simplicity, reliability, and flexibility. Easily sow wheat, barley, oats, sorghum, plus grasses for pasture renovation in one simple machine.

BUILT WITH OUR TRUSTED 425 COIL TYNE.

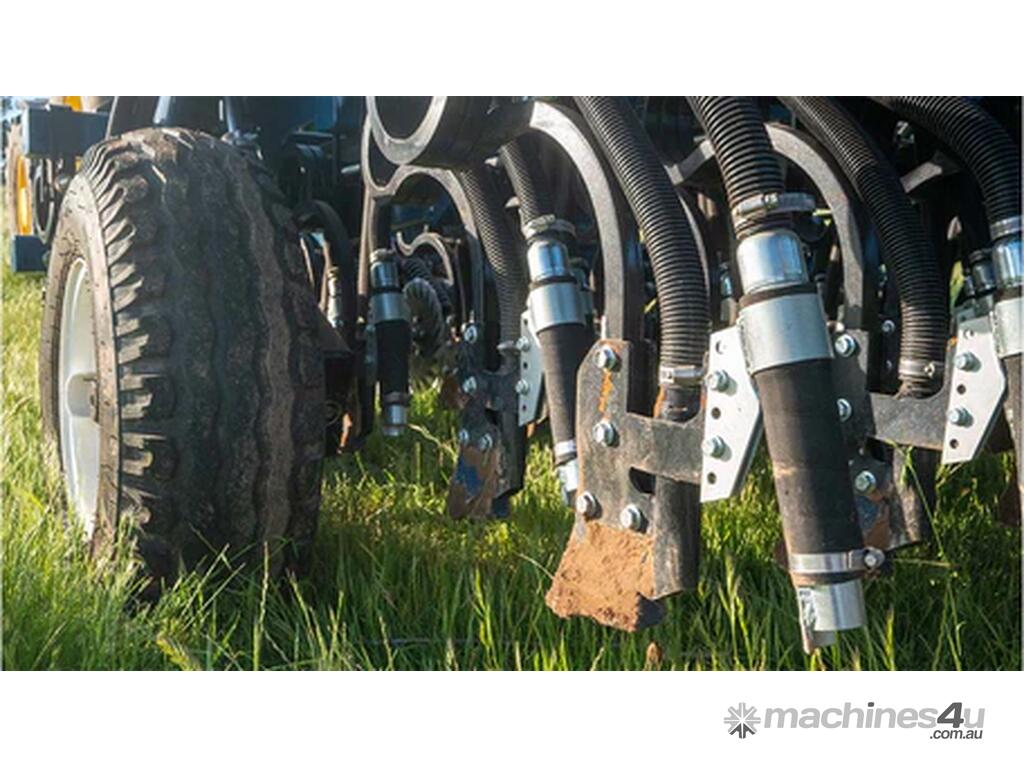

Our 425 coil tyne assembly offers high breakouts (136kg) and excellent residual handling, making the AD240 ideal for a range of conditions including dry sowing and pasture renovation. The simple 425 Coil tyne unit features the renowned Baker Boot opener and is capable of single or double chuting and zero-till operations for smarter sowing.

SOW MORE. WORRY LESS.
The design of the AD240 places the wheels inside the working width which allows for sowing across the entire width of the machine. The large dual-hopper capacity of up to 1420 L minimises downtime reloading and can segregate seed and fertiliser, allowing both to be applied in a single pass whilst preventing cross-contamination.

PASTURE RENOVATION.
Pasture renovation is essential for maintaining healthy pastures, ensuring optimal forage quality, and preventing weed infestations. Direct drilling is a powerful method for revitalizing damaged pastures by introducing new seeds which enhances the overall health of the pasture and boosts the density of productive plant species. The AD240 Agrowdrill is the ultimate pasture renovator. Capable of drilling into uncultivated dry soil, it can sow a wide variety of seeds to renew unproductive pastures and improve your farm's income potential.

DEPENDABLE DRIVE SYSTEM.

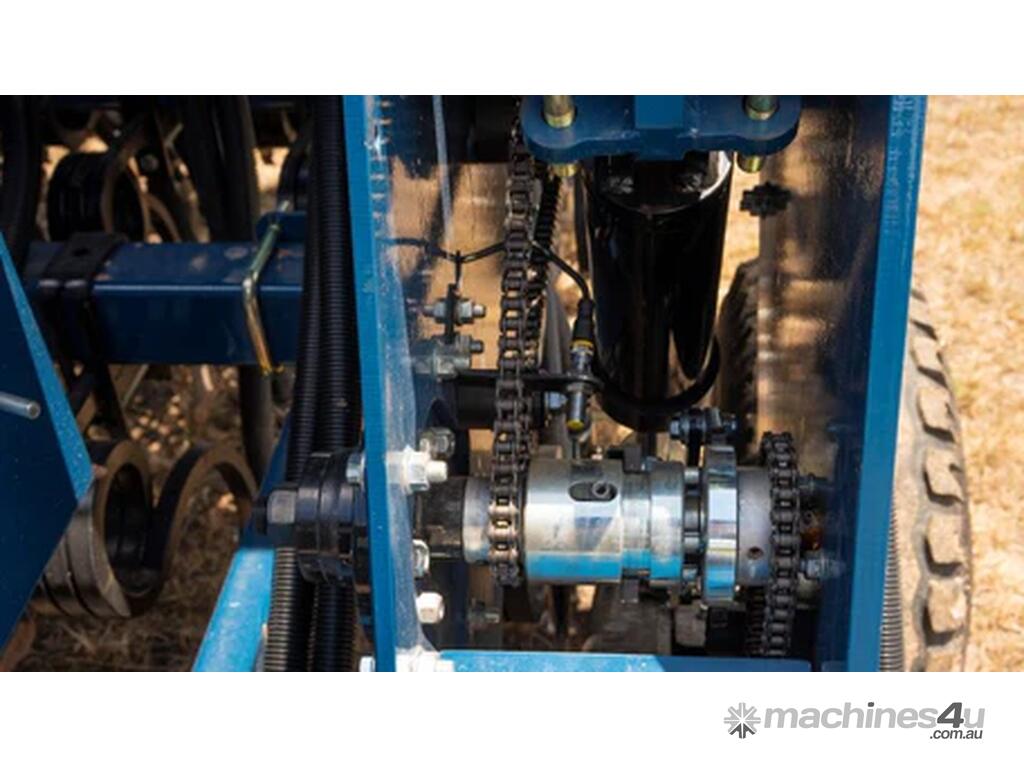

The drill features a mechanical chain drive system which is coupled to the stub axle. Sow almost anything at any rate with an infinitely variable gearbox and the direct-drive mechanical clutch enables adjustment of the sowing rate. Easily fine-tune your calibration to allow a high rate of fertiliser and low seed rates to suit your farming operation. Scales are included to aid in the calibration of seed and sowing rates.

SIMPLE AND ACCURATE SOWING.
The AD240 pasture renovator comes with a hectare meter as standard for easy in-cab monitoring and shaft rotator indicators for quick visual confirmation that the drill is operating. The robust and simple dog clutch disengages when lifted and engages when lowered - one less worry when turning your seed drill whilst sowing.

CONVENIENT AND VERSATILE.
The AD240 features an adjustable platform. This allows the operator to conveniently set the height to whatever is most comfortable for filling and cleaning the hoppers. A small seed box can be mounted onto the drill for sowing grasses and other small pasture seeds, with capacities of 38 or 60 L per metre.

SUPERIOR PERFORMANCE.
Four toolbars with spacings of either 500 or 670 mm alongside the underframe clearance of 620 mm ensure trash flow performance is truly impressive. To reduce impact on the seedbed, the drill can be equipped with 400/60 - 15.5 flotation tyres.
Farmers appreciate the modest tractor drawbar requirements ranging from 80 to 130 hp.

BUILT TO LAST.
The AD240's fully-welded frame is built with 100x100x6mm RHS steel for superior strength and performance to outlast and outperform in any condition. The robust design of the 425 Coil Tyne ensures the assembly has the strength to last season after season. The weather-proofed, powder-coated lid and box provide a long-lasting, high-quality finish.

EFFICIENT CLEANING.
Save time and minimise corrosion with an Agrowdrill. Simply set the lever to the box cleaning setting to open the gates and allow remnants to fall through. Cleaning is quick and simple and protects the drill from premature wear and corrosion.

CONFIGURE TO YOUR OPERATION.
Add double-chuting, small seeds box, coulters, presswheels and harrows to make the AD240 the perfect sowing platform for your farm. Compatible with Agrowplow rollers such as Flexi-Roller and rubber tyre roller.
