Agrowdrill AD730 | 18 row x 225mm (4.05m ) | Spring Tyne

AD730 Seed Drill 18x225mm with 251 Spring Tyne undercarriage

SPECIFICATIONS:
Working rows: 18
Row spacings: 225mm
Working width: 4.05m
Transport width: 4.87m
Hopper capacity: 880L front | 880L rear
Undercarriage: 251 Spring Tyne (114kg breakout)
Tyre size: 380/85 R24
Frame: 100x100x9mm RHS
Toolbars: 4 toolbars at 550mm spacings
Under frame clearance: 620mm
Linkage: Trailing with hydraulic level lift
Drawbar power: 120-150hp
Weight: 3.8 tonne

Available optional extras for the AD730 (tyne) include:
- A rear tow hitch with or without hydraulic lines
- Coulters
- Double-chuting
- Presswheels
- Presswheel small seed tubes
- Small Seed Box (Deep)
- Small seed flexi-chutes
- Road transport kit
- Harrows
- Bean roller
Note: Some options are mutually exclusive.

Optional trailing soil rollers:
- Agrowplow Flexi-Roller Mk2 or Mk2 HD
- Agrowplow Rubber Tyre Roller
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

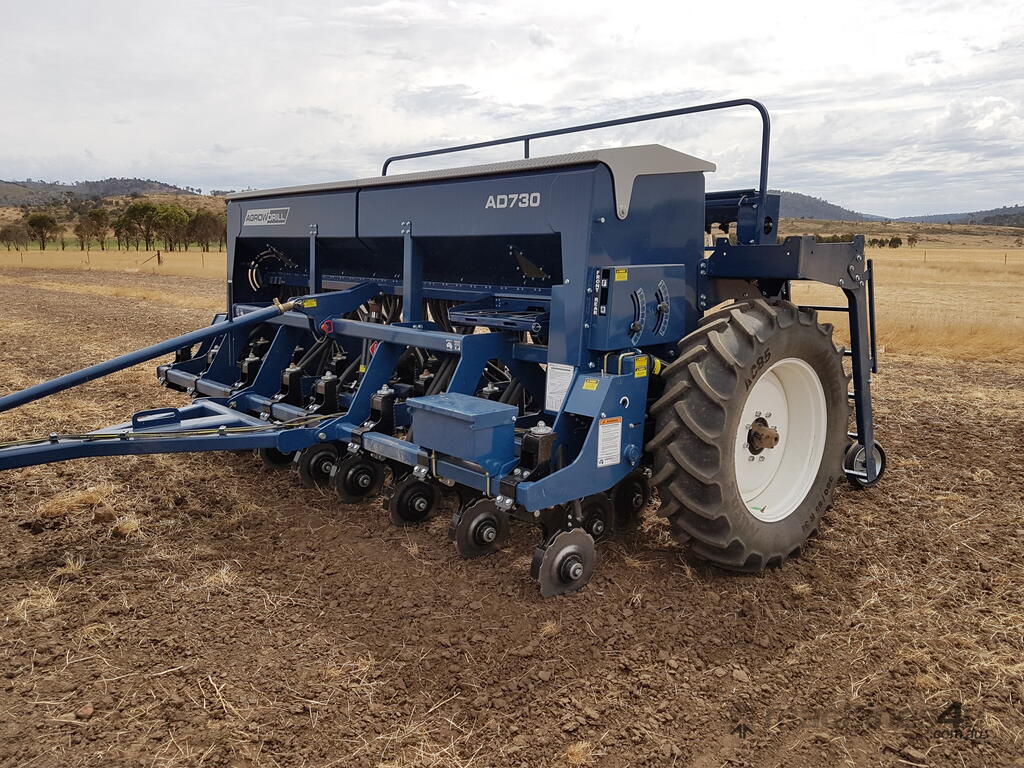

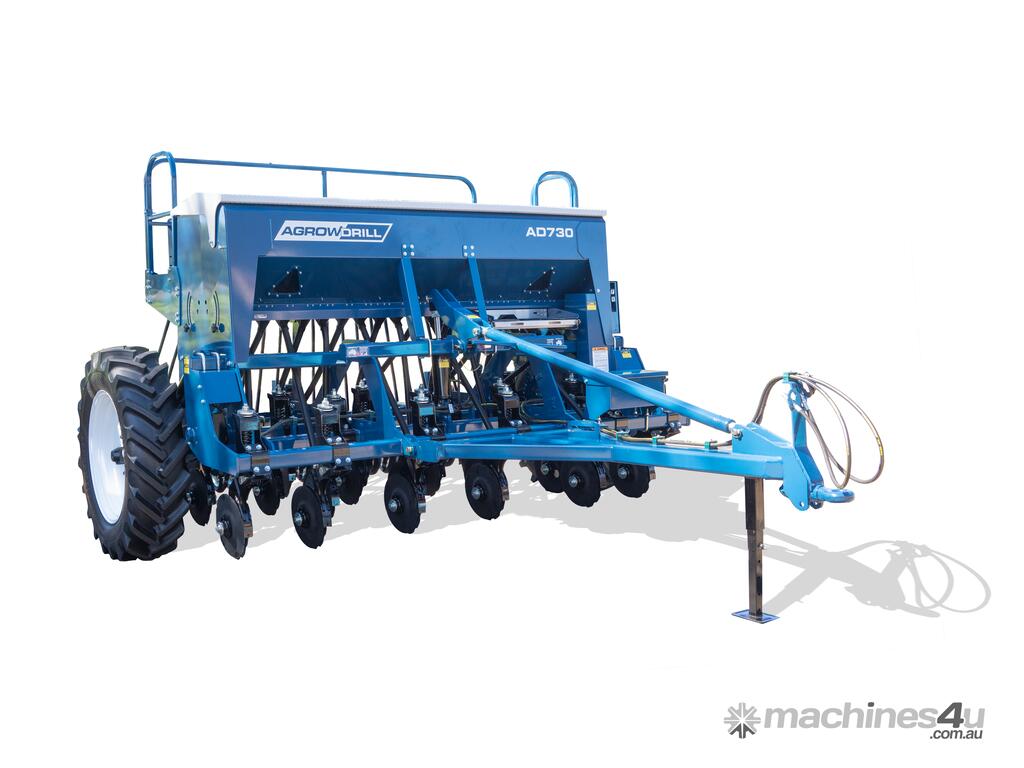

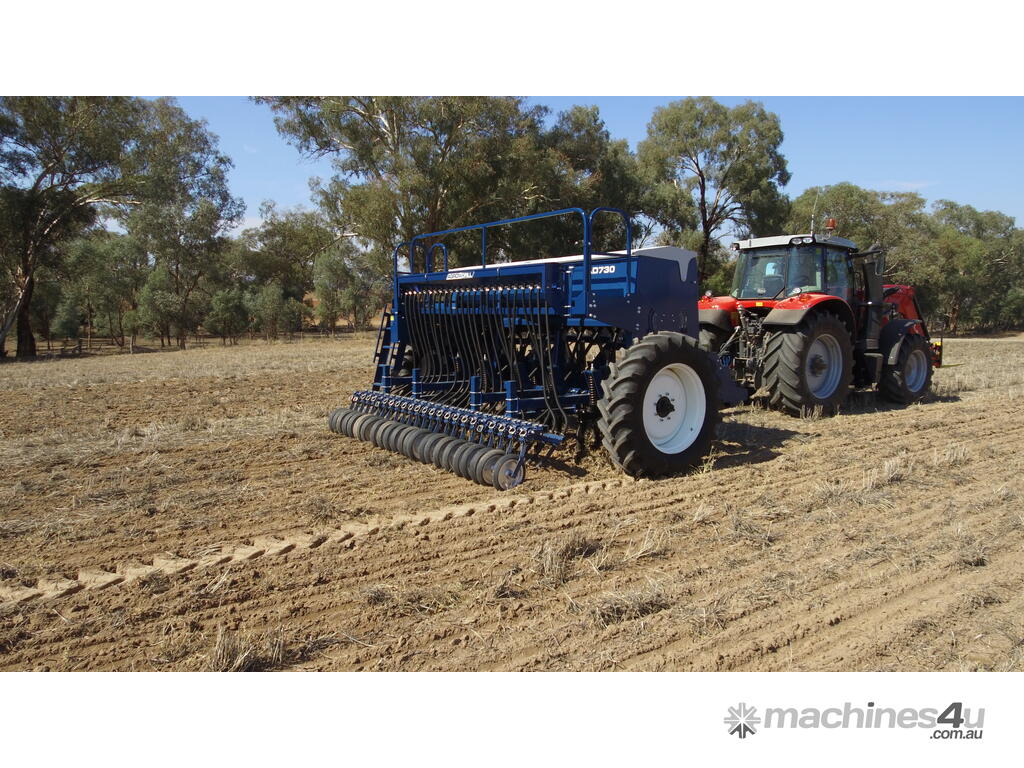

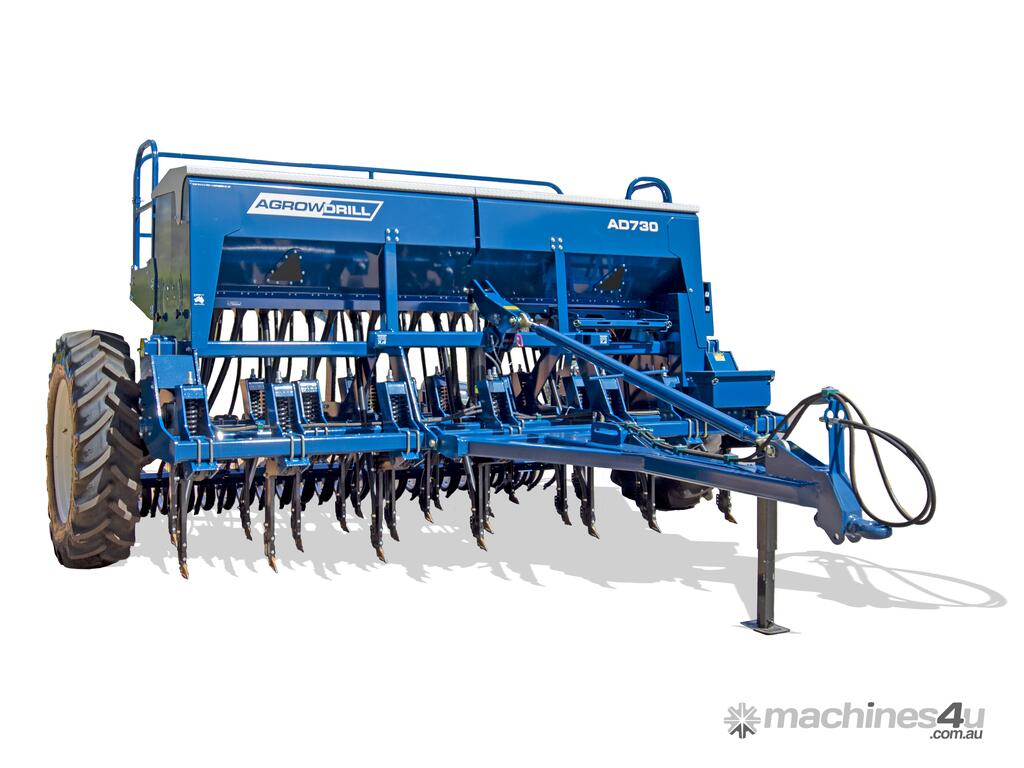

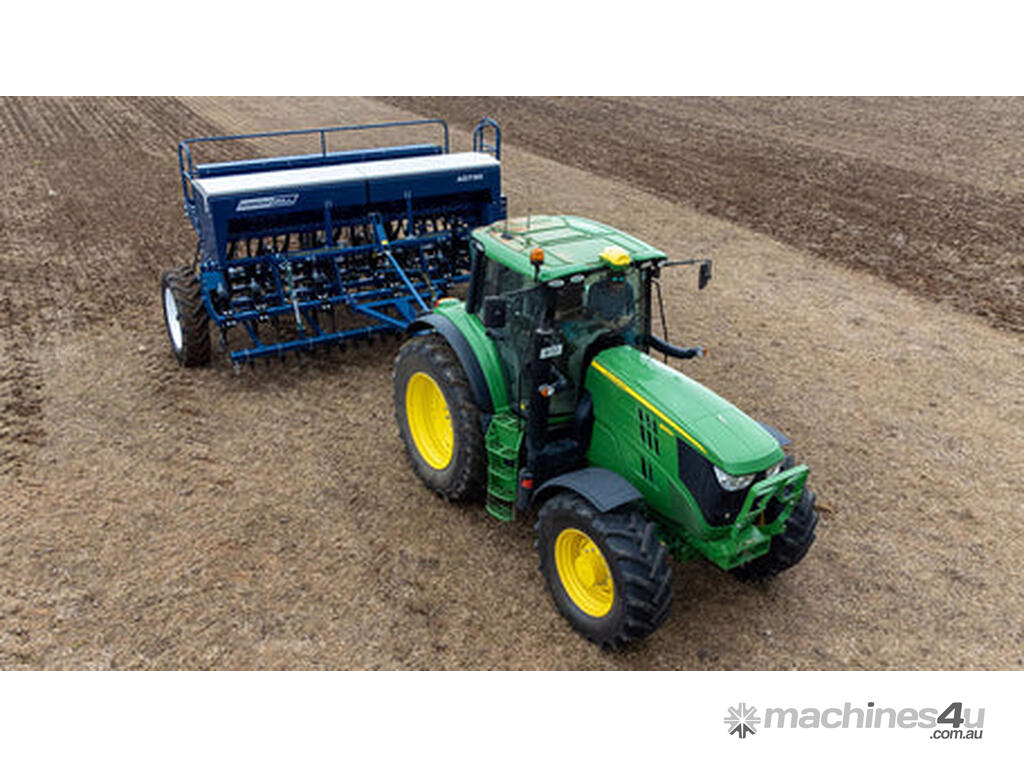

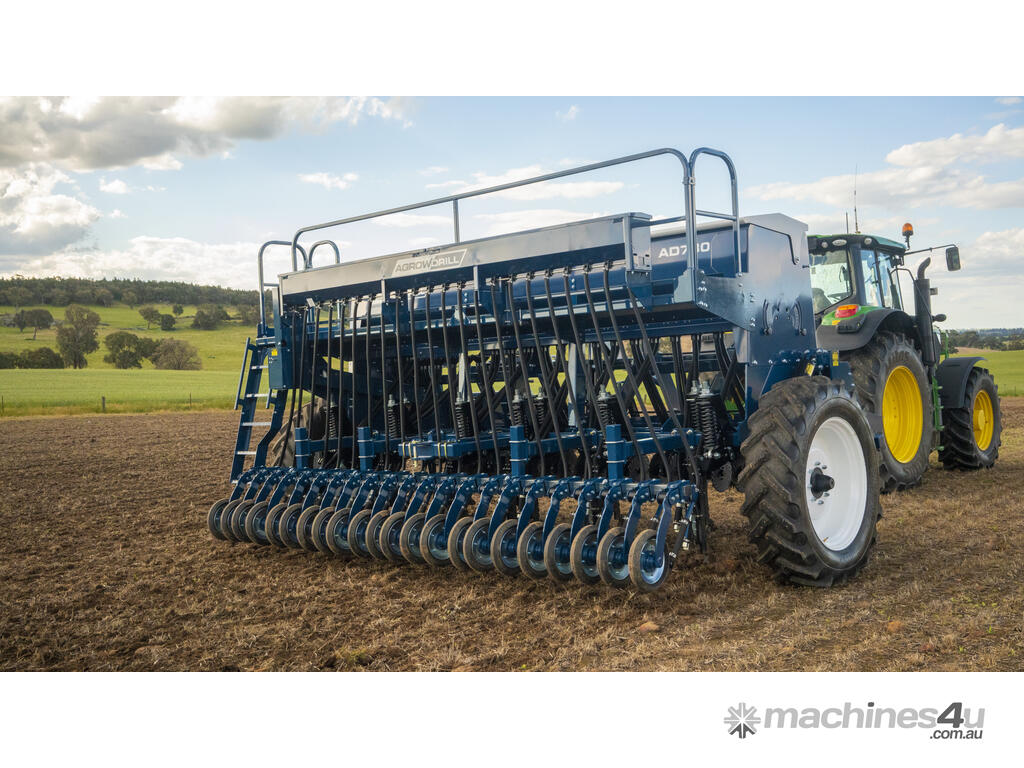

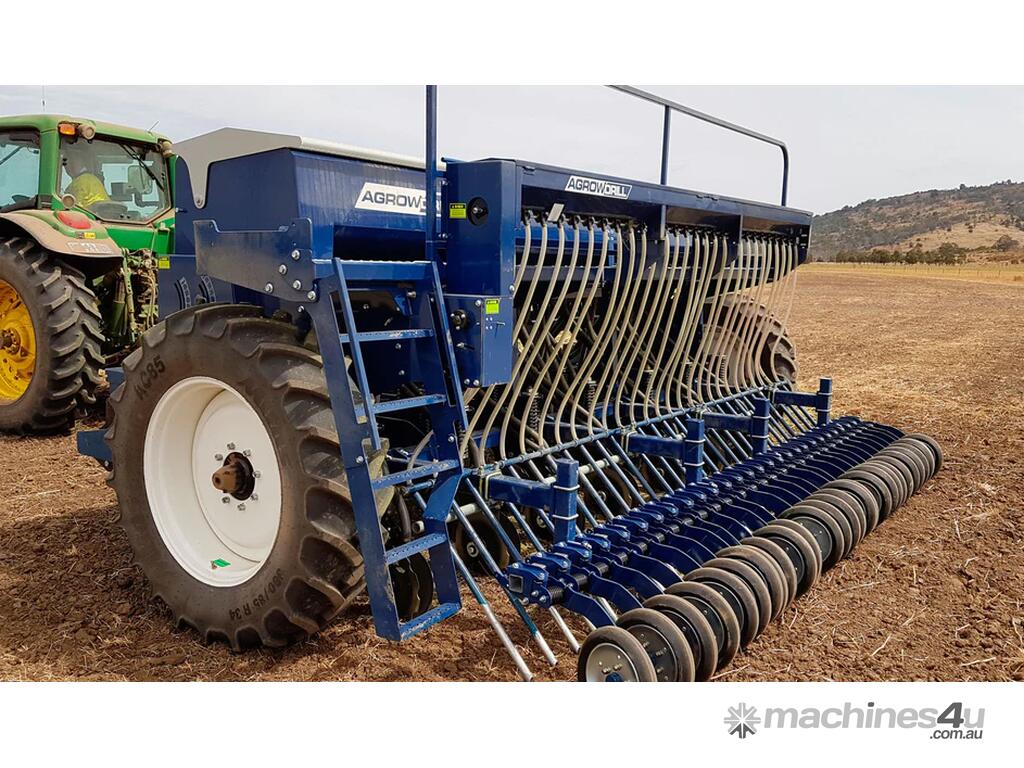

AGROWDRILL (by Agrowplow) AD730 Seed Drill

We didn't just build a seed drill to be stronger, we also built a machine that's more productive.

Designed alongside farmers like you and packed with a long list of innovative features, we built a seed drill to help you be more efficient in the paddock, featuring a noticeably larger capacity, high-flotation tyres, and new heavy-duty spring-release tynes.

BUILT FOR EFFICIENCY.
The large dual-hopper capacity of up to 2444 L minimises downtime reloading and can seed and fertilise in a single pass. The AD730 broadacre seed drill has the power and efficiency for the biggest jobs. A small seed box can be mounted onto the drill for sowing grasses and other small pasture seeds, with capacities of 38 or 60 L per metre.

HEAVY-DUTY TYNE OR DISC UNDERCARRIAGE OPTIONS.

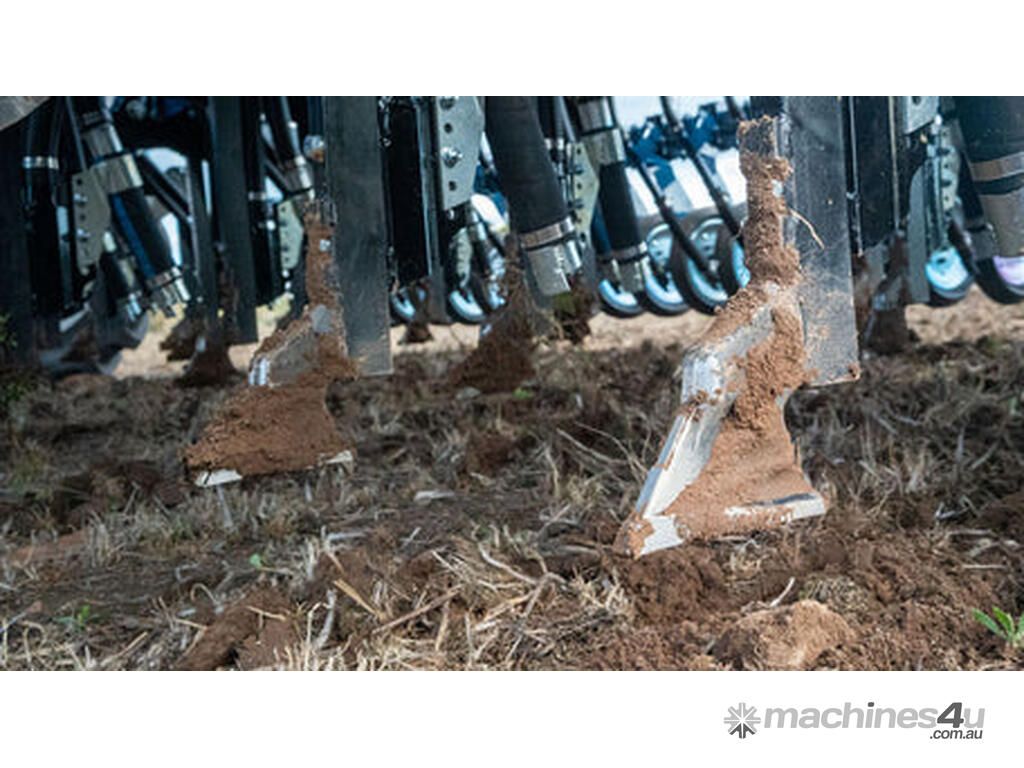

The 552 heavy-duty spring tyne assembly combines high-breakouts and excellent residual handling with a narrow point design. Alternatively, outfit your AD730 with the 251 spring tyne for an affordable, reliable opener built on our trusted baker boot point. With our 401 Double Disc undercarriage, experience the ultimate combination of performance in high-trash or rocky conditions.

SOWING MADE EASY.
Sow almost anything at any rate with an infinitely variable gearbox and optional bean roller. The AD730 incorporates a robust and simple dog clutch system that disengages when lifted and engages when lowered - one less worry when turning your seed drill around when sowing.

ACCURATE SEEDING AND METERING.
Double-fluted rollers, easily adjusted gates, roller restrictors, and an infinitely variable gearbox make it easy to sow a wide variety of cereals, grasses, and even large seeds and beans. Easily fine-tune your calibration to allow a high rate of fertiliser and low seed rates to suit your farm. The AD730 includes a hectare meter as standard for easy monitoring of seed distribution.

EFFICIENT CLEANING
Save time and minimise corrosion with an Agrowdrill. Simply set the lever to the box cleaning setting to open the gates and allow remnants to fall through. Cleaning is quick and simple, and protects the drill from premature wear and corrosion. The weather-proofed, powder-coated lid and box provide a long-lasting, high-quality finish.

Add double-chuting, small seeds box, coulters, and harrows to make the AD730 the perfect sowing platform for your farm.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, contact us or visit:
agrowplow. com. au/find-a-dealer

DISCLAIMER: The list price is MRRP for base configuration without any options or accessories (unless specifically listed) and excludes dealer delivery. Pricing and specifications may change without notice. Please request an official quote from your dealer.

Images are for illustrative purposes only and may not necessarily represent the configuration listed.
