Agrowplow AP102 Ripper | 9x666mm (6.0m) | 750mm depth!

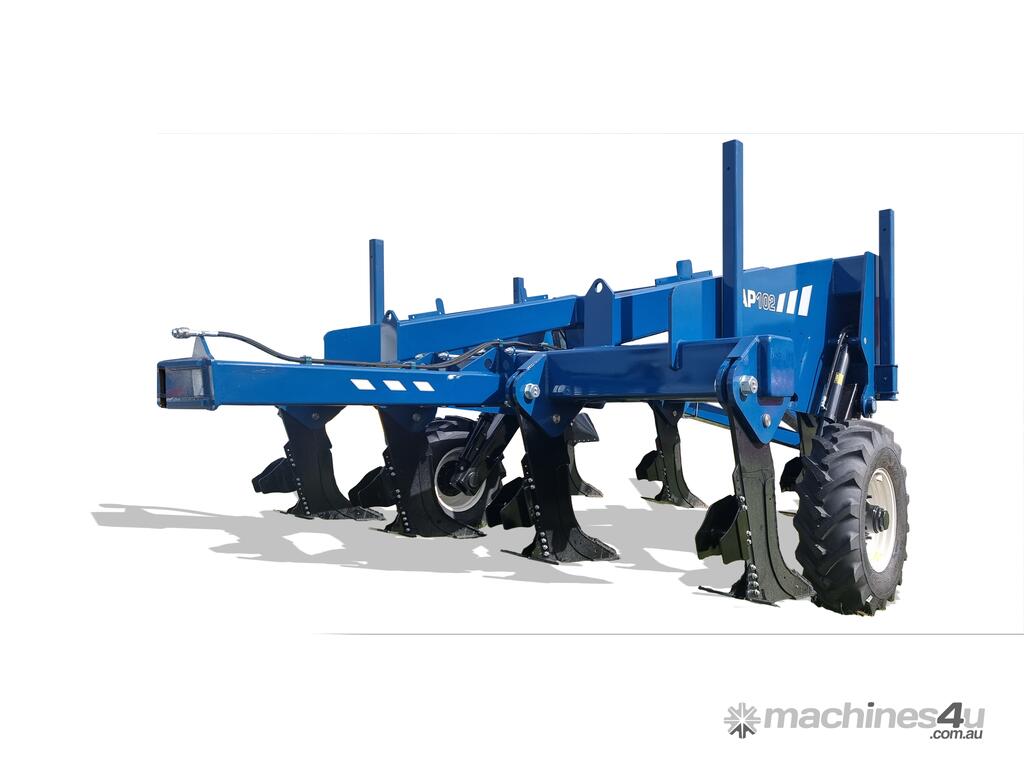

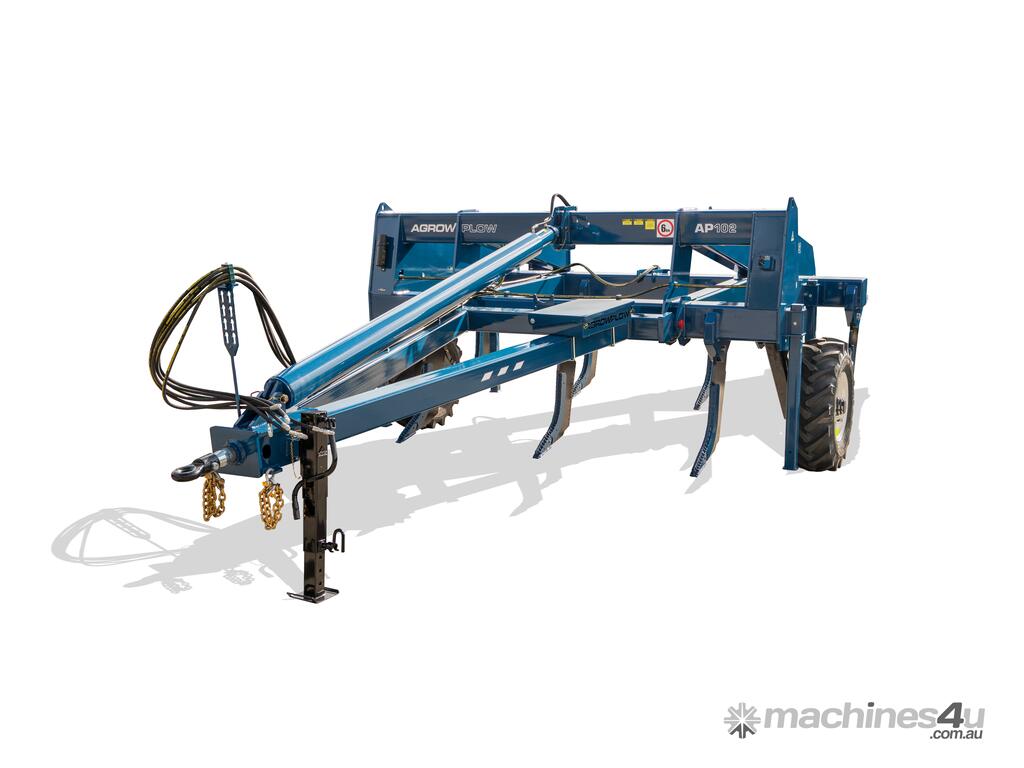

AGROWPLOW AP102 Deep Ripper
9 shank x 666 mm spacings (6.0 m working width)
750mm working depth

Also available in 3.5m, 4.55m & 5.25m widths

SPECIFICATIONS:
Shank style: HD Rigid Shank Assembly
Max. working depth: 750 mm
Breakout: Rigid shearpin 15,000 kg (33,070 lbs)
Drawbar power: 500+ hp
Hydraulic level lift: Yes
Frame RHS: 300 x 300 x 16 mm
Linkage: Trailing with 2" or 2 3/4" drawbar pin
Wheel type: 15.5/A8/169A6 grip-star

AP82 OPTIONS:
- Rear tow hitch (with or without hydraulic lines)
- Inversion shanks
- Various shank options
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

AGROWPLOW AP102 Ultra-Deep Ripper Plough

Our most heavy-duty plough yet.

Rip without the limitations of strength, breakout or depth. Truly deep ripping with depths up to 750 mm and 15,000kg breakouts with our custom rigid HD shank.

RIP WITHOUT LIMITATION

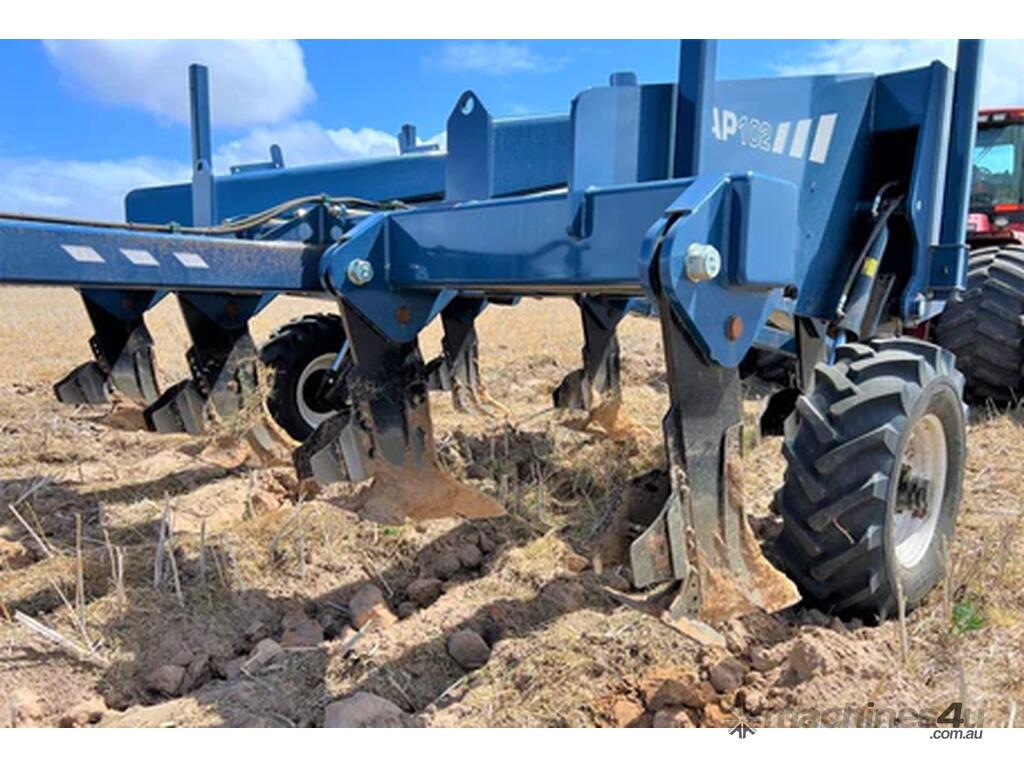

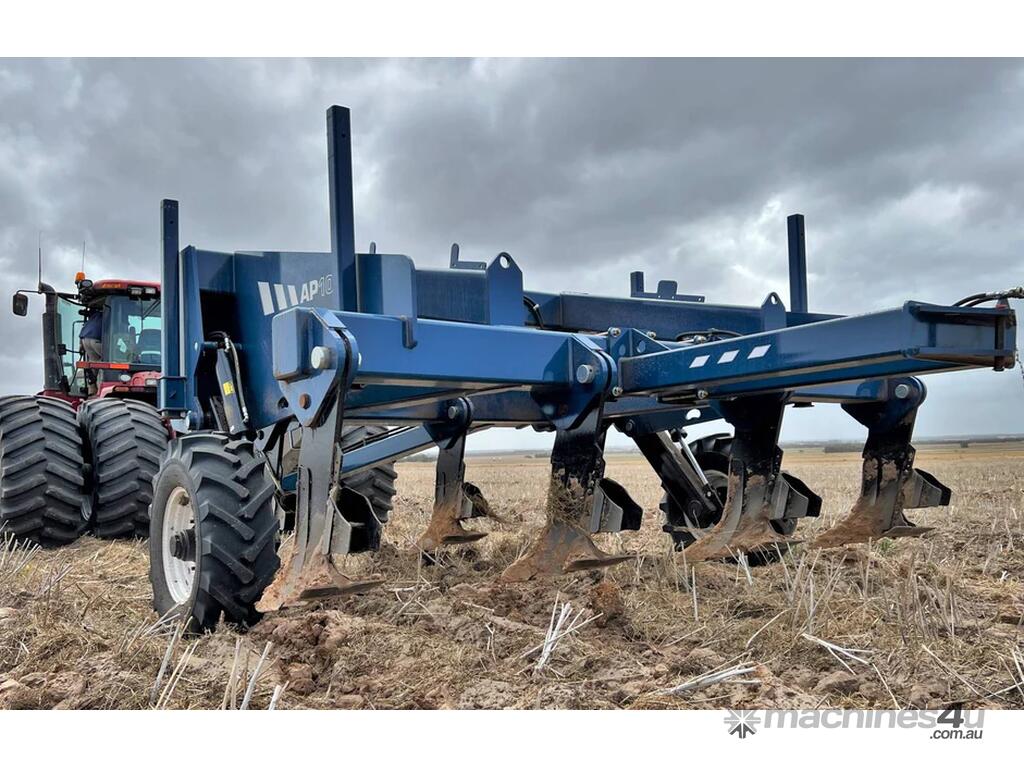

The AP102 was built for one thing - to penetrate the toughest conditions without skipping a beat. Whether faced with compacted soils or stubborn hardpans, this deep ripper powers through them with ease, reaching extreme depths of up to 750mm. The AP102 deep ripper doesn't compromise on strength, breakout capacity, or depth control. It's engineered to deliver the results you need without limitations. It's the tool that lets YOU take control of your soil's destiny, improving its structure and potential.

BREAK BOUNDARIES, NOT EQUIPMENT

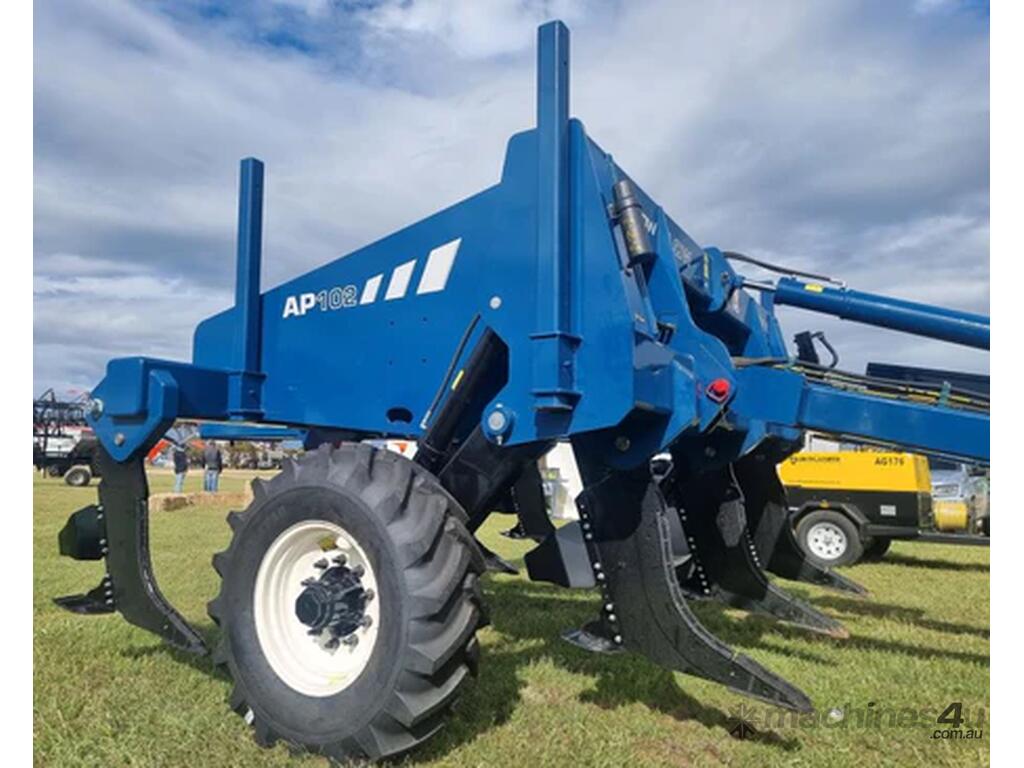

The AP102 raises the stakes with it's 300x300x16 mm RHS steel toolbar joined by 25 mm plates. This incredible strength ensures the AP102 can rip into the tightest conditions without fear of breakout or ridding up on hard pans or twisting or distorting the frame. In the past, achieving these remarkable results often came at the cost of constant equipment strain and limited depth control. The AP102 deep ripper will be ready for whatever field and conditions you throw at it.

IMPROVE YOUR SOIL'S POTENTIAL
Sodic soils, known for their high sodium content, can be a headache for farmers. They hinder root growth and water infiltration, limiting the potential of your land. The AP102 takes on this challenge head-on, breaking through the sodic layer down to the clay beneath, effectively transforming soil types and paving the way for healthier crops. Water is the lifeblood of any farm, and its distribution within the soil is critical. The AP102 improves the soil's water filtration by creating pathways for moisture to penetrate deeper into the earth.

GO BEYOND 600 MM

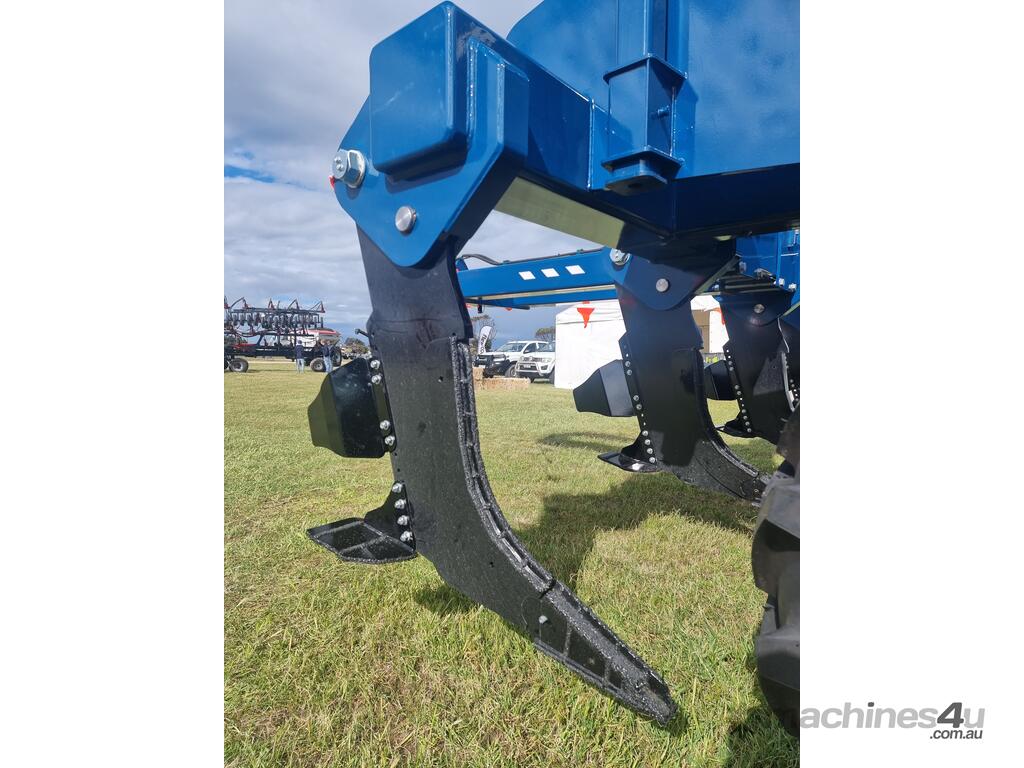

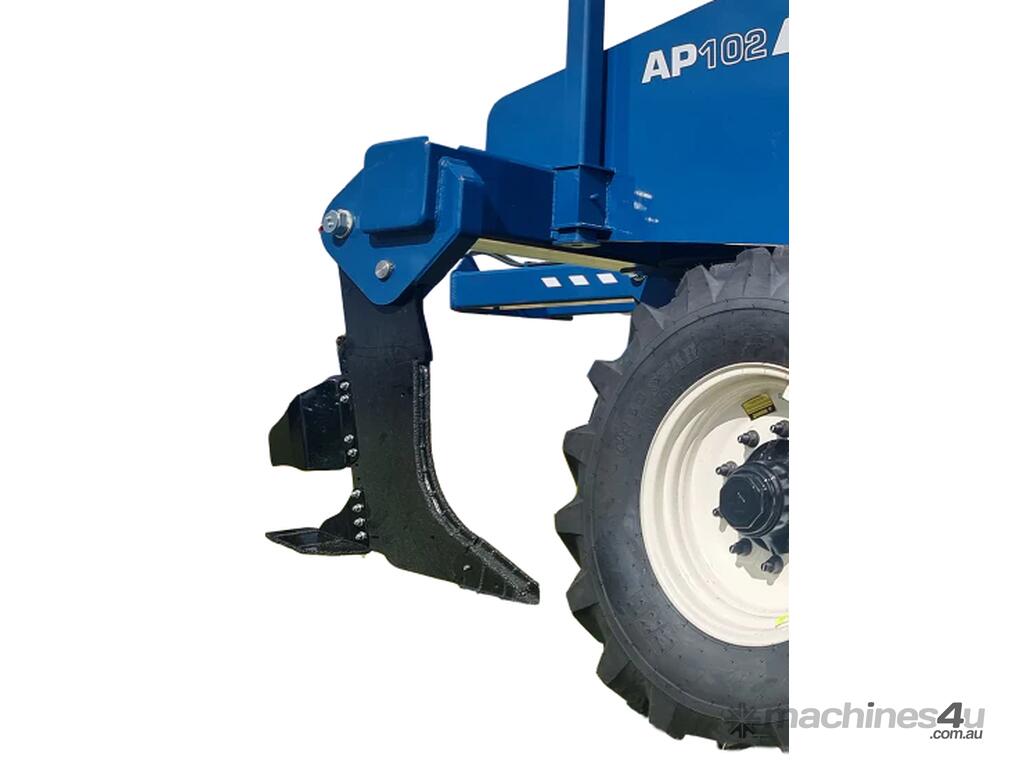

Agrowplow's HD rigid shank was custom designed and built exclusively for the AP102 and is capable of depths of 750 mm. The 32mm bisalloy shank features a 68 tonne shearpin resulting in a breakout of 15,000 kg at the blade! That is over three times the breakout of the #9 shank that comes standard with all other Agrowplow models. The shank features removable shinguards and comes standard with hardfaced points.

CONFIGURED FOR EXCELLENCE

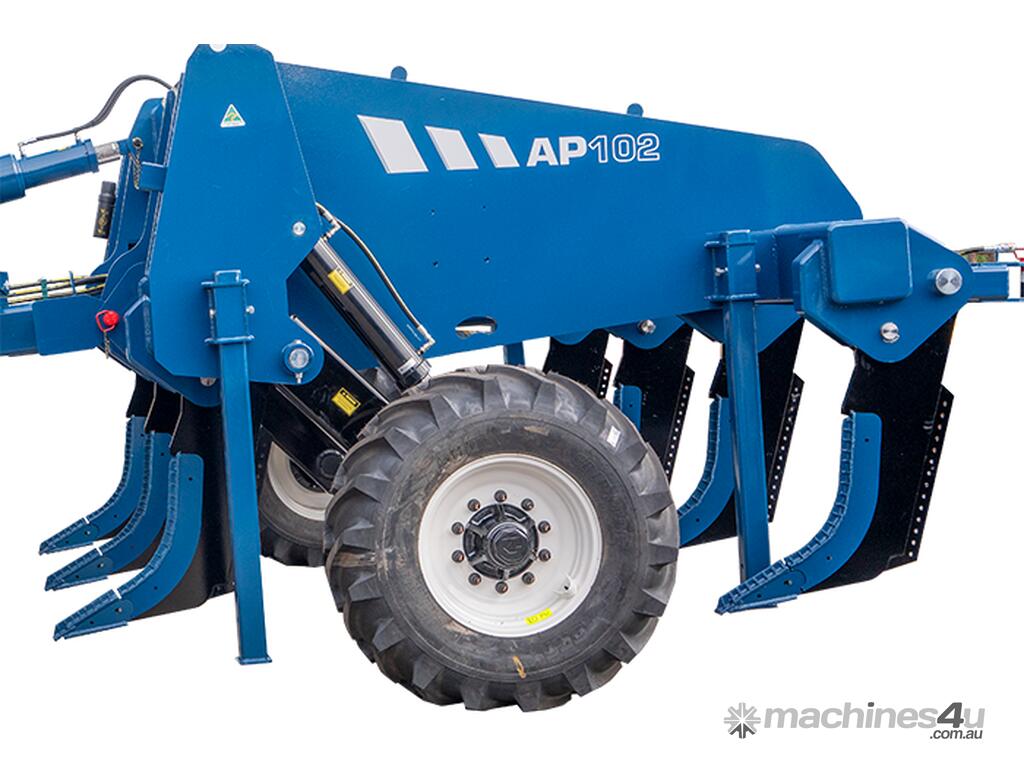

The AP102 is available in 3.5, 4.5, 5.25 and 6.0 m working widths in 5, 7 or 9 shank configurations. A hydraulic level lift is included as standard, allowing full depth and angle control all from the tractor, allowing operators to quickly and easily adjust to changing soil conditions. The optional rear tow hitch can host a Flexi-Roller Mk2 or additional trailing implements.

MACHINE & SHANK OPTIONS
Enhance the versatility of your AP102 plough. The AP102's rigid shank can be fitted with inclusion plates and 400 mm wide sweeps. There is also an inversion point and shinguard option for weed management or to bury the water-repellent topsoil.

Add a rear-tow hitch to host a trailing soil roller such as the Agrowplow Flexi-Roller or additional trailing implements.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, visit our (: Agrowplow) or give us a call.

DISCLAIMER: The list price is MRRP for base configuration without any options or accessories (unless specifically listed) and excludes dealer delivery. Pricing and specifications may change without notice. Please request an official quote from your dealer.

Images are for illustrative purposes only and may not necessarily represent the configuration listed.
