AP11 7x330mm SPECIFICATIONS:
Working rows: 7
Row spacings: 330mm
Working width: 2.31m
Maximum working depth: 400mm
Shank Assembly: Agrowplow #8-9 Hybrid
Breakout: Rigid Shearpin 1089kg (2,400 lbs)
Drawbar power: 100-140hp
Frame: 100x100x9mm RHS
Toolbars: 2 toolbars at 1m spacings
Linkage: CAT2 three-point linkage
Transport width: 2.75m
Weight: 0.6 tonne

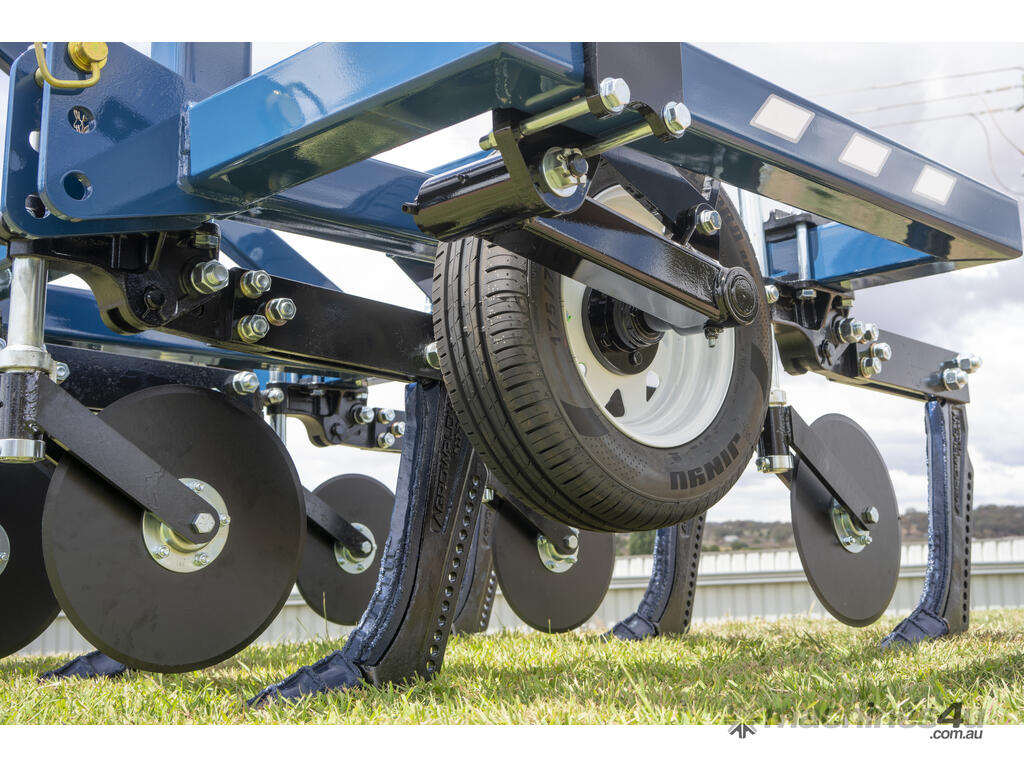

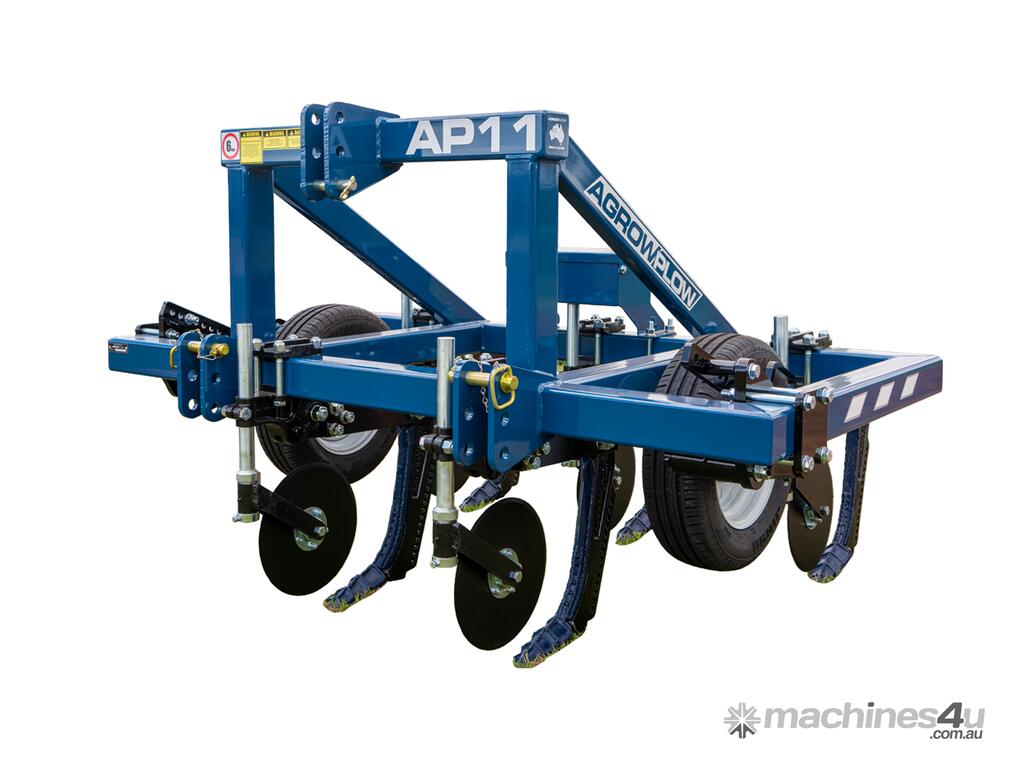

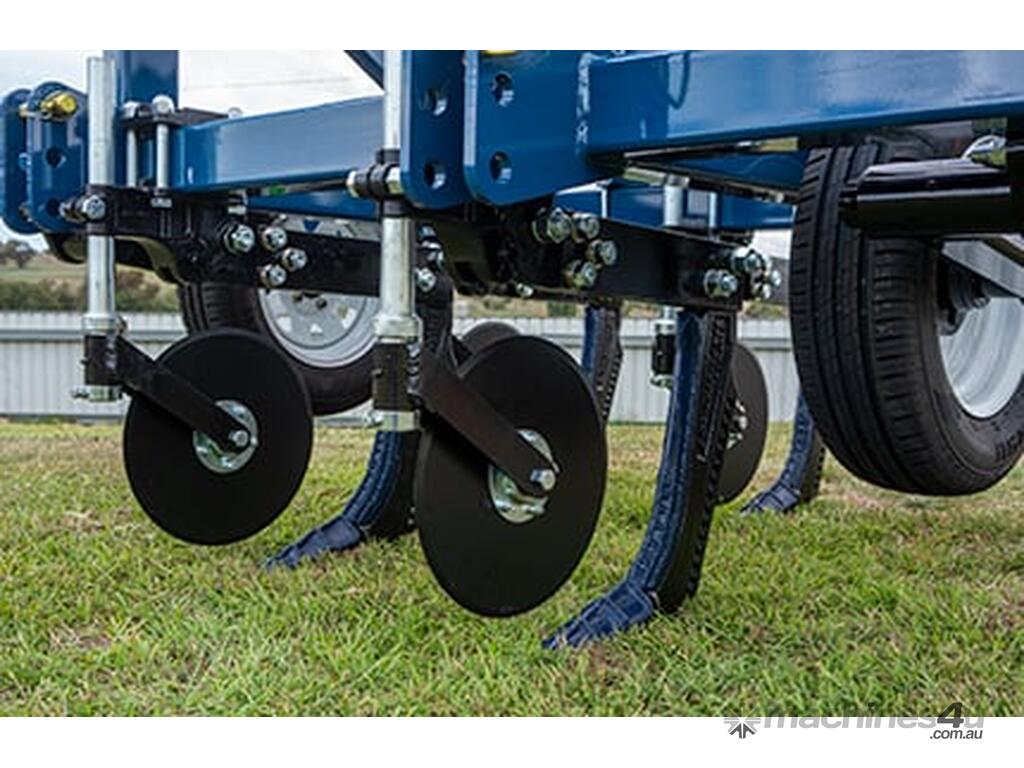

This machine comes factory-fitted with coulters. Cut through trash ahead of the shank assembly preventing trash buildup for easier ripping.
Available optional extras for the AP11 include:
- A rear tow hitch with or without hydraulic lines for towing an Agrowplow Flexi-Roller
- Two 175/75 R13 depth-stop wheels - easily adjusted to control the ploughing depth.
- Toolbox
Additional shank options and accessories can be fitted to the AP11, such as:
- Furrowers: Create the furrows and hills required for raised bed cropping.
- Inclusion plates: Allow surface-applied ameliorants to be mixed into the subsurface soil layer.
- Mulch blades: Cut weeds at the root level during ploughing.
- Sweeps: Increase the volume of soil lifted and fractured during ploughing.
- Fertiliser tubes: Deliver granular fertiliser behind the shank to adjust the soil pH prior to sowing.
Note: Some shank options may be mutually exclusive.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

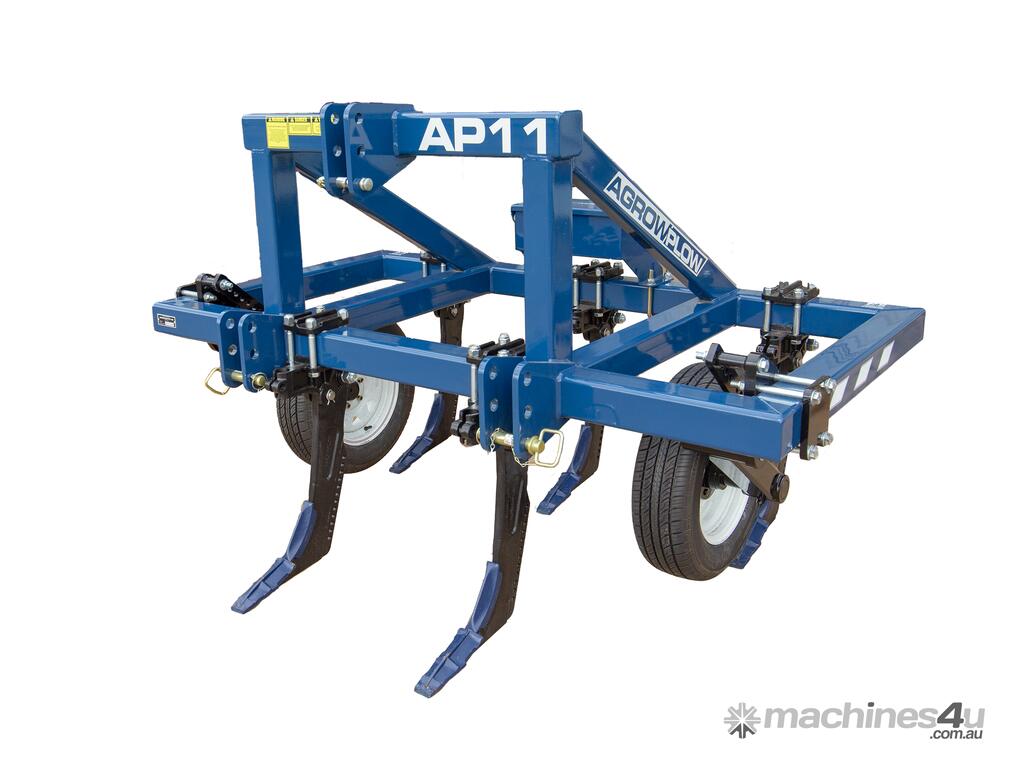

Agrowplow AP11
Your compact ripper for paddock renovation of pastures, cereals, and horticulture crops.
The 100x100x9 mm RHS steel frame has the strength you need for tough ripping and the #8-9 Hybrid Shank Assembly shatters hardpan compaction up to 400mm deep.
SMART RIPPING
The AP11 is available with five or seven shearpin breakout shanks. It features our #8-9 Hybrid Shank Assembly, which means you benefit from the extra-tough #9 blade and full-length shinguard for long-lasting protection of your shanks.
EASY MANOEUVRABILITY AND CONTROL.
The AP11's narrow-width design allows you to transport with confidence through gates and on public roads. Plus the AP11 attaches to the tractor via 3 point linkage (CAT2) allowing for easy raising and lowering of the implement.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, contact us or visit:
agrowplow. com. au/find-a-dealer
DISCLAIMER: List price is MRRP for base configuration without any options or accessories (unless specifically listed) and excludes dealer delivery.
Pricing and specifications may change without notice.
Please request an official quote from your dealer.
Images are for illustrative purposes only and may not necessarily represent the configuration listed.
