Agrowplow AP31 Deep Ripper | 5x750 (3.75m) | Rigid or Hydraulic

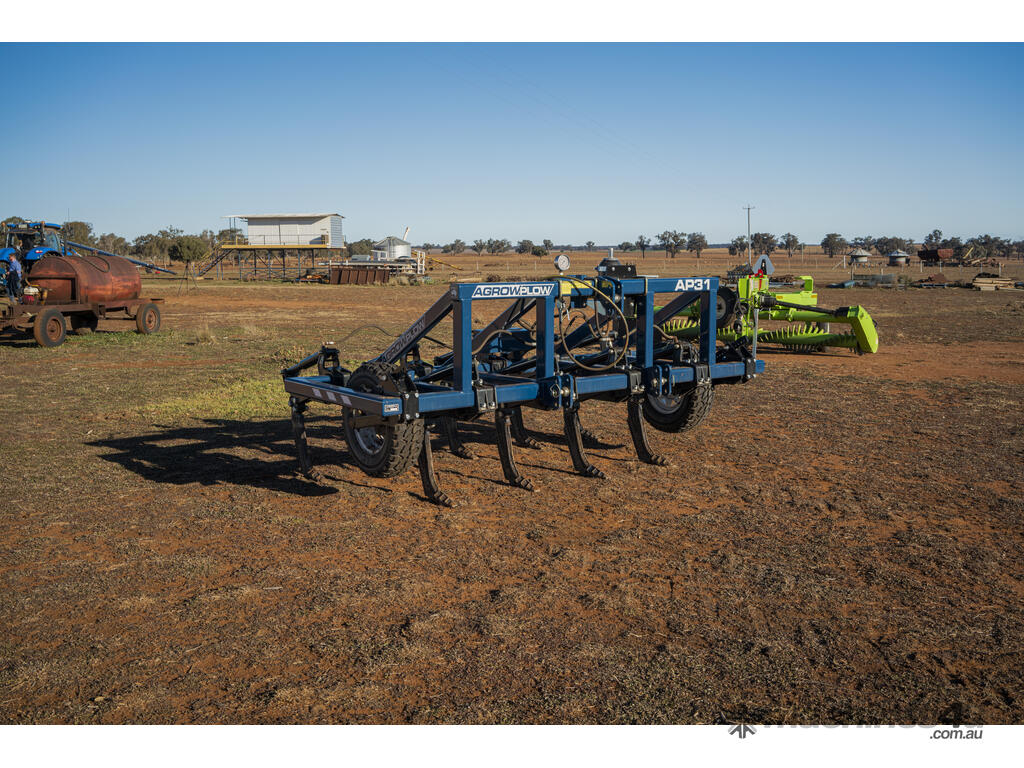

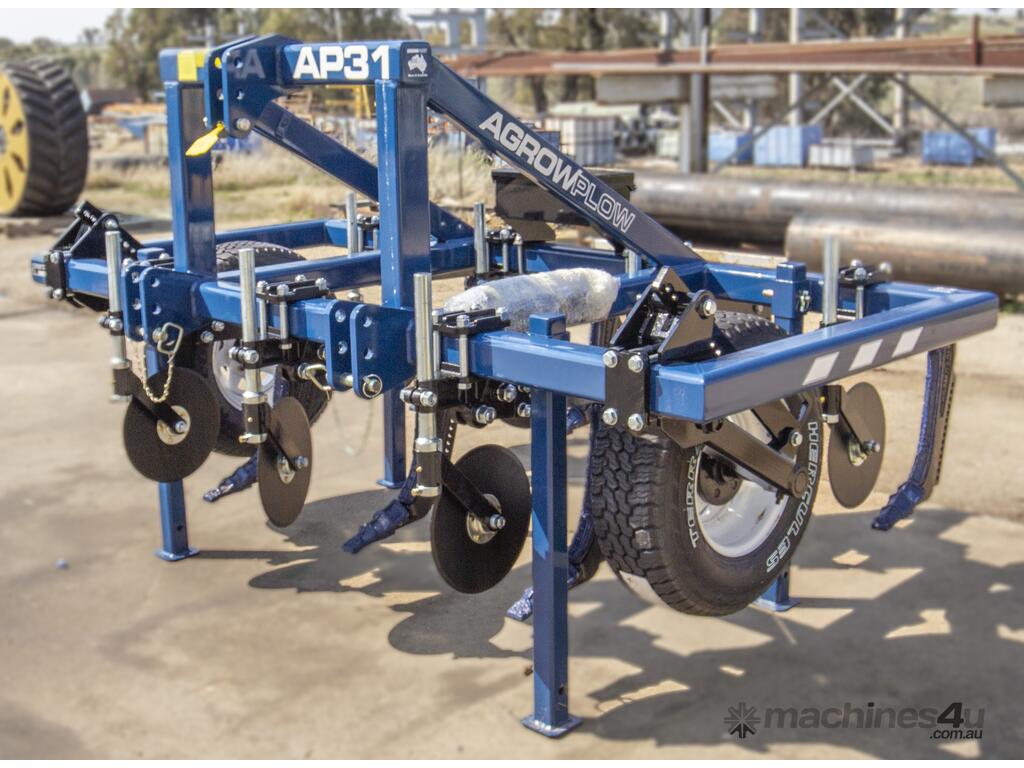

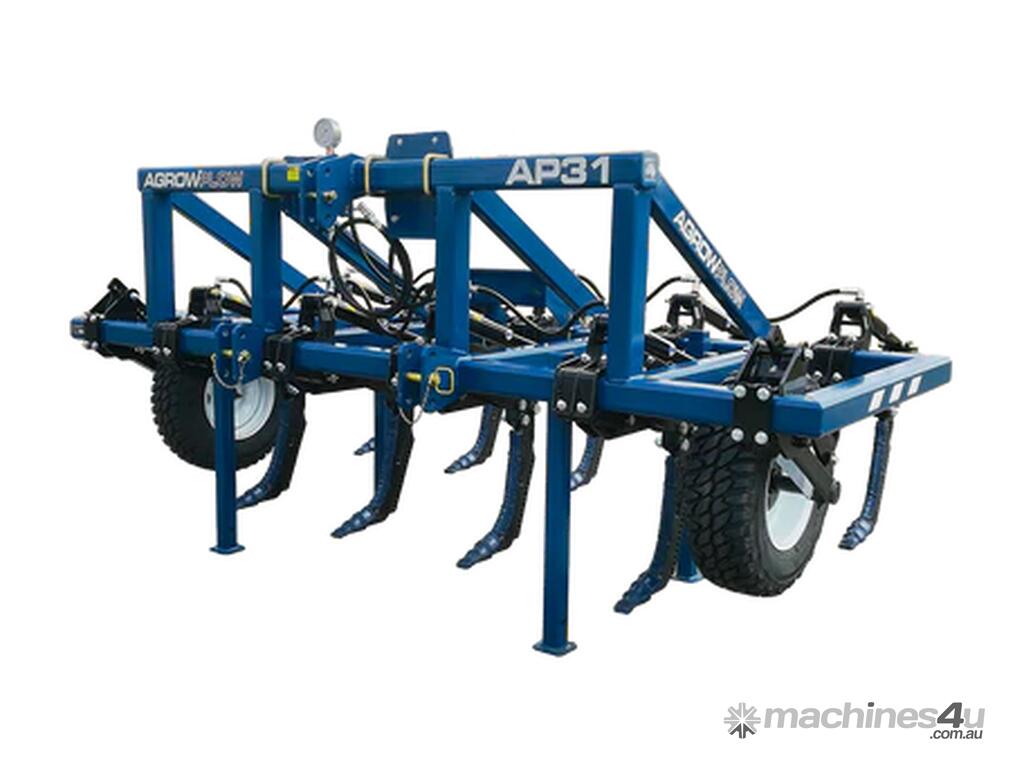

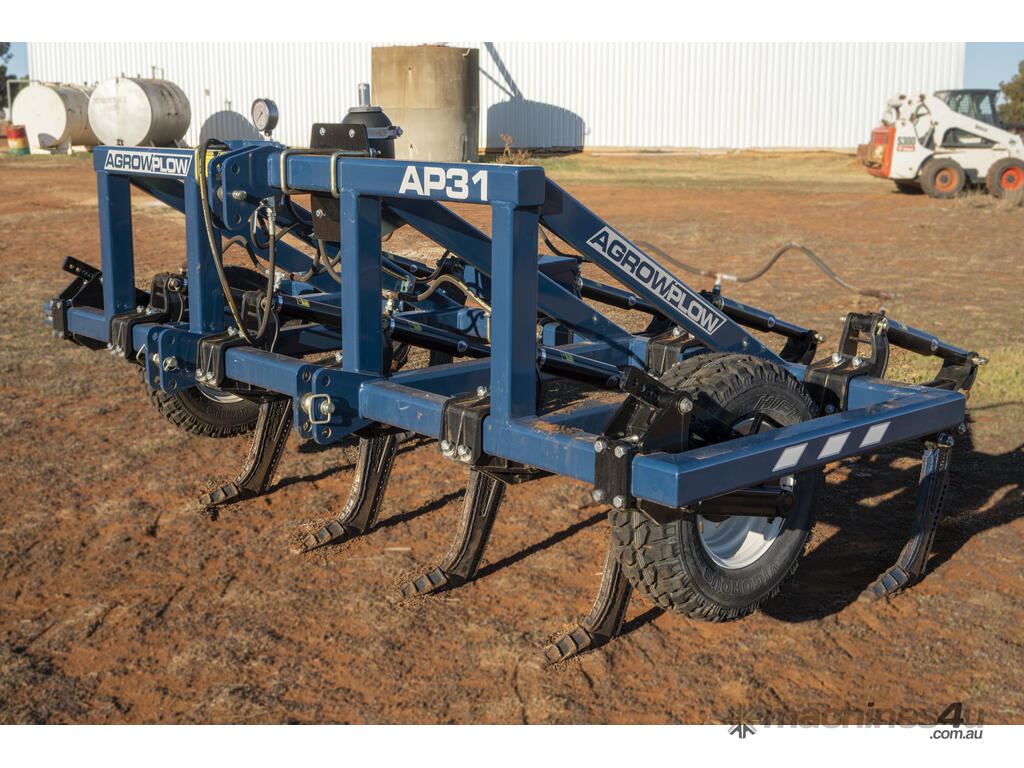

AGROWPLOW AP31 Deep Ripper
5 shanks x 750 mm spacings (3.75m working width)
Rigid shearpin OR hydraulic breakout available - (price shown is for rigid shanks, no options)

SPECIFICATIONS:
Shank style: #8-9 HybridShank Assembly
Max. working depth: 400 mm
Breakout: Rigid shearpin 1,089 kg (2,400 lbs) / Hydraulic 907 kg (2,000 lbs)
Drawbar power: 20-30 hp per tyne
Hydraulic level lift: Yes
Frame RHS: 100 x 100 x 9 mm
Toolbars/spacings: 2 / 1.15 m
Linkage: CAT3 three-point linkage
Wheel type: 235/80 R14 AT

AP31 OPTIONS:
- Rear tow hitch (with or without hydraulic lines)
- MOUNTED FLEXI-ROLLER
- Various shank options

#9 SHANK OPTIONS:

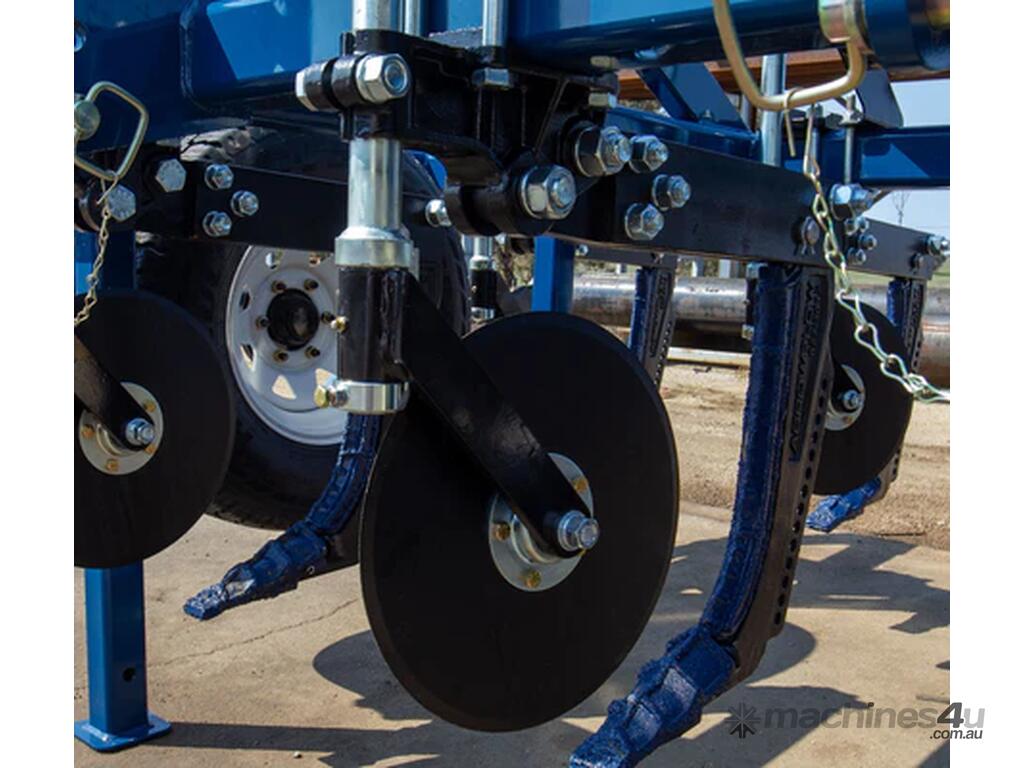

- Coulters
- Inclusion plates
- Sweeps
- Mulch blades
- Furrowers
- Fertiliser tubes
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

AGROWPLOW AP31 Deep Ripper Plough

Your compact ripper for paddock renovation of pastures, cereals, and horticulture crops. Prepare the perfect seedbed with the AP31 deep ripper. Shatter subsurface compaction wherever you find it without soil inversion and maintain soil microbiology with the AP31's range of smart ripping features.

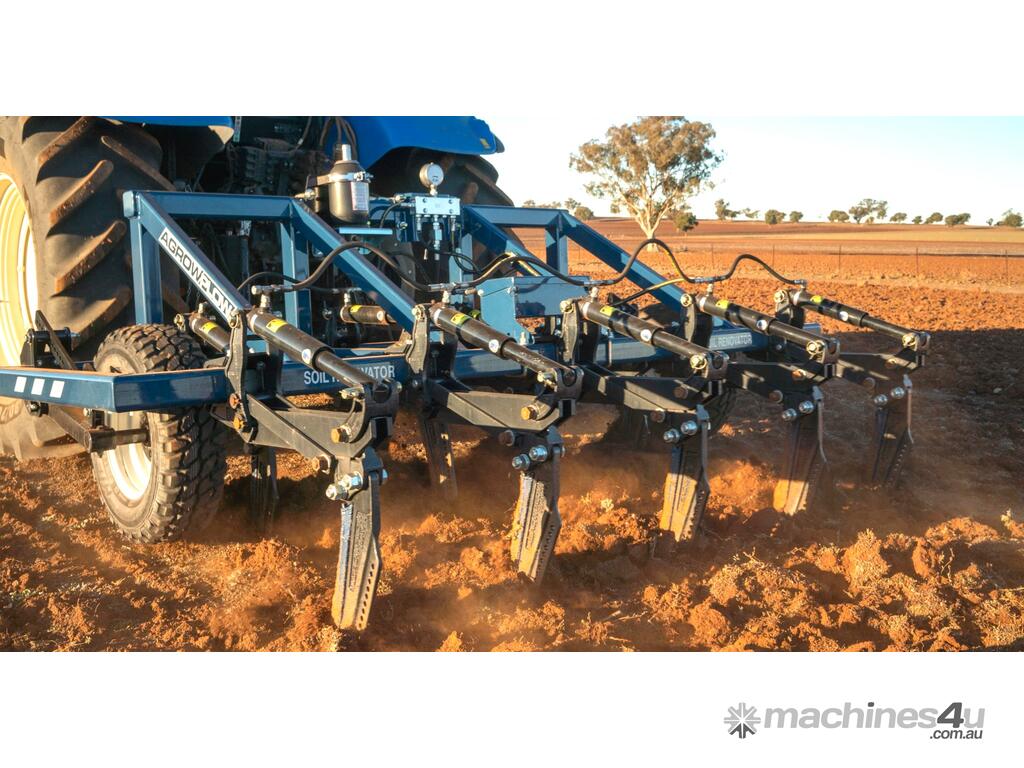

SMART RIPPING

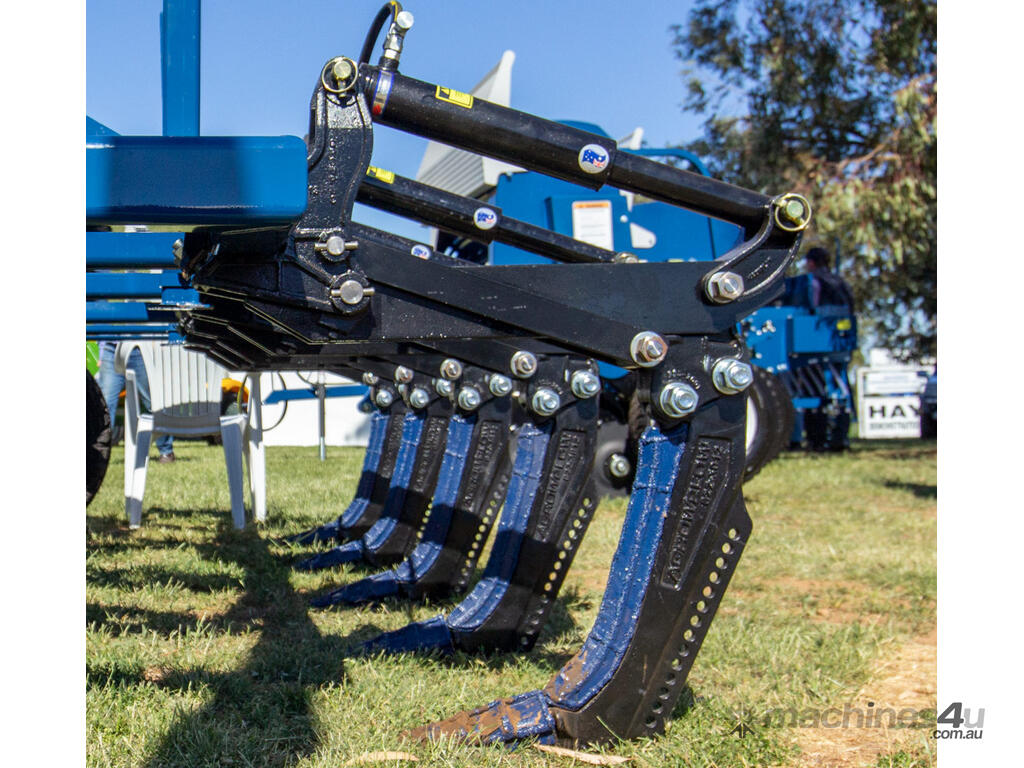

The Agrowplow's AP31 features the #8-9 Hybrid Shank assembly, allowing deep ripping at depths of up to 400mm in either rigid or hydraulic breakout configurations. The #8-9 Hybrid Shank has our unique #9 blade and full-length shinguard for maximum durability.

BUILT TO YOUR NEEDS
The AP31 is available with 330, 500, or 750 mm shank spacings. It has a CAT3 three-point linkage hitch and a 100 x 100 x 9 mm RHS steel frame for long-lasting performance in Australia's tough conditions. A rear tow hitch with optional hydraulic lines can fitted to the plough for towing trailing implements. With the #8-9 hybrid shank assembly, the AP31 supports shank options such as coulters, fertiliser tubes, furrowers, inclusion plates, mulch blades and sweeps.

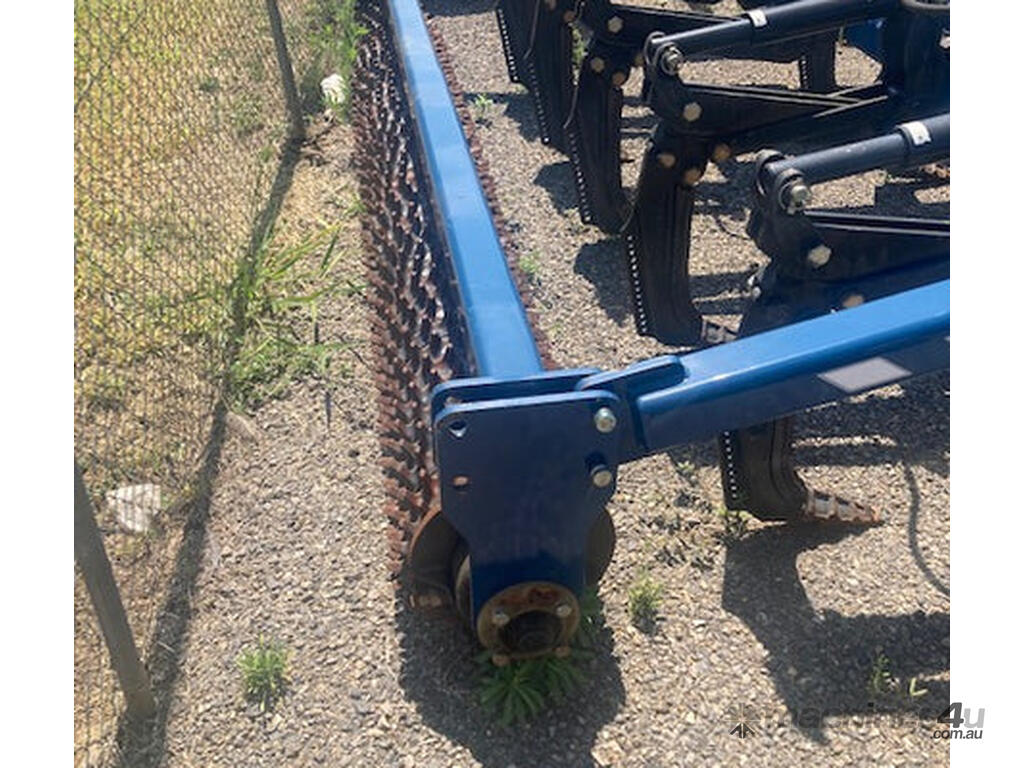

MOUNTED FLEXI-ROLLER
Designed to provide a superior seed bed finish in all soil conditions with its unique contour following ability, the optional mounted Flexi-Roller will shatter clods and break apart crusting following ripping.
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, visit our (: Agrowplow) or give us a call.

DISCLAIMER: The list price is MRRP for base configuration without any options or accessories (unless specifically listed) and excludes dealer delivery. Pricing and specifications may change without notice. Please request an official quote from your dealer.

Images are for illustrative purposes only and may not necessarily represent the configuration listed.
