Agrowplow AP52 Deep Ripper | CAT4 | Rigid or Hydraulic Shanks

Agrowplow AP52 Deep Ripper Plough

CONFIGURATIONS AVAILABLE (CAT4):
11 x 409 mm (4.5 m working width)
15 x 400 mm (6.0 m working width)

Rigid Shearpin or Hydraulic breakout available

(Price shown is for 11 rigid shanks x 409 mm spacings, no options)

AP52 (CAT4) SPECIFICATIONS:
Shank style: #9 Shank Assembly
Max. working depth: 450 mm
Breakout: Rigid shearpin 4,790 kg (10,560 lbs) / Hydraulic 1,846 kg (4,070 lbs)
Drawbar power: 20-30 hp per tyne
Frame RHS: 150 x 150 x 9 mm
Toolbars/spacings: 2 / 1.45 m
Linkage: CAT4 three-point linkage
Wheel type: 11.5/80-15.3 implement

AP52 OPTIONS:
- Rear tow hitch (with or without hydraulic lines)
- Various shank options
- Flexi-Roller Mk2
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

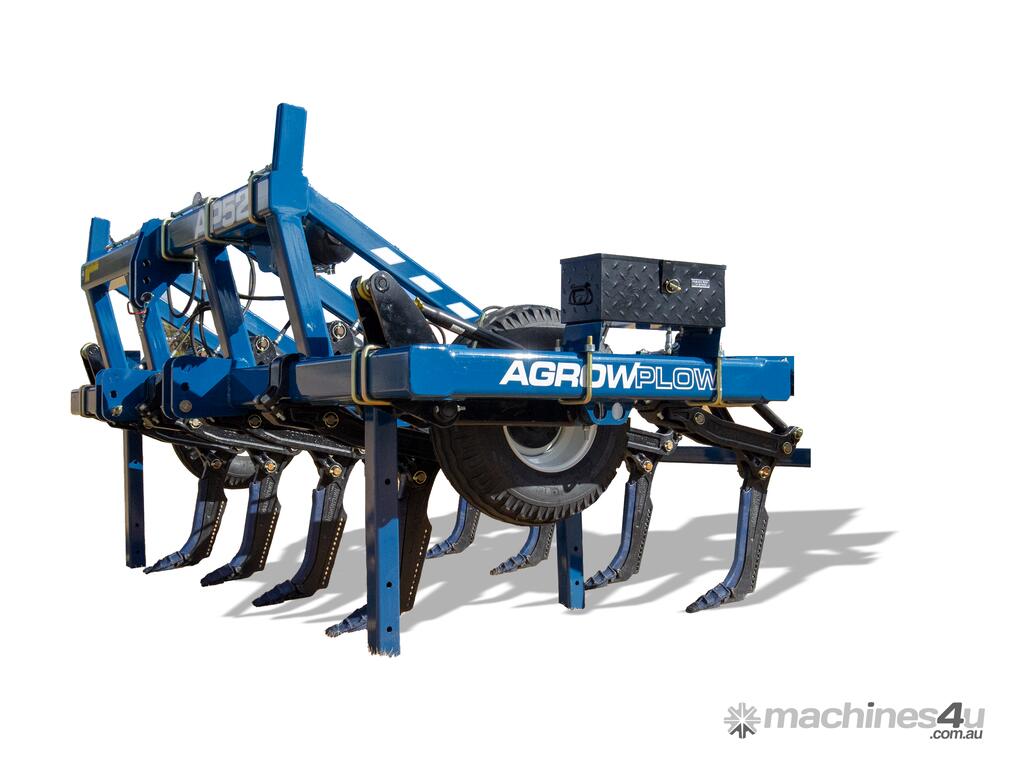

AGROWPLOW AP52 Deep Ripper Plough

Shatter deep compacted hardpans up to 450mm for mid-size farming.

Sporting the #9 Shank Assembly, the AP52 features the same in-built strength to match the largest of our trailing deep ripper models in a more compact three-point linkage frame.

SMART RIPPING

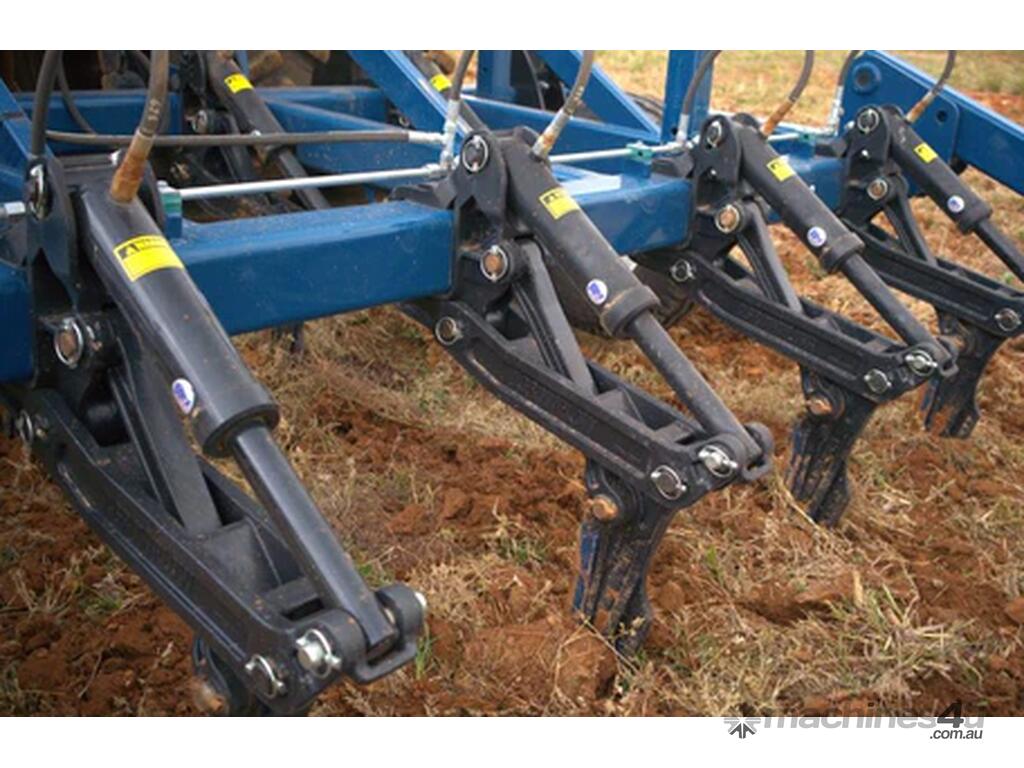

The heavy-duty 150x150x9 mm frame alongside our innovative #9 Shank Assembly makes the AP52 perfect to shatter deep compacted hardpans up to 450 mm. The rigid recoil shank has a huge 4,790 kg breakout at the blade and the hydraulic recoil option has over 1,846 kg breakout at the blade.

GET THE JOB DONE
The mounted design and the narrow profile of the #9 shank enable the AP52 to get the job done even when hitched to a modest tractor with as little as 180 hp. This makes the ripper ideal for mid-sized farms where heavier farm machinery increases soil compaction and reduces crop prosperity.

BUILT TO YOUR NEEDS
The AP52 deep ripper is available in 9, 11, 13 or 15 shank models and supports a range of additional shank options including:
- Inclusion plates
- Sweeps
- Mulch blades
- Furrowers
- Fertiliser tubes
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, visit our (: Agrowplow) or give us a call.

DISCLAIMER: The list price is MRRP for base configuration without any options or accessories (unless specifically listed) and excludes dealer delivery. Pricing and specifications may change without notice. Please request an official quote from your dealer.

Images are for illustrative purposes only and may not necessarily represent the configuration listed.
