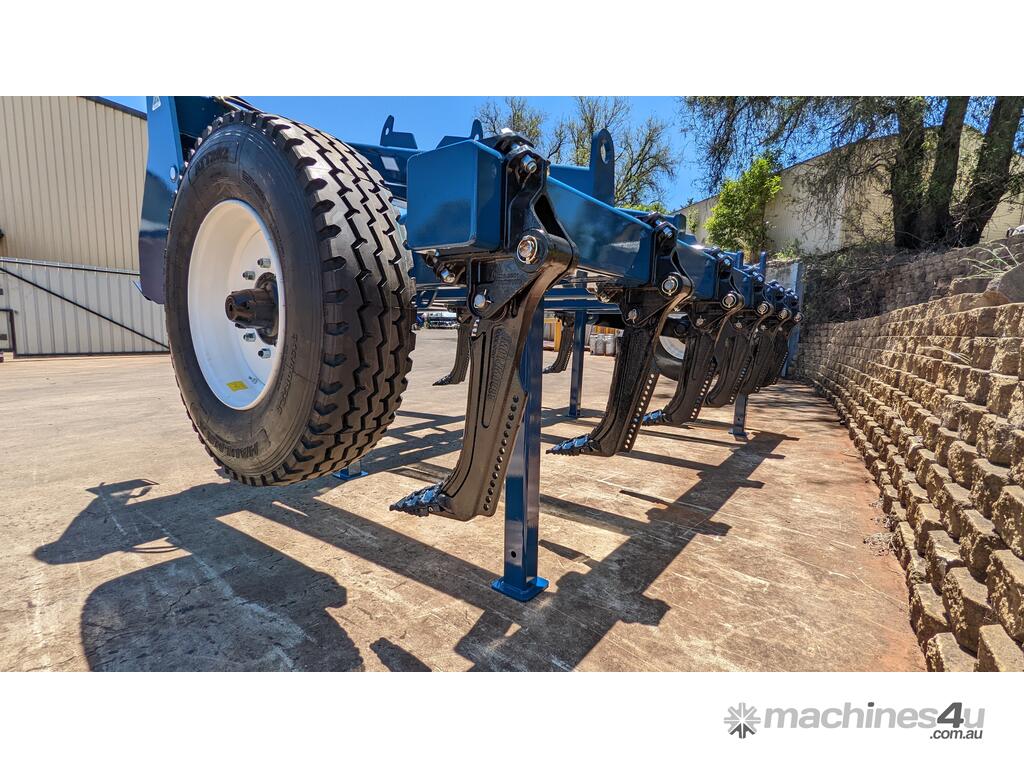

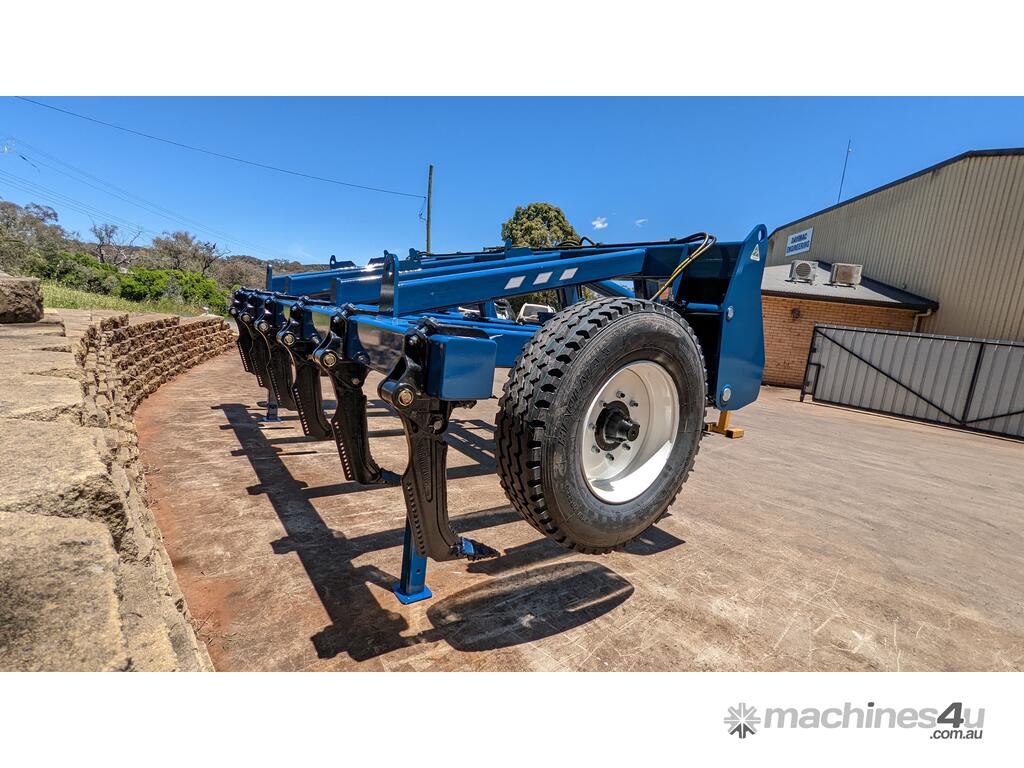

AP72 Deep Ripper Plough
15 shanks x 400 mm spacings (6.0m working width) - rigid shearpin OR hydraulic breakout available
(Price shown is for rigid shanks)
Other variants include 9, 11 & 19 shank models (3.5m to 9.0m) in rigid or hydraulic breakout
SPECIFICATIONS:
Shank style: #9 Shank Assembly
Max. working depth: 450 mm (600 mm option available for soft soil conditions)
Breakout: Rigid shearpin 4,790 kg (10,560 lbs) / Hydraulic 1,846 kg (4,070 lbs)
Drawbar power: 300-450 hp (20-30 hp per tyne)
Hydraulic level lift: Yes

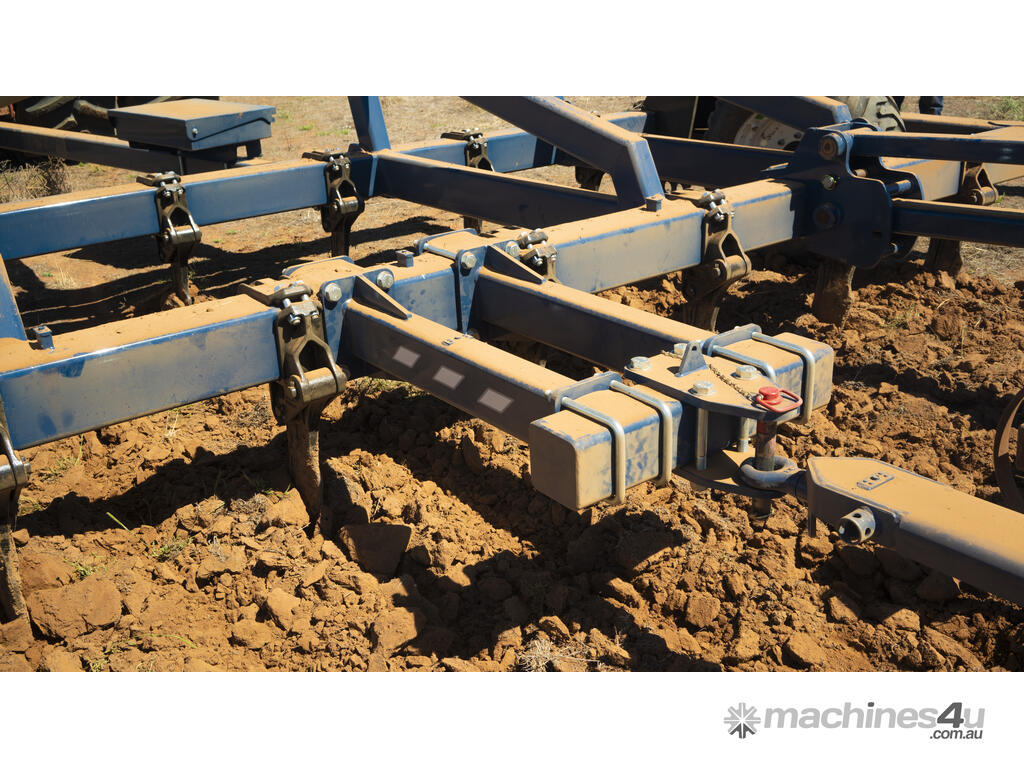

Frame RHS: 200 x 200 x 9 mm
Toolbars/spacings: 2 / 1.955 m
Linkage: Trailing with 2" or 2 3/4" drawbar pin
Wheel type: 315/80R22.5 20 ply OR 400/60-22.5 flotation option
AP72 OPTIONS:
- Rear tow hitch (with or without hydraulic lines)
- Flotation tyres

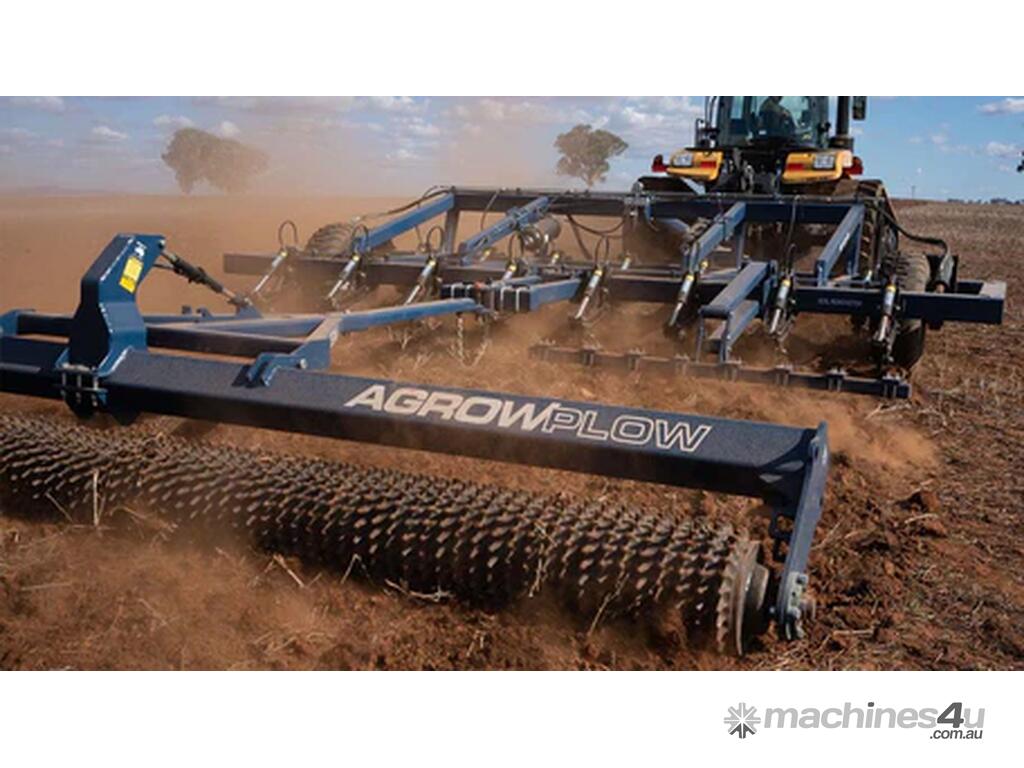

- Flexi-Roller Mk2 or Mk2 HD (trailing)
- Inversion shanks
- 600 mm working depth shanks (soft soils only)
- Various shank options
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

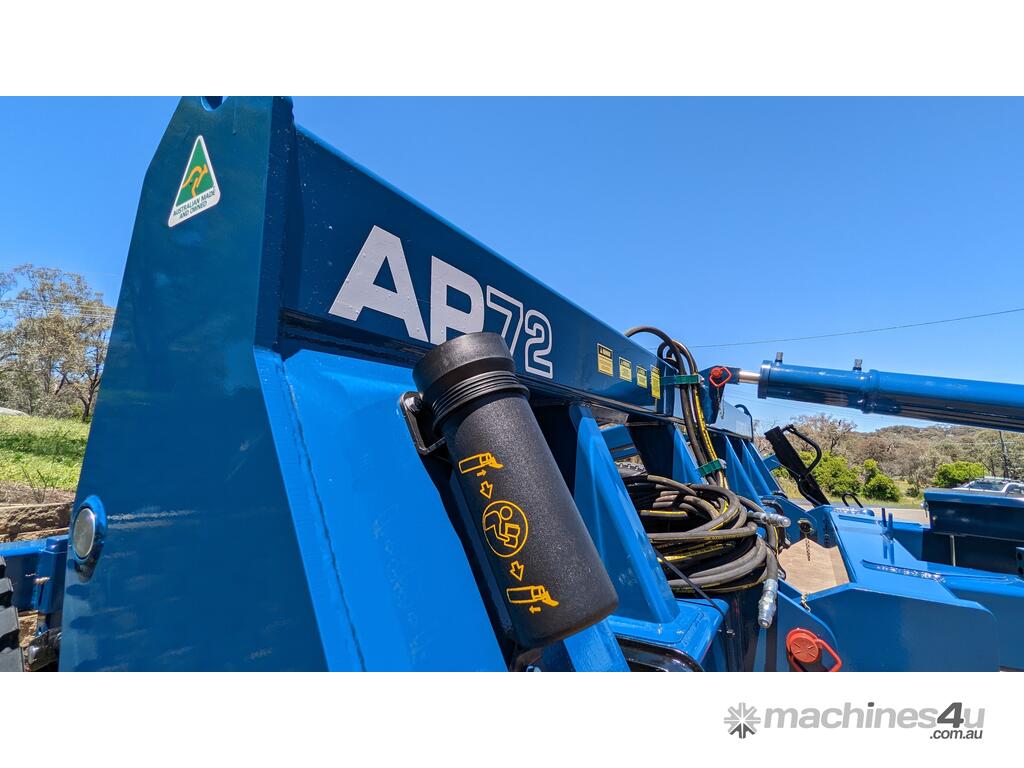

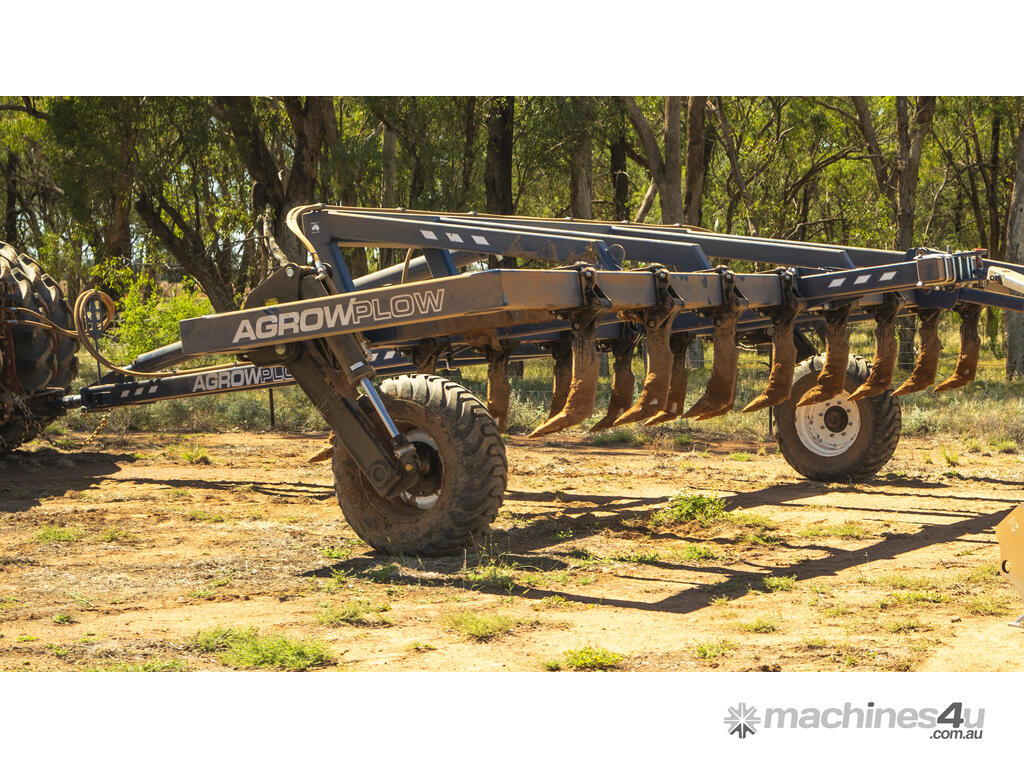

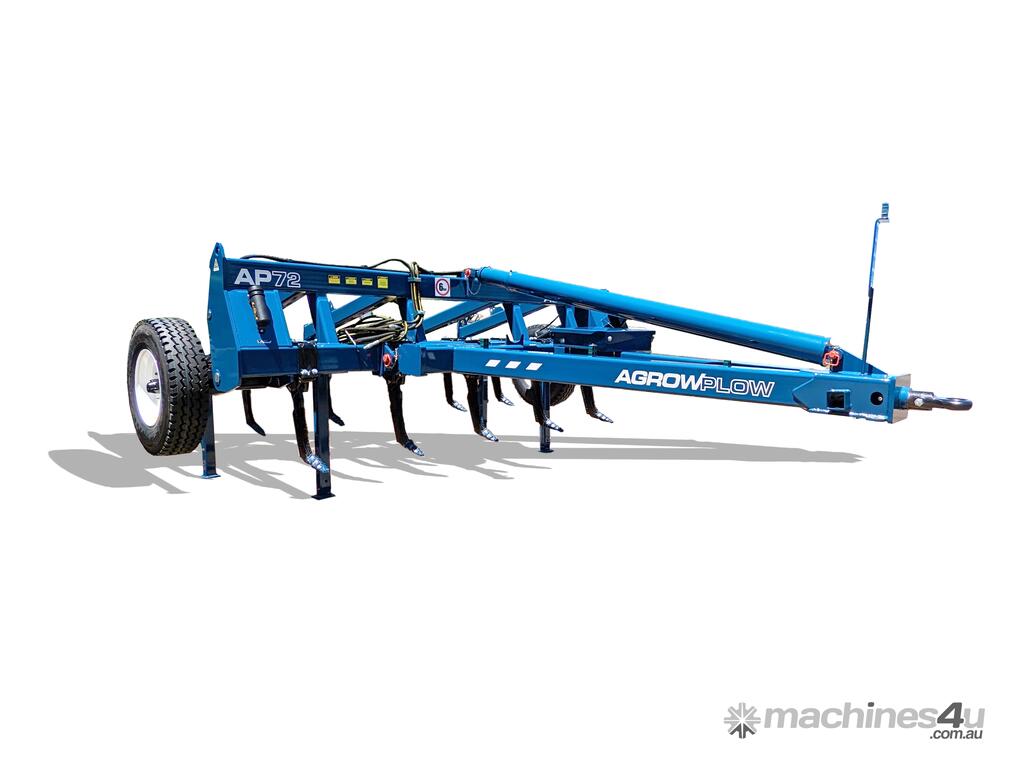

AGROWPLOW AP72 Deep Ripper Plough
The Agrowplow AP72 deep ripper offers excellent, cost-effective soil renovation. Perfect for contractors and broadacre farming applications.
STRONG AND EFFICIENT.

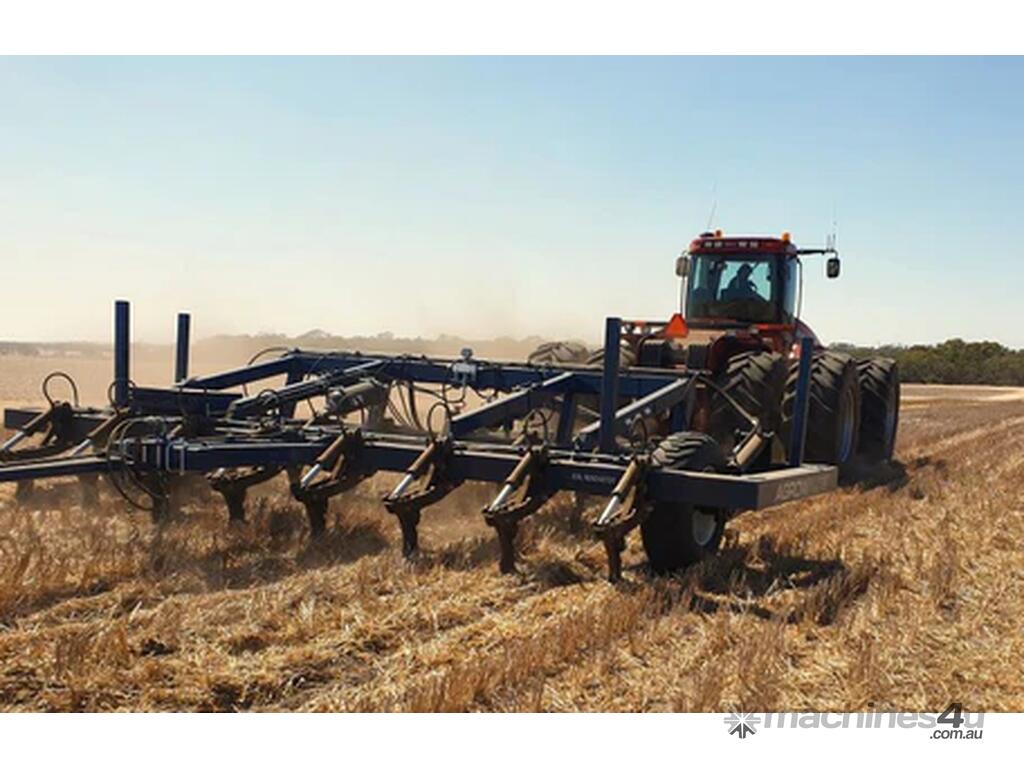

Built with a heavy-duty 200 x 200 x 9 mm RHS frame, the AP72 boasts broadacre working widths up to 9.0 m and the ability to handle deep ripping up to a depth of 450 mm in heavy trash conditions, or 600 mm in soft soil conditions.
SMARTER RIPPING.

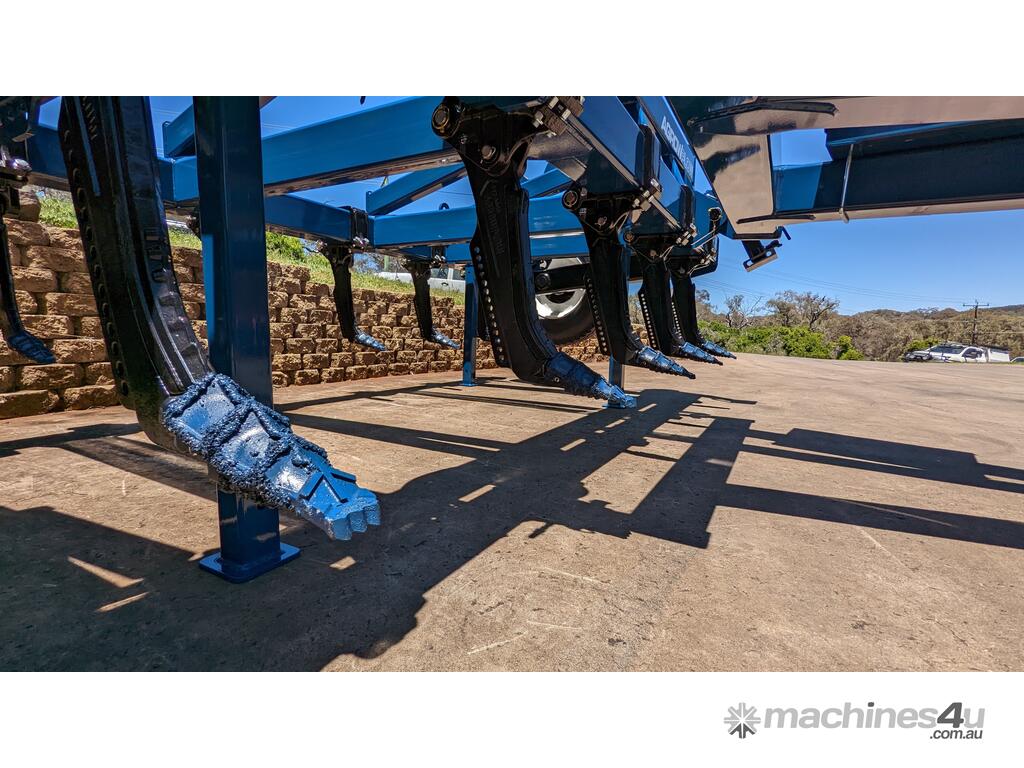

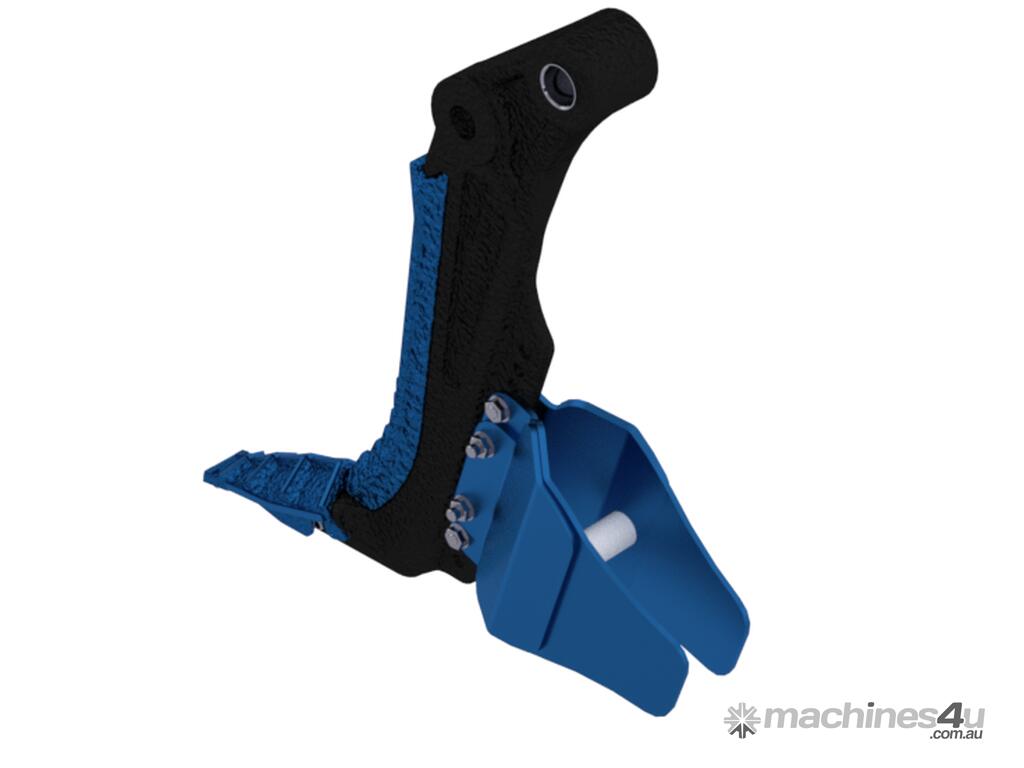

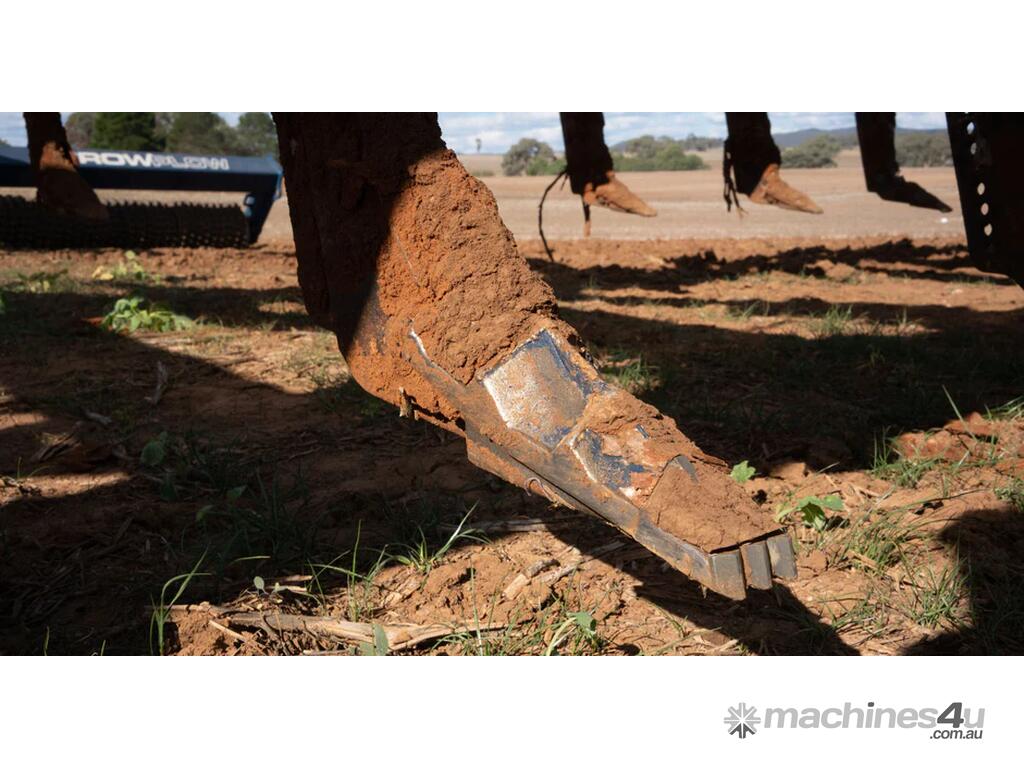

The innovative #9 Shank Assembly shatters hard pans up to 450 mm deep without inversion, giving you increased moisture infiltration and root penetration without compromising soil structure. The rigid recoil shank has a huge 4,790 kg breakout at the blade and the hydraulic recoil option has over 1,800 kg breakout at the blade.
BUILT TO YOUR NEEDS.
The AP72 deep ripper is available in 9, 11, 15, or 19 shank models. Longer shanks can be fitted onto the plough for working depths up to 600 mm in soft soil operations. The AP72 can also be fitted with optional 400/60-22.5 flotation tyres that offer superior manoeuvrability and efficiency.
#9 SHANK OPTIONS:

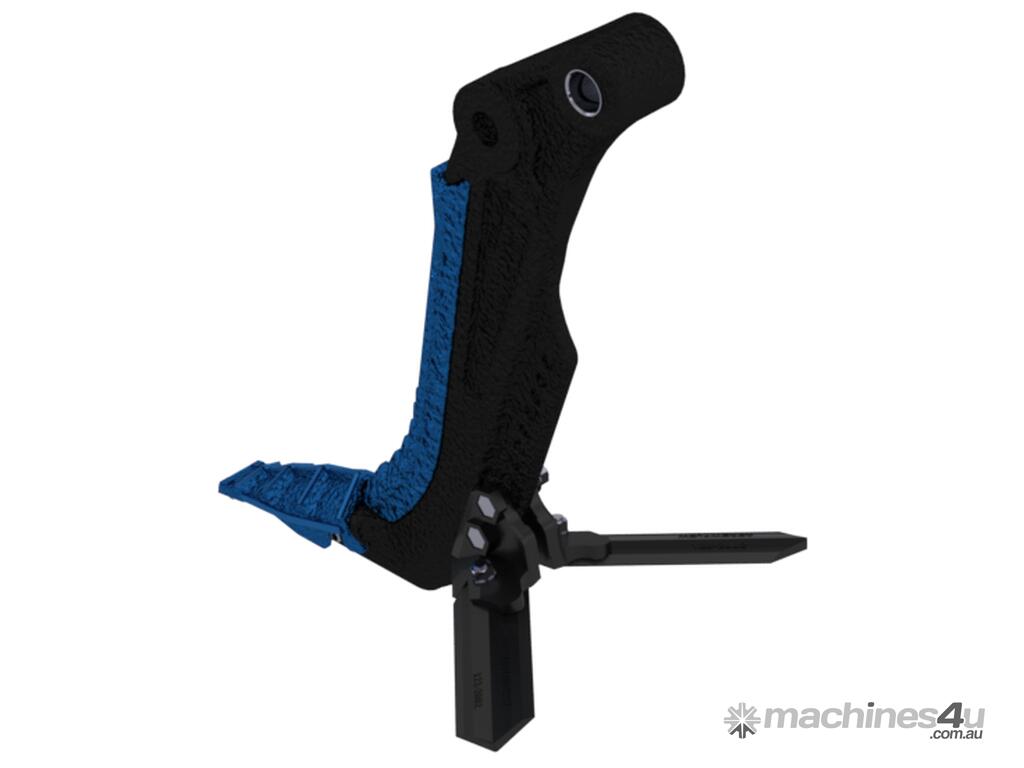

- Inclusion plates

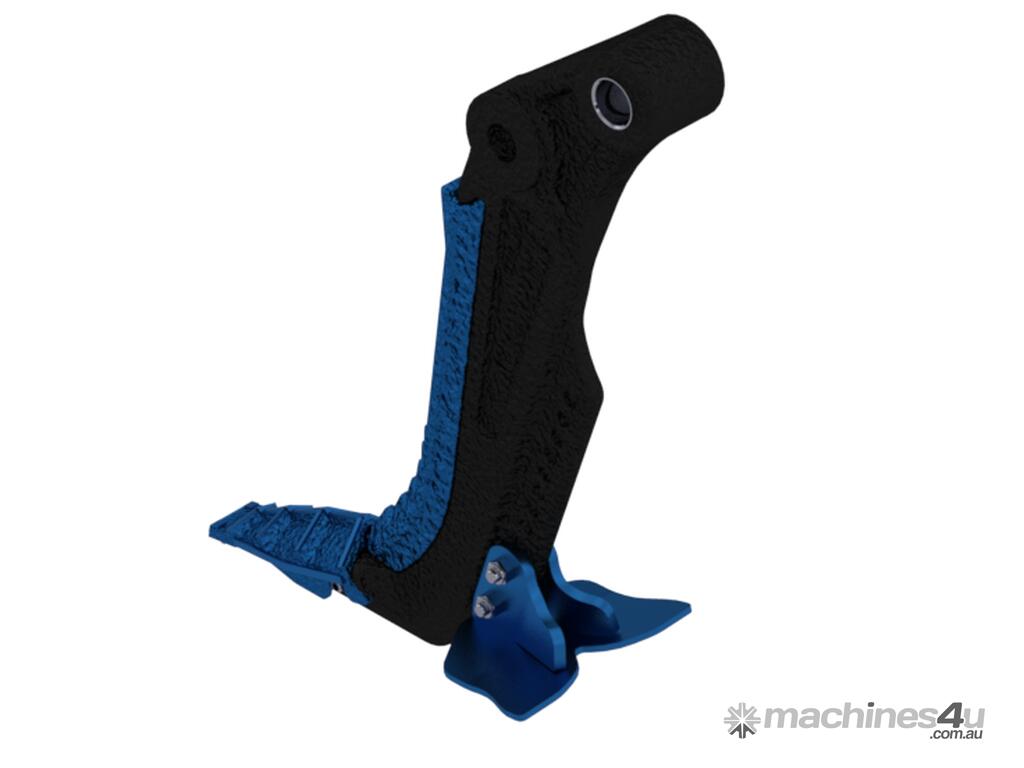

- Sweeps
- Mulch blades

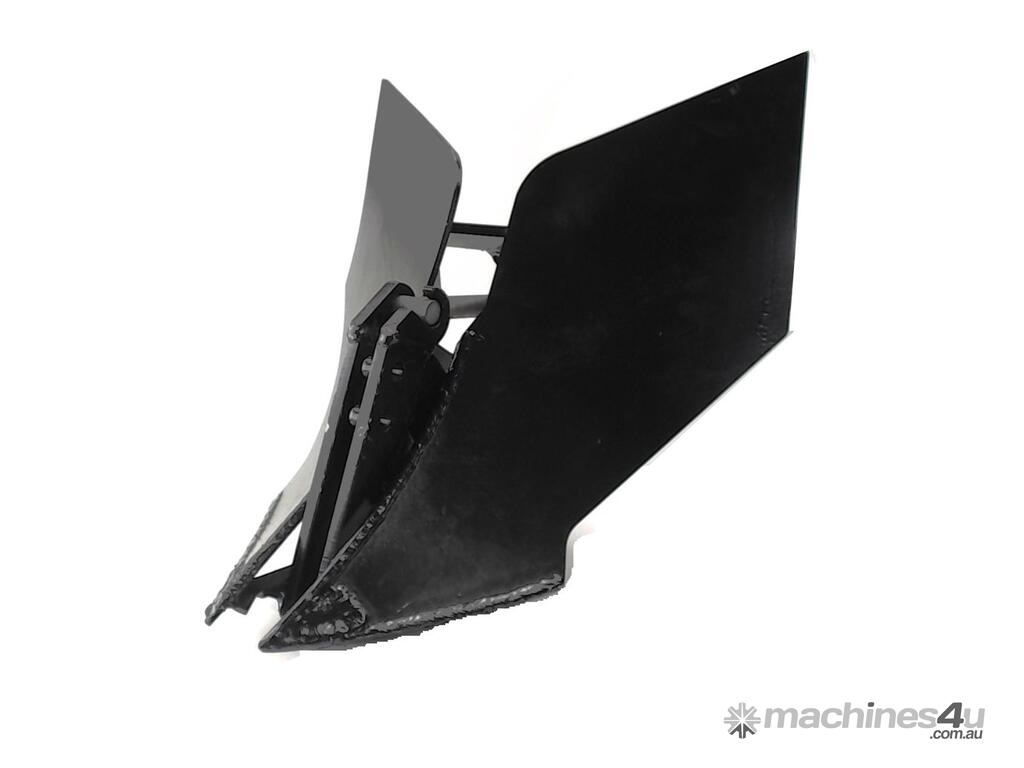

- Furrowers

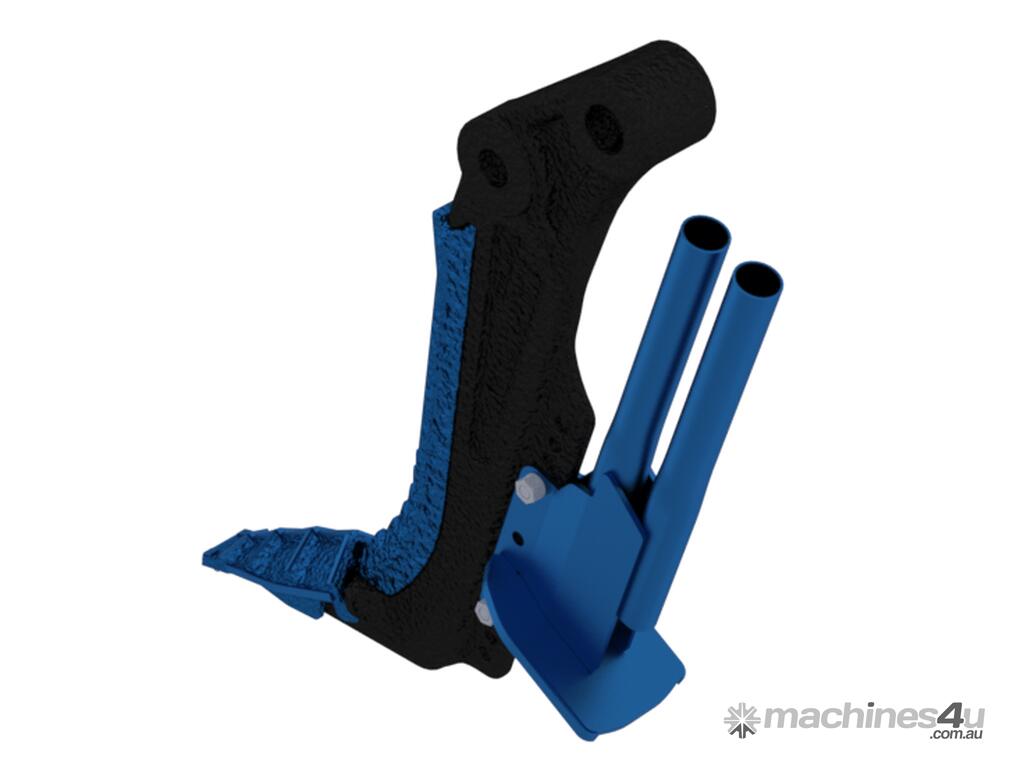

- Fertiliser tubes
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
