Agrowplow AP82 Deep Ripper | 17x529 (9.0m) | Rigid or Hydraulic

AP82 Deep Ripper Plough
17 shanks x 529 mm spacings (9.0m working width) - rigid shearpin OR hydraulic breakout available
(Price shown is for rigid shanks)

SPECIFICATIONS:
Shank style: #9 Shank Assembly
Max. working depth: 450 mm (600 mm option available for soft soil conditions)
Breakout: Rigid shearpin 4,790 kg (10,560 lbs) / Hydraulic 1,846 kg (4,070 lbs)
Drawbar power: 340-510 hp (20-30 hp per tyne)
Hydraulic level lift: Yes
Frame RHS: 200 x 200 x 9 mm
Toolbars/spacings: 2 / 2.135 m
Sections / Wings: 3 with over centre wing fold and locking pins
Linkage: Trailing with 2" or 2 3/4" drawbar pin
Wheel type: 15.5/A8/169A6 grip-star

AP82 OPTIONS:
- Rear tow hitch (with or without hydraulic lines)
- Inversion shanks
- 600 mm working depth shanks (soft soils only)
- Various shank options
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

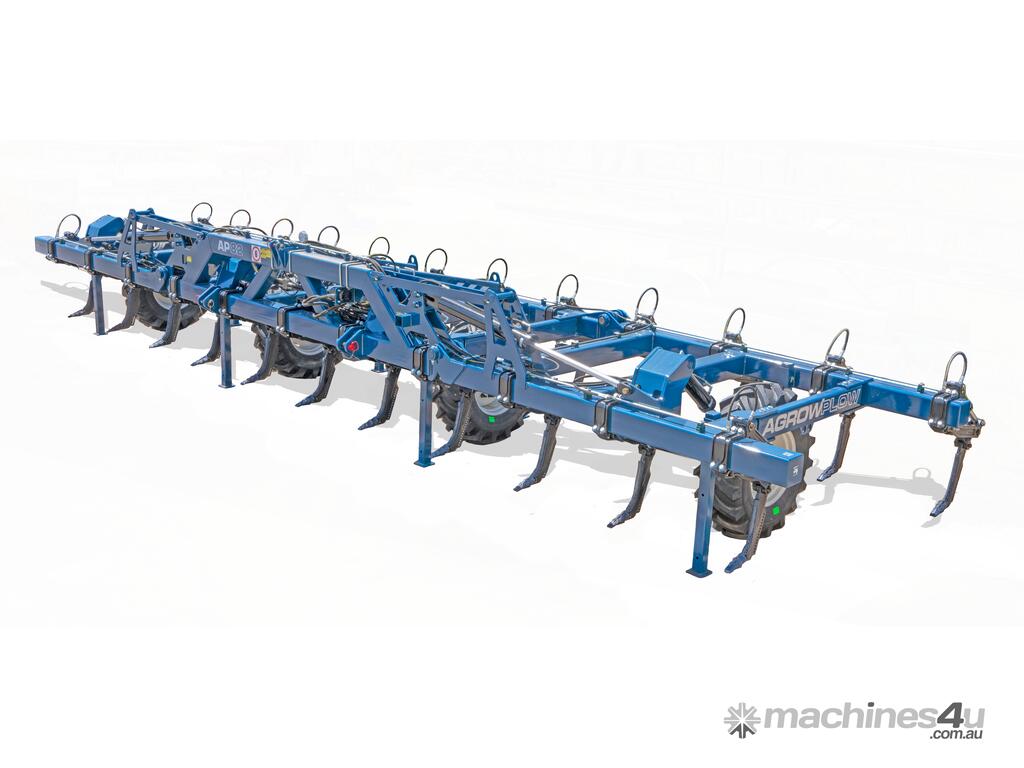

AGROWPLOW AP82 Deep Ripper Plough

The smarter deep ripper for broadacre enterprises.

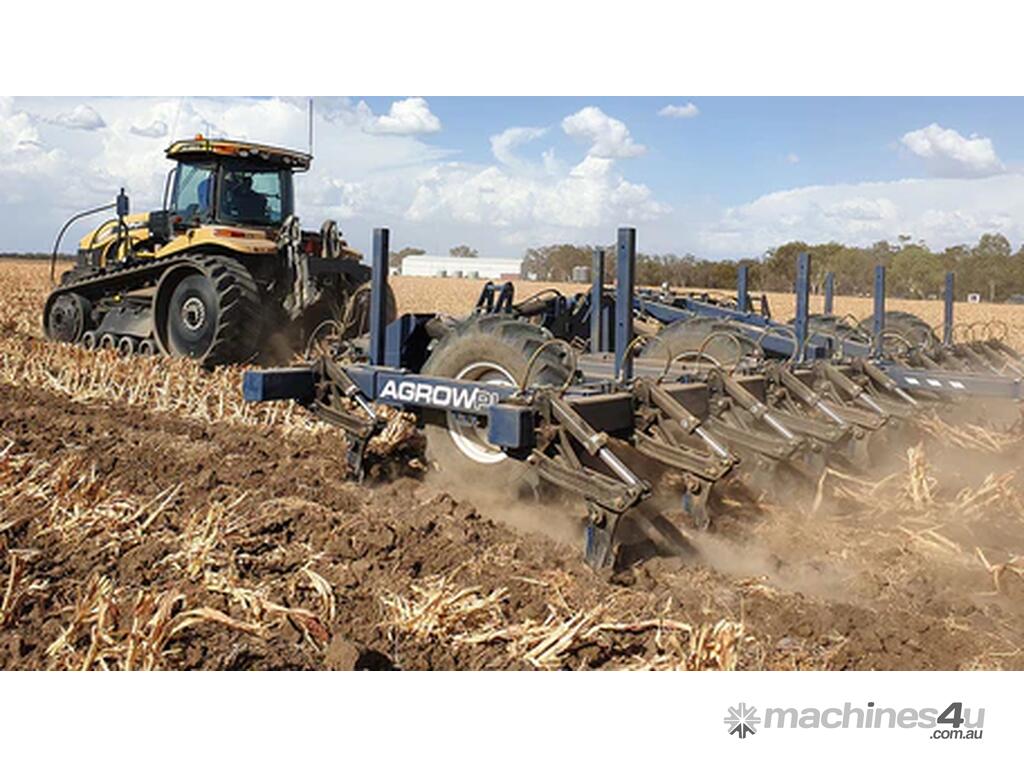

Boost crop yields hectare after hectare with efficient hardpan shattering up to 600mm deep, allowing deep moisture retention and healthier plant root development.

CLEVER CONFIGURATION

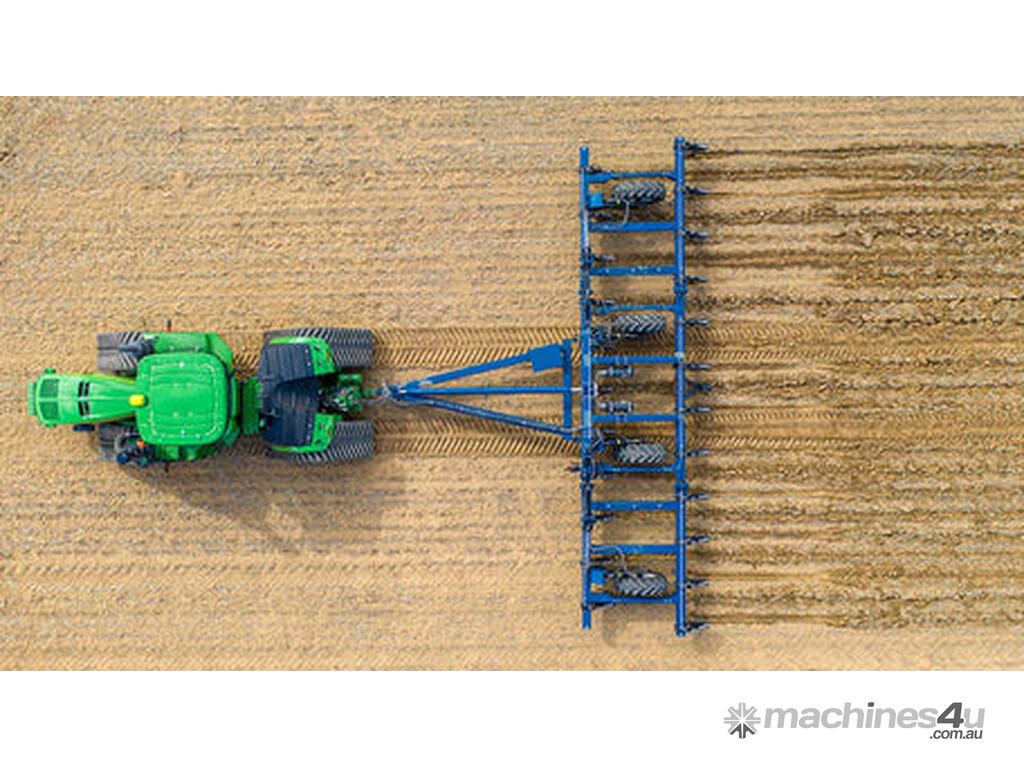

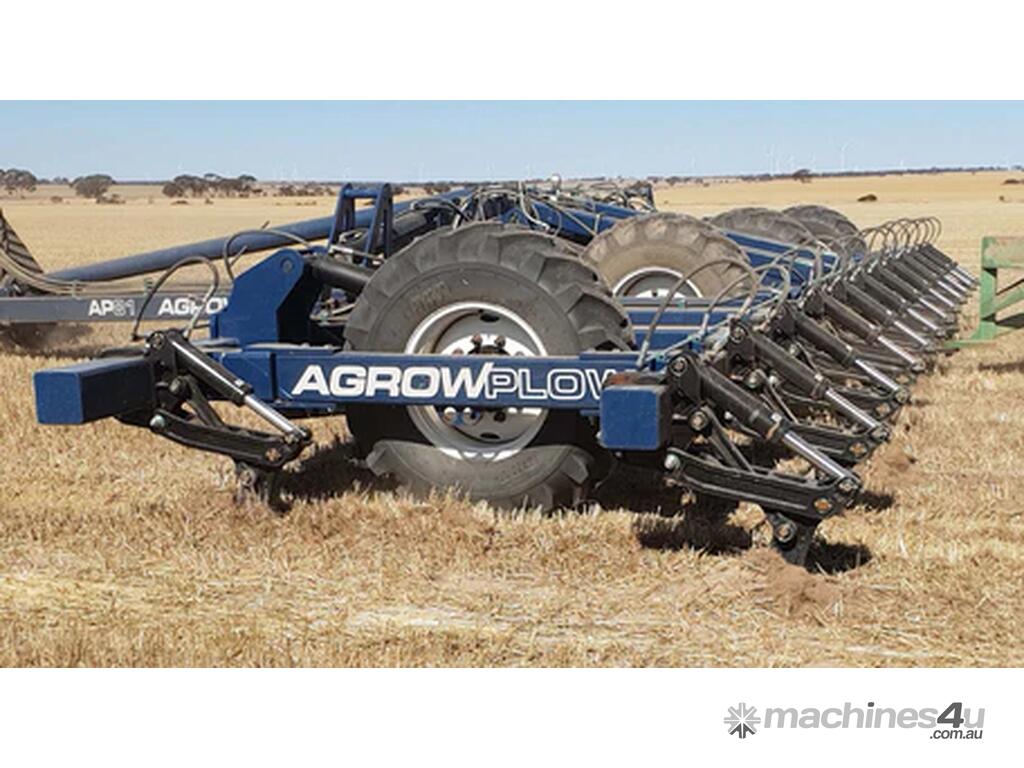

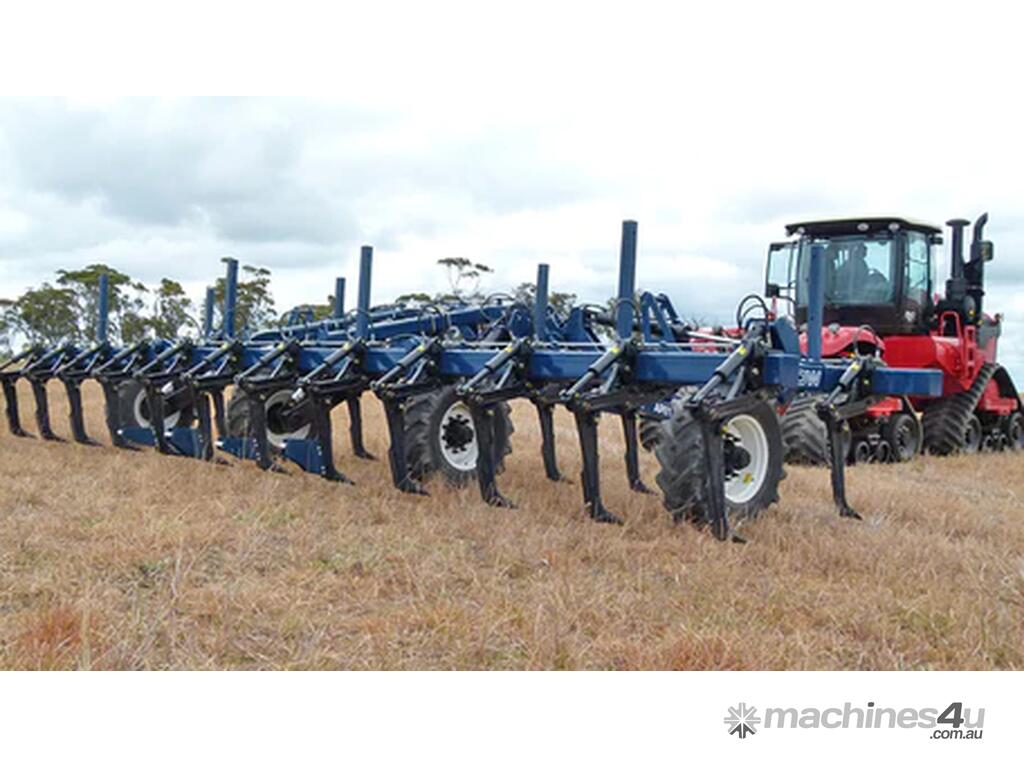

Constructed from a heavy-duty, fully-welded frame, the AP82 holds either 17 or 23 shanks across a pair of 200x200x9 mm RHS steel toolbars, offering ripping widths of 9.0 or 12.0 metres wide. The AP82 offers heavy trash clearance and a robust design that handles the stresses of heavy use.

SMARTER RIPPING

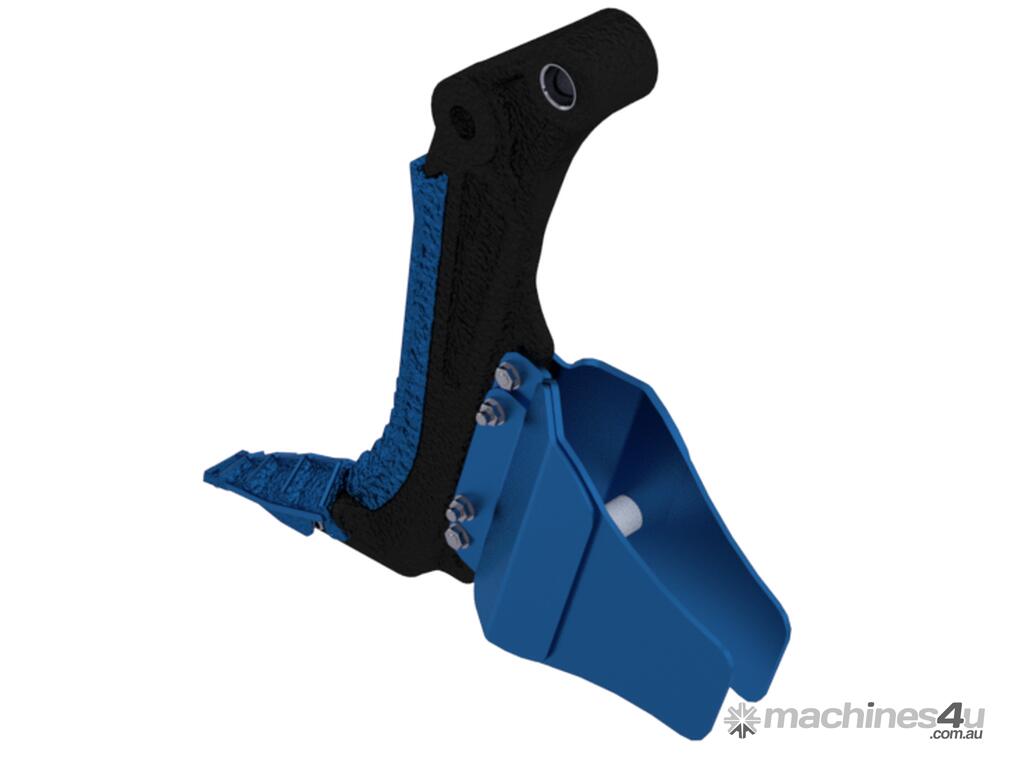

The AP82 supports either rigid or hydraulic breakouts, all based on Agrowplow's renowned #9 Shank Assembly. The design features a straight shank with a narrow profile that allows it to shatter compacted soil up to 600mm deep and reduce tractor drawbar requirements.

Full-length shinguards and an assortment of blades offer unrivalled protection for your shanks, improving the overall lifespan of the wear parts.

HYDRAULIC LEVEL LIFTThe AP82 comes standard with a hydraulic level adjust lift that enabling full depth and angle control all from the tractor, allowing operators to quickly and easily adjust to changing soil conditions.

CENTRE-WING FOLD

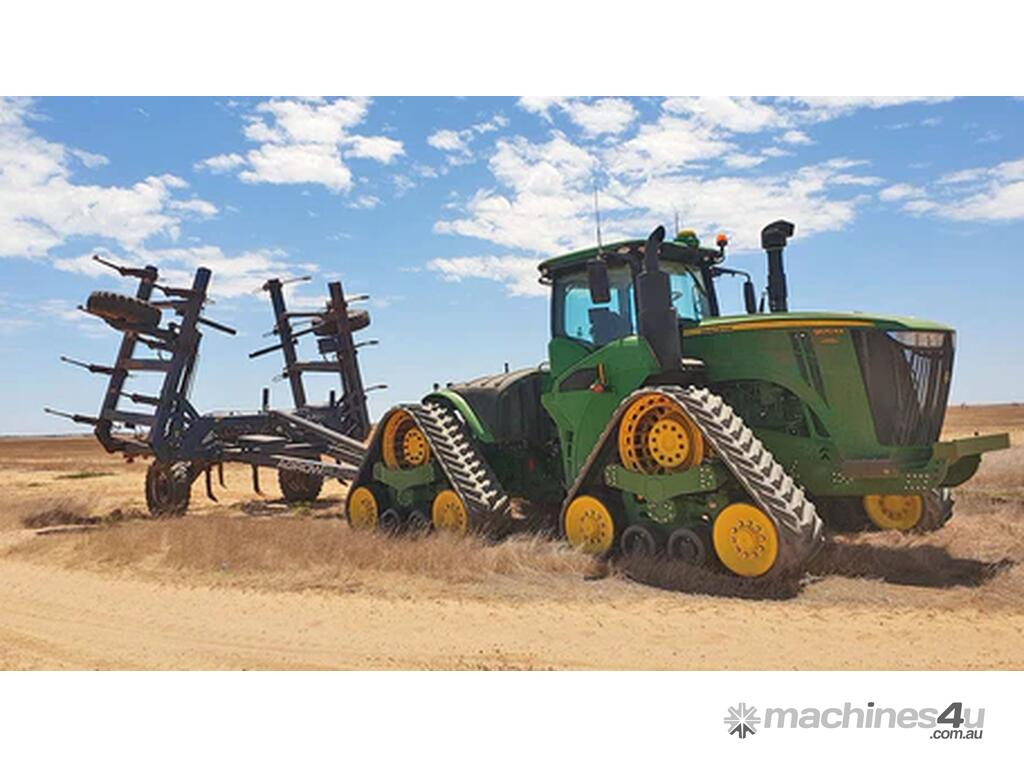

The plough features three sections, with a 10° down and 20° up section float. This allows the plough to follow the natural contours of your paddock while ensuring your soil is ripped to a consistent depth. Transport is made easy with the over-centre wing fold, with locking pins securing the sections when in transit.

BUILT TO YOUR NEEDS
Improve production outcomes with a range of options for your AP82 plough. Longer shanks can be fitted onto the ripper for working depths up to 600 mm in soft soil operations. Add a rear tow hitch with or without hydraulic lines to host additional trailing implements.

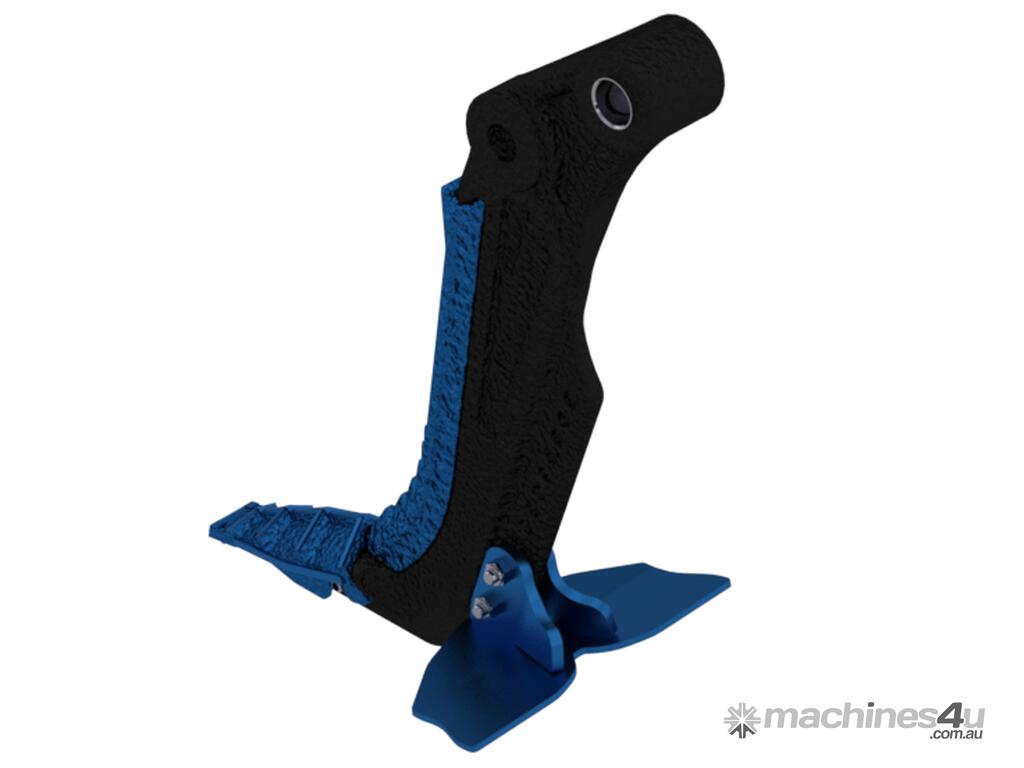

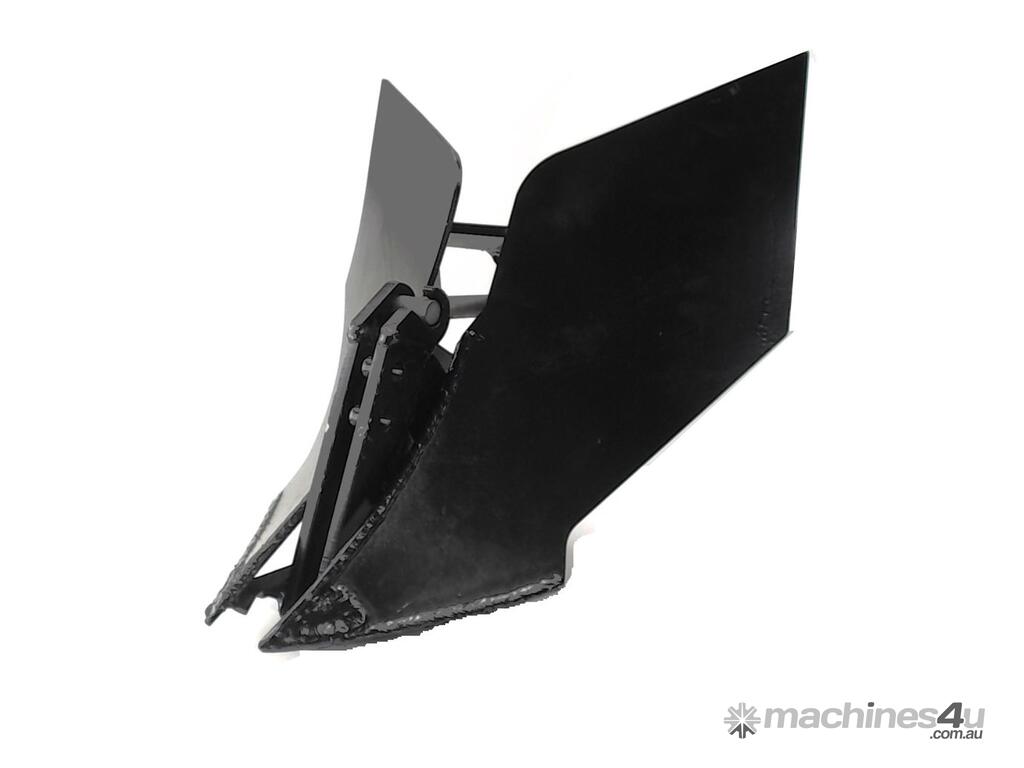

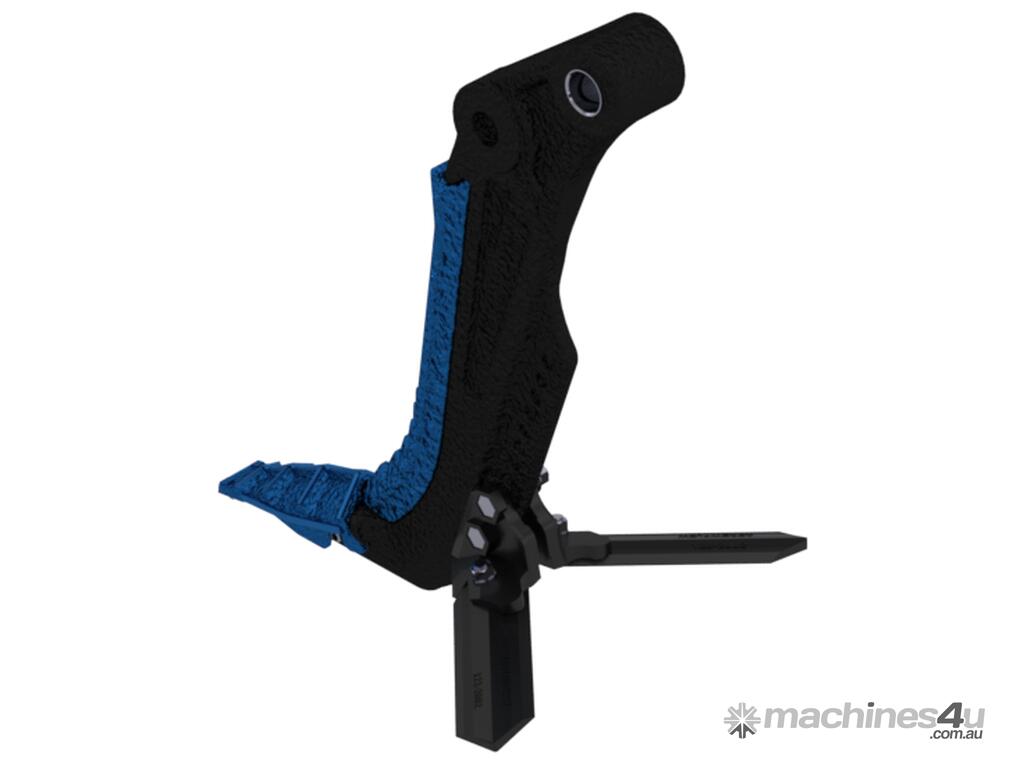

#9 SHANK OPTIONS:
- Inclusion plates
- Sweeps
- Mulch blades
- Furrowers

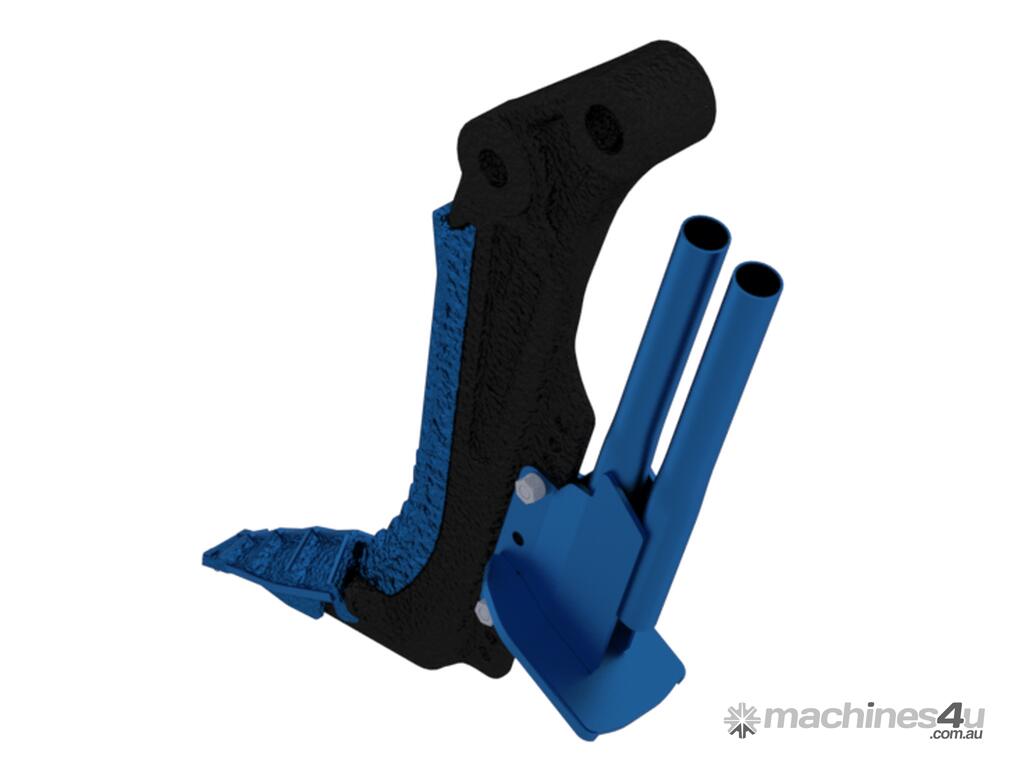

- Fertiliser tubes
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, visit our (: Agrowplow) or give us a call.

DISCLAIMER: The list price is MRRP for base configuration without any options or accessories (unless specifically listed) and excludes dealer delivery. Pricing and specifications may change without notice. Please request an official quote from your dealer.

Images are for illustrative purposes only and may not necessarily represent the configuration listed.
