Agrowplow AP91 Deep Ripper | 23x522mm (12m) | Rip to 600mm!

Agrowplow AP91 Deep Ripper
23 row (34 shanks) x 522 mm spacings (12.0 m working width)
Rigid or Hydraulic breakout options are available

SPECIFICATIONS:
Shank style: #9 Shank Assembly
Max. working depth: 600 mm
Breakout: Rigid shearpin 4,790 kg (10,560 lbs) / Hydraulic 1,846 kg (4,070 lbs)
Drawbar power: 500+ hp
Hydraulic level lift: Yes
Frame RHS: 200 x 200 x 9 mm
Toolbars/spacings: 4 / 1.35/1.6 m
Sections / Wings: 3 with over centre wing fold and locking pins
Linkage: Trailing with 2" or 2 3/4" drawbar pin
Wheel type: 15.5/A8/169A6 grip-star

AP82 OPTIONS:
- Rear tow hitch (with or without hydraulic lines)
- Various shank options
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

AGROWPLOW AP91 Deep Ripper Plough

The efficient deep ripper for broadacre enterprises. Improved towing capabilities and reduced ripping costs with trailing/leading tyne configurations.

SIMPLER. STRONGER. SMARTER.
Soil care and innovation has been the driving force behind the AP91 broadacre plough, developed to make deep ripping for the farmer simpler, stronger and smarter. Available with 3 m wheel centres in 9 and 12 m working widths built on a fully-welded 200x200x9 mm RHS frame, the AP91 is the ideal choice for efficient broadacre ripping.

EFFICIENT CONFIGURATION
The leading/trailing tyne design consists of a single row of shallow leading tynes working at depths of up to 450mm in-line and ahead of the trailing shanks, set to penetrate up to 600mm. This dual-action configuration reduces the draft requirements for the ripper, resulting in increased towing ability and has been proven to reduce fuel and time costs by up to 18%.

SMART RIPPING
The Agrowplow AP91 is available in 17 or 23-row configurations, all based on Agrowplow's renowned #9 Shank Assembly. The #9 shank features a straight shank with a narrow profile that allows it to shatter compacted soil up to 600mm deep and reduce drawbar requirements. Full-length shinguards and Agrowplow's #9 blade offer unrivalled protection for your shanks, improving the overall lifespan of the wear parts.

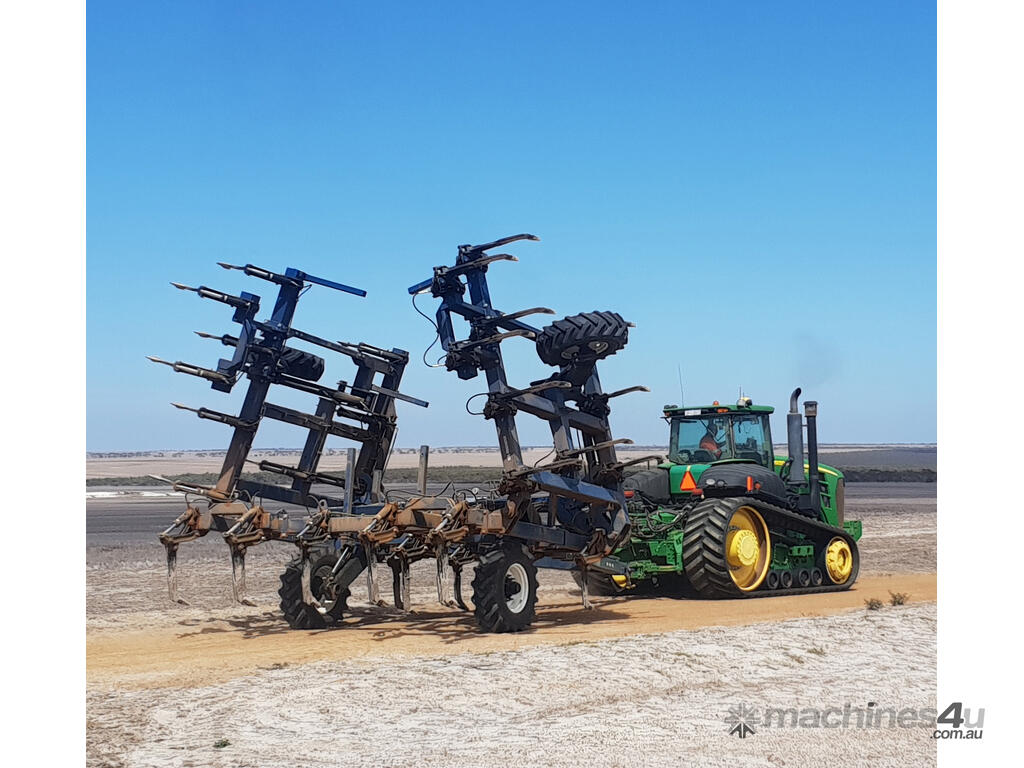

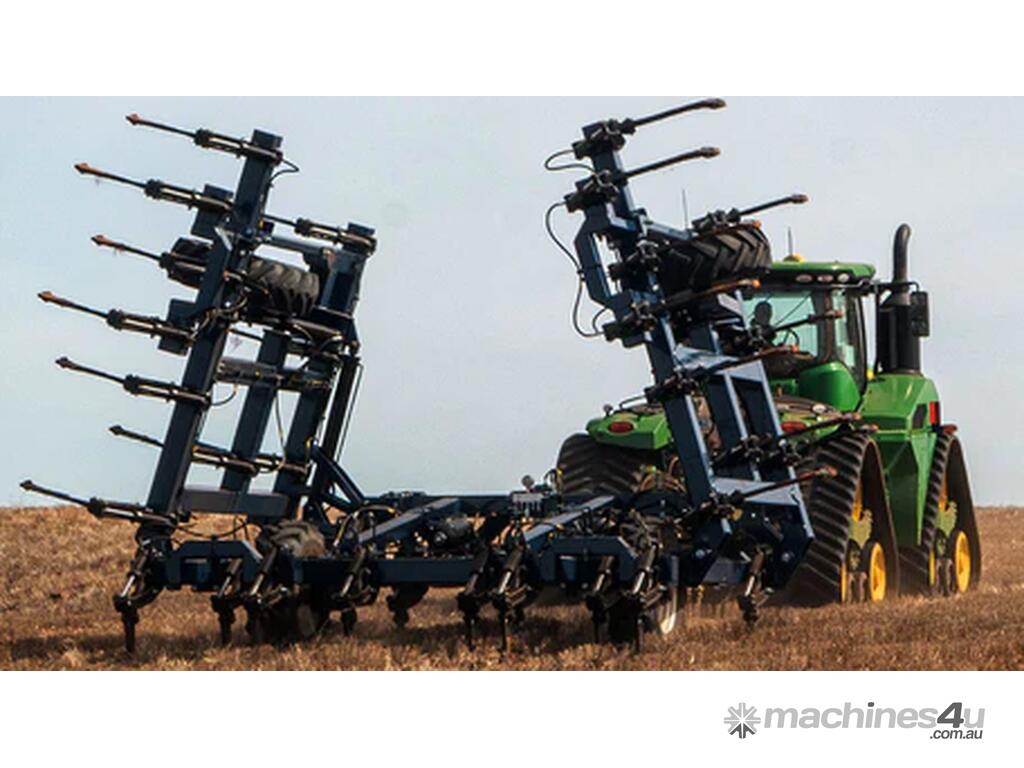

FOLDING WING DESIGN
The plough also features 3 sections with 10° down and 20° up section float. This allows the plough to follow the natural contours of your paddock while ensuring your soil is ripped to a consistent depth. Hydraulically-driven wings fold up to bring the width under 7 m to reduce escort requirements when transporting the machine.

HYDRAULIC LEVEL LIFT
A hydraulic level lift is included as standard, allowing full depth and angle control all from the tractor, allowing operators to quickly and easily adjust to changing soil conditions.

BUILT TO YOUR NEEDS
Improve your production outcome with a range of shank options for your AP91, including:

Fertiliser tubes
Furrowers
Inclusion plates
Mulch blades
Sweeps

Add a rear tow hitch with or without hydraulic lines to host additional trailing implements.
