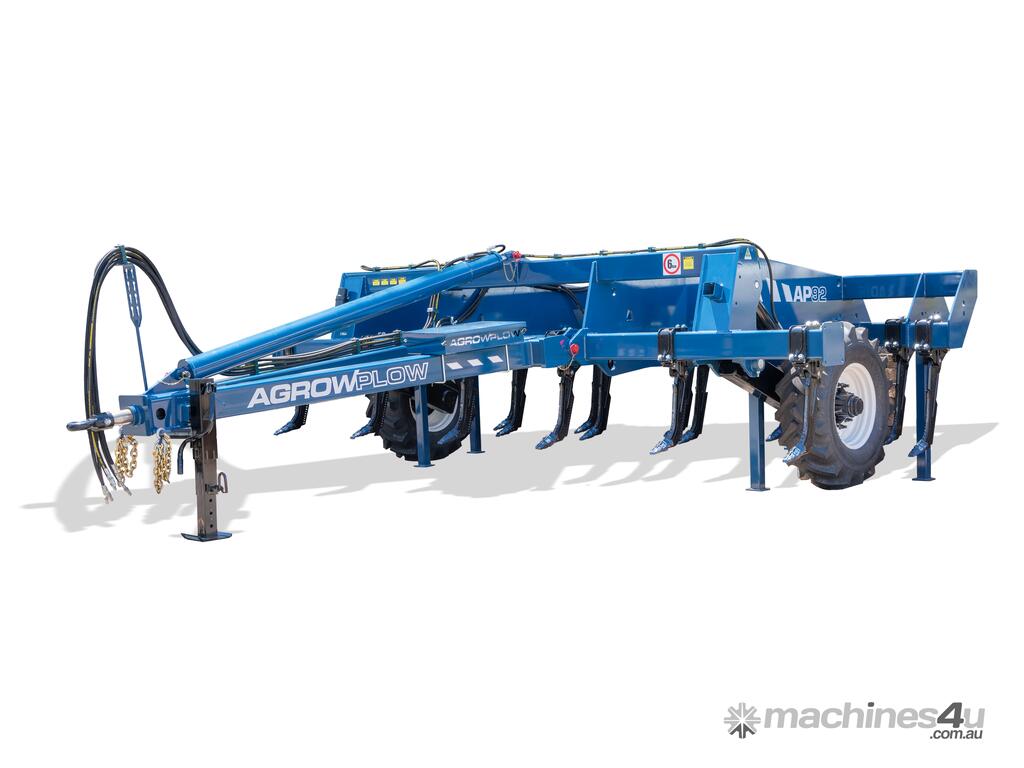

Agrowplow AP92 Deep Ripper | 7x500mm (3.5m) | Save fuel costs!

Unique leading/trailing shank design for efficient ripping. Save fuel costs!

7 rows (11 shanks) x 500 mm spacings (3.5m working width)
Rigid shearpin OR hydraulic breakout options available
(Price shown is for rigid shank configuration)

Other configurations are available from 3.5 to 6.0m widths.

SPECIFICATIONS:
Shank style: #9 Shank Assembly
Max. working depth: 600 mm
Breakout: Rigid shearpin 4,790 kg (10,560 lbs) / Hydraulic 1,846 kg (4,070 lbs)
Drawbar power: 200-300 hp
Hydraulic level lift: Yes
Frame RHS: 200 x 200 x 9 mm
Toolbars/spacings: 3 / 1.885, 0.57 m
Linkage: Trailing with 2" or 2 3/4" drawbar pin
Wheel type: 15.5/A8/169A6 grip-star

AP92 OPTIONS:
- Rear tow hitch (with or without hydraulic lines)
- Inversion shanks
- Various shank options
- Flexi-Roller Mk2
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

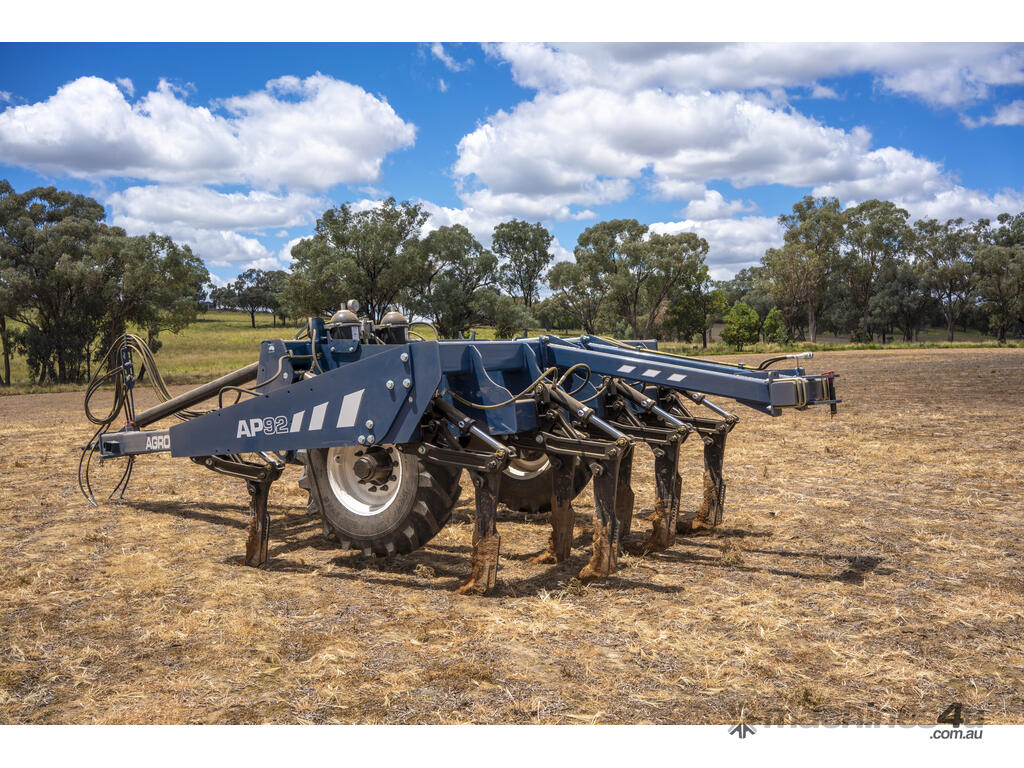

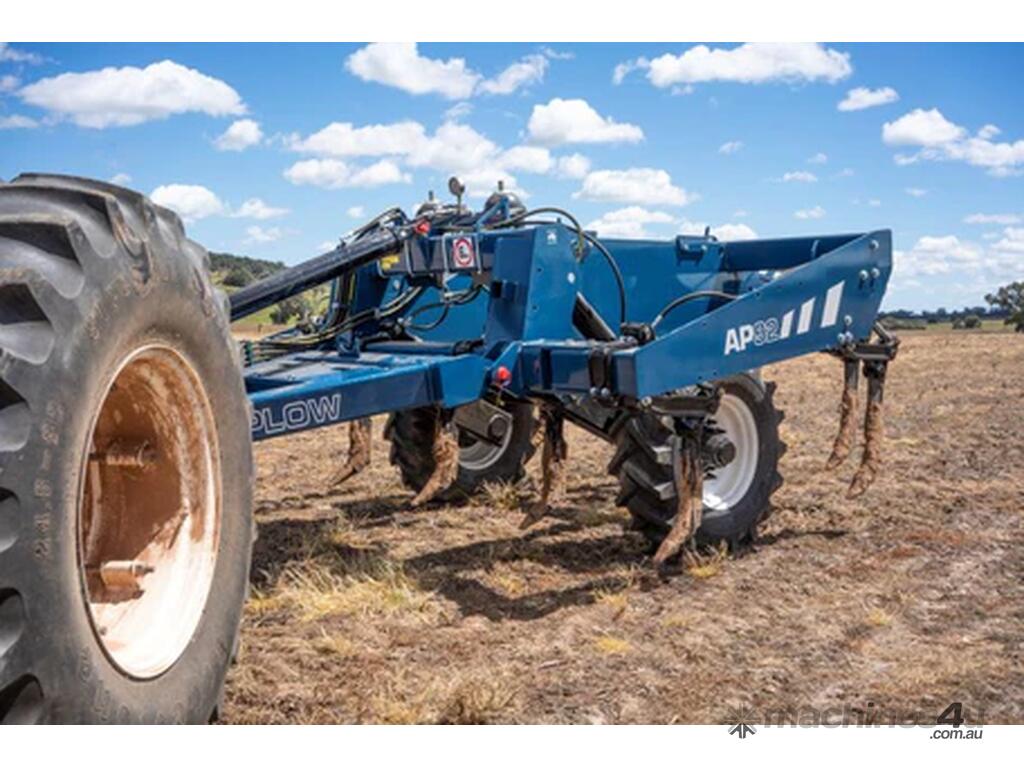

AGROWPLOW AP92 Deep Ripper Plough

The efficient deep ripper with smaller working widths.

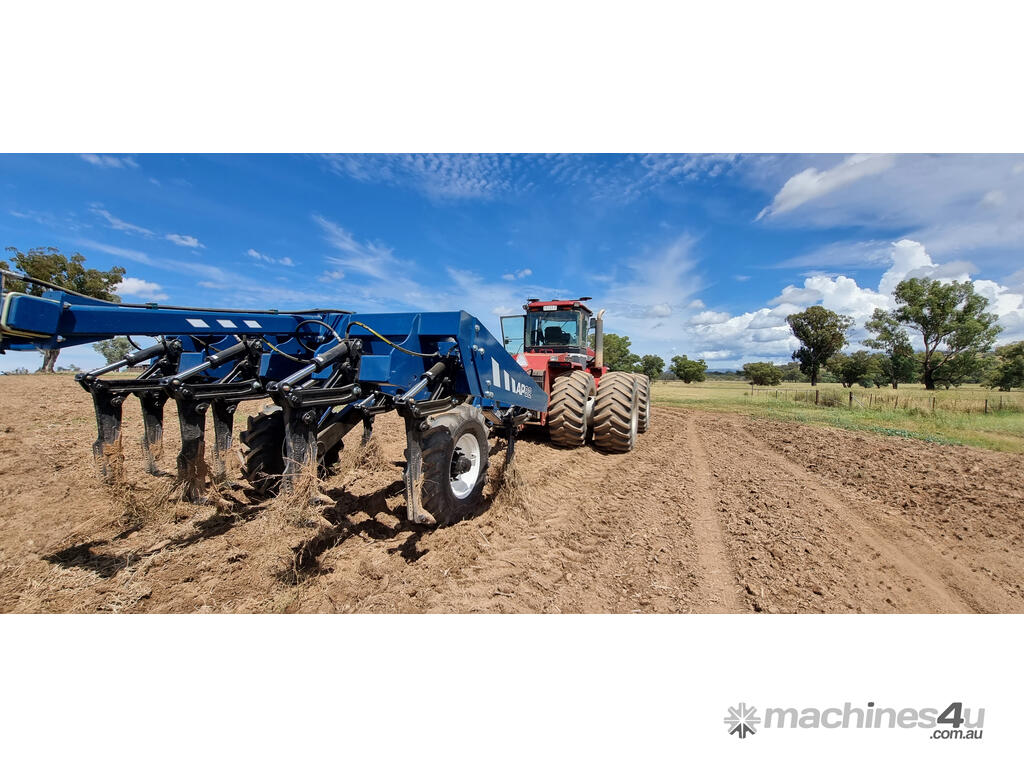

The AP92 builds on the success of the AP91's leading/trailing shank design to reach deep subsurface compaction in a more compact form factor. Perfect for mixed or specialised farms.

EFFICIENT CONFIGURATION

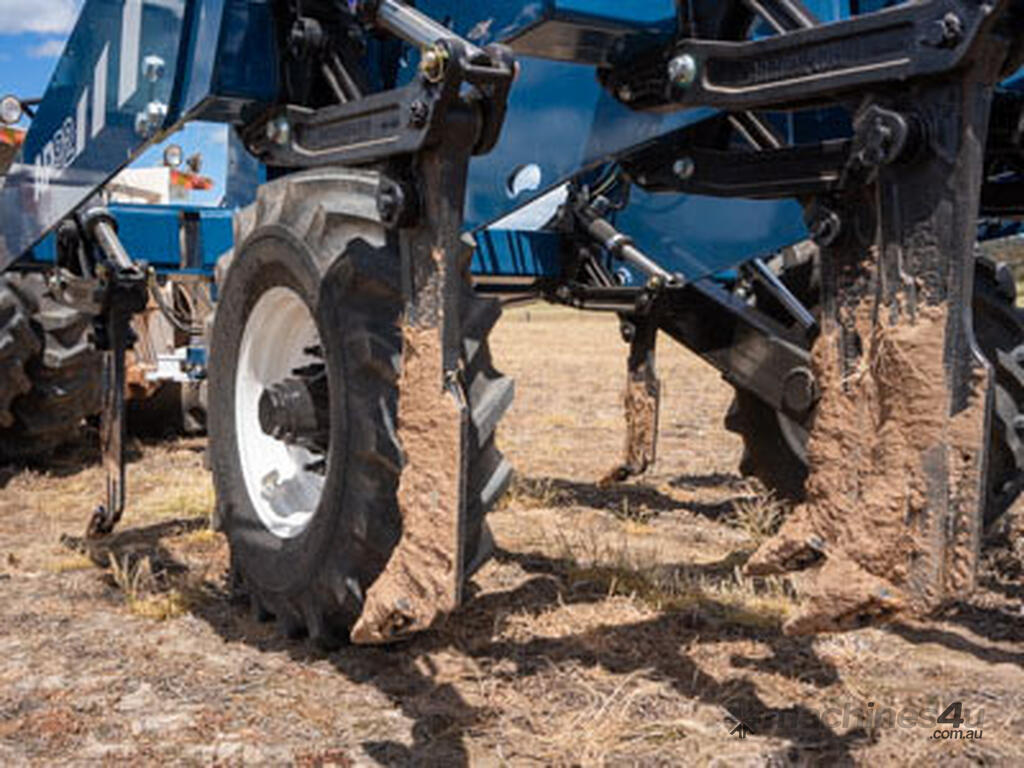

The leading/trailing tyne design consists of a single row of shallow leading tynes working in-line and ahead at depths of up to 450 mm. This then reduces the draft force required by the following tynes, set to penetrate up to 600mm. The leading tyne configuration has been proven to increase towing ability and save fuel and time costs by up to 18%.

SMART RIPPING

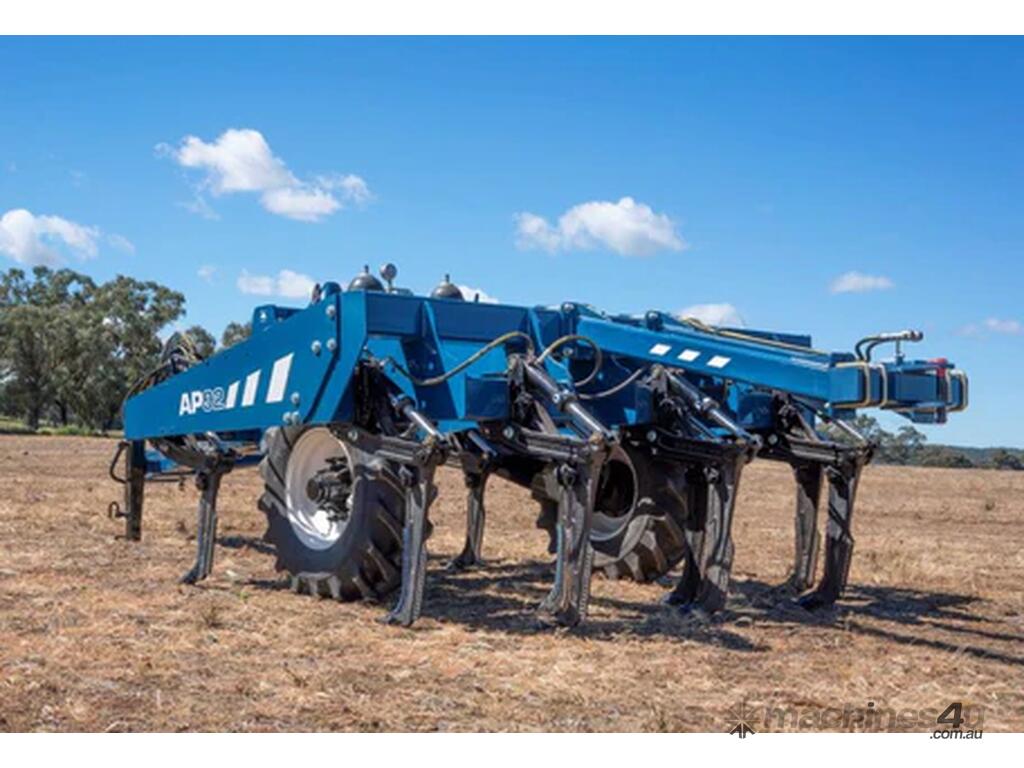

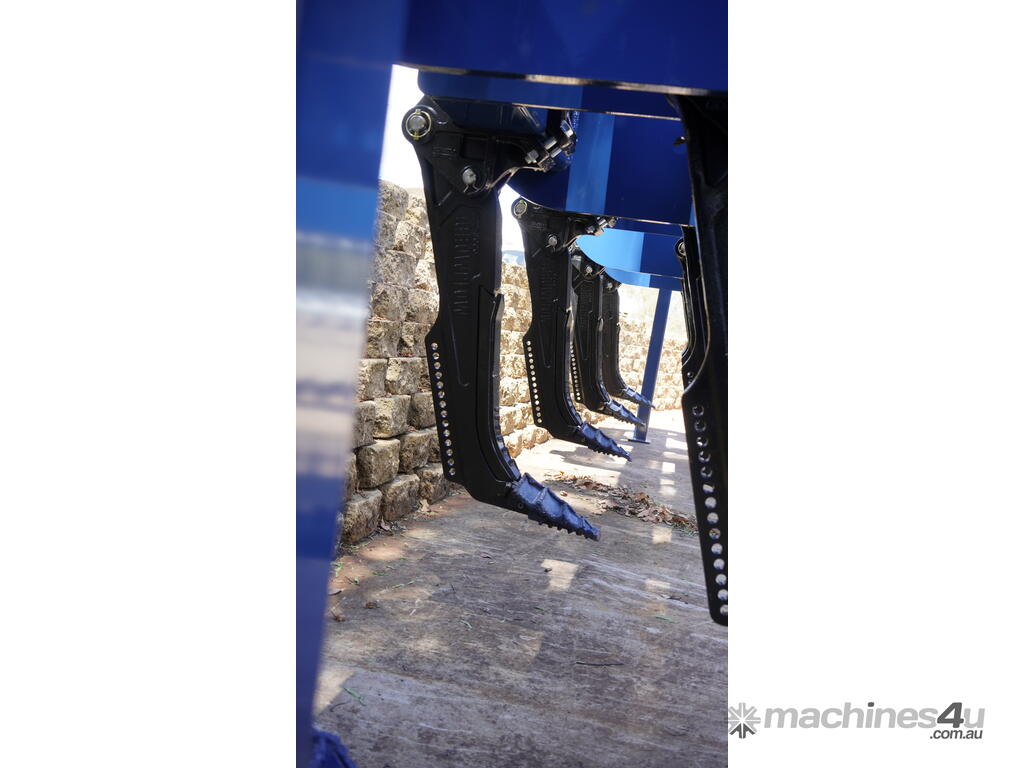

The Agrowplow AP92 is available in three configurations with 7 rows (11 shanks), 9 rows (14 shanks), or 11 rows (17 shanks). All models all based on Agrowplow's renowned #9 Shank Assembly. The #9 shank features a straight shank with a narrow profile that allows it to shatter compacted soil up to 600mm deep and reduce drawbar requirements. Full-length shinguards and Agrowplow's #9 blade offer unrivalled protection for your shanks, improving the overall lifespan of the wear parts.

HYDRAULIC LEVEL LIFT
A hydraulic level lift is included as standard, allowing full depth and angle control all from the tractor, allowing operators to quickly and easily adjust to changing soil conditions.

BUILT TO YOUR NEEDS

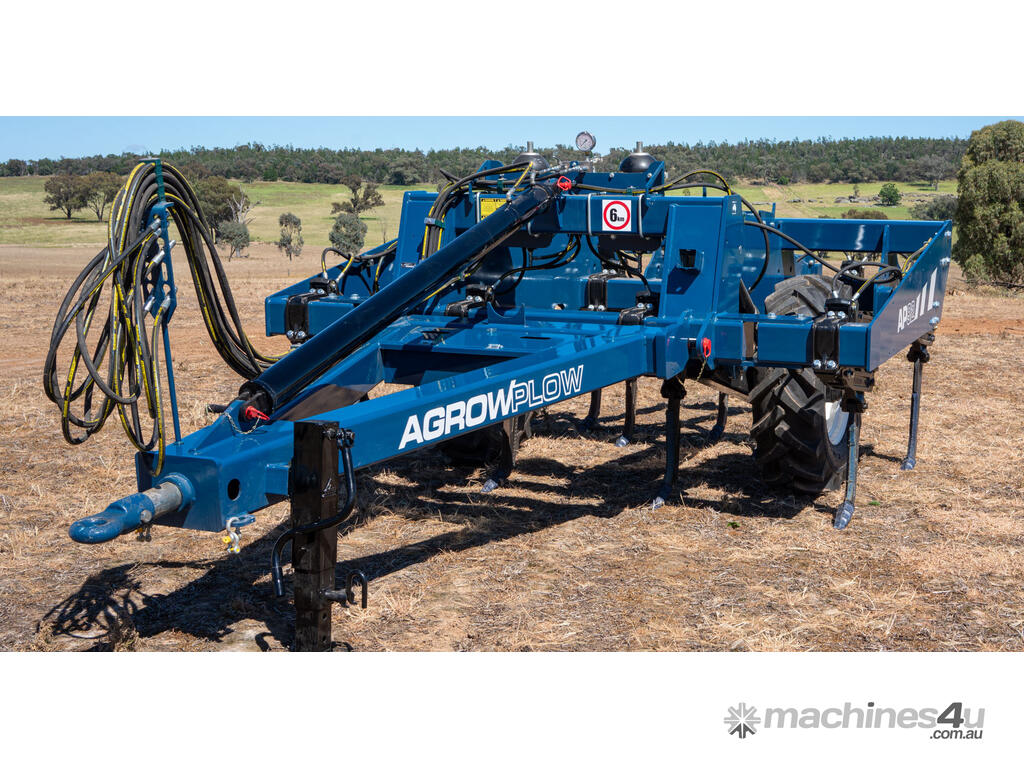

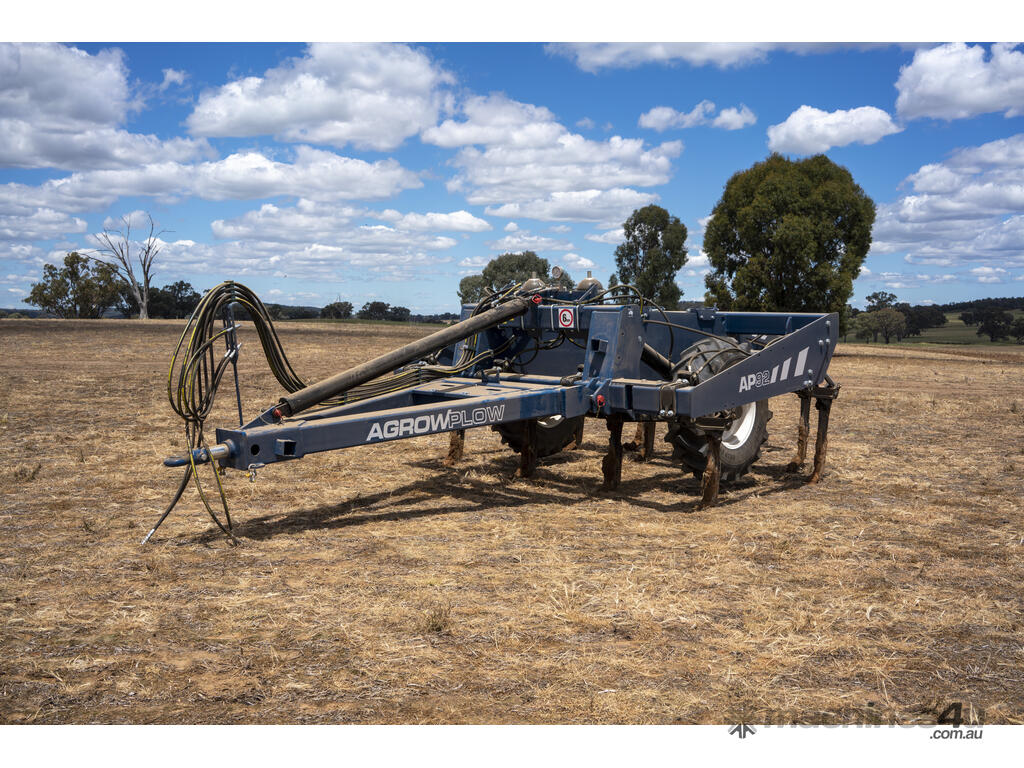

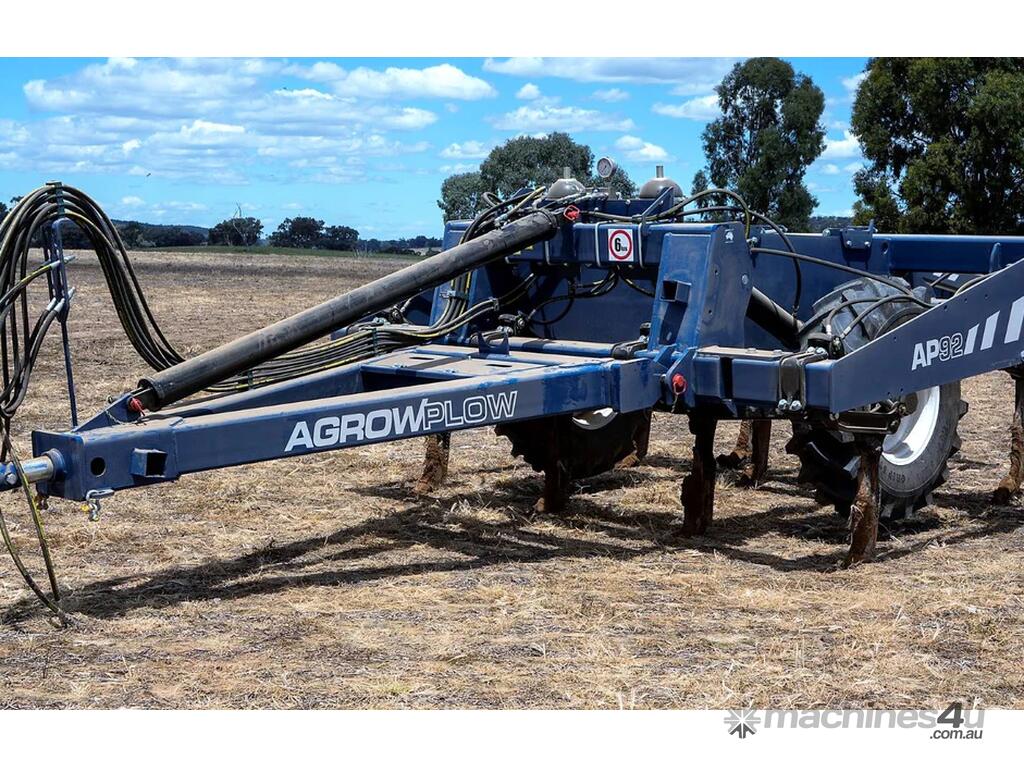

The AP92's 200 x 200 x 9 mm RHS frame has the strength and durability needed to handle tough ripping. Add a rear tow hitch with or without hydraulic lines to host additional trailing implements, such as the Flexi-Roller to shatter soil clods and break up crusting. Improve production outcomes with a range of shank options, including:
- Inclusion plates
- Sweeps
- Mulch blades
- Furrowers
- Fertiliser tubes
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

NATIONWIDE DEALERSHIP NETWORK:
With over 120 trusted dealerships Australia-wide, your local Agrowplow dealer is there for you. To find your nearest dealer, visit our (: Agrowplow) or give us a call.

DISCLAIMER: The list price is MRRP for base configuration without any options or accessories (unless specifically listed) and excludes dealer delivery. Pricing and specifications may change without notice. Please request an official quote from your dealer.

Images are for illustrative purposes only and may not necessarily represent the configuration listed.
