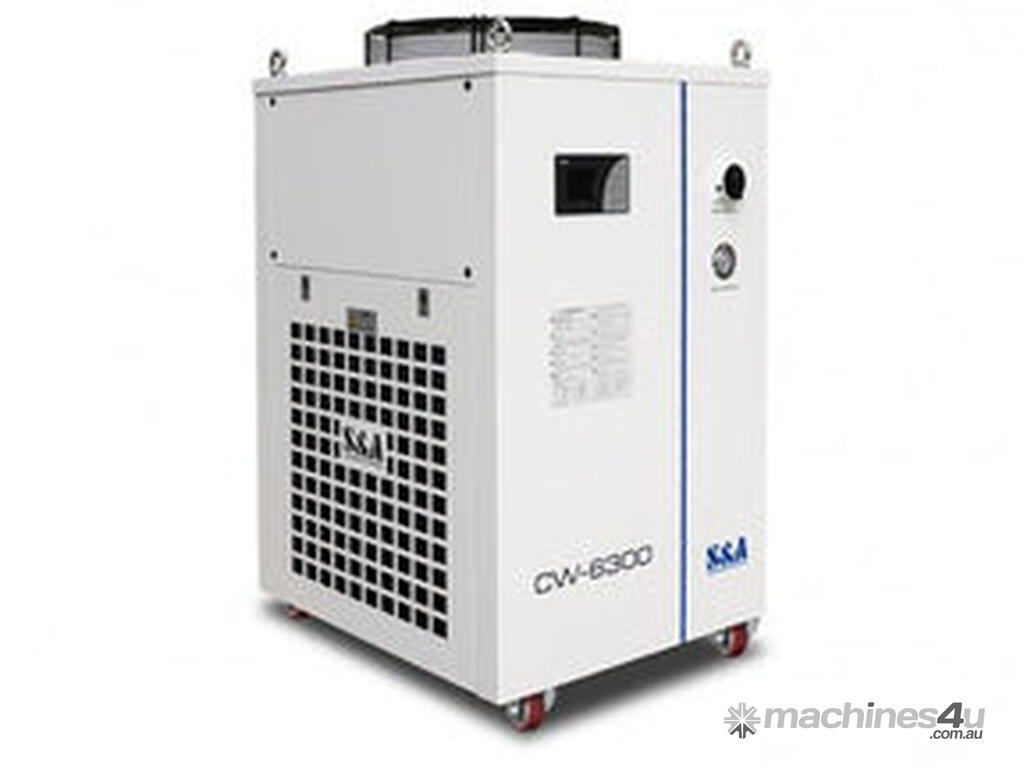

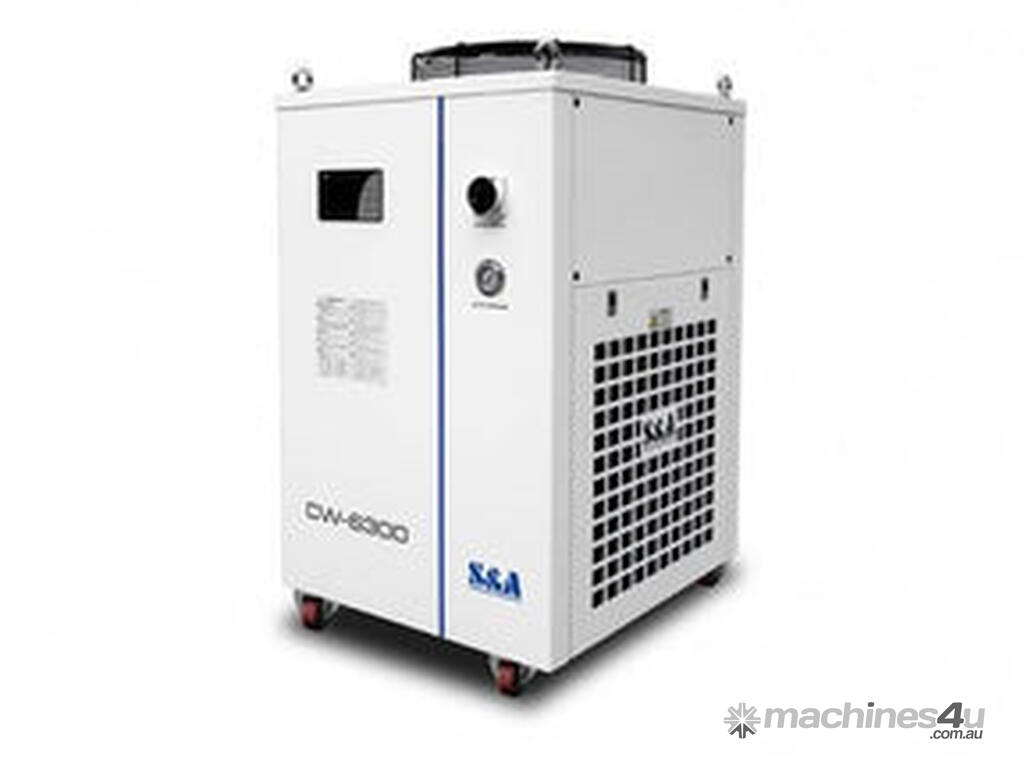

Air Cooled Water Chiller CW-6300AN250

S&A CW-6300 air cooled water chillers with cooling capacity 8500W and support Modbus-485 communication protocol, are applied to cool YAG laser or co2 metal RF tube or semiconductor laser.

CW-6300 air cooled water chillers are produced by Guangzhou Teyu Electromechanical Co., Ltd. For over 16 years in screening and training, we integrate lots of superior components suppliers. Our brands “S&A” and “TEYU” have gained approval and trust from thousands of manufacturers at home and abroad which enables our product export rate maintained at over 60% in the long-term.

are popular for its 2 temperature control modes as constant temperature and intelligent temperature control mode.Generally speaking, the defaulted setting for the temperature controller is intelligent temperature control mode. Under intelligent temperature control mode, the water temperature will adjust itself according to the ambient temperature. However, under constant temperature control mode, users can adjust the water temperature manually.

Description
S&A CW-6300 air cooled water chillers with cooling capacity 8150W and optional support Modbus-485 communication protocol, are applied to cool YAG laser or co2 metal RF tube or semiconductor laser.
Item NO.:CW-6300
Evaporator: 45L;
Refrigerant: R-410a;
Max. pump lift: 4.5bar;
Max. flow: 70L/min;
Pump power: 0.55kW;
Cooling capacity: 8.15kW;
Temperature stability: ±1°C;
Compressor power: 3.76HP;
N.W.: 165Kg;
G.W.: 210Kg;
Machine: 83x65x117cm;
Package: 111x85x140cm.
