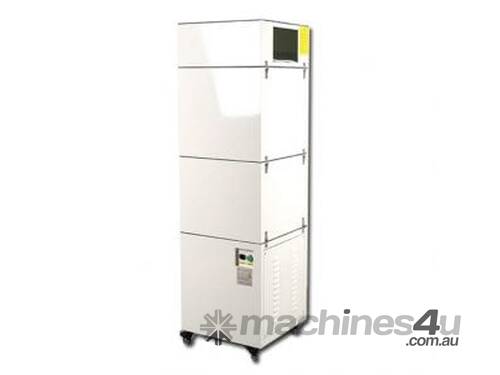

Air Filtration System / Fume Extractor PA1500FS by Redsail

Suitable for fume filtration and dust collection for CO2 Laser cutting / engraving - non-metal. Four stage filtration and purification is designed to ensure filtration of harmful material of the fumes.


Features:-



Primary filter, Medium Efficiency Filter, Main HEPA filter Gas filter can be replaced individually to extend filter's life and reduce filter replacement cost


Layer 1 (PA1500-01) G3 Primary Filter


To remove large and heavy particles / smoke / dust (=5Micron)





Layer 2 (PA1500-02) F8 Medium Efficiency Bag Filter


To remove large particles / smoke / dust (=1Micron)





Layer 3 (PA1500-3) H13 Class HEPA Filter


To remove small particles (=0.01Micron) and smoke.





Layer 4 (PA1500-04) Activated Carbon Filter


To absorb smells and toxic gas (99.7%) (Oxidant Active Carbon)








Metal framework on moveable castors.


Multi-stage dust filtration enables emissions into the room.


Specification:-


Fresh Air outlet: 150mm (window shades)


Blower


Running Period: More than 10,000hours


Max. Air Flow: 1500m3/h


Input Capacity: 1100W


Air Pressure: 2300PA
