Airtight Solutions T-750 Dust Extraction System

Product Description

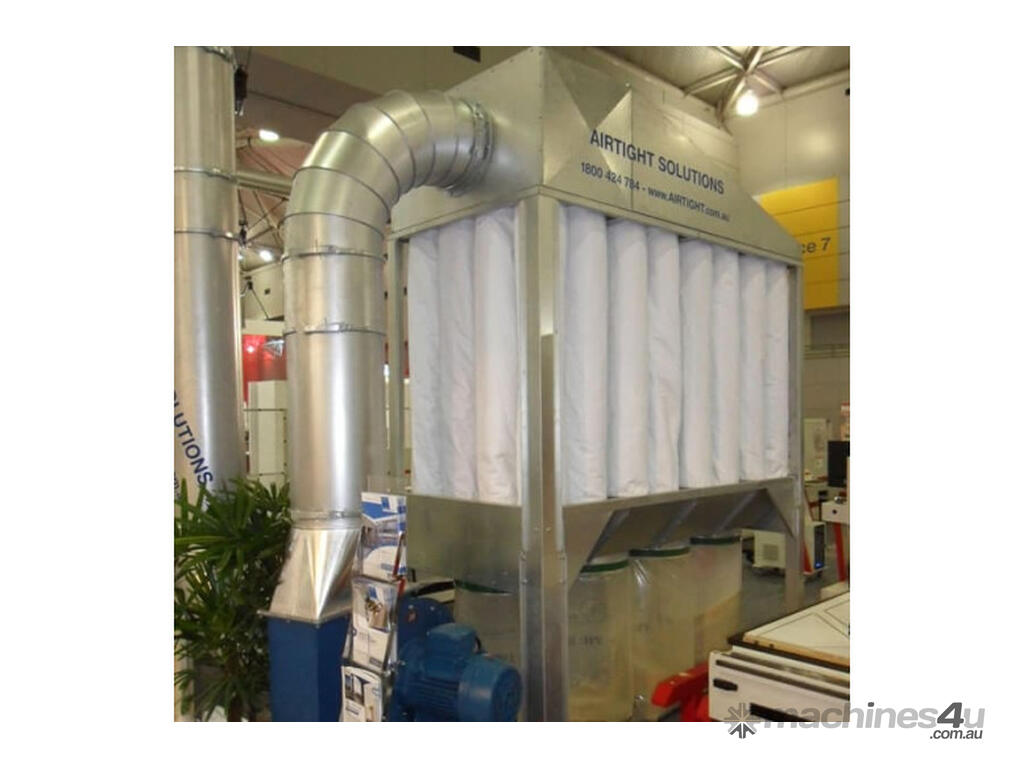

The T-Series is the preferred filtration system for all major wood working suppliers in Australia and New Zealand as recently demonstrated at AWISA where the Airtight Solution filters were the chosen solution to keep the show room floors dust free.

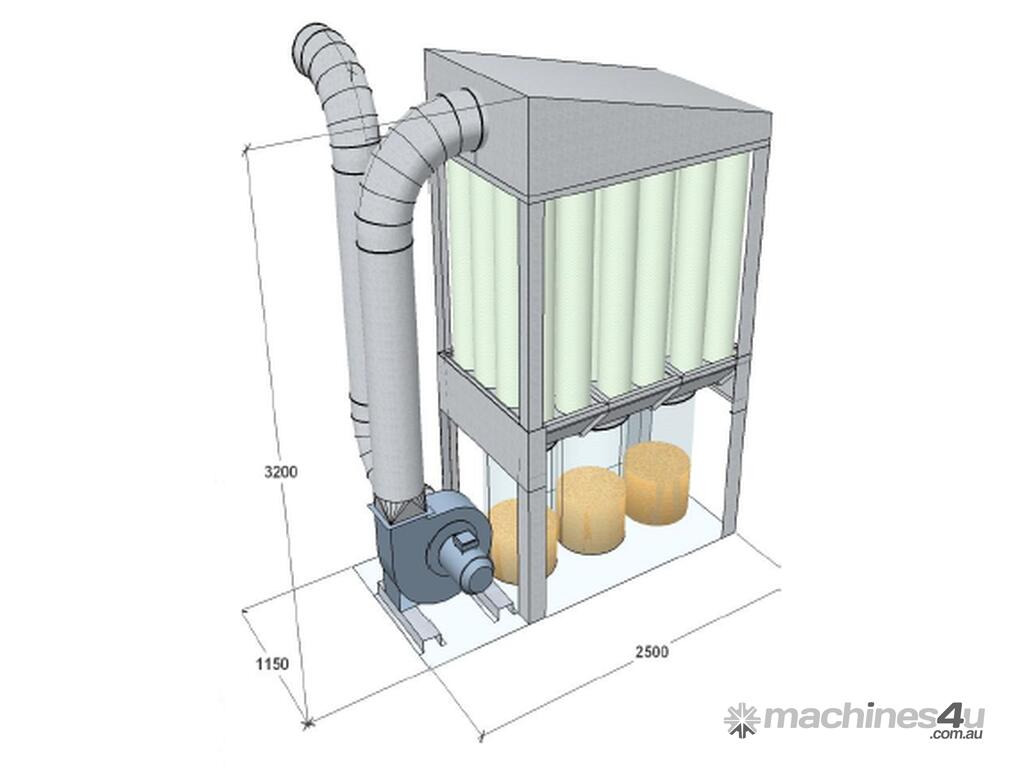

The T-series uses a top entry design, this means the dust laden air enters the top of the baghouse and is pushed down through the bags depositing the dust into the collection area at the bottom of the baghouse. This constant downwards flow keeps the filter bags clean and is what keeps the T-series baghouses pressure drop low and your suction up without requiring downtime shaker cleaning.

The powerful 7.5kW fan that comes standard with the T-750 is a heavy steel casing coupled with a self-cleaning backwards inclined fan runner giving you high performance and high efficiency.

The T-750 has a capacity of 7,500m3/hr dependant on dust type and dust loading. For a typical joinery/cabinet maker application this may equate to 2-4 machines.

Common applications:

Timber & joinery (CNC’s Edgebanders, panel saws, spindle’s etc)
Composite materials
Sanders (w. special membrane coated bags)
Plastics
Chemicals
+ Many more
