AitalMAC Australia CNC Bridge Saw Orbit B5

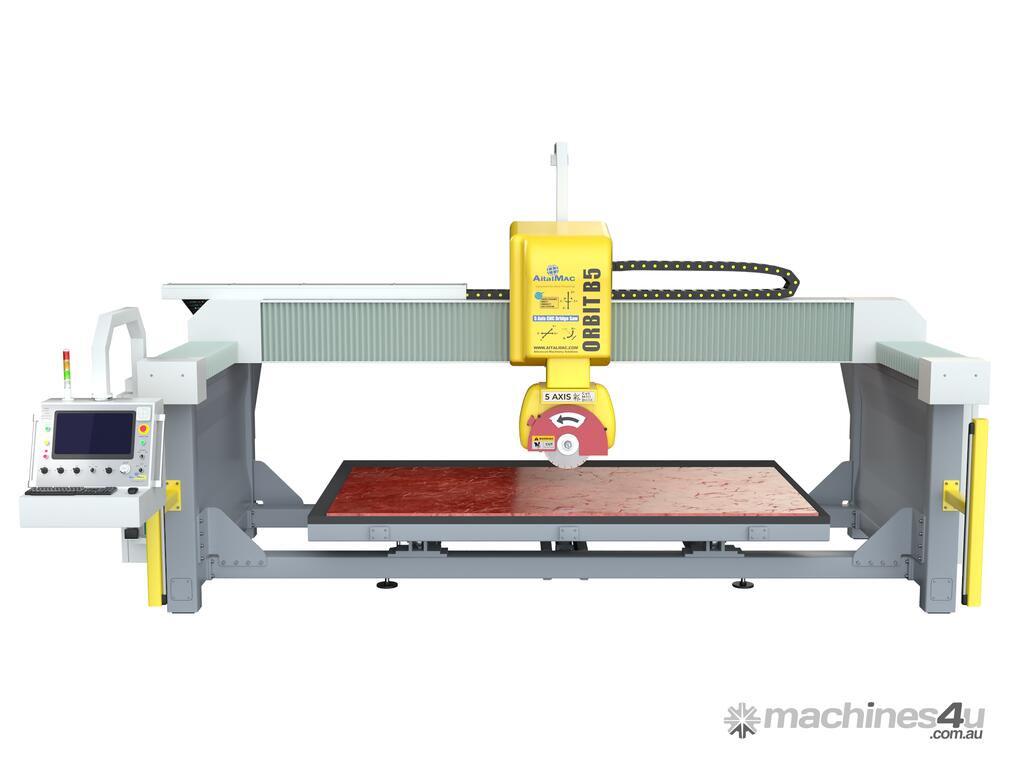

AitalMAC CNC 5 Axis CNC Bridge Saw Orbit B5

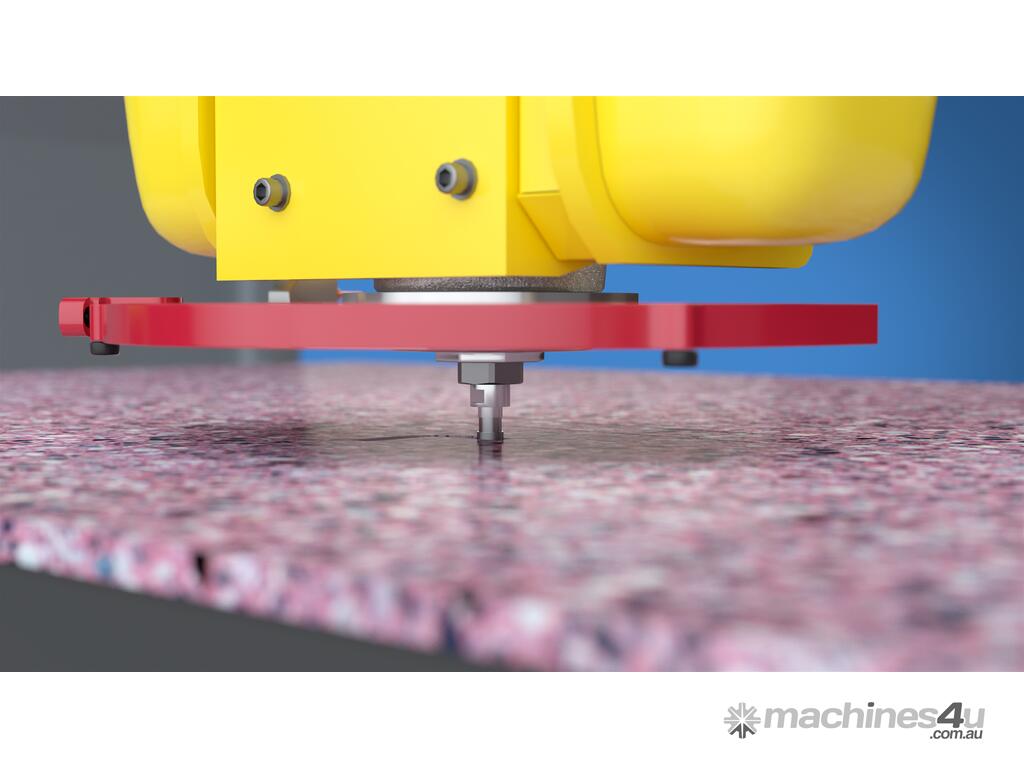

This bridge saw has everything a technologically advanced bridge saw needs to have today. A Monoblock Construction with 5 Interpolated Axis Spindle, Half inch Fitting with Through-Spindle Lubrication, On-Board Camera with DXF Templating and Pick-a-Point tracking, Tilting Table (up to 85°) for loading delicate slabs onto the machine and an Infra-red Safety Barrier Safety System and Wireless Remote Control.

Optional extras available with this machine is: Blade Presetting and Stone Thickness Probe and Safety Barrier Door System.

The AitalMAC CNC Bridge Saw Orbit B5 is a fully interpolated 5 axis bridge saw with the Y Axis movement by Gantry System. This guarantees a perfect square cut at the bridge every time.

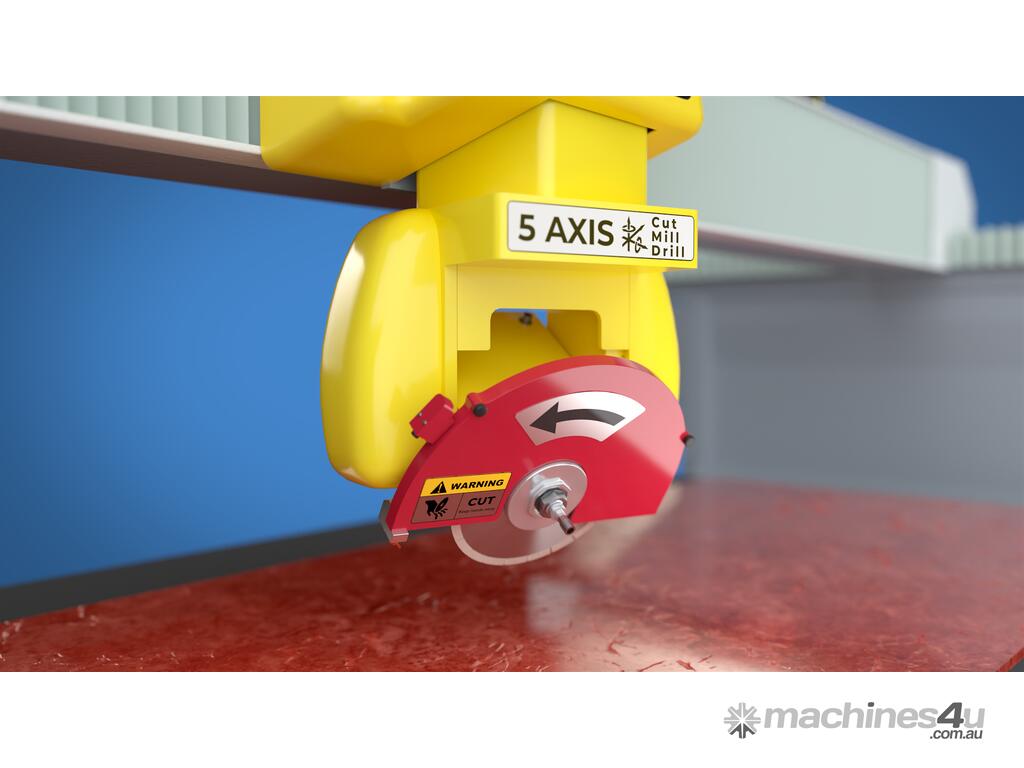

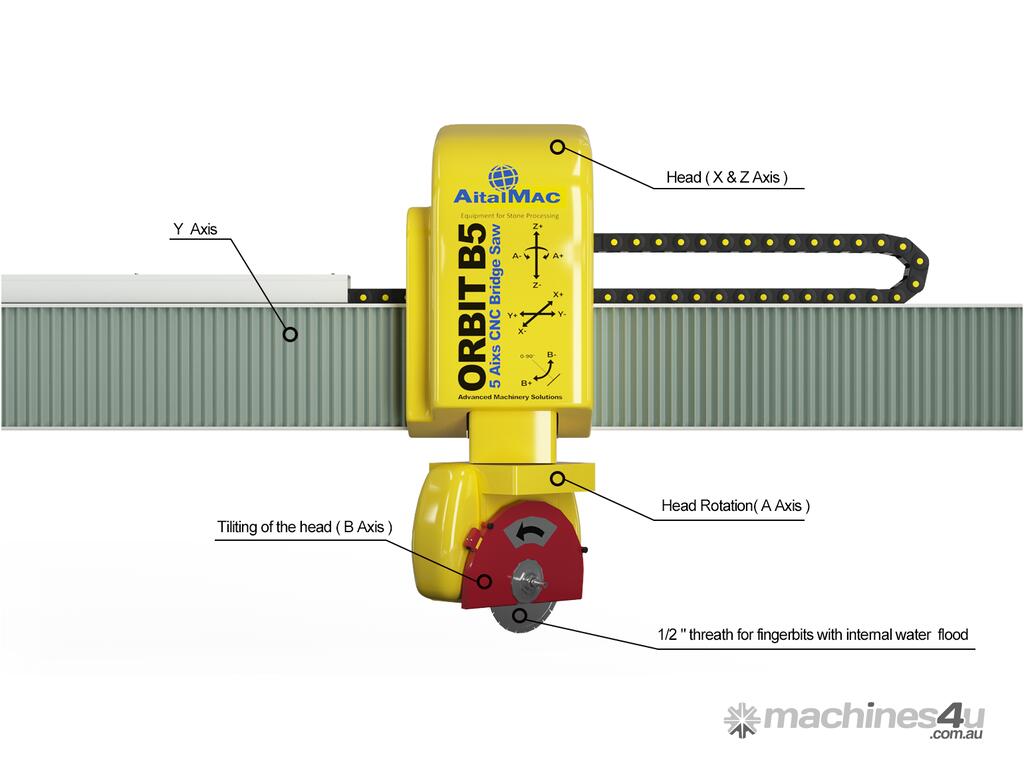

Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs at the same time reducing operating costs. The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by brushless motors through high precision helical gears and racks.

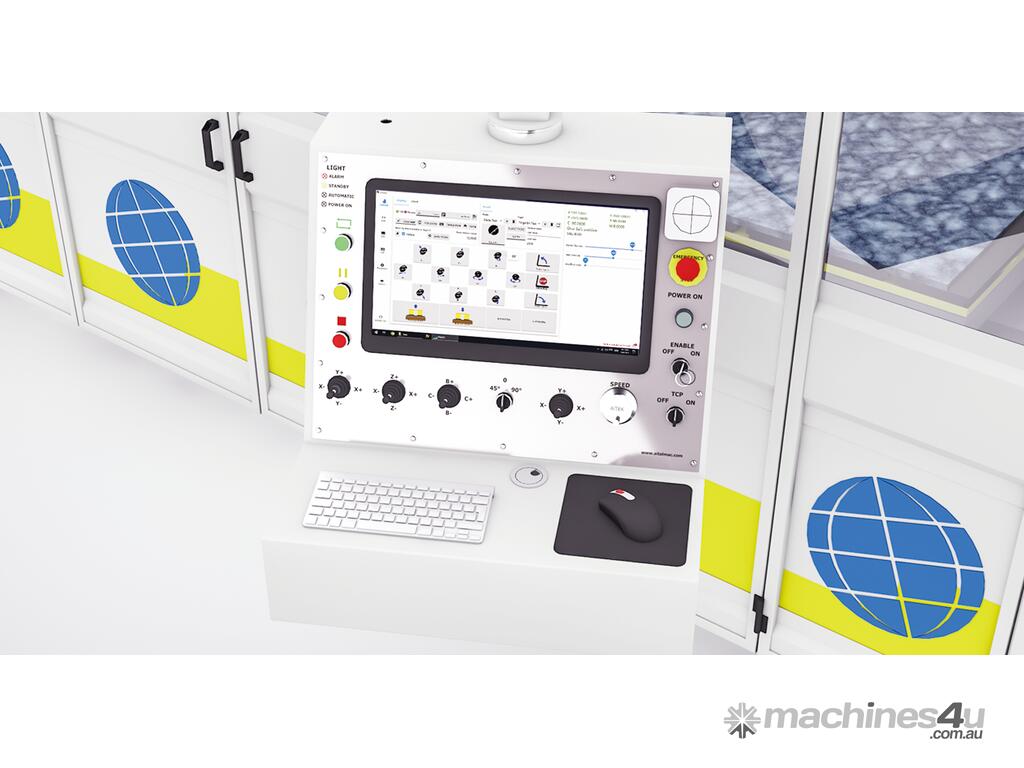

This machine comes with the “absolutely zero” technology, which allows the machine to work without doing a homing process. It has an extremely easy to use interface to facilitate the interaction between the operator and the machine and can easily be changed to manual mode for basic cuts. The controller imports DXF (AutoCAD) files and “G-code” (RS-274 machine tool programming language) for integration with other drawing software. The cable-drag chain and the electric system on this machine are purpose made for high-speed repetition movement. All backed by the AitalMAC Australia 2 Year Warranty.

Standard Options Include:

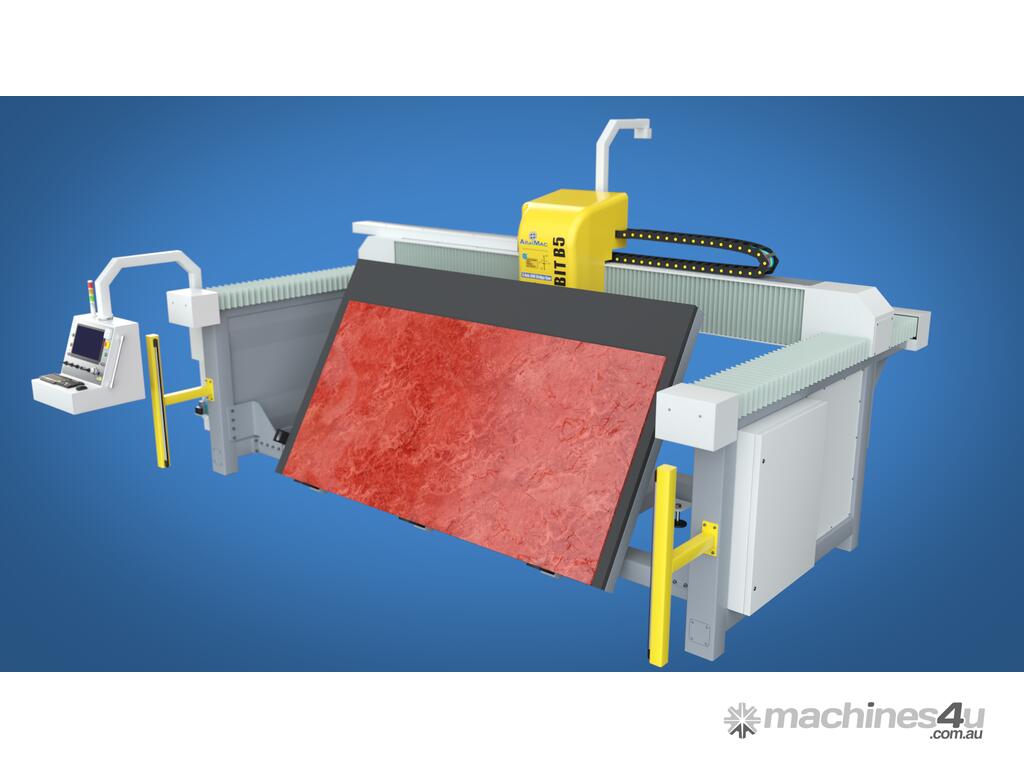

Tilting Loading Table (up to 85°)

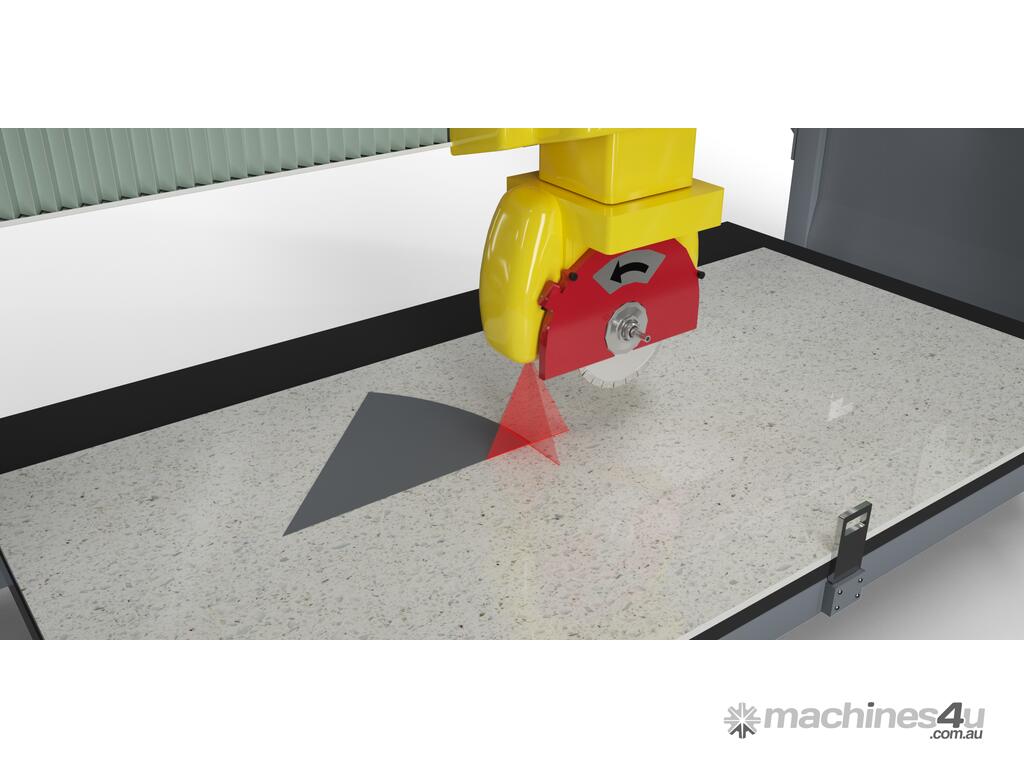

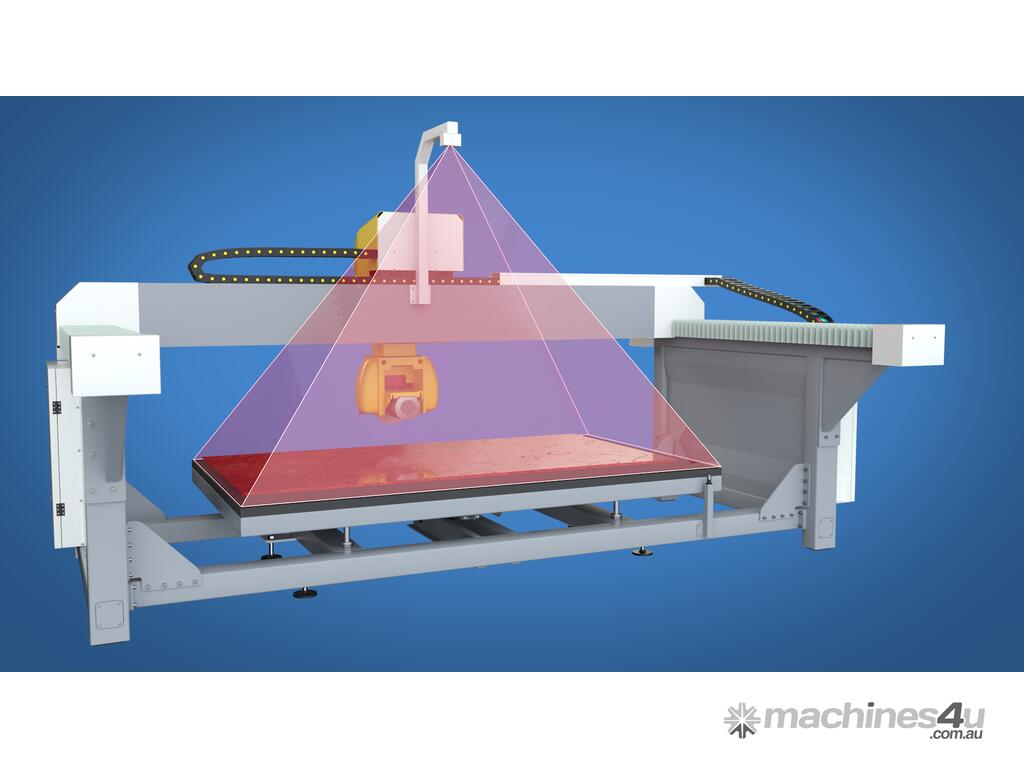

On board camera

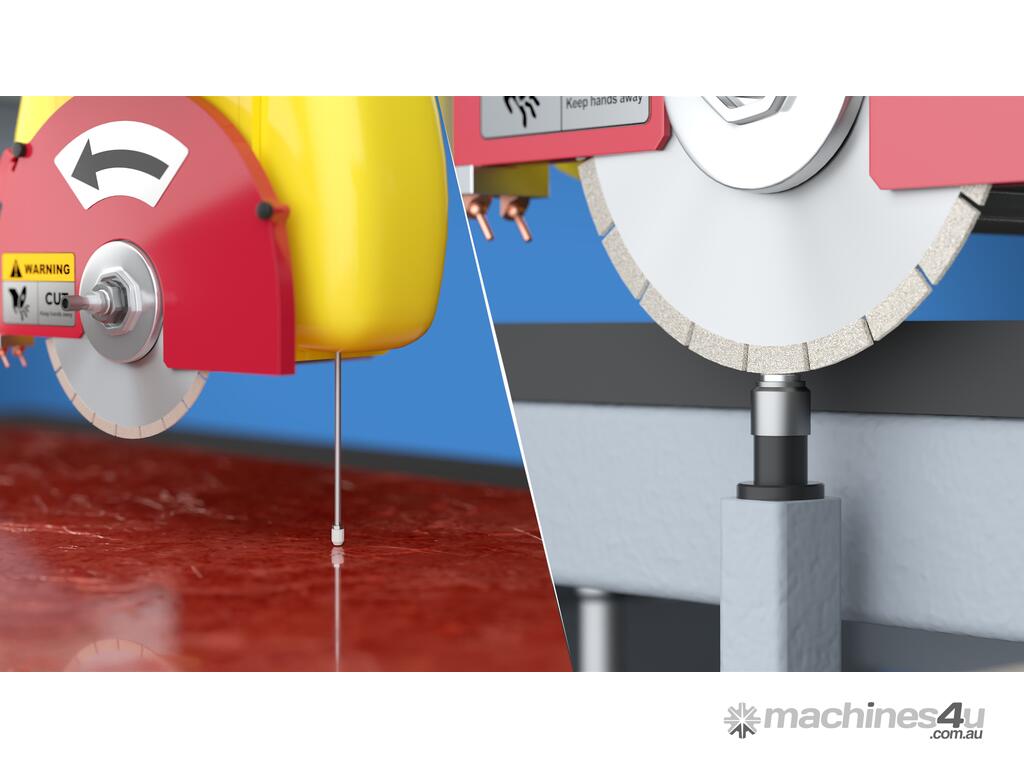

Stone Thickness Probe
Blade and Milling Tool Probe

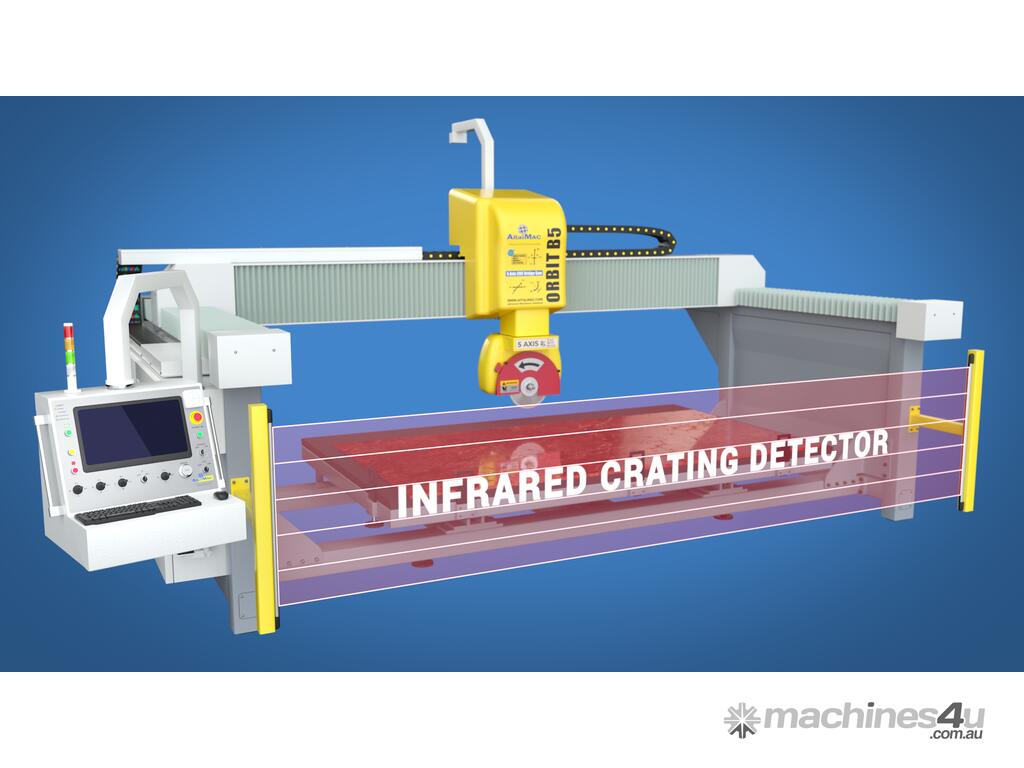

Infrared Safety Barrier Beam
Blades & Milling Tool
Pick-a-Point Templator
Remote Control


Options:
A5 Slot Table for small piece fixture system

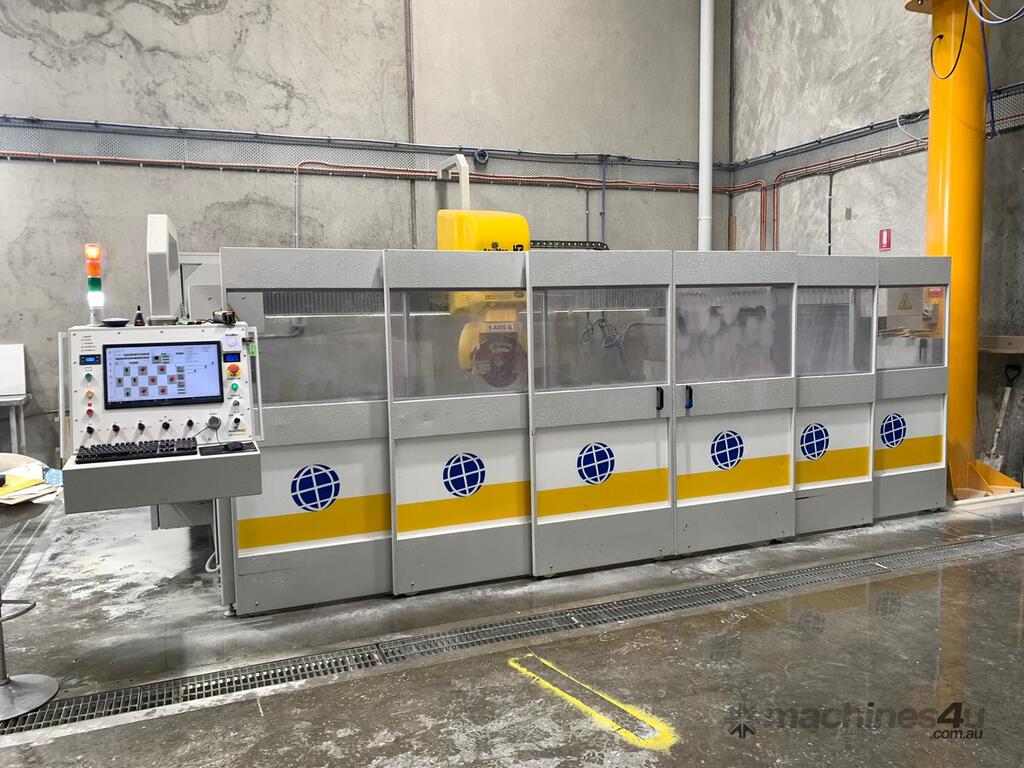

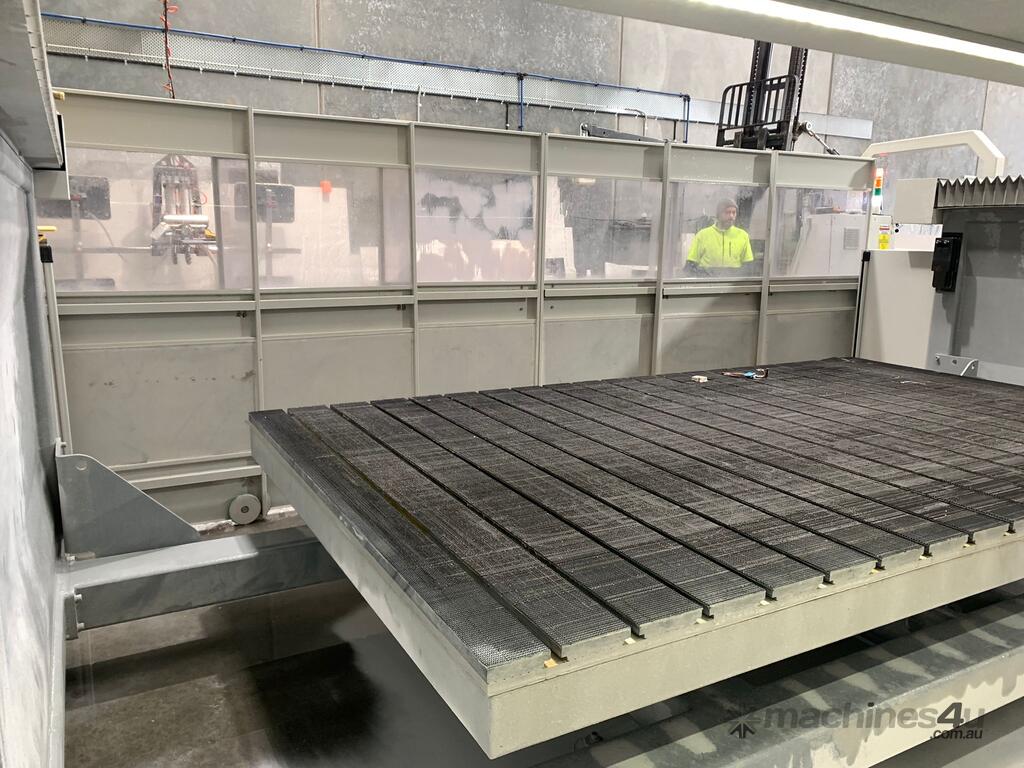

Safety Barrier Door System


Contact us today for more information...
