AitalMac ARTE1000 CNC Work Centre, is all in one machine, "Cut and polish"

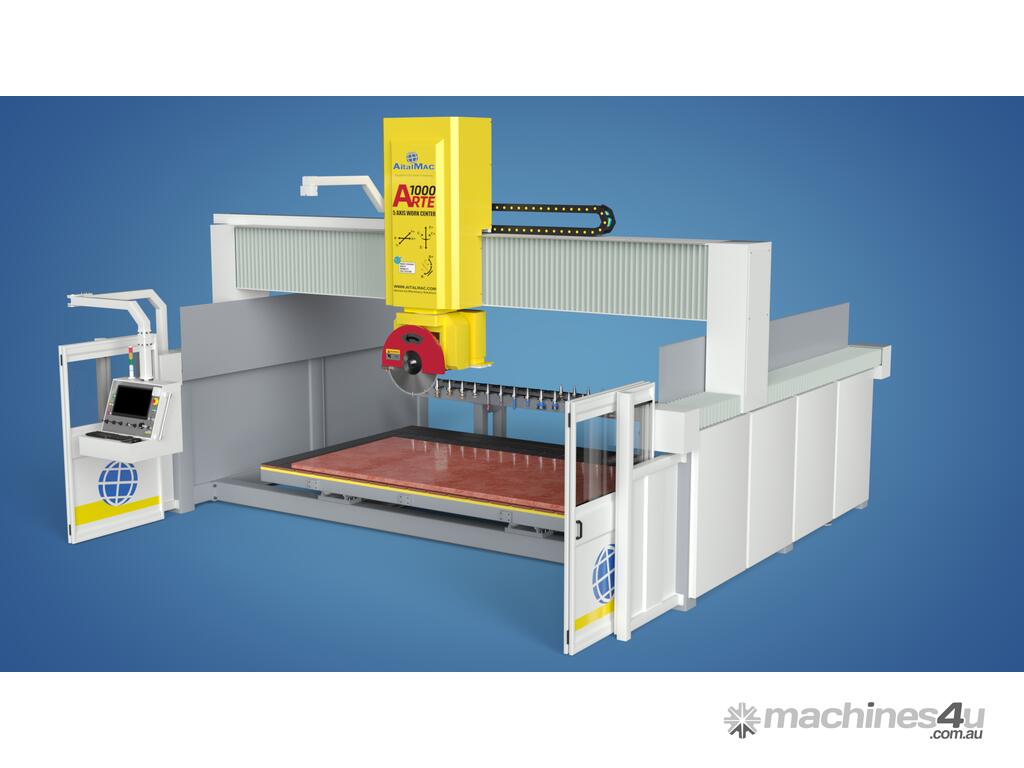

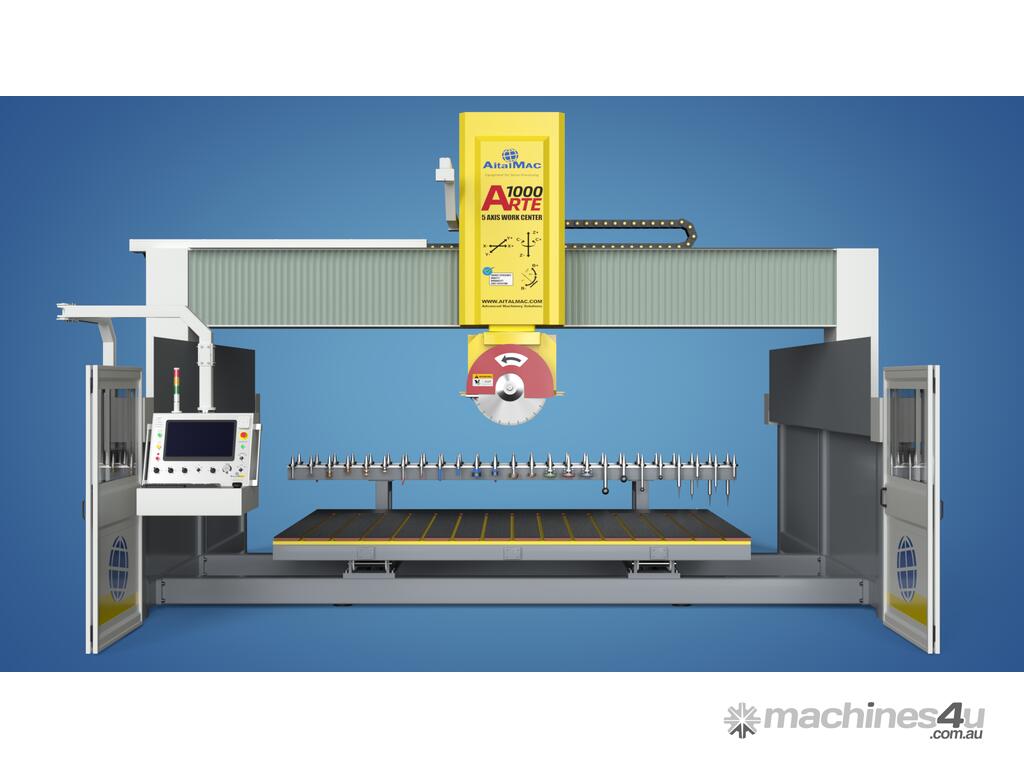

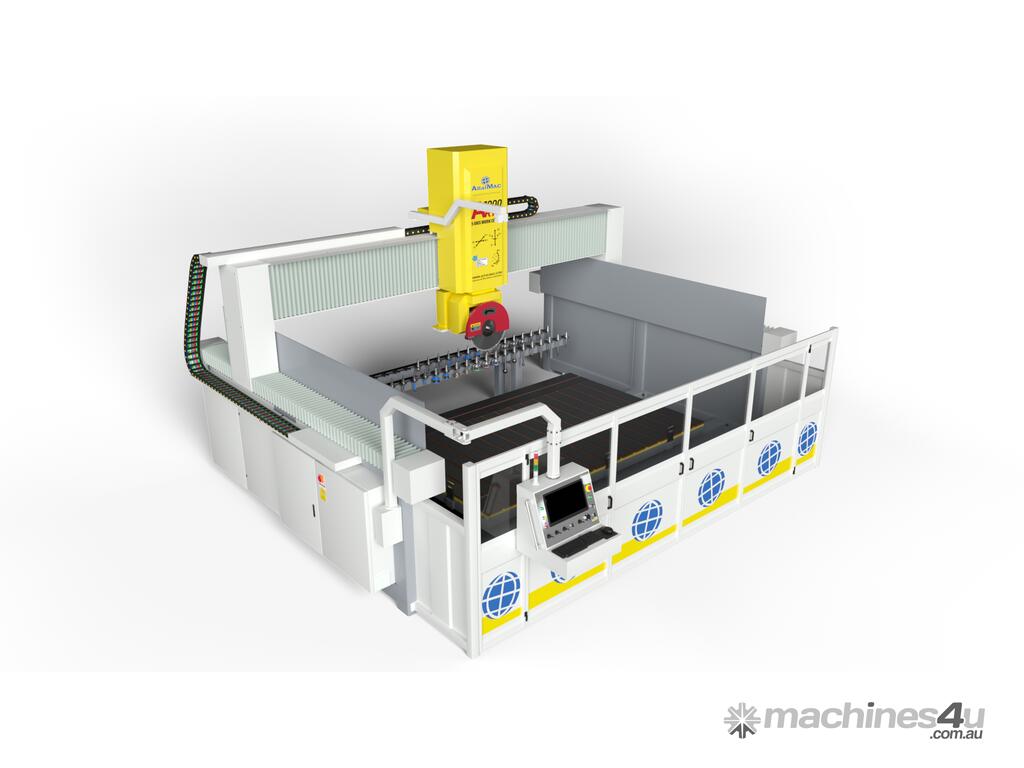

AitalMac ARTE1000 5 axis CNC stoneworking center is the complete package, a bridge saw and a CNC all in one, it’s equipped with everything a full-fledged work center needs,

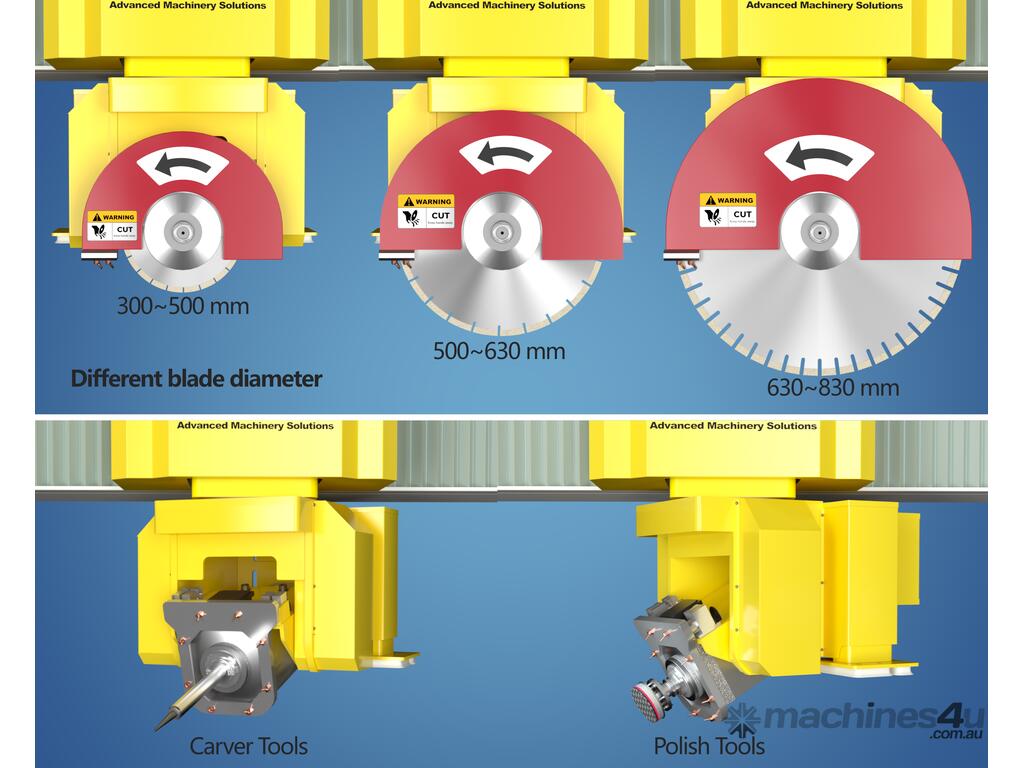

ARTE1000 5 axis work center includes the functionality of a 5axis bridge saw and a 5 axis CNC router, among them: 5 interpolated axis, spindle with automatic tool change ISO40 ( ISO 50 optional ), able to reach a maximum of 9000 RPM, with trough-spindle lubrication, ith optional up to 50 tool change positions,

tilting table up to 85°(Optional), vacuum manipulator system for parts movement during the automatic cut process, an on-board camera, blade presetting and stone thickness probe, dynamic tool wear compensation, and real-time adjustment of tool wear compensation.

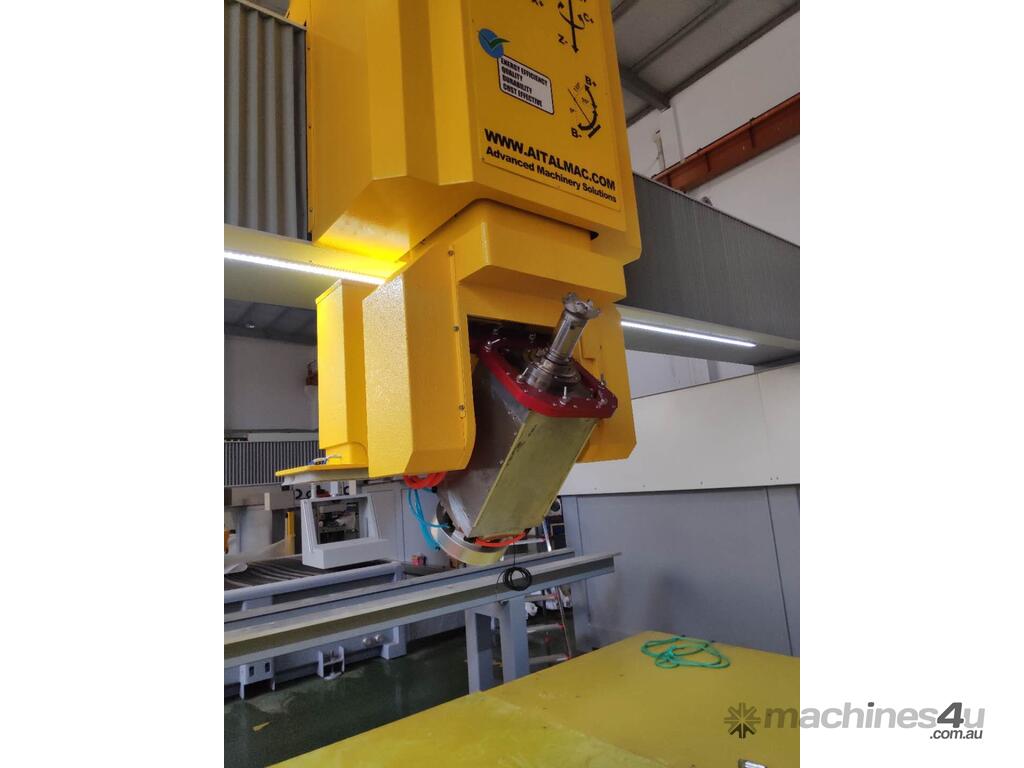

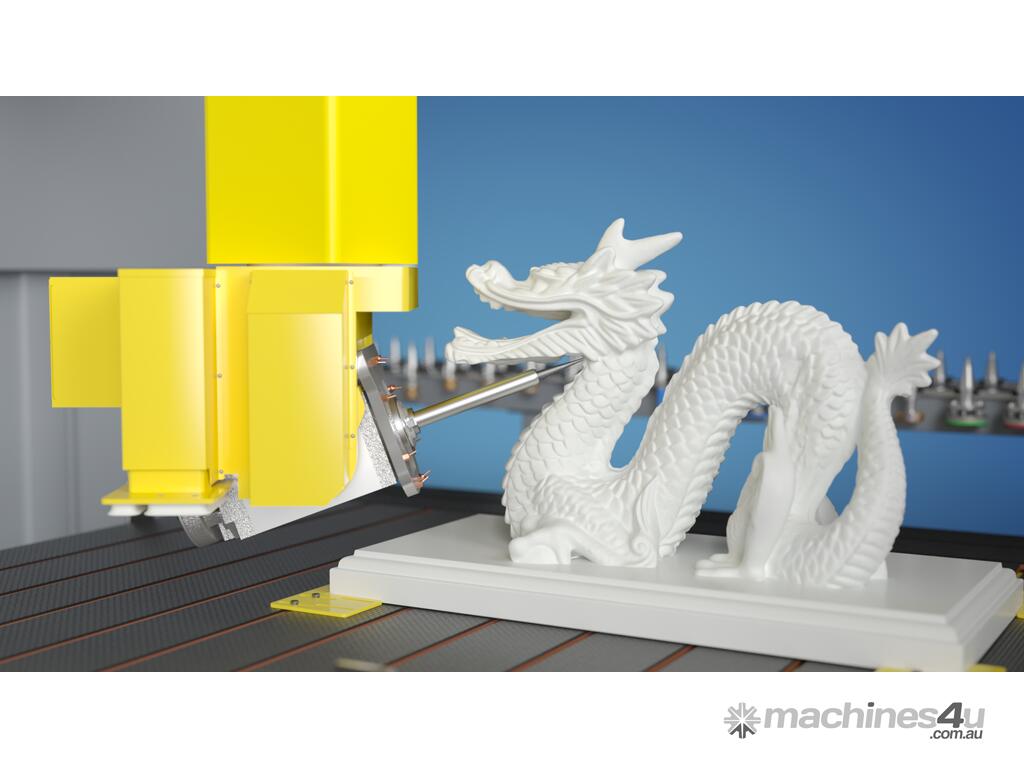

ARTE1000 is a fully interpolated 5 axis work center. The Y-axis is moved by a gantry system. This guarantees a perfect square of the bridge. Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 135° and a Z-axis of 1000 mm makes it suitable for shaping sculptures and polish.

The absolute precision of the movements is a guarantee by a state of art transmission on a linear ball guide, moved by brushless motors through high precision helical gears and racks.
CNC Work Center comes with the “absolute zero” technology, which allows the machine to work without doing the homing process.
It has an extremely easy to use interface, realized to facilitate the interaction between the operator and the machine.


This ARTE1000 is CNC stone working center is the complete package, a bridge saw and a CNC all in one, it’s equipped with everything a full-fledged work center needs,

ARTE1000 5 axis work center includes functionality of a 5axis bridge saw and a 5 axis CNC router, among them: 5 interpolated axis, spindle with automatic tool change ISO40 ( ISO 50 optional ), able to reach a maximum of 9000 RPM, with trough-spindle lubrication, up to 50 tool change positions,

Tilting table up to 85° (Optional) vacuum manipulator system for parts movement during automatic cut process,

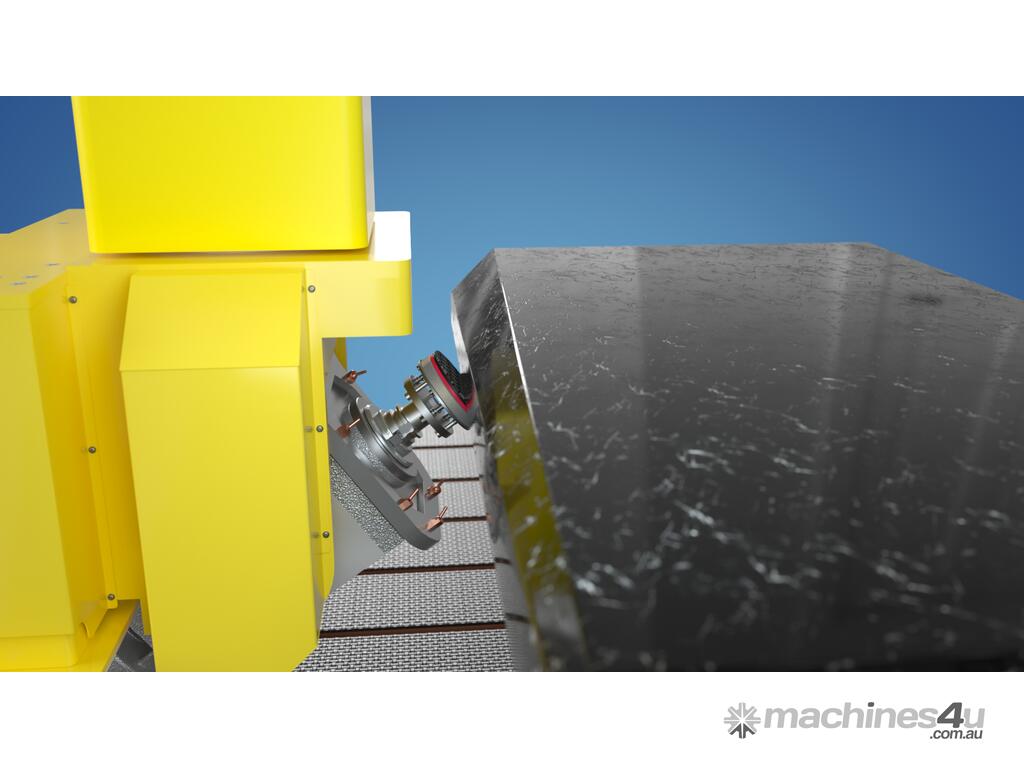

On-board camera, blade presetting and stone thickness probe, dynamic tool wear compensation, and real time adjustment of tool wear compensation.

This machine is a fully interpolated 5 axis work center. The Y axis is moved by a gantry system. This guarantees a perfect square of the bridge. Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 135° and a Z axis of 1000 mm makes it suitable shaping sculptures and polish.

The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by brushless motors through high precision helical gears and racks.
CNC Work Center comes with the “absolute zero” technology, which allow the machine to work without doing the homing process.
It has an extremely easy to use interface, realized to facilitate the interaction between the operator and the machine.

All AitalMac Machine comes with Local service and all part's stocked in Australia,

Like all of AitalMAC’s machines ARTE1000 is equipped with fully interpolated CNC with 5axis kinematics, this allows you to use the machine in complete safety even in manual operations and to be able to use any CAM for the generation of the G-code with limited or no expense for post-processor
