AitalMac Australia CNC Bridge Saw Orbit A5

AitalMAC CNC Bridge Saw Orbit A5

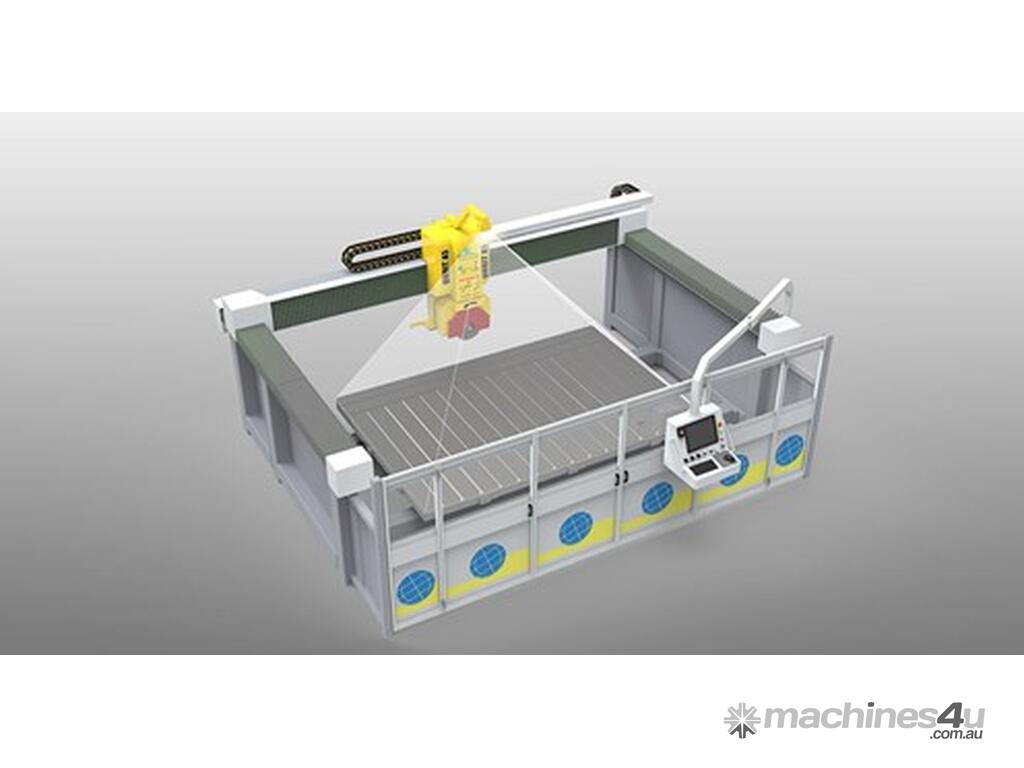

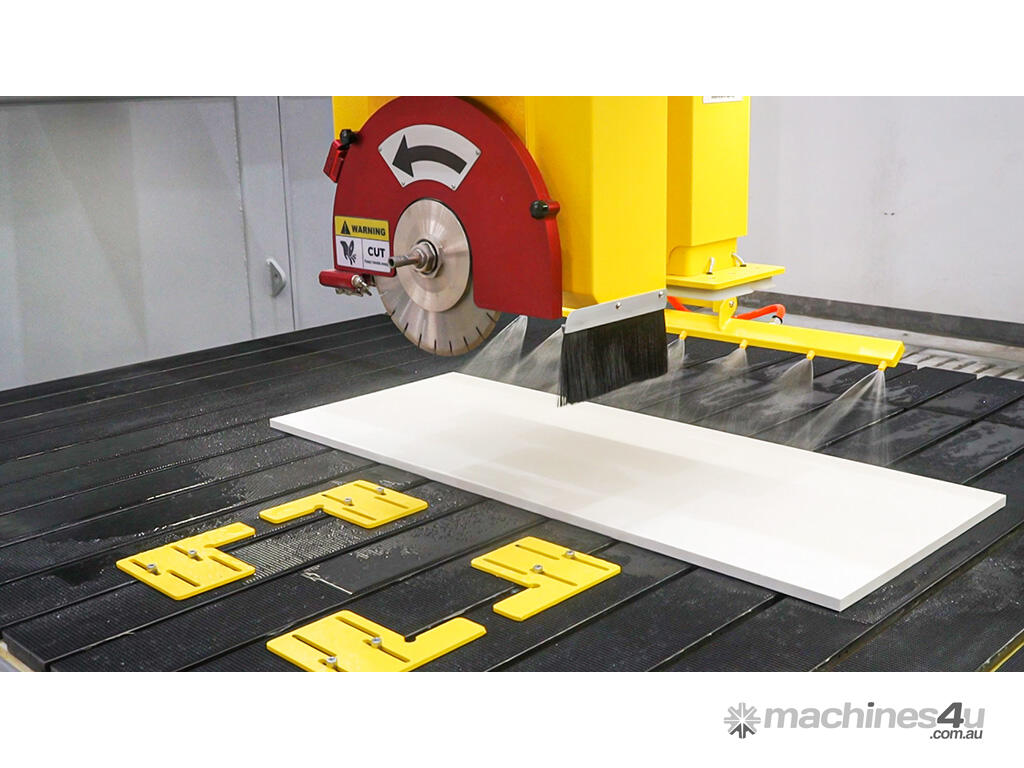

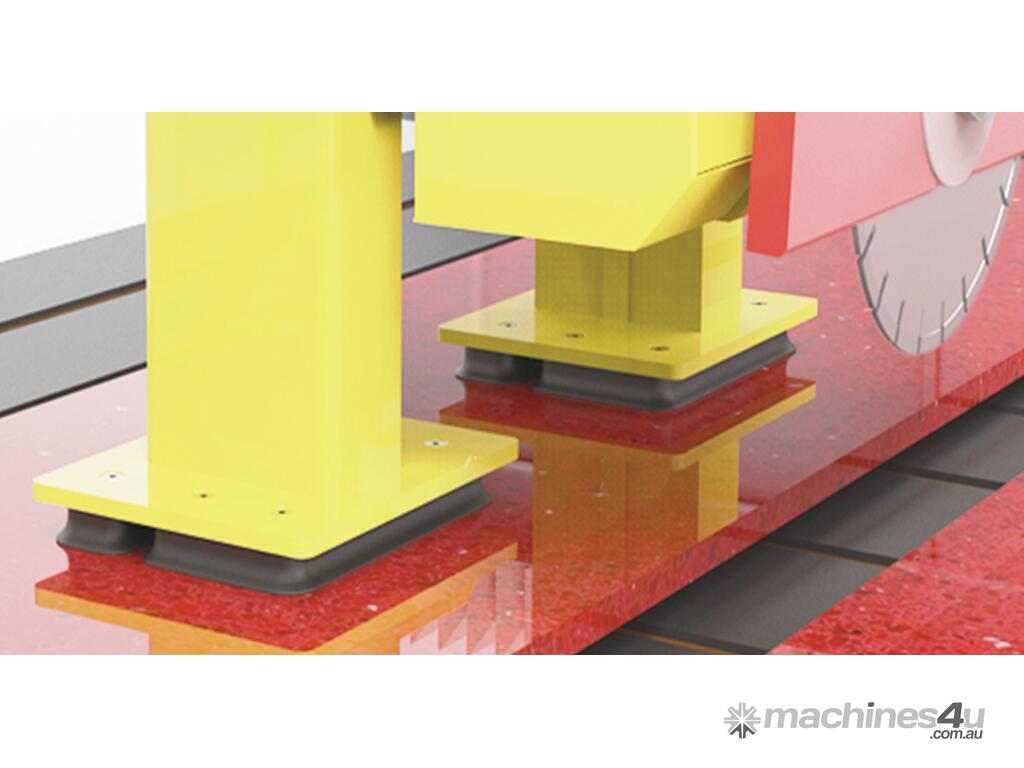

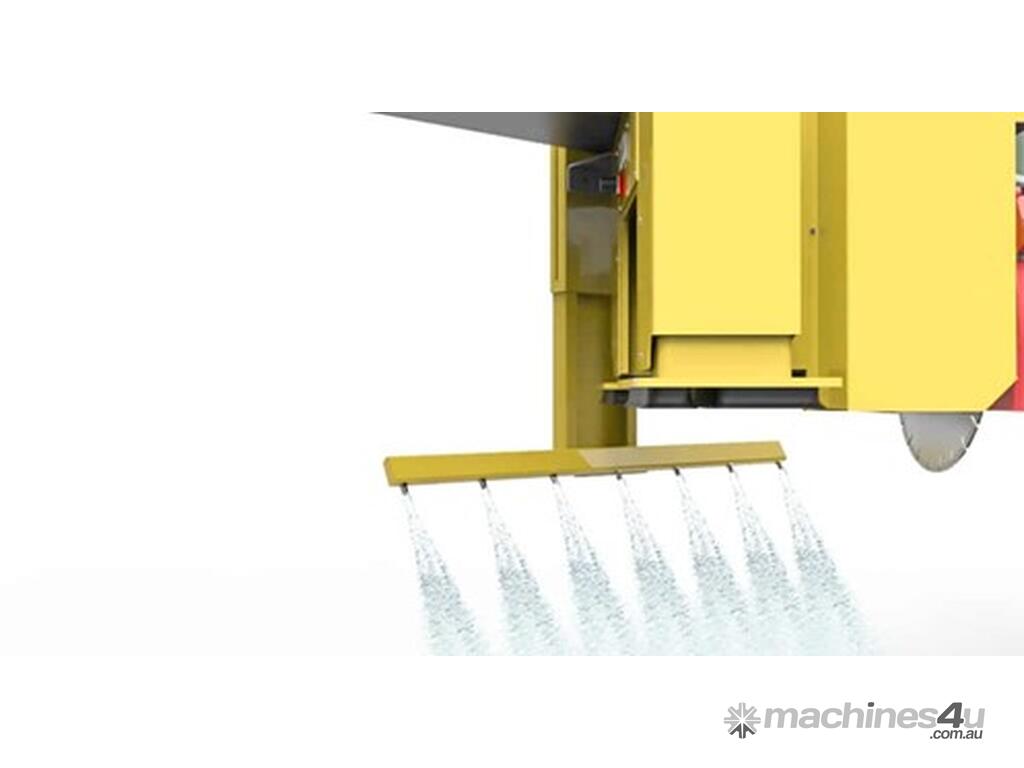

This bridge saw has everything a technologically advanced bridge saw needs to have today. A Monoblock Construction, 5 Interpolated Axis Spindle, Half inch Fitting with Through-Spindle Lubrication, Washdown Apparatus, Vacuum Manipulator System for piece movement during Automatic Cut process and piece unloading, On-Board Camera with DXF Templating and Pick-a-Point Tracking, Tilting Table (up to 85°) for loading delicate slabs onto the machine, Blade Presetting & Stone Thickness Probe, Fixture System for small piece work, Automatic Lubrication System and Safety Barrier Door System.

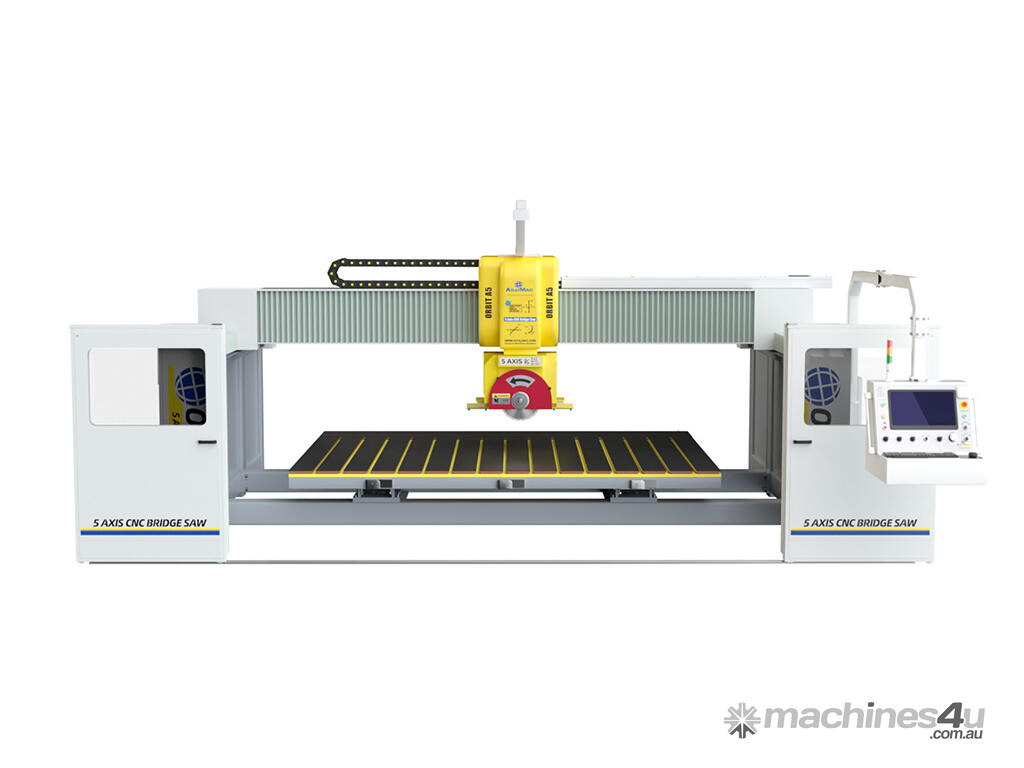

The AitalMAC CNC Bridge Saw Orbit A5 is a fully interpolated 5 axis bridge saw with the Y Axis movement by Gantry System. This guarantees a perfect square cut at the bridge every time.

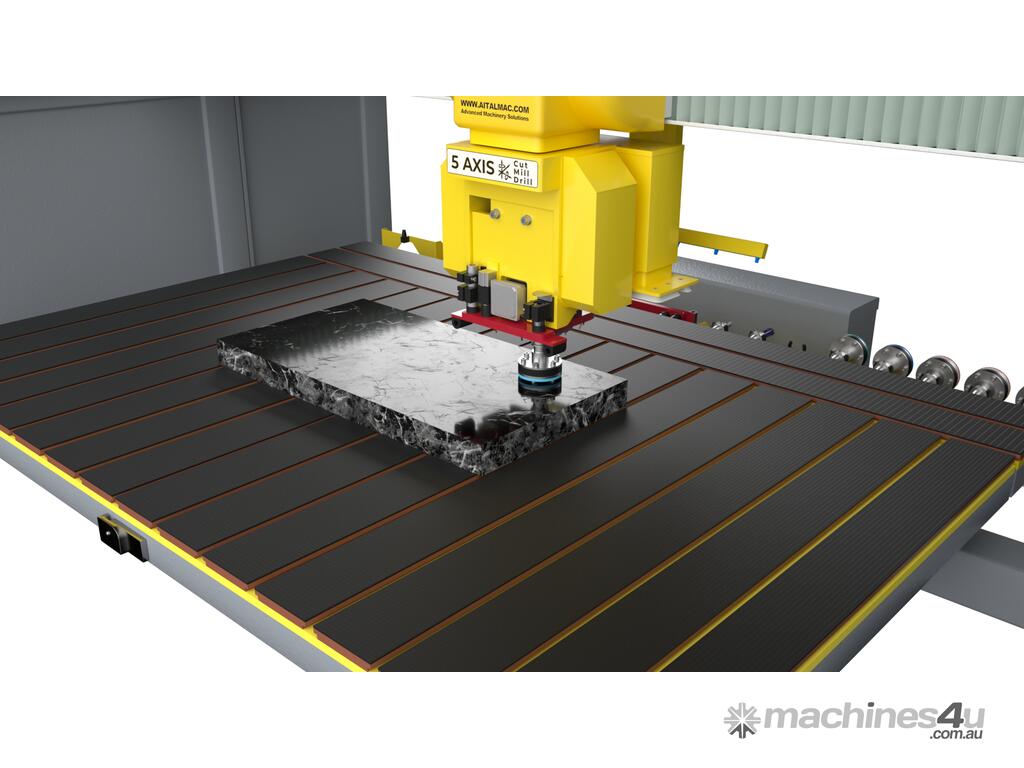

Automatic head rotation from 0° to 400° combined with automatic blade tilting from 0° to 90° interpolated with share Axis makes the CNC Bridge Saw Orbit A5 suitable for high volume production output. The absolute precision of movements is guarantee by a state of art transmission on linear ball guide, moved by brushless motors through high precision helical gears and racks.

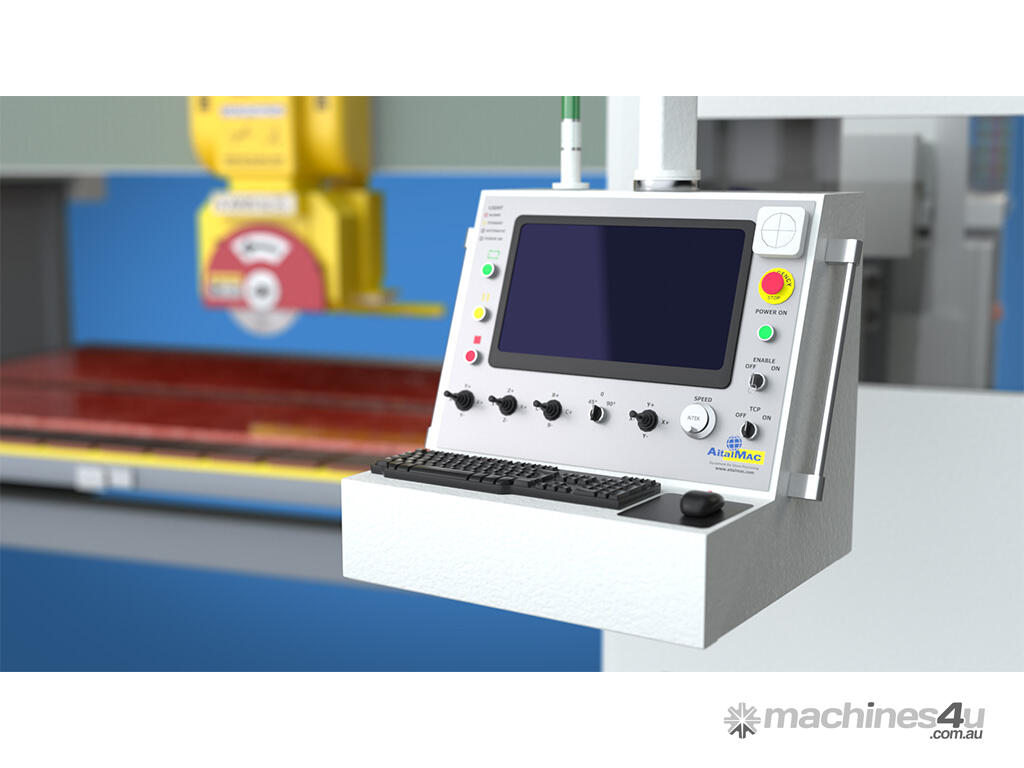

This machine comes with the “absolutely zero” technology, which allows the machine to work without doing a homing process. It has an extremely easy to use interface to facilitate the interaction between the operator and the machine and can easily be changed to manual mode for basic cuts. The controller imports DXF (AutoCAD) files and “G-code” (RS-274 machine tool programming language) for integration with other drawing software. The cable-drag chain and the electric system on this machine are purpose made for high-speed repetition movement. All backed by the AitalMAC Australia 2 Year Warranty.

Standard Options Include:
Tilting Loading Table (up to 85°)

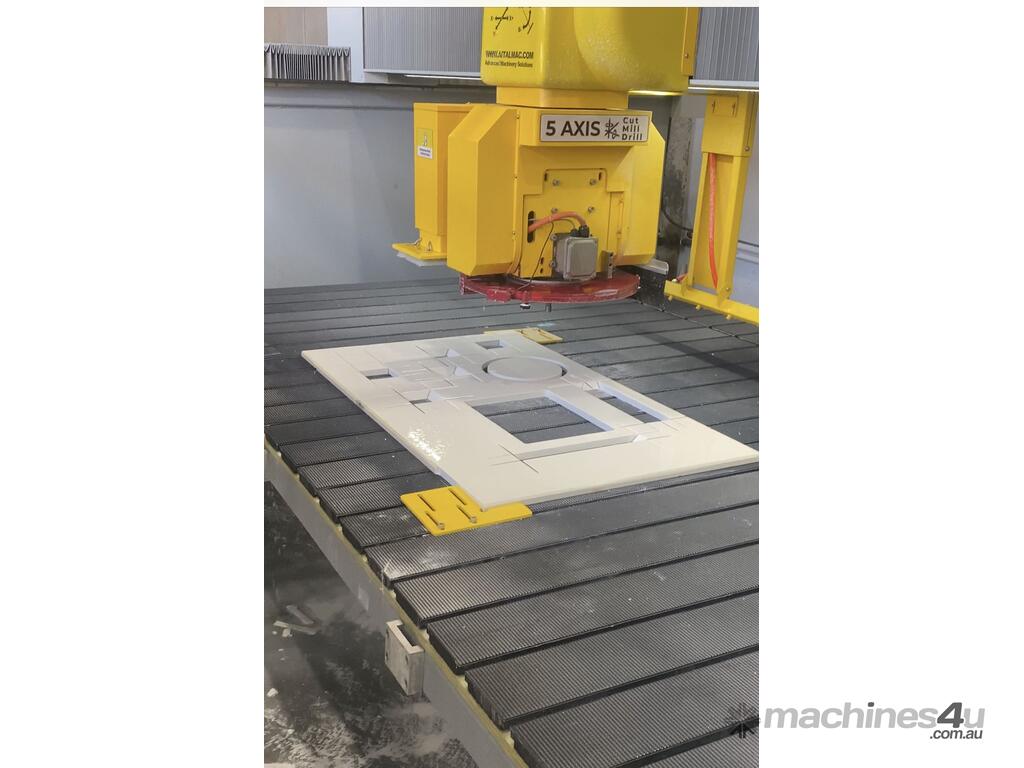

A5 Slot Table for small piece fixture system
On board camera
Stone Thickness Probe
Blade and Milling Tool Probe
Infrared Safety Barrier Beam
Blades & Milling Tool
Safety Barrier Door System
Left & Right to wall safety fencing

Contact Us today for more information...
