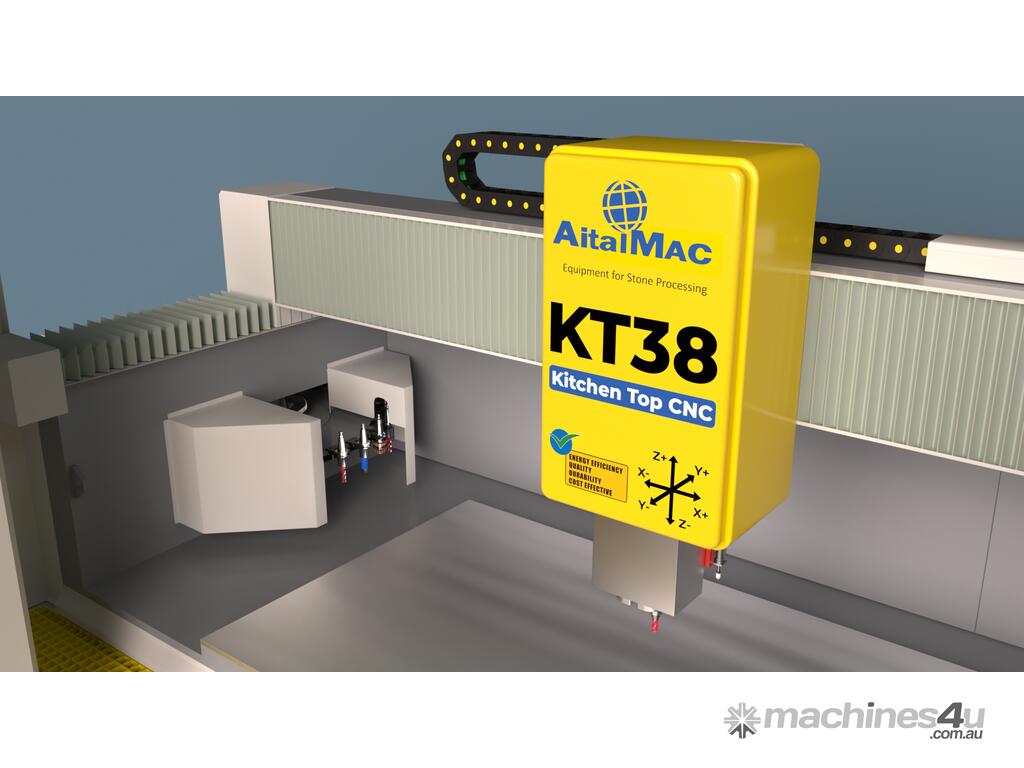

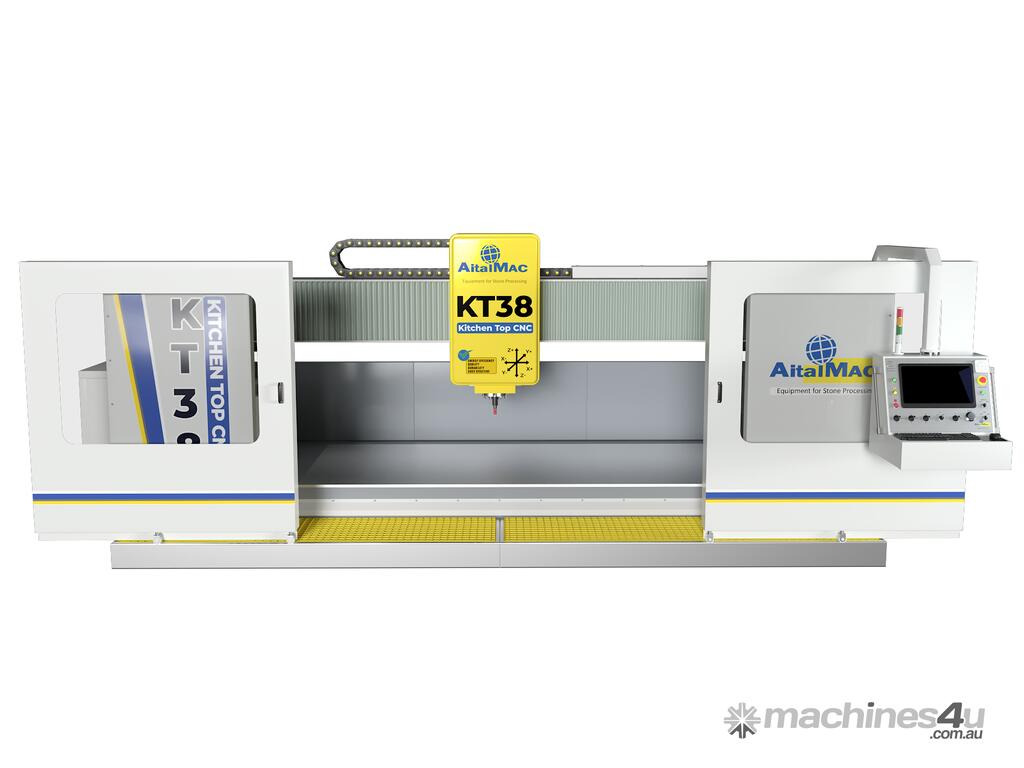

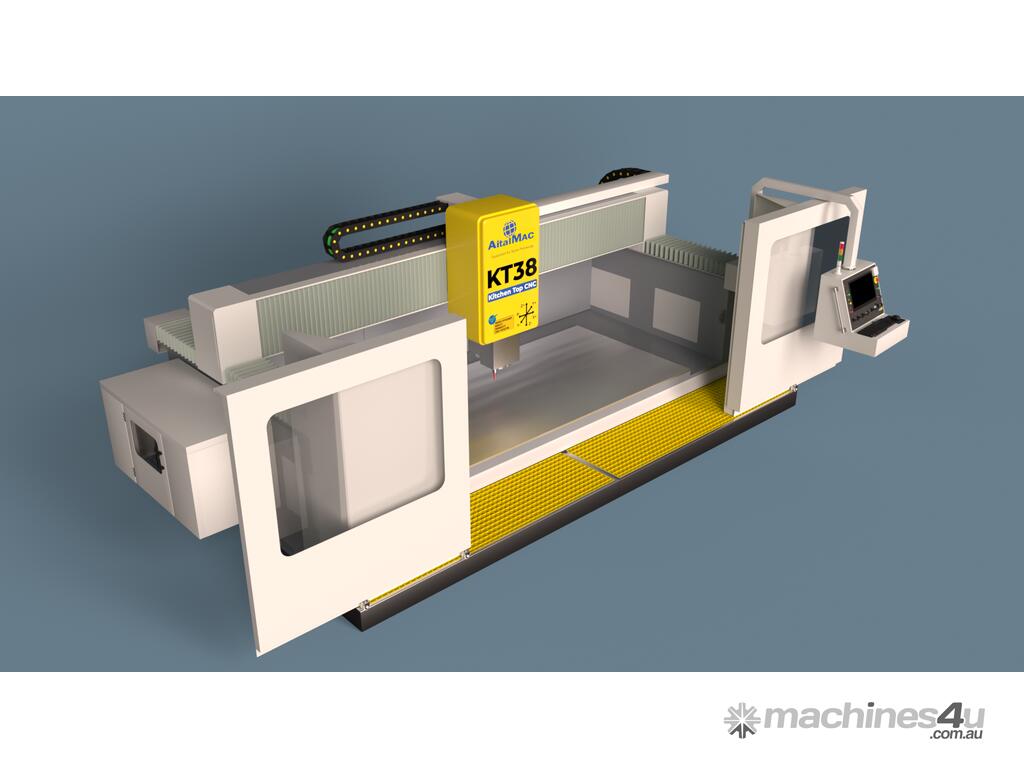

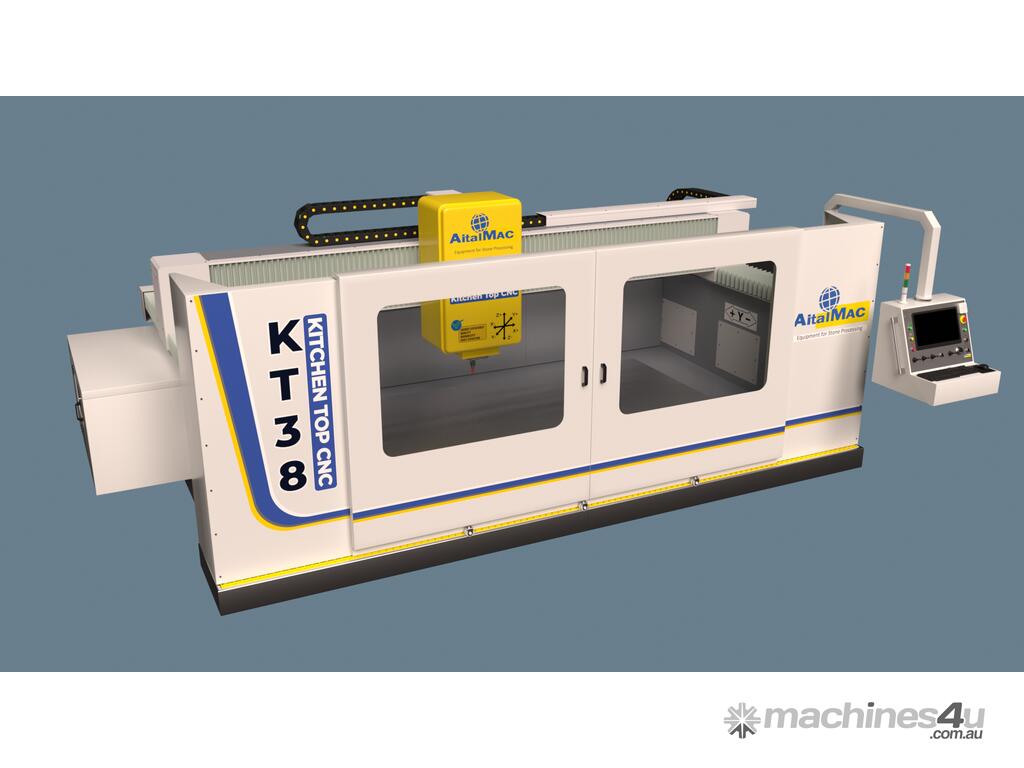

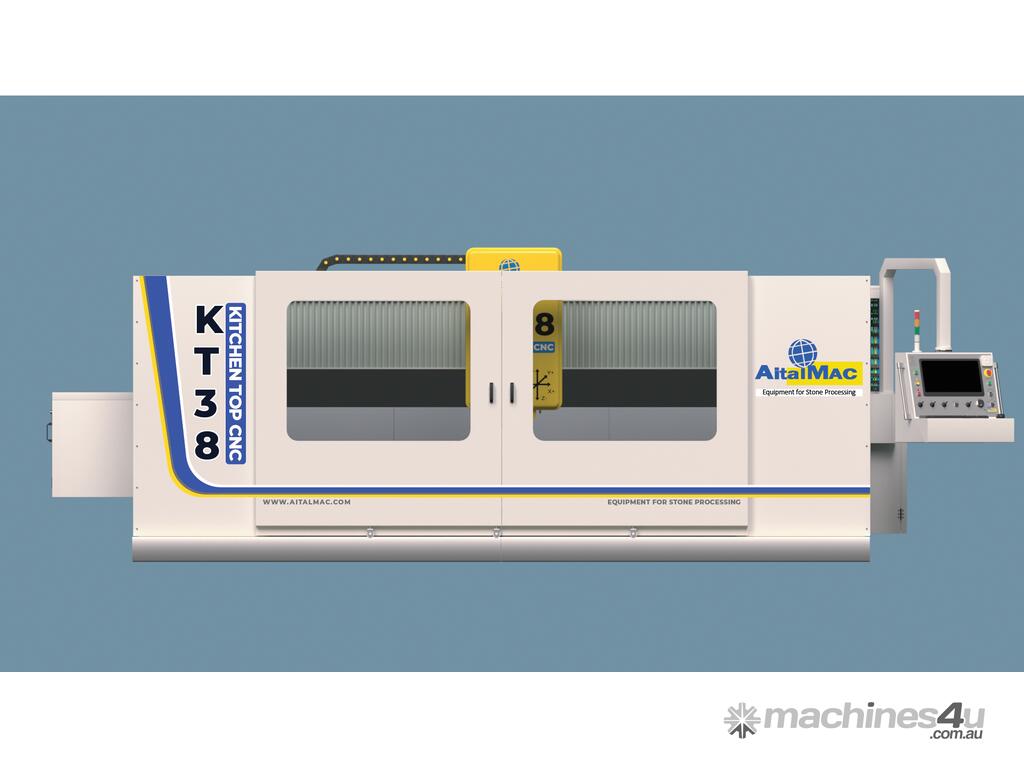

AitalMac KT38 CNC 3 axis, is a perfect machine for Marble, Porcelain, Quartz and Glass

AitalMac KT38 is a powerful 3 Axis CNC machine, designed to be the ideal stoneworking center for Benchtops and GLass,

DFX Drawing, (AutoCAD) Extremely easy to use, runs on windows

15kw (S1) electrospindle with 72.6Nm (highest torque of any stoneworking center) and is controlled in speed from 0 to 9000 RPM, the spindle with high speed ceramic bearings has internal trough spindle and external water cooling for the tools, compatible with standard ISO/BT40 tool holders.

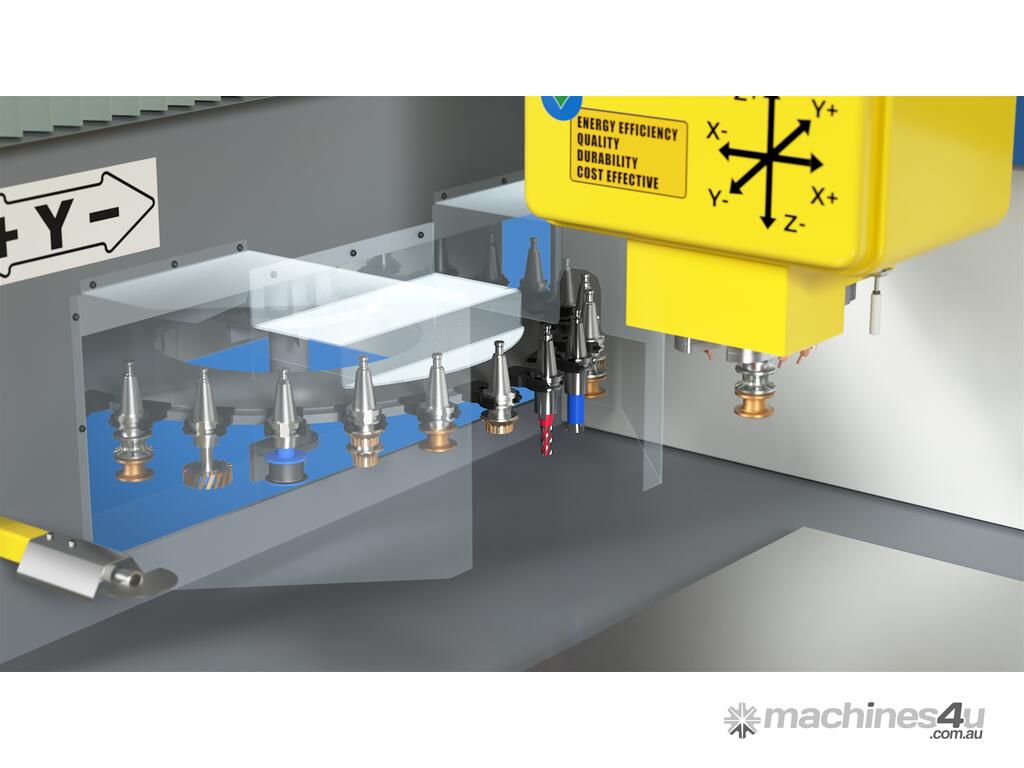

AitalMac KT38 comes standard with 27 automatic tool change stations on a tool carousel (optionally extendible to 108)

Double Tools
AitalMac KT38 comes with automatic tool change that also supports more than one contouring tool mounted or Even 3 tools with the same cone, which would be a big time saver (only with AiTEK CAM).

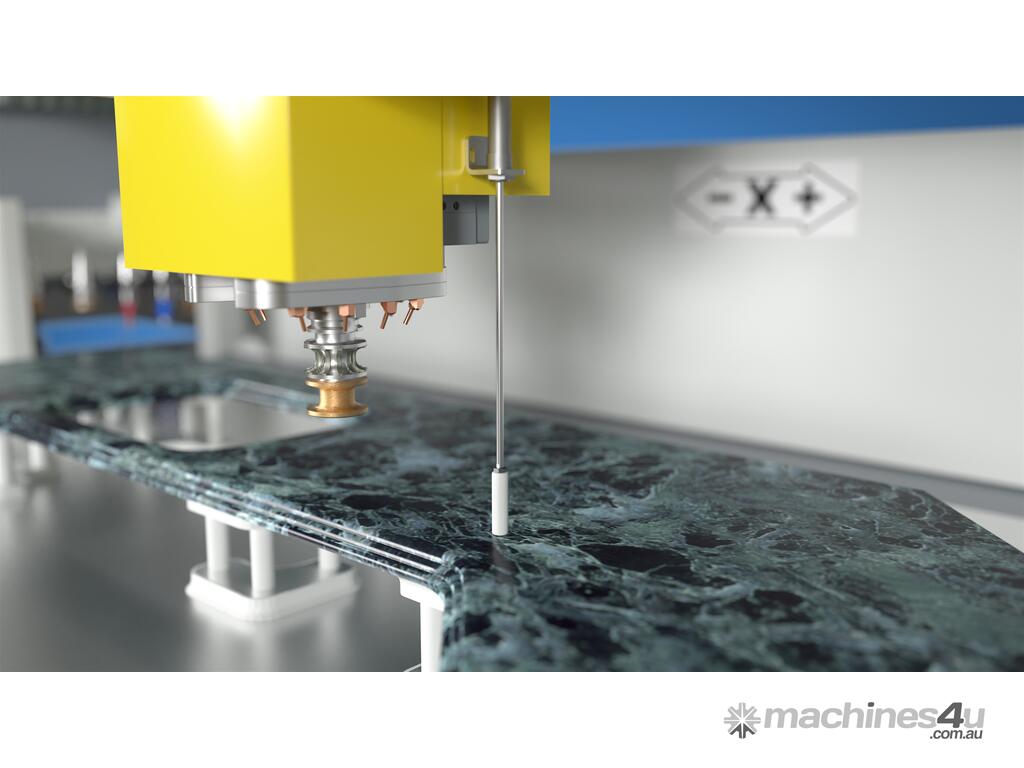

Thickness Probe
An optional surface probe allows the machine to work a slab with inconsistent thickness while leaving the polished side up.

AitalMac KT38 has 3 interpolated axis X, Y (REAL gantry controlled), Z, controlled by Aitek’s CNC online monitoring system capable of 9 axis interpolation.

The machine comes with a water centrifugal vacuum pump (LRVP) in stainless steel, made for creating vacuum without troubles even if muddy water is introduced in the vacuum system.

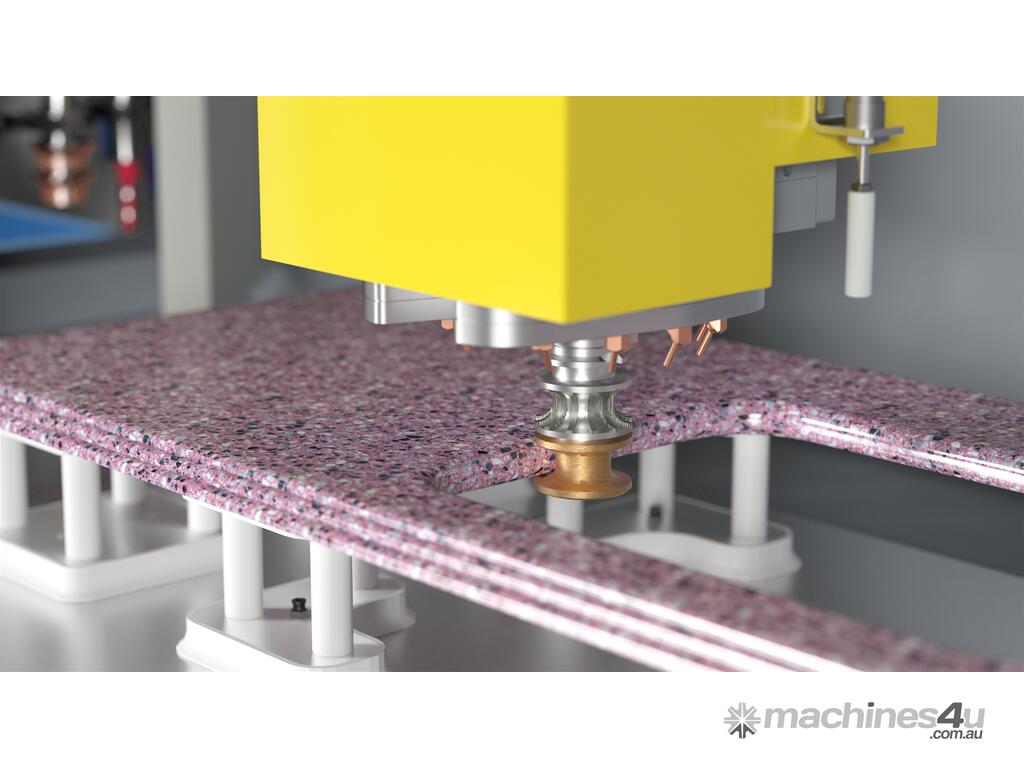

Other options include the left and right spindle group tilt; this option allows the machine to make polished drainboards for kitchen tops.
