AitalMac WaterJet WJ5

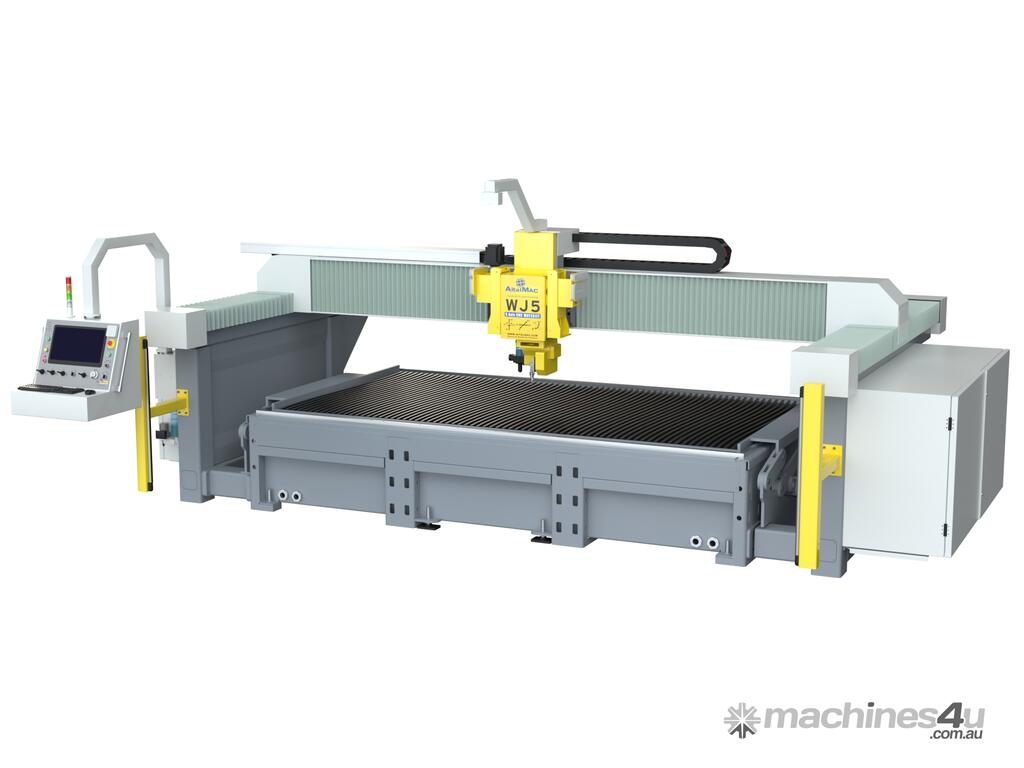

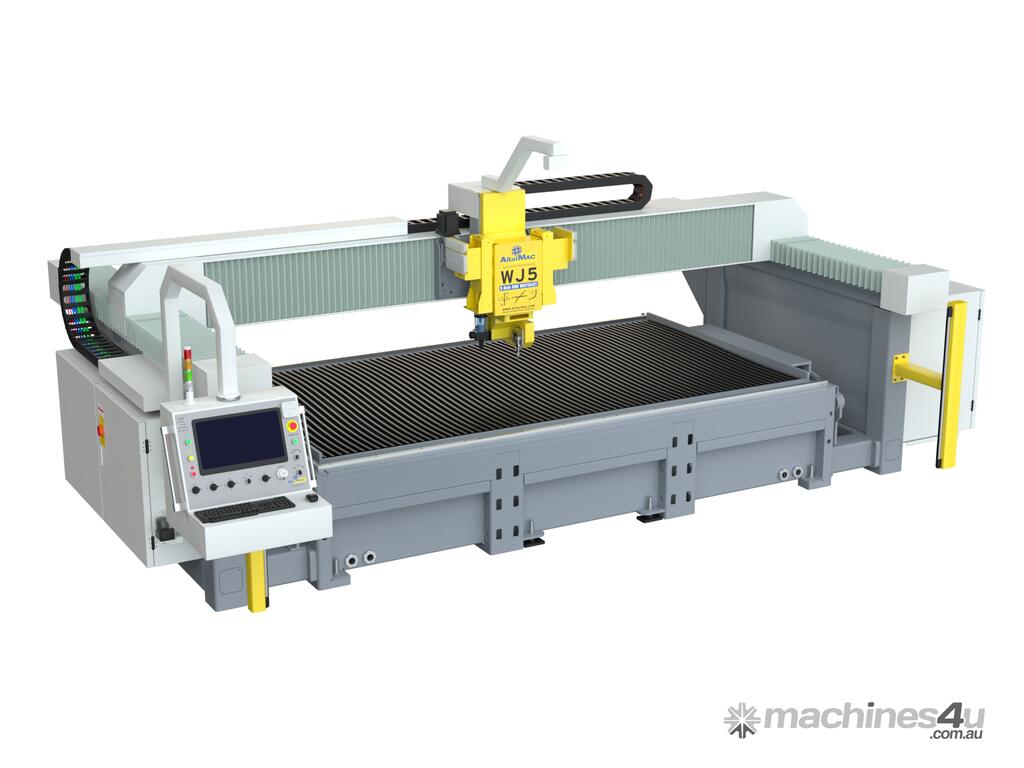

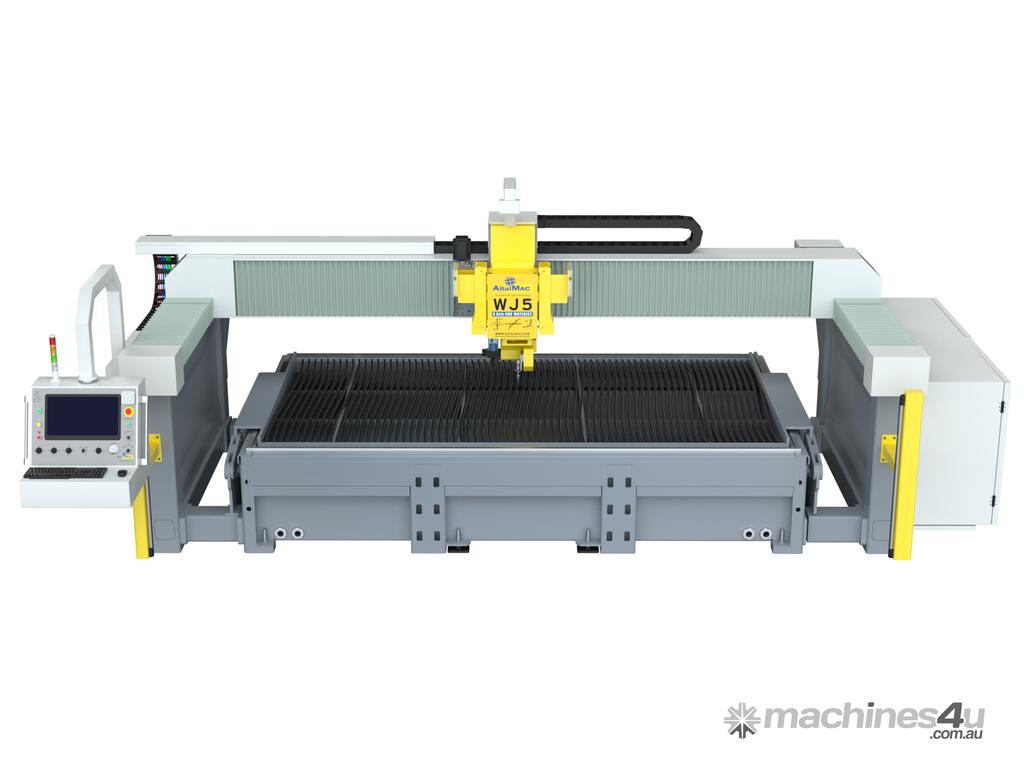

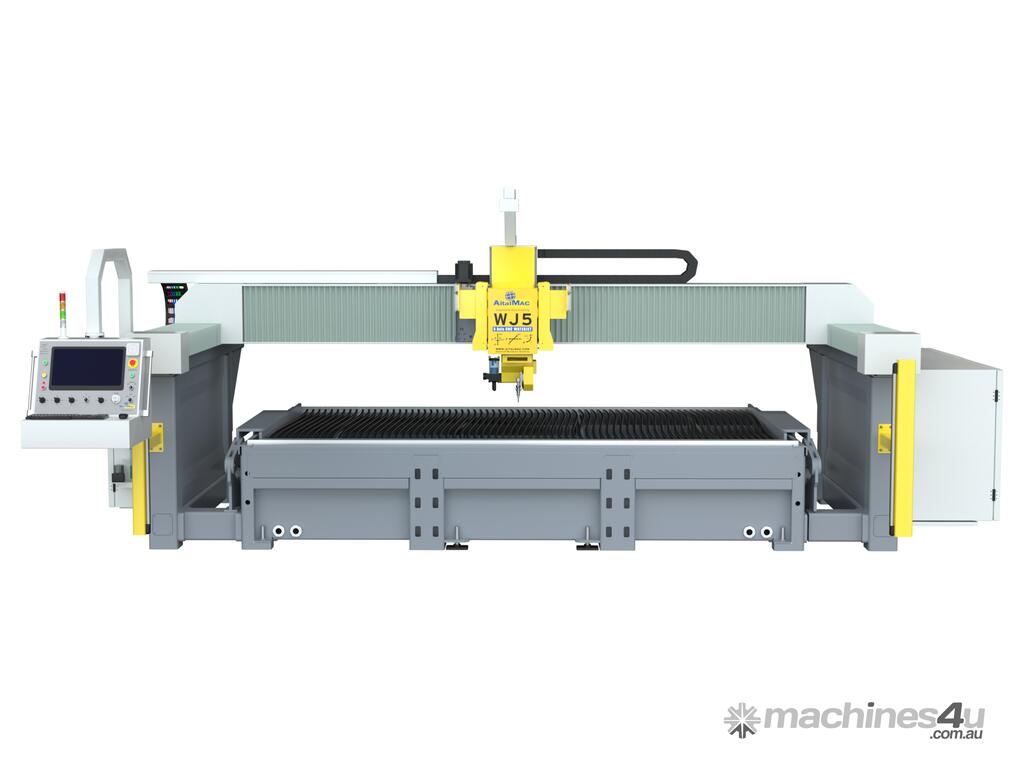

AitalMAC CNC 5 Axis WaterJet WJ5,

The AitalMAC CNC WaterJet WJ5 is made to meet todays industry cutting needs.

This machine is a fully interpolated 5 Axis Water Jet. The Y axis is moved by a gantry system which guarantees a perfect square of the bridge. The absolute precision of the movements is guarantee by the state of art transmission on linear ball guide, moved by brushless motors through high precision helical gears and racks. This is all supported by an “absolutely zero” technology which allows the machine to work with precise moves without having to Home each cycle.

The Robotic cable-drag chain and the electric cables used on the machine are purposely made for use at high speed mechanical robotic movements.

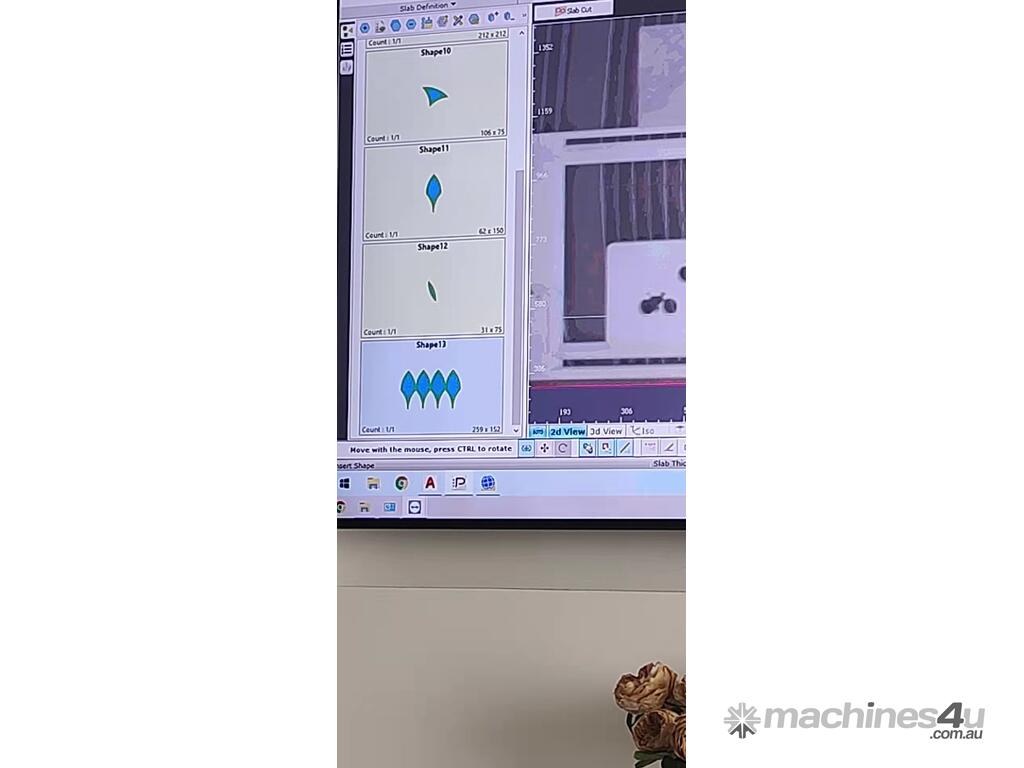

The software supplied with this machine includes Aitek Interface, PegasusCAD and AutoCAD with an option to purchase Pegasus Vein Matching software availble also.

The Aitek Interface is easy to use and is designed to facilitate the interaction between the operator and the machine. Once the program is sent and the start button pressed the AitalMAC CNC Waterjet WJ5 will proptly start the Automatic Sequence cutting 90 & 45 degrees (but not restricted to) as specified by the operator until the job is finished. Manual cutting is also availble.

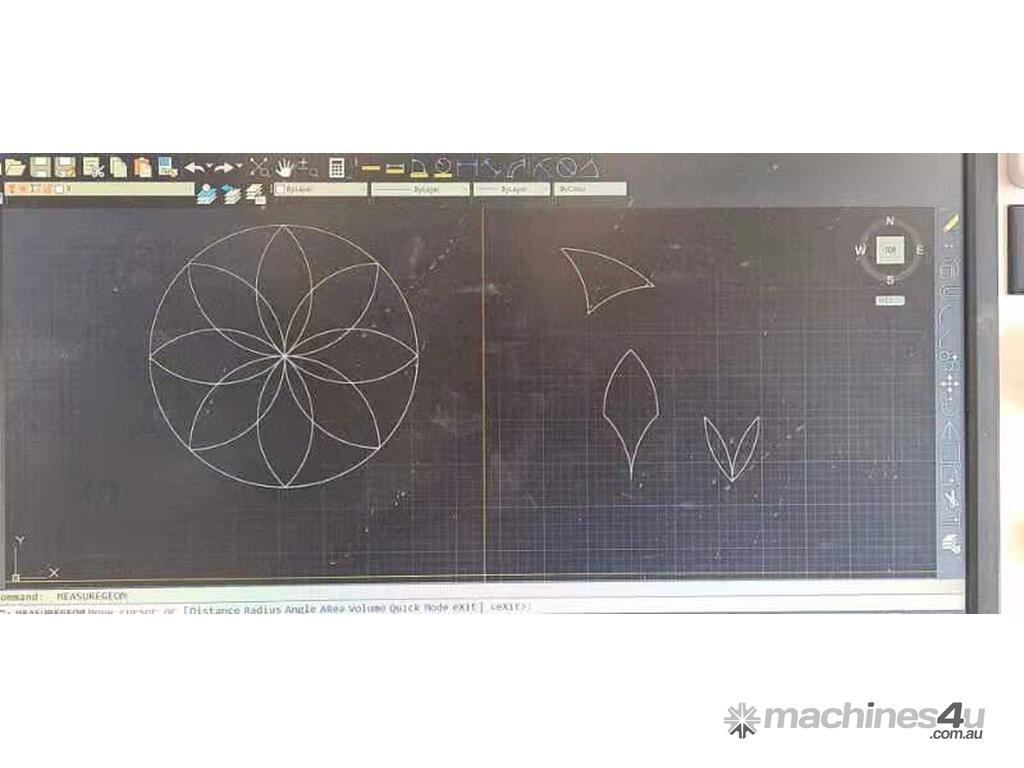

The AitalMAC CNC Water Jet can also import and work with DXF (AutoCAD) files and “G-code” (RS-274 machine tool programming language) from other CAD generating software.

Standard Options Include:
AitalMAC Direct Drive Pump (30Amp at 3800BAR=56,000PSI)
On board camera
Stone thickness probe
Infrared Safety Barrier Beam
WaterJet Tools & Service Kit
Spare Nozzles and Orifice

Options:

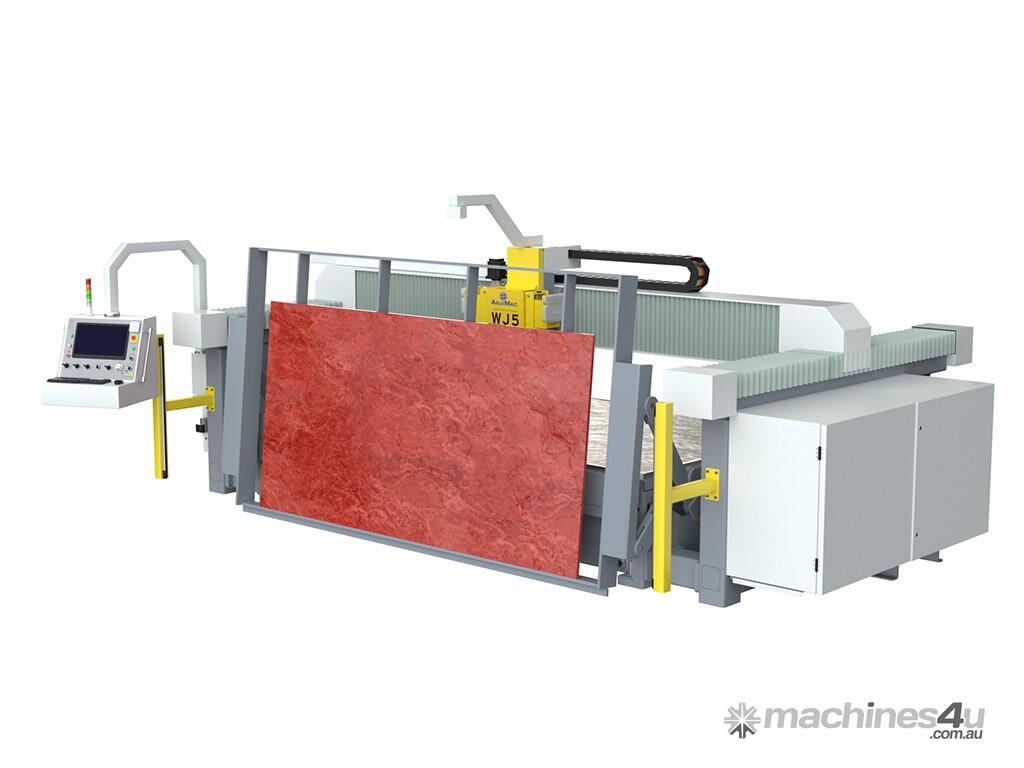

Tilting Loading Table (up to 85°)

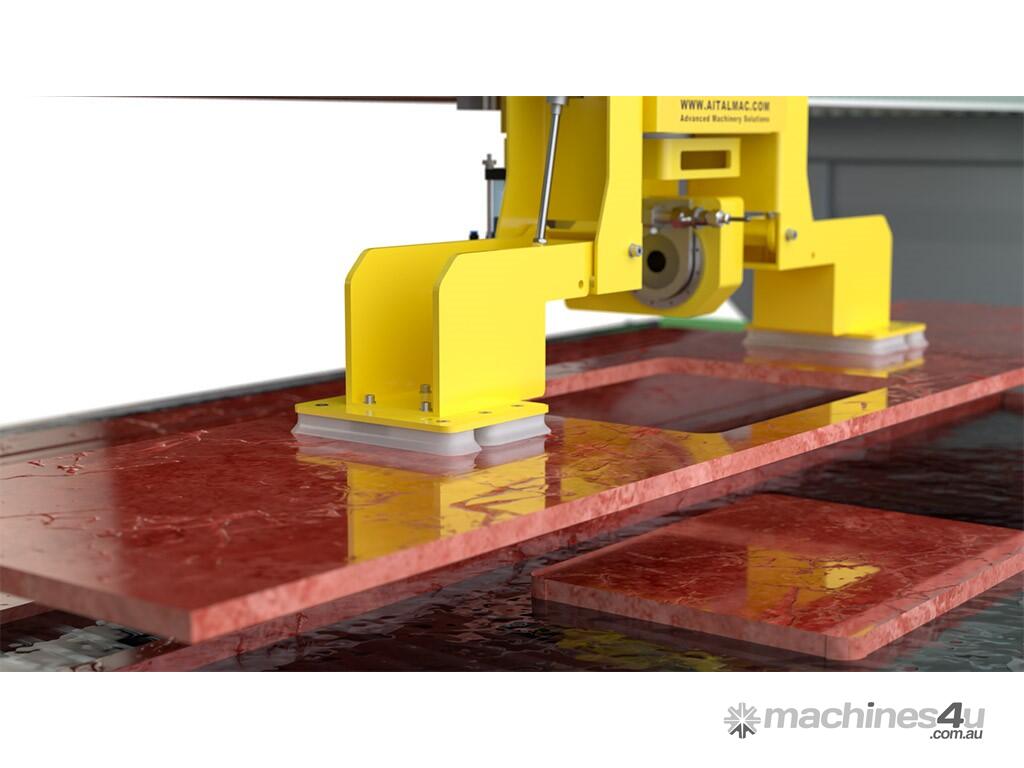

Vacuum Manipulator with Washdown Apparatus
Pegasus Vein Matching Software
