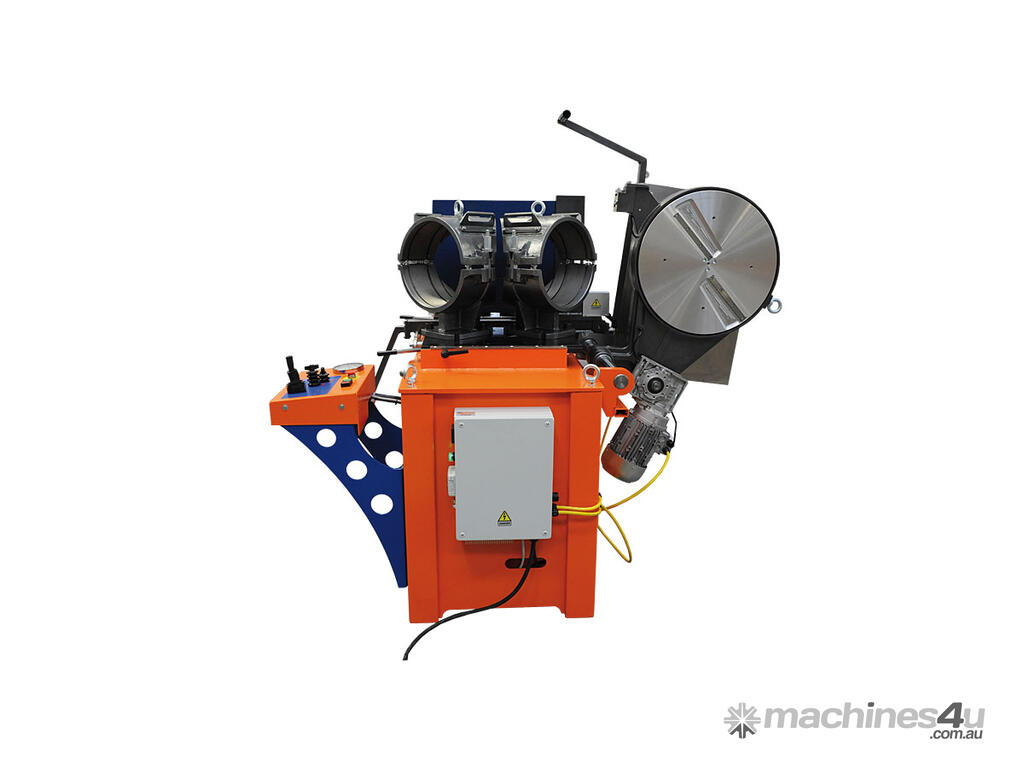

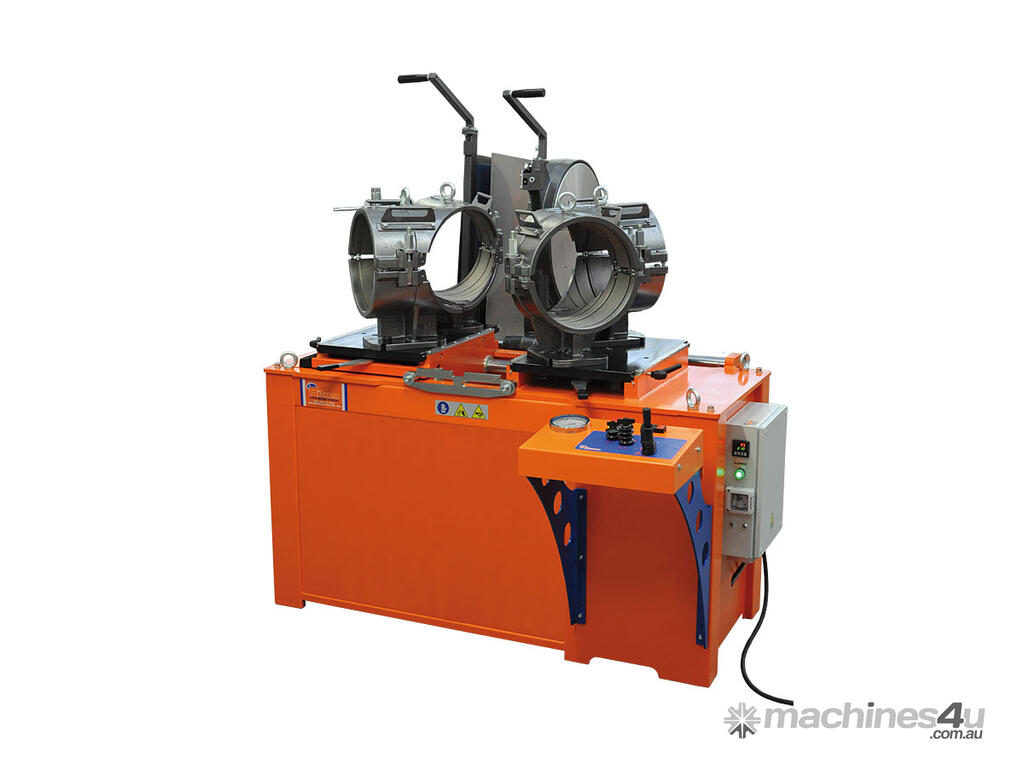

ALFA 400 Manual Workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws:

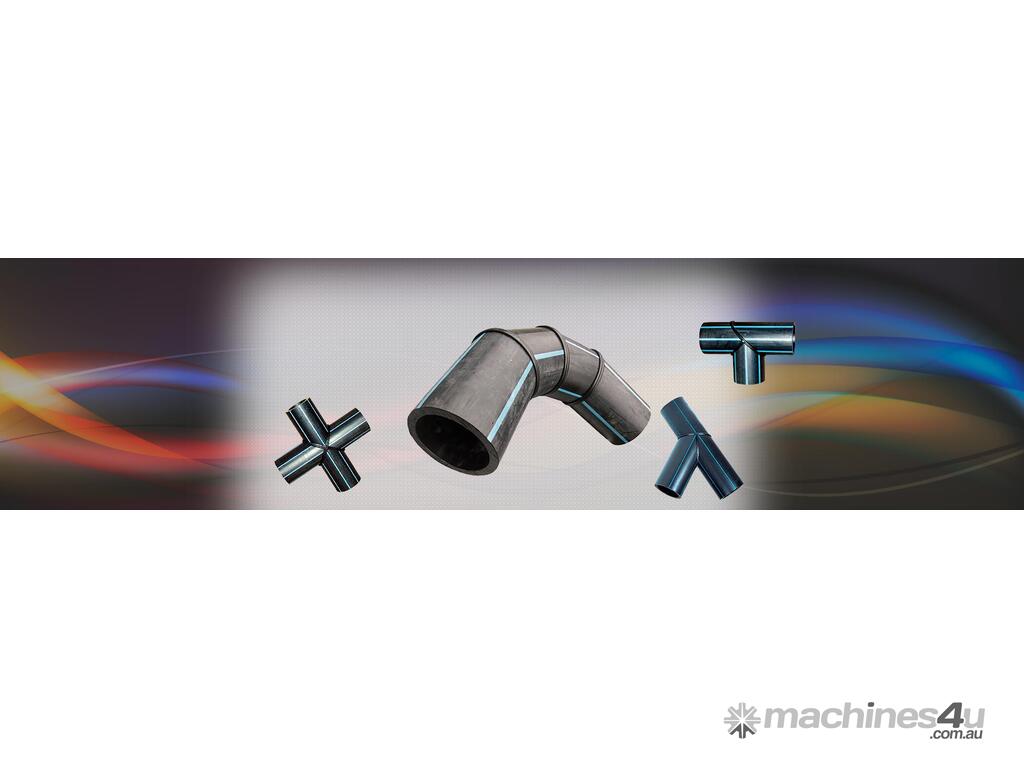

elbows: from Ø 90 mm to 400 mm
tees - crosses - wyes: from Ø 90 mm to 315 mm
The ALFA 400 Manual welding plastic materials such as: HDPE, PP.
Composed of:
- A machine body with two carriages, one of which driven by a hydraulic system
- A manual hydraulic control panel for the welding cycle
- A milling cutter
- A Teflon-coated heating plate, power supply 230 V 50/60 Hz
STANDARD COMPOSITION
- Machine body with manual control panel
- Heating plate
- Milling cutter
- Service tools
- Elbows jaws Ø 400 mm with lateral support inserts from Ø 90 to Ø 355 mm
Materials
HDPE/PP
Working range
ELBOWS
Ø 90 ÷ 400 mm
Y - TEES - CROSSES
Ø 90 ÷ 315 mm
Welding system
Manual
Power supply
230 V Single Phase 50/60 Hz
Total absorbed power
7400 W
Working Temperature
165° ÷ 280° C
Weight
647 Kg
Dimension
1490x2020x1700 mm
