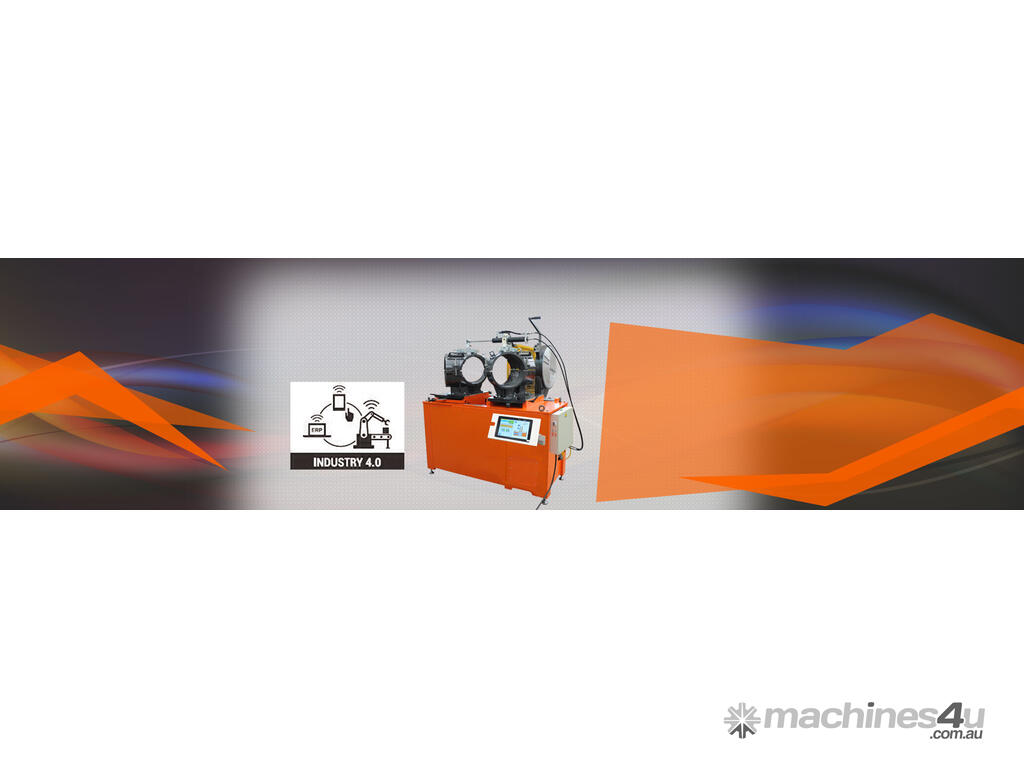

Alfa 400 Tab CNC Fitting Fabrication Butt Fusion

EASIER - MORE INTUITIVE - BETTER RESULTS

ALFA 400 TAB is not only the evolution of a CNC welding machine for making quality fittings from pipe segments, but a new Premium concept where “Welding and Connection” now generate a new work experience. The new graphic interface of ALFA 400 TAB makes welding easier, while the “real-time connected” work cycle opens up new productivity scenarios for the customer: Industry 4.0

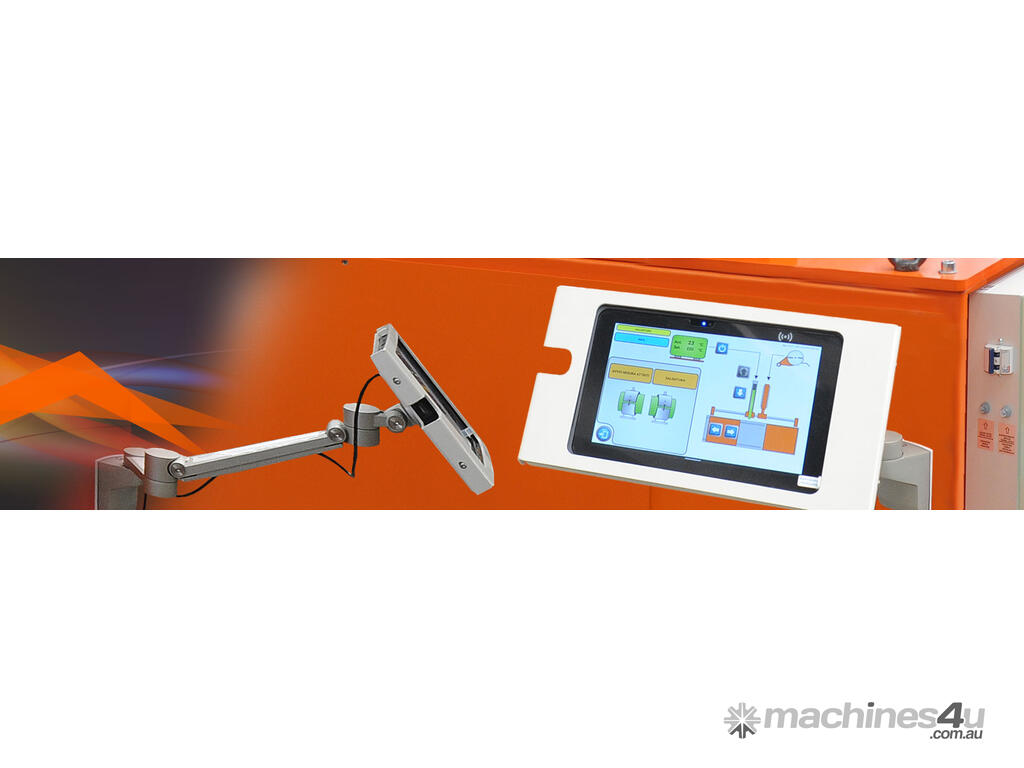

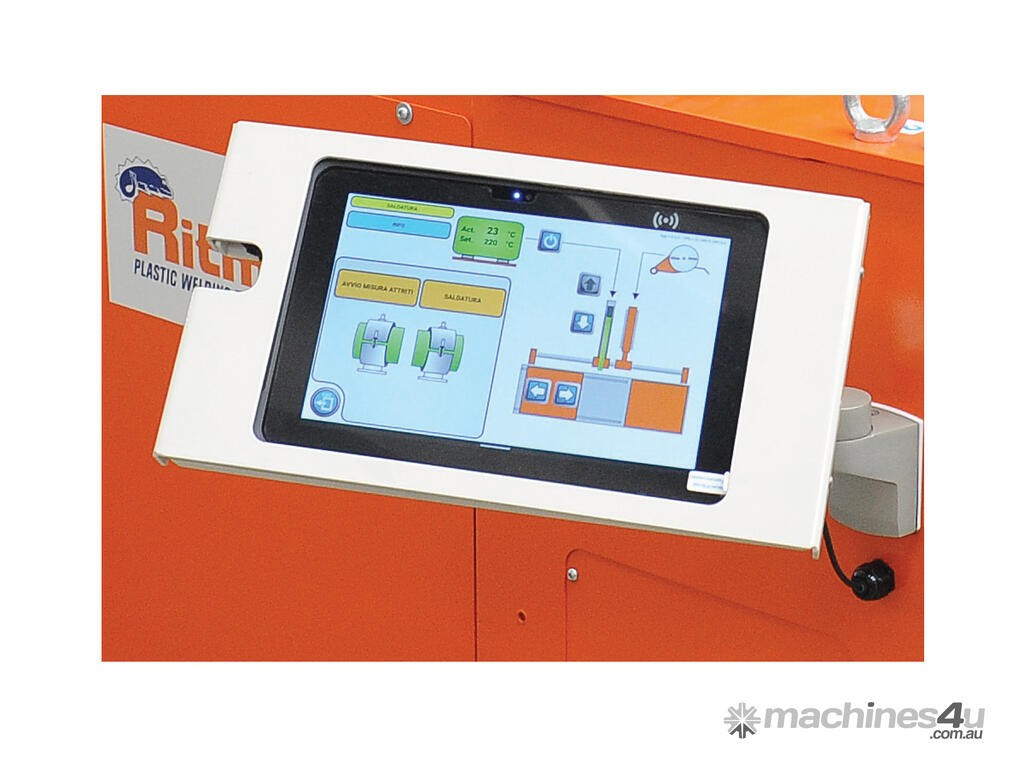

The welding machine is managed via a 10” Android tablet mounted on an articulated and adjustable support. The graphic resolution of 1920 x 1200 pixels guarantees highly sharp images.

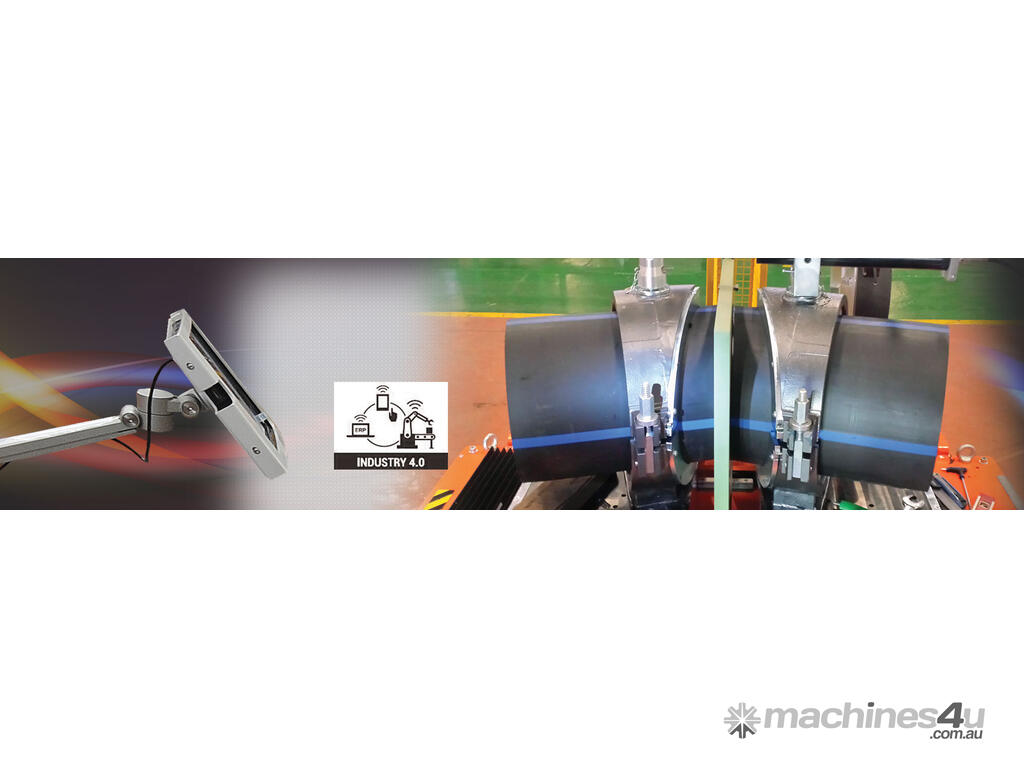

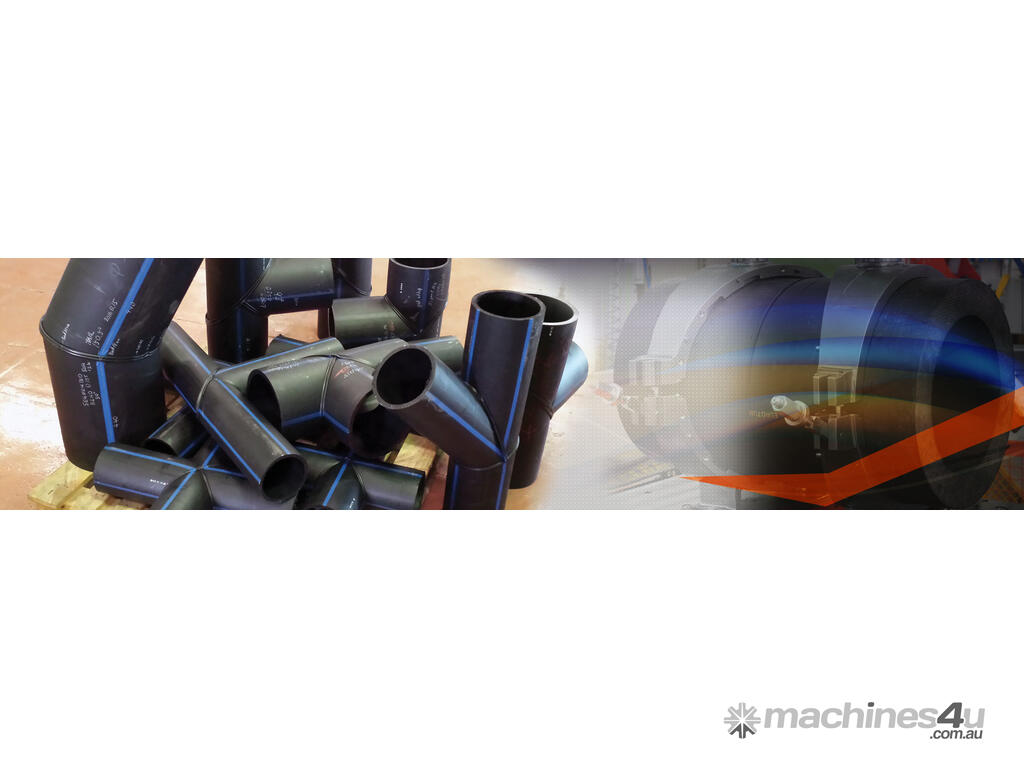

The welding machine creates bends up to Ø 400 mm or 16” IPS; wyes, tees or crosses up to Ø 315 mm or 12” IPS and thanks to thin clamps it is able to weld fittings or molded bends.



CREATE VALUE:

1 – AUTOMATIC WELDING

2 – ELIMINATES OPERATOR ERROR

3 - DATA-LOGGING INCLUDED

4 – PERSONALIZED PARAMETERS

5 – WELDING REPORT

Materials
PE 80, PE 100, PE-HD,

PP, PVDF


Working range
ELBOWS

Ø 90 ÷ 400 mm

Y - TEES - CROSSES

Ø 90 ÷ 315 mm



Welding system
CNC


Memory
  ?


Power supply


230 V Single Phase 50/60 Hz

400 V Three Phase 50/60 Hz


Total absorbed power
7400 W


Working Temperature
180° ÷ 280° C


Weight
647 Kg


Dimension
1680 x 2190 x 1800 mm
