The Italian-Made Ritmo Eco 63 - 180 Aligner is a professional tool used for positioning and supporting pipes when welding electrofusion couplers from Ø 63 to 180 mm.

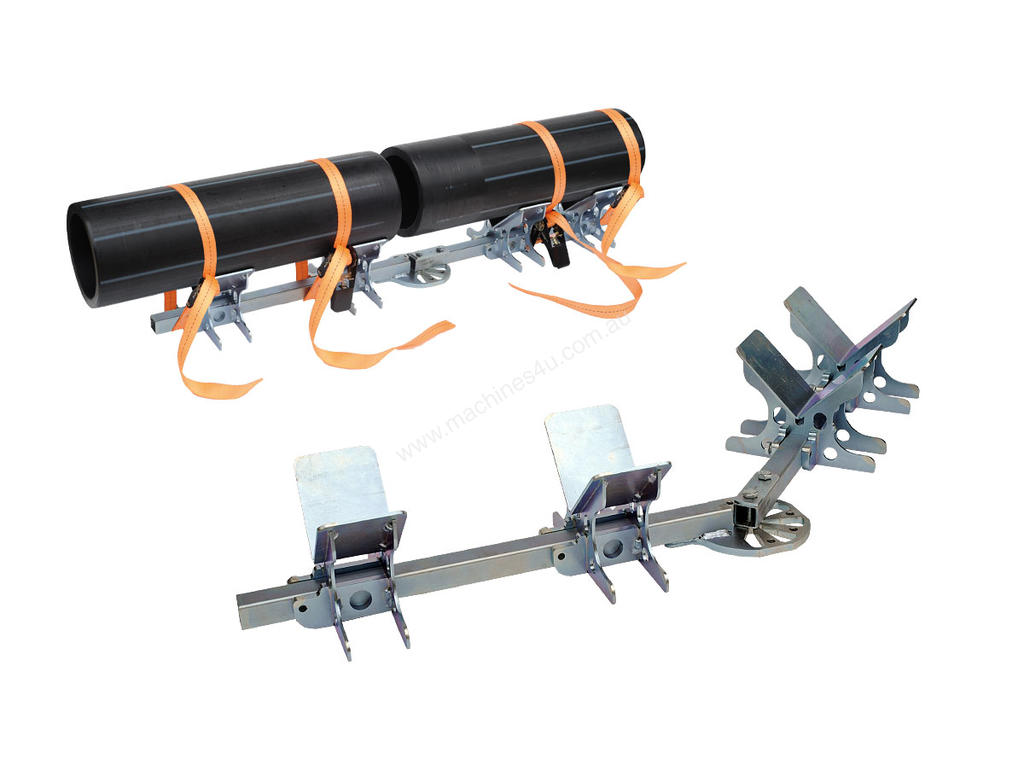

The aligner is entirely made of steel; it is composed of a central positioning plate and axes for fixing the pipes. The positioning plate has 4 working combinations in order to weld at 30 °, 45 °, 90 °, in-line and T-junctions. The axes are equipped with V-shaped clamps with a locking system of the tubes by means of ratchet. In addition to fixing the tube to the vice, the system performs the centering function. Each axis has two guides on which the vices can move.
The aligner is available in two configurations: with two or three axis (for welding T-fittings).
Matrix Piping Systems also offers servicing, calibration and spare parts for Ritmo poly welding machinery. Our experienced team of service technicians can assist you with diagnosing and repairing any issues that may arise. Call us today to find out more!
Compostion:
- Aligner complete with four clamps
- Service key
Technical specifications:
Field of work: Ø 63 ÷ 180 mm
For welding: 45 ° - 90 ° - in line - T
Dimensions 2 axes: 915 x 140 x 130mm
Dimensions 3 axes: 915 x 575 x 130 mm
Weight 2 axes version: 7.5 Kg
Weight 3 axes version: 10 Kg
