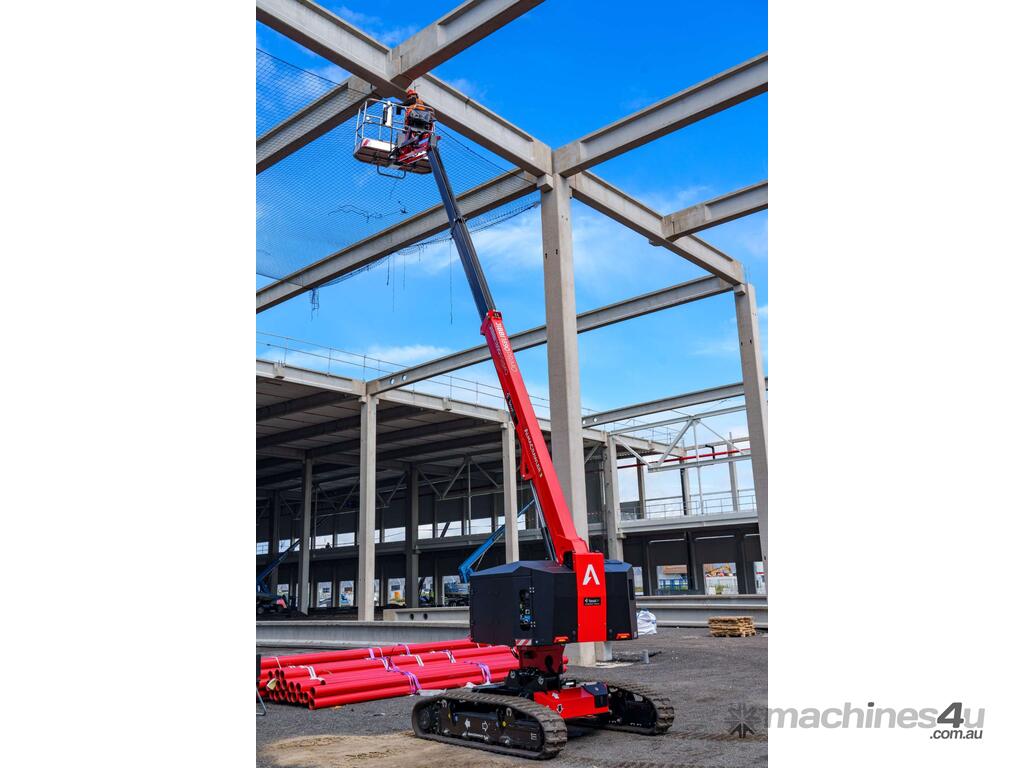

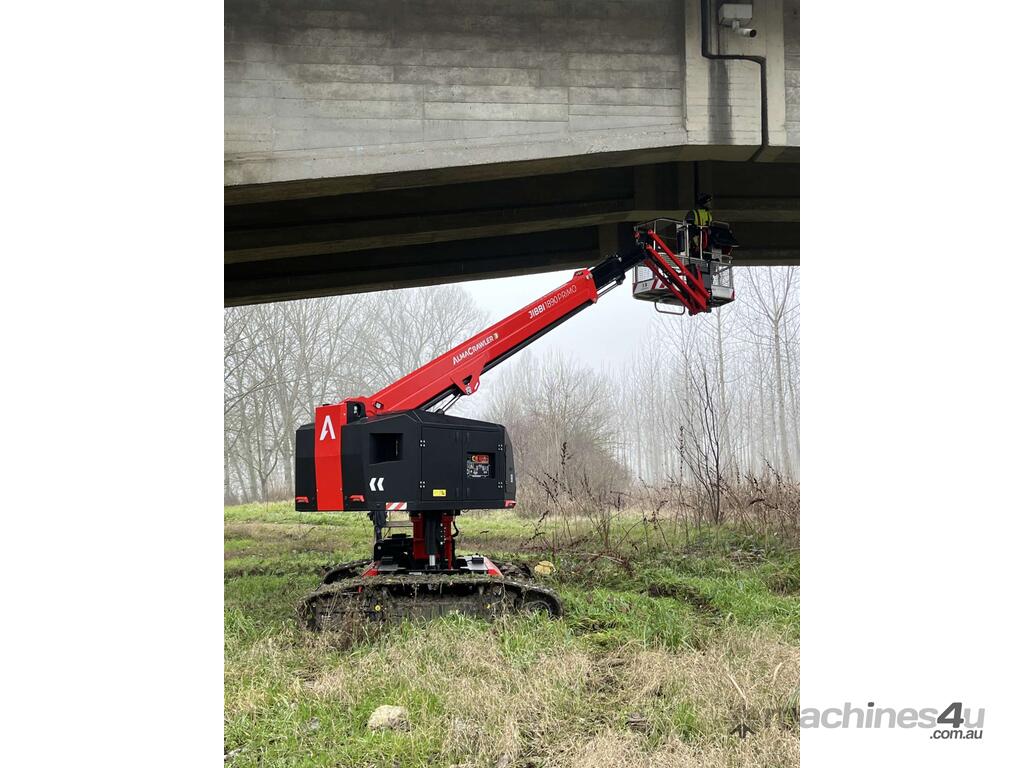

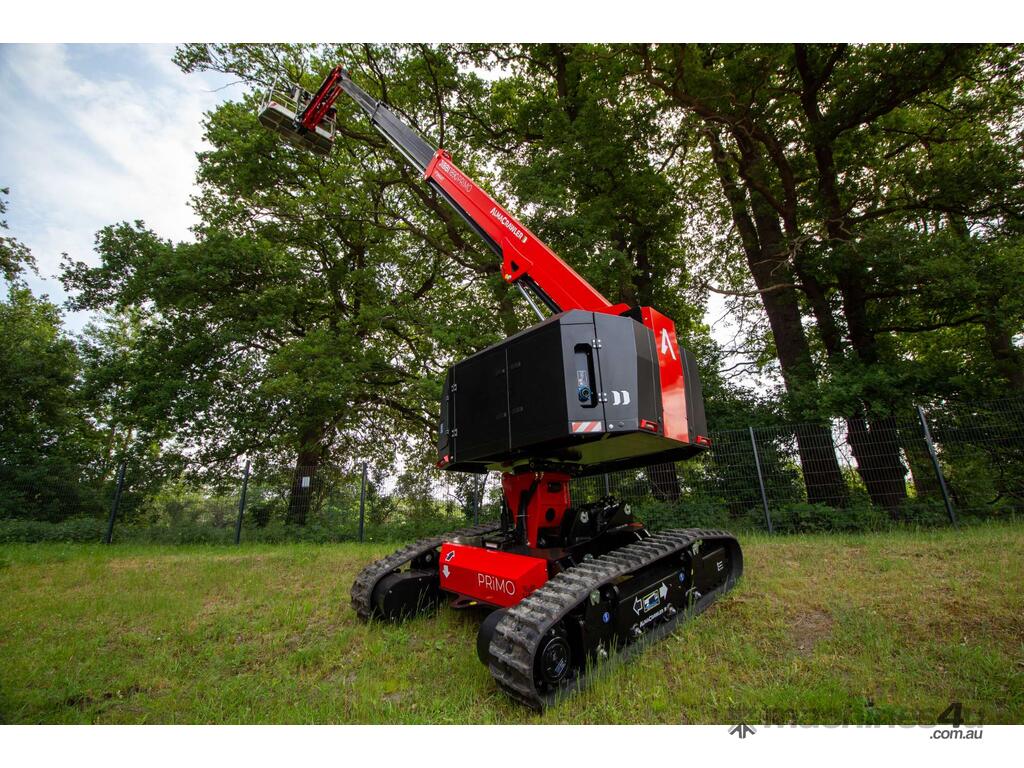

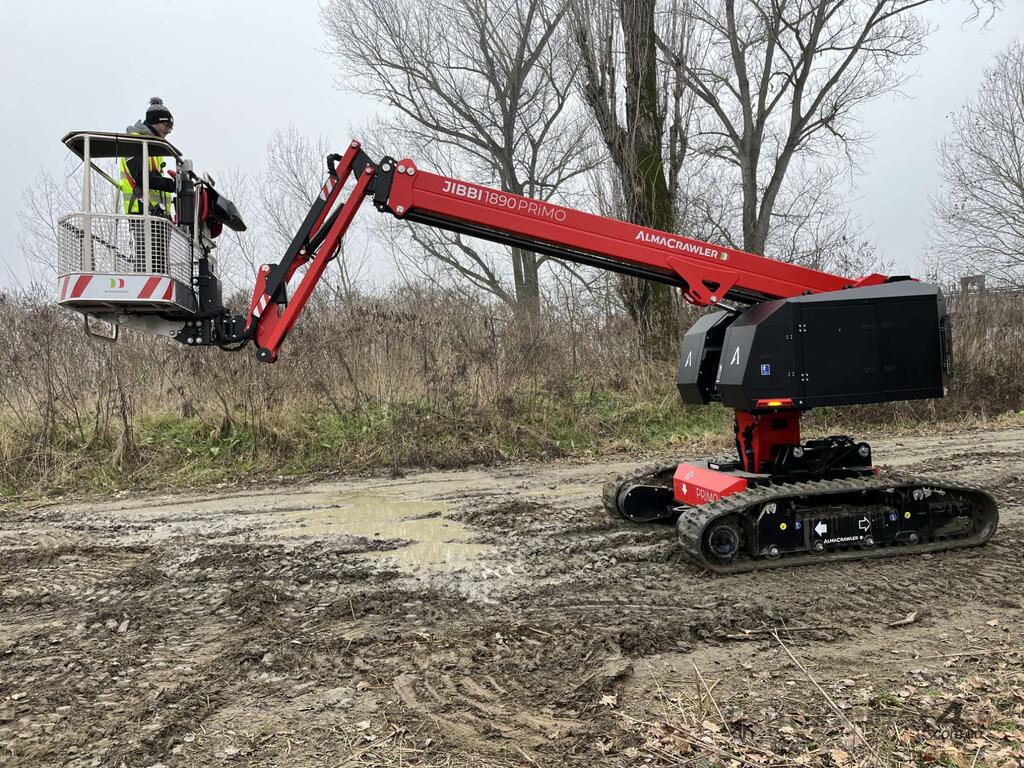

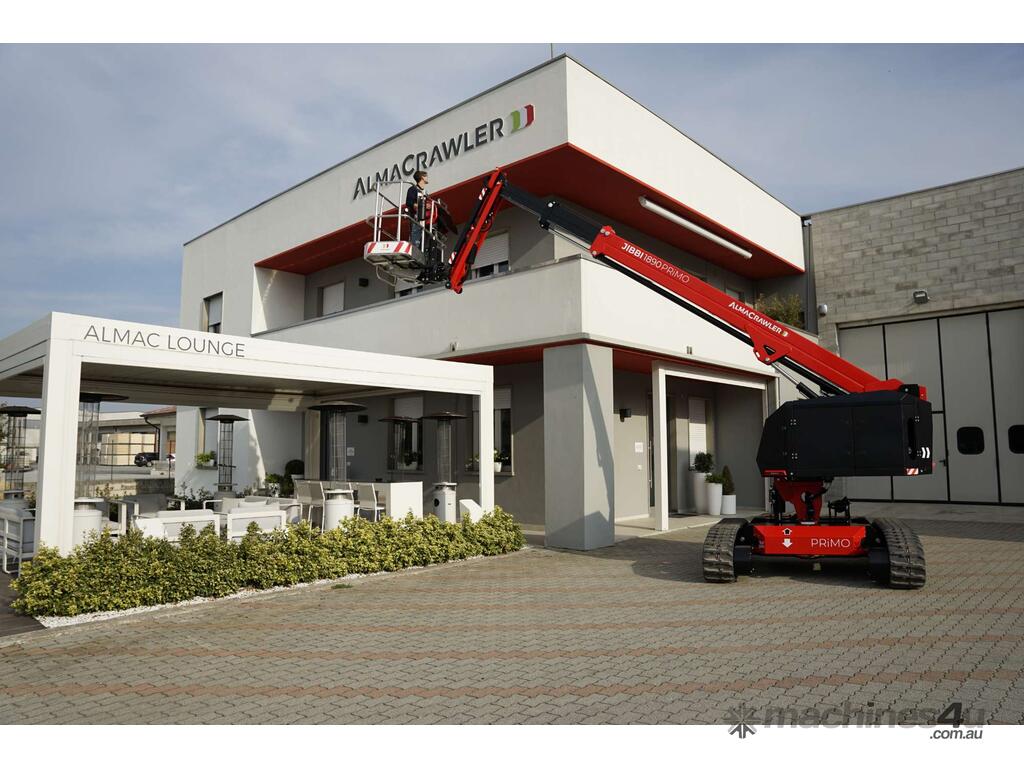

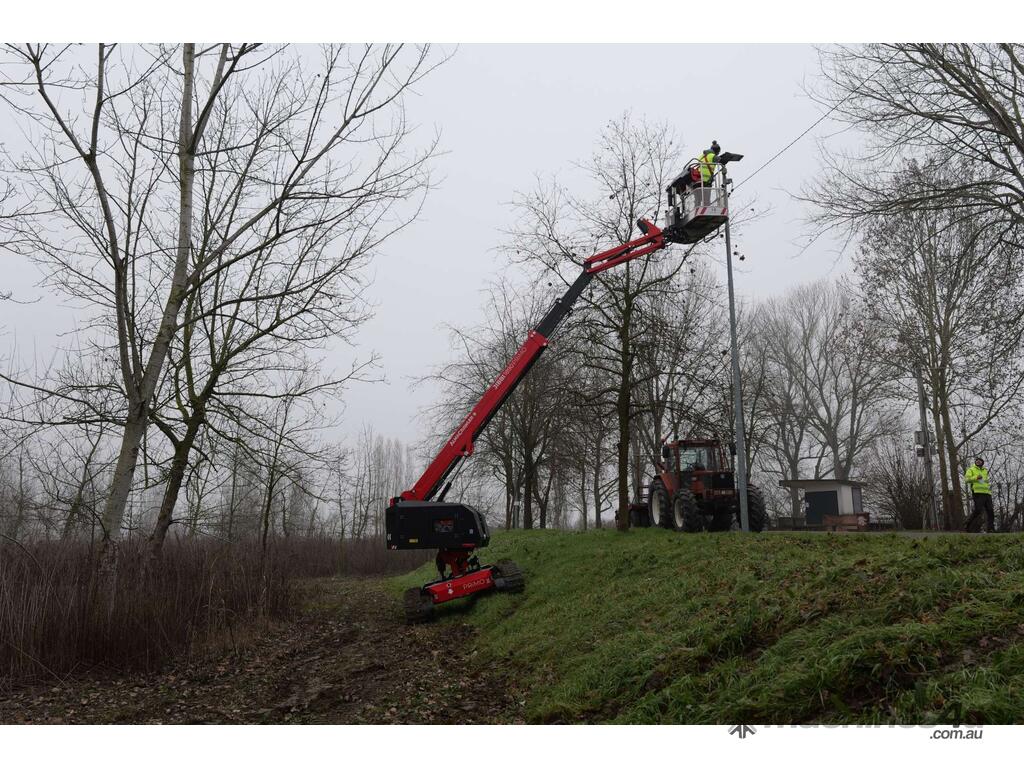

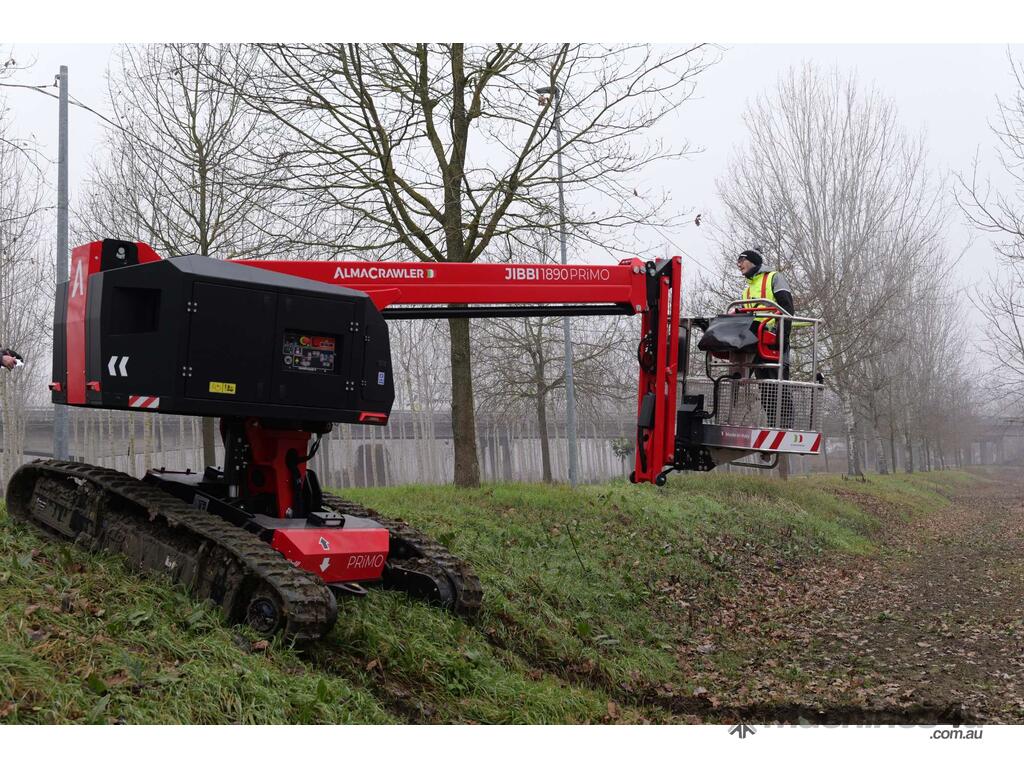

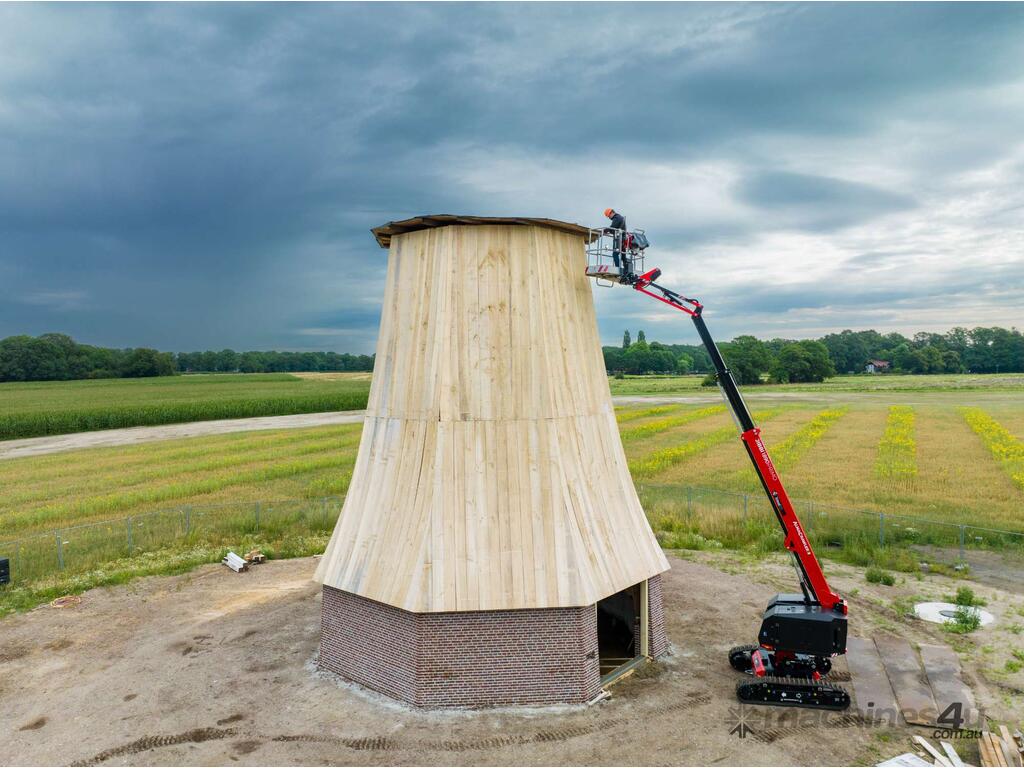

AlmaCrawler JIBBI 1890 PRiMO Telescopic Boom

The first full electric, self-levelling, tracked telescopic boom with electric drive, powered by fully removable battery power packs.
Designed to eliminate jobsite obstacles, with an 18m working height, it can safely be driven up to 14m and on 15° lateral and longitudinal inclination, drastically enhancing operator efficiency, productivity and safety.

Full electric with a completely removable power pack
Infinite autonomy with our fully removable Power Pack, integrated forklift pockets, a new and innovative power option. Each unit can be easily substituted if you use our equipment on a heavy-duty job, or simply take the power unit off-site for recharge.

Choose between interchangeable AGM or Lithium battery packs! The Jibbi 1890 PRiMO automatically recognizes the power unit and starts using it.

New controller
Completely reimagined controller for a streamlined user experience based on industry-accepted standards and rental sector needs. It features a standard Anti-Entrapment bar and comfortable joysticks.

Anti-Entrapment System
The AES anti-entrapment system is designed to prevent serious injury by stopping the unit when the operator is crushed against it. Our innovative system furthermore will go back on its trajectory for 3-5 seconds allowing space for the operator to safely remove himself.

Ultrasonic Anti-Collision System
The UAS sensors safeguard the aerial and travel operations by monitoring the area in front and behind the tracks, on the tail swing, and above and below the basket, preventing collisions with obstacles and offering pothole and drop-off protection. This is an optional kit that can be ordered on the Jibbi 1890 PRiMO.

ATS – Automatic Tensioning System
The ATS zero maintenance track tensioning system is connected to and controlled by the main hydraulic system. The tracks are automatically tensioned and require no greasing or maintenance.

Optional extra kits:

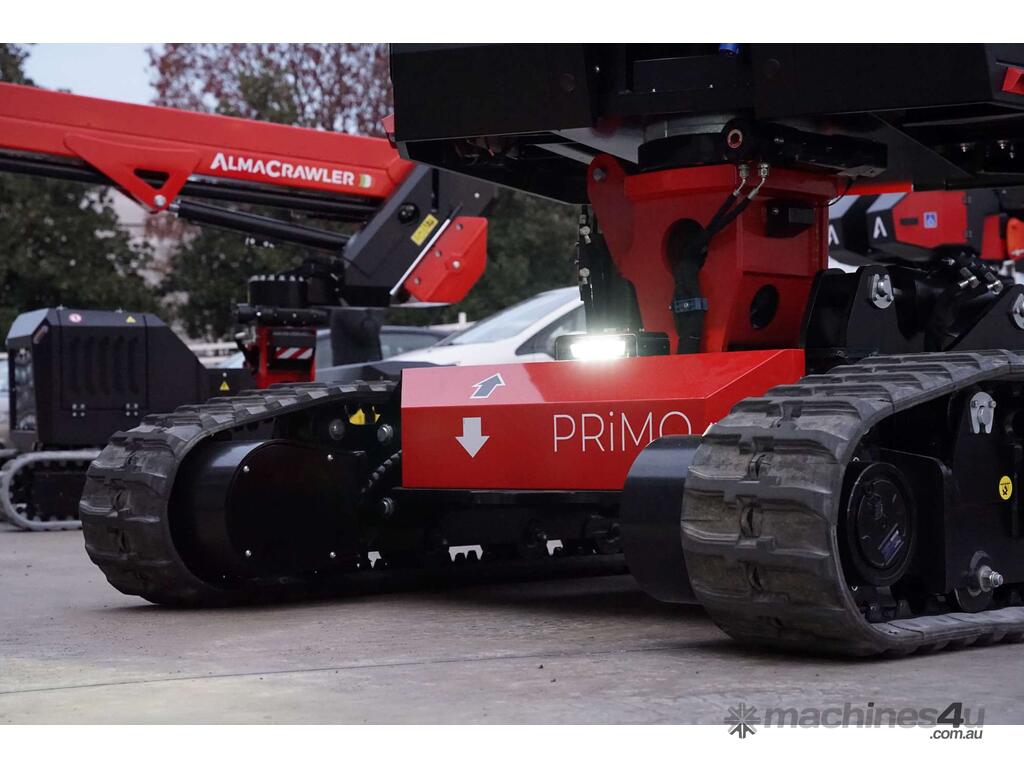

Work Lights Kit – an option for work lights positioned on the front and back of the undercarriage and around the basket.
Arctic lubricant for cold climate

Technical data JIBBI 1890 PRiMO

Max Working Height: 17.90 m
Max Height Basket Floor: 15.90 m
Max Moving Height: 13.80 m
Max Outreach:
(Load 140 kg): 9.92 m
(Load 250 kg): 8.32 m
Rotation Angle: ±190°

Basket:
Size: 1.80 x 0.70 m
Basket Rotation Angle: ±70°
Max Basket Capacity: 250 kg (2 persons)

Dimensions in Stowed Position:
Length: 5.86 m
Width: 2.20 m
Min Height: 2.16 m

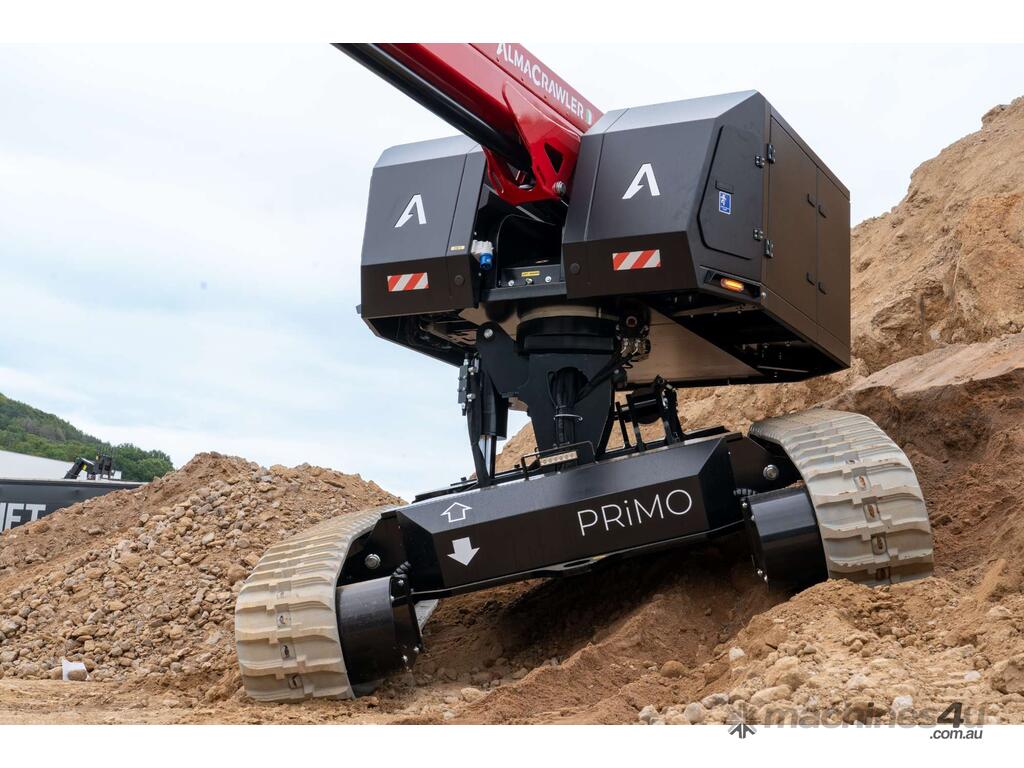

Levelling:
Longitudinal Levelling: ±15.6°
Lateral Levelling: ±15.6°

Performance:

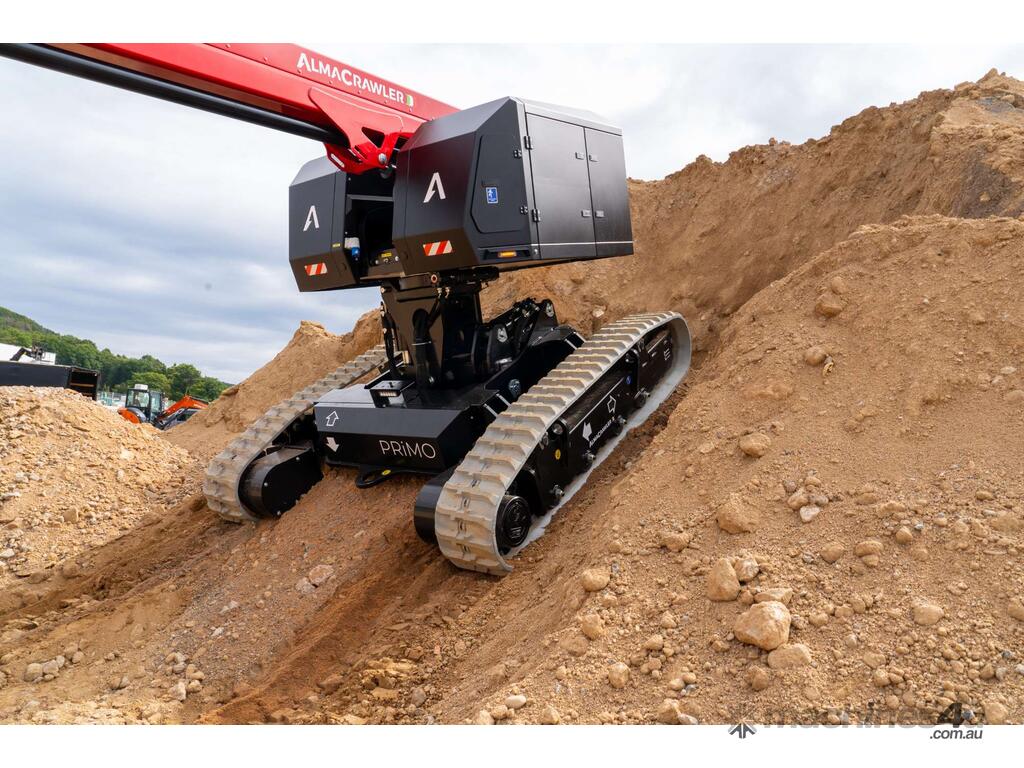

Max Gradeability: 25°
Max Side Gradeability: 25°
Drive Speed (Fast): 4.50 km/h
Drive Speed While at Height: 0.60 km/h

Safety:
Anti-Entrapment System: Yes

Weight:
Total Weight (ELC): ~6300 kg
Total Weight (LTH): ~5870 kg (LTH)
Total Weight (LTH): ~5910 kg

Traffic Load:
(Load in Basket 140 kg):
4.89 kN/m² (ELC)
4.56 kN/m² (LTH)
4.57 kN/m² (LTH)

Power System
Main Power Source:
ELC: Lead Acid Power Pack 420 Ah-48V
LTH: Lithium Power Pack 330 Ah-48V
LTH: Lithium Power Pack 440 Ah-48V

Recharging Time:
Output Current: 65A at 230V; 25A at 85V
ELC: 6.5 h at 230V
LTH (330 Ah): 5.0 h at 230V
LTH (440 Ah): 6.5 h at 230V

Battery Charger:
Input: 85-265V 50/60Hz
Output Current: 65A max – Automatic setting

Electric Gearmotors:
Power: 7.5 kW 48V each (IP67)

Electric Pump:
Power: 4.5 kW 48V

Extras – On Demand
Non-marking Tracks: Yes
Kit Works Lights: Yes
Arctic Lubricant for Cold Climate: Yes
Ultrasonic Anti-Collision System: Yes
