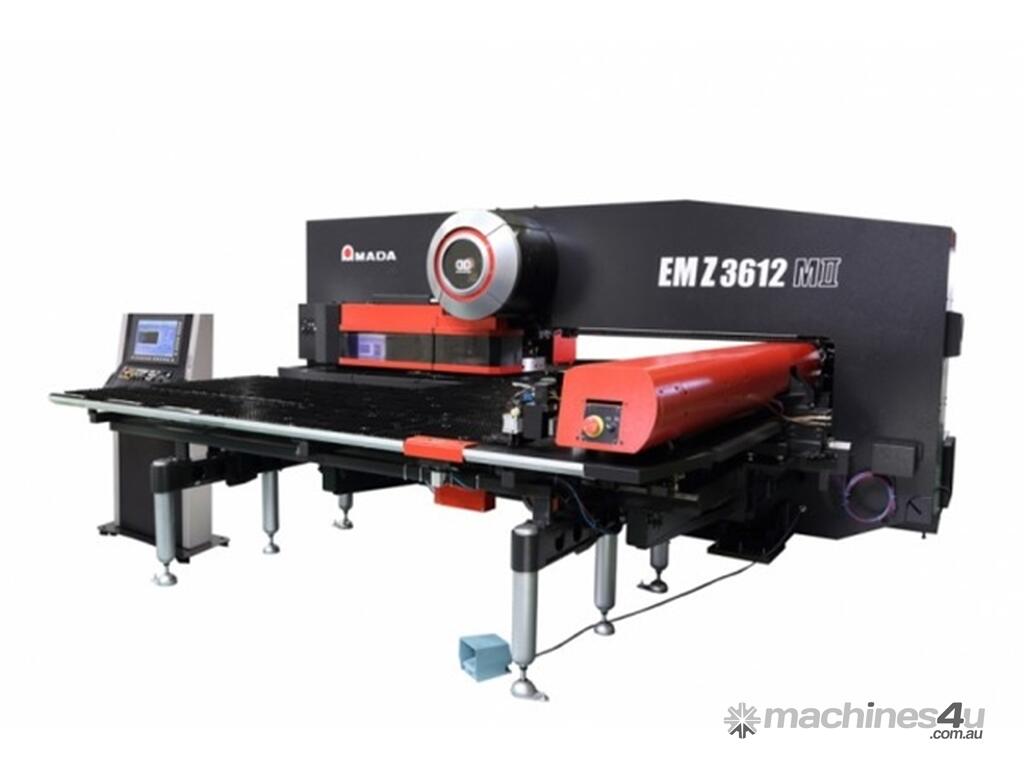

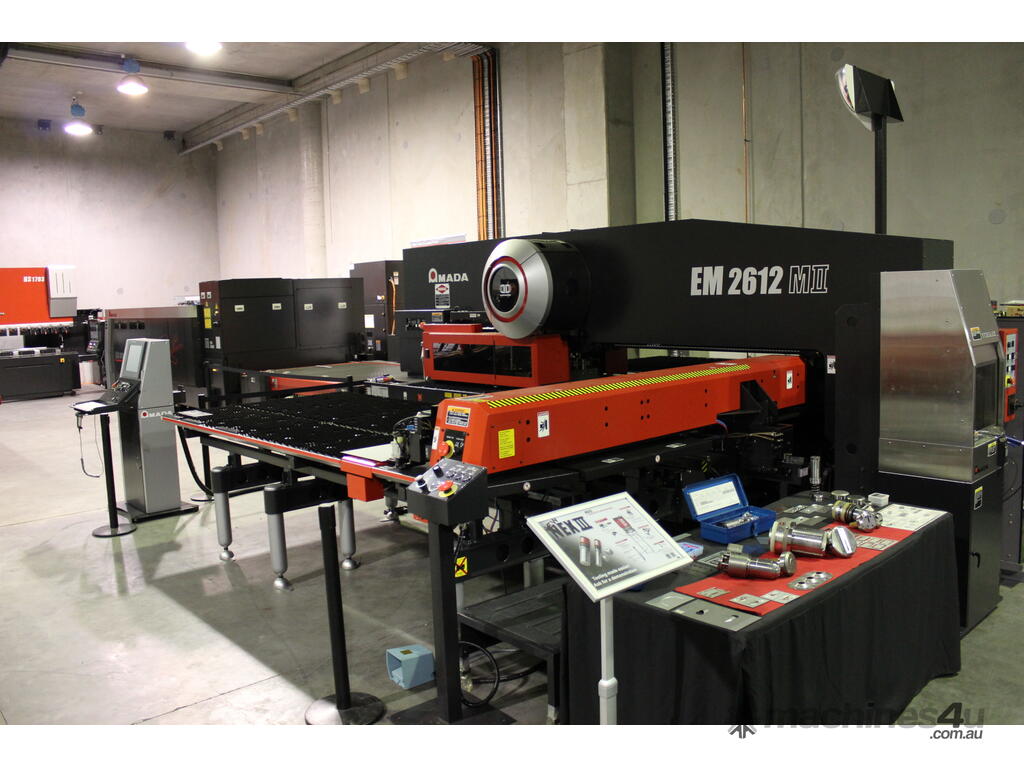

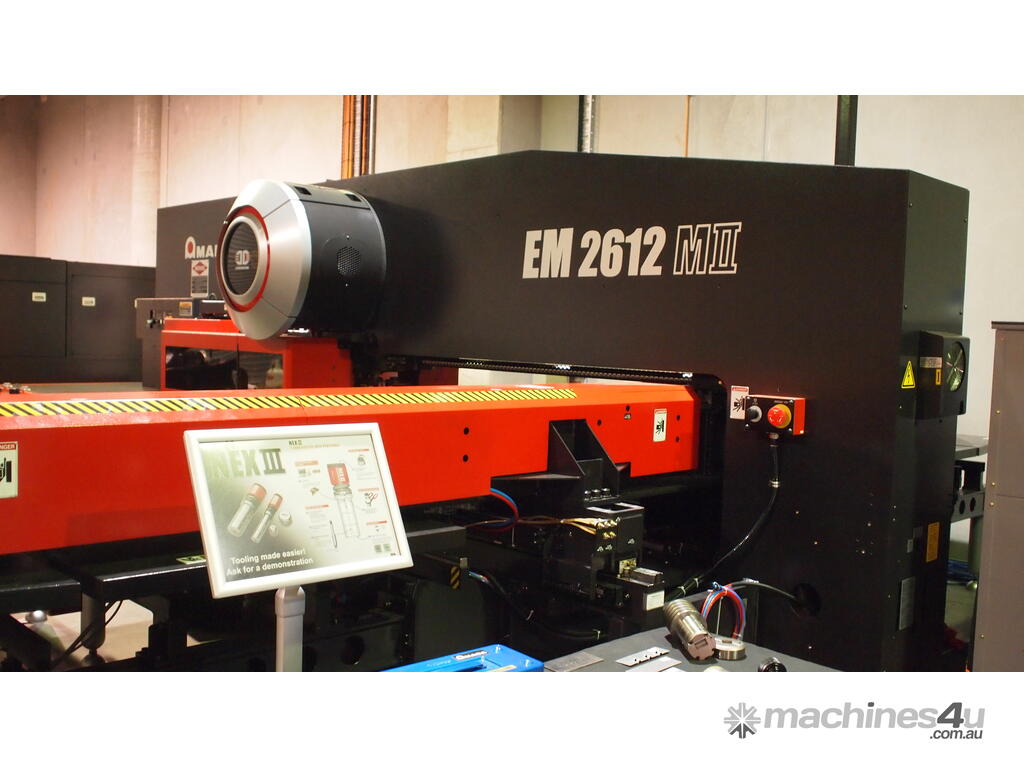

Servo-Electric Turret Punch Press
The next generation of the cutting edge EM Series turret punch press. Utilizing power saving electric servo drives, this innovative machine combines high speed production, impressive reliability and numerous cost and process improvements.

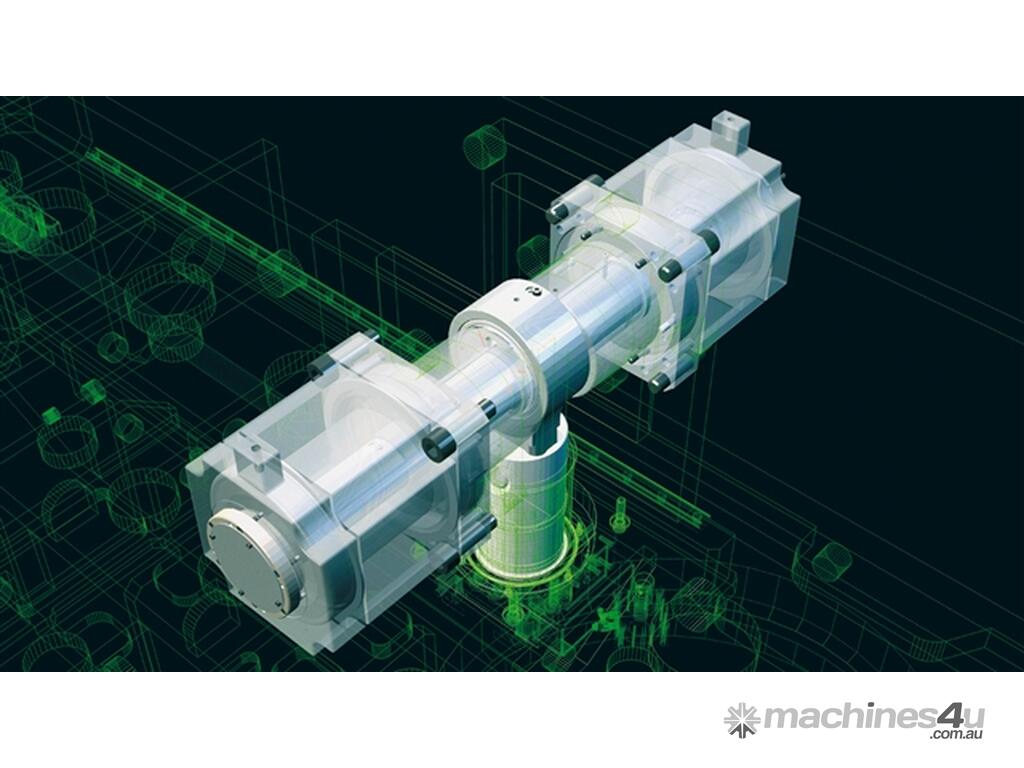

The EM M2 Series turret punch press uses twin AC servo drives coupled to the drive shaft. AMADA’s drive system combines the simplicity of the original clutch and brake technology with the high speeds of the fastest hydraulic ram driven systems. The result is unmatched performance, superior reliability, and lower operating costs.
EM M2 Series Standard Features
Process 3m x 1.5m sheets without repositioning (On 2612 or 3612 model)
The highest real-world hit rates and ram positioning accuracy.
Twin servo drives eliminate the need for complex hydraulics or oil-cooling chillers—dramatically reducing maintenance and repair costs over the life of the machine.
Precision ram motion control (speed, stroke length, hover height and hold time) helps reduce tooling wear and punching noise.
Electrical power savings of up to 70% over typical hydraulic machines.

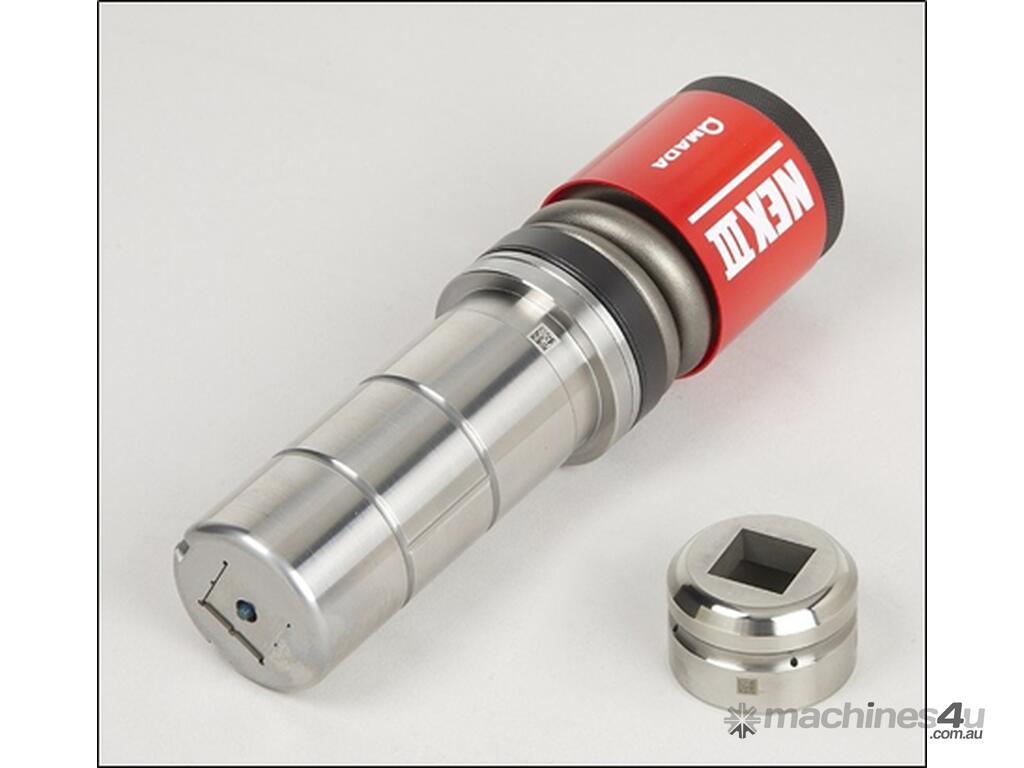

Extended tool life and minimum tool maintenance with Air Blow Oil Mist tooling
Virtually eliminates slug pulling with the power vacuum system
High quality, press-brake-like forming operations up to ½" with programmable dwell at bottom of stroke for complete plastic deformation
Progressive forms, flanges and embossments up to ½" eliminate secondary operations
Forming and high quality processing eliminate secondary operations

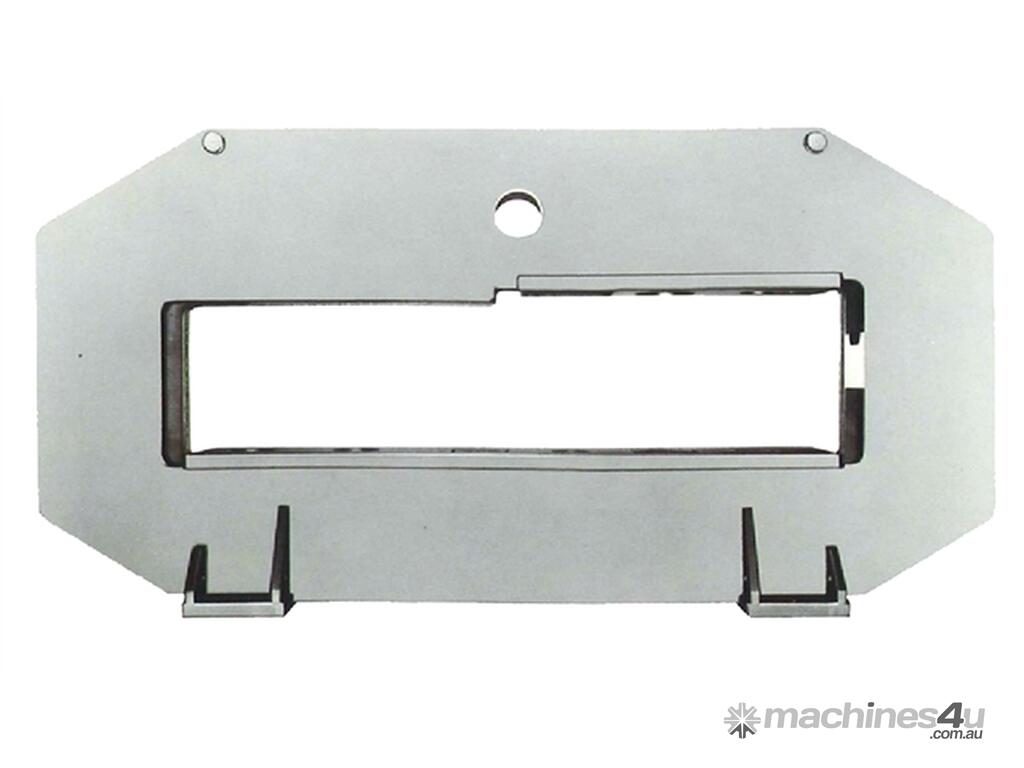

Reduced vibration of the direct twin drive ram combined with the rigid bridge frame ensures tighter tolerances extending tool and machine life while producing high quality, distortion free parts
Brush table design provides scratch-free processing, eliminating secondary finishing.
Free standing PC-based network CNC control allows for flexible layout
