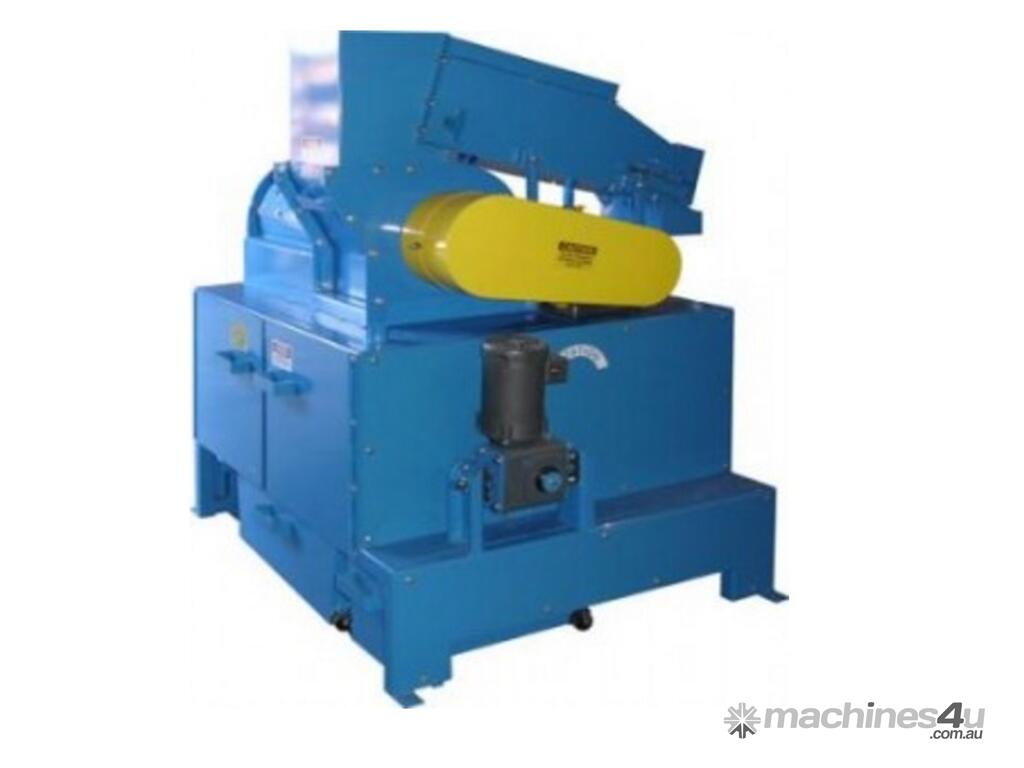

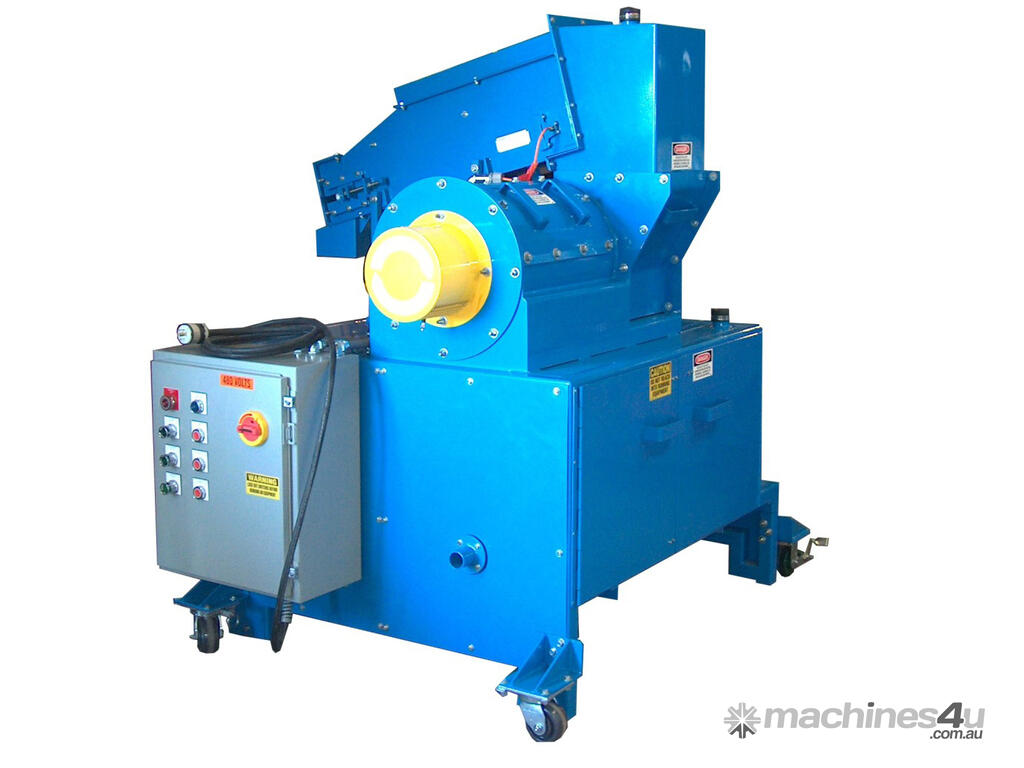

Andela Mini - Glass Crushing System

This small pulverizer system has the same patented flexible impactor technology as our larger Andela Pulverizer Systems with our time proven design for making quality glass cullet or aggregate with separation of caps and paper. The pulverized glass will be 3/8" (10mm) and smaller with rounded edges.

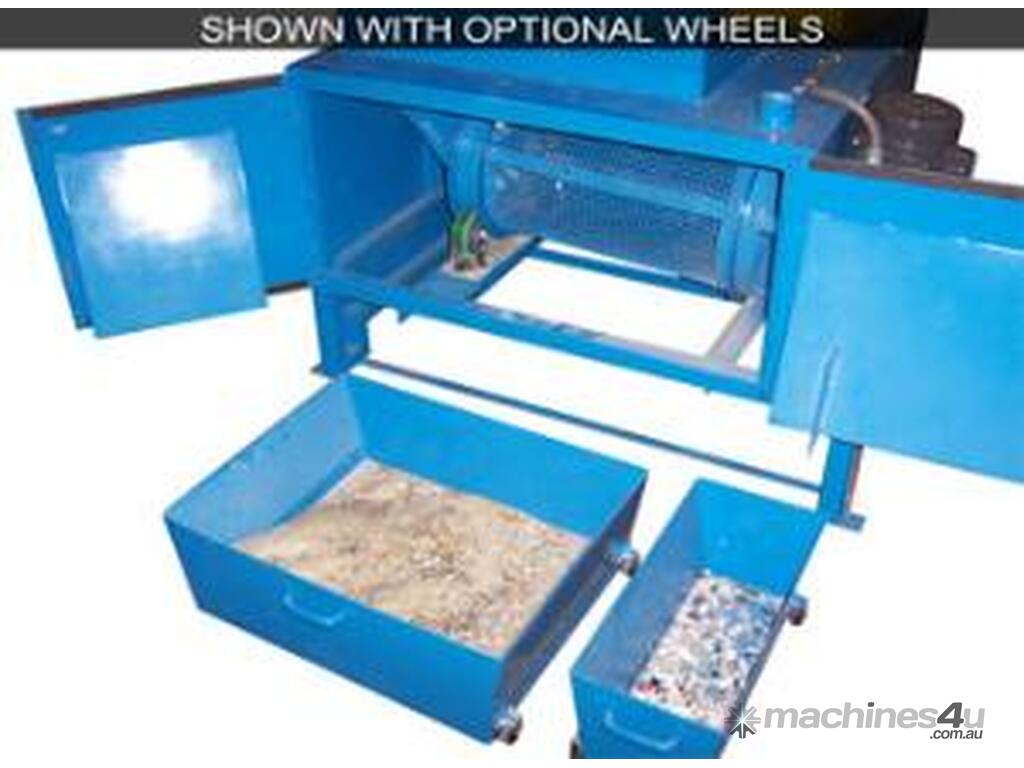

Glass bottles, up to 8" in diameter, are placed by hand on the infeed conveyor and carried into the pulverizer. The pulverized glass goes into the screen to remove the residue (caps, corks and labels). The glass drops into a bin mounted on casters for easy removal from underneath the unit. The residue is separated and deposited into its own, smaller bin under the unit. A dust removal port is provided for a small dust collector that can be attached to alleviate any nuisance dust produced by the process.

The footprint of the unit is approximately 48" Wide, 57" Long and 71" Tall. The shipping weight is approximately 2,000 pounds.

The unit is powered by a single phase, 220 volt, 5HP motor unless otherwise specified. This motor will require a 50 amp breaker in the breaker box that is feeding the power to the unit.


Dimensions
OVERALL LENGTH 52"
OVERALL WIDTH 68"
OVERALL HEIGHT 71"
SHIPPING WEIGHT Approx. 2,000 lbs.
Pulverizer
MACHINE INPUT OPENING Will Accomodate an 8" Diameter Bottle
BARREL DIAMETER AND LENGTH 16" x 34"
BARREL LINER Abrasion Resistant Steel
MOTOR SIZE 5 hp
SOLID STEEL SHAFT DIAMETER 2"
NUMBERS OF HAMMERS 28
HAMMER TYPE Flailing Arm/Hardened Steel
BEARING SIZE 2" Heavy Duty
SEAL PROTECTION 2 Seals at each Shaft Bearing
Trommel
SCREEN 14" OD x 2" long
SCREEN BARREL DIAMETER AND LENGTH 14" x 3"
SCREEN TYPE 7/16? opening (or to spec.) Stainless Steel Woven Wire
MOTOR SIZE 1/2 hp
Bins
PULVERIZED GLASS BIN 29" x 22" x 10"
WASTE BIN 9" x 22" x 10"
Safety Features
EMERGENCY STOP
PROTECTIVE GUARDS Cover Input Hopper, Drive Unit, and Bearings
Electrical
MOTOR VOLTAGE 460V, 60Hz 3 Phase (or per customer specifications)
