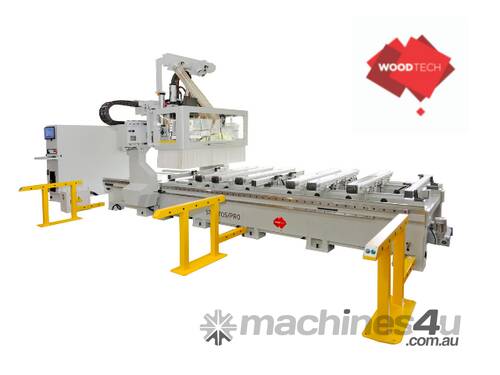

Anderson Stratos Pro Pod and Rail CNC Machine for Commercial and Architectural Work

Anderson by Wood Tech. Aus Owned and Operated. Local Service and Parts in 5 States. Over 1000 Andersons in Aus.

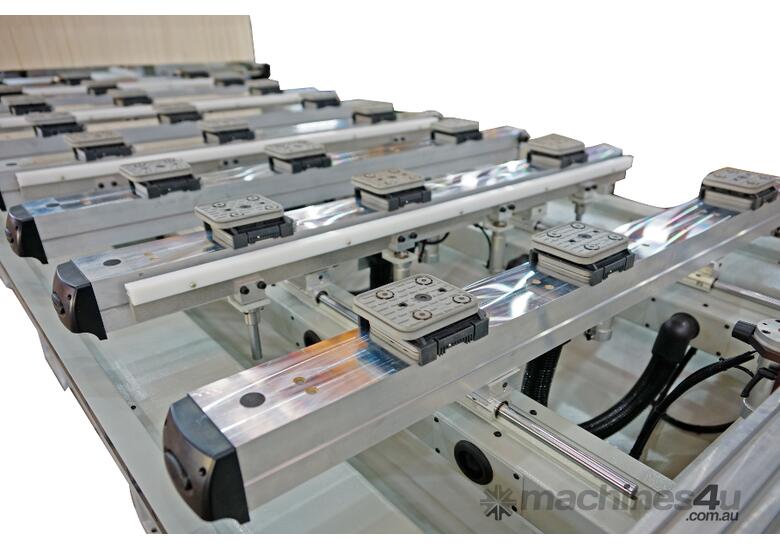

For exceptional commercial, architectural and joinery work, the Anderson Stratos Pro Pod CNC features 6 sets of pod and rail beams on the table. Each pod is equipped with 4 movable suction cups and 2 pop up pins. The machine features 6 lifting plates for lifting panels.

Working Stroke
X: 3,900 mm.
Y: 2,180 mm.
Z: 350 mm.

Axis Speeds
X: 80 m/min
Y: 80 m/min
Z: 30 m/min

Spindle
15 HP HSK-63F (liquid-cooled)
21,000RPM
Clockwise / Anti Clockwise rotation of spindle
Torque support ring
Spindle speed override

Drilling Unit
13x7 Vertical Boring Block, also with horizontal drills
(X=3+3, Y=1+1 ) at 4,800RPM.
Vairable RPM speeds as optional

Stratos Drive System

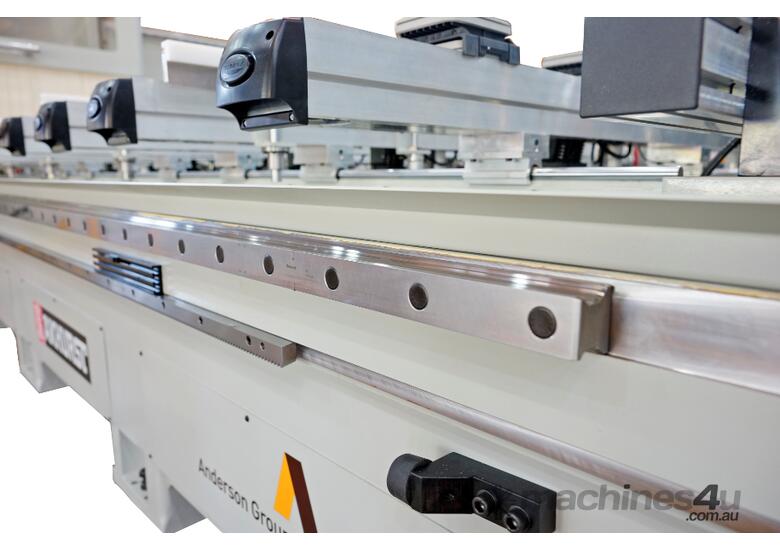

X: Helical rack & pinion system with two servo motors controlled
Y: Helical rack & pinion system
Z: Ball screw system

Other Features
- Tool touch-off device
- Both heads cover working table
- Safety hood for spindle carrier
- Two sets of light barriers
- Safety fence for three sides of machine.
- 16 tool holders and 32 x collets for HSK-63F
- Worklist software

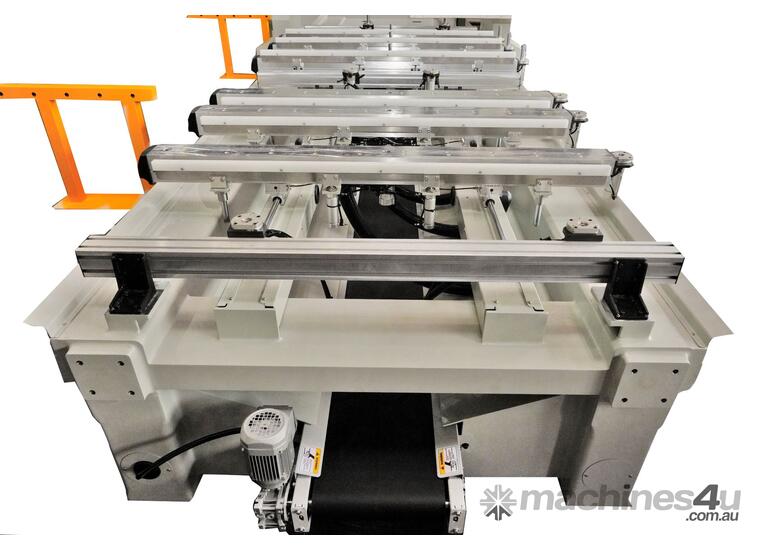

- Waste conveyor system

Upgrades Available
Aspan software
16 automatic tool changer with travel along X-axis
Increase from 15HP to 20HP
Increase inverter control for drill unit from 3000 RPM to 6000 RPM
