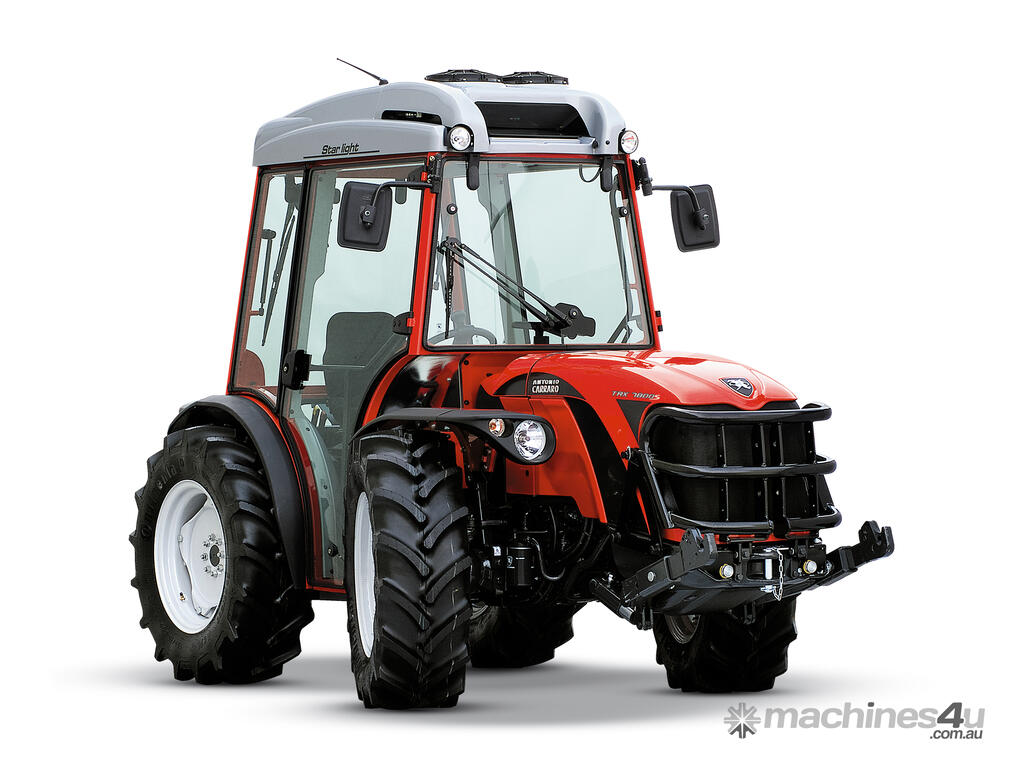

Antonio Carraro 4WD 70hp Tractor - Suitable for Agriculture & Civil

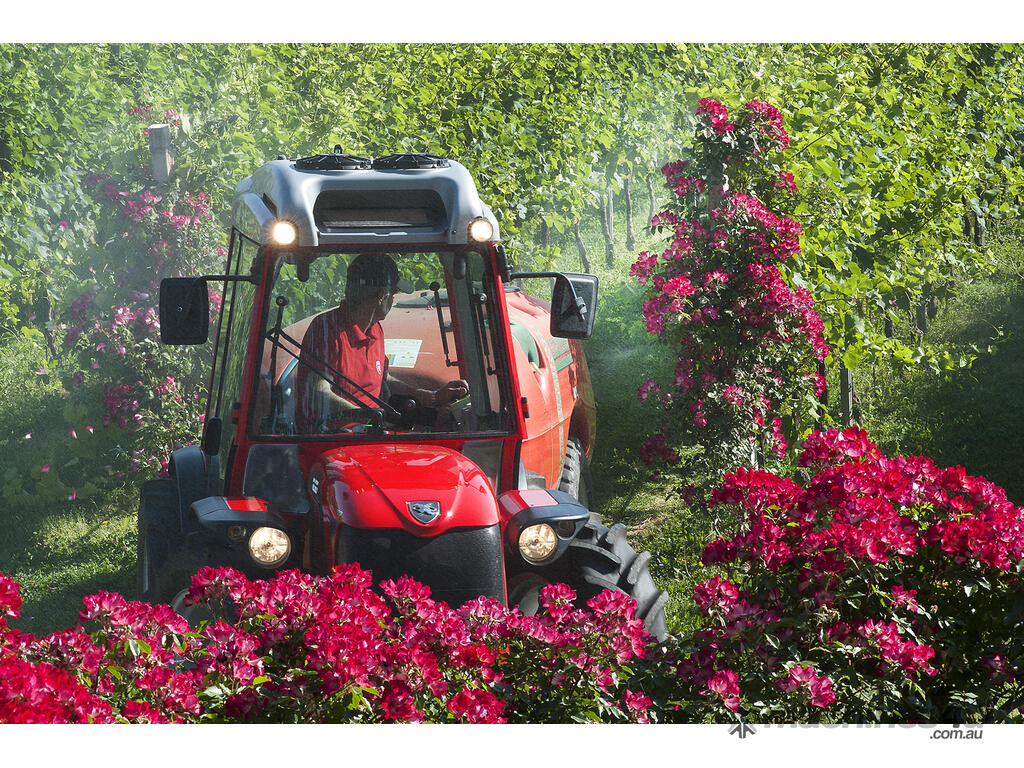

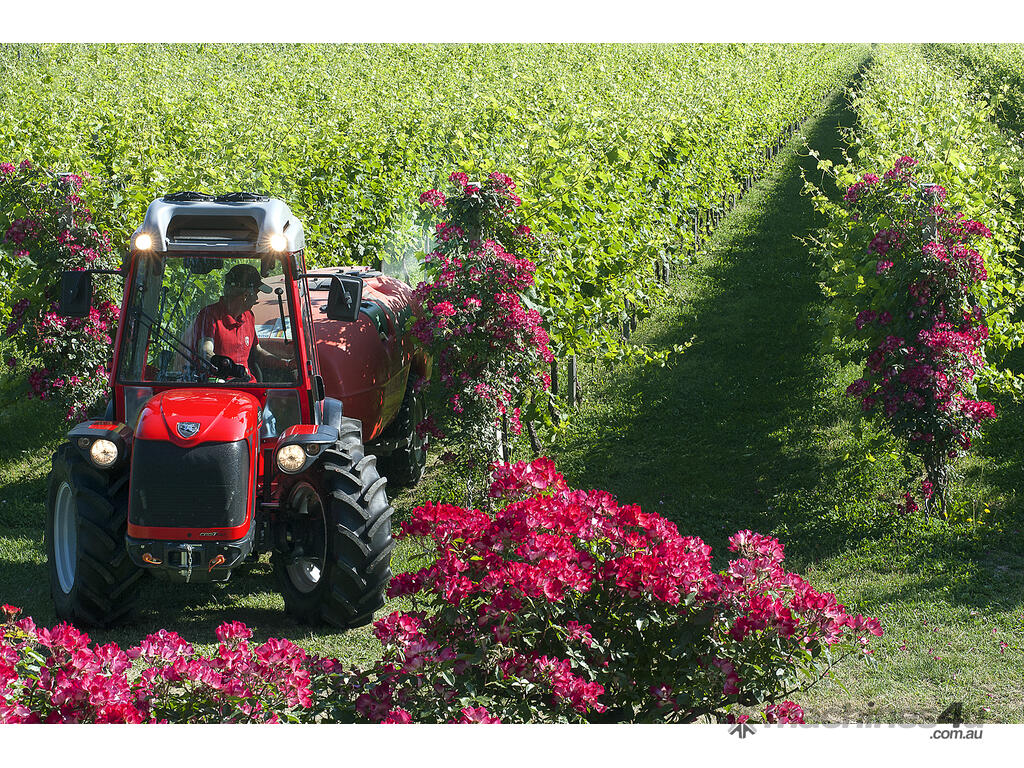

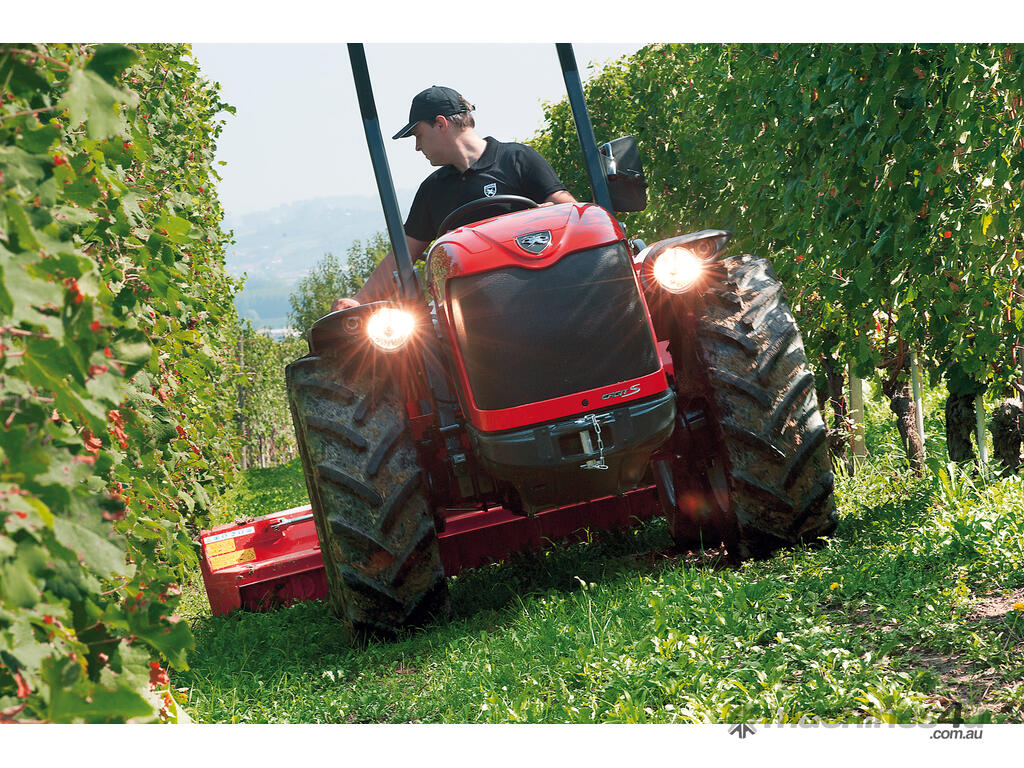

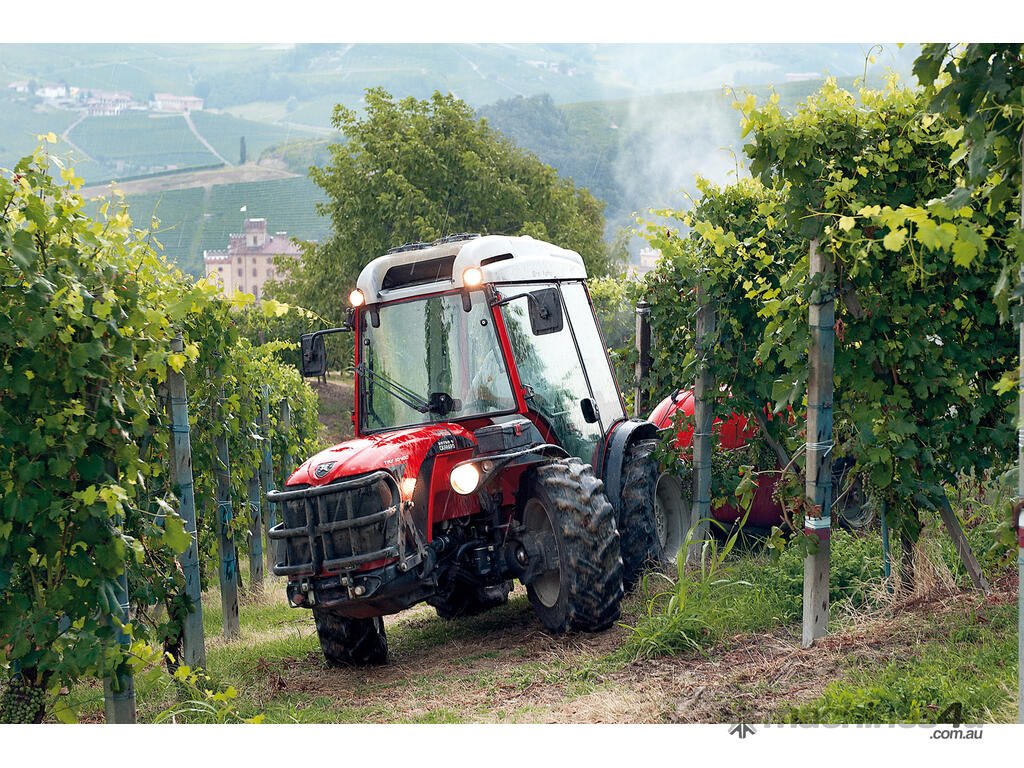

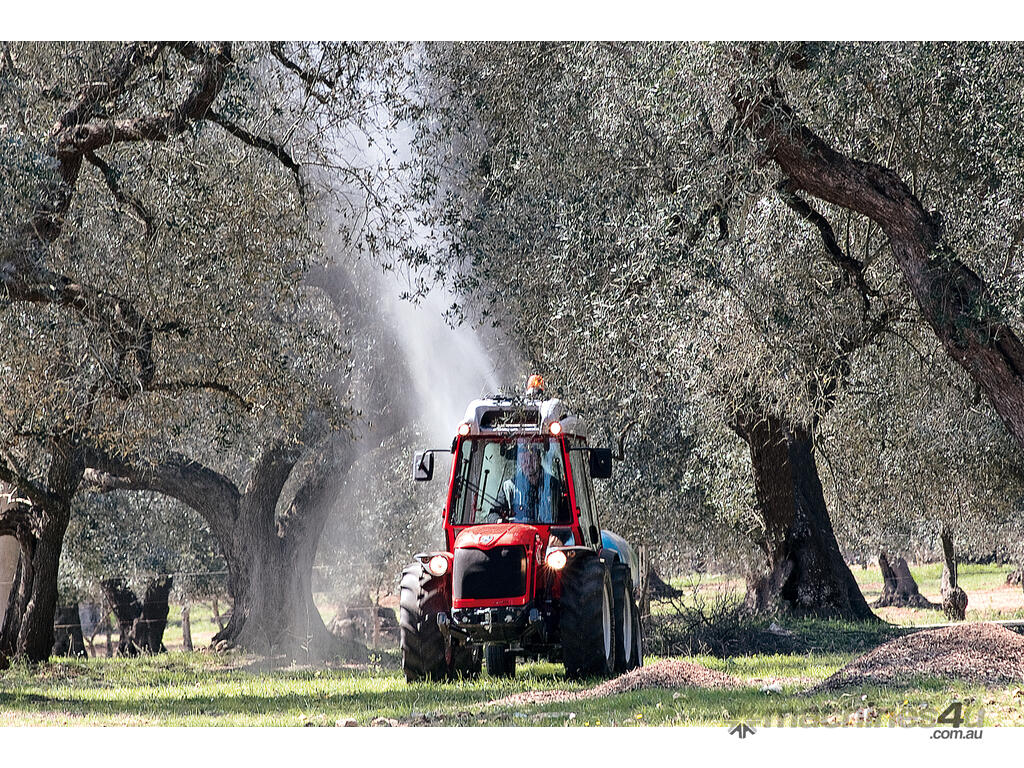

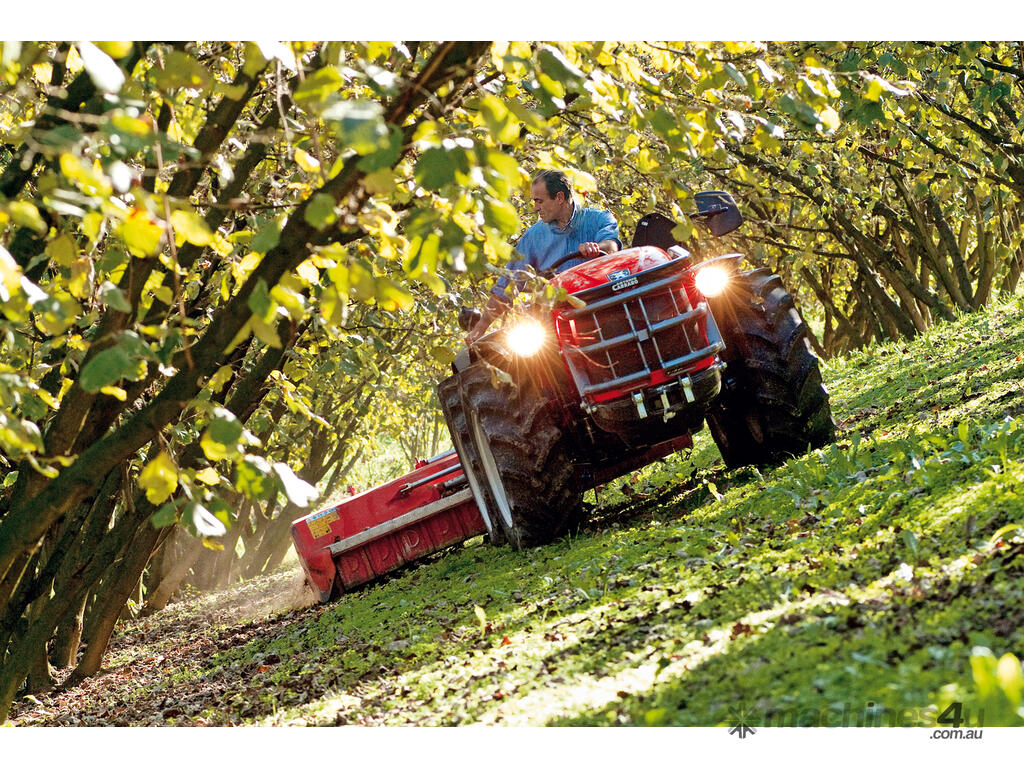

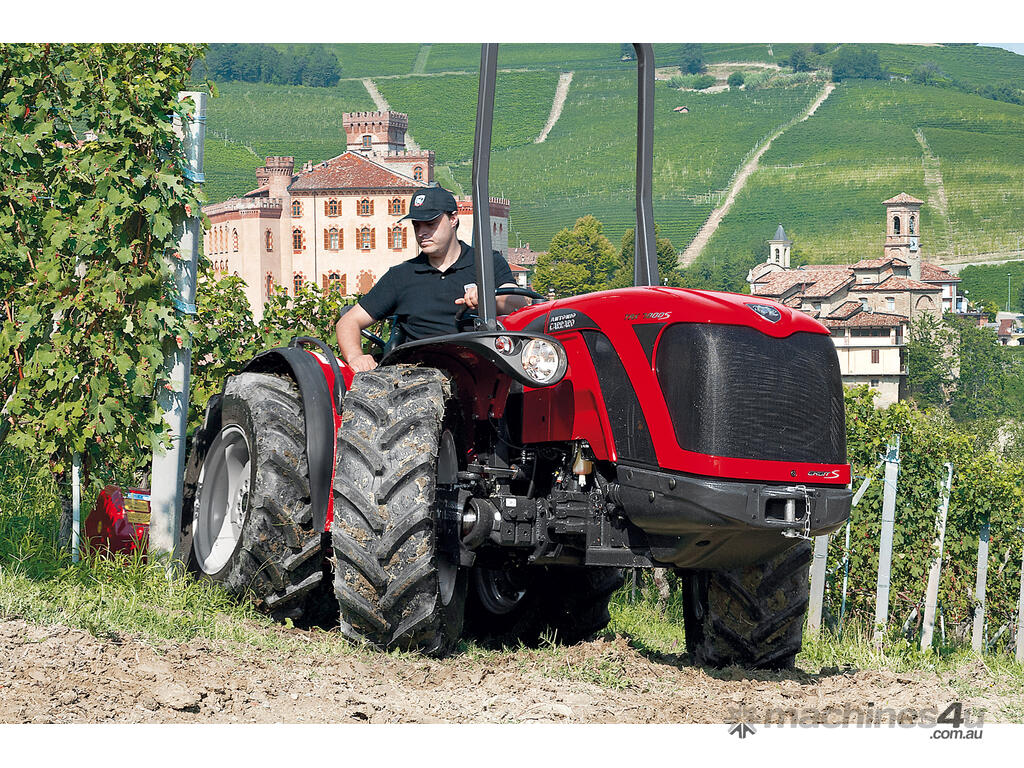

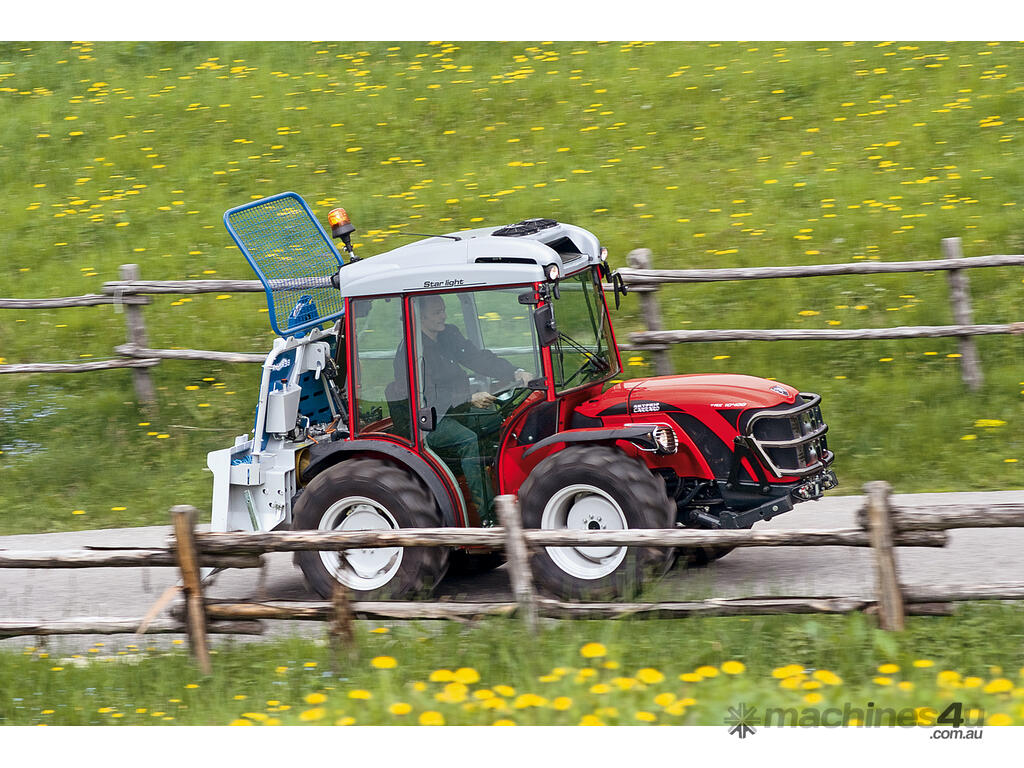

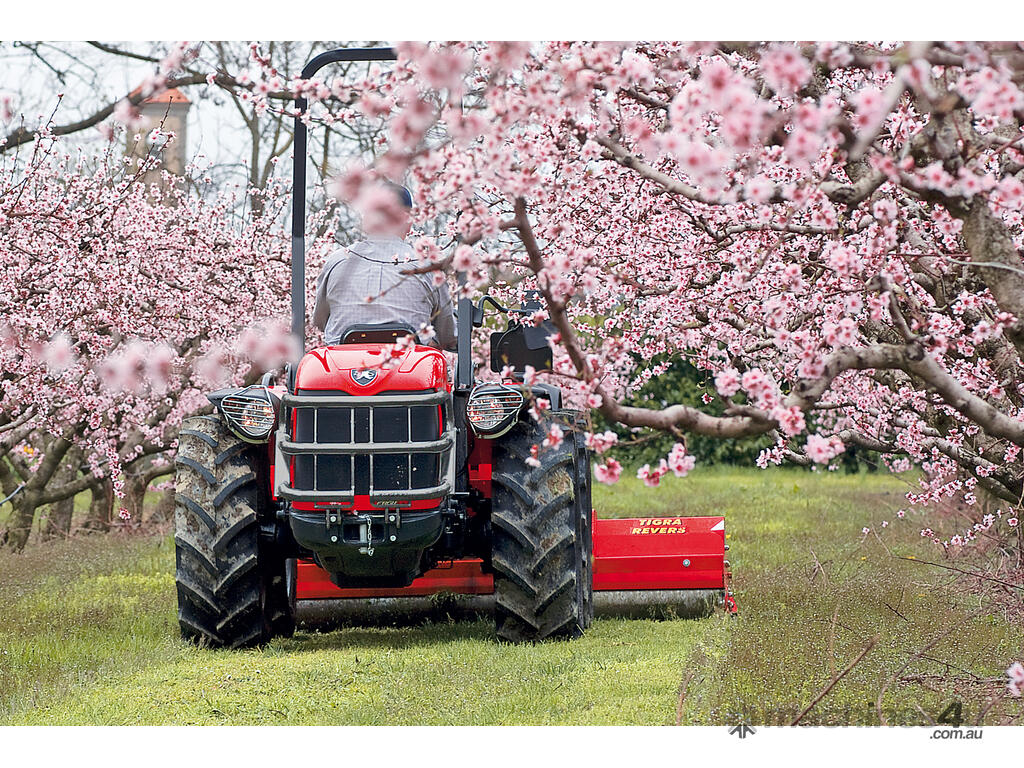

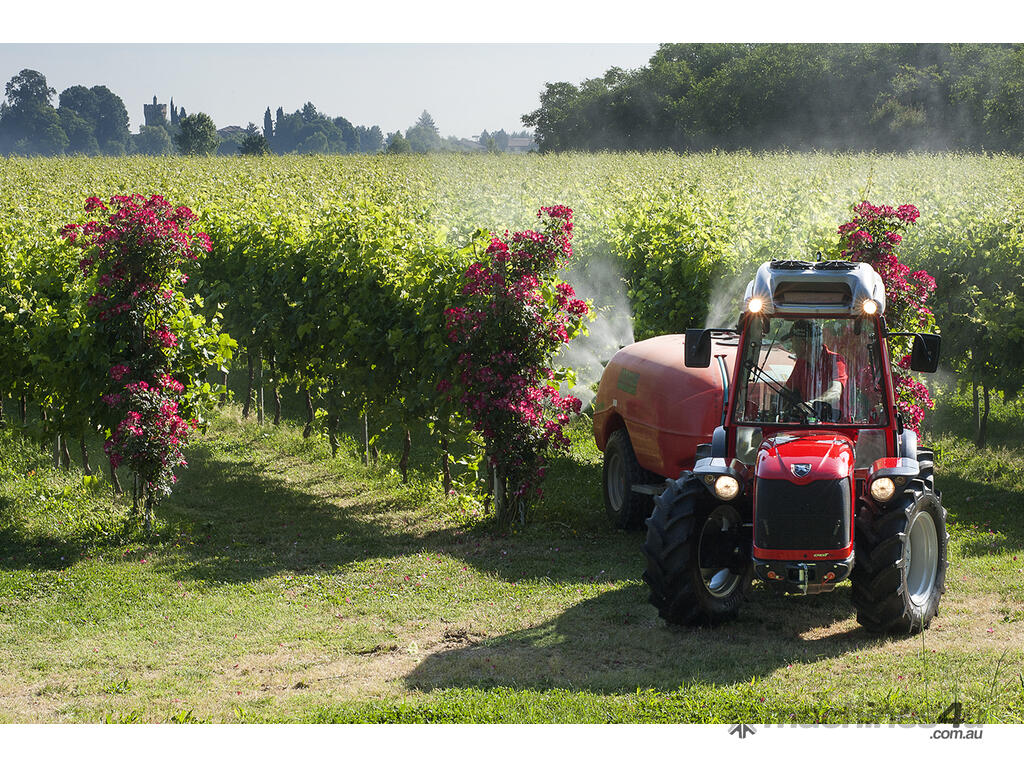

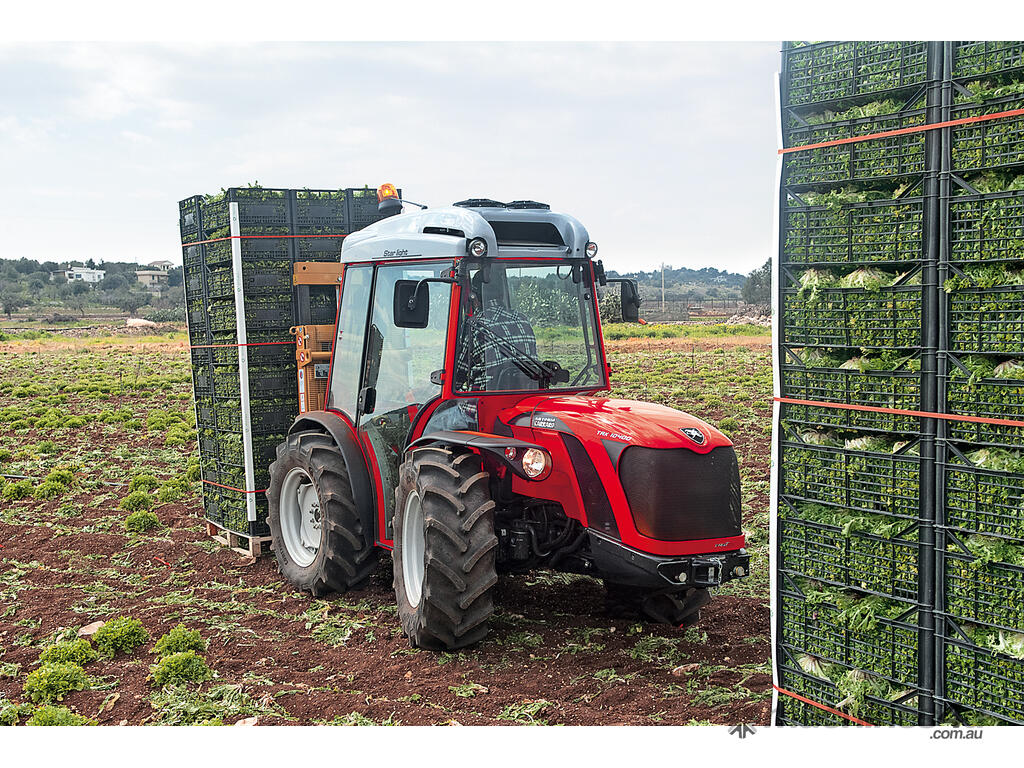

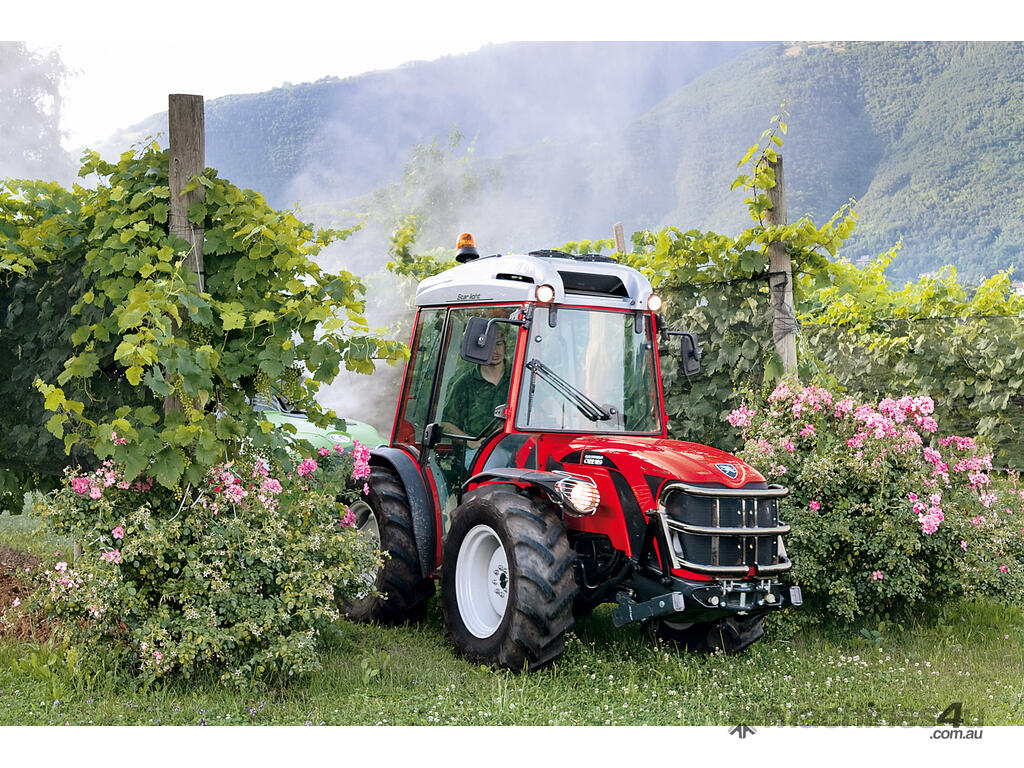

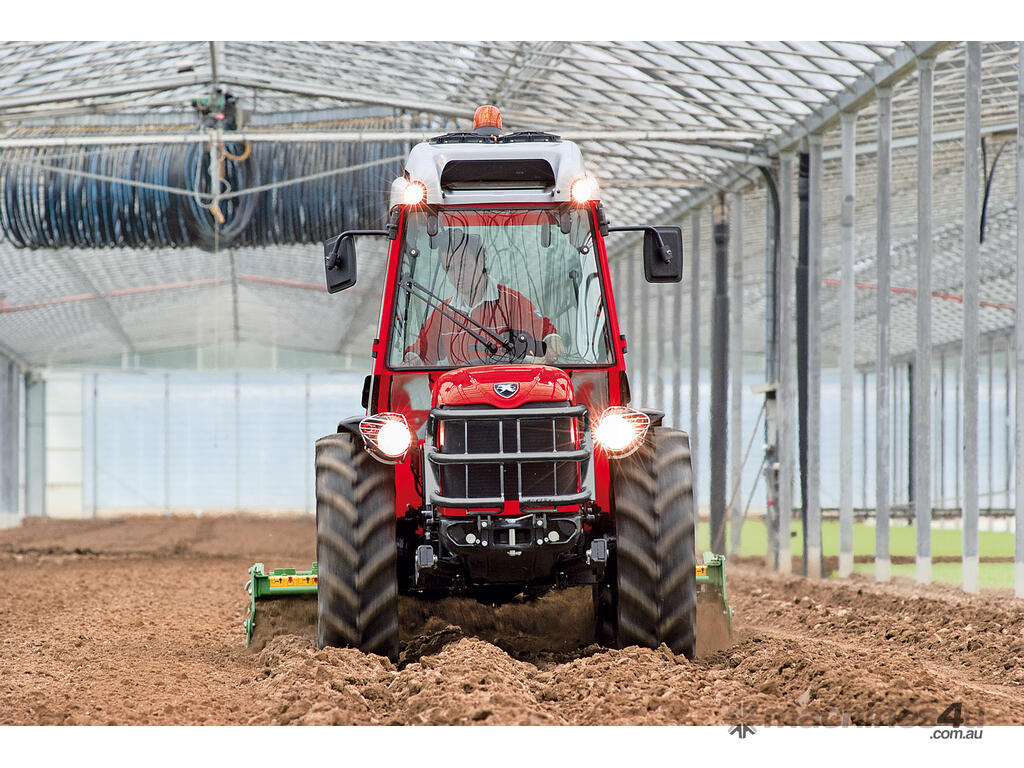

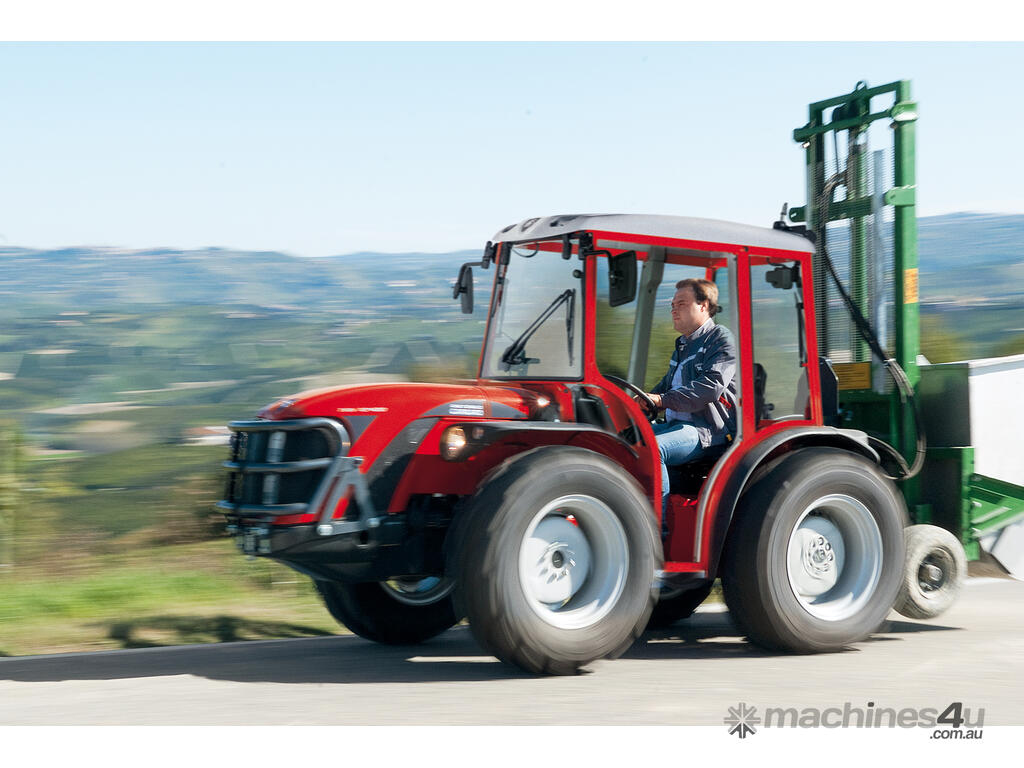

The TRX 7800 S is a versatile, compact tractor with equal-sized wheels, designed for both agricultural and civil maintenance tasks on a large scale. Equipped with the reversible Rev-Guide System (RGS™), this tractor allows the operator to rotate the driving position 180°, providing excellent visibility for front-mounted implements like forklifts, loaders, and forestry mulchers. Its adaptability makes it perfect for use in vineyards, orchards, sports facilities, parks, and public spaces, handling seasonal activities with ease.

Powered by a 71 hp direct injection engine, the TRX 7800 S offers both reliability and efficiency, reducing fuel consumption while maximizing performance. Its four large isodiametric wheels ensure even weight distribution, providing constant traction with minimal ground compaction on flat or sloping terrain. The front drive can be disengaged to further protect the soil when necessary.

Technical Data

Transmission:
- Synchronized transmission with 32 speeds (16 forward, 16 reverse)
- Synchronized shuttle reverser
- Independent PTO with 540/540E and ground speed, featuring progressive electrohydraulic engagement
- Start inhibit switch on shuttle reverser and PTO selector
- Electrohydraulic differential lock (front/rear or rear only)
- Electrohydraulic front drive disengagement control
- Mechanical-controlled clutch

Hydraulic System and 3-Point Linkage:
- 2 double-acting distributors, one with a floating position
- 1 oil reflow with a total of 5 quick couplings
- Hydraulic power steering with two double-acting pistons
- Hydraulic power lift with descent control and 3-point linkage (cat. 1)
- Lifting capacity of 2,150 kg with fixed lift arms (cat. 1) and connection spring
- Front towing device and height-adjustable rear towing device (EEC type)

Brakes:
- Hydraulic oil-bath disc brakes on both front and rear
- Independent rear steering brakes
- Band-type emergency and parking brake on the transmission

Frame and Driving Comfort:
- Hydraulic steering with two cylinders
- Reversible driving position

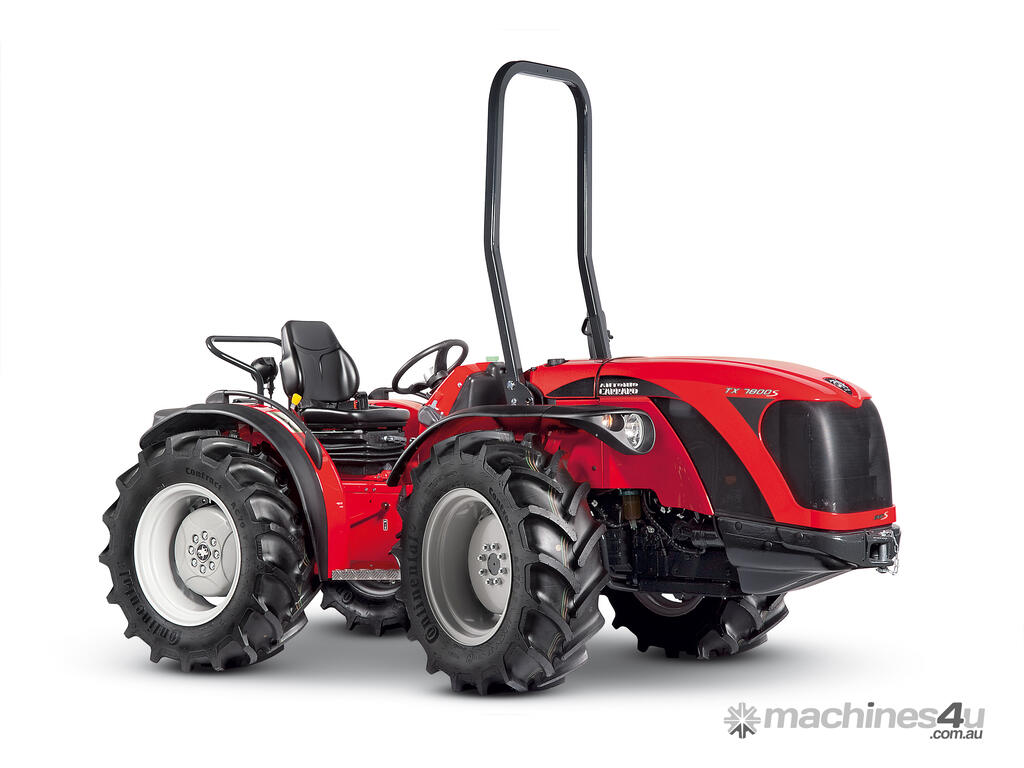

- Forward-foldable front safety roll bar (R.O.P.S.)
- Platform chassis on Silent-block mounts
- Adjustable padded seat and steering wheel

For more detailed information, please download the attached brochure.

The TRX 7800 S comes with a 2-year warranty, with the option to upgrade to 4 years.
