Antonio Carraro 4WD 89hp Tractor - Super Low, Large Rear Wheels!

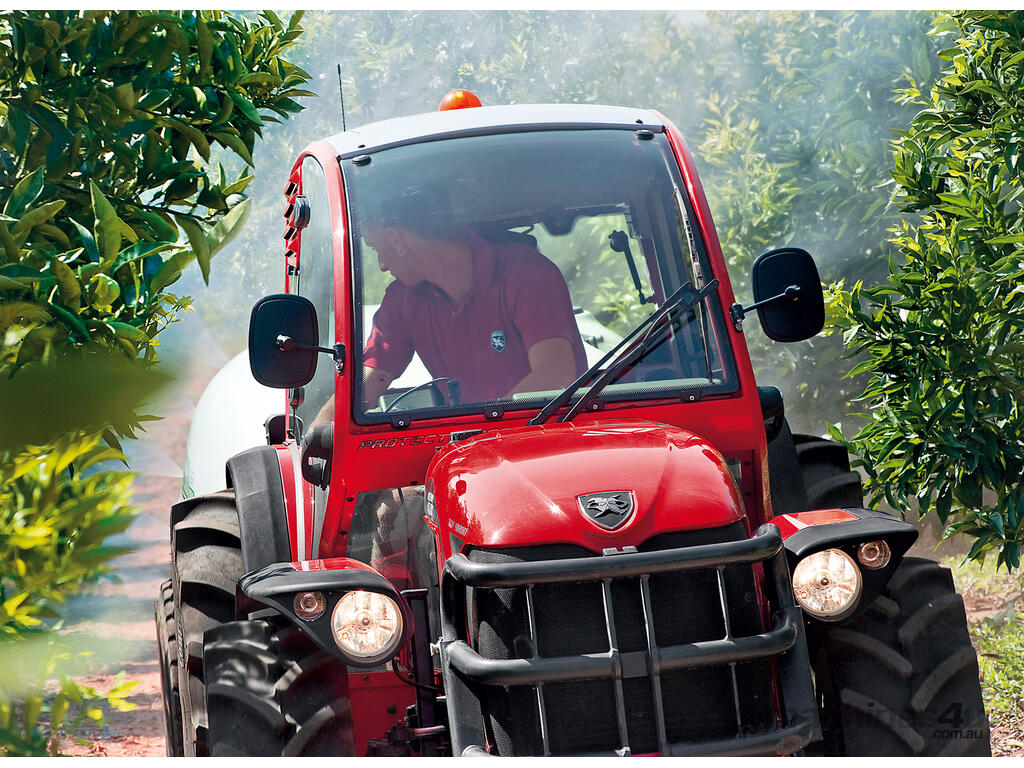

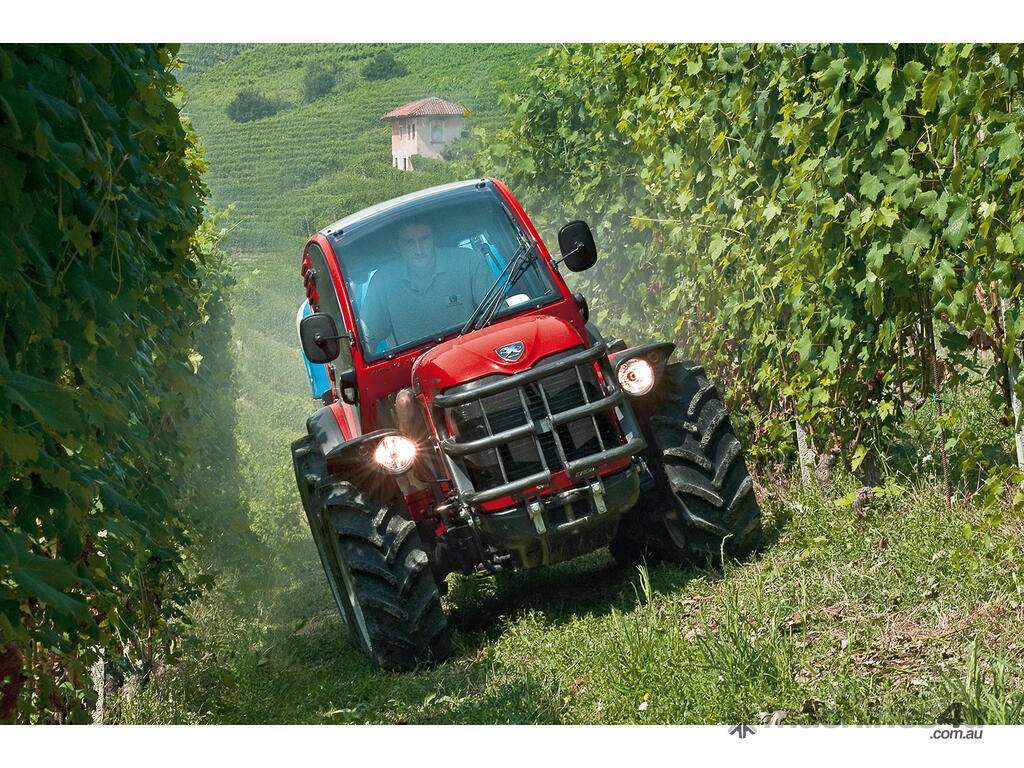

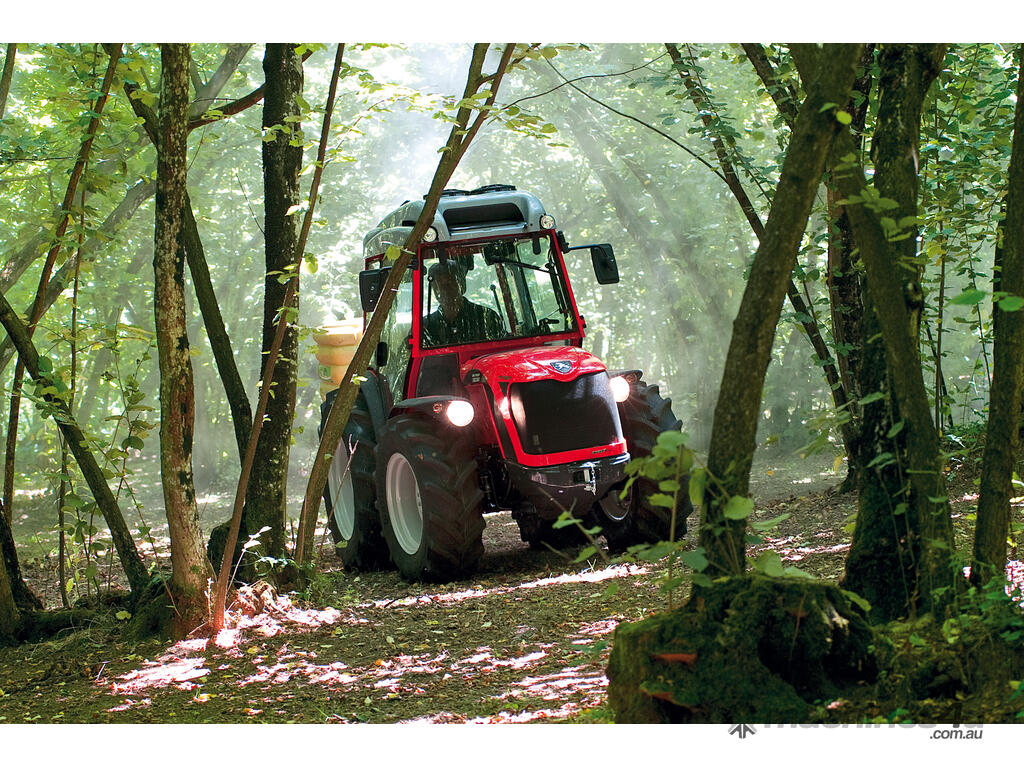

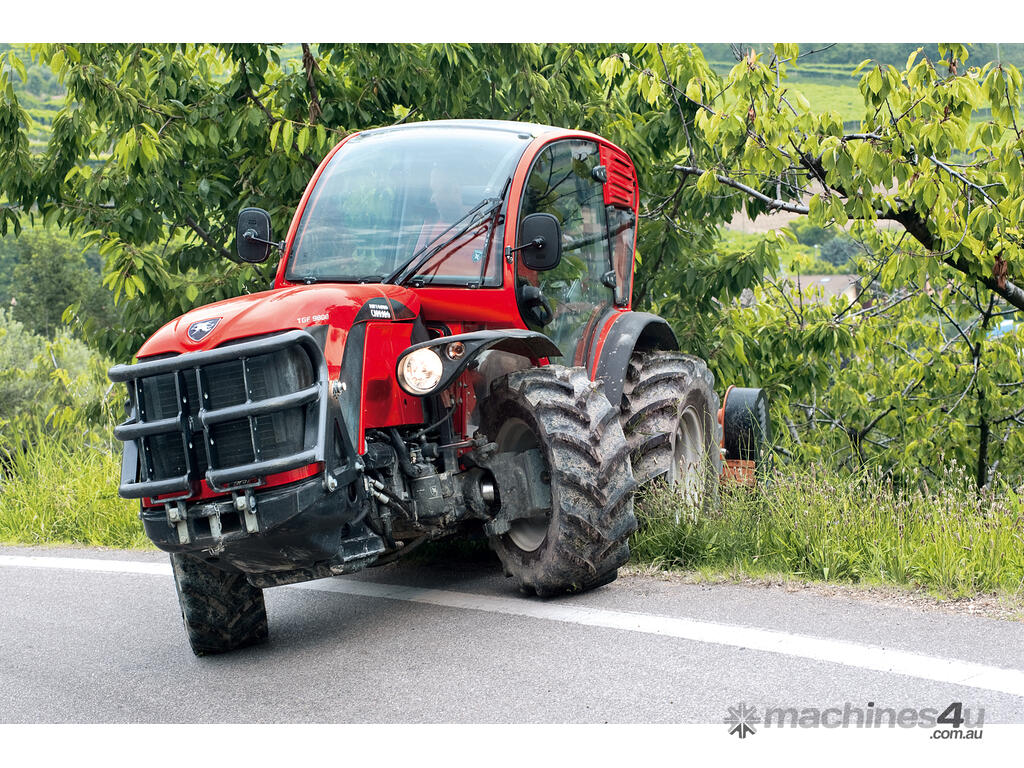

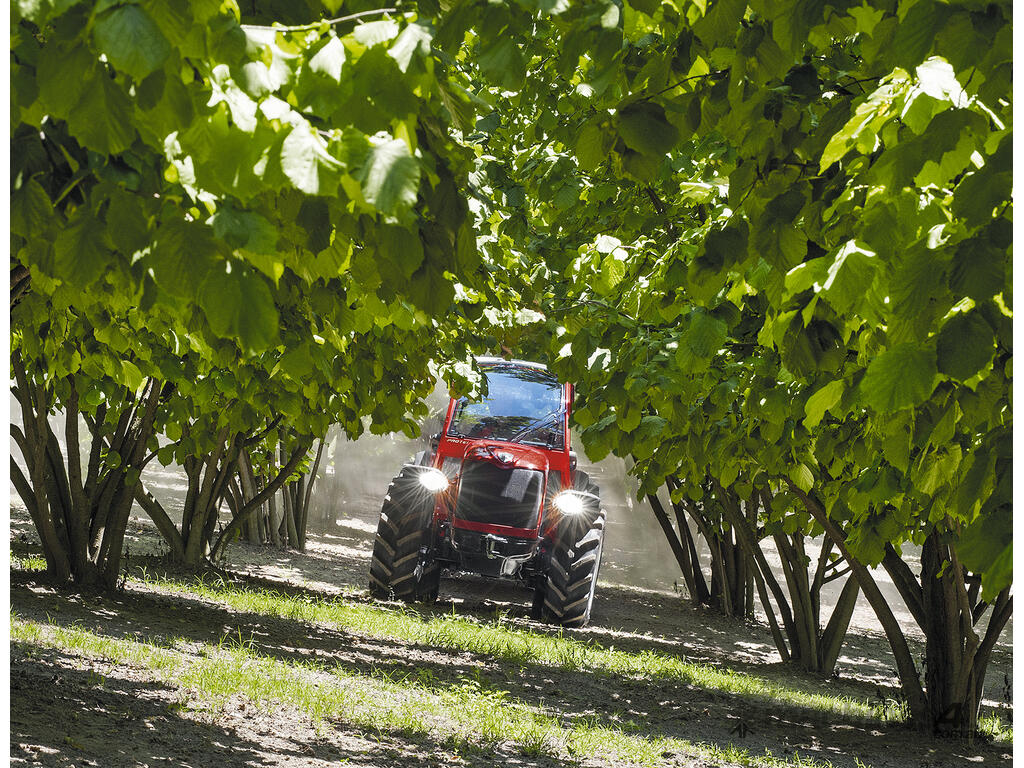

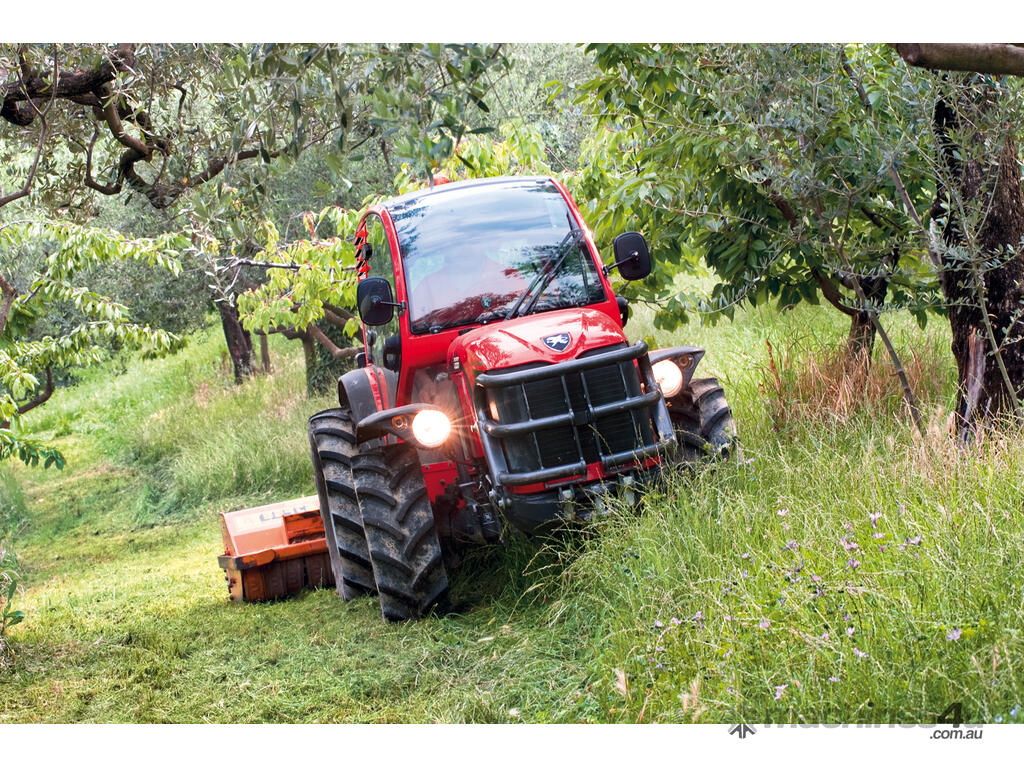

The TGF 9900, an 89 hp super-low tractor, is designed with larger rear wheels and smaller front wheels to enhance handling and ensure a tight turning radius. This makes it ideal for navigating between rows in vineyards, orchards, and other confined spaces. The tractor moves gracefully, maintaining traction and grip even on sloping terrain. With seven different tire combinations available, the TGF 9900 can be tailored to suit various crops and terrains, offering versatility to operators.

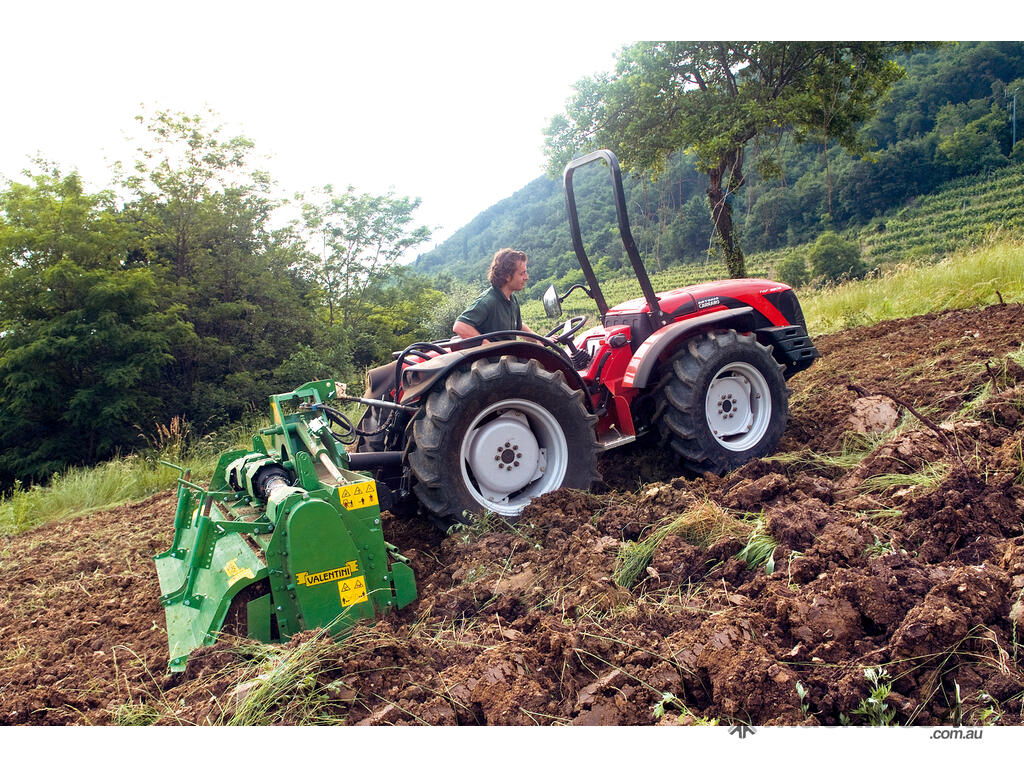

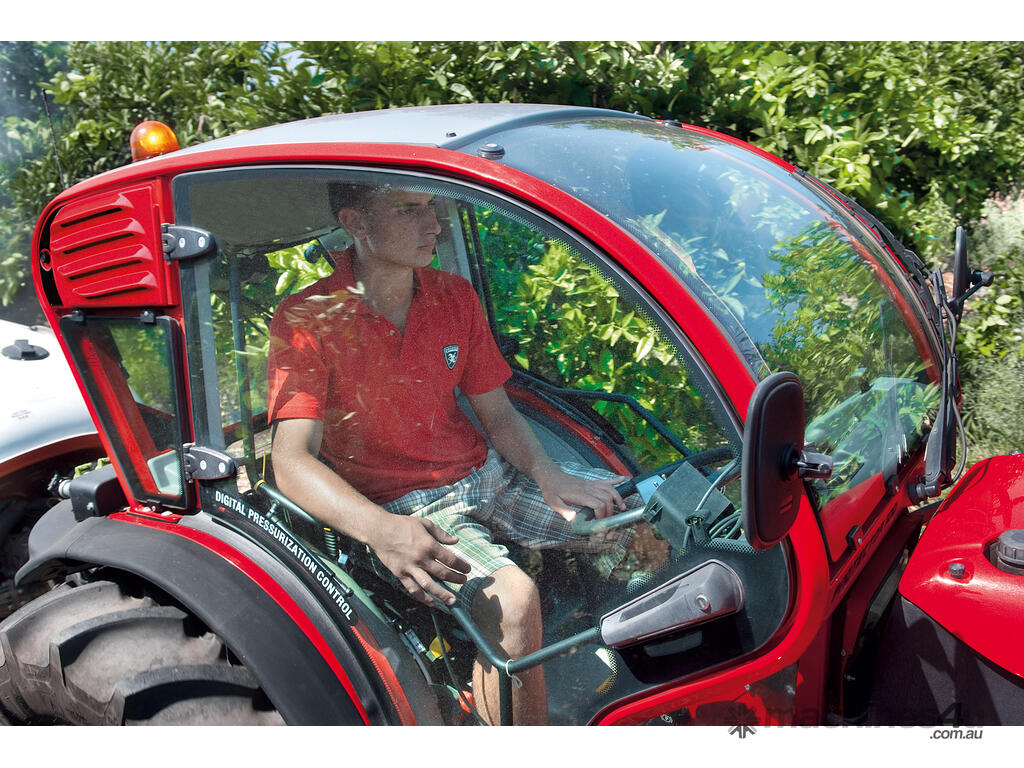

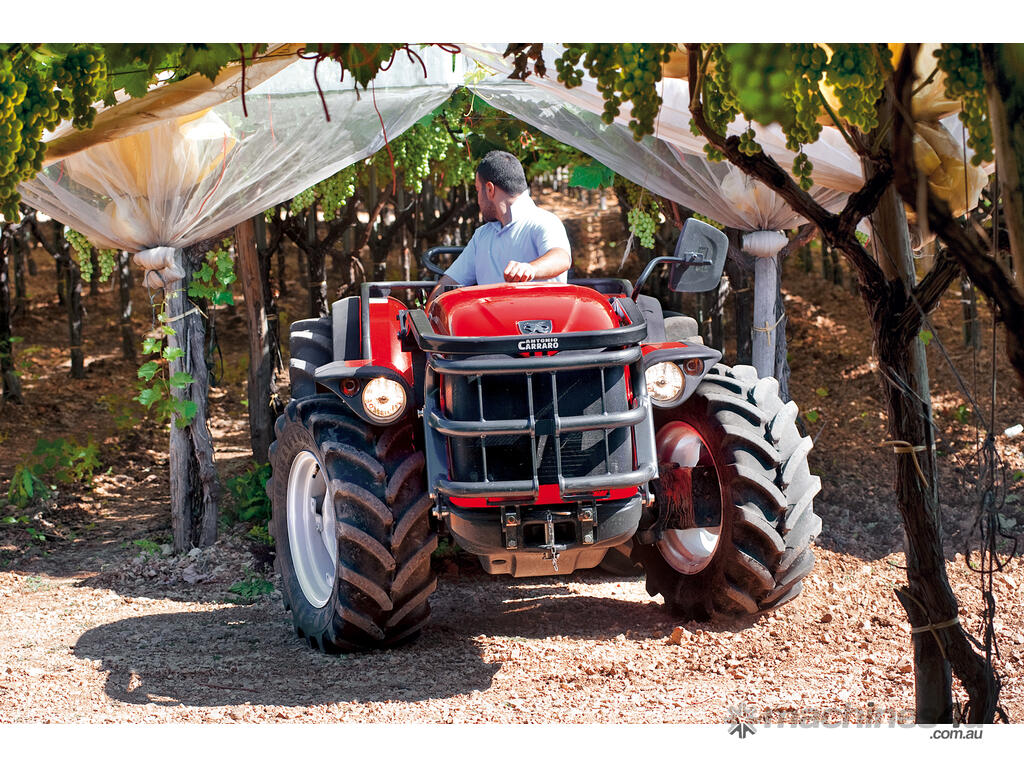

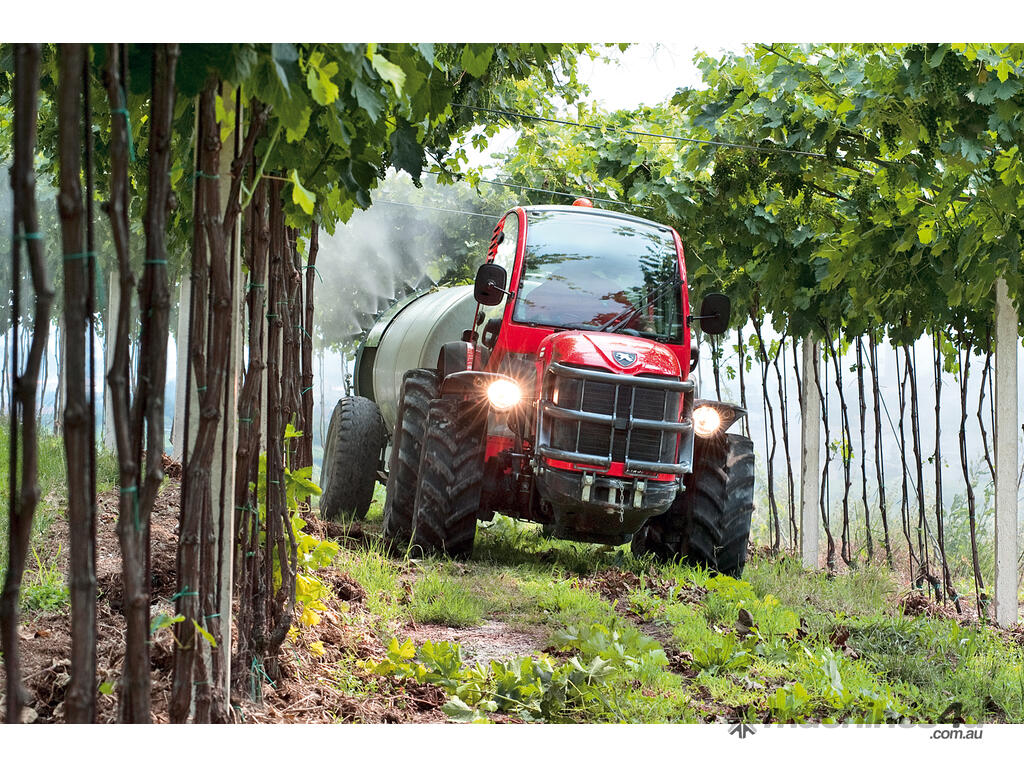

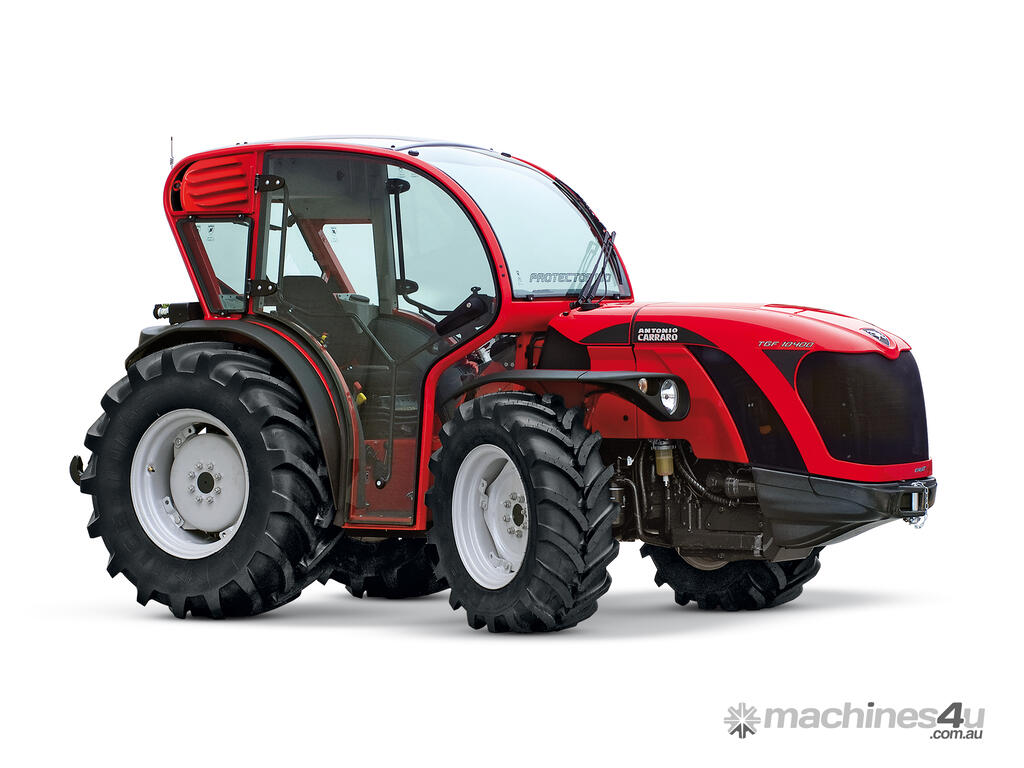

This compact yet powerful tractor excels in tasks such as working in "Y" type fruit orchards, vineyards under awnings, greenhouses, and chicken sheds. It remains stable and well-balanced on transverse slopes with different types of equipment. The TGF 9900 can be equipped with the classic StarLight cab or the Protector 100, a low-profile cab (maximum height of 1,740 mm) that combines comfort, visibility, and operator safety from harmful fumes. The cab’s Aircontrol 2nd generation system monitors pressurization, displaying internal pressure and active carbon filter duration.

The tractor is powered by an 89 hp Kubota engine, featuring a 3,760 cc, direct injection, four-cylinder turbocharged engine with 16 valves. This engine delivers impressive power and torque, ensuring smooth acceleration. Its compact design contributes to the tractor’s agility and excellent traction on uneven terrain, slopes, and tight rows.

Technical Data:
Engine Panels – Induction – Exhaust:
Includes an air cleaner with internal intake dry filter and a muffler inside the hood.

Transmission:
Features a synchronized gearbox with 32 speeds (16 forward + 16 reverse) and a synchronized shuttle reverser. The PTO offers 540/540e independent speeds with progressive hydraulic engagement. The tractor includes a start inhibit switch on the shuttle reverser and PTO selector, hydraulic front/rear or rear-only differential locks, and hydraulic disengagement control for the front drive wheels. It also comes with a hydraulic clutch.

Power Lift – Towing Device:
Equipped with lift arms featuring coupling balls (Group 1 and 2) and a connection spring. It has a lifting capacity of 2,400 kg. The tractor also includes a front towing device and a height-adjustable rear towing device (“EEC” type).

Brakes:
Hydraulic front and rear oil bath disc brakes with independent rear steering brakes. An emergency and parking brake is included, with a band type on the transmission.

Frame – Driving Comfort:
Includes a two-cylinder hydraulic steering wheel, a digital multifunctional dashboard, and a platform chassis on Silent-block. The tractor is equipped with a forward foldable front safety roll bar (r.o.p.s.). The minimum external width is 1,330 mm with specified front and rear tire sizes. Other features include an adjustable ergonomic seat, an adjustable steering wheel, a rear-view mirror, and a battery isolation switch.

Warranty:
The TGF 9900 comes with a 2-year warranty, with the option to extend it up to 4 years.
