Antonio Carraro 4WD ROPS 89hp Tractor: TRX 9900 - Versatile & Reversible!

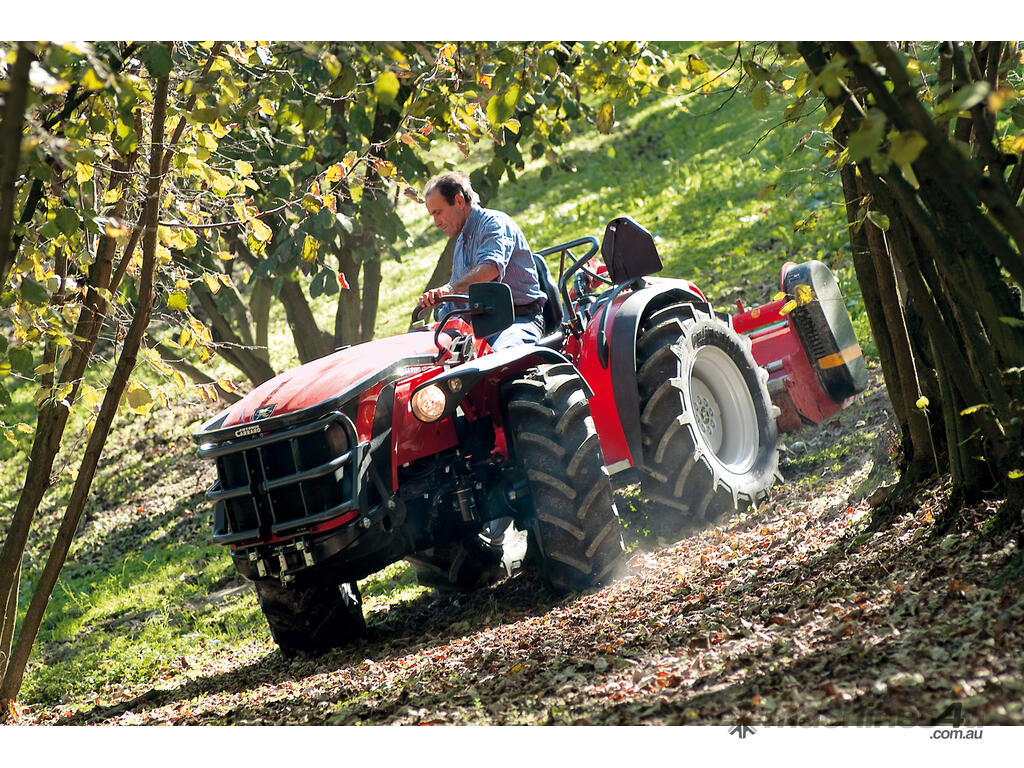

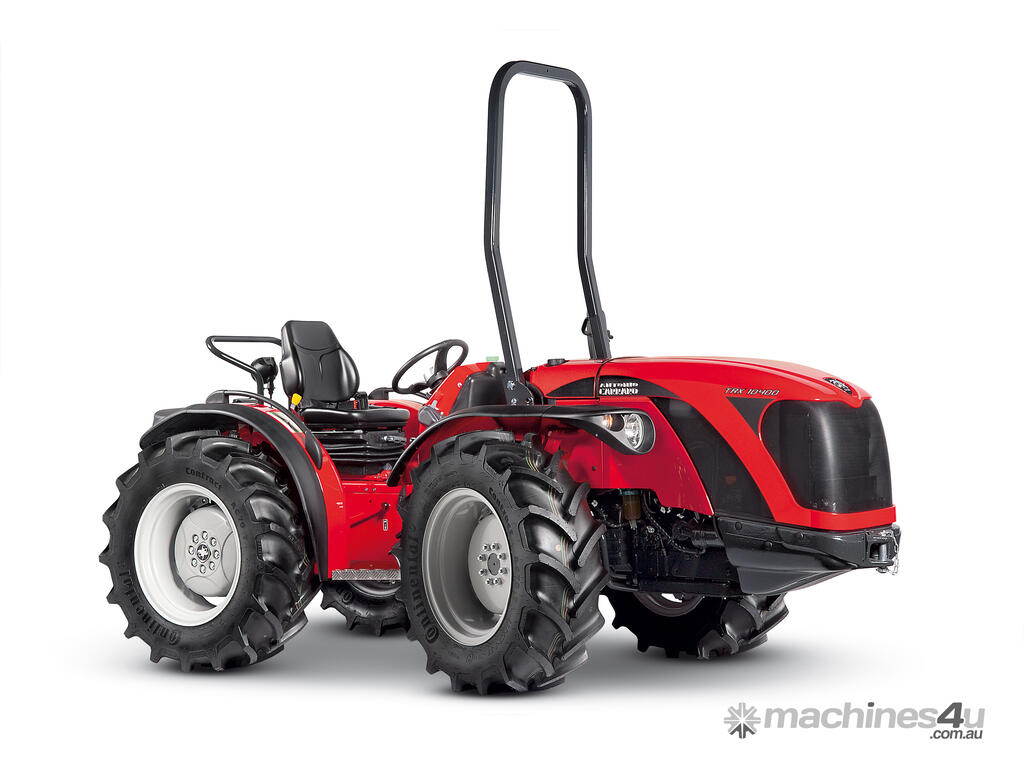

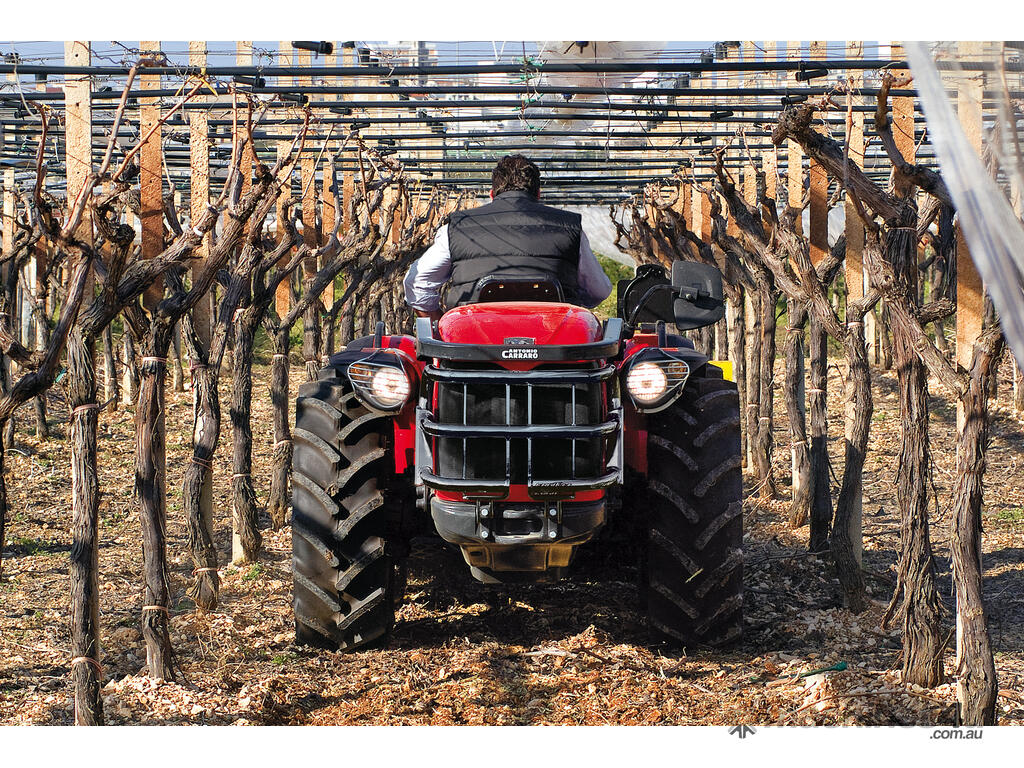

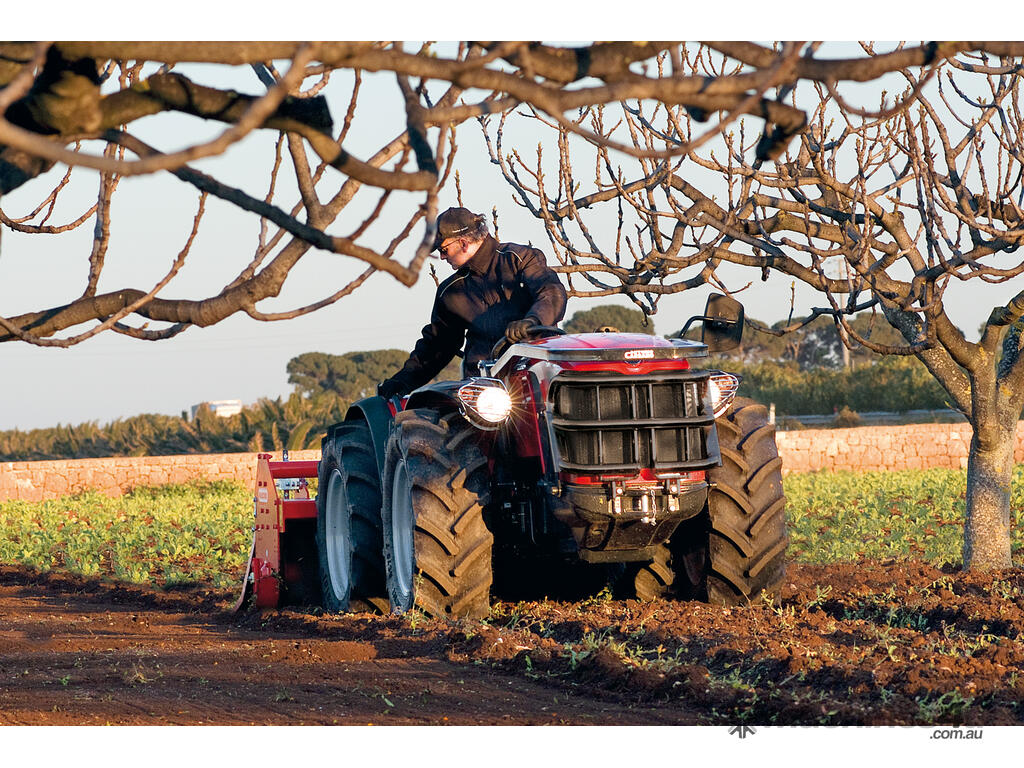

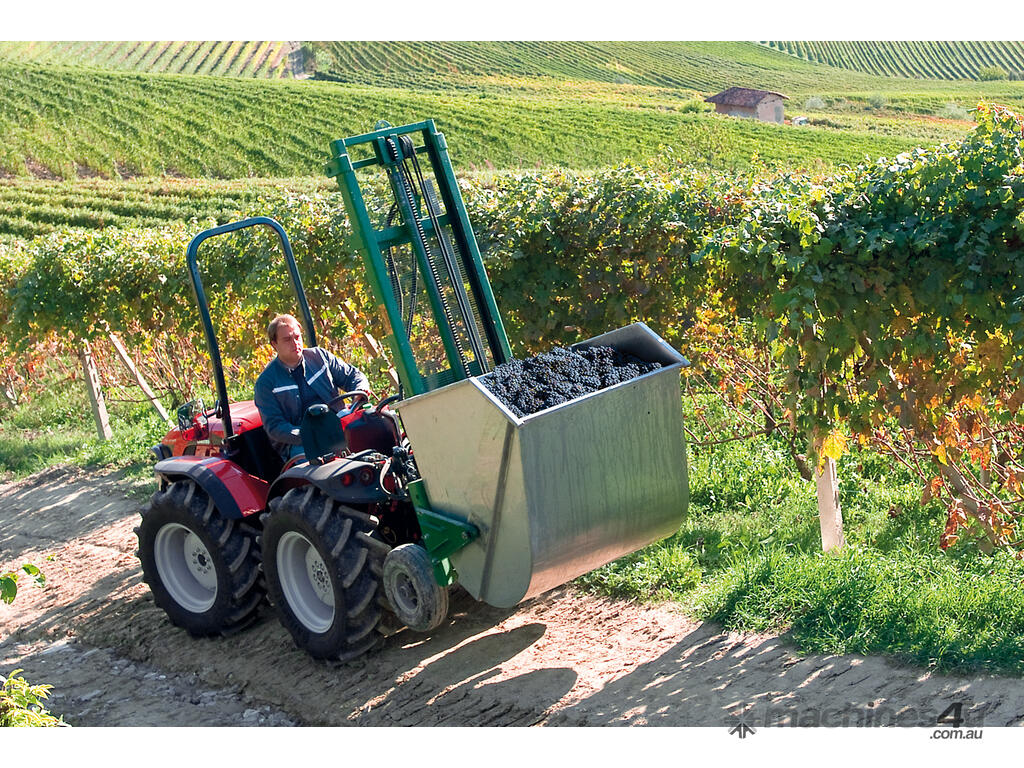

The TRX 9900 is a versatile, reversible tractor designed for use in orchards. Its stability across various terrain conditions makes it a reliable choice for heavy-duty tasks. The tractor is equipped with four equally-sized wheels, low-pressure tires, and wide treads, ensuring optimal balance. The ACTIO™ Oscillating Integral Frame helps maintain constant ground contact, allowing the tractor to operate smoothly between rows without damaging the soil. It can handle heavy implements, both front and rear, simultaneously.

Powered by a turbocharged 4-cylinder Kubota engine, the TRX 9900 is known for its strength and durability. The engine is designed to minimize noise, and the low-rev torque provides fuel efficiency. The gearbox features 32 gears (16 forward and 16 reverse), and both the gearbox and inverter are synchronized for seamless operation. Approved for road speeds up to 40 km/h, the Ergit 100 model includes oil-bath disc brakes on all four wheels. The lifting system has a 2,400 kg capacity with a 3-point hitch, and the rear PTO is independent with hydraulic engagement, offering multiple speeds (540 rpm, 540E rpm, and ground synchronized). The hydraulic system includes two independent pumps to ensure reliable equipment functionality.

Technical Data of Standard Configuration

Engine Panels and Exhaust:
- Air cleaner with internal intake dry filter
- Muffler inside the hood

Transmission:
- Synchronized transmission with 32 speeds (16 forward, 16 reverse)
- PTO 540/540E independent with progressive hydraulic engagement
- Start inhibit switch on shuttle reverser and PTO selector
- Electrohydraulic front/rear or rear differential lock
- Hydraulic clutch

Towing Device:
- Front towing device
- Height-adjustable rear towing device (EEC type)

Brakes:
- Hydraulic oil-bath disc brakes on front and rear
- Independent rear steering brakes
- Emergency and parking brake (band type on transmission)

Frame and Driving Comfort:
- Two-cylinder hydraulic steering system
- Digital multifunctional dashboard
- Reversible driving position
- Forward-foldable front safety roll bar (R.O.P.S.)
- Minimum external width (1380 mm with 250/80-18 tires)
- Platform chassis on Silent-block
- Adjustable ergonomic seat
- Rear-view mirror
- Battery isolation switch

For more information, please download the attached brochure.

The tractor comes with a 2-year warranty, with an option to upgrade to 4 years.
