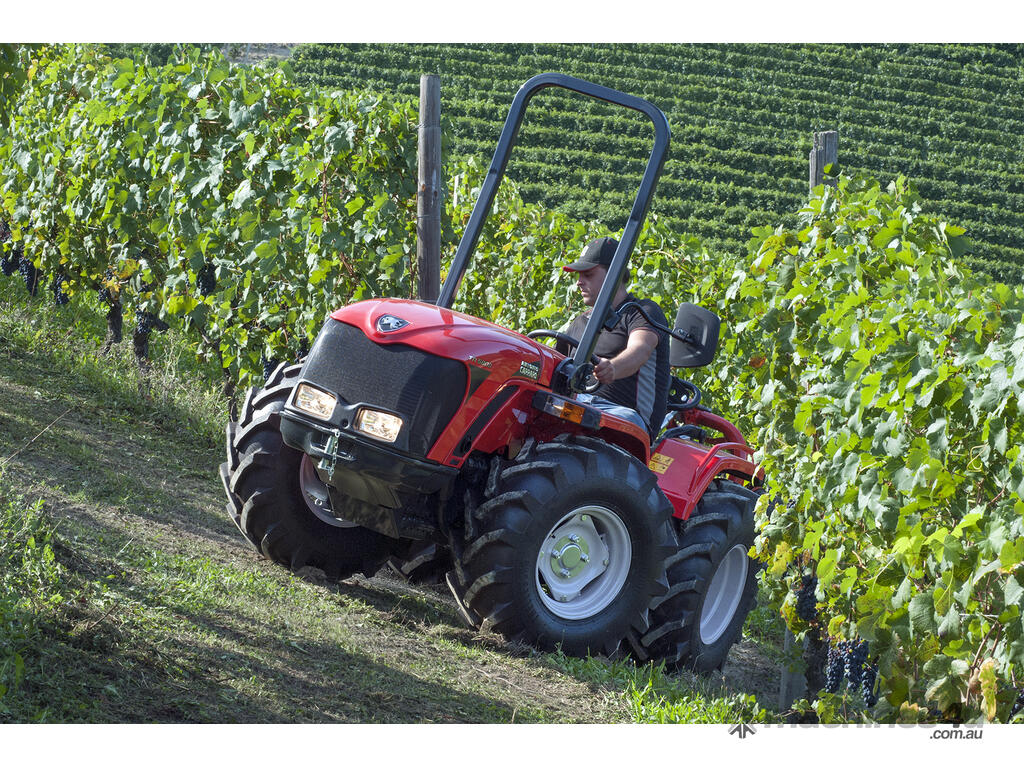

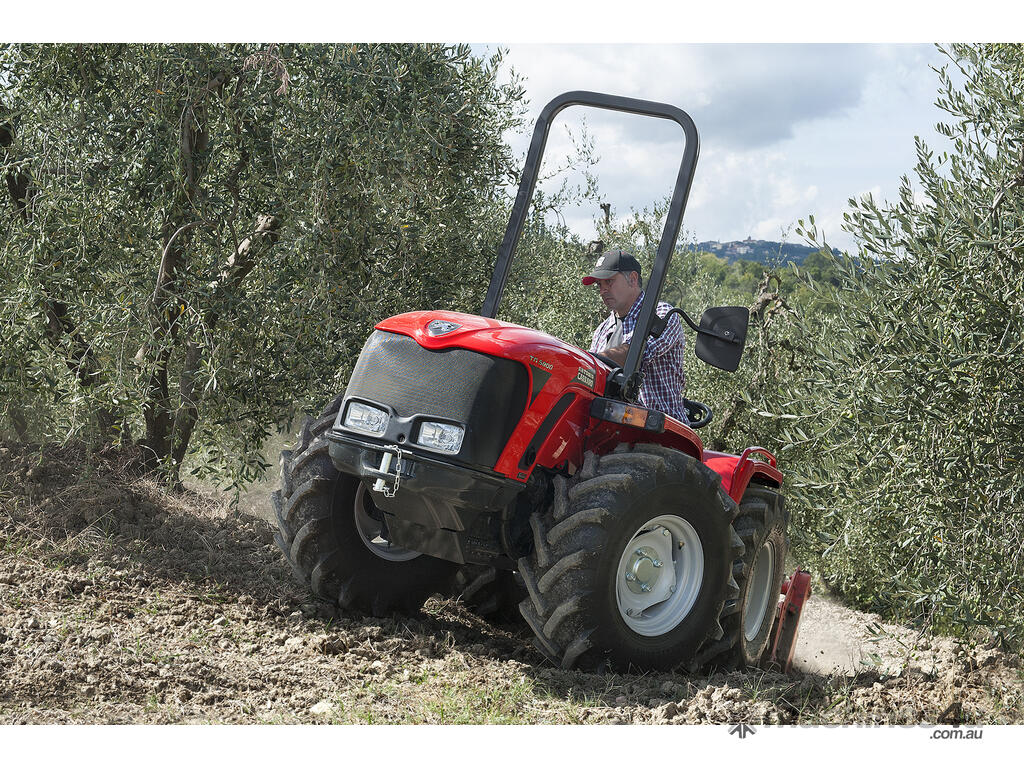

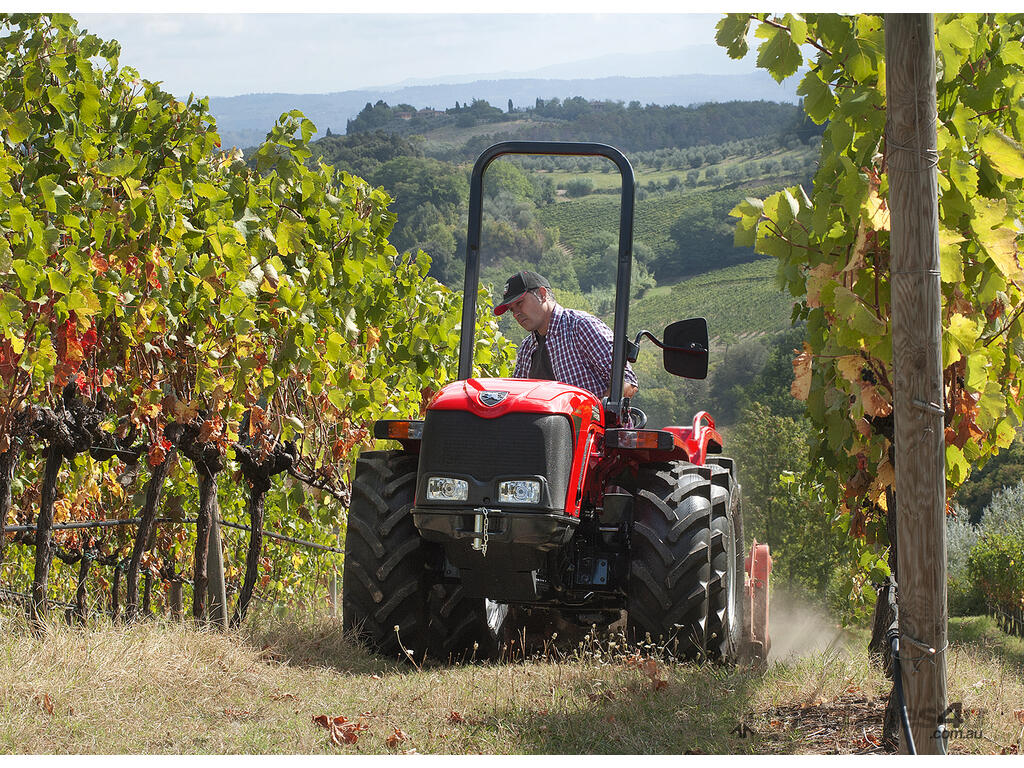

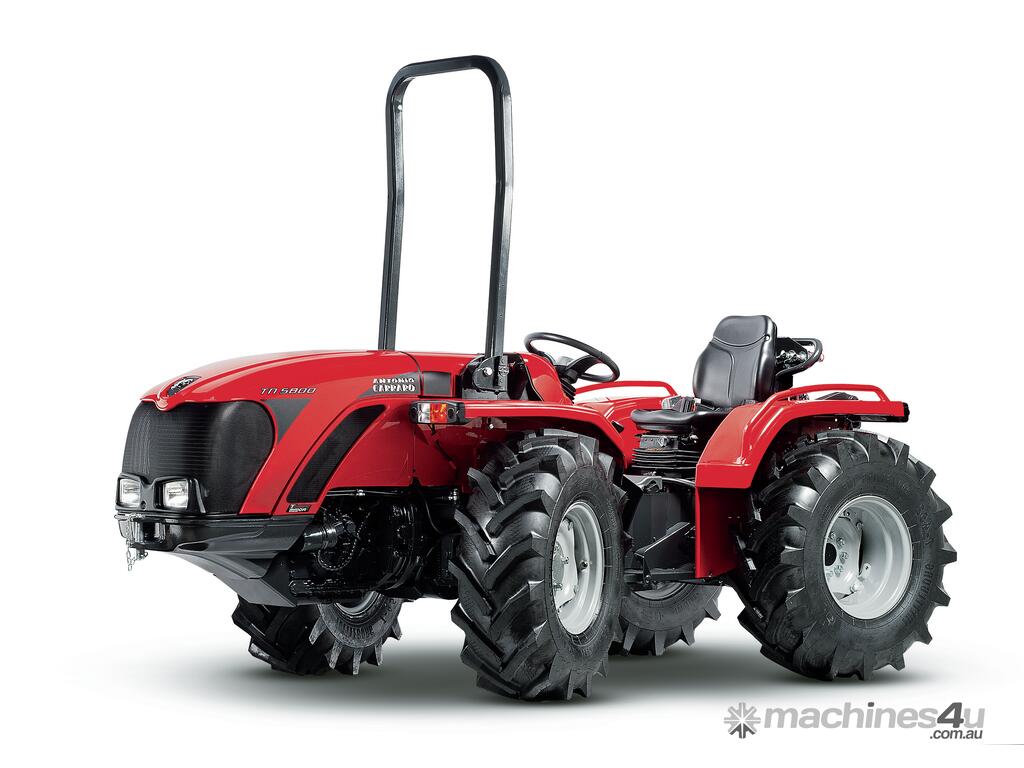

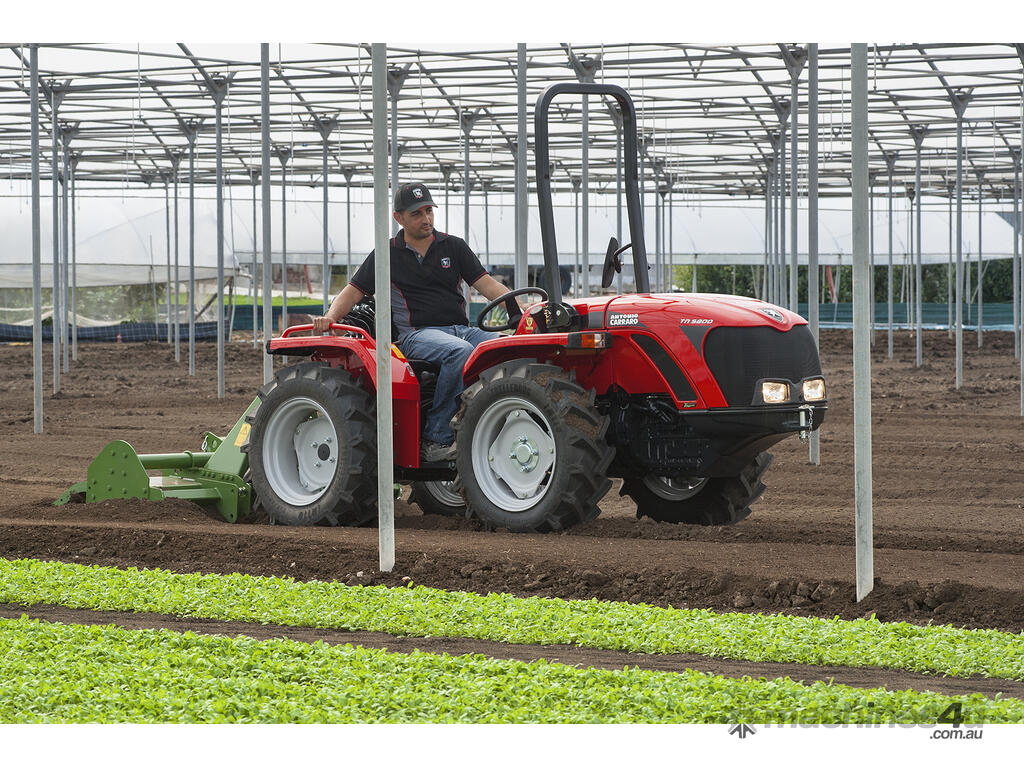

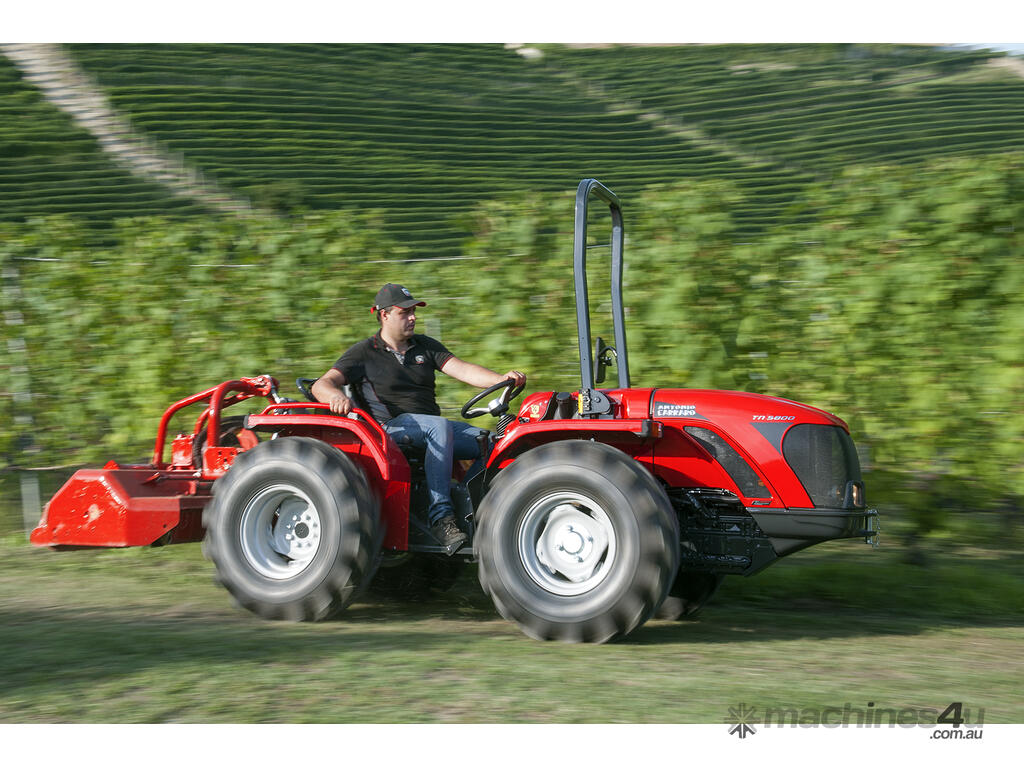

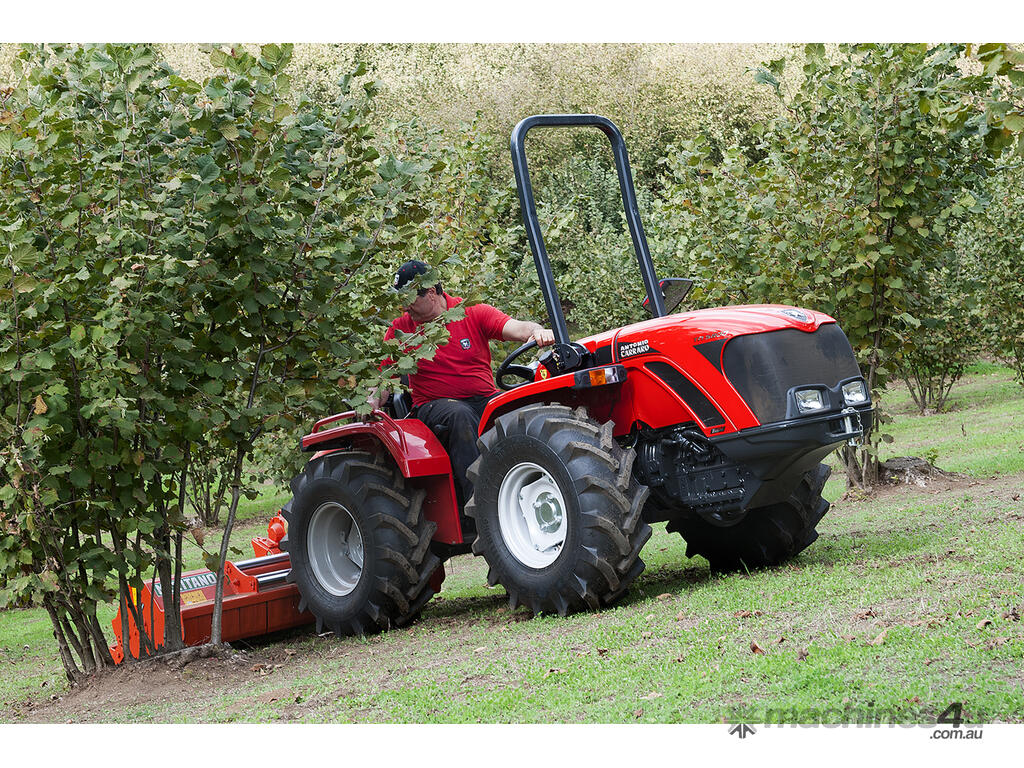

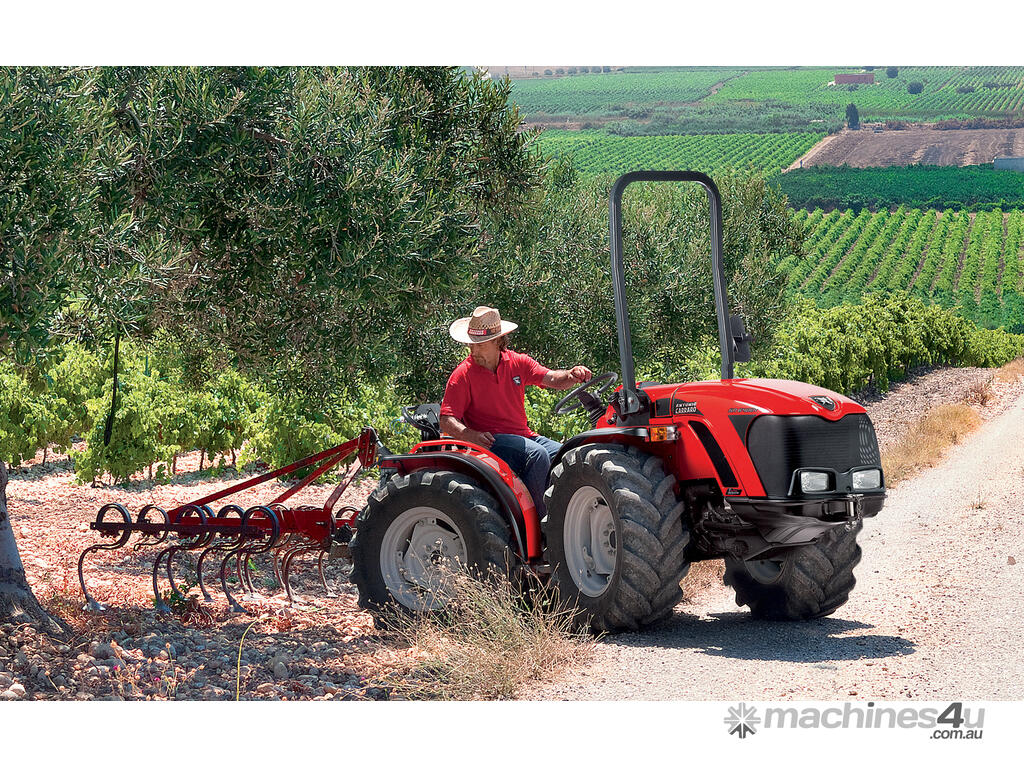

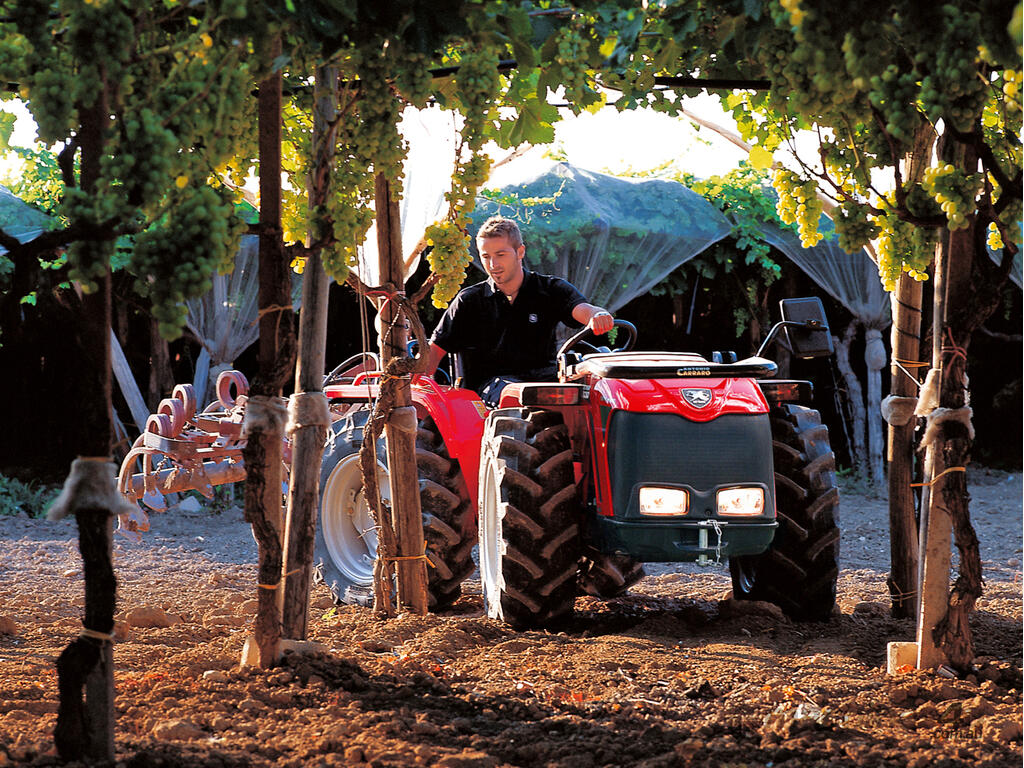

The TN Major 5800 is the result of a decade of continuous development, reflecting a philosophy of "constant improvement." This 50hp tractor has been a leader in mechanized agriculture for equal-sized wheel tractors for many years. Its streamlined bodywork and compact dimensions ensure agility in narrow spaces, between rowed crops, and on hills or mountains, optimizing both work processes and operating times.

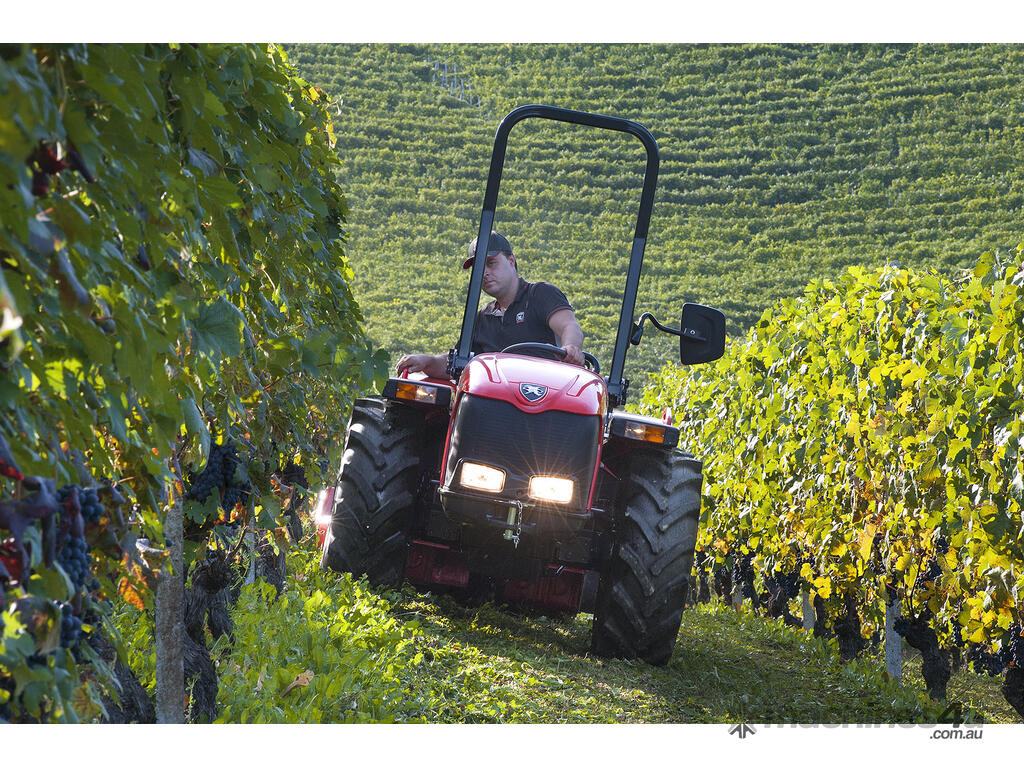

Thanks to extensive ergonomic research and the specific needs of agricultural operators, the TN 5800 offers driving comfort that allows for long hours of operation without causing stress or fatigue. Its advanced lighting system illuminates both in depth and at the lateral edges of the wheel tracks, making it ideal for night work. The tractor is easy to access, even for less agile or heavier operators, and its rear mudguards are fitted with handles for safe operation on slopes.
Powered by a 49.7hp Yanmar diesel engine, the TN 5800 is reliable and environmentally friendly. The advanced combustion and injection system ensures low fuel consumption, with maximum torque delivered at 1800 rpm. The four-cylinder engine minimizes vibrations for smooth operation. The integrated system of power lift, hydraulics, and PTO allows the tractor to handle various implements while maintaining excellent grip and stability. The independent PTO with a multidisc oil bath clutch operates at 540 rpm, with options for 540E and 1000 rpm available on request.
Technical Data
Transmission: 12 forward and 12 reverse gears with a reverser; independent rear PTO with mechanical control; front and rear differential locks; foot lock with automatic disengagement; start inhibit switch on shuttle reverser and PTO selector.
Hydraulic System: Power steering with "Load Sensing" system (2 cylinders); rear hydraulic power lift with 3-point linkage (cat. 1 and 1N); auxiliary hydraulic system with 1 single-acting and 1 double-acting distributor with floating and mechanical locking positions; 3 rear quick couplings; lift capacity of 2200 kg; front towing device; height-adjustable rear towing device (cat. C).
Brakes: Mechanical rear oil bath disc brakes; rear axle and parking handbrake with control lever; steering brakes.
Frame and Driving Comfort: Full chassis with oscillation system; front foldable safety roll bar; lighting equipment; electric power socket and plug; unipolar socket in the dashboard and seven-way trailer socket; analogue-digital multifunctional device with engine/PTO RPM counter, hour counter, fuel gauge, temperature gauge, and alarms; adjustable padded seat with safety belts; battery isolation switch; firm steering wheel.
For more information, please download the attached brochure.
A 2-year warranty is included, with an option to upgrade to 4 years.
