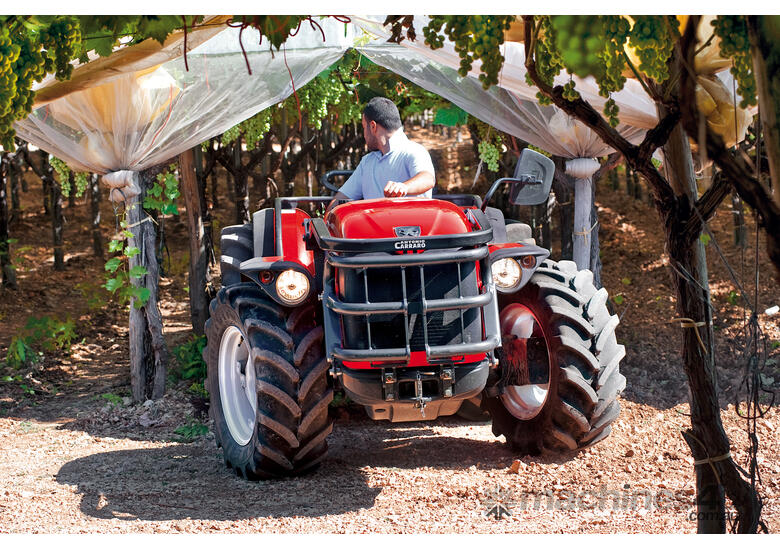

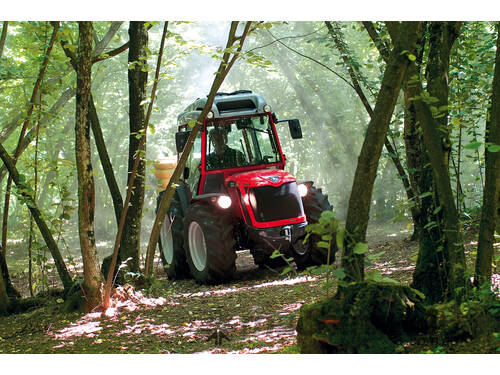

The TGF 9900, with its 89HP engine, is a super-low tractor designed for optimal maneuverability. It features larger rear wheels and smaller front wheels, which enhance handling and ensure a tight turning radius, making it ideal for navigating between rows. The TGF moves as smoothly as a panther through leafy crops, providing exceptional traction, grip, and handling, even on sloping terrain. With seven different tire combinations available, this tractor can be customized to suit various crops and terrains. Compact yet powerful, it's perfect for "Y" type orchards, vineyards under awnings, greenhouses, and chicken sheds. On sloped, rowed crops, the TGF 9900 maintains stability and balance with all types of equipment.

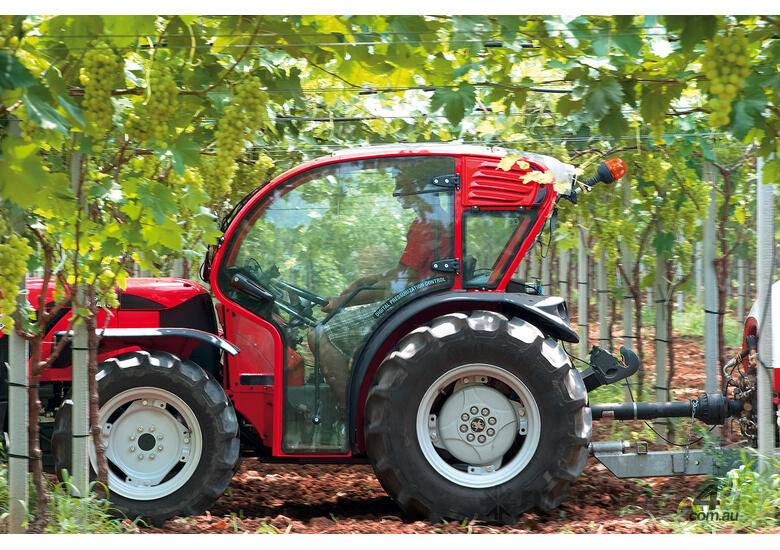

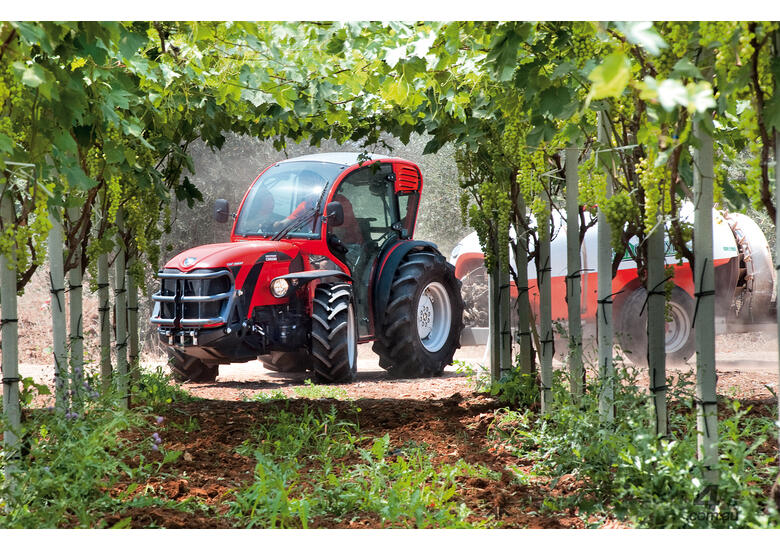

The tractor can be equipped with the classic Star Light cab or the Protector 100, a super low-profile cab with a maximum height of 1740mm. This cab offers a combination of comfort, compactness, and visibility, while fully isolating the operator from harmful fumes. The drive platform is a single, isolated monoblock. Once the doors are closed, the digitally controlled Aircontrol 2nd generation display informs the operator about cab pressurization, including internal pressure and the remaining time for active carbon filters.
The 89 HP Kubota engine is a 3760cc, direct injection, 4-cylinder turbocharged, 16-valve engine that delivers maximum power, torque, and excellent acceleration. This streamlined engine contributes to the TGF's compact design, offering great agility, traction, and grip on uneven ground, slopes, and when turning between rows of crops.
The tractor's engine panels include an air cleaner with an internal intake dry filter and a muffler inside the hood. It has a synchronized transmission gearbox with 32 speeds (16 forward and 16 reverse) and a synchronized shuttle reverser. The PTO is 540/540e independent and ground speed with progressive hydraulic engagement. Additional features include a start inhibit switch on the shuttle reverser and PTO selector, a hydraulic front/rear or rear-only differential lock, hydraulic disengagement control for the front drive wheels, and a hydraulic clutch.
For power lift and towing, the TGF 9900 has fixed lift arms with coupling balls (group 1 and 2) and a connection spring, offering a lifting capacity of 2400 kg. The front towing device is complemented by a height-adjustable rear towing device of the EEC type.
The braking system consists of hydraulic front/rear oil bath disc brakes and independent rear steering brakes. An emergency and parking brake (band type) is installed on the transmission.
For driving comfort, the tractor features a 2-cylinder hydraulic steering wheel, a digital multifunctional dashboard, and a platform chassis on Silent-block. It also includes a forward foldable front safety roll bar (R.O.P.S.), an adjustable padded ergonomic seat, an adjustable steering wheel, a rear-view mirror, and a battery isolation switch. The minimum external width is 1330 mm (with 8.25-16 front tires and 280/85 R20 rear tires).
A 2-year warranty is included, with an option to upgrade to 4 years.
