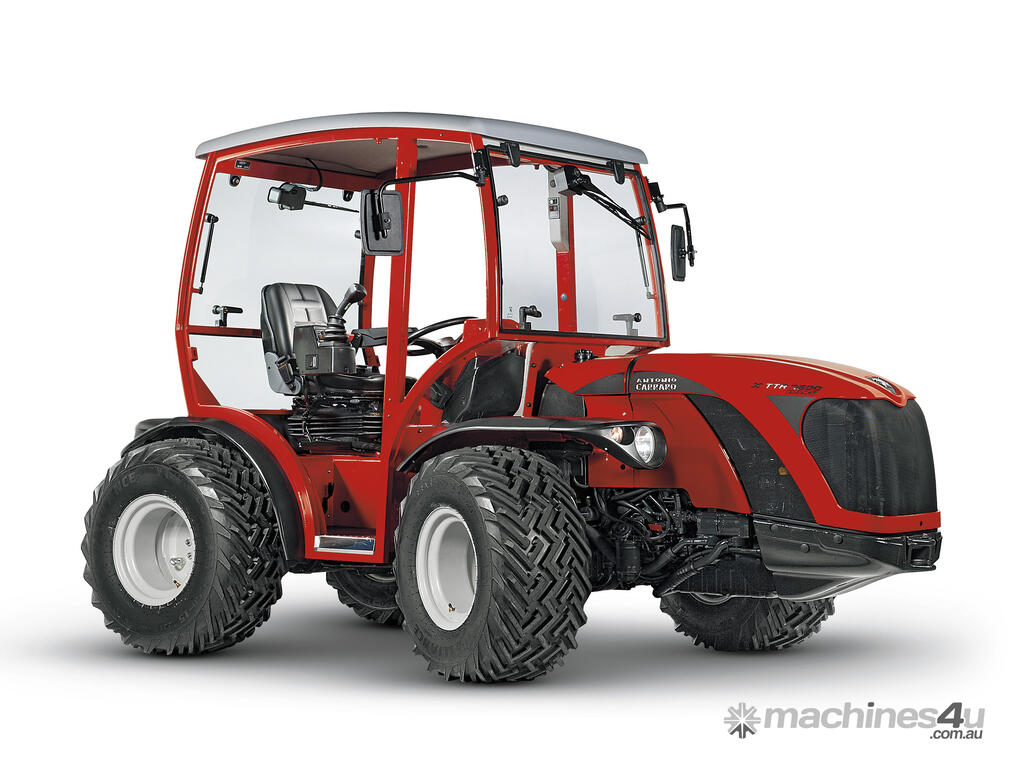

Antonio Carraro Hydrostatic 4WD 75hp Tractor: TTR 7600 Infinity

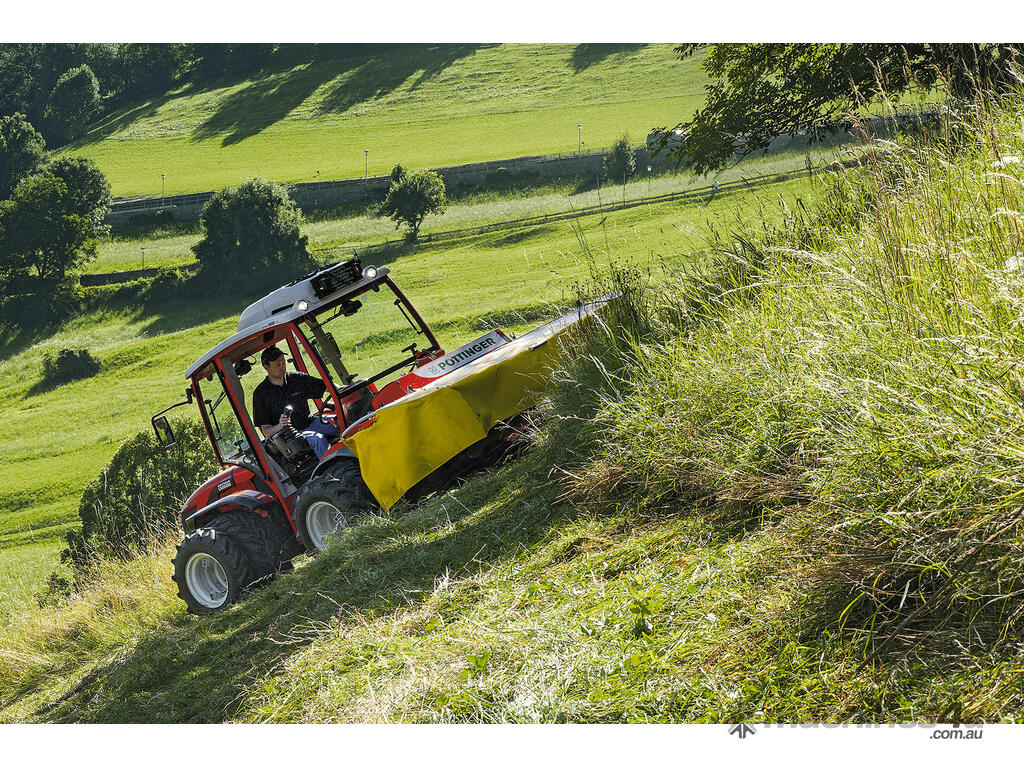

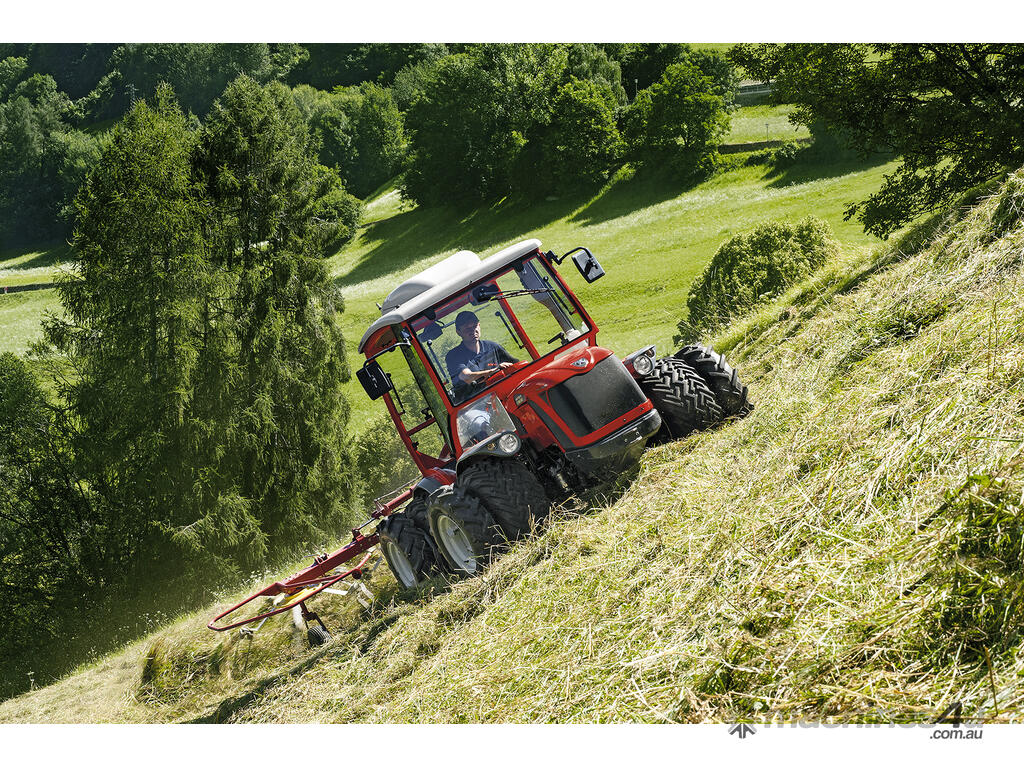

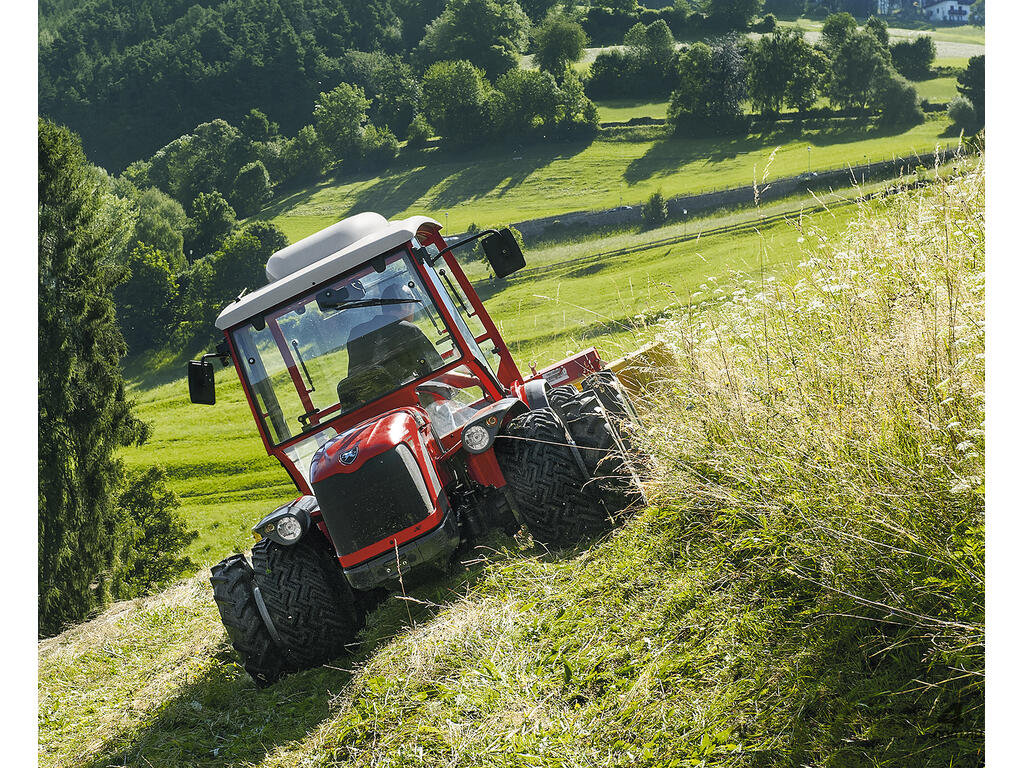

The TTR 7600 infinity (75hp), is a bifrontal multipurpose tractor a completely new model od Antonio Carraro range that sees coming together the new Infinity hydrostatic transmission to a frame with a wide-track ACTIO chassis, created for hay, mountain, or rows cultivation on slopes. The new engine is a brand-new 4-cylinder, 74-hp, turbo-fueled Kohler in Phase 3B.

The tractor with reversible drive allows you to work at the same speeds on the two fronts. It has 2 mechanical ranges (0-15 and 0-40 km / h), each with 3 hydrostatic speeds controlled by a selector on the joystick. The 3 speeds can be engaged while the vehicle is in motion without loss of traction or power failure, hence the variable hydrostatic transmission is called “infinity”.
The advances pedal assist with the braking even in slope and stops the vehicle when the throttle is released, even without the use of brakes and clutch. The reverse gear control is also available on the steering wheel lever.

The TTR 7600 Infinity represents "many machines in one", being conceptually very versatile, with endless possibilities of use, optimized by the powerful multipurpose hydraulic system and 3 point linkage operated by joystick. The “Tempomat” active system allows you to independently control motor revs and speed, keeping them constant even in the presence of discontinuous loads. The PTO is standard at 540 / 540E / 1000 opt. Independent synchro. The hydropneumatic suspension of Uniflex coaxial cylinder equipment (AC patent) ensures stability of the equipment and operating comfort even in extremely uneven terrain.

TRANSMISSION
Hydrostatic transmission with continual speed variation with 3 electric, shift-on-the-go ground speeds for each mechanical speed, electrohydraulic reverser; Mechanical selector with 2 speed range (work and dislocation); Steeples speed variator in both forward and reverse from 0 to 40 km/h; “Automotive” device; Electronic Speed and RPM Control (Cruise Control-Tempomat, combined, Diagnosis) PTO 540/540e independent and ground speed with progressive electrohydraulic engagement; Start inhibit switch on shuttle reverser, PTO selector and clutch; Electrohydraulic front/rear or only rear differential lock; Electrohydraulic disengagement control for front drive wheels; Hydraulic clutch.

HYDRAULIC SYSTEM – 3-POINT LINKAGE – POWER LIFT – TOWING DEVICE
Hydraulic system with 2 independent pumps; Auxiliary rear electrohydraulic remotes (joystick) with 2 double acting distributors (1 floating) with oil reflow and 5 rear quick couplings; ”Uniflex” hydropneumatic suspension for hydraulic power lift with 3-point linkage; Hydraulic suspension device with joy-stick ON-OFF; Lifting capacity 2400 kg; Adjustable lift arms with quick couplings group 2; Height adjustable rear towing device “EEC” type

BRAKES Hydraulic front/rear oil bath disc brakes, independent rear steering brakes; Emergency and parking brake band type transmission.

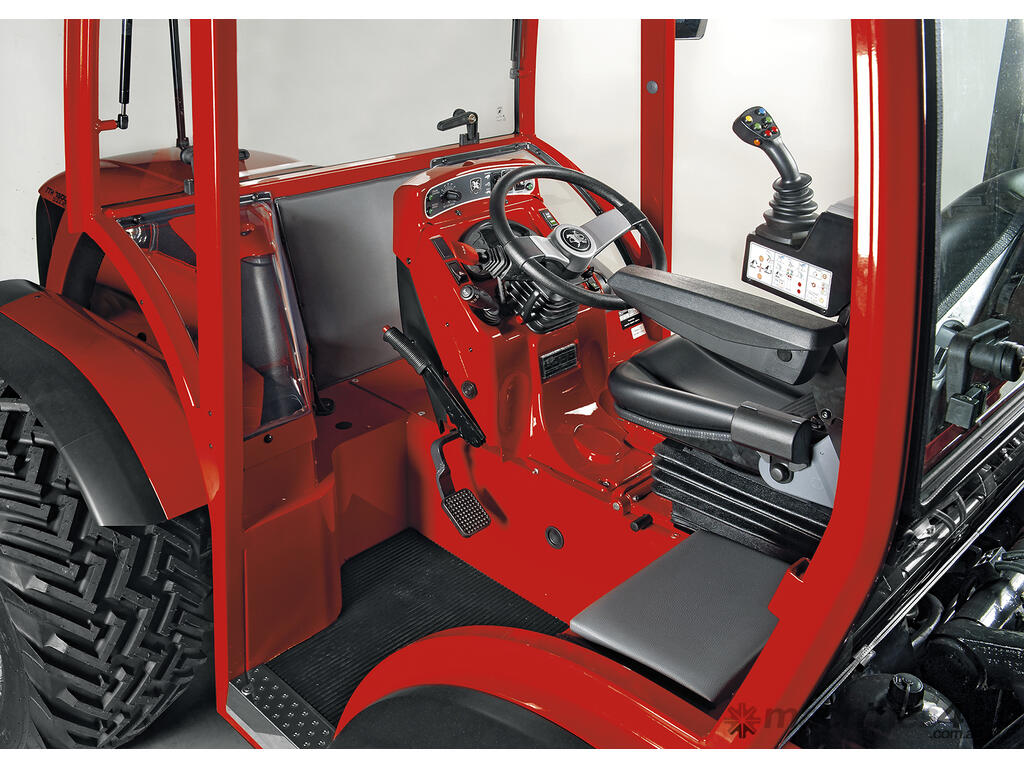

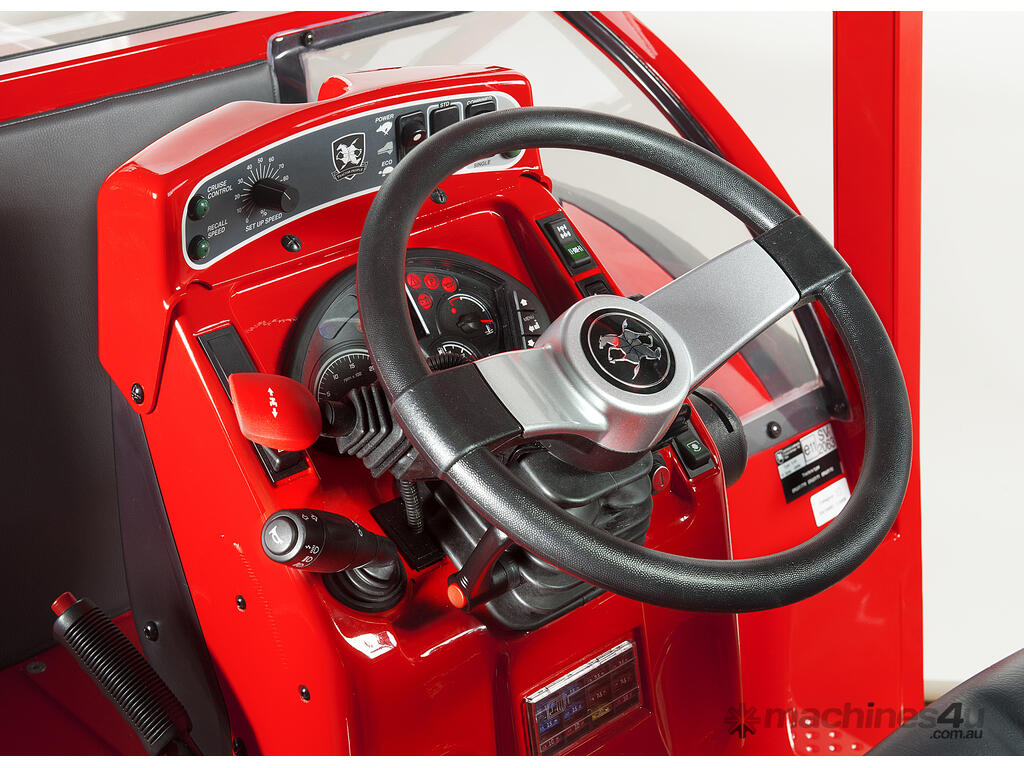

FRAME – DRIVING COMFORT Digital multifunctional dashboard with color display, led and diagnosis; 6-post safety frame fitted on “Silent-block”; Hydraulic steering wheel with through-rod cylinder; Reversible driving position; Adjustable padded seat; Safety belts; Adjustable steering wheel; rear-view mirror; battery isolation switch.

WARRANTY 2 years warranty; with the opportunity to extend the guarantee up to 4 years.
