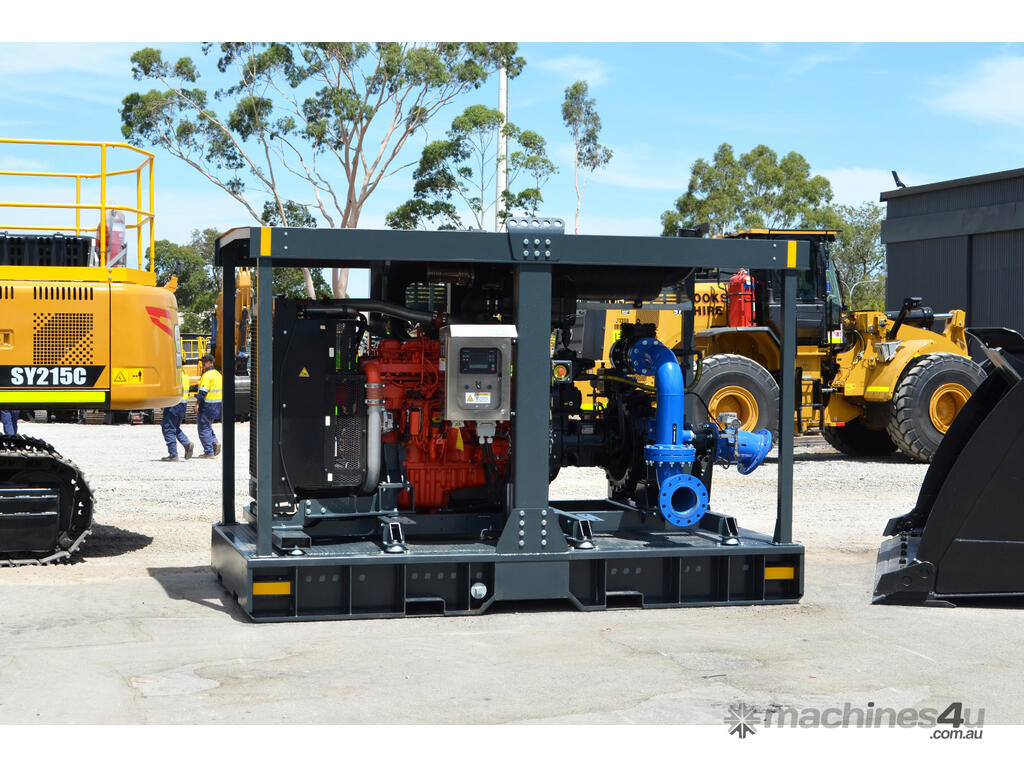

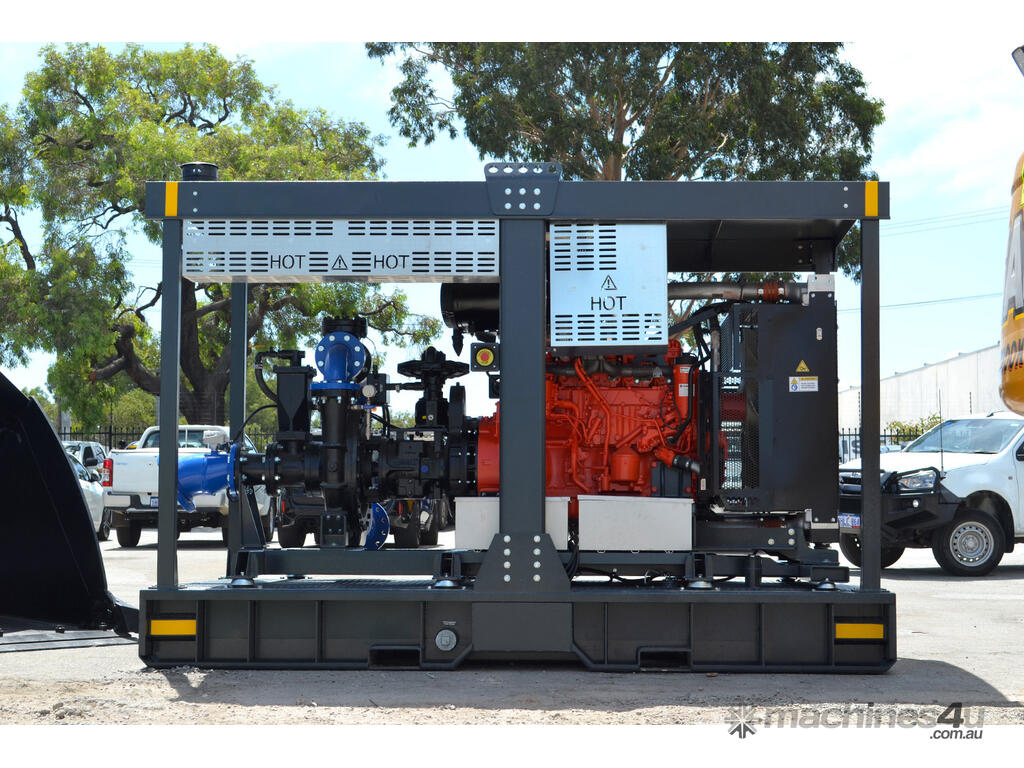

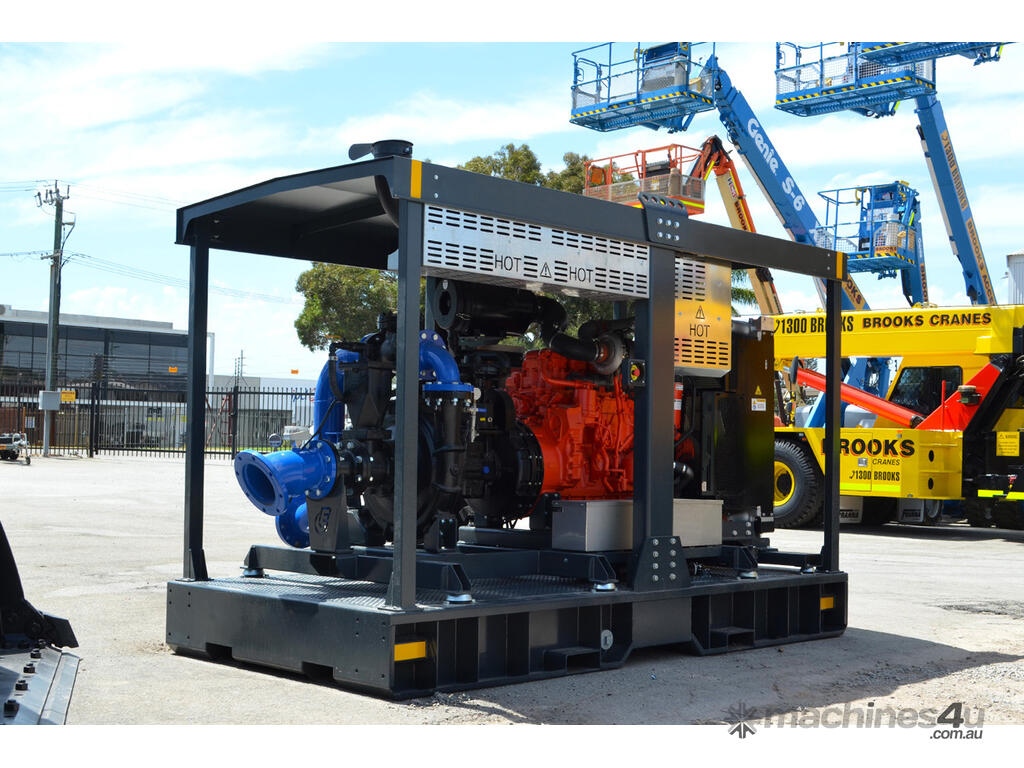

Ardita EFD 100NX Scania Dewatering Pump

Please note *LIMITED STOCK*

This world-renowned 80/180 Cornell wet end pump with duplex impeller offers back to base monitoring for remote support and vacuum prime suction assist. Suitable for pontoon or on shore pump applications, it has an inbuilt fuel tank with connections available for remote fuelling.

These heavy-duty machines cater to mine site specific high head applications, ensuring the job is completed at the highest of standards, in the most efficient time frame.

PRODUCT DETAILS

PUMP

Brand: CORNELL
Model: 4622MX- RP- EM18DB
Priming system: REDI PRIME
Option included: RUN-DRY & CYCLOSEAL
Suction flange: 6" - 150 mm
Discharge flange: 4" - 100 mm
Solid handling: 0.98" - 25 mm
Impeller type: Enclosed - 4 vanes
Impeller diameter: 21.95" - 558 mm
Impeller material: CD4MCu

ENGINE
Brand: SCANIA
Model: DC09 074A. 257 kW
Power: 257 kW - 350 HP 2.100 rpm
Displacement: 9.3 liters
Cylinders: 5 in-line
Configuration: SAE 1 - 14"
Emission: EU Stage II
Aspiration: Turbocharged

TANKFRAME
Model: Stationary double wall
Capacity: 1.000 liters
Colour: Epoxy powder RAL 7016

STANDARD SPECIFICATIONS

Version: ARDITA Design
Configuration: OPEN with steel protection roof
Characteristics:
- Heavy duty balanced lifting hook
- Integrated forklift pockets
- Strong structure version
- Towing hooks

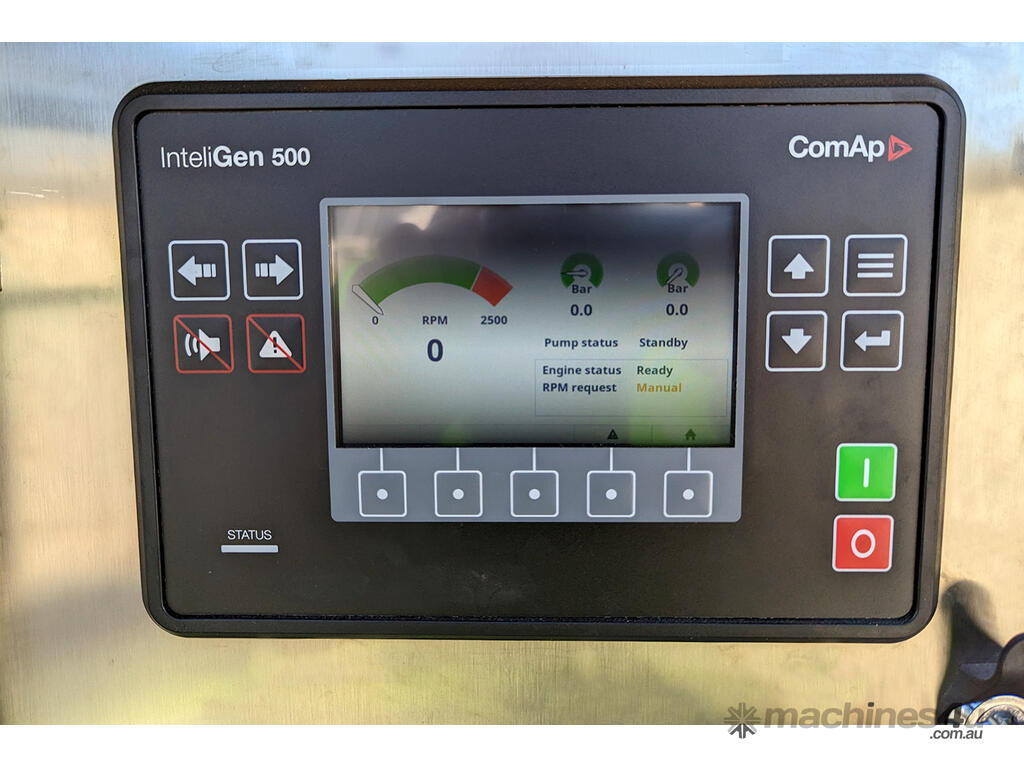

CONTROL PANEL
Brand: COMAP
Model: IPC
Protection: Stainless steel enclosure box

ACCESSORIES INCLUDED
Emergency Stop button each side
Coolant level: Murphy L150
Oil level: Murphy L129
Vacuum and pressure gauges
Battery master switch
Engine hot parts protection grids
Fuel connectors for external fuel tank
Battery steel protection box
Fuel cap steel protection box
Working led light

SUCTION & DELIVERY
Suction: Eccentric increaser 6" to DN200
Delivery: Elbow ball check valve SZUSTER DN100

DIMENSIONS & WEIGHT:
Dimensions LxWxH: 4.200 x 1.900 x 3.000 mm
Dry weight: 2.700 kg
