Arrow 450 The Carparker Agents for Qld, Vic,and Tas only

Official Agent for Arrow Kerb Machines for Queensland and Victoria, Tasmania only.

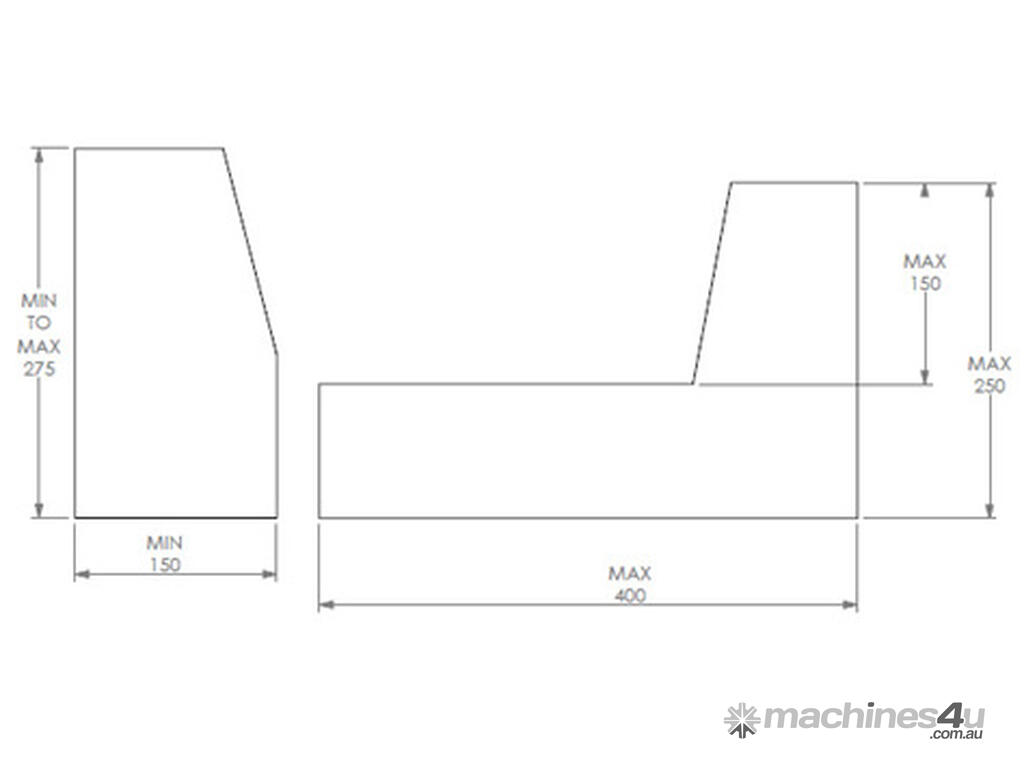

Arrow – 450 “The Carparker” is a smaller kerbing machine based on the proven Arrow – 770, but tailor-made for jobs like carparks which require shapes up to a maximum width of 450mm and where tight radii, (down to 1.3 metres, are required.

Specifications:
ENGINE: 12 ½ HP Briggs & Stratton I/C
GEARBOX: Rossi – 40:1
DRIVE: Fenner Cog Belt Drive
HYDRAULICS: Rexroth Pump and Valves, Alford Cylinders
WHEELS: 4.00 x 8 x 4 ply rating
HEIGHT & LEVEL CONTROL: Hydraulically controller cylinders
STEERING: By Manual Tiller
DIMENSIONS: L=2120mm, W=450mm, H=800mm
WEIGHT: 650kgs

The Carparker 450 is built to customer order.
Lead time is approx. 4 weeks
