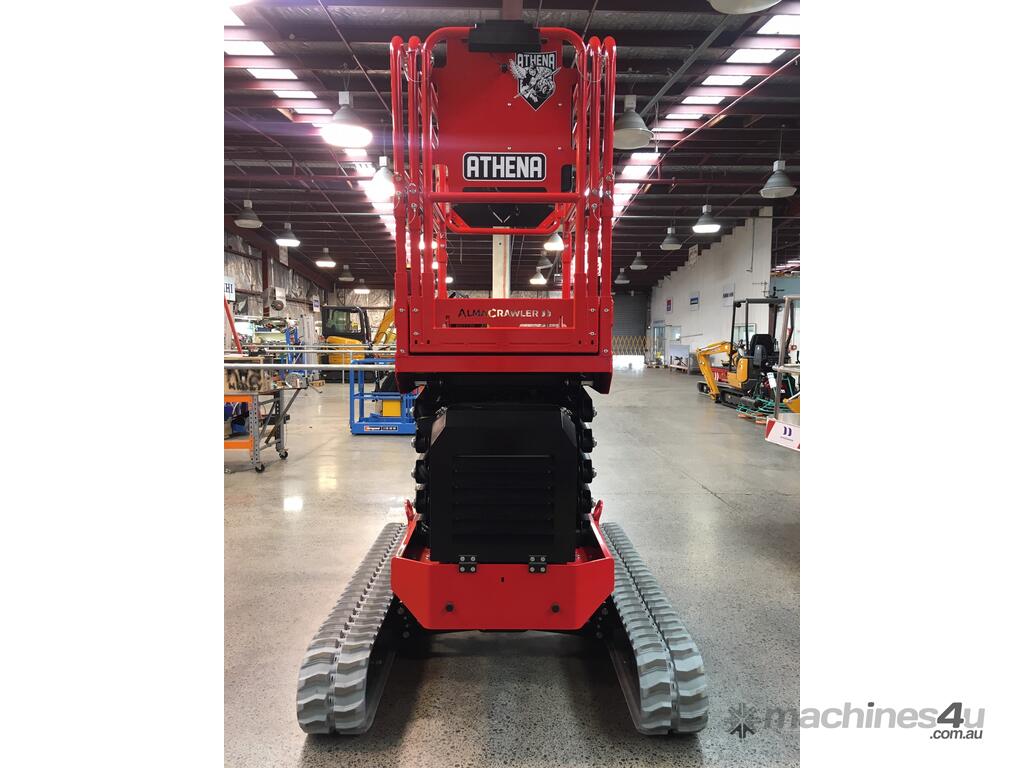

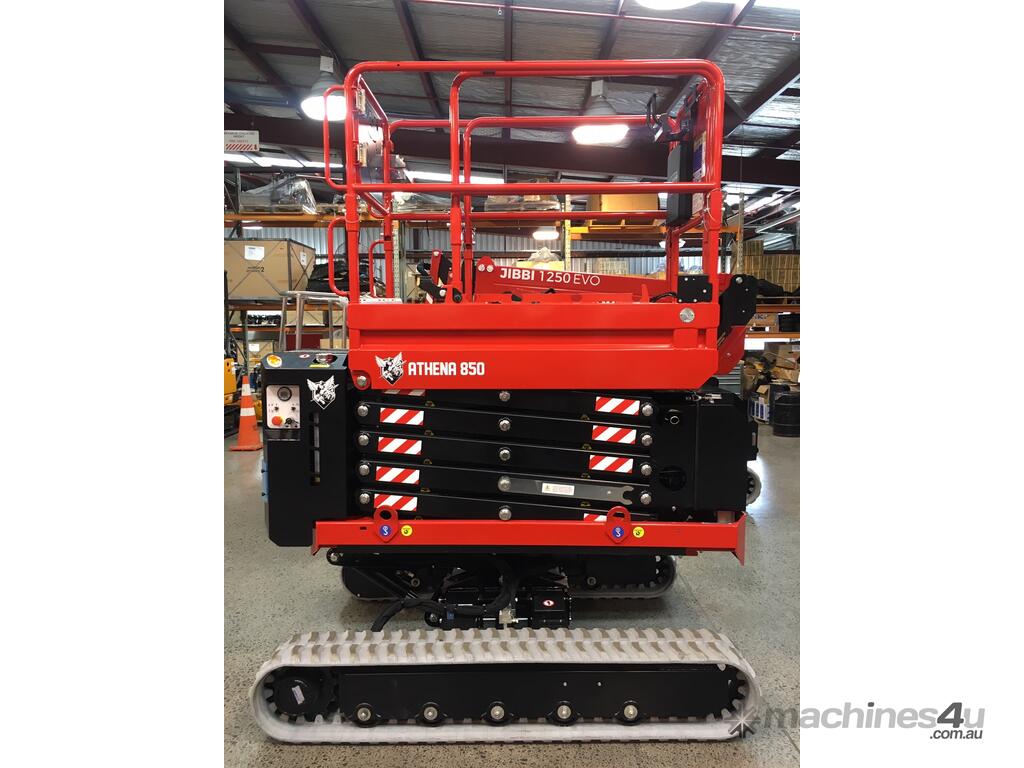

Athena 850-BL Scissor Lift 250 Kg Capacity | Can Fit 2 Operators

The mini-scissor with bi-leveLling technology for working up to 7.90 meters in height

The 850-BL scissor lift is a model capable of operating up to 7.90 meters in height. Equipped with the bi-levelling undercarriage, it is designed by a team of highly specialised professionals and will allow you to carry out numerous operations, in extremely different environments.

Why should you use this model?

The one proposed here is a high performance mini-scissor, with a capacity of 250 kg (2 operators) cabin, which is equipped with a series of technological devices, which will simplify the work activities of those operating in the relevant sector. Among the main advantages it offers, there are the following ones:

Ability to overcome any type of slope up to 20 ° longitudinally and 15 ° laterally

Versatility of use thanks to its small size
Extension capacity of up to 6m operational height without having to return to the retracted position

These features allow the machine to be used in all types of terrain, even in extreme conditions and large slope variations.

What are the optional offered?

Available in both diesel and petrol engines, you can request some excellent extras for your tracked lift, according to your specific needs that go beyond what offered by the standard machine. Specifically, the company makes available the following implementations, concerning functional or aesthetic aspects:

Extendable and retractable cabin from 0.80m x 2.21m
220V – 2.2 kW Electric engine
220V – 1000W Electric generator
Color selection

Basket capacity 250 kg (2 op.)
Max working height 7.9 m
Max height basket floor 5.9 m
Moving height 6.1 m
Lateral levelling for moving at heights +/- 4°
Powered Gasoline Honda iGX390
Powered (option) Diesel Hatz 1B40
Powered (option) –
Accelerator Automatico / Automatic
Undercarriage Bi-Levelling
Basket levelling Automatico / Automatic
Longitudinal levelling Front +/- 16°
Longitudinal levelling Rear +/- 20°
Lateral levelling +/- 15°
Power generator (option) 220V-1kW
Electric pump (option) 220V-2kW
Hydraulic commands Proporzionali /Proportionals
Direction-Control System Si / Yes
Easy-Drive System Si / Yes
Kit for high speed max 2.20 km/h
Ground emergency Si / Yes
Control of inclination Automatico / Automatic
Gradeability 25°
Side slope 21°
Lenght 1.94 m
Width 1.30 ÷ 1.50 m
Minimum machine height with folded railings 1.98 m
Total weight 1990 kg
Compliance EN 280, ANSI, CSA, ASNZS1418
