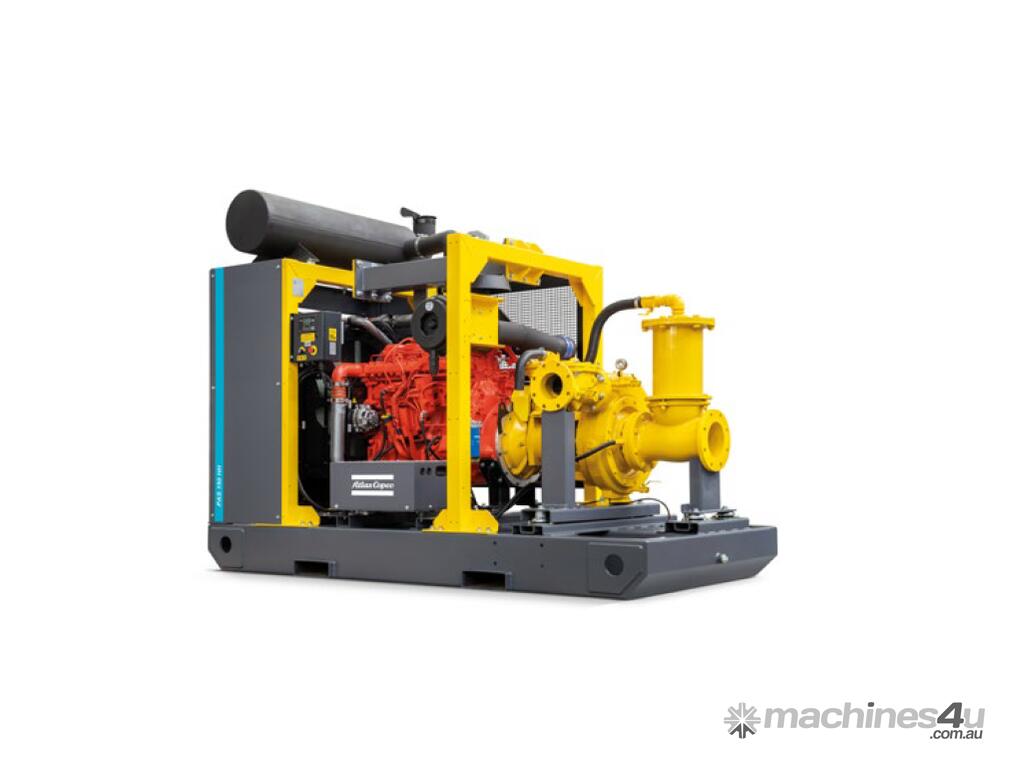

Atlas Copco PAC H108 Centrifugal Pump

Available as a Canopy or open set - the PAC H108 pump system consists of a centrifugal pump and a separator, which enables air to be separated from the liquid and be sucked by a vacuum pump - making automatic priming possible. Even with suction heights of several meters the machine rapidly evacuates the air from the suction pipe and starts to pump. Additionally, thanks to the semi-open impeller, the PAS HF range is also suitable for pumping liquids with solids in suspension. For more information - please refer to the attached Atlas Copco PDF brochure

Additional Benefits

Pump - (High efficiency: 82% (B.E.P.)
Rapid “dry” priming - Up to a height of 7,5 m (24.6 ft)
High resistance - To abrasive liquids and turbid sandy waters
Closed impeller - Solids handling up to 89 mm (3.5")
Diaphragm vacuum pump - Suitable for dry running: no contamination of the environment
Mechanical shaft seal in oil bath - It allows the “dry running” operation of the pump
