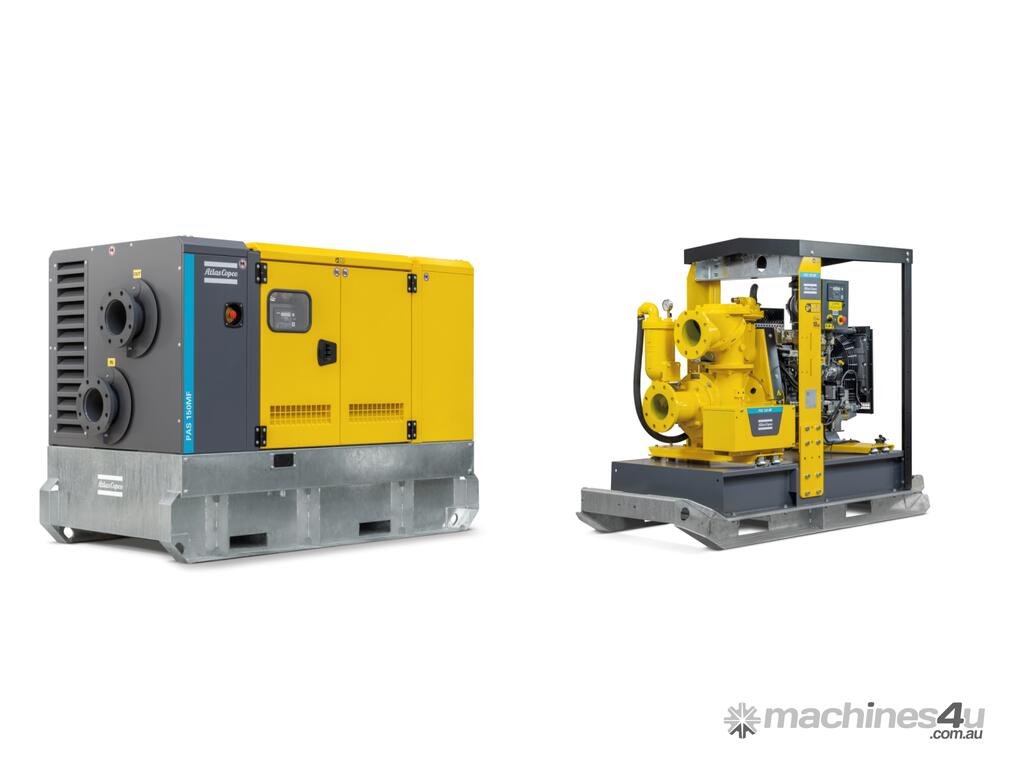

Atlas Copco PAS100HF Centrifugal Pump

The Atlas Copco PAS 100HF self-priming centrifugal pumps are for applications where the main feature is the difficulty in priming. With suction heights of several meters the machine can evacuate air under the various performance loads onto impeller.

The PAS(HF) range contains features that not only meet, but exceed the needs of the market. It has been designed to be extremely efficient and versatile making it suitable for many industries, such as construction, general dewatering and emergency applications.

Benefits

Pump - (High efficiency: 70% (B.E.P.)
Rapid “dry” priming - Up to a height of 7.5 m (24.6 ft)
High resistance to abrasive liquids and turbid sandy waters
Semi-open impeller. Solids handling up to 76 mm (3")
Diaphragm vacuum pump - Oil free suitable for dry running: no contamination of the environment
Mechanical shaft seal in oil bath - It allows the “dry running” operation of the pump
Wear plate - Cast iron (G11 rubber lined) or stainless steel wear plate, that is easily replaceable
Easy maintenance - Hinged cover for direct access to the impeller (without lifting devices). Link belt quick to replace on the field.
