Atlas Copco PAS100MF Centrifugal Pump

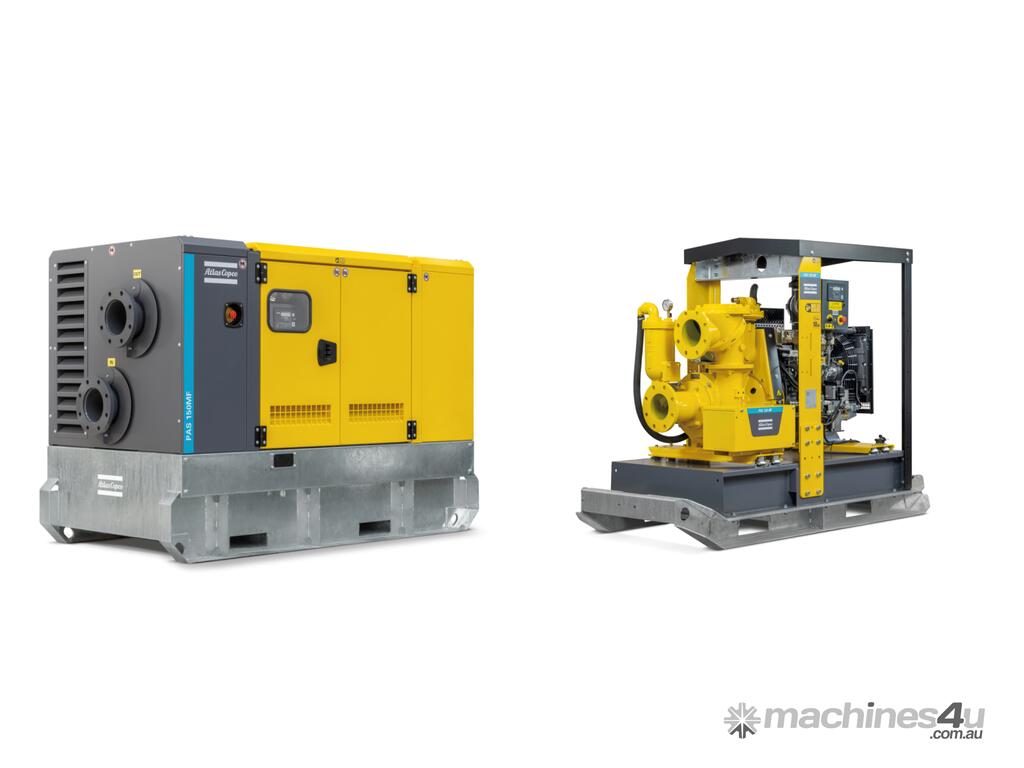

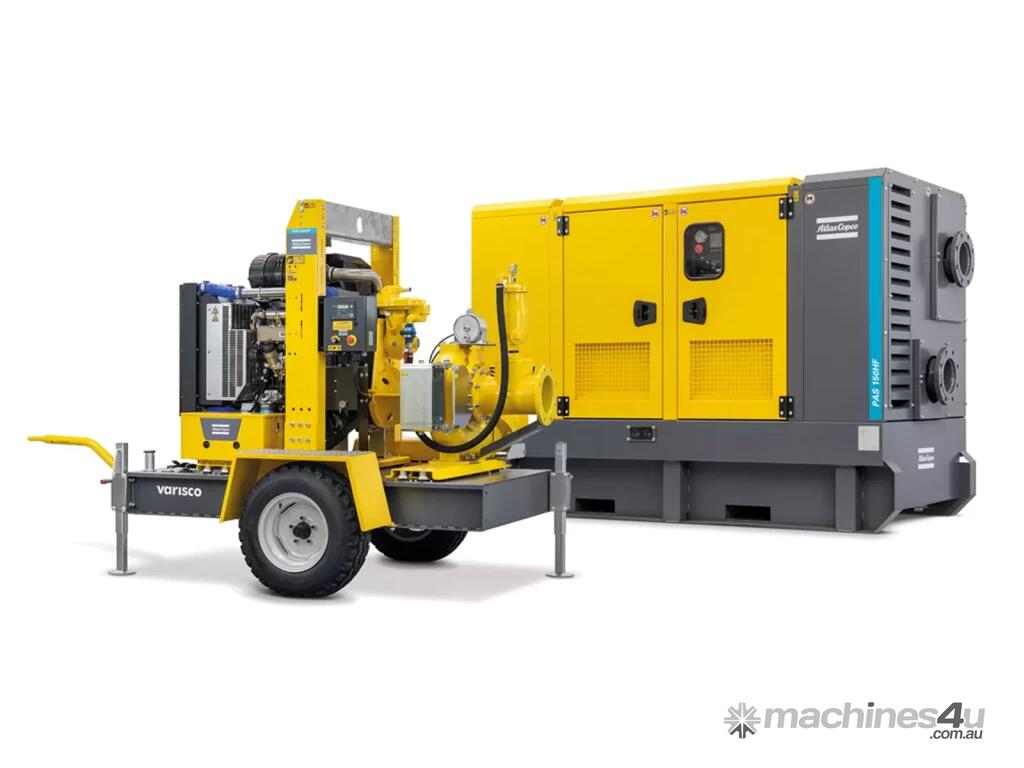

Available as a Canopy or open set - the PAS100MF pumping system consists of a centrifugal pump and a separator, which enables air to be separated from the liquid and be sucked by a vacuum pump - making automatic priming possible. Even with suction heights of several meters the machine rapidly evacuates the air from the suction pipe and starts to pump. Additionally, thanks to the semi-open impeller, the PAS HF range is also suitable for pumping liquids with solids in suspension. For more information - please refer to the attached Atlas Copco PDF brochure

Benefits

Pump - High efficiency: 70% (B.E.P.)
Rapid “dry” priming - Up to a height of 7,5 m (24.6 ft
High resistance - To abrasive liquids and turbid sandy waters
Semi-open impeller- Solids handling up to 50 mm (2")
Diaphragm vacuum pump - Oil free suitable for dry running: no contamination of the environment
Mechanical shaft seal in oil bath - It allows the “dry running” operation of the pump
Wear plate - Cast iron (G10 rubber lined) or stainless steel wear plate, that is easily replaceable
Easy maintenance - Hinged cover for direct access to the impeller (without lifting devices). Link belt quick to replace on the field.
